10 X DC-005 DC Power Charger Plug 5.5mm x 2.1mm Jack Socket Female PCB Mount

Application Type: Power Source

Number of Items in Set: 10

Plug Type: DC Jack

Output Type: DC

Compatible Product: Power Source

Maximum Input Current: 1 A or Less

Suitable For: Power Source

Colour: Black

Current Type: DC

Termination Type: Tabs

Compatible Mounting Style: PCB

Connection Type: DC Jack

Number of Outlets: 1

Plug Size: 5.5x2.1mm

Compatible Mounting Type: PCB

Maximum Compatible Appliance Wattage: 0-30W

Mounting Style: PCB

Warranty: 30 Days

For: Power Source

Input Voltage: 0-30VDC

Mounting Type: PCB

Brand: Daier

Type: DC Connector

Product Type: Wire Terminals & Connectors

Connector Style: DC Jack

Suited For: Power Source

Country/Region of Manufacture: China

Application: Power Source

UPC: Does not apply

10 X DC-005 DC Power Charger Plug 5.5mm x 2.1mm Jack Socket Female PCB Mount. Sent with Australia Post regular Letter no tracking number included.

• Specification

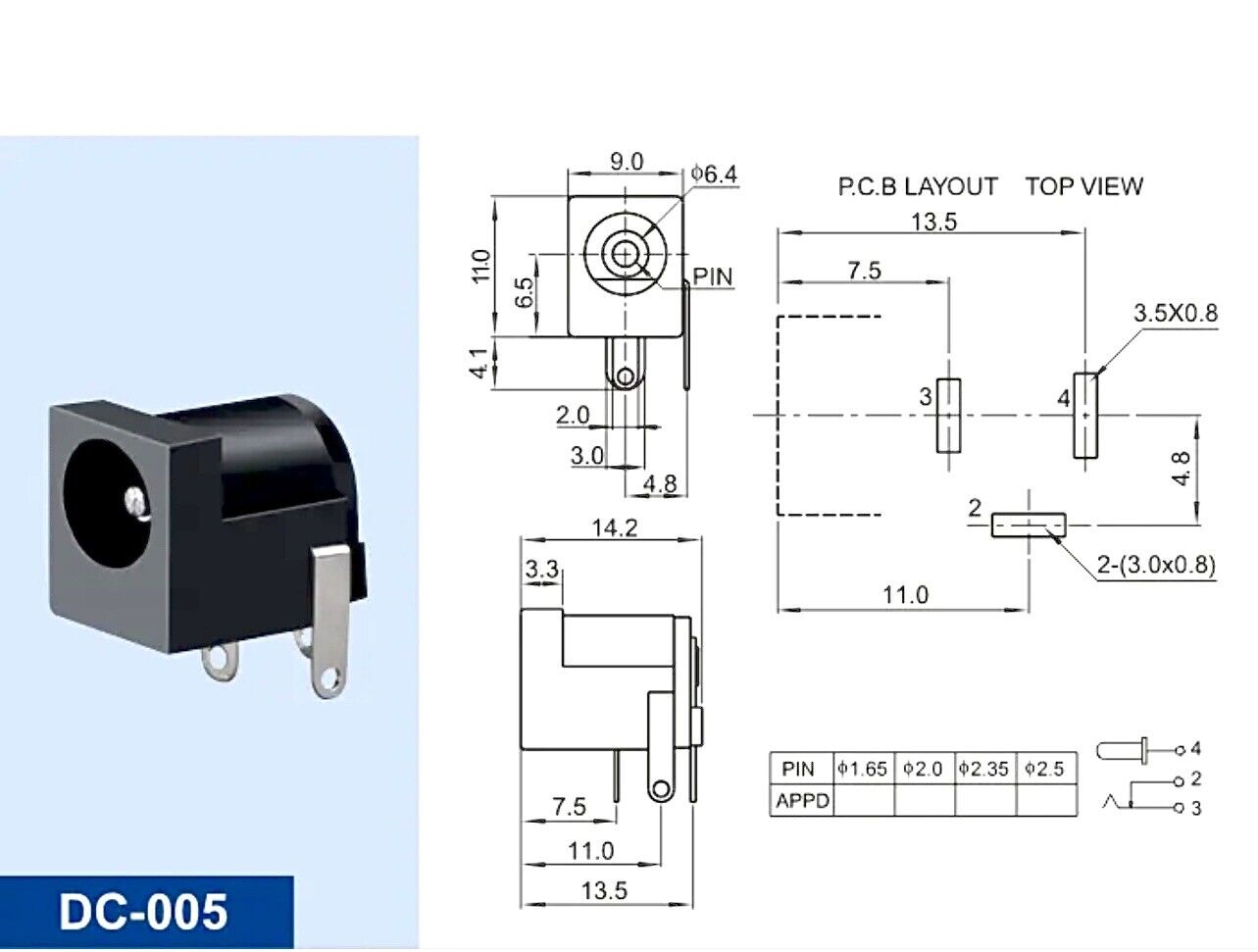

DC-005 DC Power Jack

• Parameter:

Material : Metal, Plastic

Color : Silver Tone,Black

Plug Type: 5.5 x 2.1mm; Pin: 3

Rated load: DC 30V / 1.0A

Insulation resistance: >=100M¦¸

Withstand voltage: AC 500V (50Hz)/min

Actuating force: 3N – 20N

Life: 5000 times

DC-005 DC Power Jack Application

Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio, etc.

Package of 10 pieces
