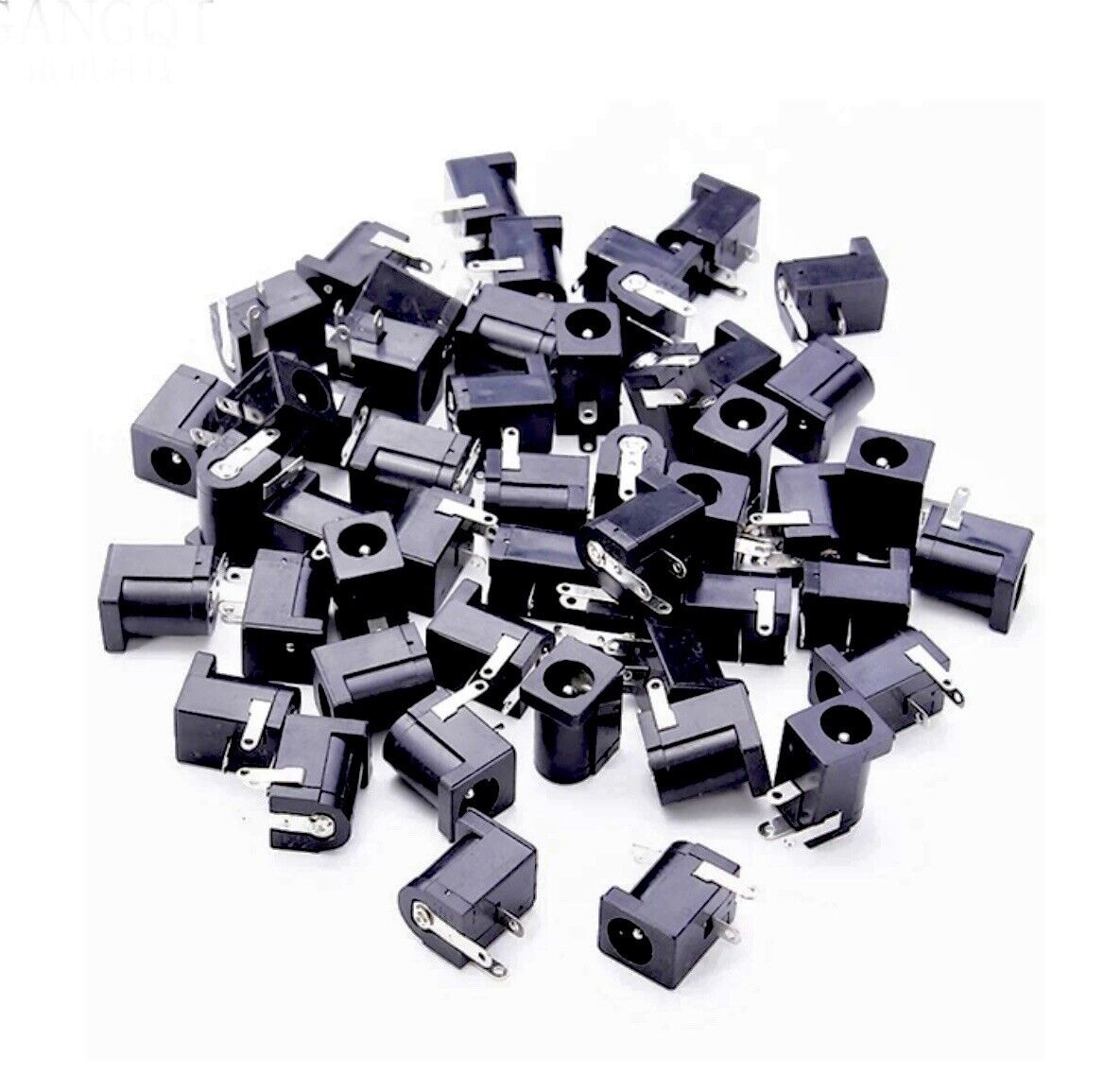

10 X DC-005 DC Power Charger Plug 5.5mm x 2.5mm Jack Socket Female PCB Mount DIY

Application Type: Power Source

Number of Items in Set: 10

Plug Type: DC Jack

Output Type: DC

Compatible Product: Power Source

Maximum Input Current: 8A or Less

Suitable For: Power Source

Colour: Black

Current Type: DC

Termination Type: Tabs

Compatible Mounting Style: PCB

Connection Type: DC Jack

Number of Outlets: 1

Plug Size: 5.5mm X 2.5mm

Compatible Mounting Type: PCB

Maximum Compatible Appliance Wattage: 101-300 W

Mounting Style: PCB

Warranty: 30 Days

For: Power Source

Input Voltage: 0-48VDC

Mounting Type: PCB

Brand: Daier

Type: DC Connector

Product Type: Wire Terminals & Connectors

Connector Style: DC Jack

Suited For: Power Source

Country/Region of Manufacture: China

Application: Power Source

UPC: Does not apply

10 X DC-005 DC Power Charger Plug 5.5mm x 2.5mm Jack Socket Female PCB Mount. Sent with Australia Post regular Letter no tracking number included.

• Specification

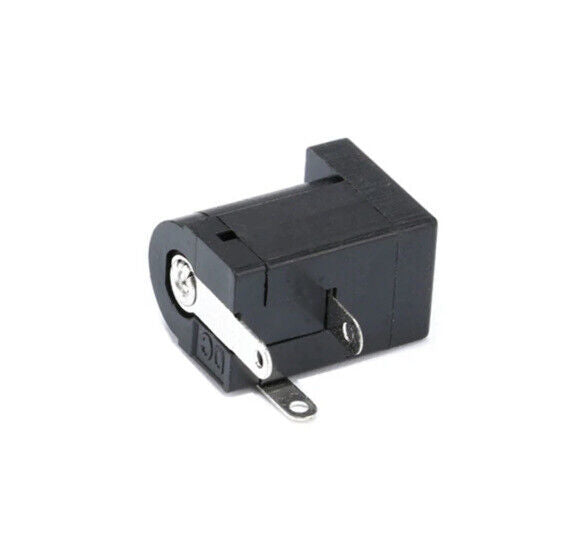

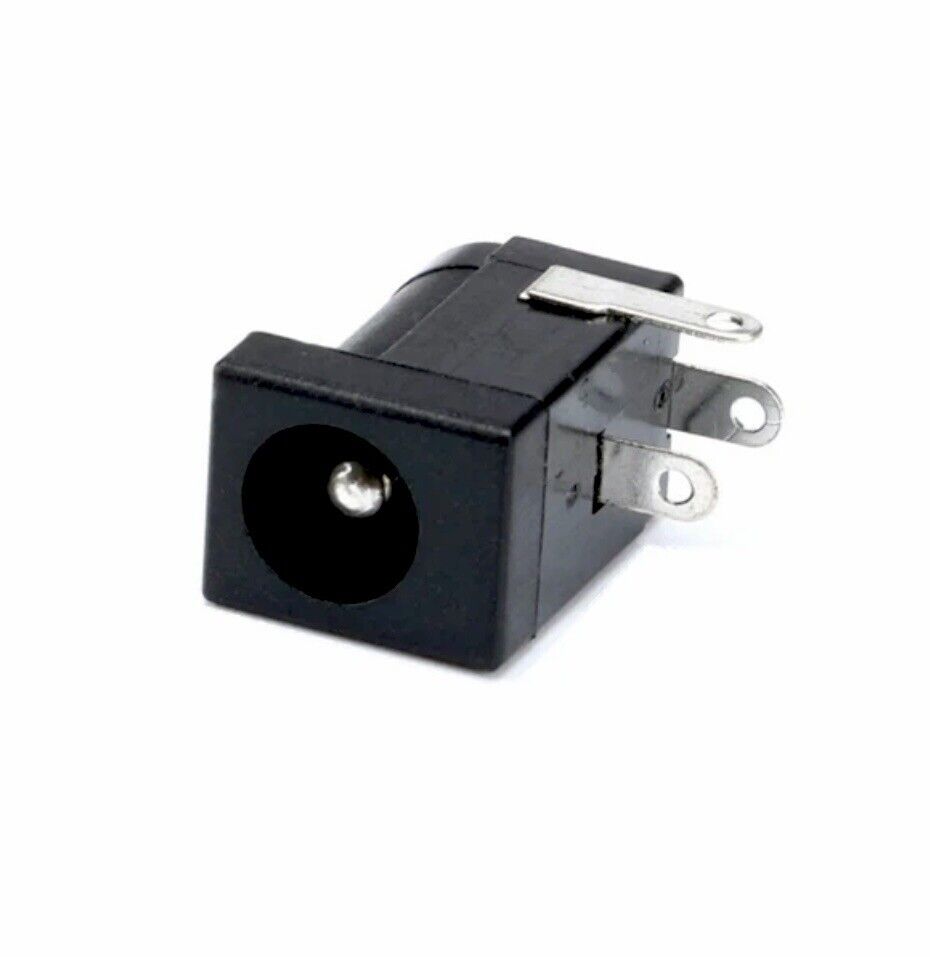

DC-005 (5.5 x 2.5) DC Power Jack

• Parameter:

Material : Metal, Plastic

Color : Silver Tone,Black

Plug Type: 5.5 x 2.5mm; Pin: 3

Rated load: DC 48V / 8.0A

Insulation resistance: >=100M¦¸

Withstand voltage: AC 500V (50Hz)/min

Actuating force: 3N

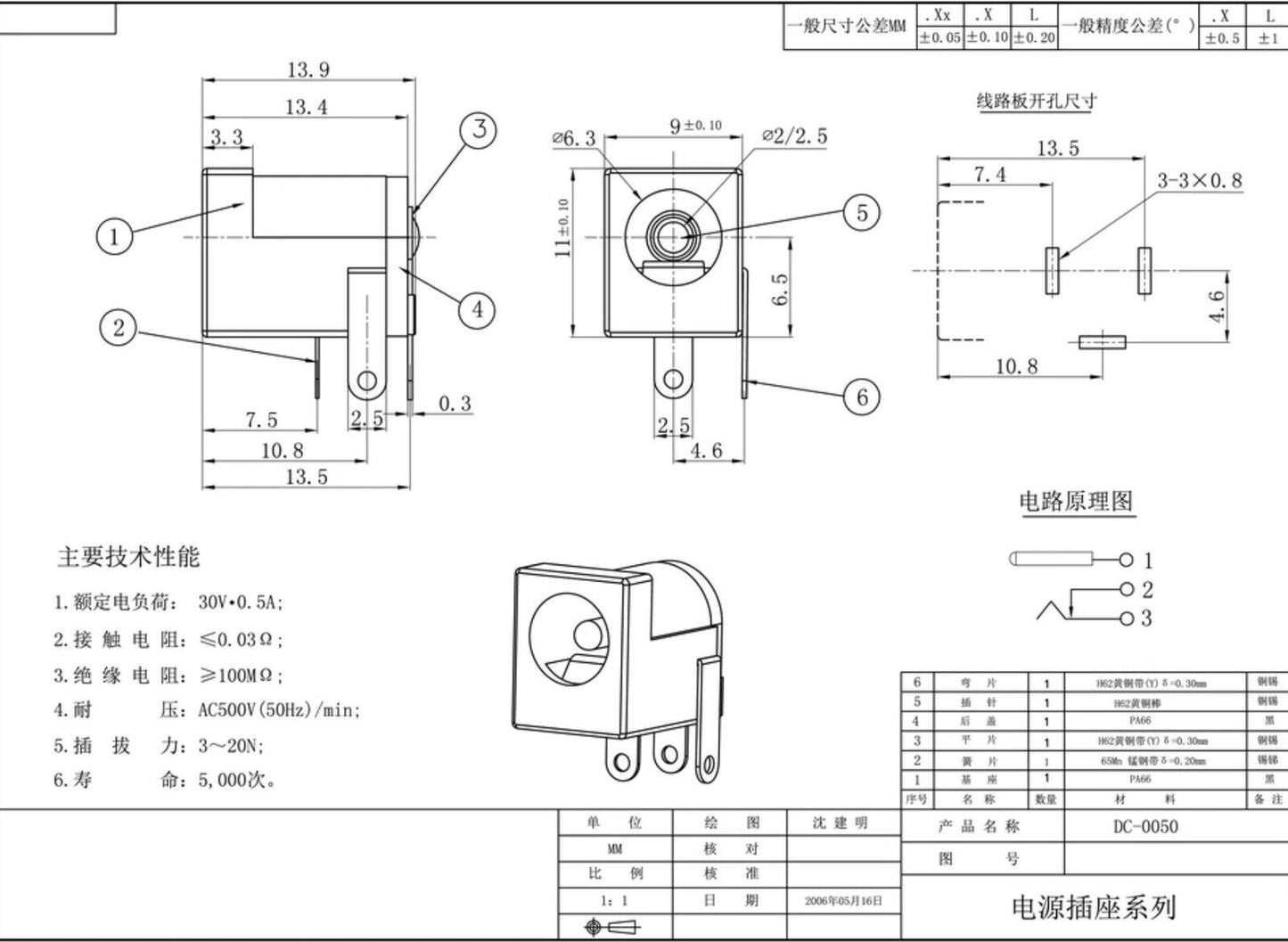

Specifications

connector style: jack

connector # of contacts: 2

connector center pin Ø: 2.5 mm

connector type: dc

features: PCB

mounting style: thru hole

connector outer Ø: 5.5 mm

current rating: 8.0 A

shield: unshielded

voltage rating: 48 V

operating temperature: -20~70 °C

cycle rating: 5000 cycles

connector length: 14.3 mm

connector color: black

connector plating: nickel

Media Player, MP3 Player, MP4 Player, Audio-Video Equipment, AV Equipment, Note Book, Cellular Phone, Mobile Phone, Cell Phone, Smart Phone, PDA, Car Audio, etc.

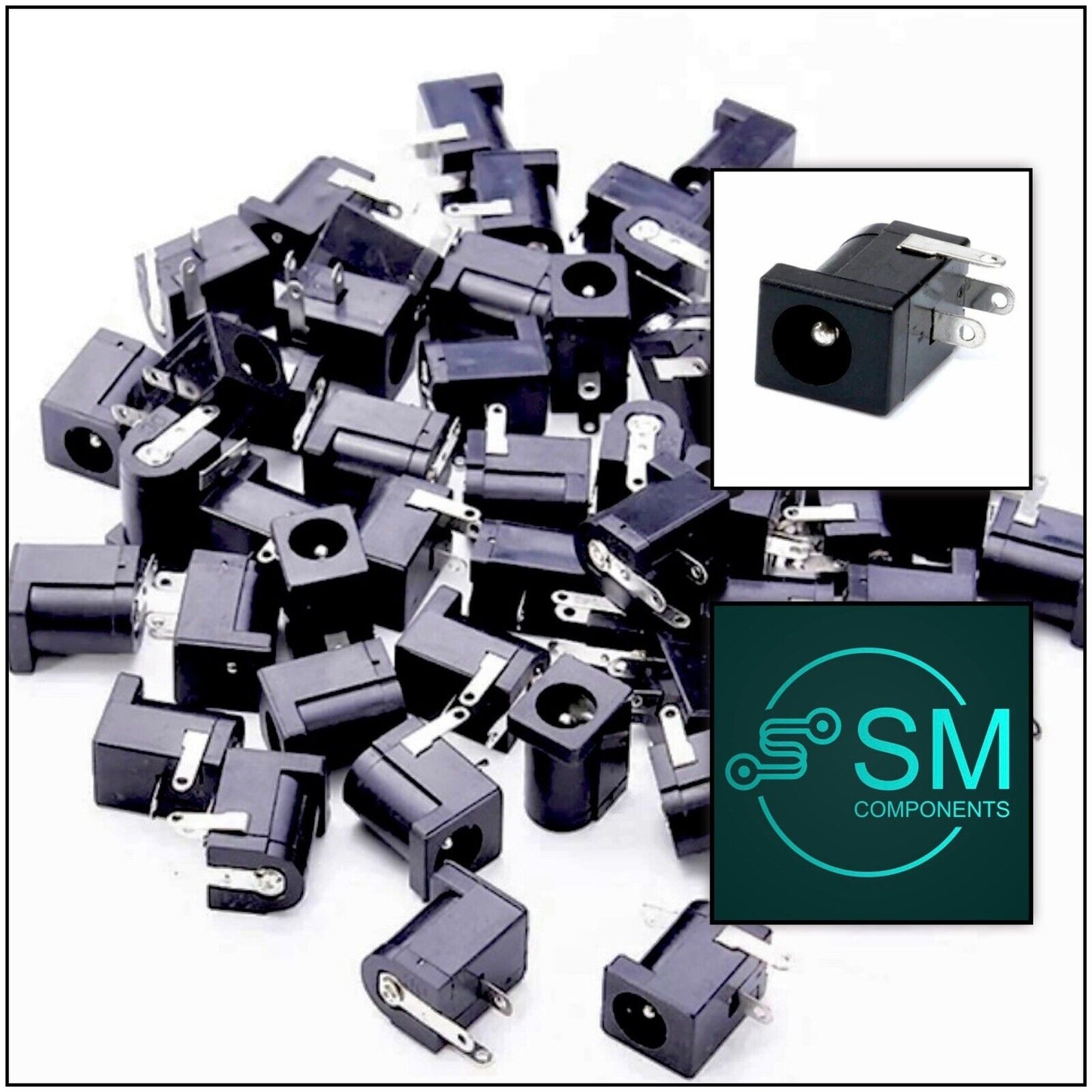

Package of 10 pieces
