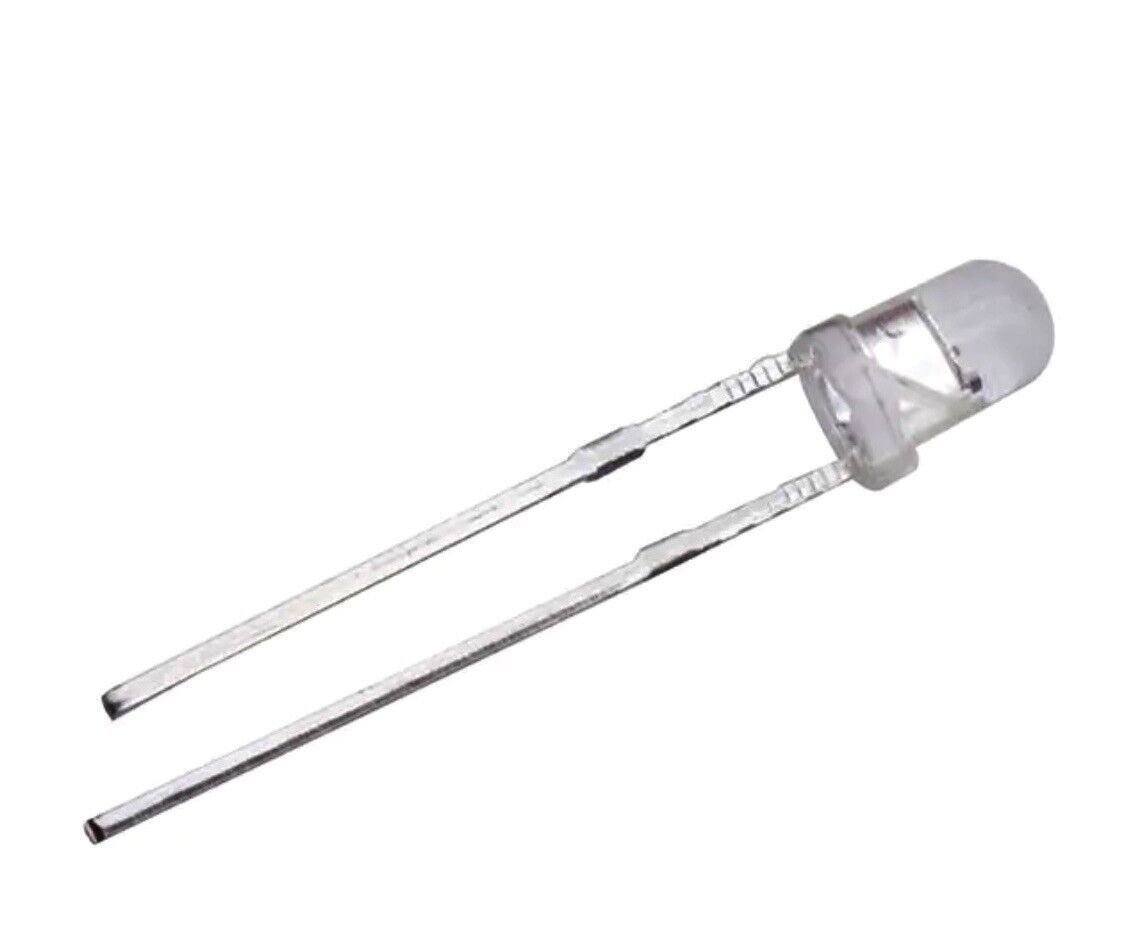

100pcs 3mm LEDS 4-12V leds Light Emitting Diodes Round Clear NO RESISTOR LED

100pcs 3mm LEDS 4-12V leds Light Emitting Diodes Round Clear NO RESISTOR LED

Regular price $13.27 AUD
Regular price Sale price $13.27 AUD
Sale Sold out
Shipping calculated at checkout.
Colour

Mounting Style: Through-Hole

Nominal Current Rating: 20 mA

Configuration: Single

Viewing Angle: 30-35°

Lens Surface: Clear

Lens Shape: Round

Item Diameter: 3 mm

Nominal Voltage: 4V - 12V DC

Item Length: 30mm

Brand: SM Components

Type: General LED

Number of Pins: 2

Packaging: Antistatic Bag

LED Colour: Blue Green Yellow Red Cool White Warm White

Number of LEDs: 100

Country/Region of Manufacture: China

Forward Voltage: 12 V

100pcs 3mm LEDS 4-12V leds Light Emitting Diodes Round Clear NO RESISTOR REQUIRED.

Sent with Australia Post regular Letter no tracking number included.


The LEDs Light Emitting Diodes use a built in resistor encapsulated under the clear resin running is series with the dye chip. The forward voltage is recommended at between 8-12VDC,

but will happily light from about 4VDC.

The led is set out in an identical configuration as a standard led, Long pin (ANODE PIN +)

and shorter pin (CATHODE PIN -).

The flat in the lip of the resin also signifies CATHODE.

Any questions please feel free to message.
