Unbranded

100PCS SK6812 WS2812B RGB 3535 Individually Addressable LED Chip light DC 5V DIY

100PCS SK6812 WS2812B RGB 3535 Individually Addressable LED Chip light DC 5V DIY

Regular price $15.54 AUD
Regular price Sale price $15.54 AUD
Sale Sold out
Shipping calculated at checkout.

Mounting Style: Surface Mount

Nominal Current Rating: 60 mA Total

Configuration: Triple Chip

Viewing Angle: 120°

Lens Shape: Flat

Lens Surface: Clear

Nominal Voltage: 5 V

Package/Case: LED Chip

Brand: Unbranded

Series: 3535 SMD

Type: Multi-Chip Based LED

Unit Type: Unit

Number of Pins: 4

Packaging: Tape & Reel

LED Colour: RGB

Number of LEDs: 100

Unit Quantity: 100

Country/Region of Manufacture: China

Forward Voltage: 5 V

Item Width: 3.5mm X 3.5mm

100PCS SK6812 WS2812B RGB 3535 Individually Addressable LED Chip light DC 5V DIY. Condition is "Brand New". Sent with Australia Post Standard Parcel.

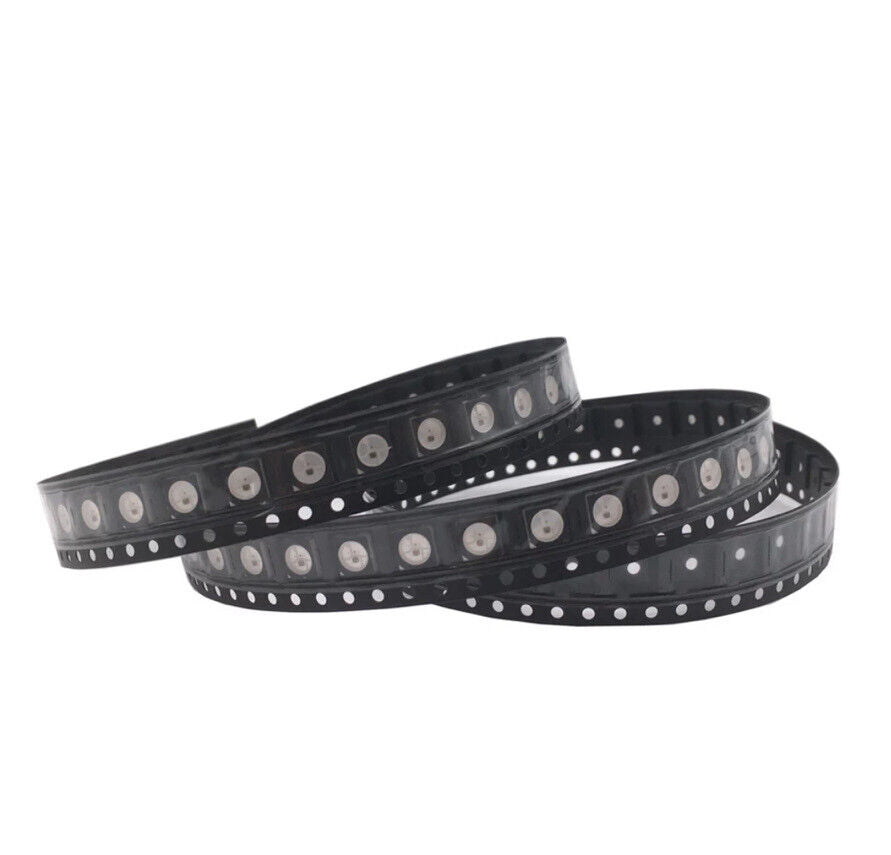

THIS LISTING IS ONLY FOR THE INDIVIDUAL LED CHIPS, NOT THE LED STRIP!! YOU WILL RECEIVE 100 LEDS IN PLASTIC LOADER TAPE.

WS2812B is an intelligent control LED light source that the control circuit and RGB chip are integrated in a package of 3535 components. Its internal include intelligent digital port data latch and signal reshaping amplification drive circuit. Also include a precision internal oscillator and a 5V voltage programmable constant curre-nt control part, effectively ensuring the pixel point light color height consistent.


The data transfer protocol use single NZR communication mode. After the pixel power-on reset, the DIN port receive data from controller, the first pixel collect initial 24bit data then sent to the internal data latch, the other data which reshaping by the internal signal reshaping amplification circuit sent to the next cascade pixel through the DO port. After transmission for each pixel?the signal to reduce 24bit. pixel adopt auto resha-ping transmit technology, making the pixel cascade number is not limited the signal transmission, only depend on the speed of signal transmission.


LED with low driving voltage, environmental protection and energy saving, high brightness, scattering angle is large, good consistency, low power, long life and other advantages. The control chip integrated in LED above becoming more simple circuit, small volume, convenient installation.

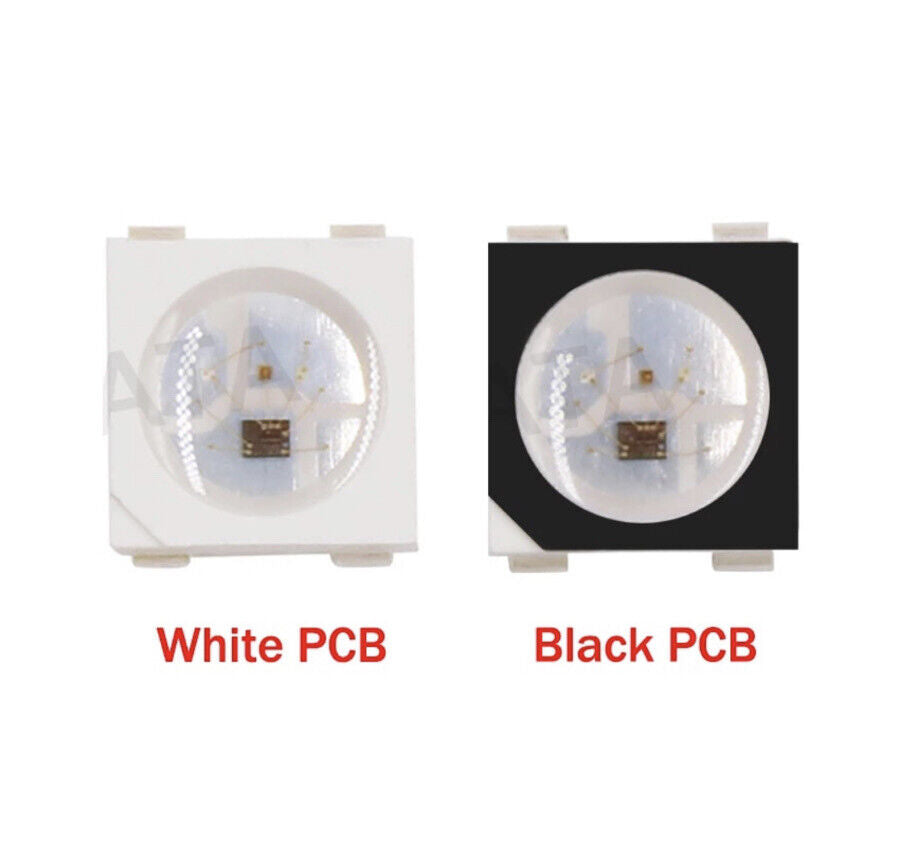

  • PLEASE NOTE: LISTING IS FOR WHITE FACE LED CHIPS!

Product Description


Voltage: 5.0V

Watt:0.3W

Current: 20ma per color, 60mA total at full brigtness

RGB (R 620-630nm/G 515-525nm/B 460-470nm)

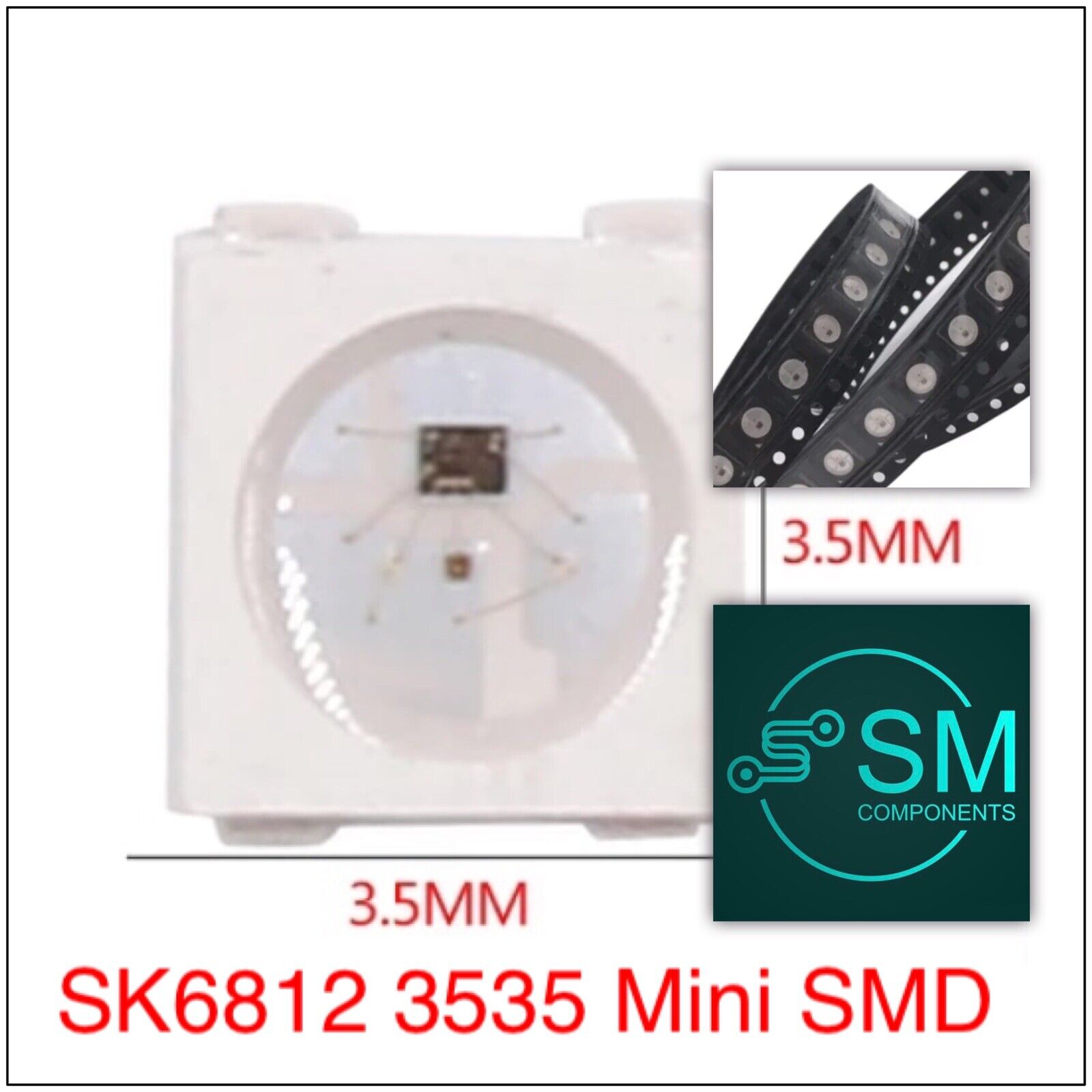

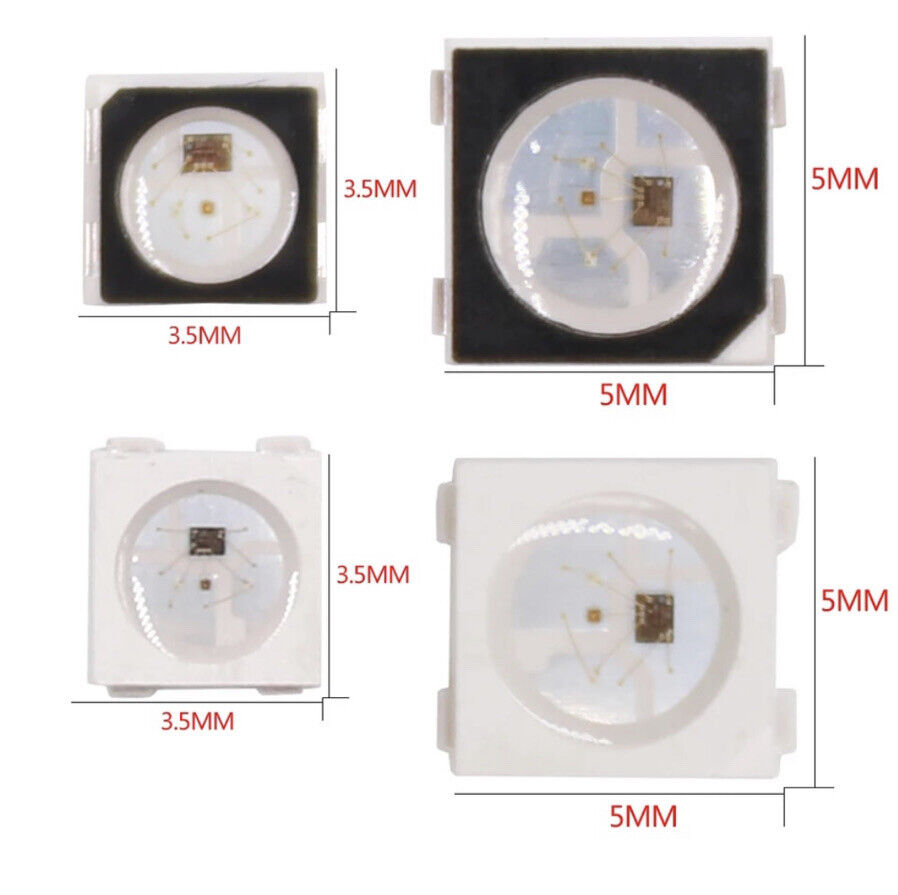

SMD3535 size: 3.5*3.5mm(Mini)

SMD5050 size: 5.0*5.0mm

Viewing angle: 120 degree.
