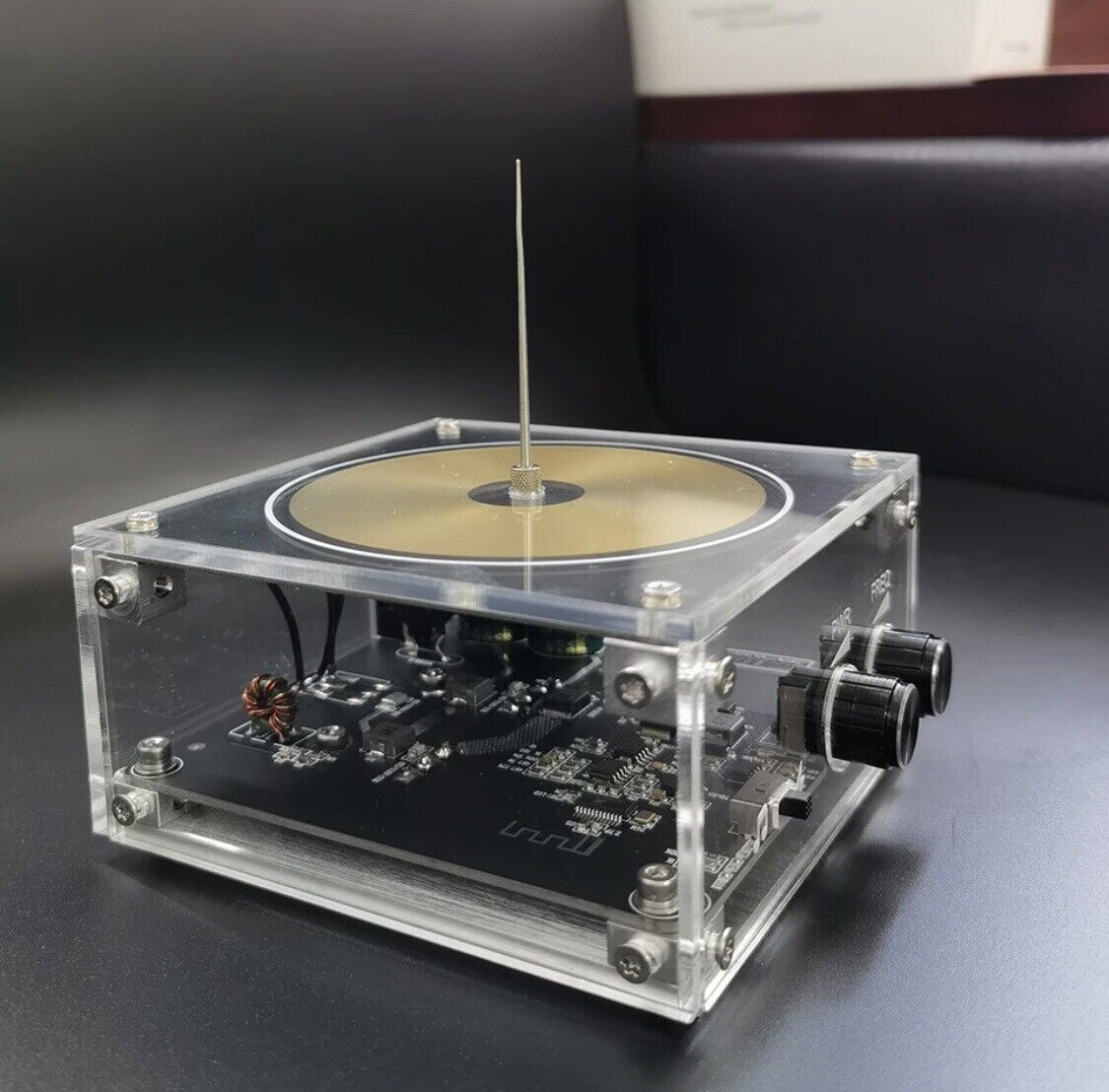

10CM SSTC Flat Music Tesla Coil High Frequency and High Voltage 48/2A With BT

Brand: Unbranded

Type: SSTC flat Tesla Coil

EAN: Does Not Apply

Connectivity: 5.5x2.1 DC Jack

UPC: Does Not Apply

MPN: Does Not Apply

Features: Music Bluetooth

Compatible Product: Speaker

100mm Flat Tesla Coil Plasma Speaker Electronic Kit 100 watts DIY. Condition is "Brand New".sent with Australia Post, including tracking number.

———————————————————————-

THE BLACK AND GOLD SCREEN PRINT ON THE TOP OF THE UNIT MAY VARY SLIGHTLY IN SIZE. THE OVERALL PERFORMANCE IS UNCHANGED.

This unit is very similar to our other flat Tesla coils. It is definitely up there with the better units.

There is nothing else to buy, comes with Australian plug power supply.

Tablet (Acrylic cover + Bluetooth)

The desktop level integration mini solid Tesla coil products, the first stage are made of PCB, abandon the traditional solenoid secondary Tesla coil, highly integrated, cleaner and safer.

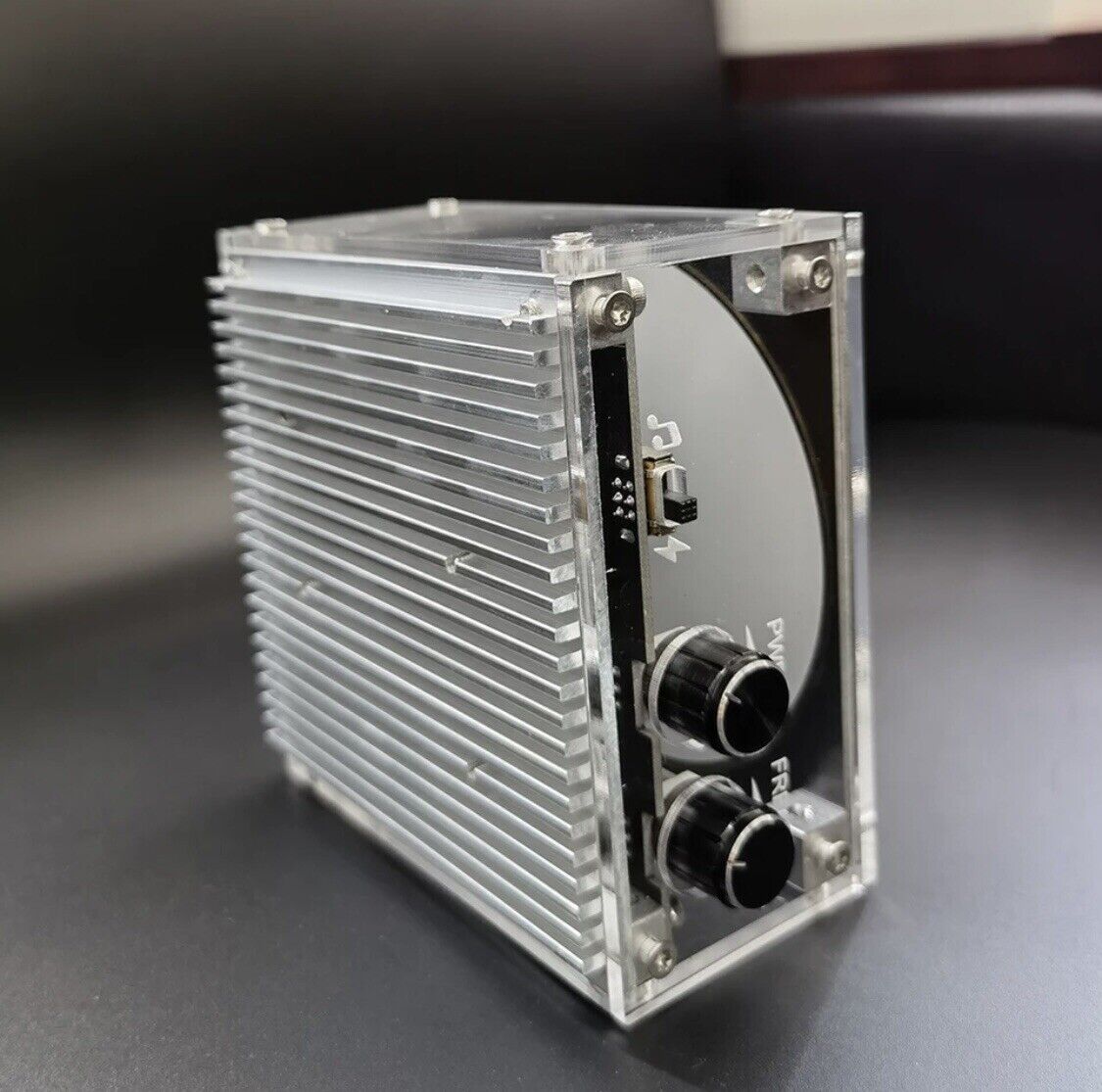

The power supply is a DC power adapter, a set of power supply, no other accessories required,no grounding. Compared to the 240v grid into the tesla coil, it is more stable, and began to make a mains fans know, tesla coil into the utility of tesla power tube due to high pressure spikes easy to damage the power supply only 48 volts dc, only the mains rectification after one 6, heat sink with a temperature control switch, the power also have over-current protection, music mode pulse width do the restrictions, multiple protection.The disadvantage is that there is no fan to dissipate heat (because the heat is very low), do not run for too long at maximum power to avoid high temperature control protection.

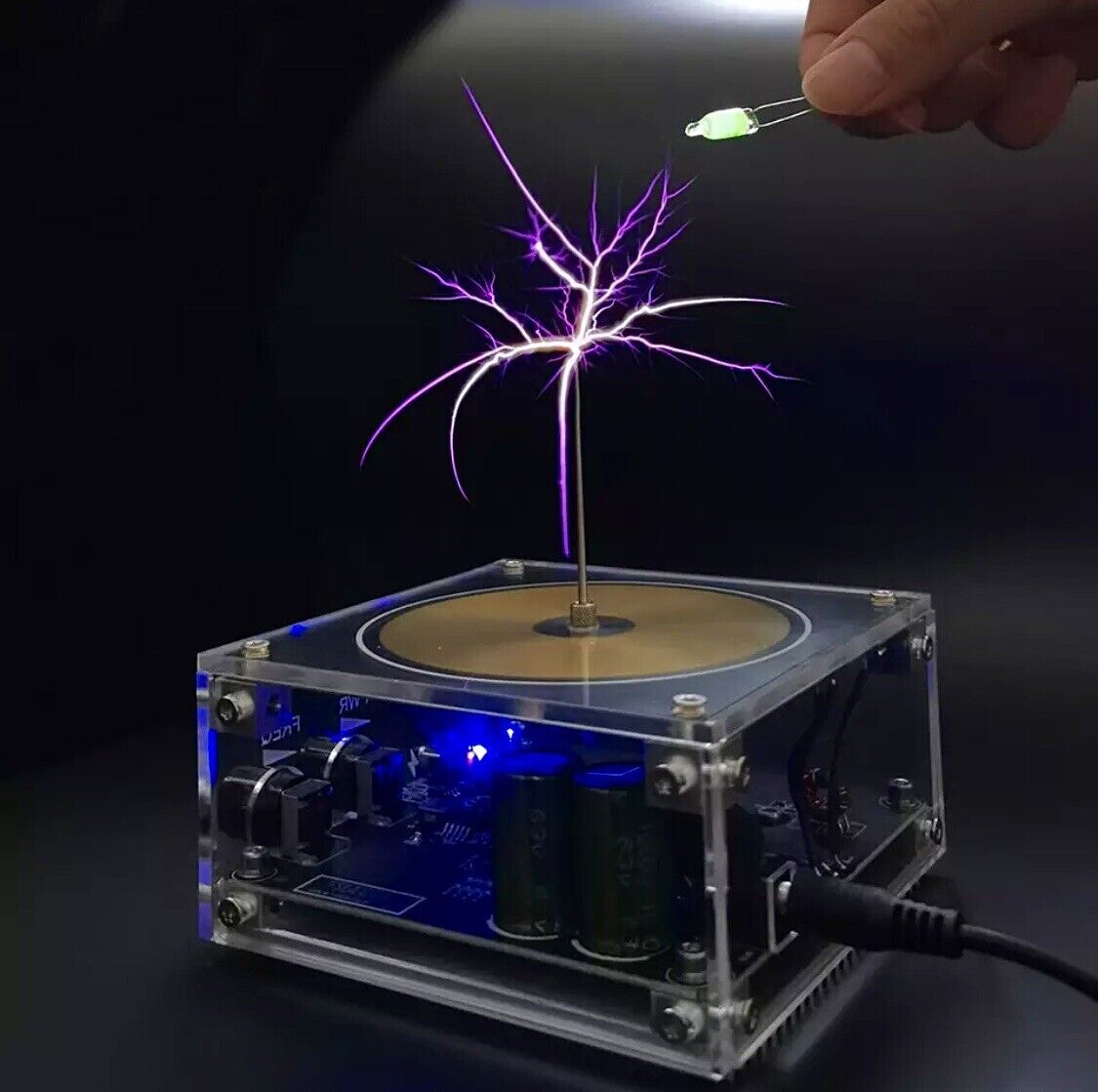

Just twist an electric needle, plug it in, and experience the magic of palm lightning.Square wave music can be played to increase its playability.

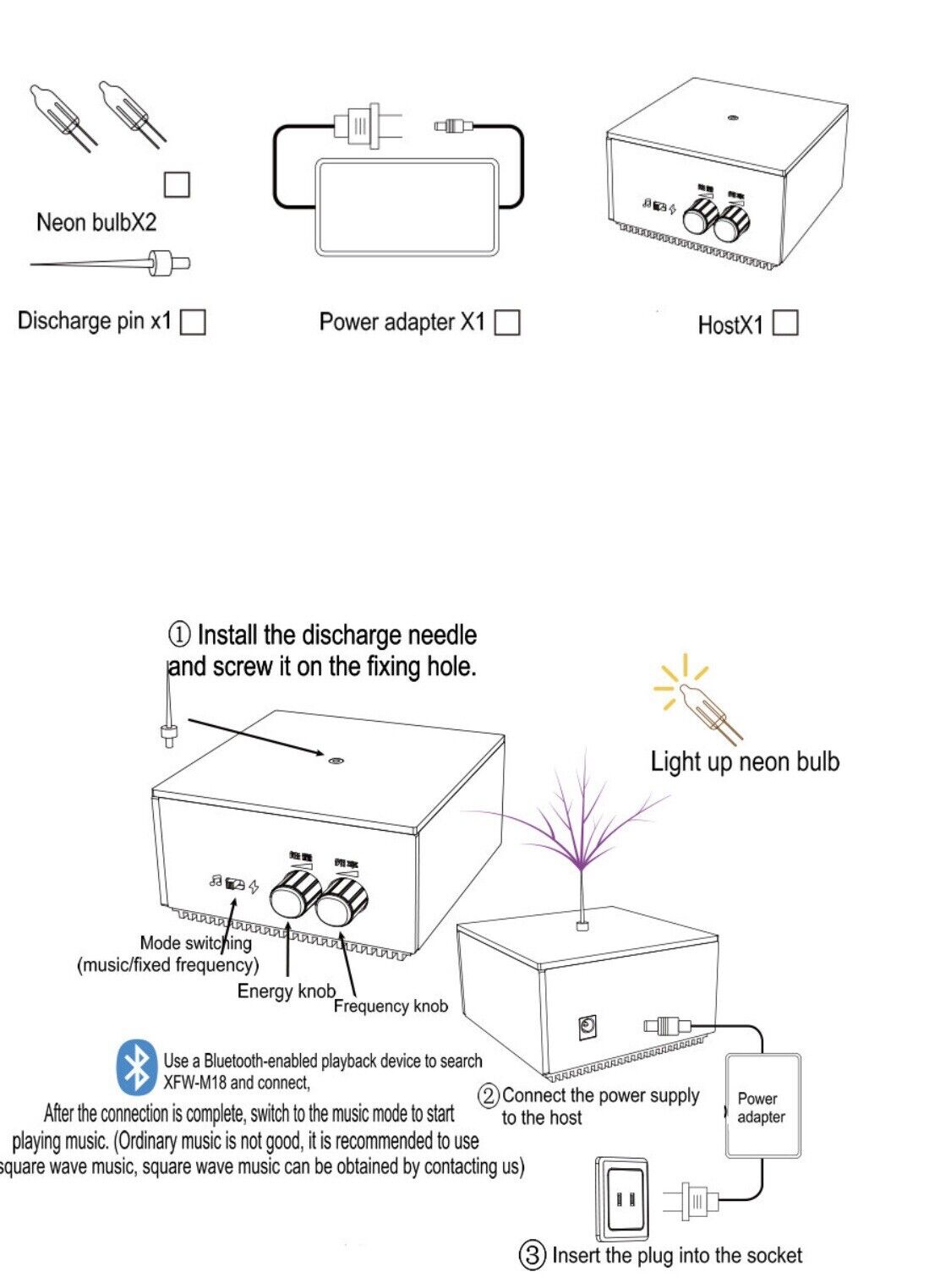

The left side of the switch is fixed frequency mode, the knob can adjust the arc frequency and size

To the right of the switch is the music mode. Just use the audio cable to link the phone's sound and play it loud. The arc button should be turned on to the minimum first

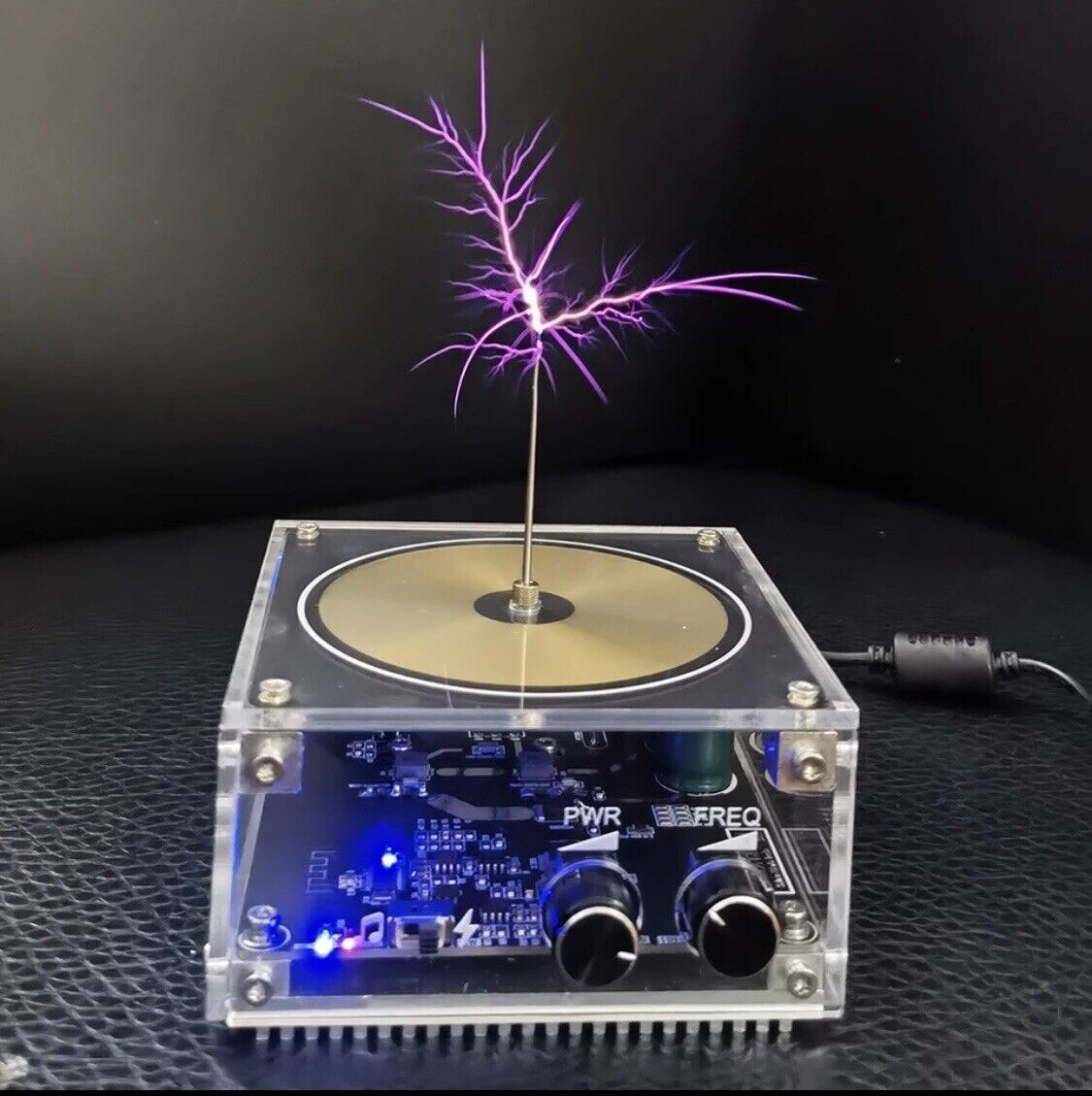

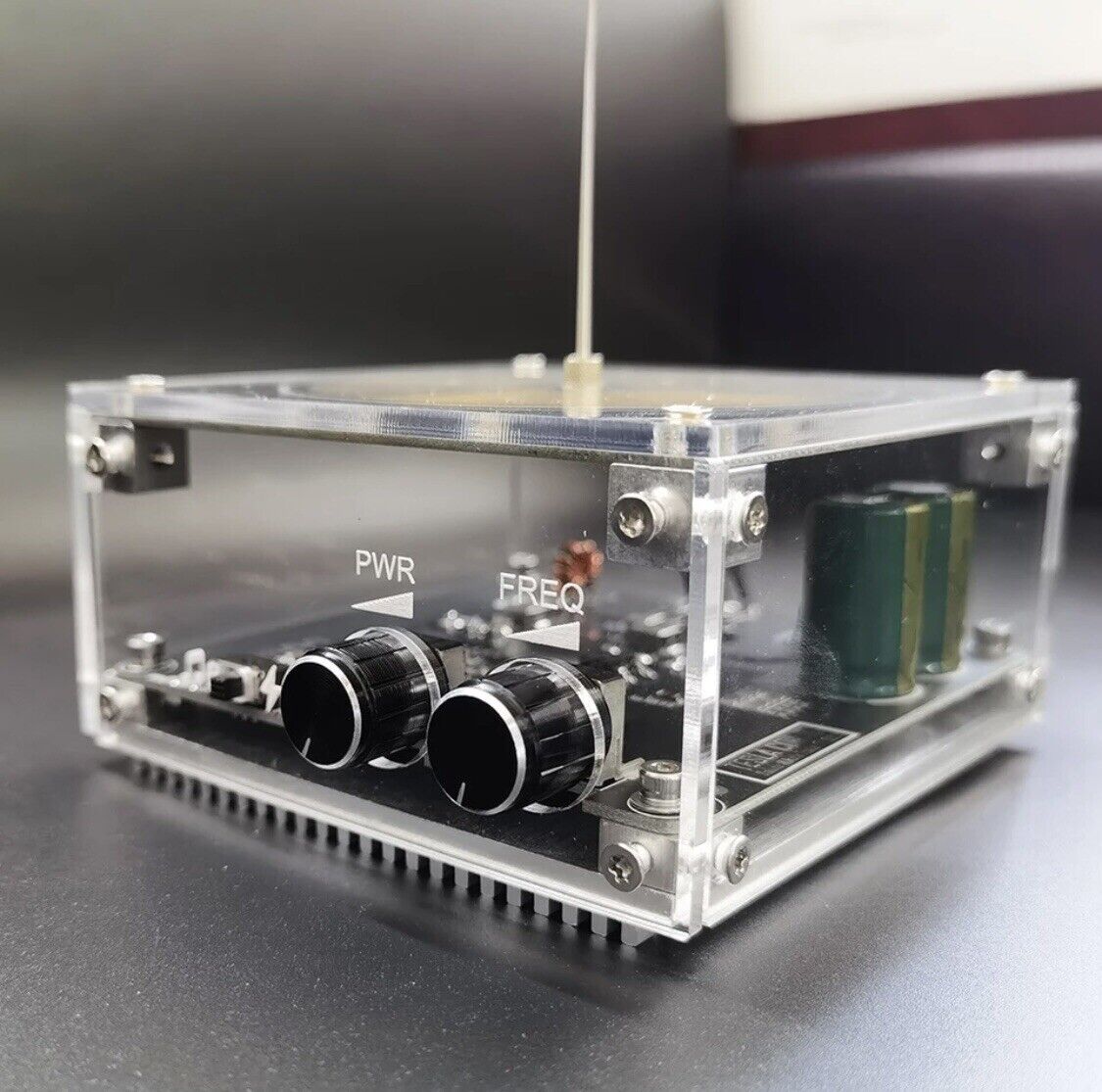

The left knob controls the size of the arc and the twist of the pointer.

The right knob controls the constant frequency and speeds up the spray arc frequency clockwise.

10CM Flat-panel Bluetooth Music Tesla Coil High Frequency and High Voltage
