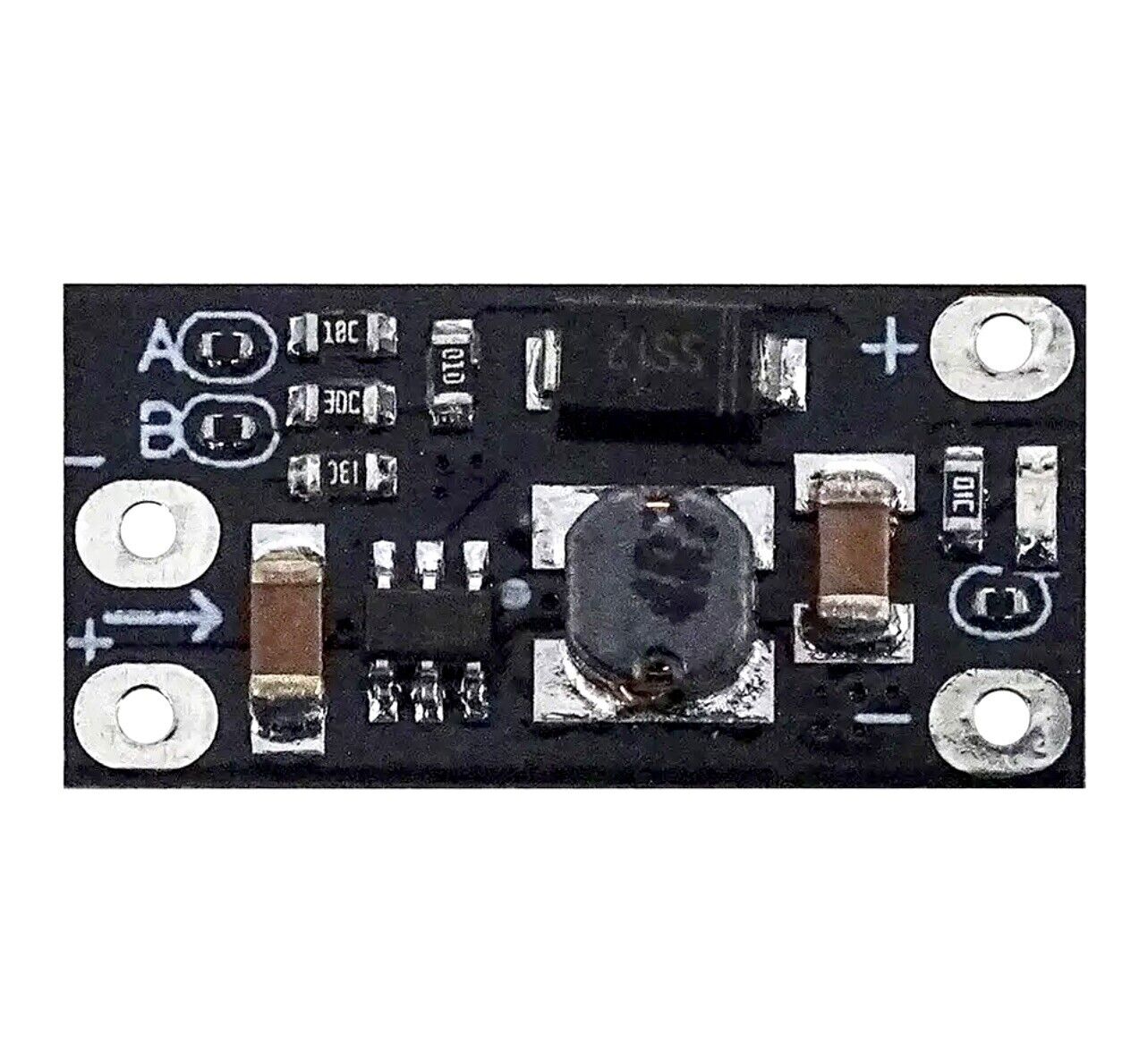

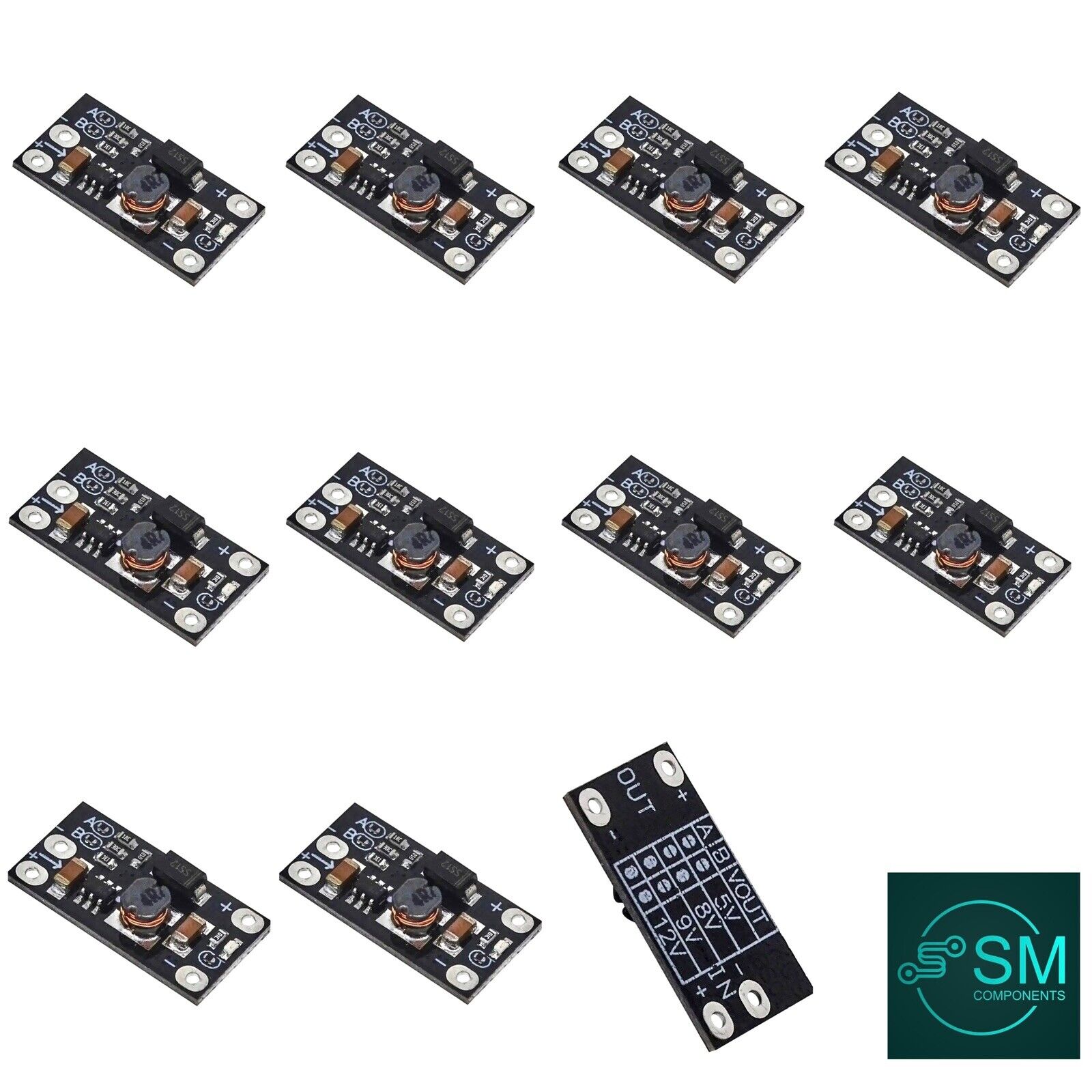

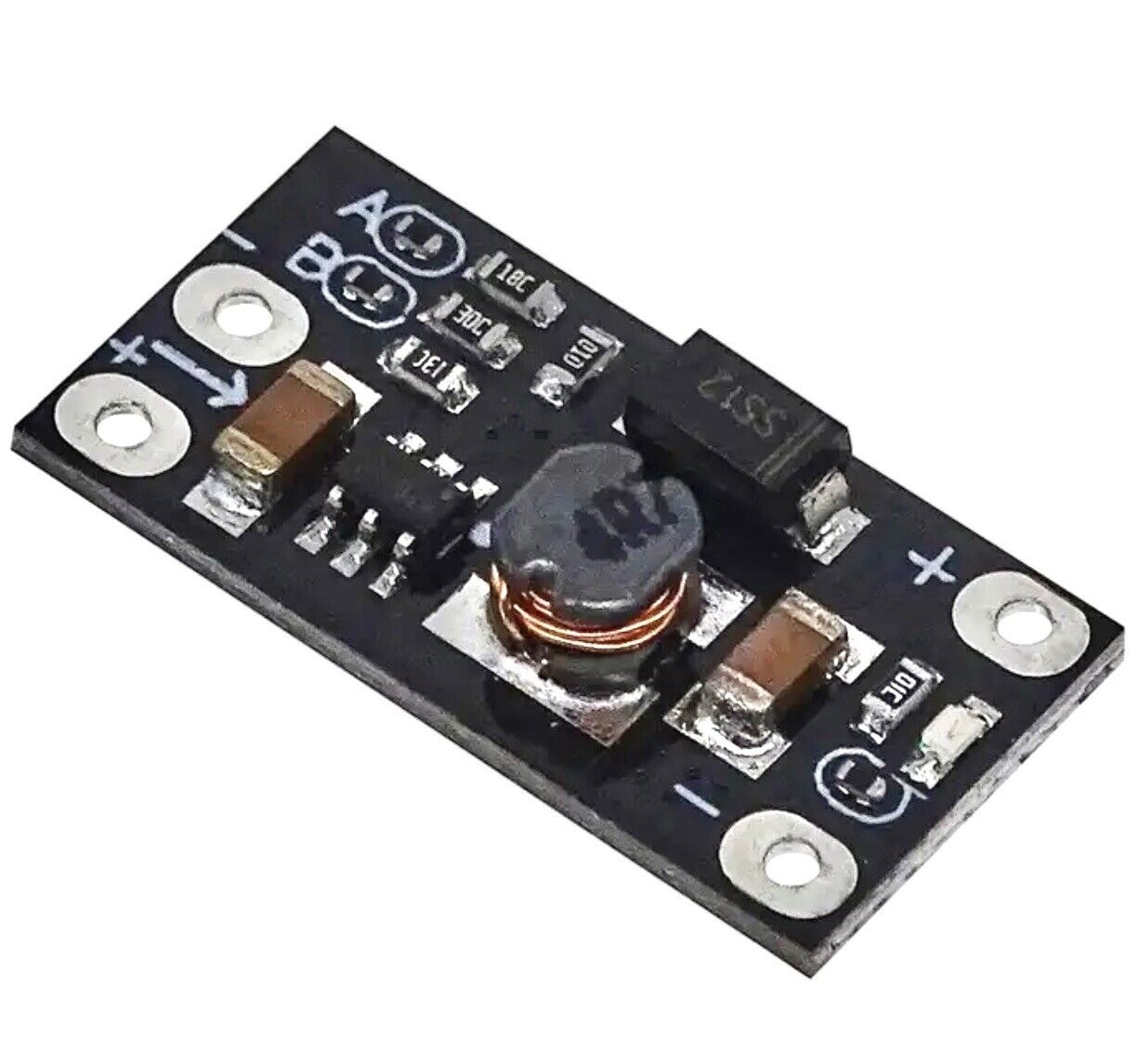

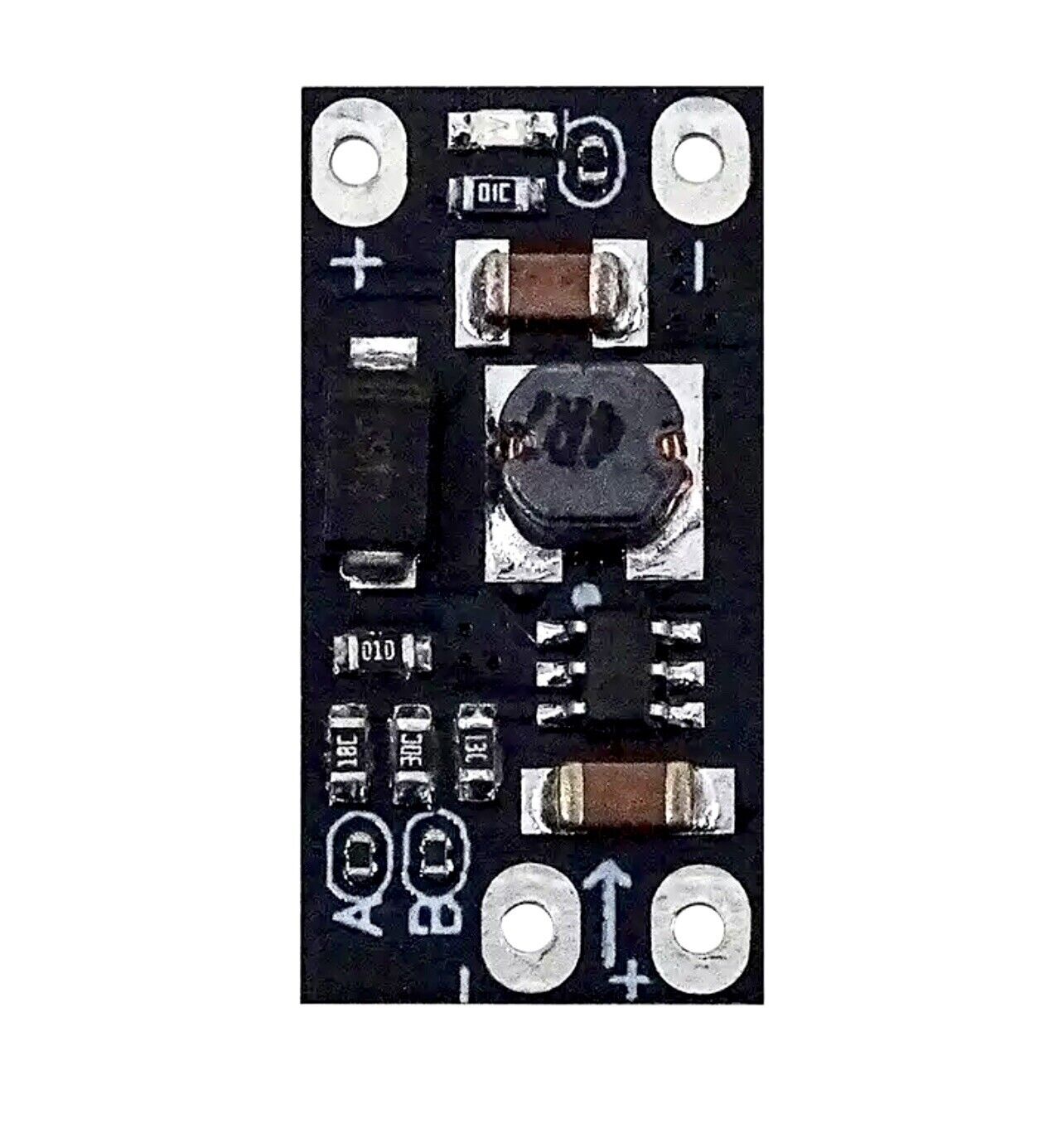

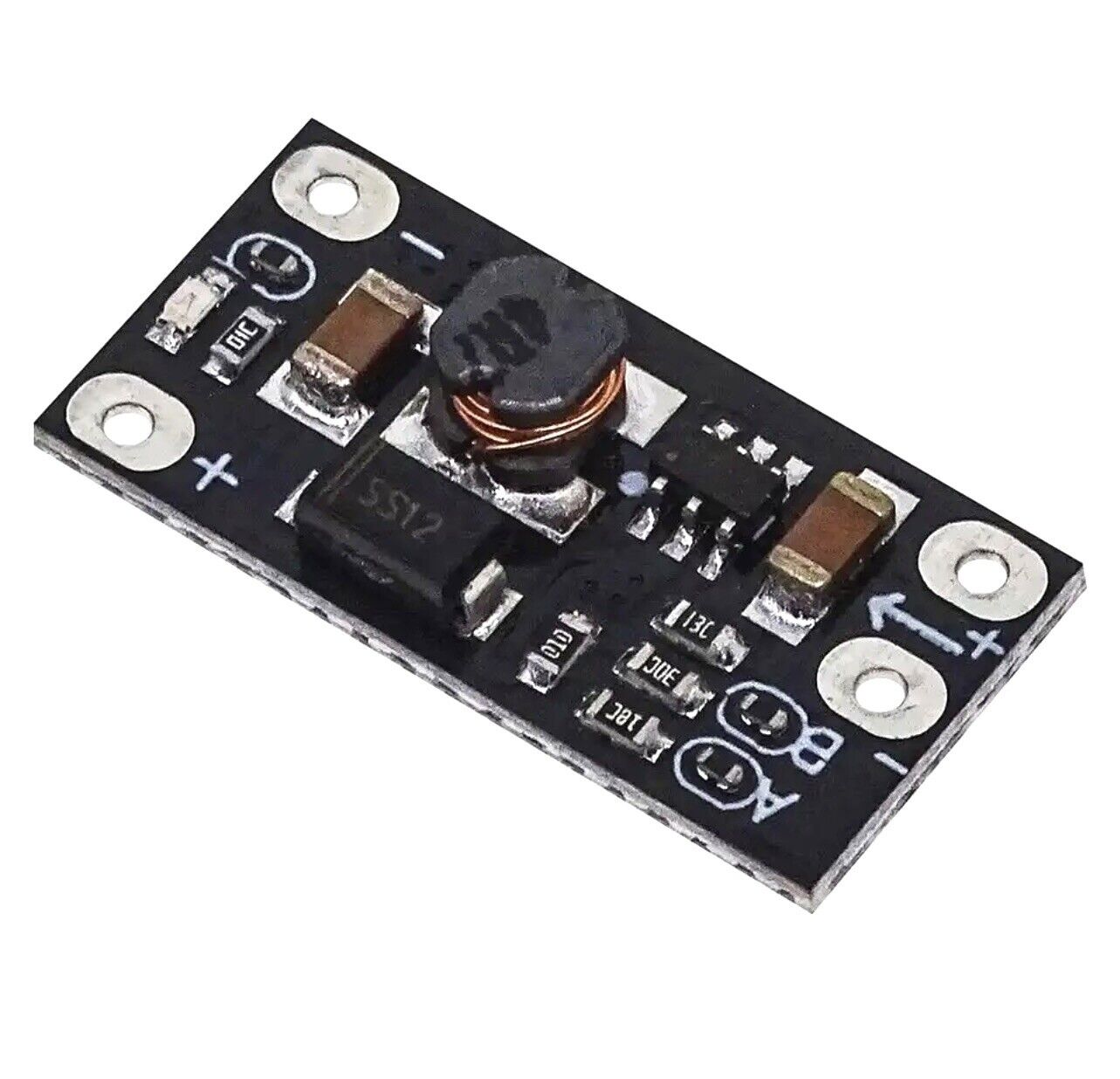

10pcs Mini Boost Module Step Up Board 2.5-5.5V to 5V/8V/9V/12V 1A LED indicator

Nominal Voltage Rating (DC): 12 V

Mounting Style: Stand Alone

Nominal Current Rating: 1 A

Plug Type: Solder Connection

MPN: Does Not Apply

Minimum Operating Temperature: -40 °C

Brand: Unbranded

Output Voltage Rating (AC): 12 V

Output Voltage Rating (DC): 5V - 8V - 9V - 12V

Inrush Current Rating: 1 A

Maximum Operating Temperature: 80 °C

Country/Region of Manufacture: China

Construction Type: Open Frame

UPC: Does not apply

10 Pieces Mini DC-DC Boost Step Up Converter 3V 3.2V 3.3V 3.7V 5V 9V to 12V Voltage Regulator PCB Board Module can set 5V/ 8V/ 9V DC-DC Adjustable Boost Step Down Up Converter Board.

Sent with Australia Post regular Letter no tracking number included.

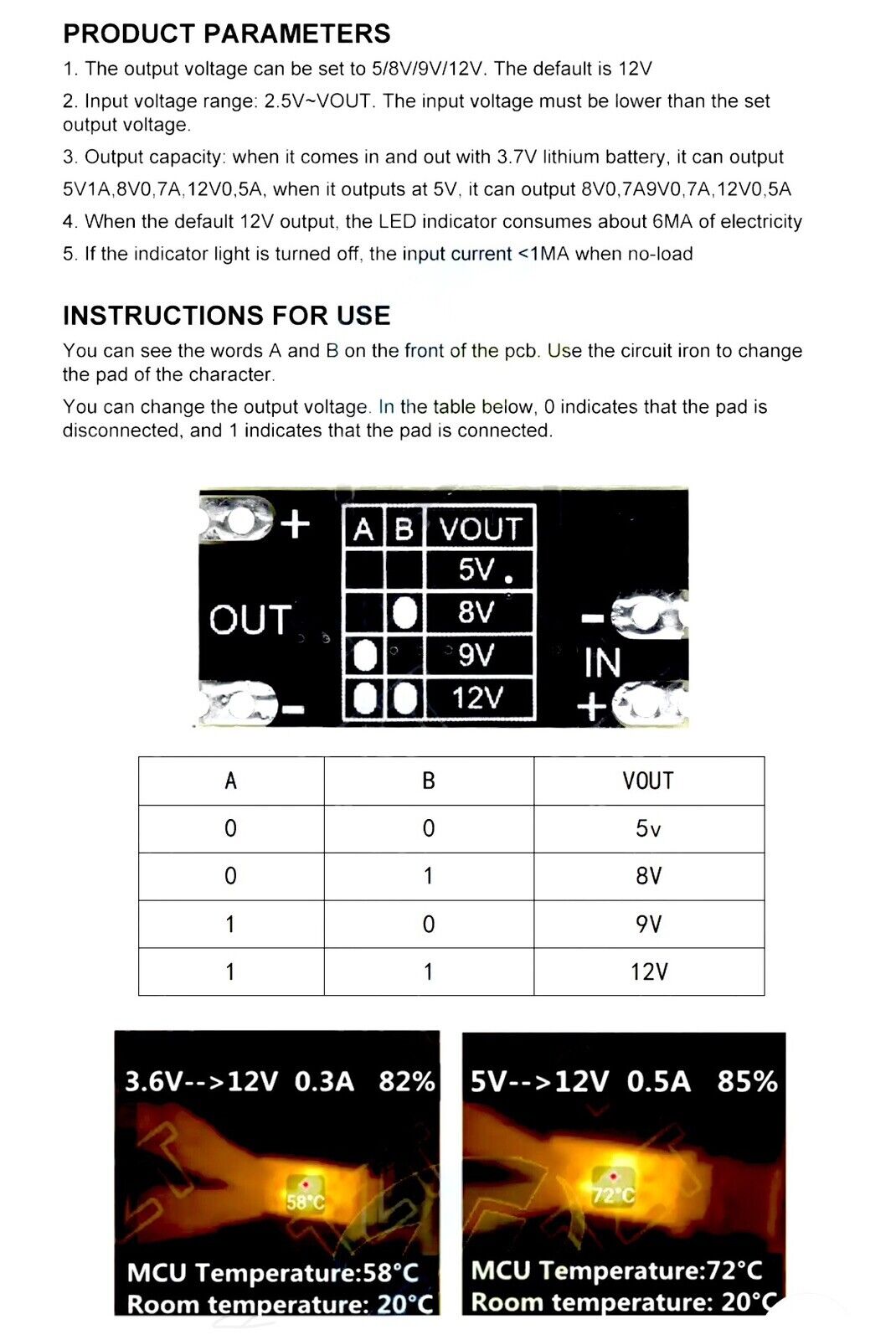

1. Input voltage: DC 2.5V-5.5V

2. Fixed Output voltage:

Can be set at DC 5V/8V/9V/12V output (Solder Bridge)

A ~ Open B ~ Open = 5VDC

A ~ Open B ~ Bridged = 8VDC

A ~ Bridged B ~ Open = 9VDC

A ~ Bridged B ~ Bridged = 12VDC

Modules are factory set at A-B Bridged = 12V

Output capacity:

Input 3.7V battery

Output 5V~1A 8V~0.5A 9V~0.45A 12V~0.3A

Input 5V

Output : 8V~0.7A 9V~0.7A 12V~0.5A
