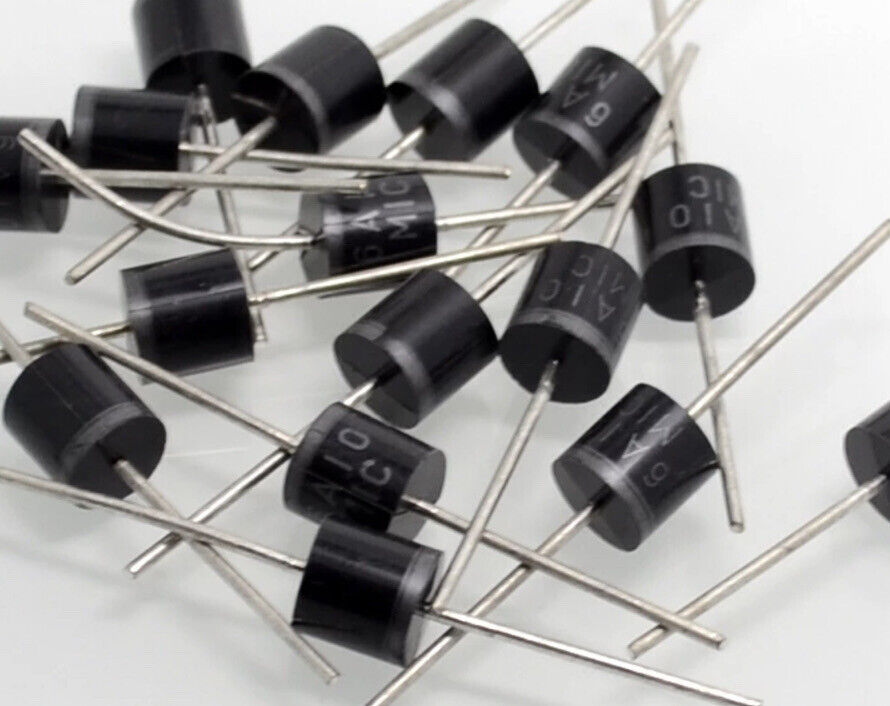

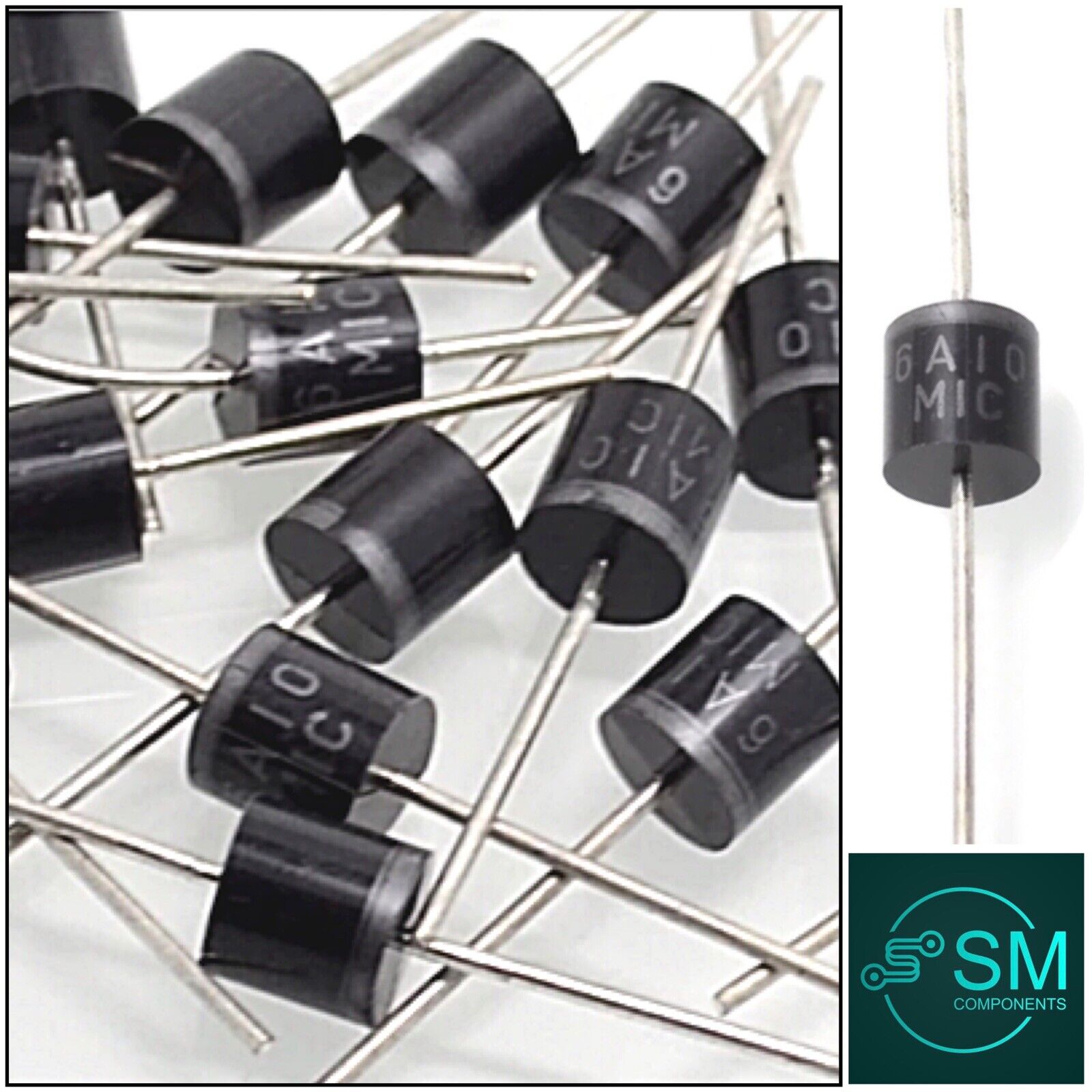

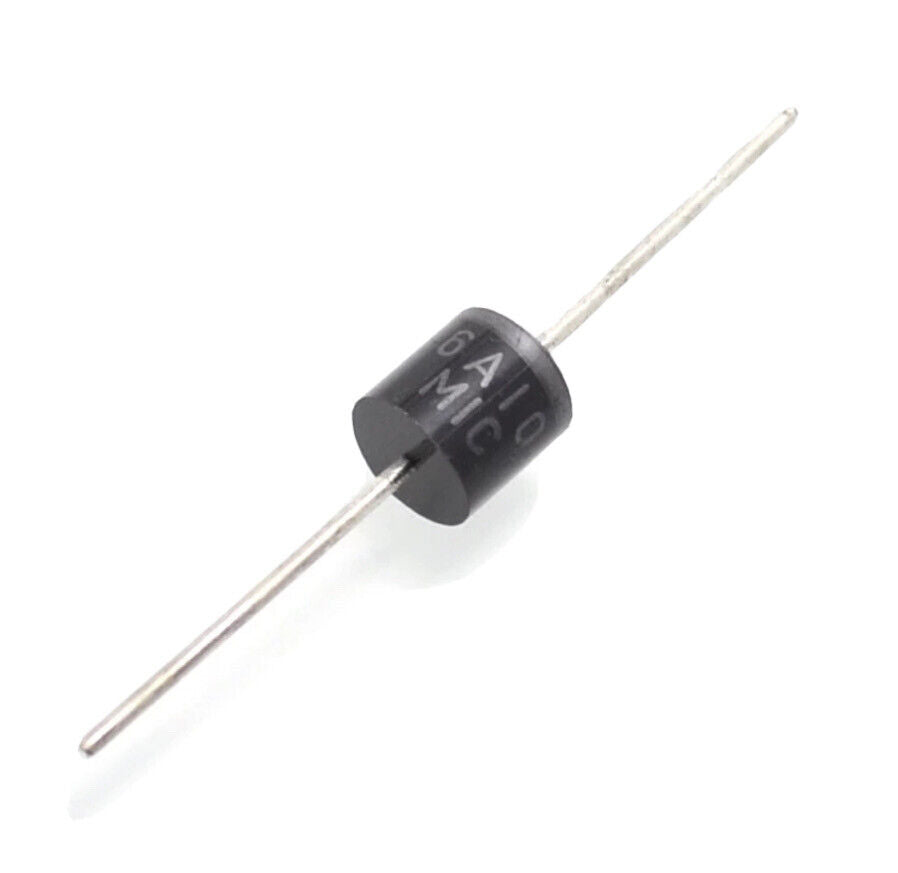

10PCS R6-6A10 6A 1000V 1KV 6 Amp Axial Silicon Rectifier Diodes Bridge Rectifier

10PCS R6-6A10 6A 1000V 1KV 6 Amp Axial Silicon Rectifier Diodes Bridge Rectifier

Regular price $8.90 AUD
Regular price Sale price $8.90 AUD
Sale Sold out
Shipping calculated at checkout.

Mounting Style: Through-Hole

Peak Forward Voltage: 1 V

Package/Case: R 6

Material: Silicon

MPN: 6A10

Peak Reverse Repetitive Voltage: 1000 V

Peak Surge Current: 10 A

Brand: MIC

Type: Silicon Rectifier Diode

Maximum Gate Trigger Voltage: 6 V

Number of Pins: 2

Maximum Continuous Current: 6 A

Maximum Operating Temperature: 175 °C

10PCS 6A10 6A 1000V 1KV 6 Amp Axial Silicon Rectifier Diodes Bridge Rectifier.

  • Condition is brand new sent with Australia Post Regular Letter, NO TRACKING WITH FREE POST

Features

• High Surge Current Capability

• Low Leakage and Forward Voltage Drop

• Lead Free Finish, RoHS Compliant (Note 1)

Mechanical Data

• Case: R-6

• Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

• Moisture Sensitivity: Level 1 per J-STD-020C

• Terminals: Finish ⎯ Tin. Axial Leads, Solderable per MIL-

STD-202, Method 208

• Polarity: Color Band Indicates Cathode

• Ordering Information: See Page 3

• Approximate Weight: 2.1 grams

Maximum Ratings and Electrical Characteristics

Ratings at 25°C ambient temperature unless otherwise specified. Single phase, halfwave, 60Hz, resistive or inductive load.

@TA = 25°C unless otherwise specified

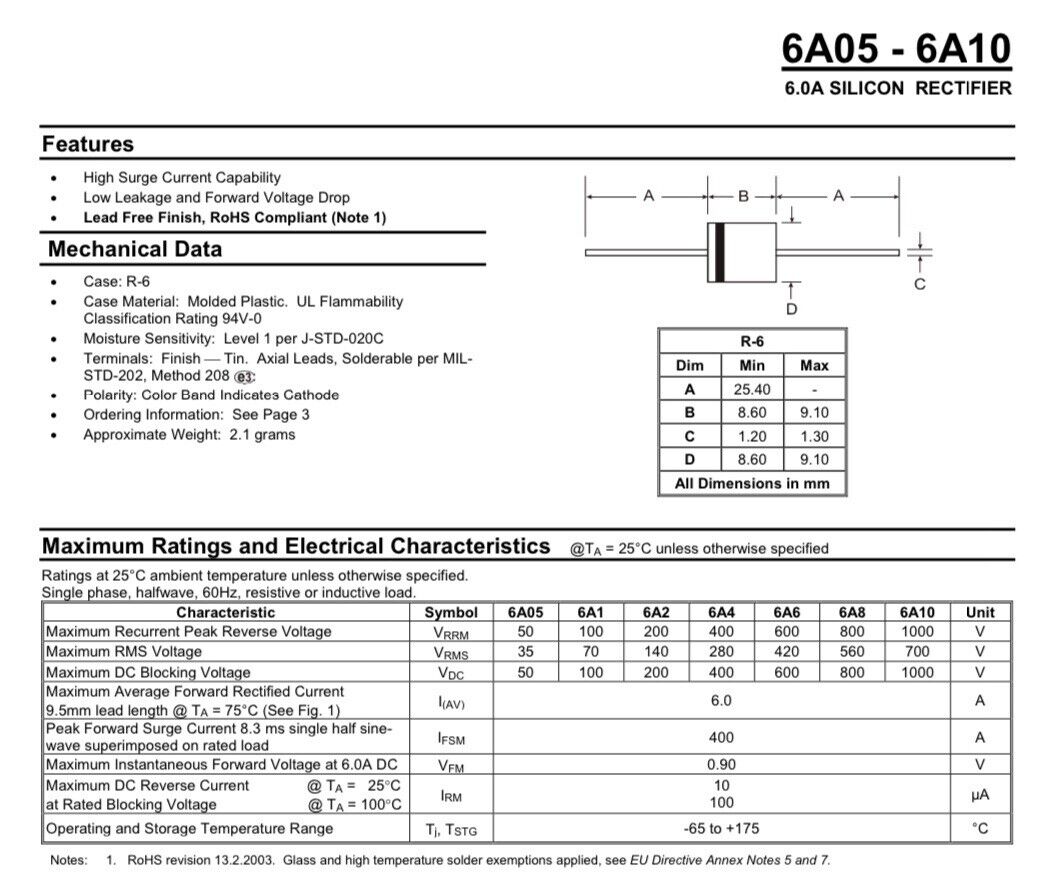

6A05 - 6A10 6.0A SILICON RECTIFIER.
