10PCS TTP223 Touch Key Capacitive Switch Button Module Arduino Stand Alone DIY

Brand: Generic

Current Type: DC

Termination Type: Solder Tab

Sensor Type: TTP-223 Capacitive

Model: TTP223

MPN: TTP223

Compatible Mounting Type: Through Hole

TTP223 Touch Key Capacitive Switch Button Module Arduino Uno Mega 2560 Raspberry.

LOT OF 10 NEW TTP223 Touch button Module Capacitor type Single Channel Self Locking Touch switch sensor

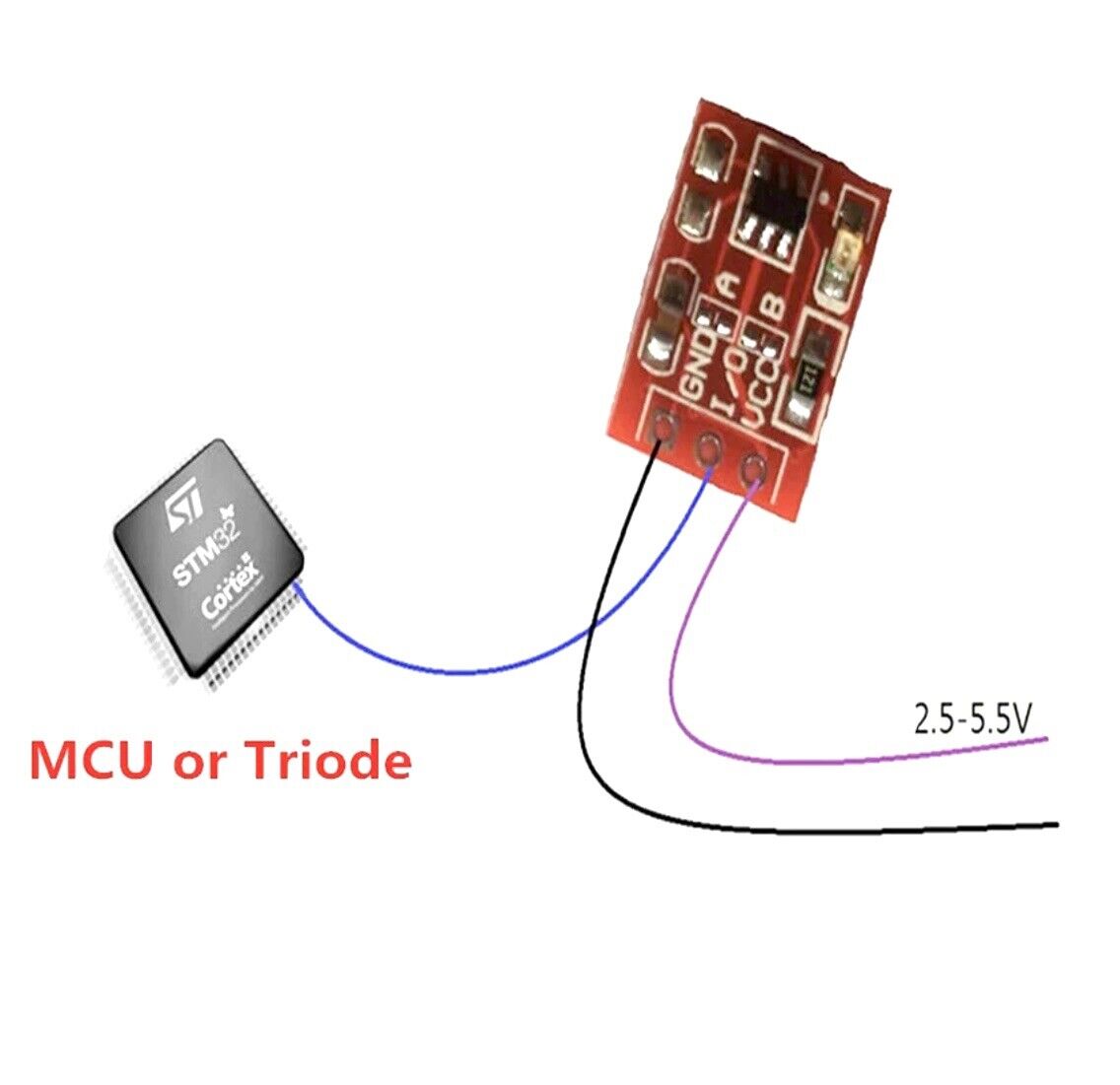

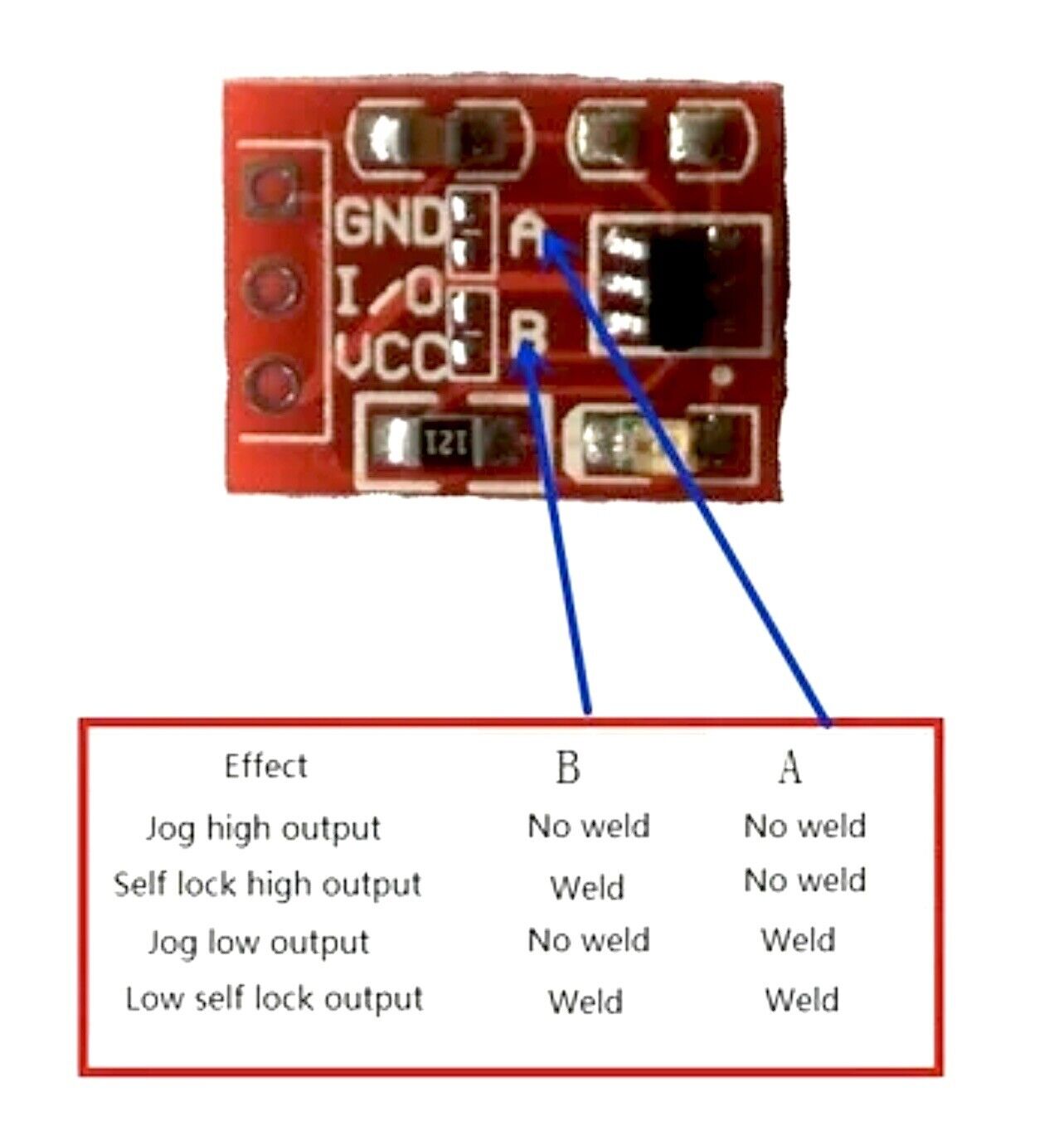

MAIN SPECIFICATIONS: Power:2.5-5.5V; Multiple trigger mode; Size: 15mm x 11mm 0.59"x 0.43".

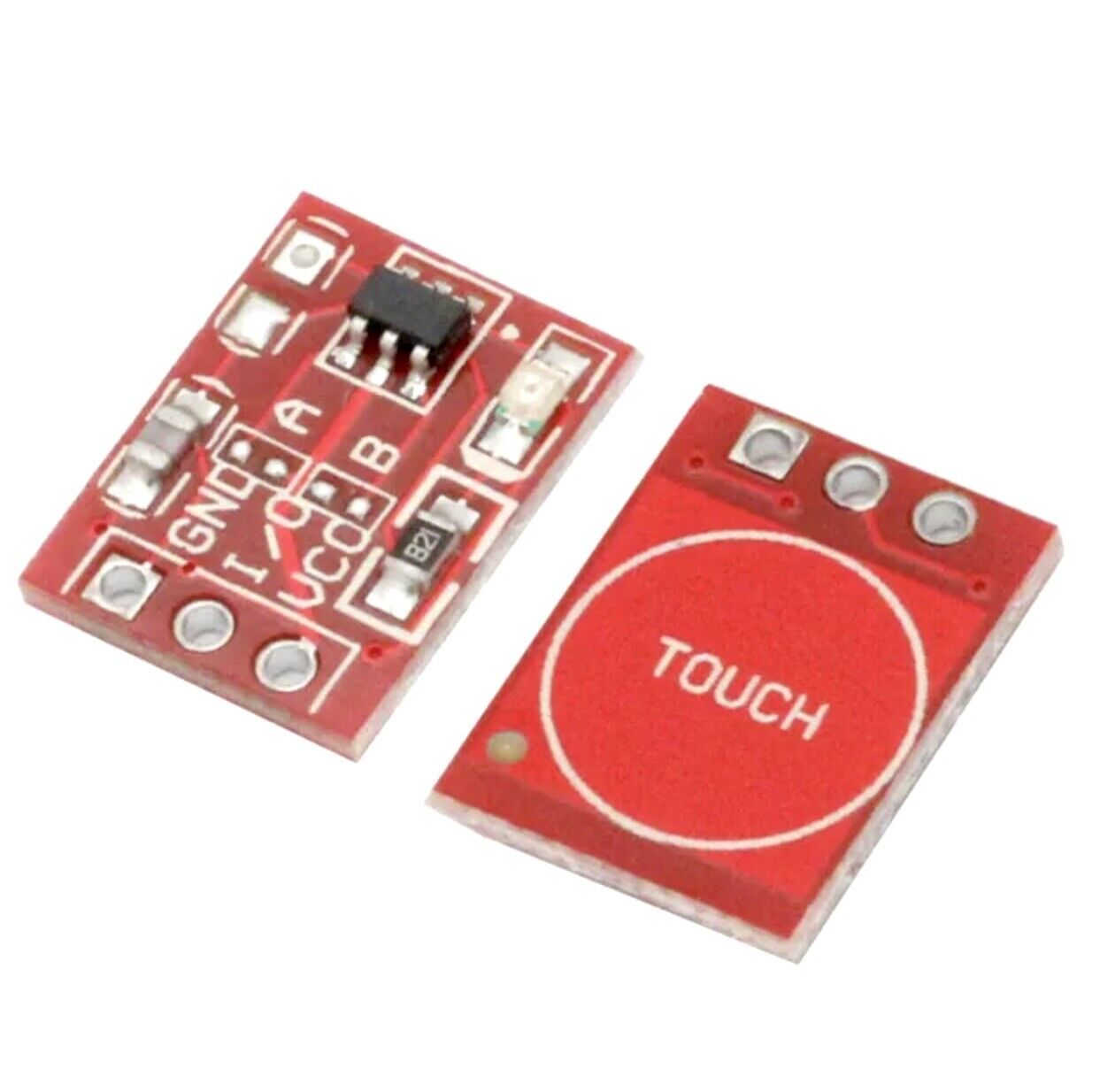

HIGH RELIABILITY: This module is based on a touch detection IC ( TTP223 ) of capacitive type touch jog switch module. Stable touching detection of human body for replacing traditional direct switch key.

HIGH AVAILABILITY: A very useful addition for projects or applications where a conventional mechanical button or switch is not an ideal choice.

EASY TO INSTALL: The module can be installed in plastic, glass surface non-metallic materials. As long as the touch of the correct position, you can make hidden in the wall, desk and other places.

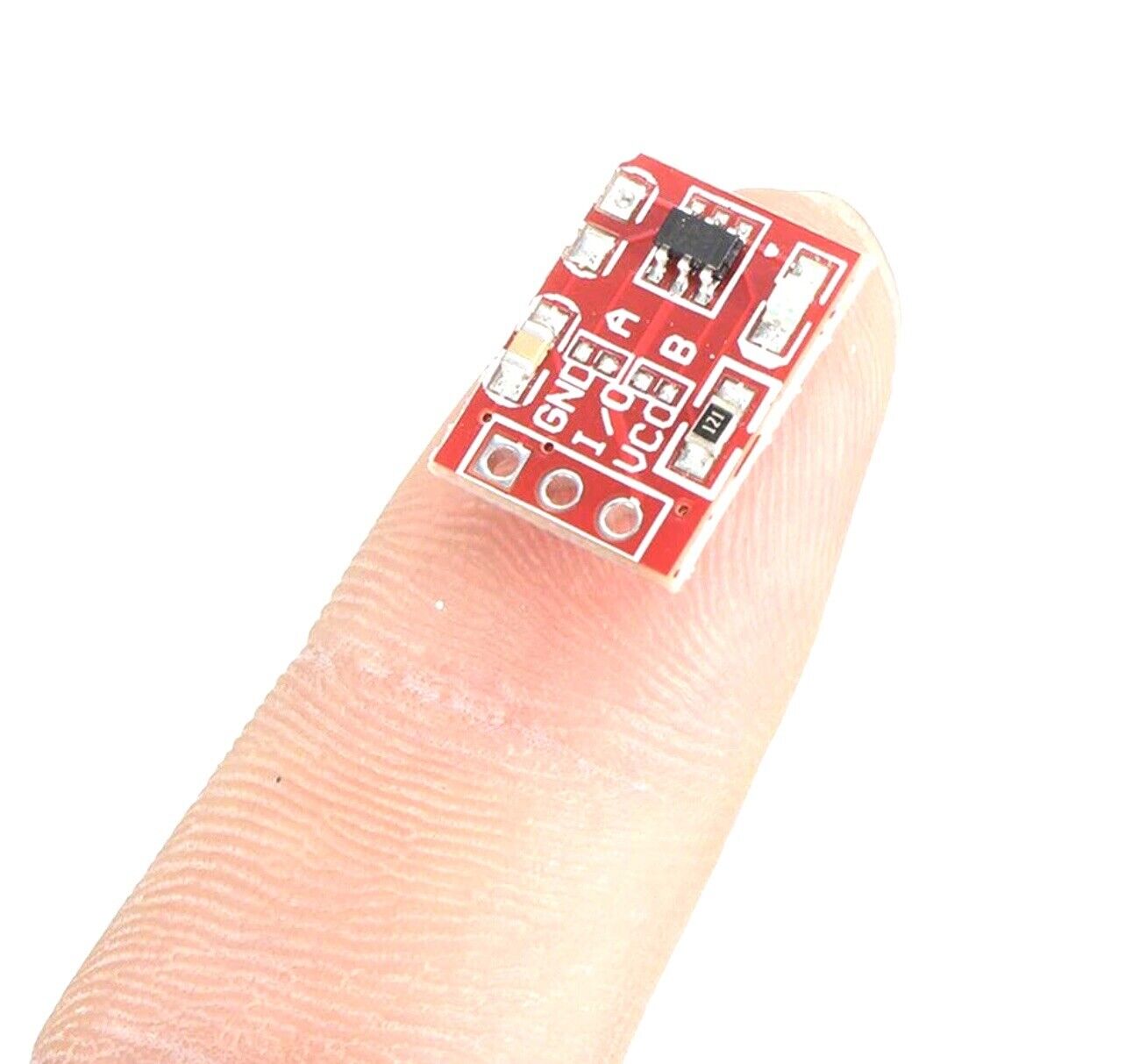

SMALL SIZE&LIGHT WEIGHT: Size: 15mm x 11mm 0.59"x 0.43" (LxW); Net weight: approx. 8g; Package Included: 10 x Capacitive Touch Switch Button Self-Lock Module.
