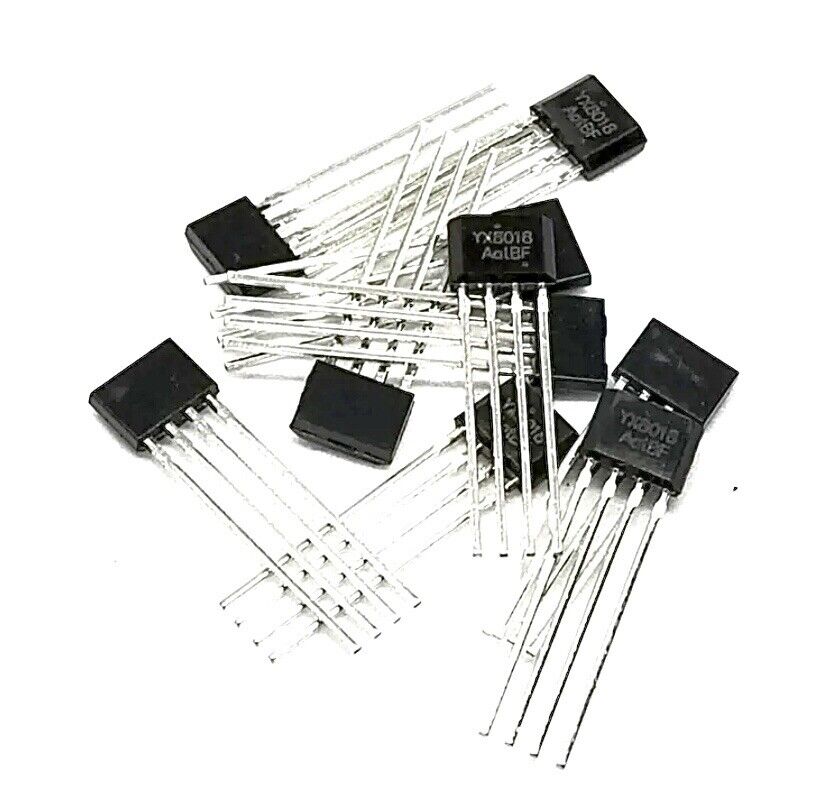

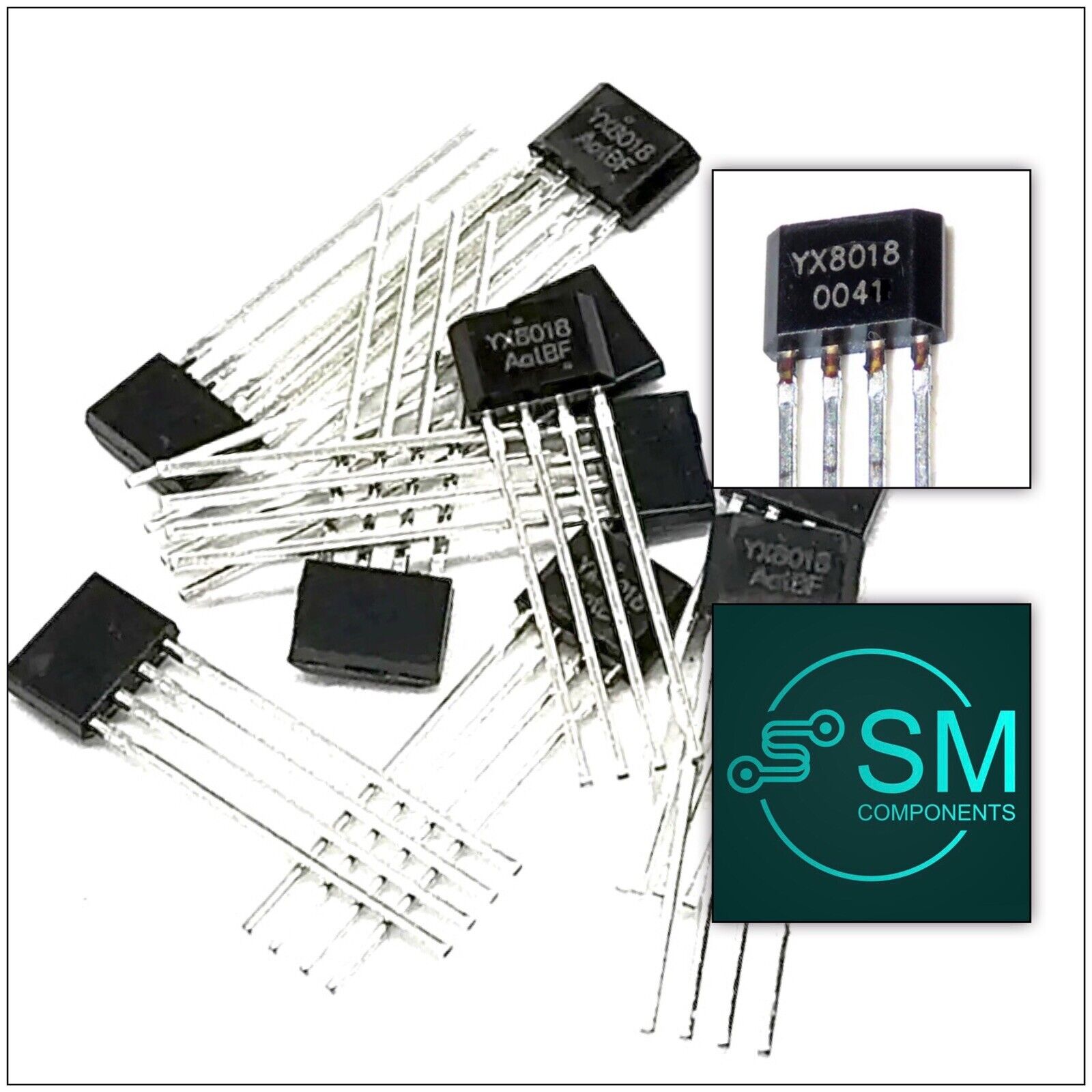

10PCS YX8018 Solar Garden Light High Efficiency Control Switching I/C TO-94 DIY

Brand: Unbranded

Type: Solar Boost Management I/C

Current Type: DC

Connector Configuration: As Shown

Voltage: 1.25V

Model: YX8018 TO-92 Package

MPN: Does Not Apply

Features: Portable

Country/Region of Manufacture: China

Unit Quantity: 10 Pieces

Application: Electronics,Home/Garden

YX8018

Package list:

Solar control switch circuit board*1 YX8018 Datasheet – 1.25V, Solar LED driver, TO-94

This is one of the semiconductor types. The package is TO-94 Package.

This part name is YX8018. This product has Solar LED driver functions.

The manufacturers of this product is Shiningic.

See the preview image and the PDF file for more information. (In photos)

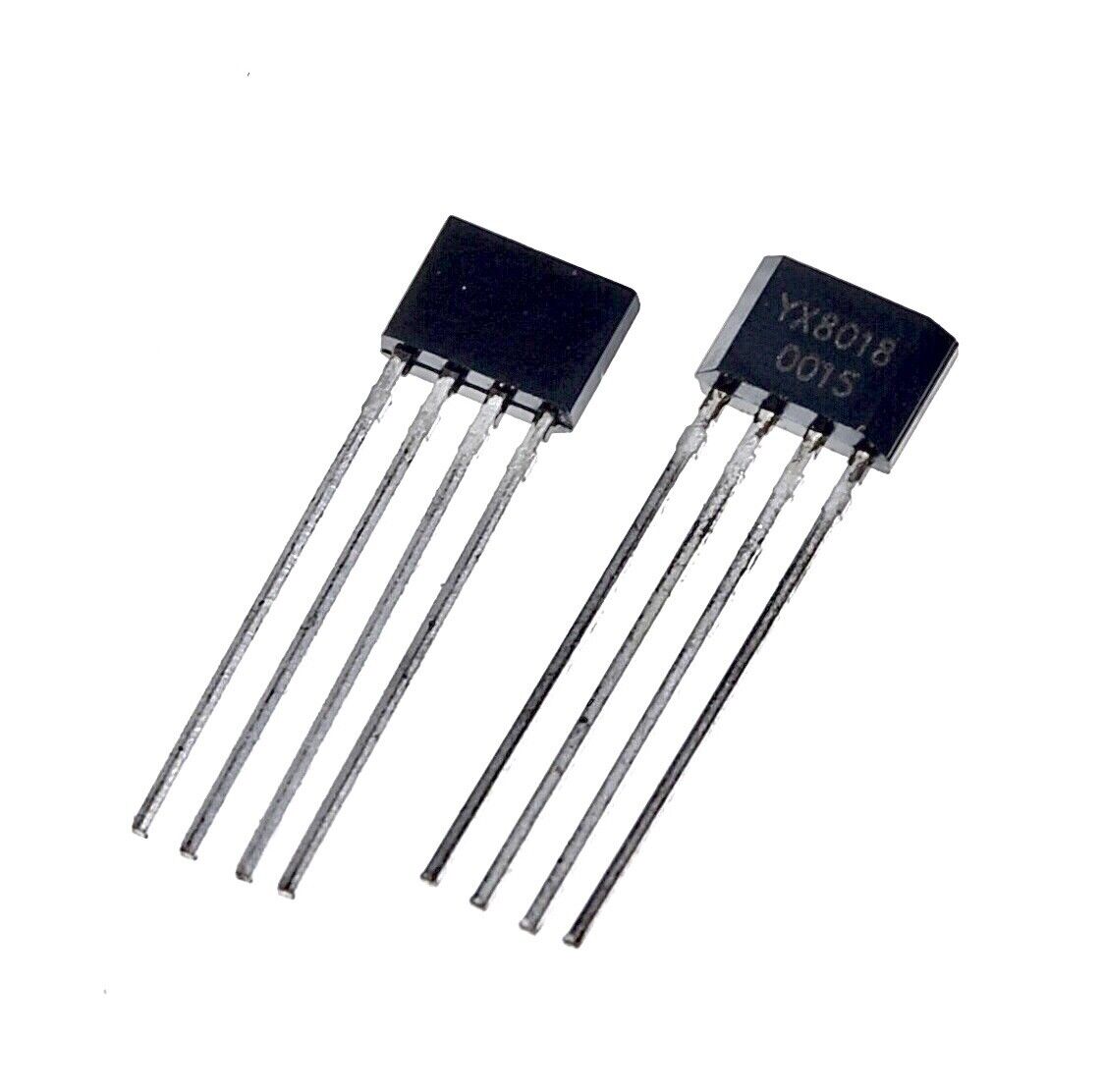

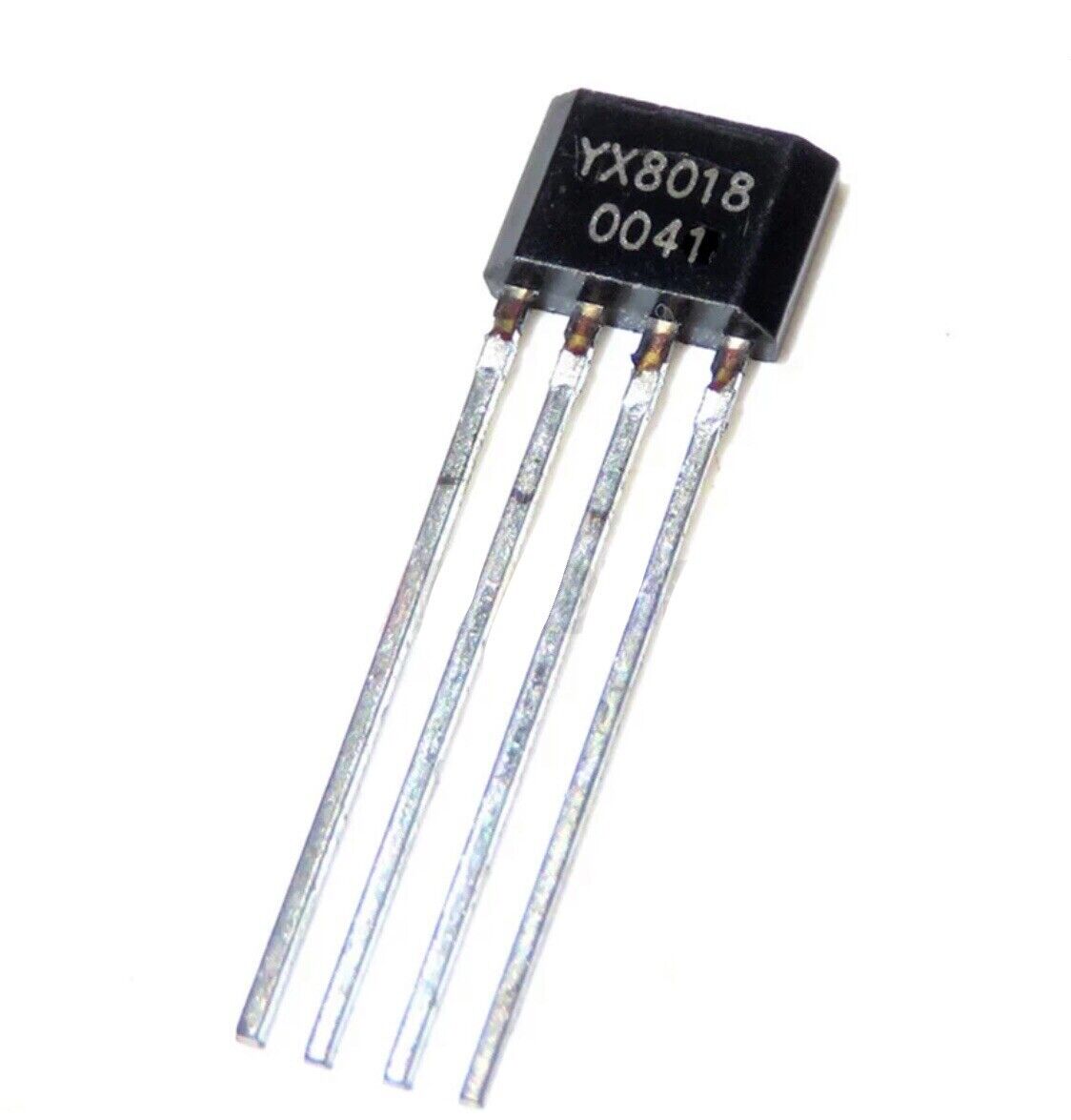

YX8018 transistor

Description

YX8018 is the two 1.25V charge current or one Lights in a stable manner LED in the pond. Light of the sun Saw And to charge the rechargeable battery and a battery hit the error, The point the LED in the charging battery is charged to at night Light, automatic switching.

Features :

1. High efficiency: 80 to 90%

2. Minor peripheral components: only one inductor

3. Low voltage battery protection function

4. Inductor adjust current

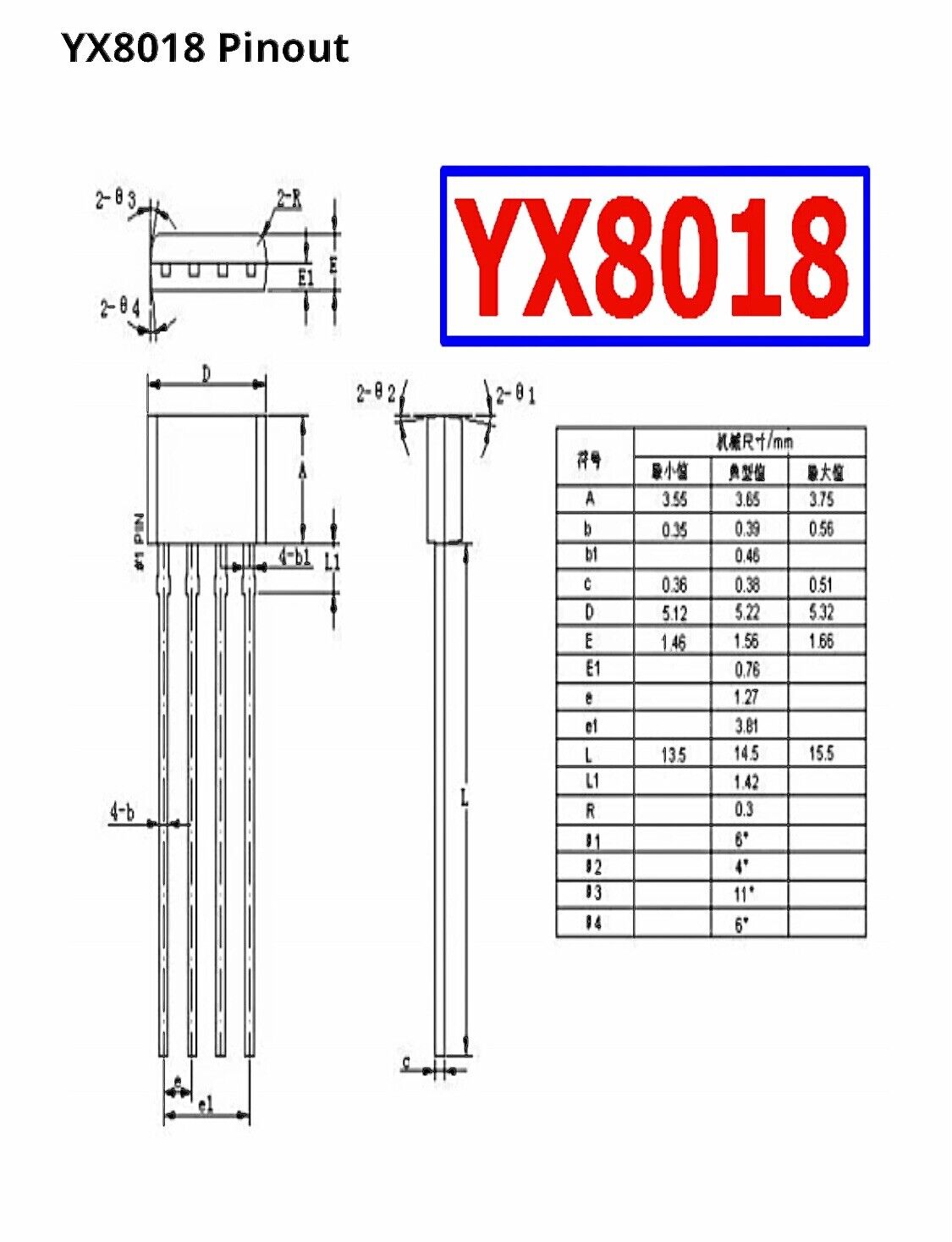

Pinout

1. Lx : switch drain

2. GND : GND

3. CE : Negative electrode of solar battery, EN control / charge control

4. VDD : Solar cell positive electrode

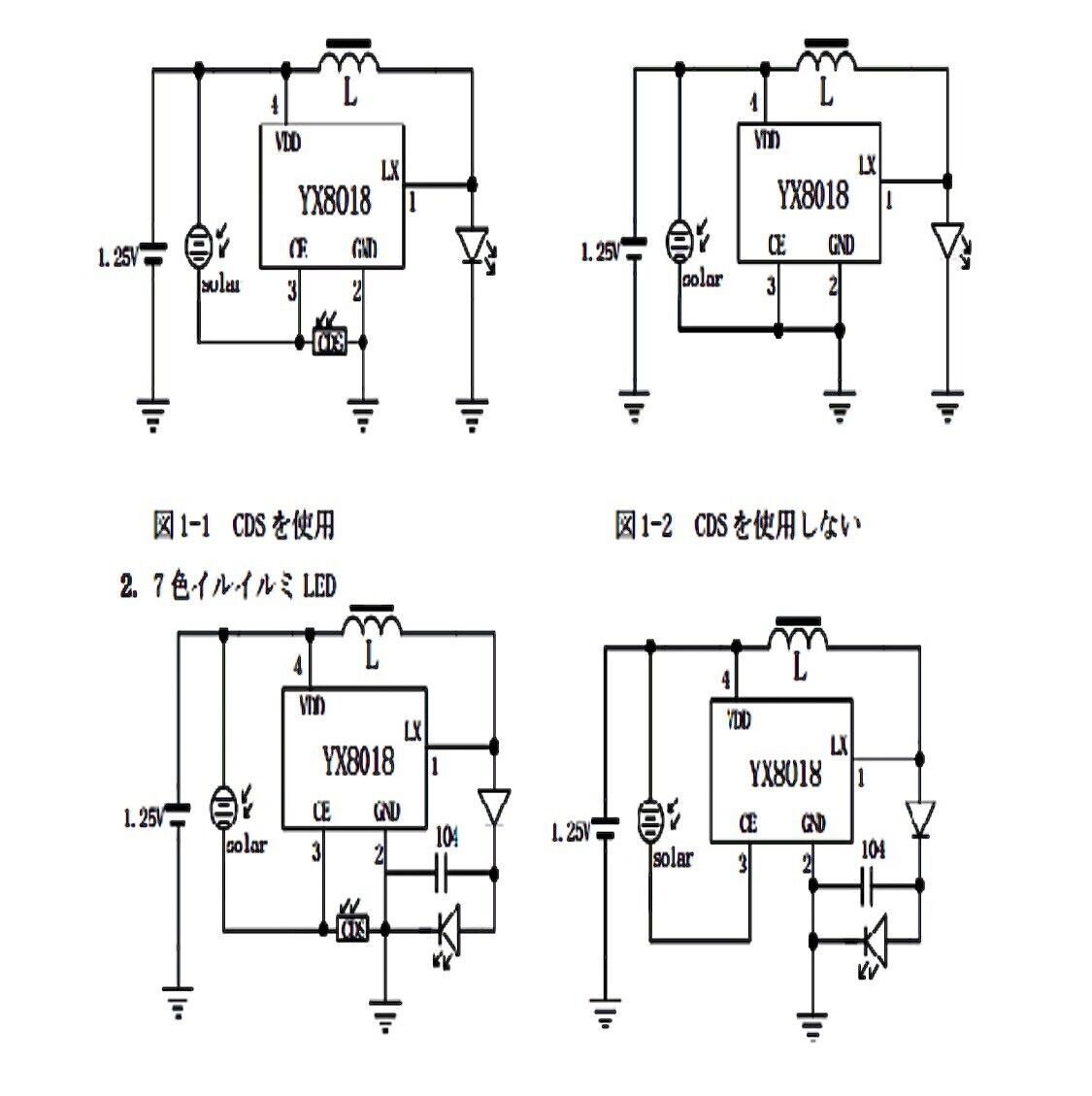

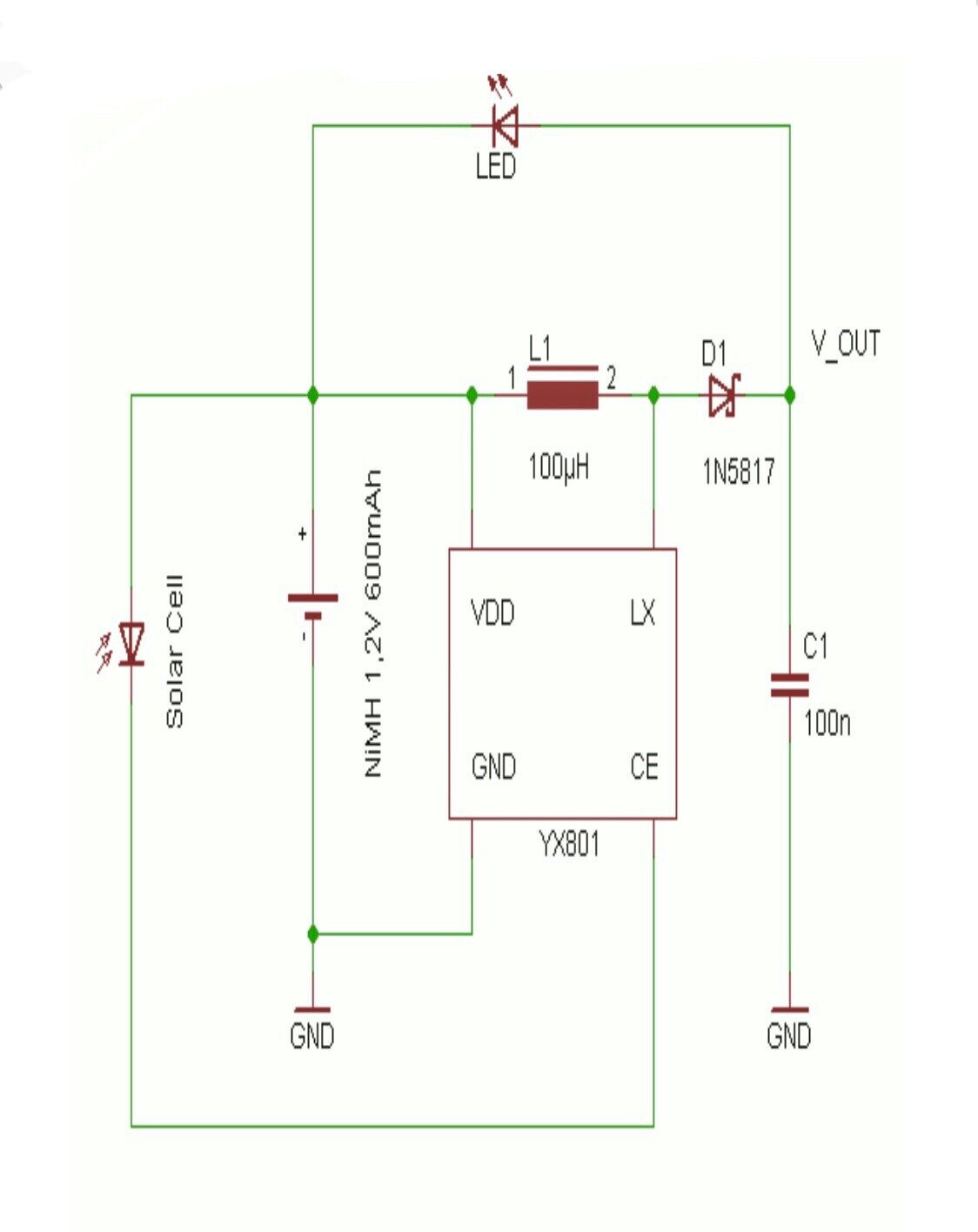

YX8018 Circuit

The main functions are charge control, boost drive, light control, low voltage protection and so on. The solar lawn lamp mainly uses the energy of the solar cell to work. When the daytime sunlight is irradiated on the solar cell, the light energy is converted into electric energy and stored in the battery, and then the battery is provided for the LED (light emitting diode) of the lawn lamp at night. power supply. Its advantages are mainly safety, energy saving, convenience, and

Protection.
