144PCS Female Single Row Header 2-40 Pin PCB Mount Arduino Raspberry Pi ESP32

Mounting Style: PCB Mount

IC Socket Type: DIP

Termination Style: Solder

Use: Expansion Development Boards

MPN: Does Not Apply

Minimum Operating Temperature: -40 °C

Brand: Unbranded

Type: Solder Type Socket

Body Material: Polybutylene Terephthalate (PBT)

Termination Type: Solder

Product Type: Female Pin Header

Number of Pins: 2,3,4,5,6,8,10,12,15,20,25,40P

Nominal Pitch Spacing: 2.54mm - 0.100”

Packaging: Case

Contact Material: Brass

Maximum Operating Temperature: 105 °C

Features: High Quality

Country/Region of Manufacture: China

8 Value Total: 144 Pieces

UPC: Does Not Apply

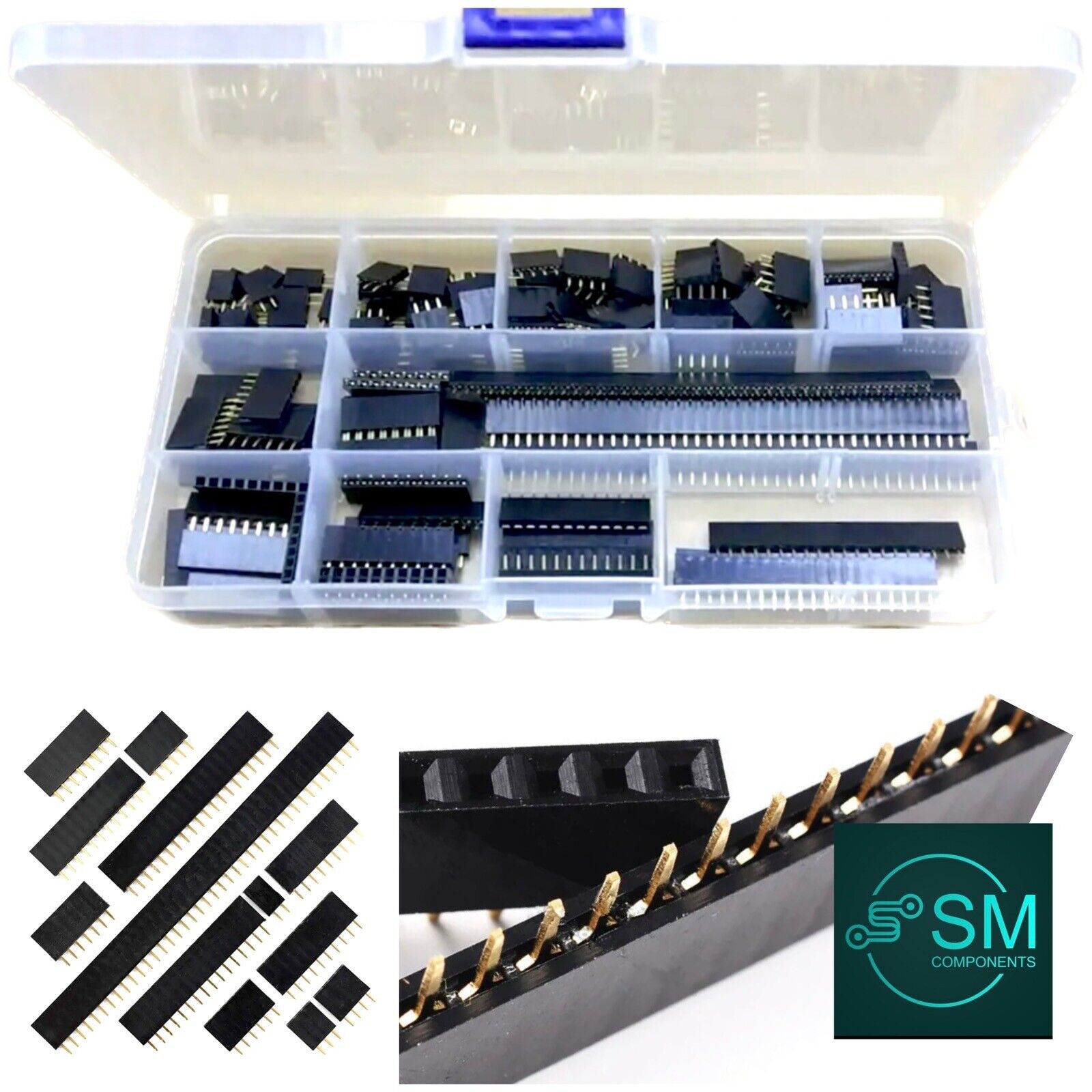

144 Pieces 2.54mm (1/10”) Female Single Row Pin Header 2 Pin, 3 Pin, 4 Pin, 5 Pin, 6 Pin, 8 Pin, 10 Pin, 12 Pin, 15 Pin, 18 Pin, 20 Pin, 25 Pin, 40 Pin.

Condition is Brand New. Sent with Australia Post Standard Small Box/Satchel.

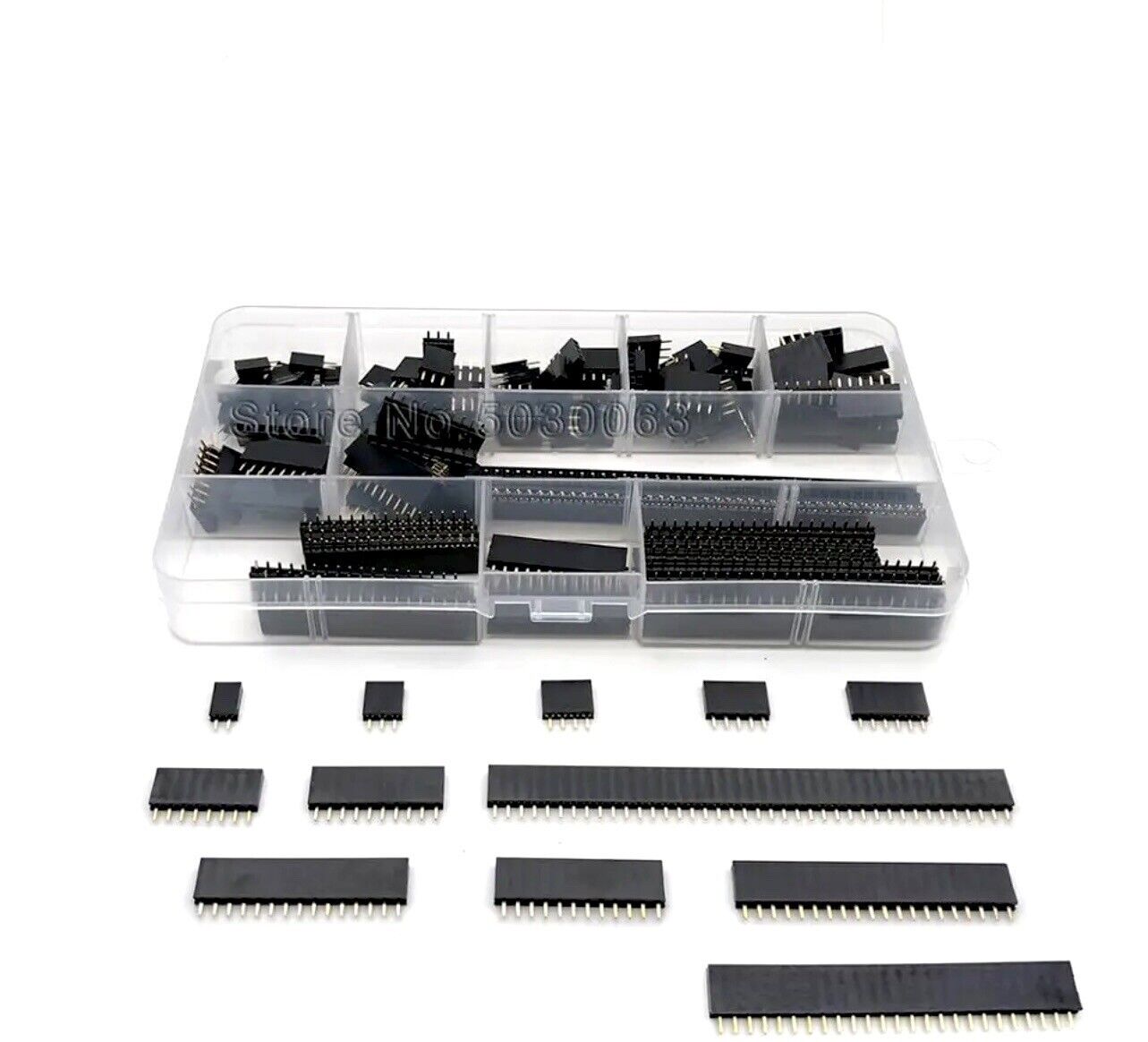

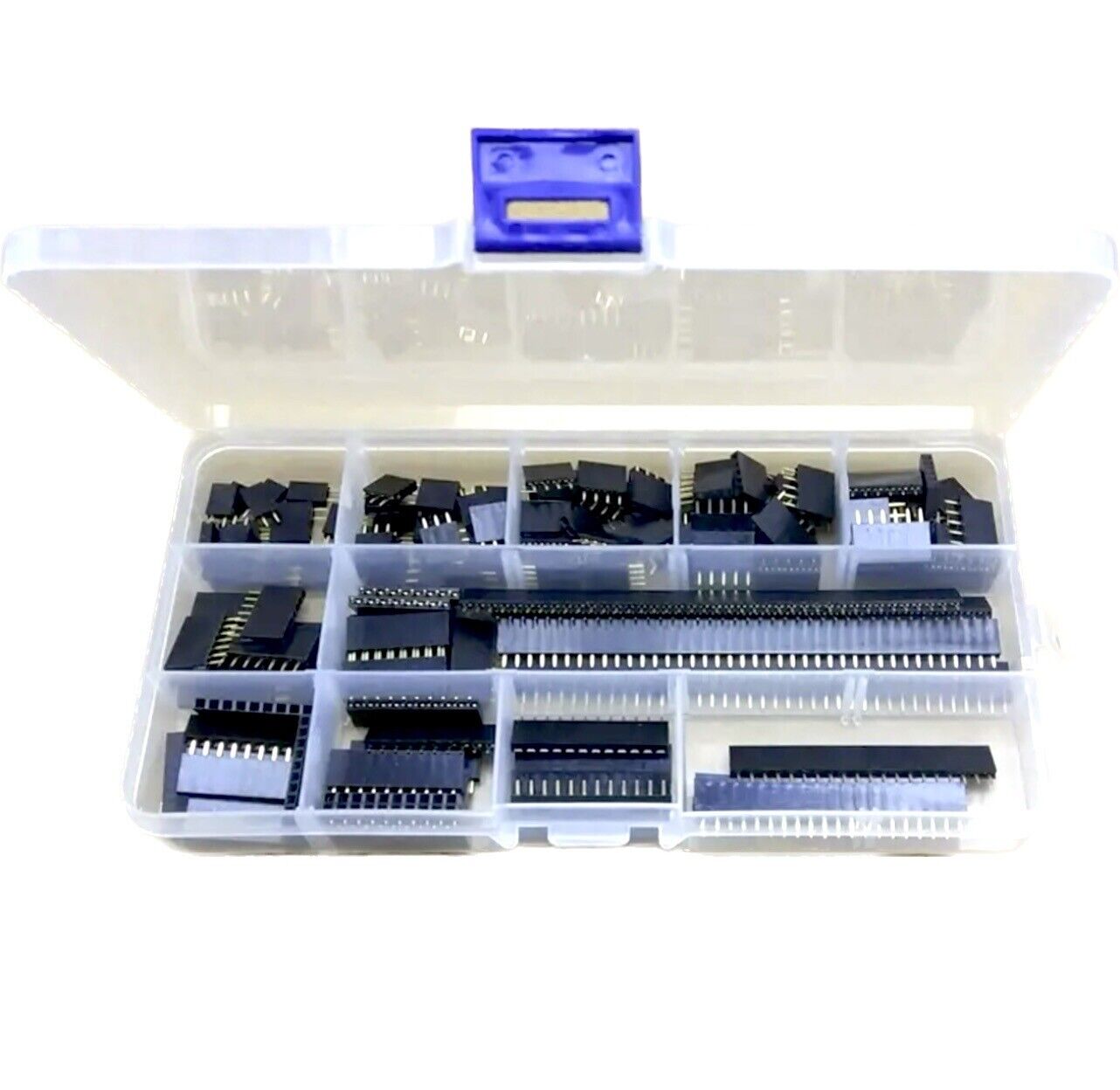

• PLEASE NOTE: THE PLASTIC CARRY CASE MAY VARY SLIGHTLY FROM THE ONE SHOWN

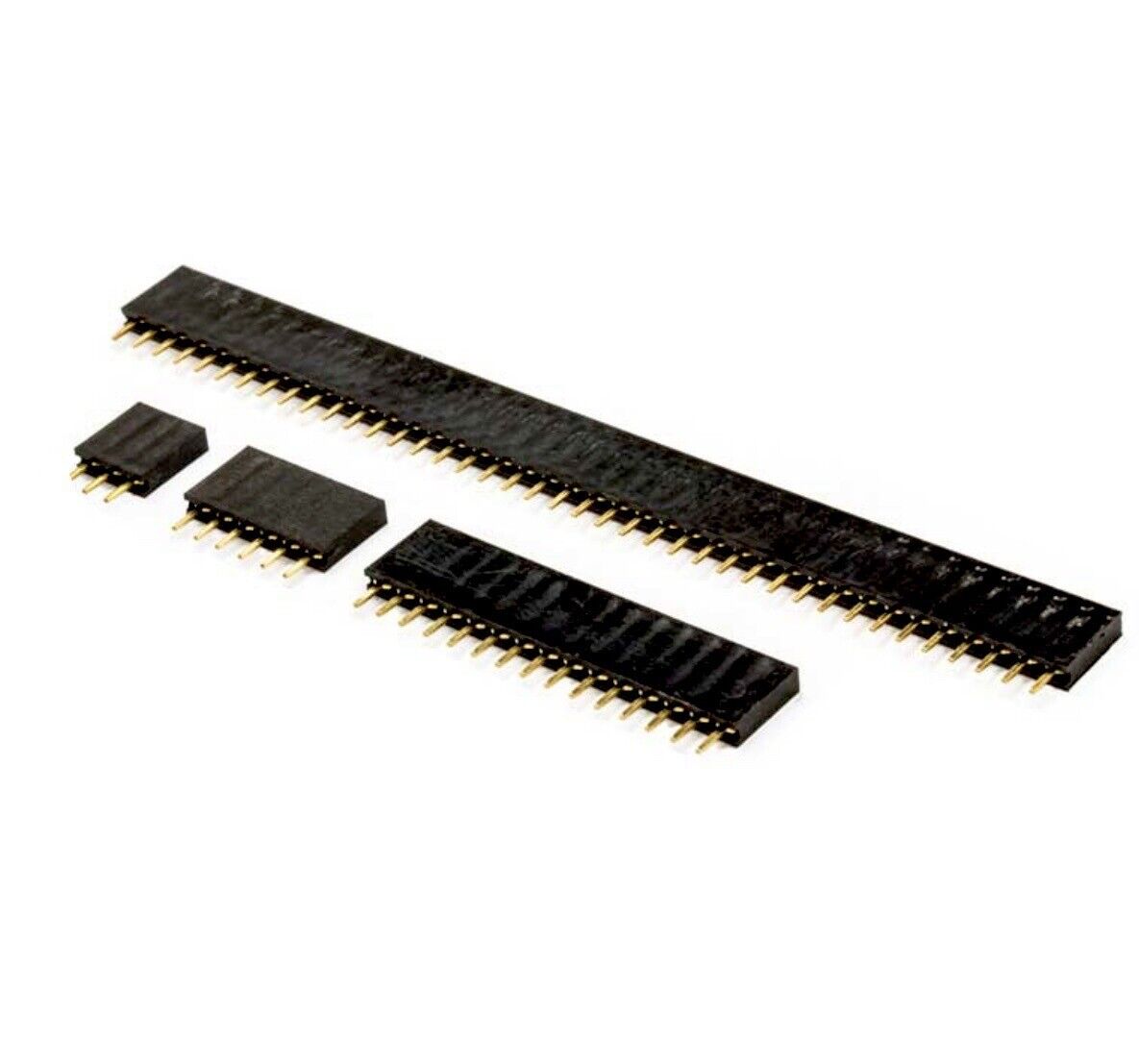

Female Single Row Pin Header

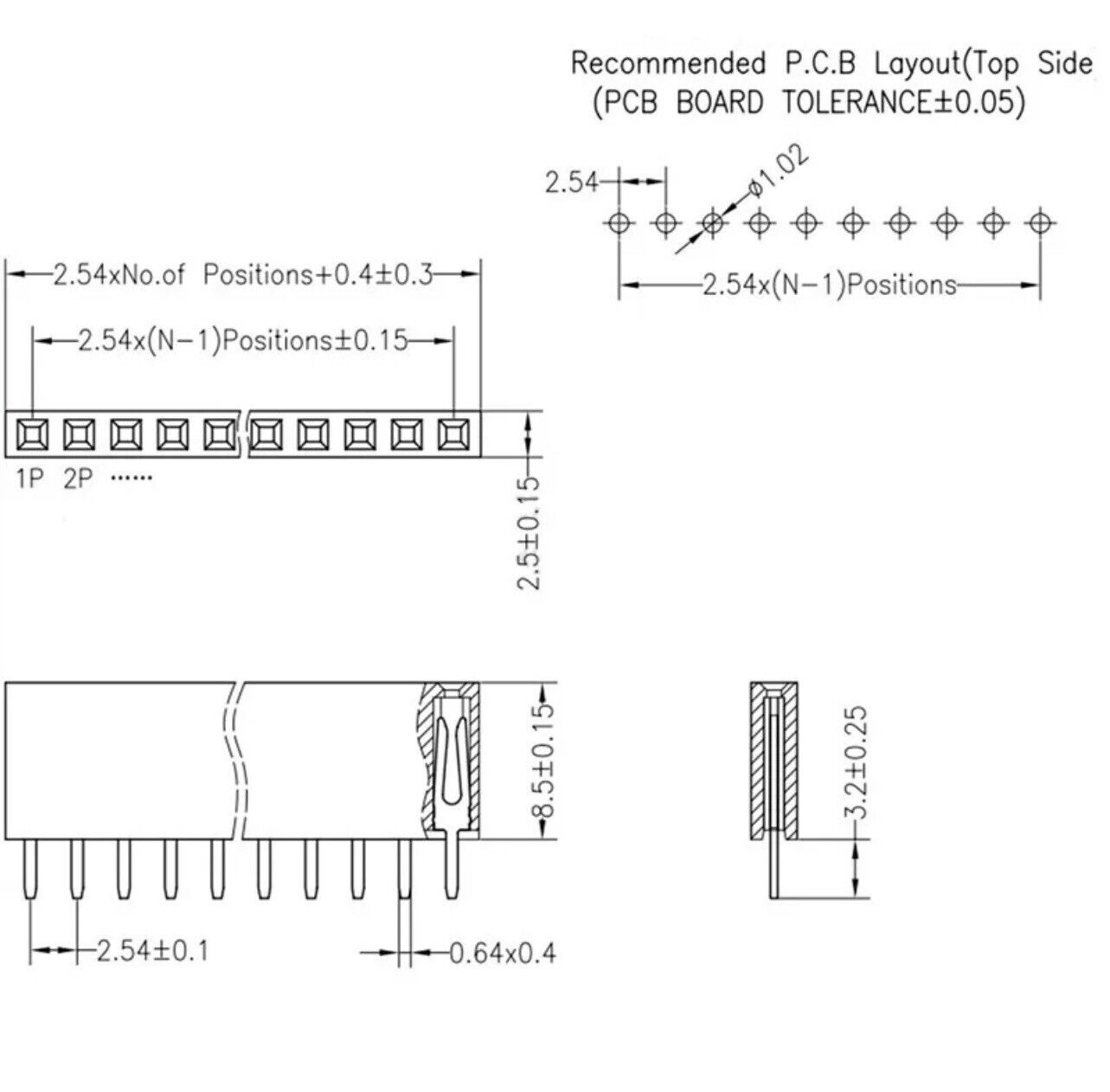

2, 3, 4, 5, 6, 8, 10, 12, 15, 18, 20, 25 and 40-Pin 0.100” (2.54mm) Spacing

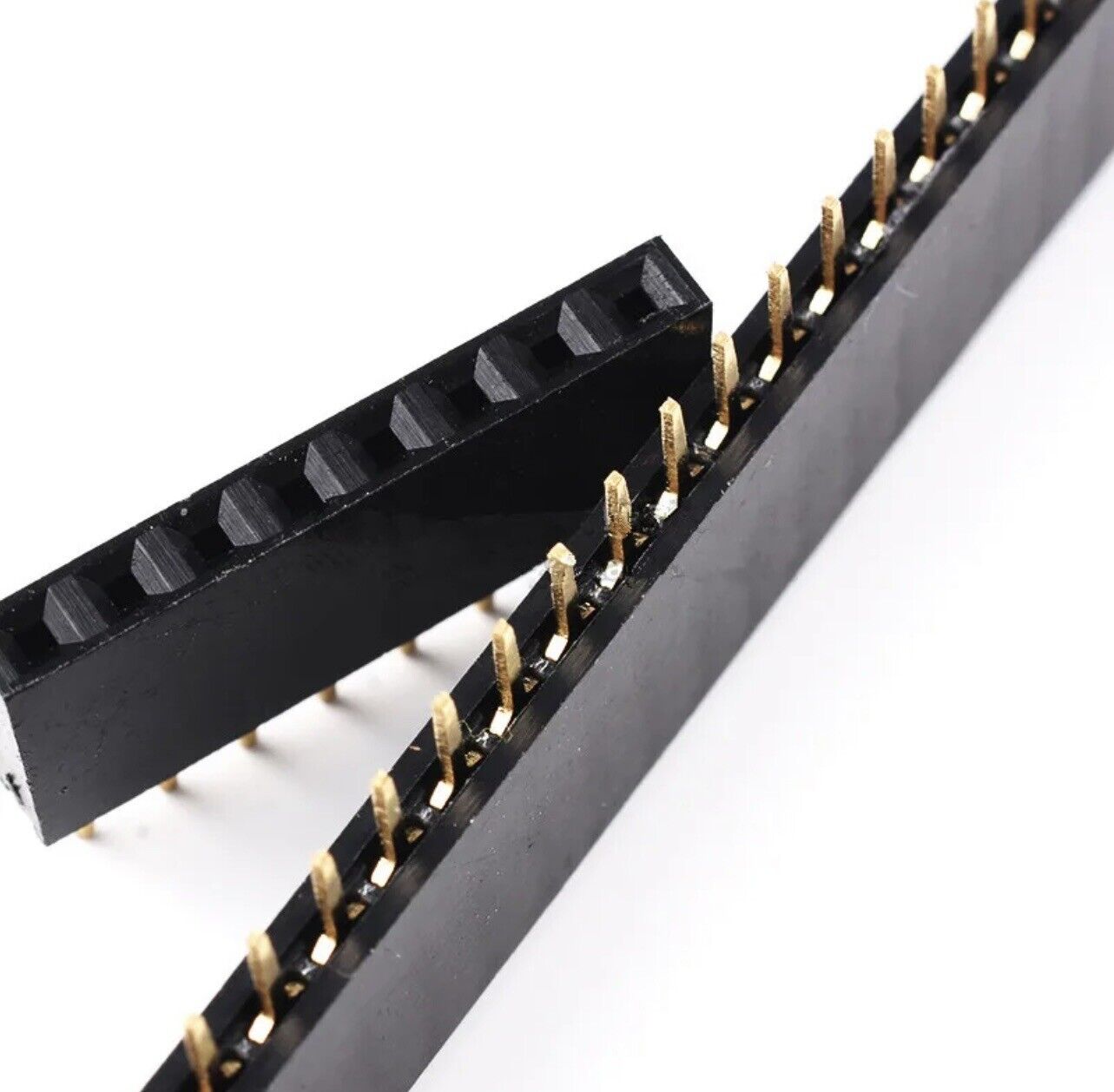

Single row female headers are available in various lengths with standard 2.54mm (0.1″) spacing. Pins are designed for soldering to a PCB. The female connector mates very well with break-away male headers with a standard length up to approximately 6mm in length.

For added flexibility, longer headers can be cut into shorter lengths, but you will probably lose one pin with each cut.

To ease soldering to a PCB, you can insert a male header into a solderless breadboard to keep the pins aligned during the soldering process.

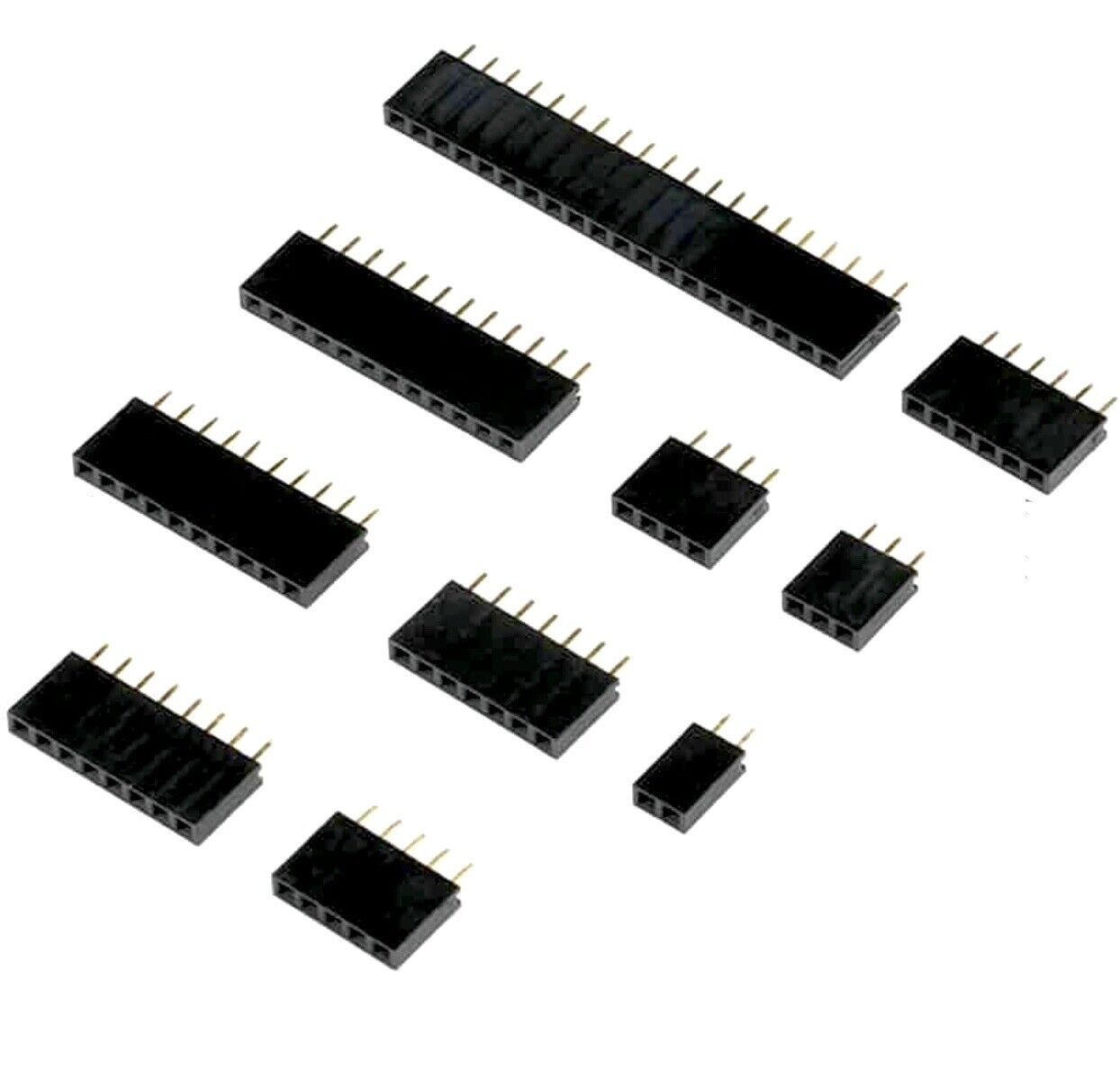

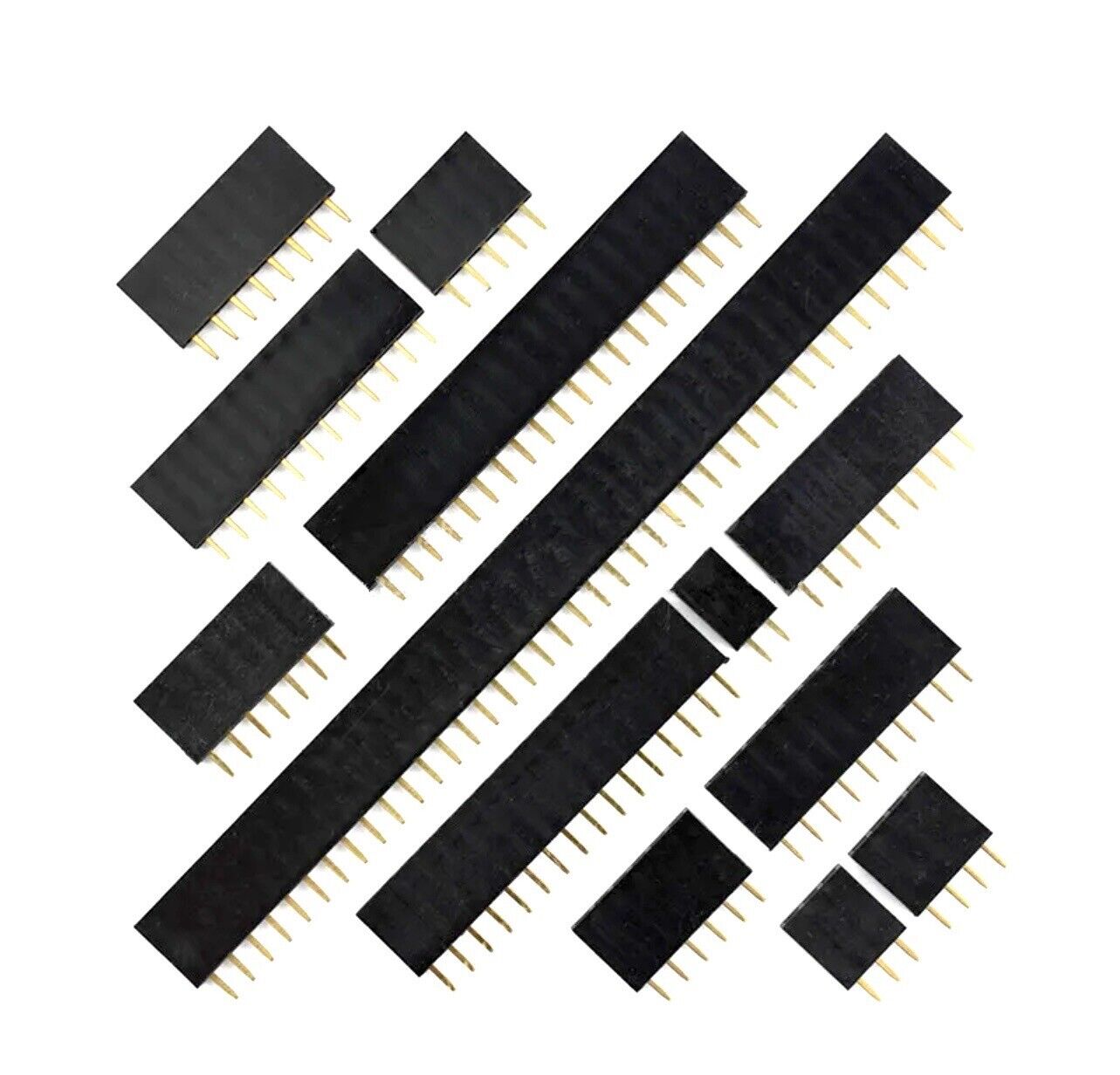

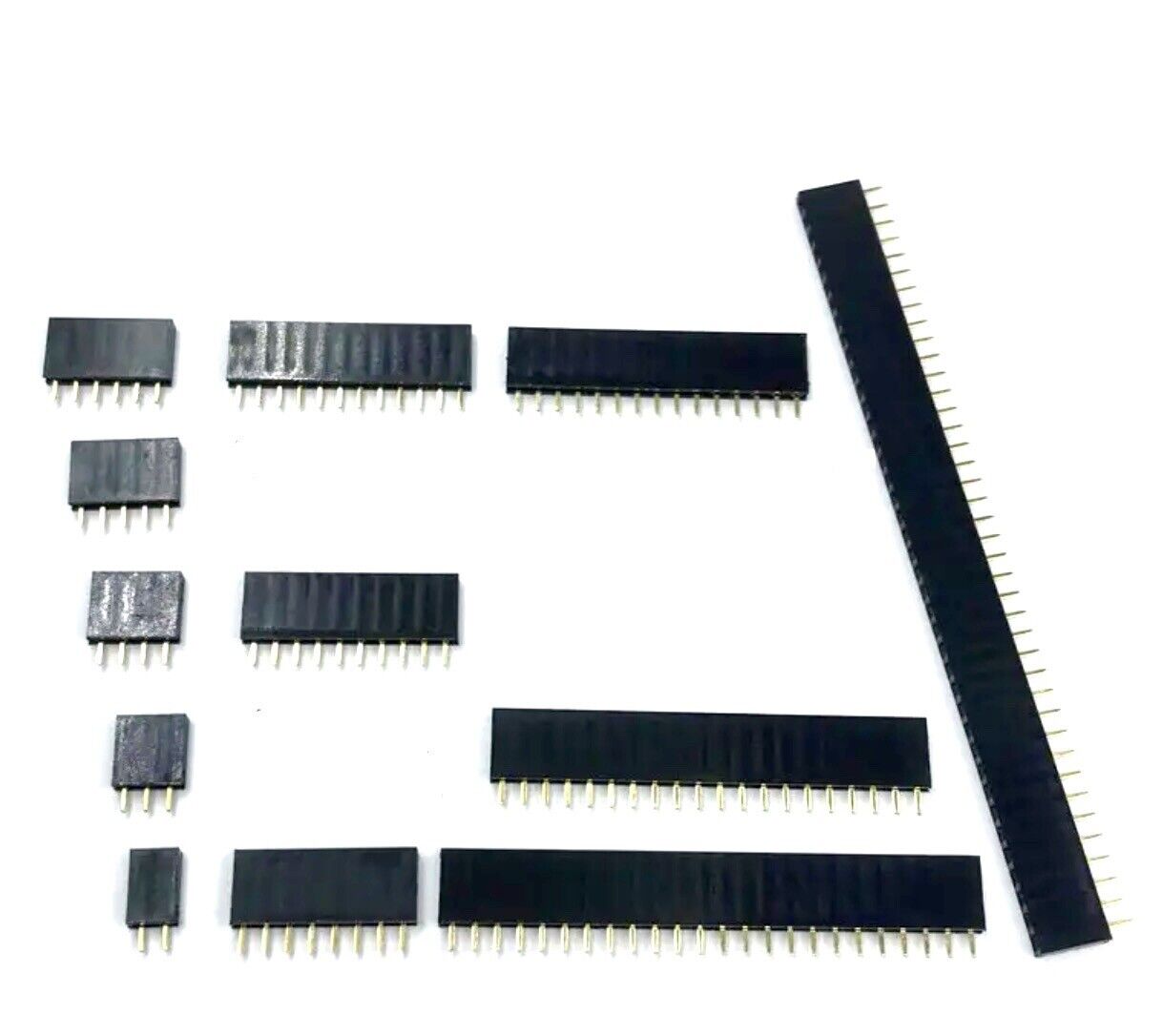

Available in various pin sizes.

2P ~ 20 Pieces

3P ~ 20 Pieces

4P ~ 20 Pieces

5P ~ 20 Pieces

6P ~ 20 Pieces

8P ~ 10 Pieces

10P ~ 10 Pieces

12P ~ 4 Pieces

15P ~ 4 Pieces

18P ~ 4 Pieces

20P ~ 4 Pieces

25P ~ 4 Pieces

40P ~ 4 Pieces

Total head count 144 Pieces

Specifications:

Current rating: 3.0 AMP

Operation temperature -40°C to +105°C

Contact resistance: 20mΩ Max

Insulation resistance: 1000MΩ Min

Withstanding Voltage: AC/DC 1000V

Insulator material: Polyester (UL94V-0) 30% Glass Fiber PBT

Contact material: Brass
