1602 16X2 LCD Display IIC/I2C/TWI/SPI SR Interface Arduino Raspberry PI ESP32

Mounting Style: Stand Alone

Display Resolution: 16 x 2

Lens Shape: Flat

Nominal Voltage: 5 V

Display Width: 12 mm

Touch Screen: No

Colour: Blue

Brand: TCC-LCD

Display Length: 75mm

Series: LCD1602

Type: LCD - Character Display Module

Number of Pins: 4

Display Height: 24mm

Country/Region of Manufacture: China

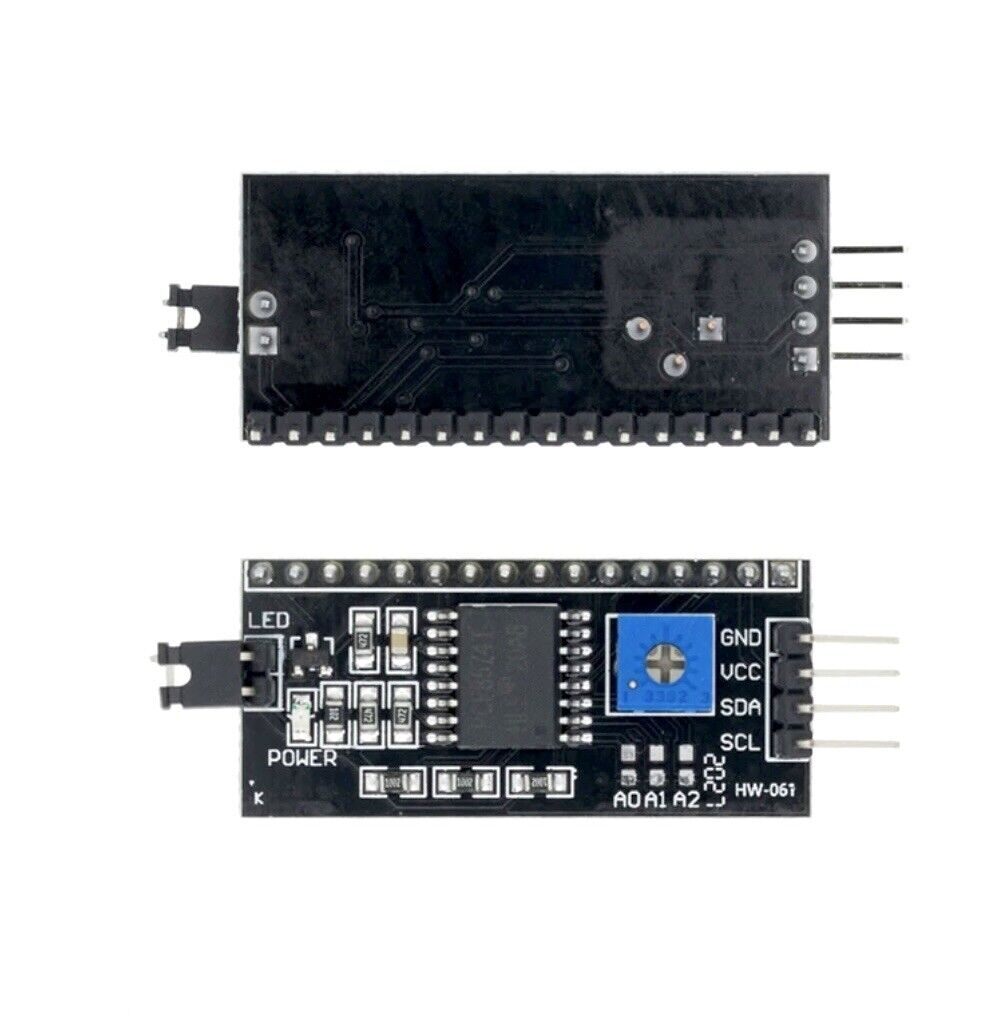

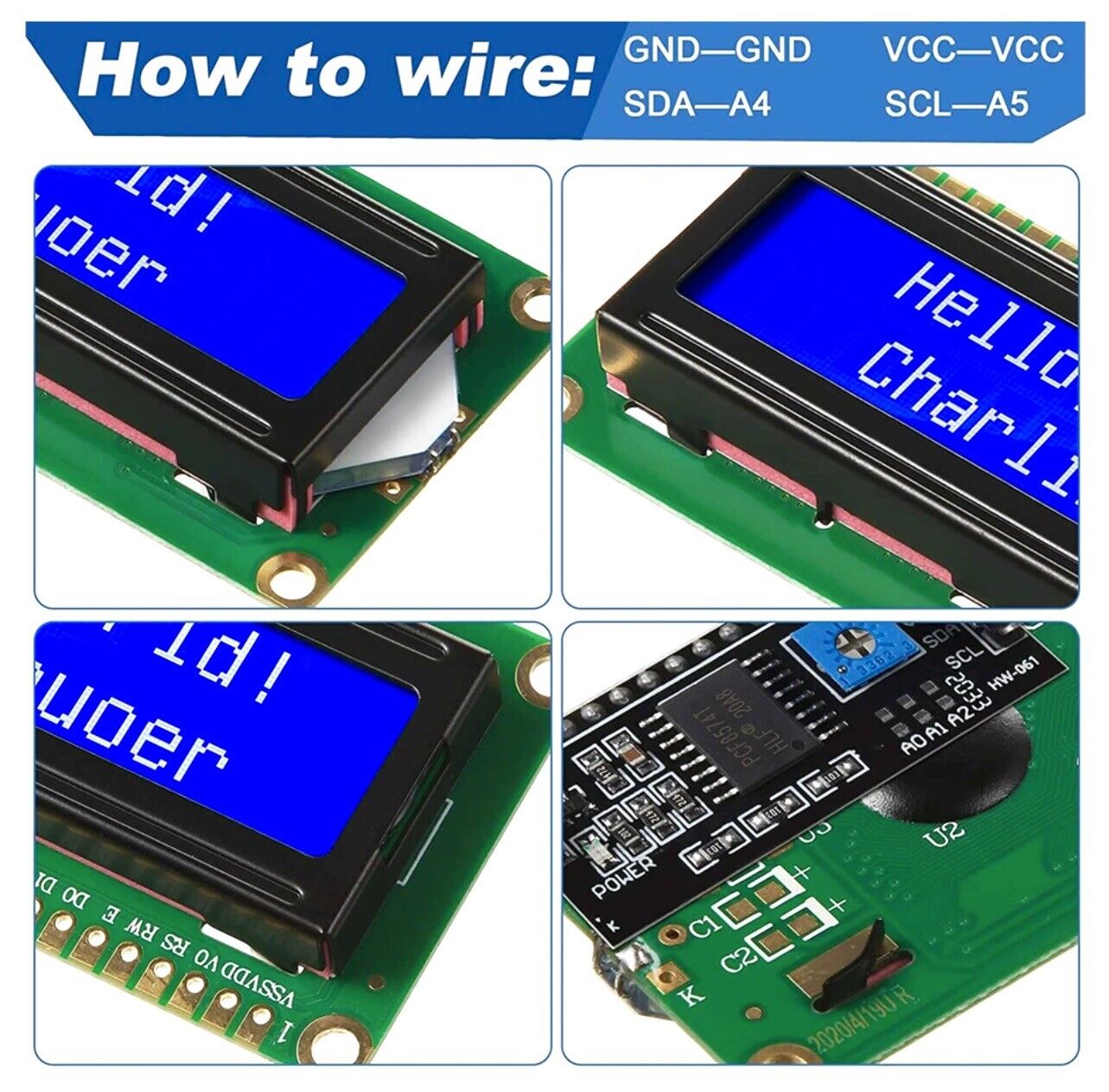

Interface Type: I2C

1602 16X2 LCD Display Screen IIC I2C SPI Interface Arduino Raspberry PI ESP32.

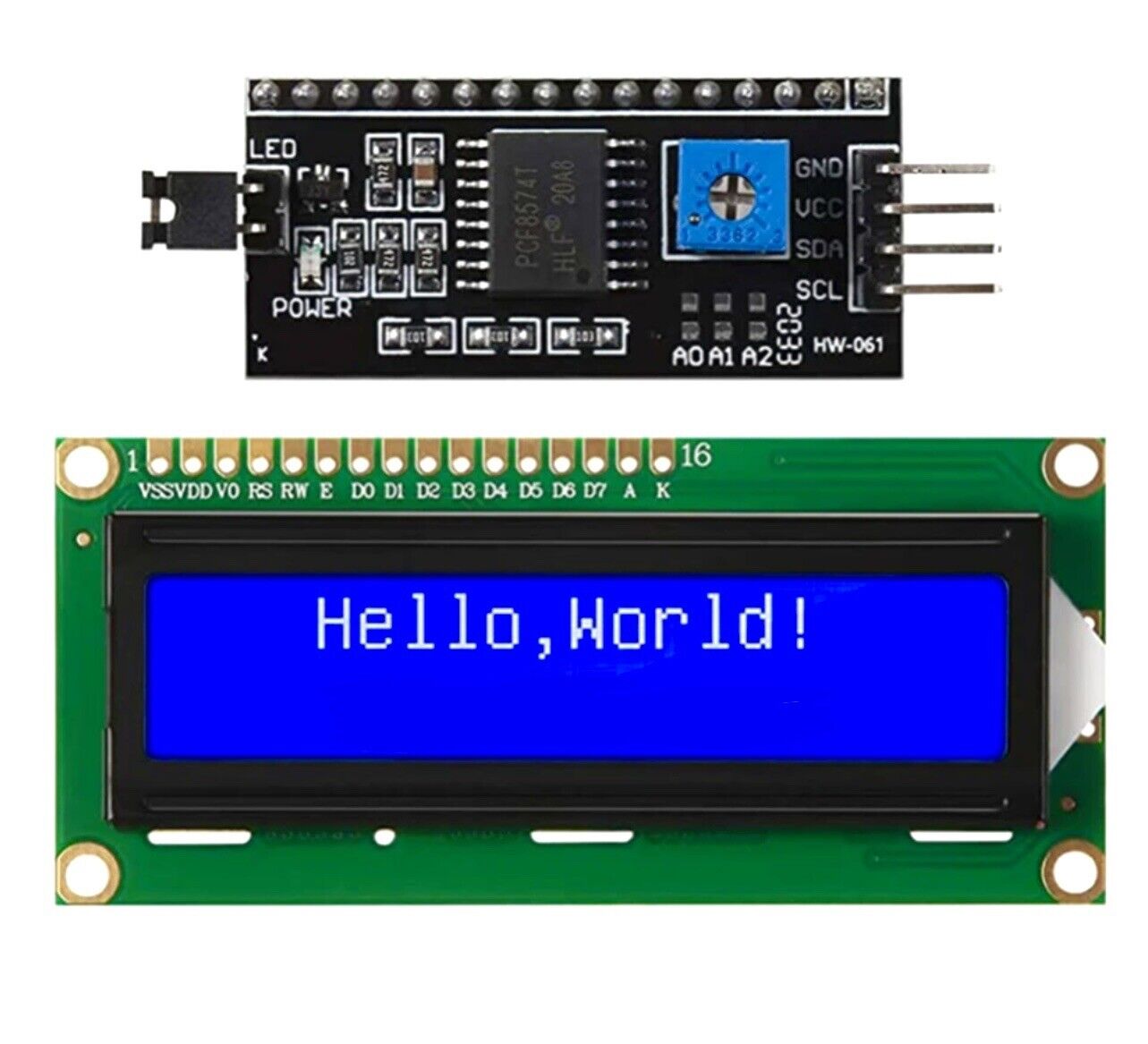

NEW 1602 16X2 LCD Display IIC/I2C/TWI/SPI Serial Interface Module For Arduino

LCD1602 16×2 Blue LCD is a dot matrix character-type liquid crystal display module that shows letters, numbers, characters, etc. It’s composed of 5 x 7 or 5 x 11 dot matrix positions; each position can display one character. There’s a dot pitch between two characters and a space between lines, thus separating characters and lines.

The 1602 display are straightforward to use and are a simple way to provide a user interface on many of your DIY projects where you need more info than basic LED indicators, or 7-Segment displays can provide since these are full alphanumeric displays with two lines of 16 characters each for a total of 32 characters.

For an interactive display, pairing this type of display with a rotary encoder to navigate and select menu items on display can provide an amicable user interface.

Specifications:

Display Format: 16-character x 2-line Blue LCD

Interface: HD44780

Appearance: White on Blue

Adjustable contrast

Connection: Pin header

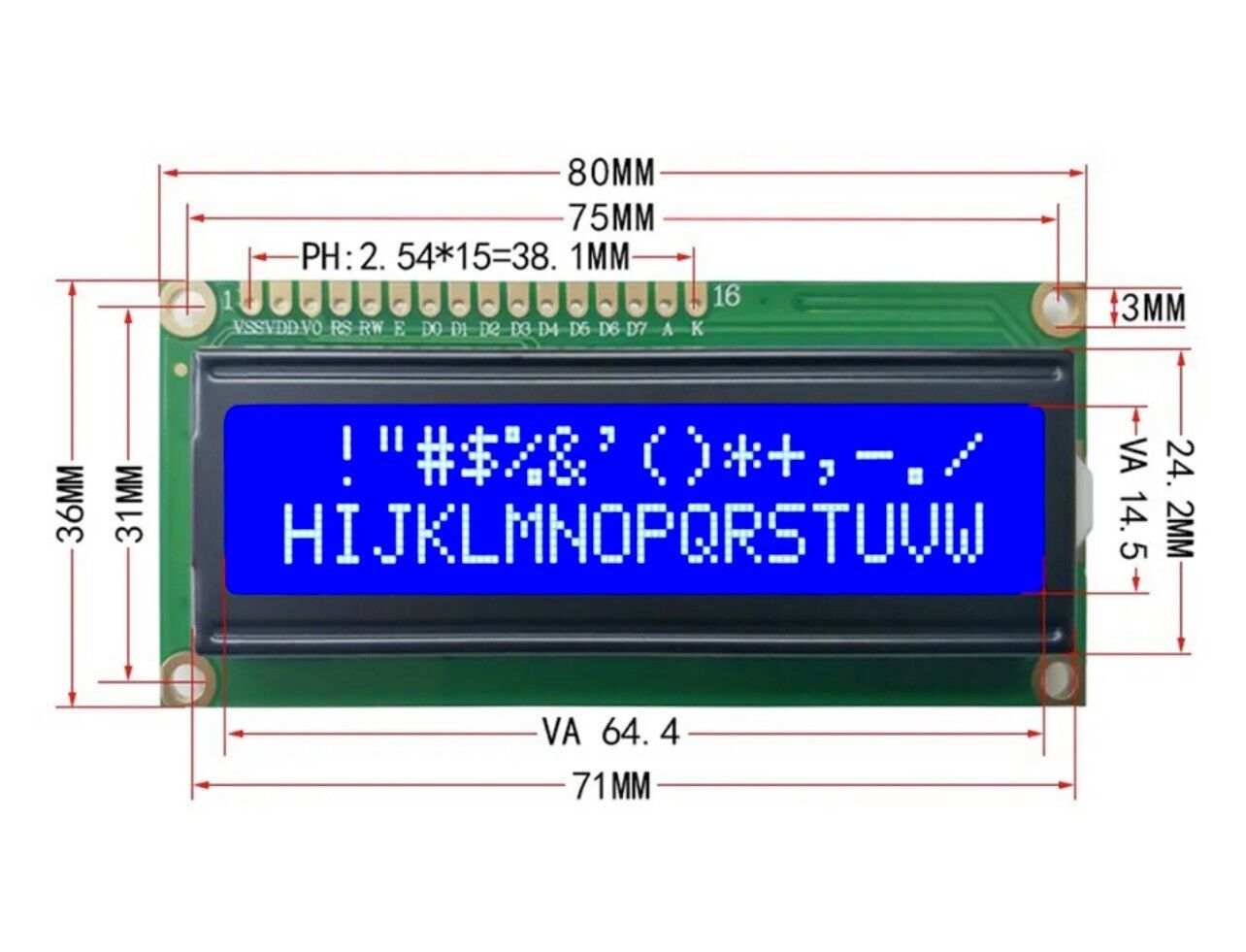

Visual Area: 65 x 15mm

4-bit and 8-bit parallel interface

5V operation

Module Connections

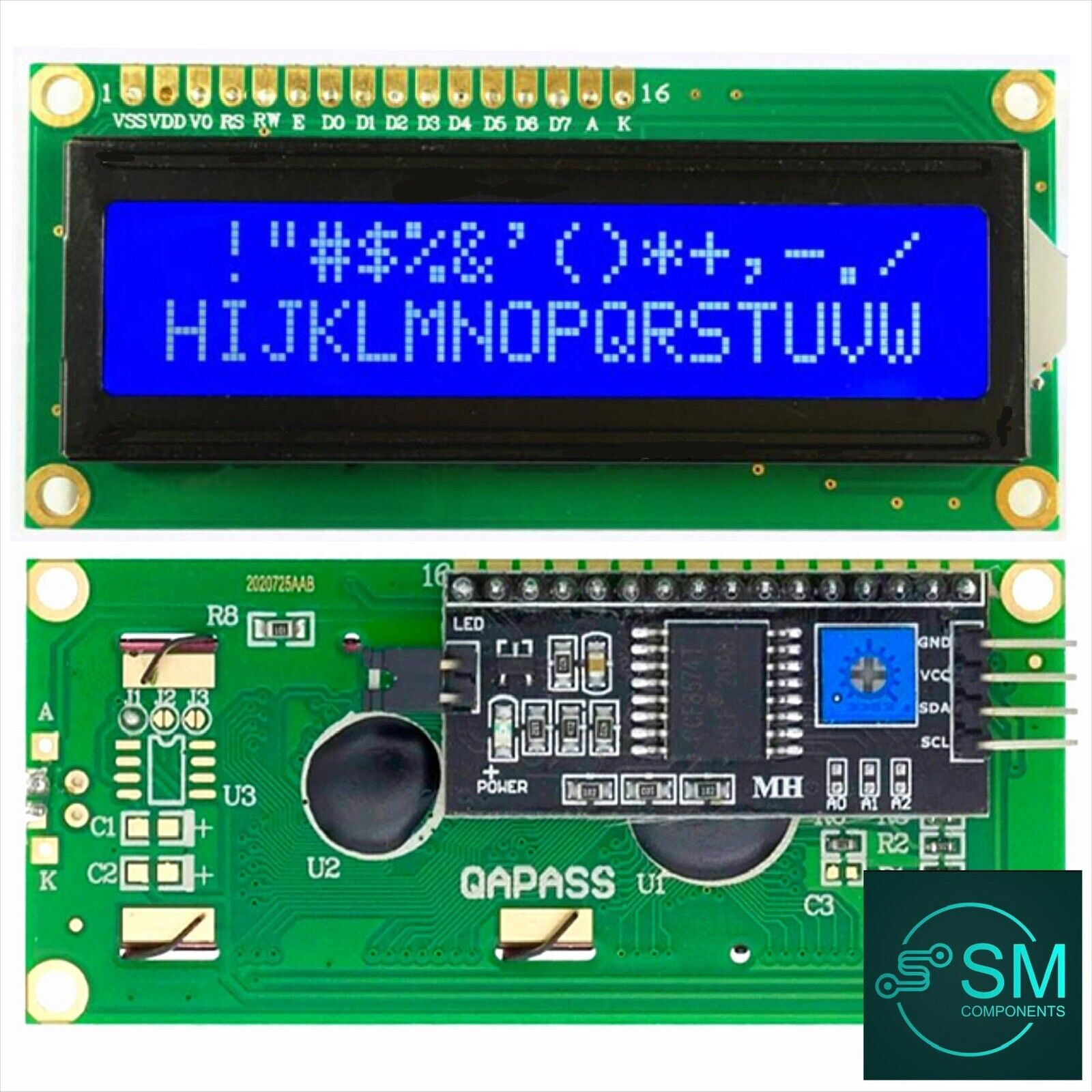

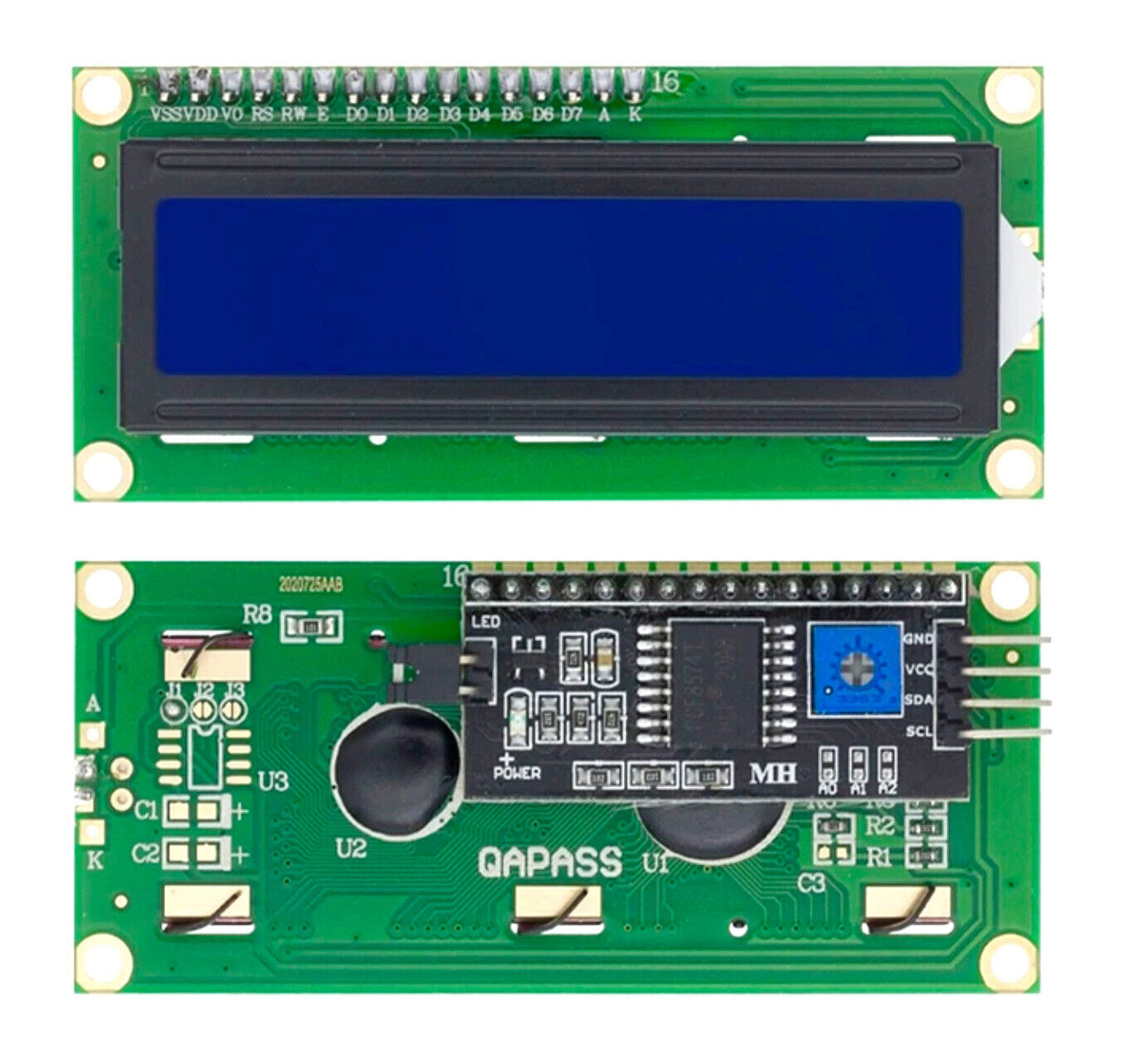

The connection to the display is via a 16-pin header.

VSS = Connect to system ground. This ground needs to be in common with the MCU.

VDD = Connect to 5V. This can come from the MCU or be a separate power supply.

VO = Display contrast. Connect to approximately a 20K potentiometer between 5V and ground to adjust the display’s contrast.

RS = Register Select. Selects the command or data register. A logic LOW = Command, HIGH = Data.

RW = Read / Write. The display is a write-only device. This pin must be grounded to keep it in write mode.

E = Enable. This pin enables writing to the display when active is LOW.

D0 – D7 = Data pins. D0-D7 is used for 8-bit mode. D4-D7 used for 4-bit mode

A = Backlight Anode. Connects to 5V.

K = Backlight Cathode. Connects to ground.

Package Included: 1 x LCD1602 16×2 Blue LCD Display includes IC Interface.
