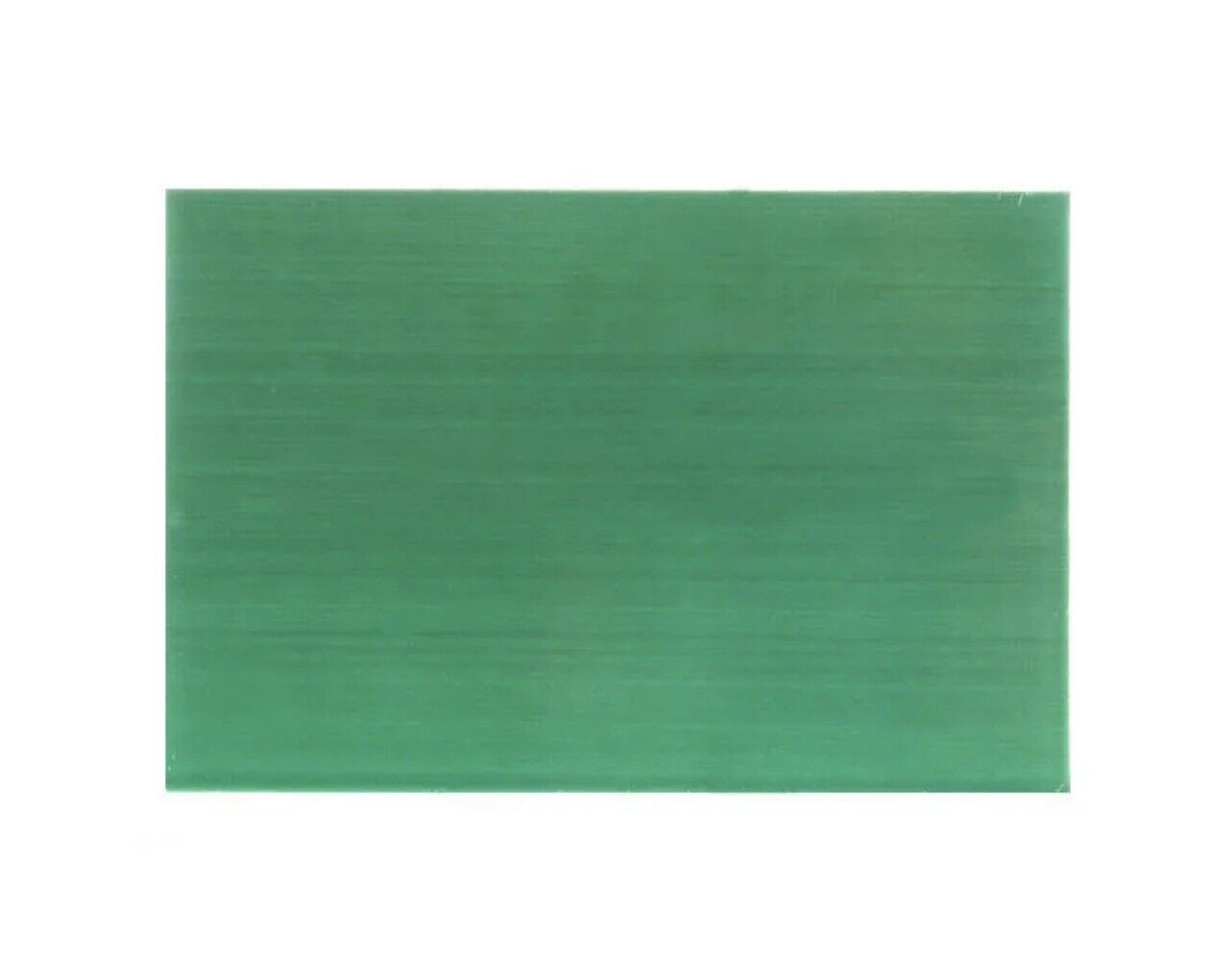

1PC Single Side FR4 Positive Acting Presensitized PCB 150x200mm PCB Home Etching

1PC Single Side FR4 Positive Acting Presensitized PCB 150x200mm PCB Home Etching

Regular price $17.50 AUD
Regular price Sale price $17.50 AUD
Sale Sold out
Shipping calculated at checkout.

Brand: Kinsten

Type: Positive Photosensitive

Model: PPSS150X200

MPN: Does not apply

Unit Quantity: 1

UPC: Does not apply

1 x Positive Acting Presensitized PCB Board Single Side FR-4 Plate Pcb 150mm x 200mm Photosensitive Photo Sensitive.

  • Listing postage with Australia Post Regular Letter no tracking number

Description

1.Dimension: 150 x 200 x 1.6 mm

2.Material: FR-4 1 oz copper, Single Side

3.6-10 minutes exposure time( 5cm, 20W Flouresent Lamp ), 60-90 seconds( Kinsten exposure unit)

4.Colour Varied after exposure

5.Preserve in the cool, dry condition.

Due to the many personal ways to expose, develop and etch pcb’s, only basic directions are included.

Kinsten website has a full breakdown on etching, also YouTube has thousands of etched pcb videos for Positive Acting Presensitised PCB.


After producing several pcb’s in-house, we recommend a std UVA Light source of approximately 20-30W for an exposure time of 3-5 minutes, many factors may vary so it’s difficult to determine an exact time.

Developer of NaOH (Sodium Hydroxide) 13g/litre solution for approximately 3-4 minutes, and FeCl for etching to the desired effect.


PLEASE NOTE THAT THE PCB DOESN’T HAVE A SKIN ON IT AS YOU WOULD NORMALLY EXPECT. IT USES THE SHIELDING OF THE BAG TO STOP EXPOSURE. ONCE YOU CUT YOUR PCB TO DESIRED SIZE, SIMPLY RETURN THE UNUSED PIECE BACK INTO THE BAG AND RESEAL.
