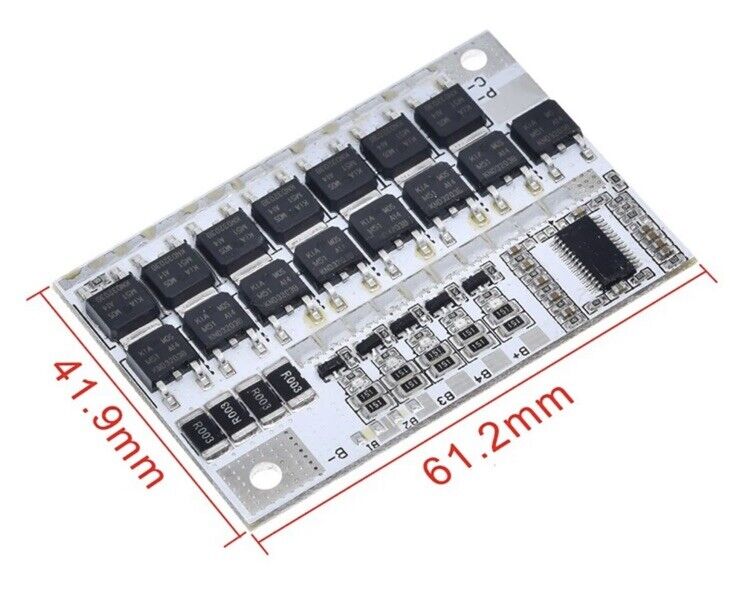

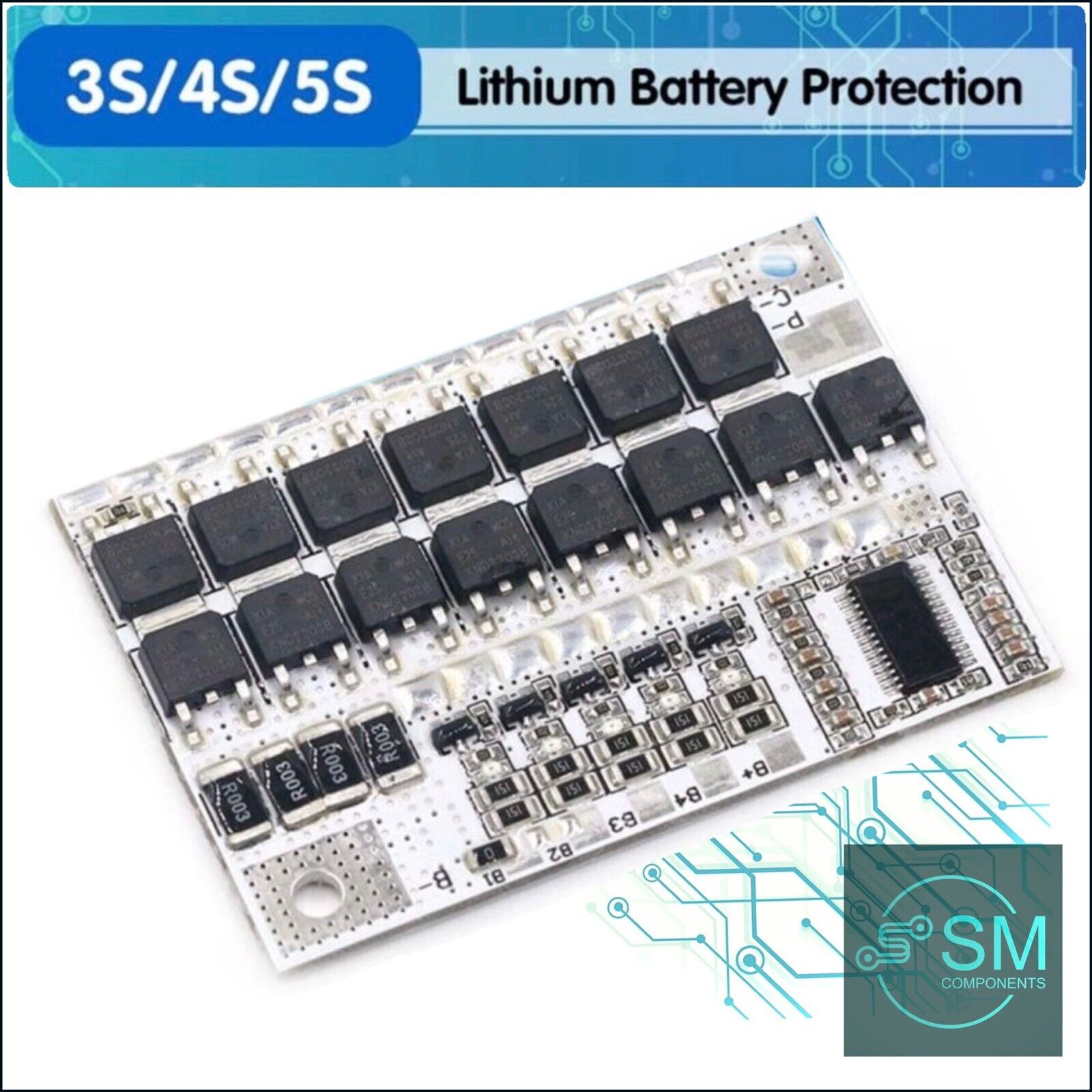

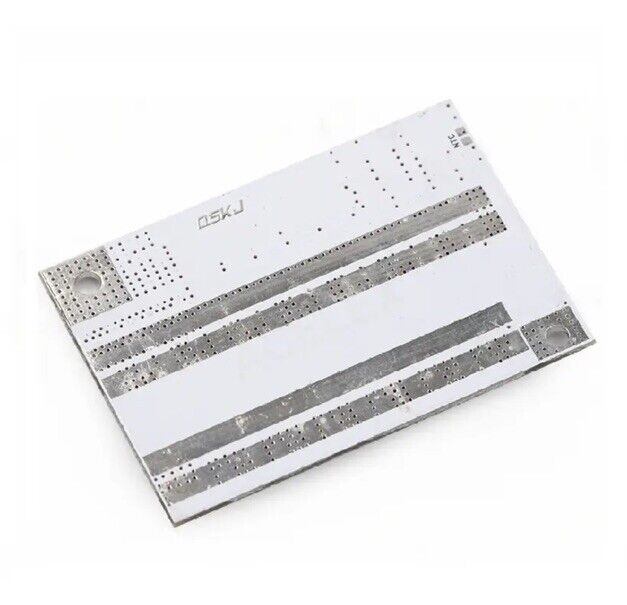

1PCS 3S-4S-5S BMS 12V-21V 100A Lithium Battery Protection Circuit Board Module

Output Voltage Rating (DC): 21 V

Output Voltage Rating (AC): 5 V

Nominal Voltage Rating (DC): 12 V

Nominal Voltage Rating (AC): 100 V

Inrush Current Rating: 1 A

Brand: Generic

Type: Battery Management System

Nominal Current Rating: 100 A

Country/Region of Manufacture: China

Protection Properties: Discharge Protection,Low Voltage Protection,Overcharge Protection,Overvoltage Protection,Reverse Current Protection,Short Circuit Protection,Temperature Protection,Under Voltage Protection

Colour: White

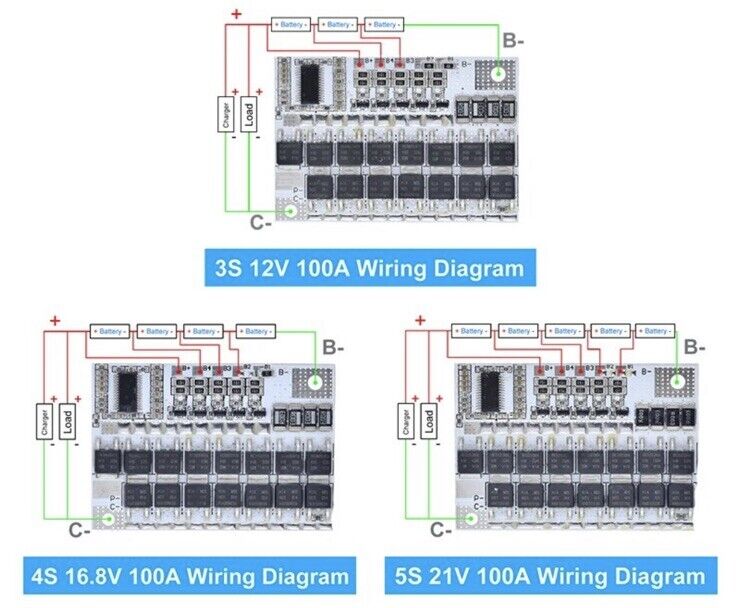

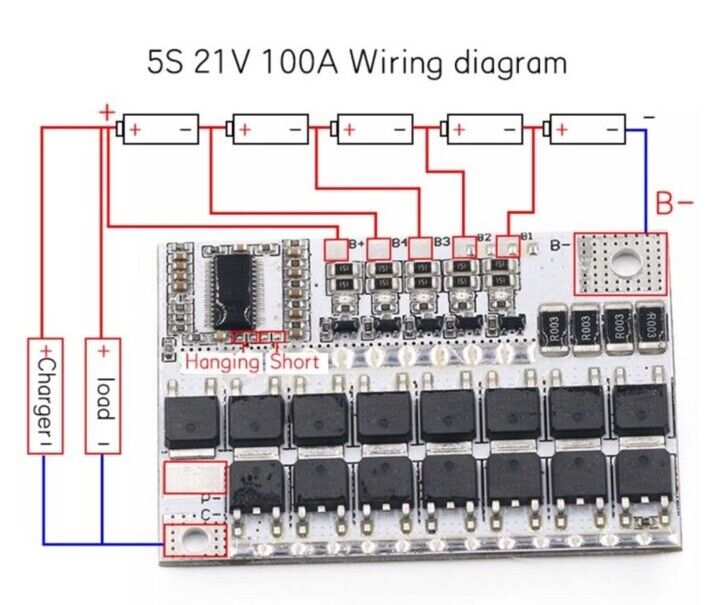

1PCS 3S or 4S or 5S Battery Management System (BMS)

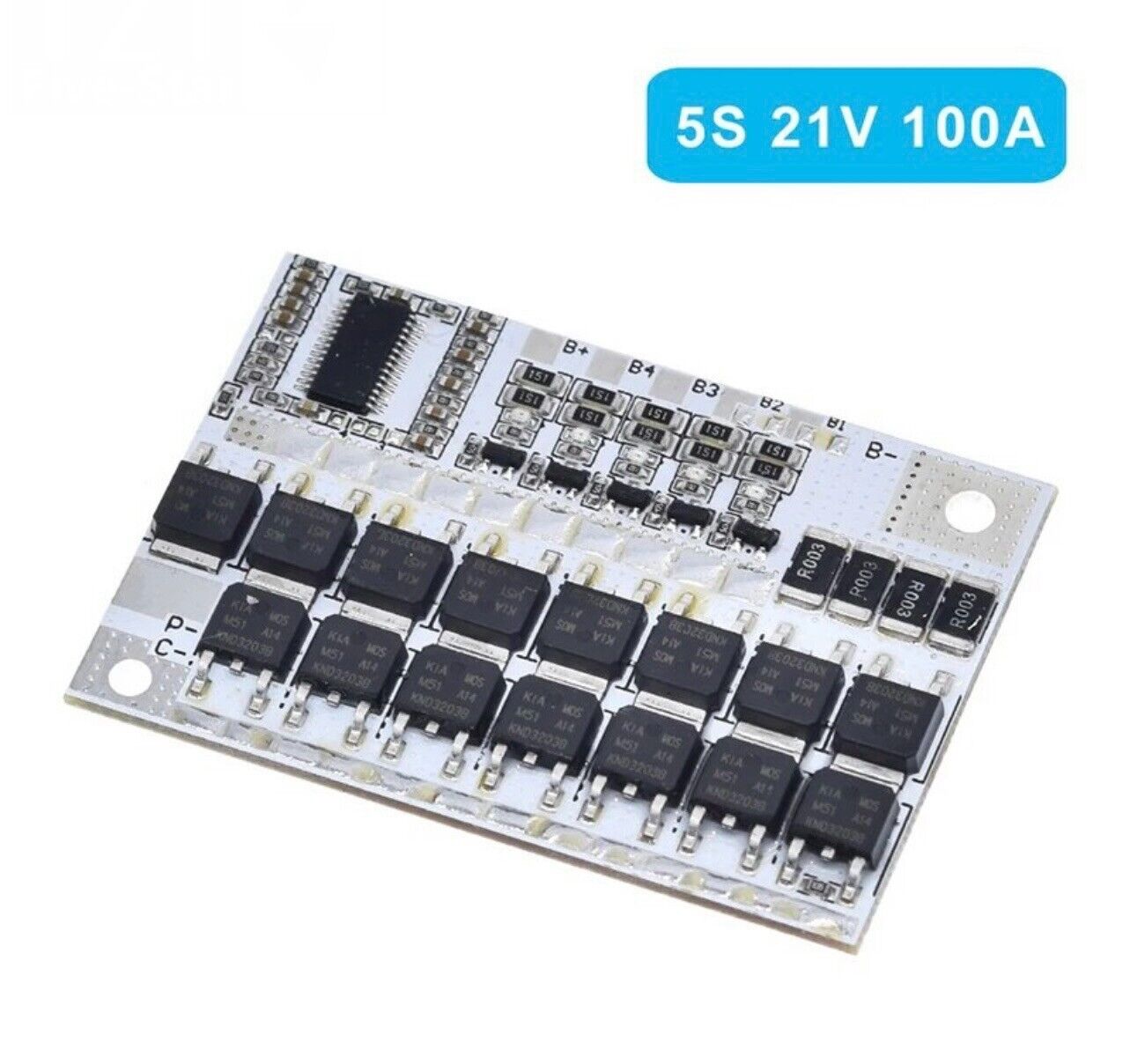

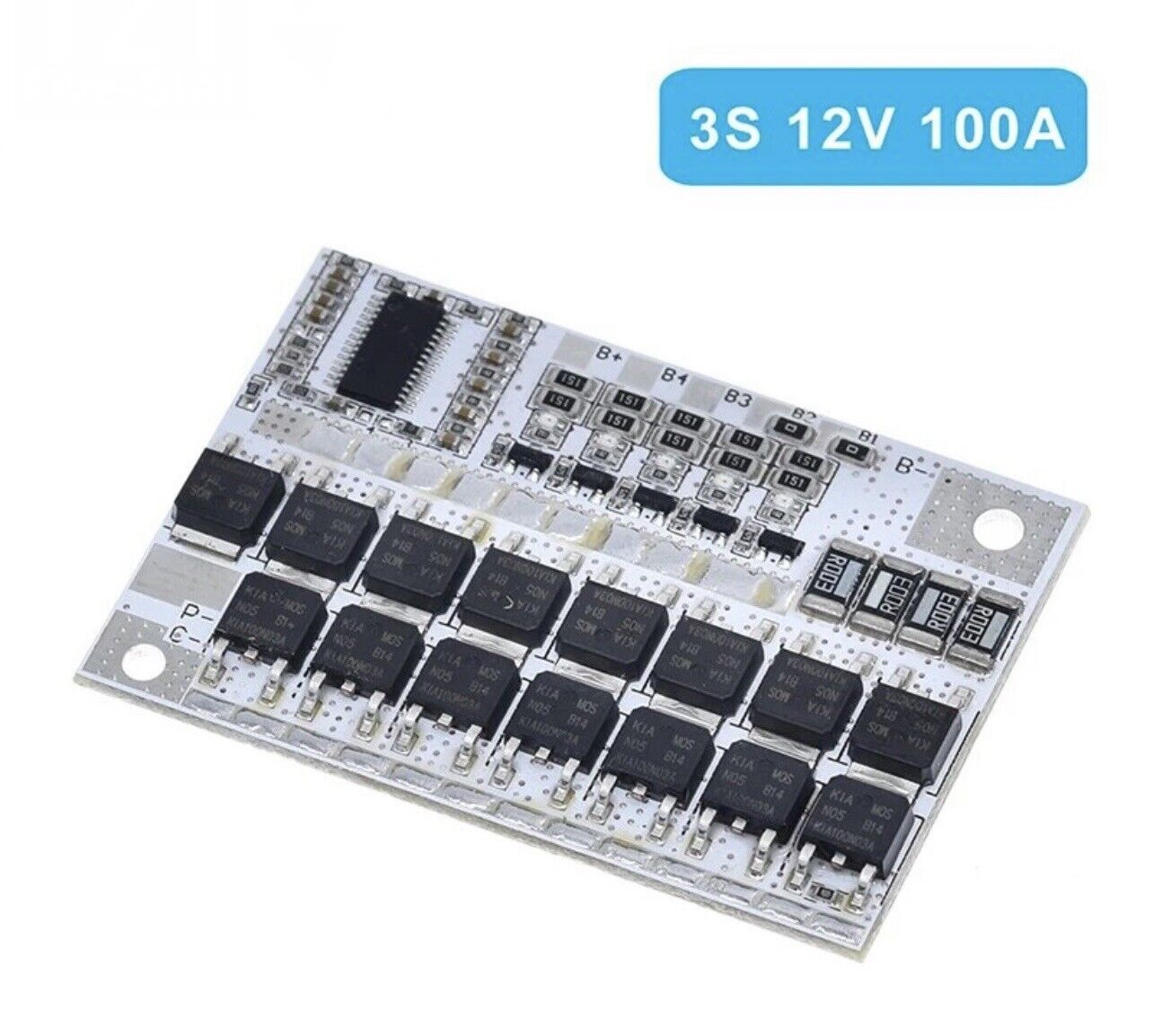

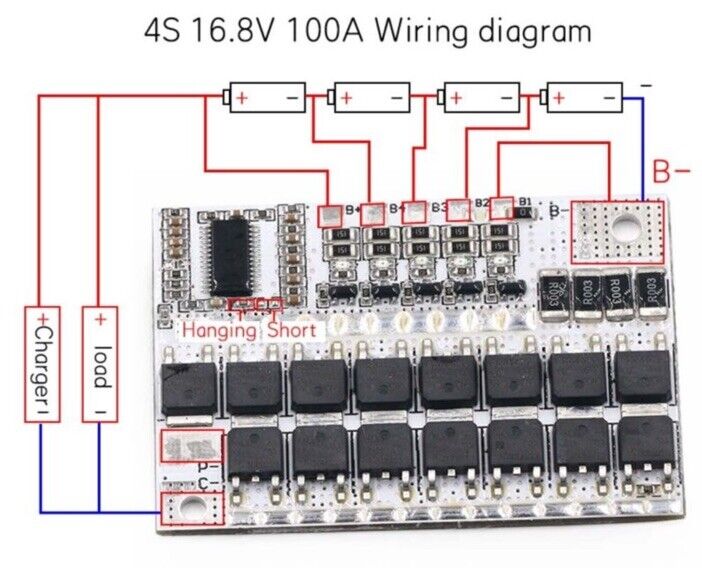

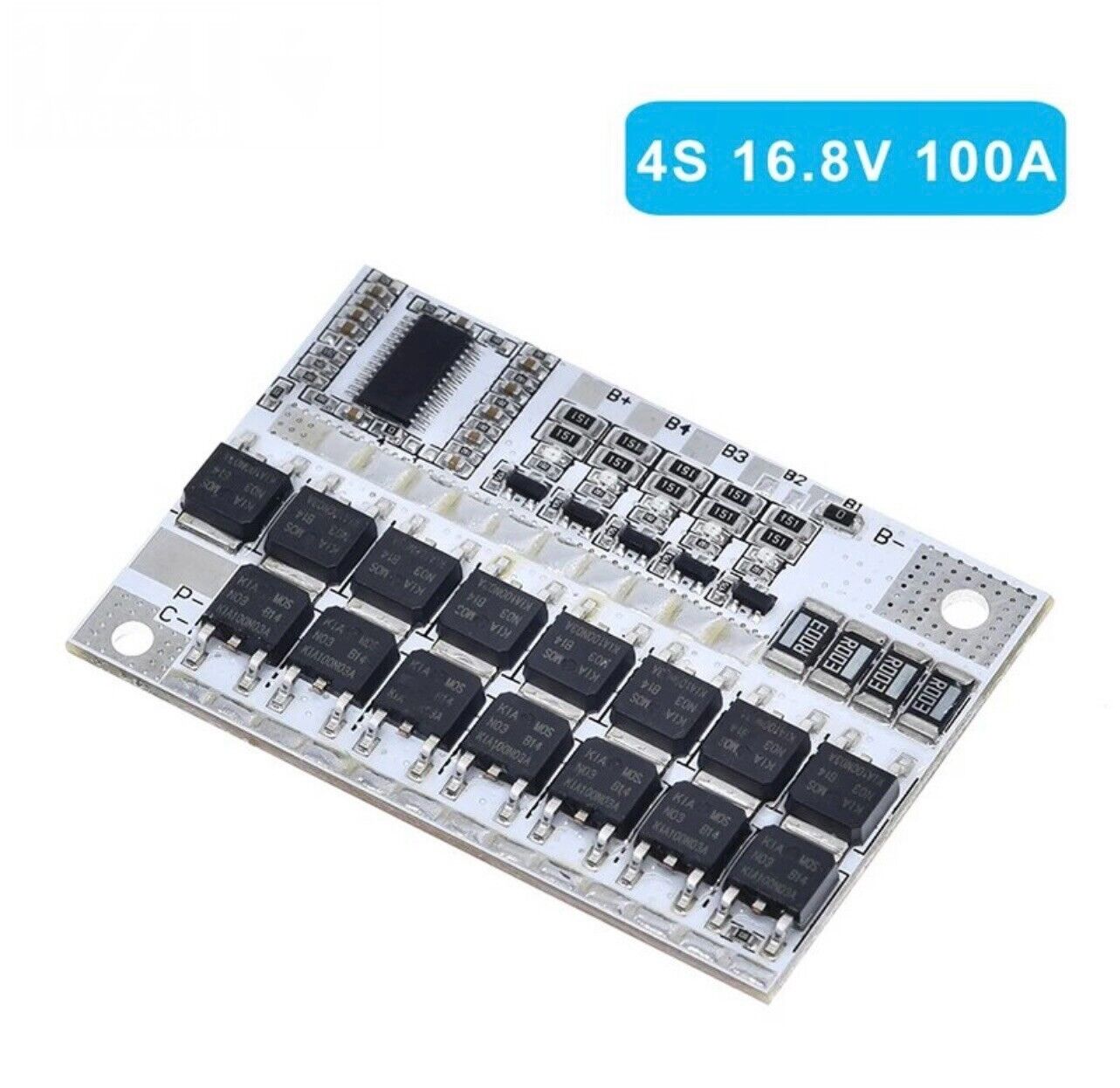

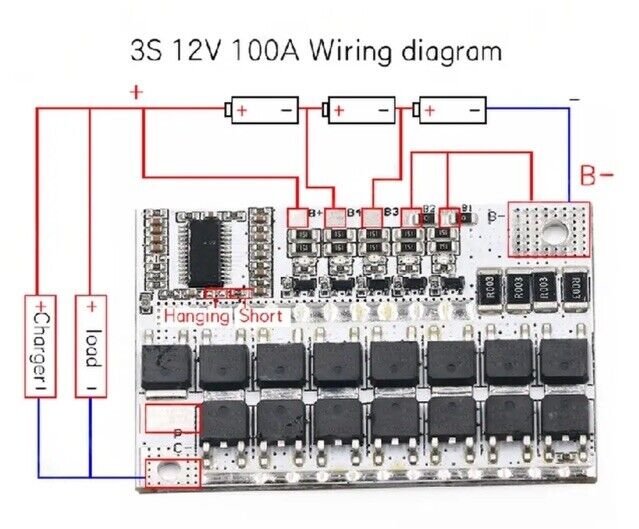

12V 100A, 16.8V 100A, 21V 100A Lithium Battery Protection Circuit Board

Lithium polymer Balace Charging Module. Sent with Australia Post Regular Letter no tracking included.

Tracked options available.

Description:

Single cell battery overcharge protect voltage: 4.21-4.29 V

Single cell battery overcharge protect recover voltage: 4.14-4.24V

Overcharge protect delay: 1.5-2.5S

Single cell battery over-discharge protect voltage: 2.72-2.88 V

Overcharge protect Current: 100A

Over-discharge protect Current: 100A

Over-discharge protect delay: 0.5-1.5S

Temperature protection: Yes

Disconnect protection : Yes

Shortage protection : Yes

Shortage delay: 100-600 uS

Shortage protect recover: YES

Charging Current: 60A

Current Balance: Yes

Ampere balance (Current): 60MA

Voltage balance accuracy: 4.14-4.24V
