2 X DIY Heart Shape Breathing LED Beginners Kit R,G,B,W DC 4-6VDC Practice LED

Application Type: Practice Soldering For Beginners

Number of Items in Set: 2

Mounting Style: Through Hole

PCB Type: Single-Sided PCB

Shape: Heart

Warranty: 30 Days

Number of Pieces: 2

Material: FR-4,Metal,Plastic,Copper

Mounting Type: Through Hole

Suitable For: Beginners +

Modified Item: No

Brand: EEQKit

Current Type: DC

Compatible Mounting Style: Through Hole

Operating Voltage: 4-6 VDC

Assembly Required: Yes

Voltage: 4V-6V

Compatible Mounting Type: Through Hole

Unit Quantity: 2

Country/Region of Manufacture: China

Application: Learning Electronics

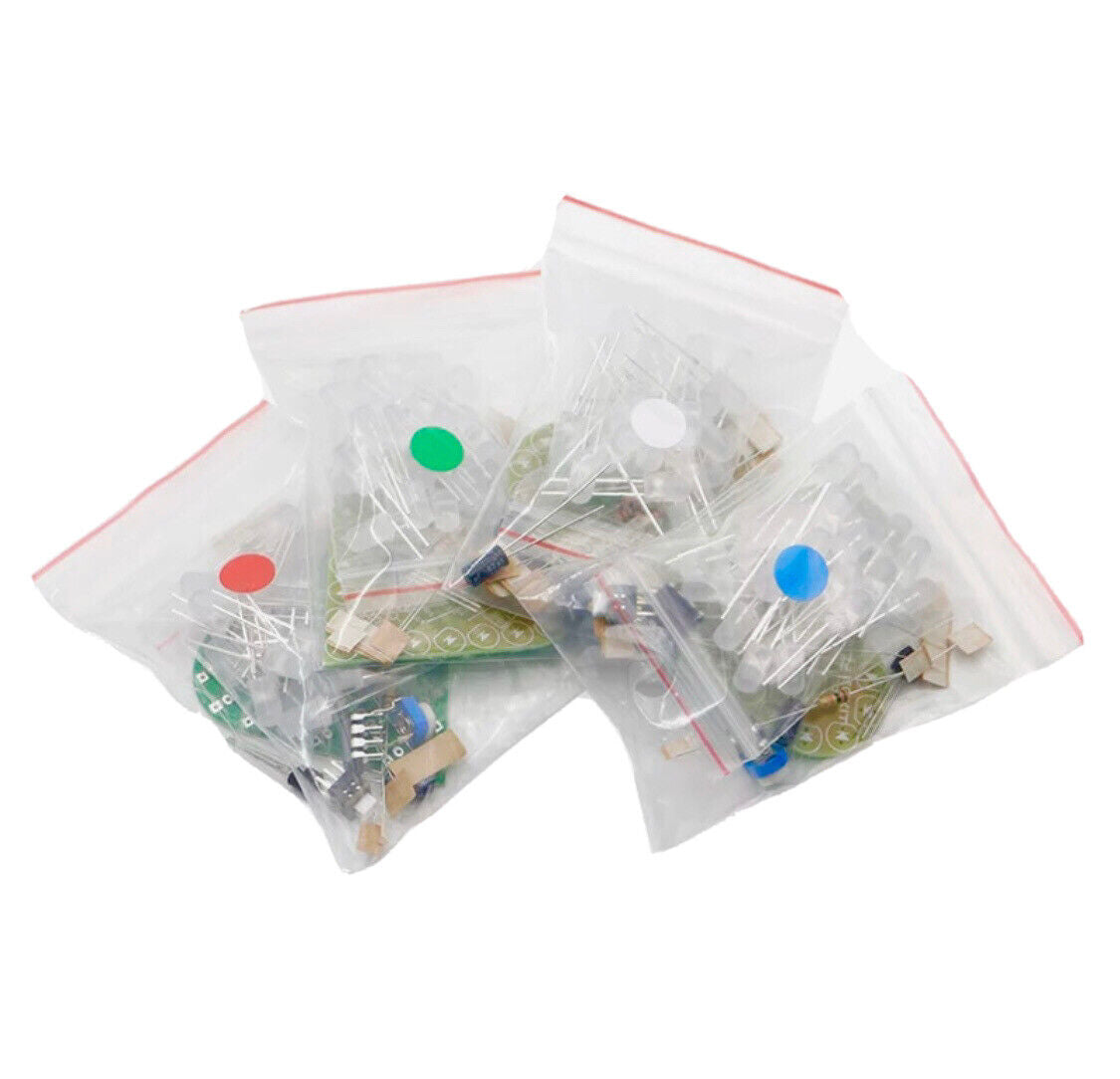

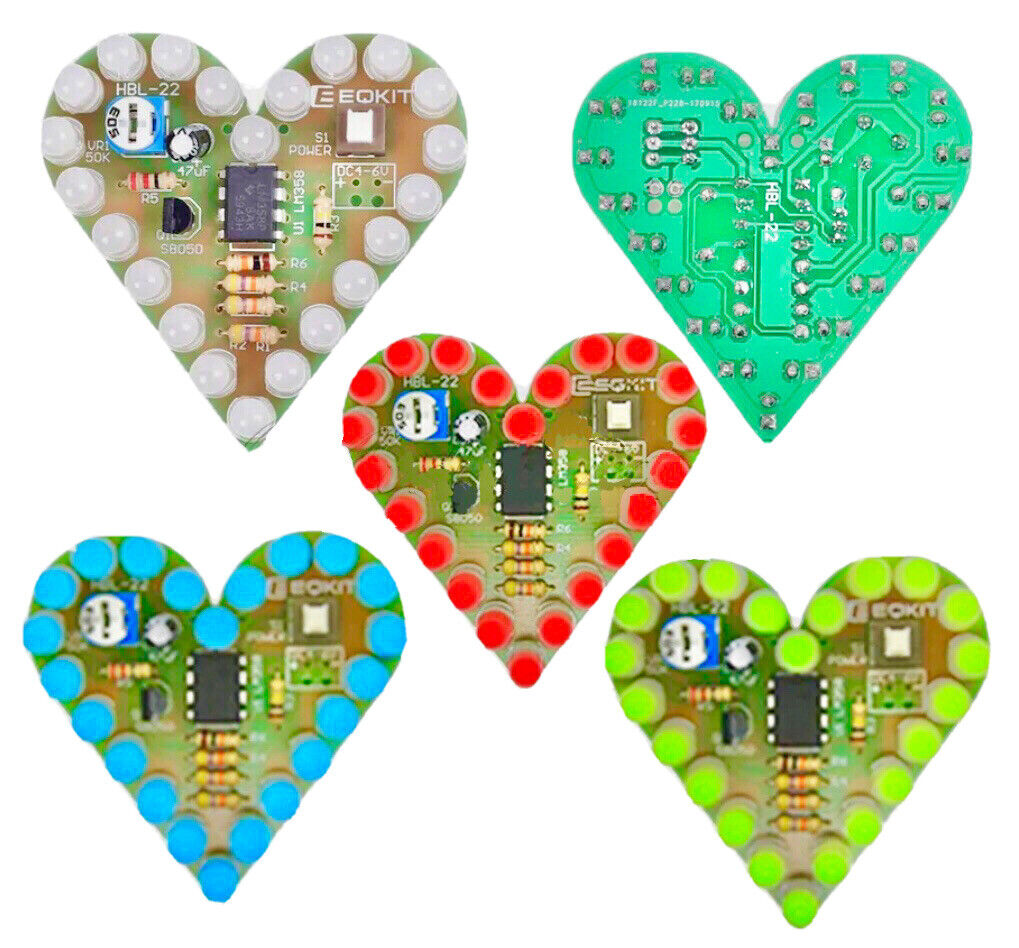

2pcs DIY Heart Shape Breathing LED Beginners Kit DC 4V-6V Breathing LED R,G,B,W.

Sent with Australia Post regular Letter no tracking number included

• 2 X KITS WILL BE SENT OF RANDOM COLOURS, RED, GREEN, BLUE OR WHITE, IF YOU HAVE A PREFERENCE, PLEASE LEAVE A MESSAGE

1. Introduction

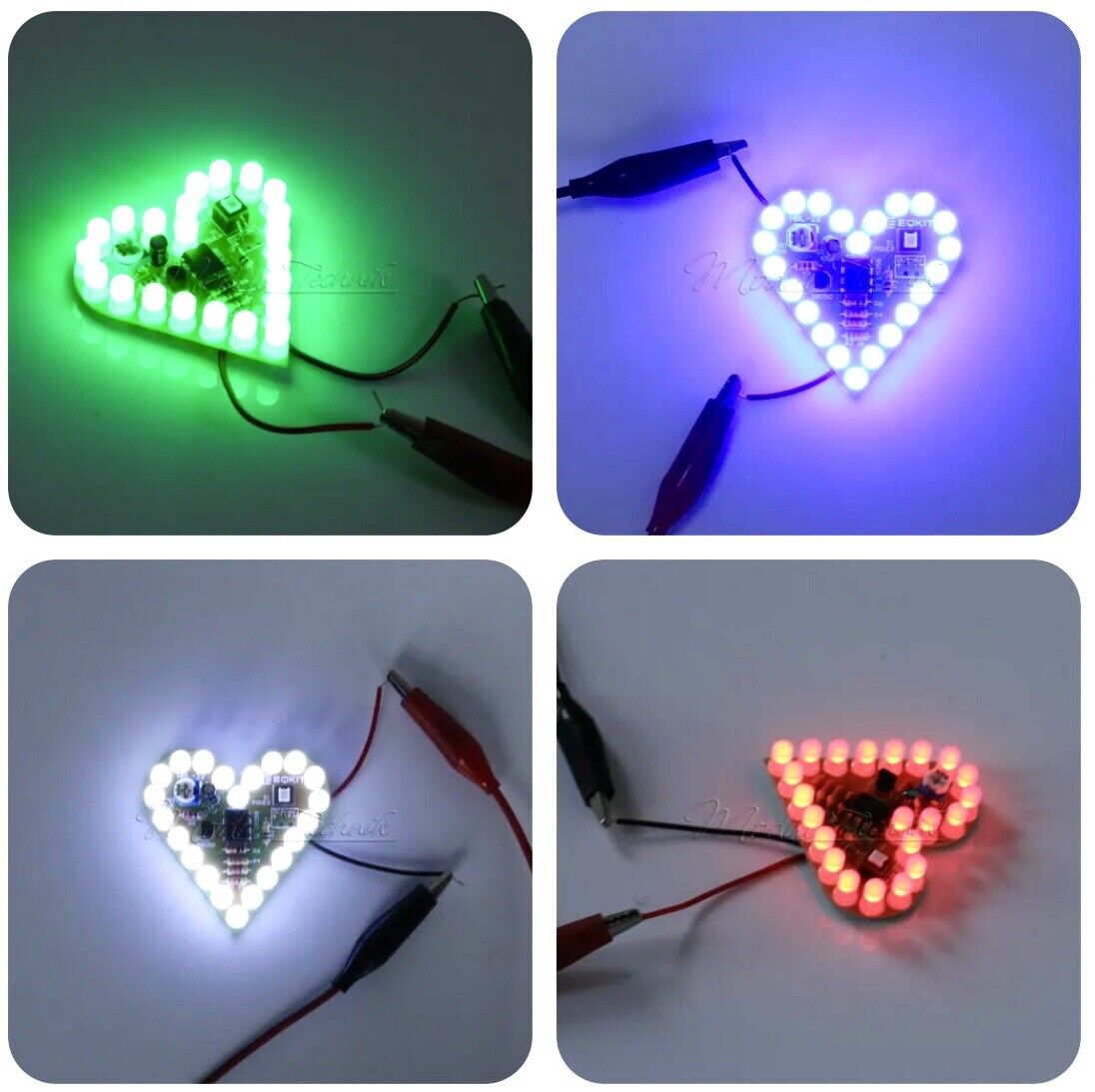

Light brightness automatically changes.

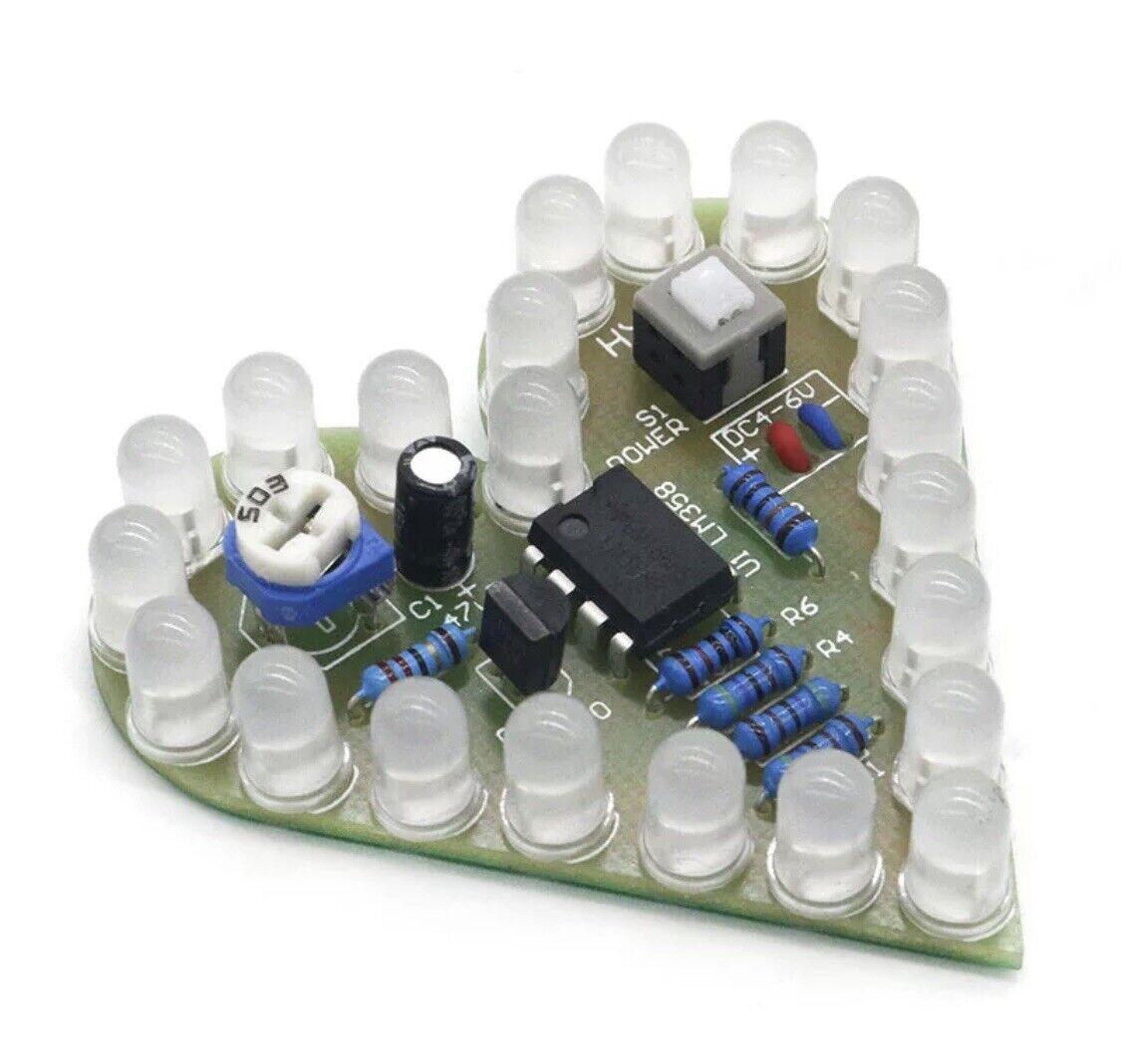

This is a DIY Heart Shape breathing lamp kit parts . You need solder it by yourself.

2.

1 Name Heart shape led

2 Operating voltage DC 4-6V

3 Difficulty of welding machine Easy

4 Circuit board size 50.7*50.7mm

5 Packing weight

13g/kit

3. Easy to solder beginner kit with excellent pcb silkscreen values. This is a DIY suite of parts, it will need soldering by yourself..

SCM has written code, successfully tested.

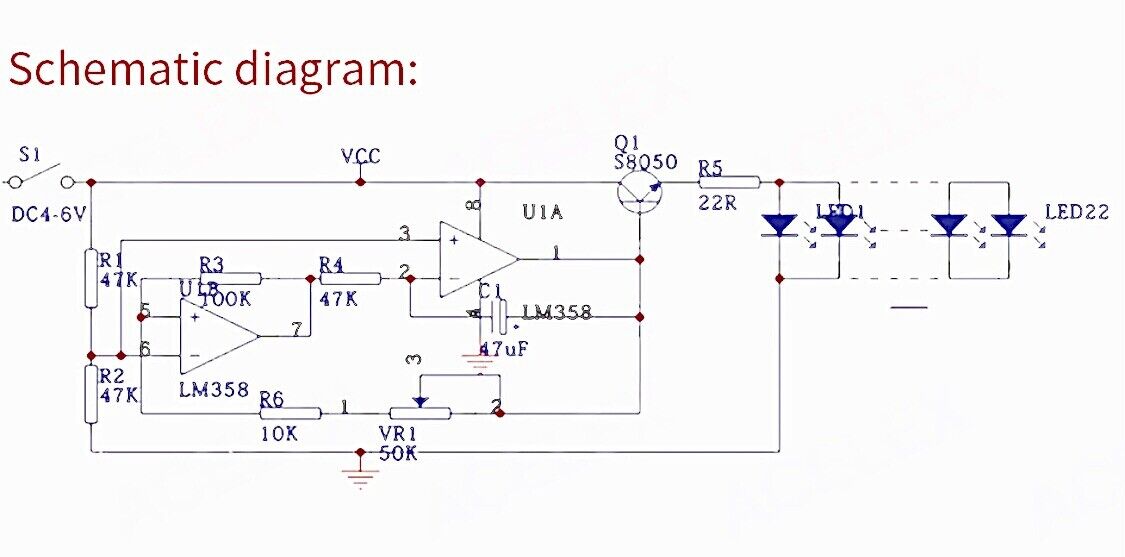

4.Schematic included

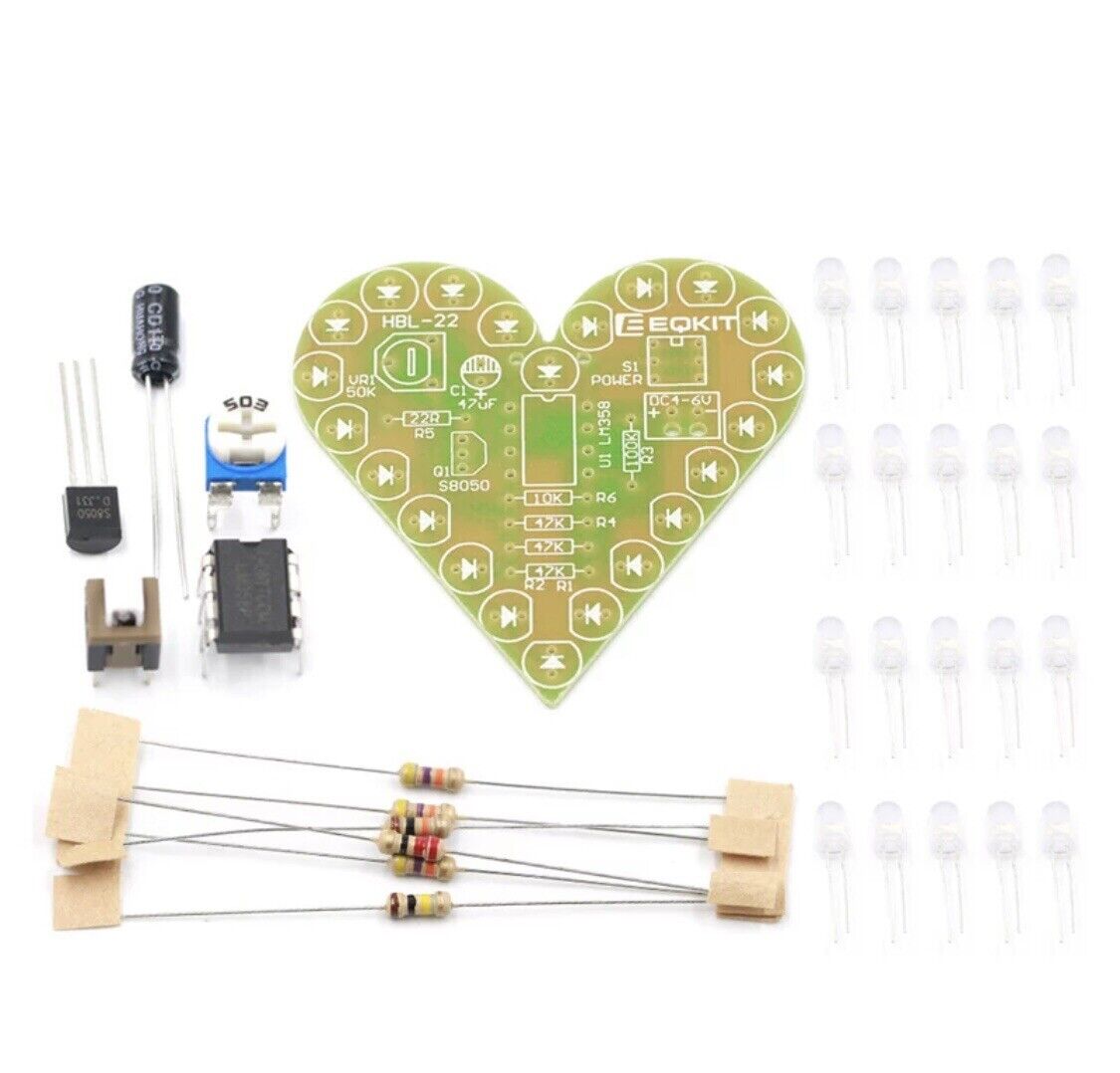

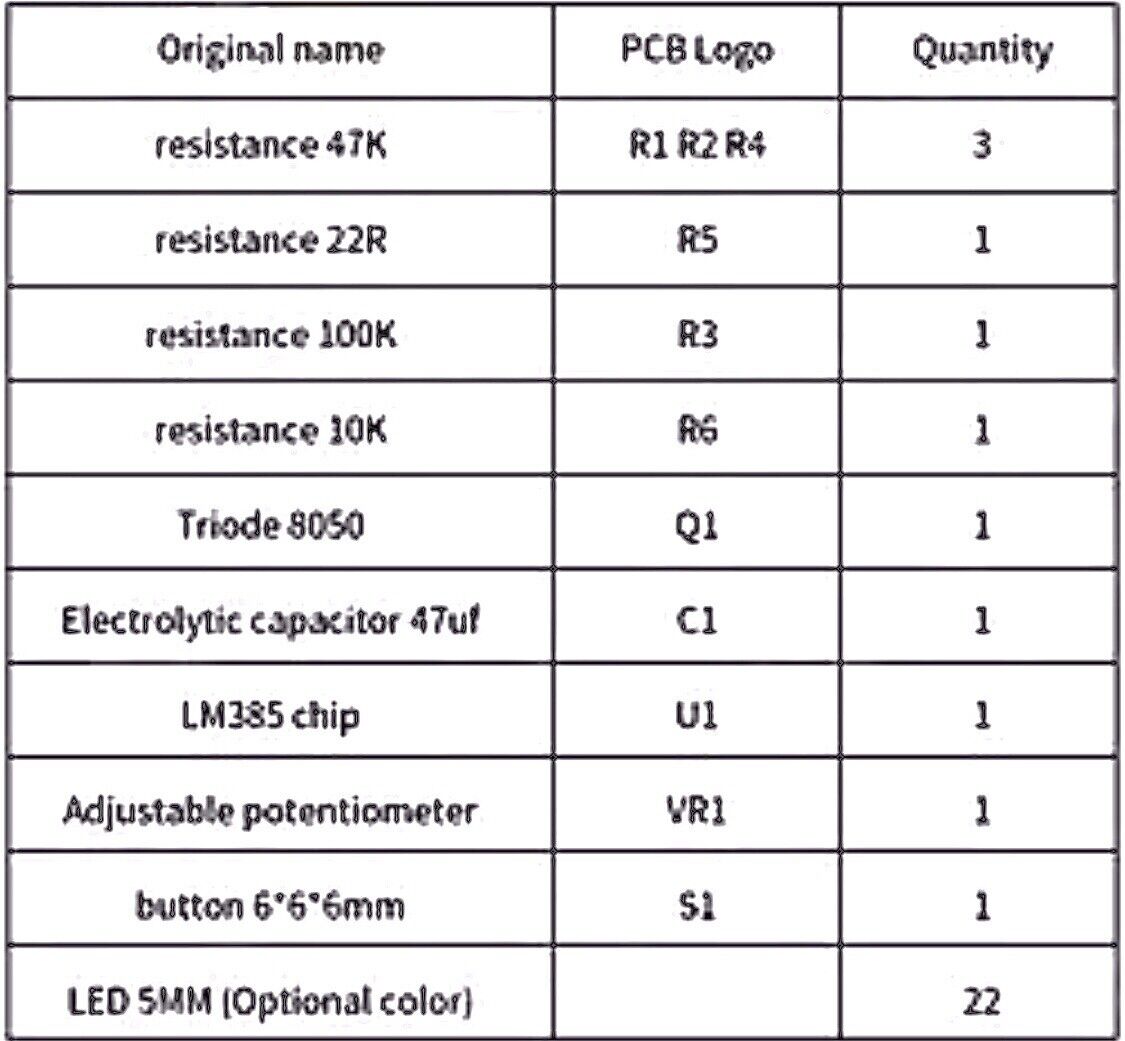

5.Component listing

#-Component-PCB Marker-Parameter-Quantity

1 - Metal Film Resistor R5 22R x 1

2 - Metal Film Resistor R6 10K x 1

3 - Metal Film Resistor R1,R2,R4 47K x 3

4 - Metal Film Resistor R3 100K x 1

5 - Electrolytic Capacitor C1 47UF x 1

6 - Potentiometer VR1 50K x 1

7- LM358 U1 DIP-8 x 1

8 - Power Switch S1 6P x 1

9 - S8050 Q1 TO-92 x 1

10 - LED LED1-LED22 5mm x 22

11 - PCB

1

NOTE:Users can complete the installation by PCB silk screen and component listing.

• IF YOU WOULD LIKE A DIFFERENT OR CUSTOM COLOUR OTHER THAN ADVERTISED, IE, ORANGE, PURPLE, ICE BLUE, PLEASE SEND A MESSAGE
