2 X DIY LED Wobbly Bells Project Electronic Education Kit Flashing Leds Inc Case

Number of Items in Set: 2

Unit of Sale: 2

Mounting Style: Through Hole

PCB Type: Double-Sided PCB

Warranty: 30 Days

Compatible Product: Electronics Education

Mounting Type: Through Hole

Modified Item: No

Suitable For: Electronic Learning

Brand: Wavgat

Compatible Mounting Style: Through Hole

Assembly Required: Yes

Operating Voltage: 5vdc

Theme: Christmas

Compatible Mounting Type: Through Hole

Country/Region of Manufacture: China

Application: Electronics Education Soldering

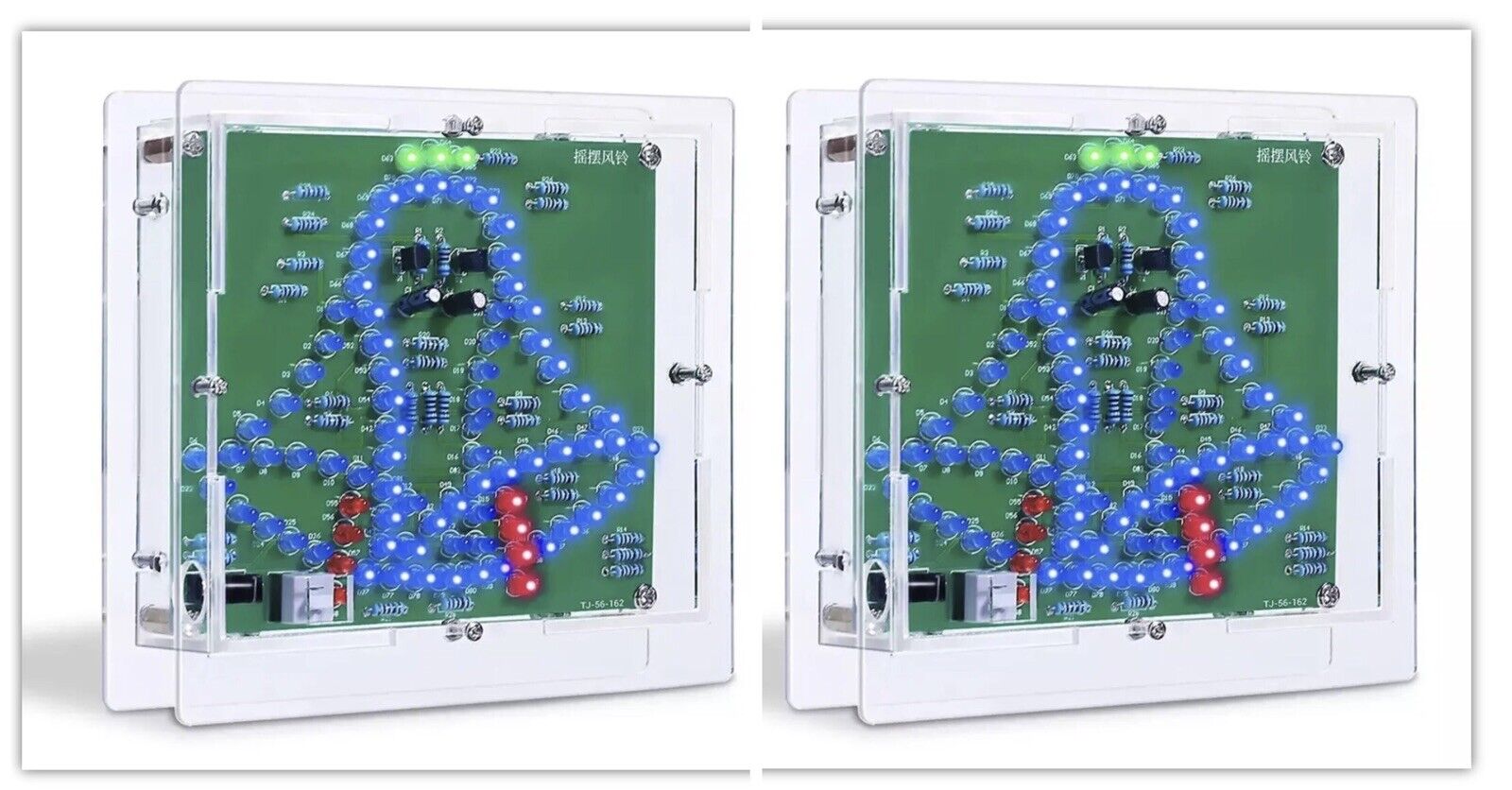

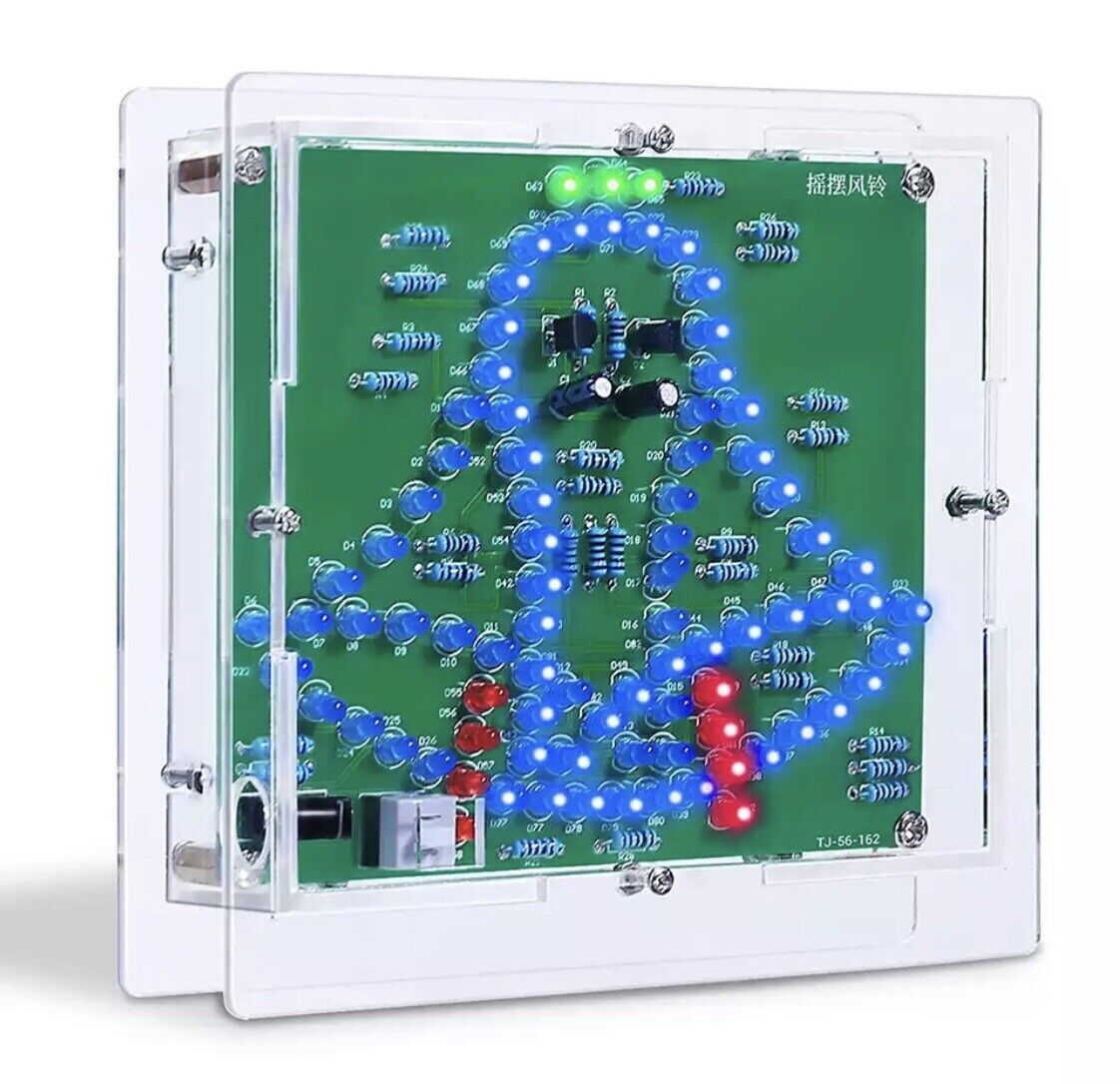

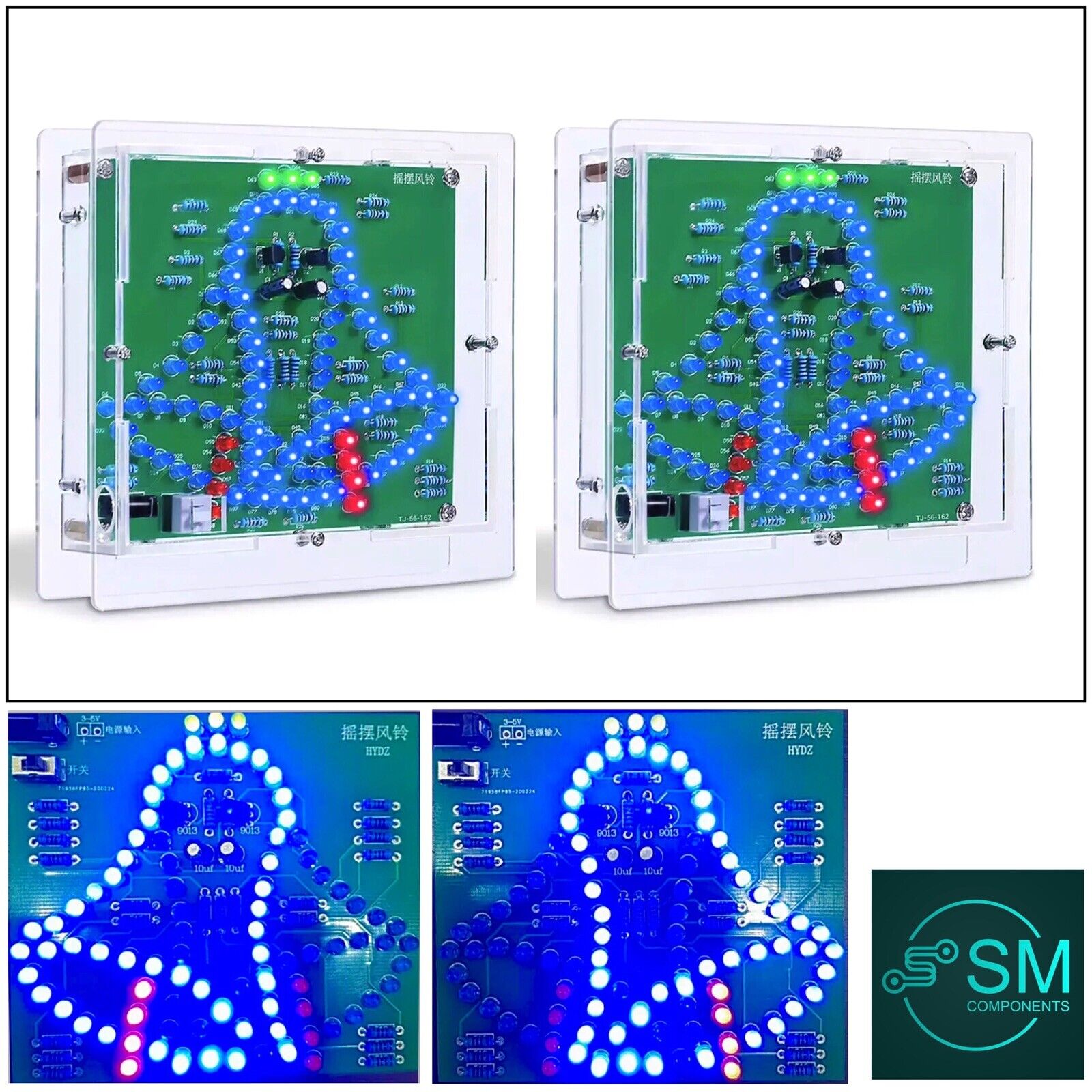

2 X DIY LED Wobbly Bells Project Electronic Learning Circuit Kit Flashing LEDs including Acrylic Case.

• Condition is "Brand New” Sent with Australia Post Regular Letter no tracking.

How the circuit works

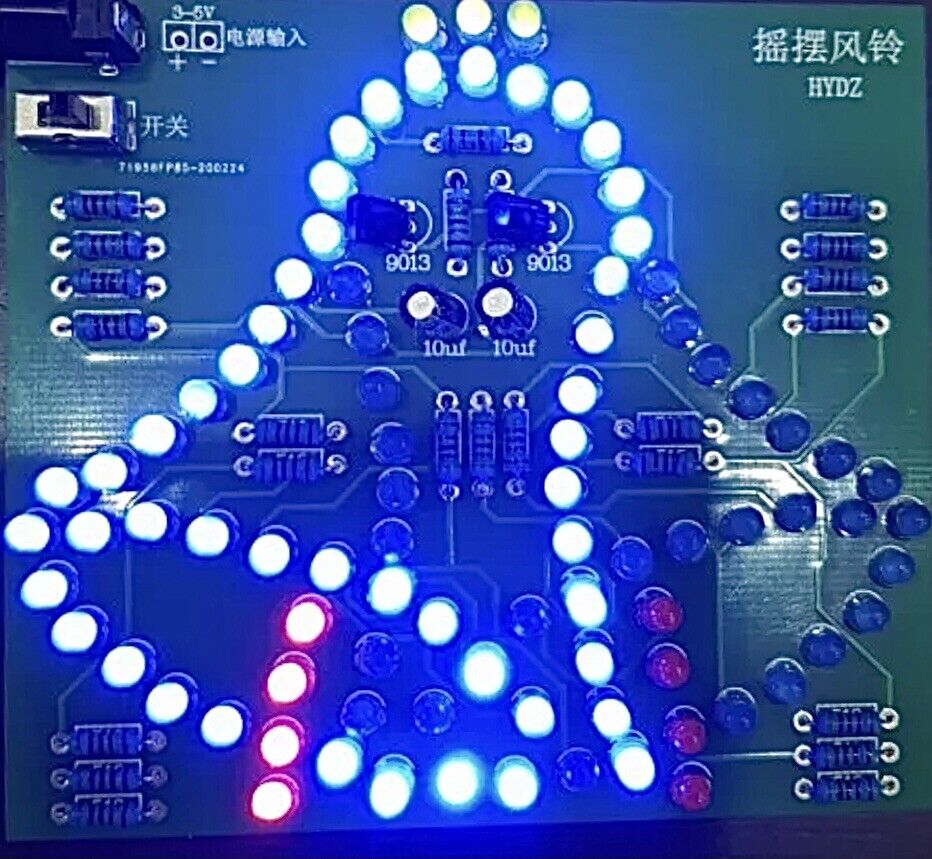

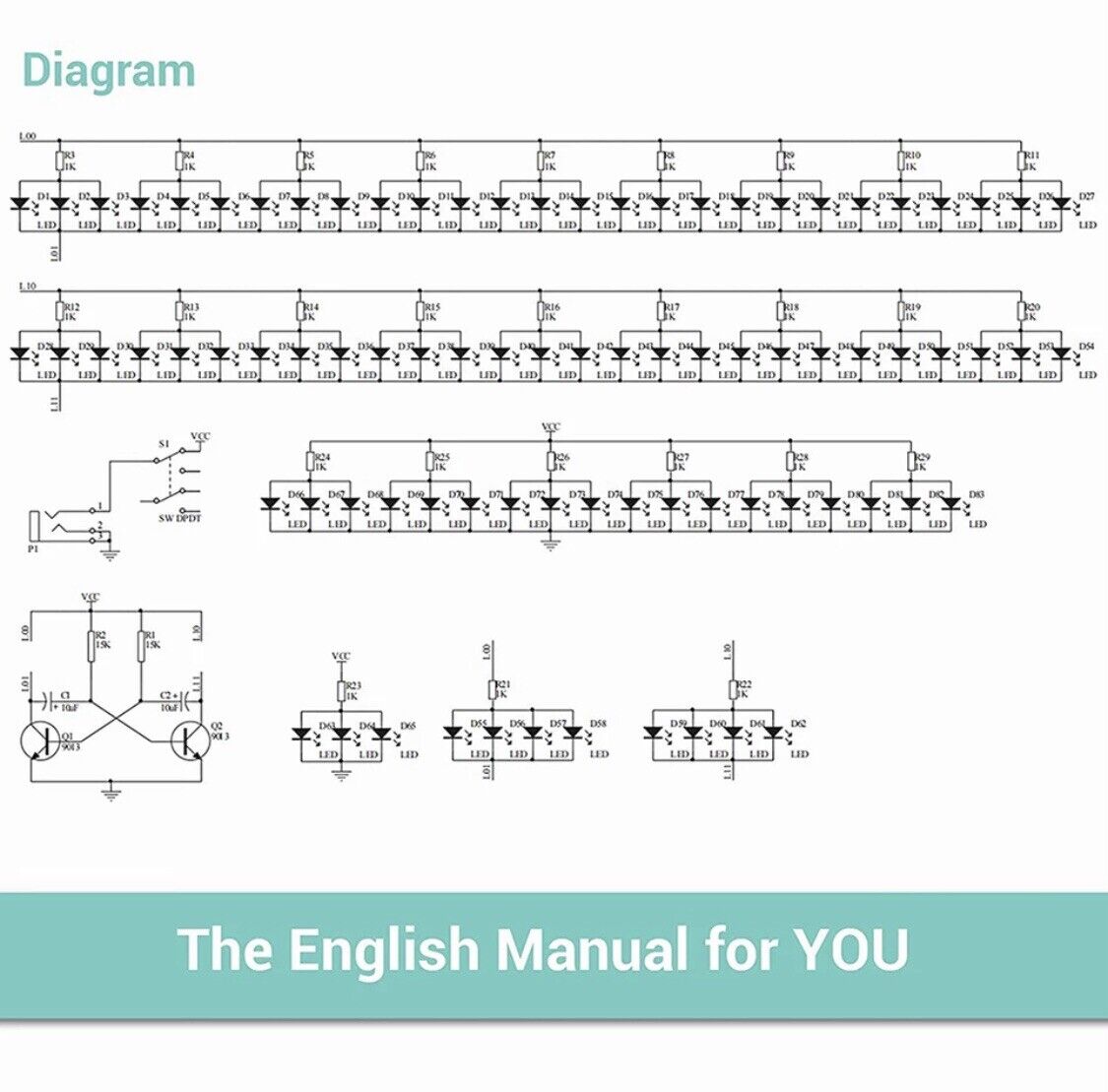

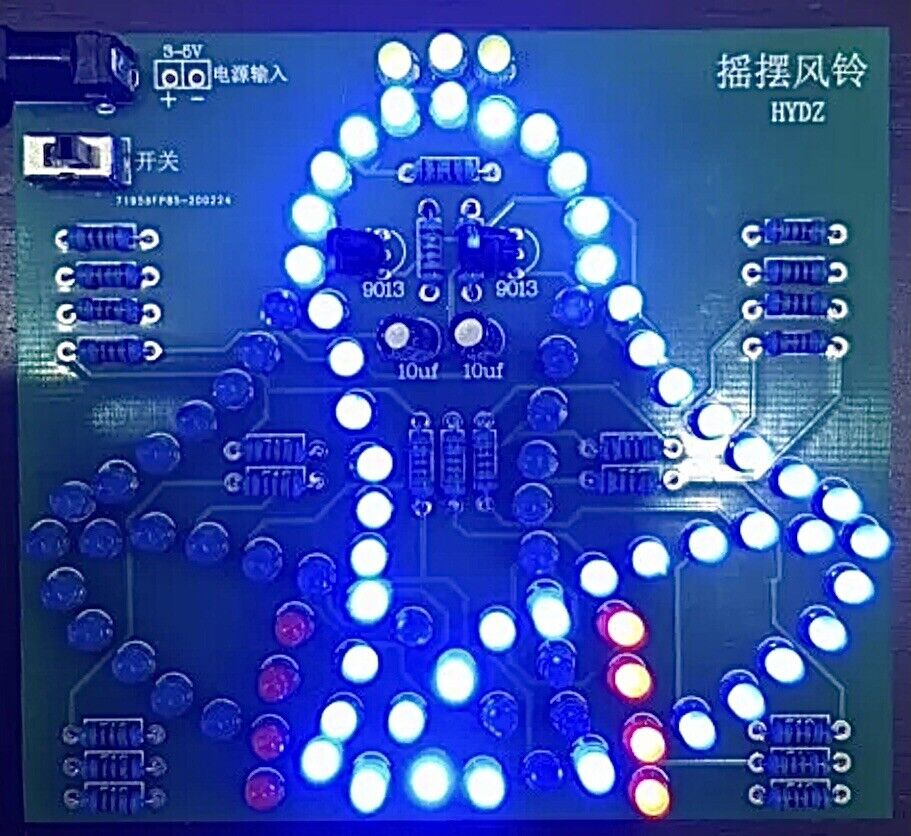

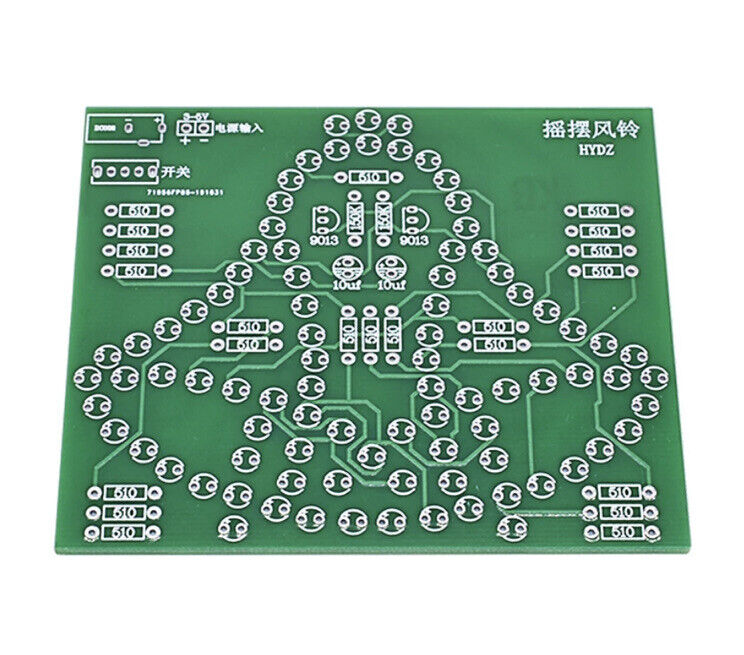

Composed of Q1, Q2 harmonic oscillator, to control two sets of LED lights flashing alternately, 83pcs LED arranged in a swinging bell shape.

Multivibrator works as follows:

Because the parameters of components can not be exactly the same, so when power it on, Q1 or Q2 will switch on, assuming Q1 switch on first, Q1 collector voltage reduce to 0V, this time group A LED light; due to the voltage across of capacitor can not change suddenly, Q1 0V collector voltage through C1 makes Q2 base potential is also reduced to 0V, Q2 turn off, at this time the group B LED does not light. As the charging voltage of C1 increases, when rises to Q2 and switch on voltage, Q2 is turned on, Q2 collector voltage drop to 0V, this time the group B LED light emitting; Similarly, 0V of Q2 collector via C2 made the base potential is reduced to 0V, Q1 off, at this time group A LED does not emit light. Then C2 charging start to repeat the process, making two sets of LED alternating continuous cycle luminous. Wherein C1, C2, R21, R22 determine the frequency of two sets of LED flash alternately, changing their parameters can be changed the wobble frequency.

• Note: No instruction supply, please note this before you buy it.

This is a DIY kit, you need to soldering by yourself.

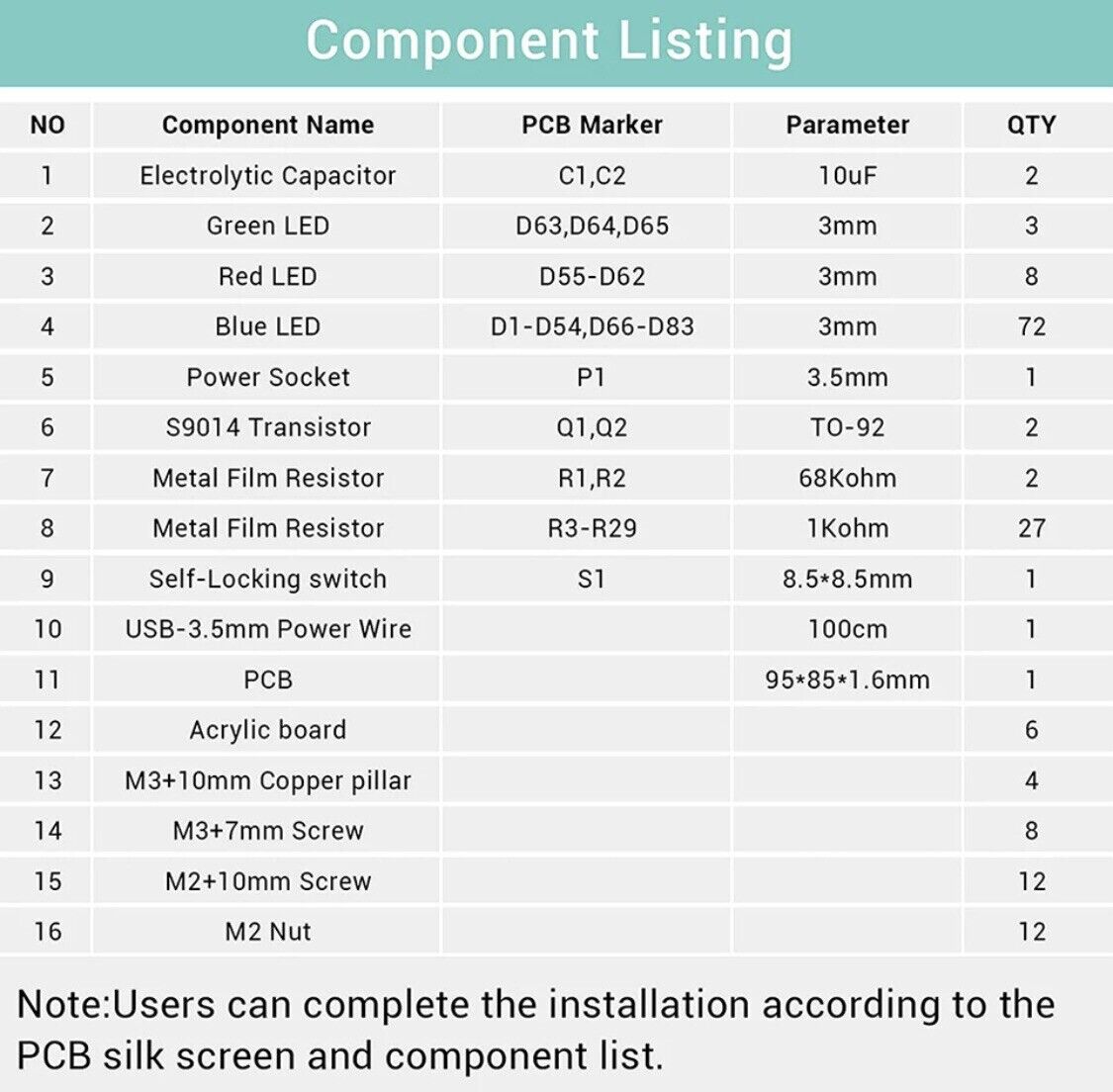

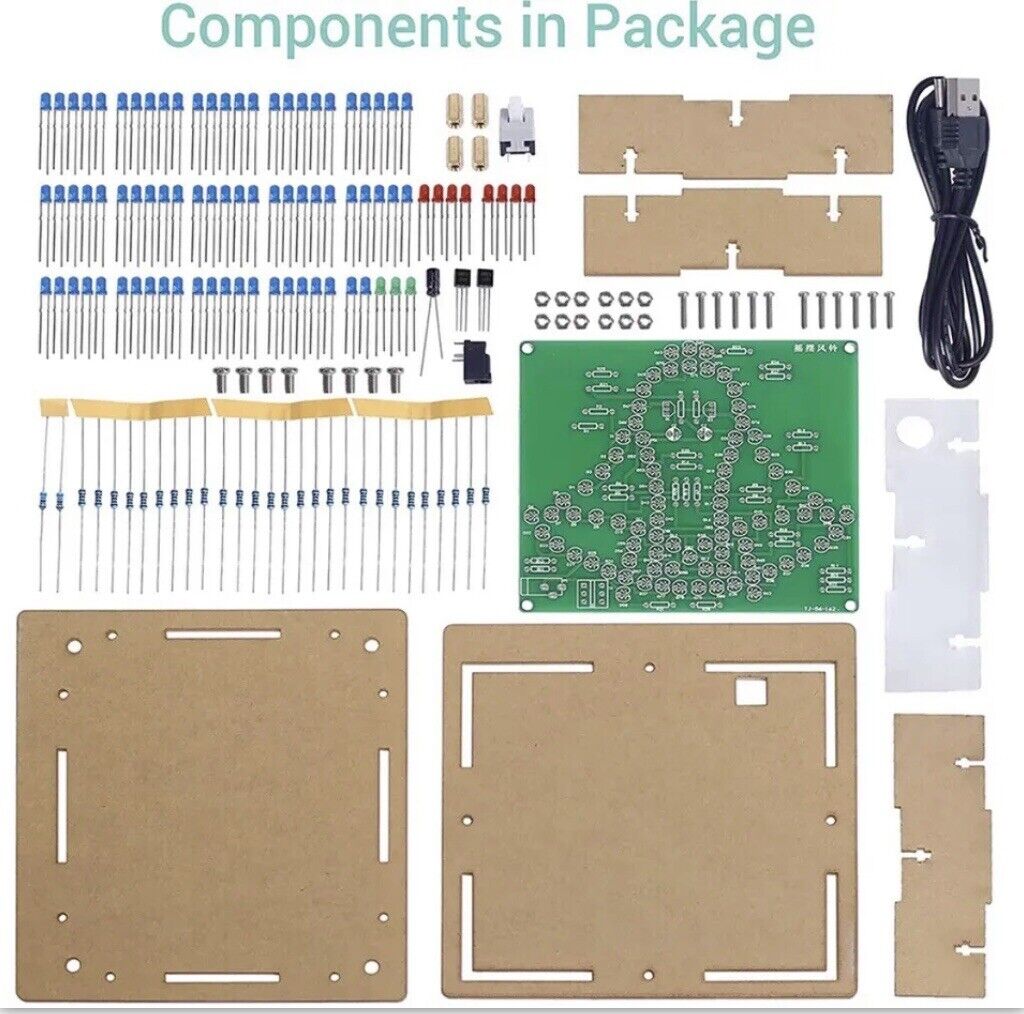

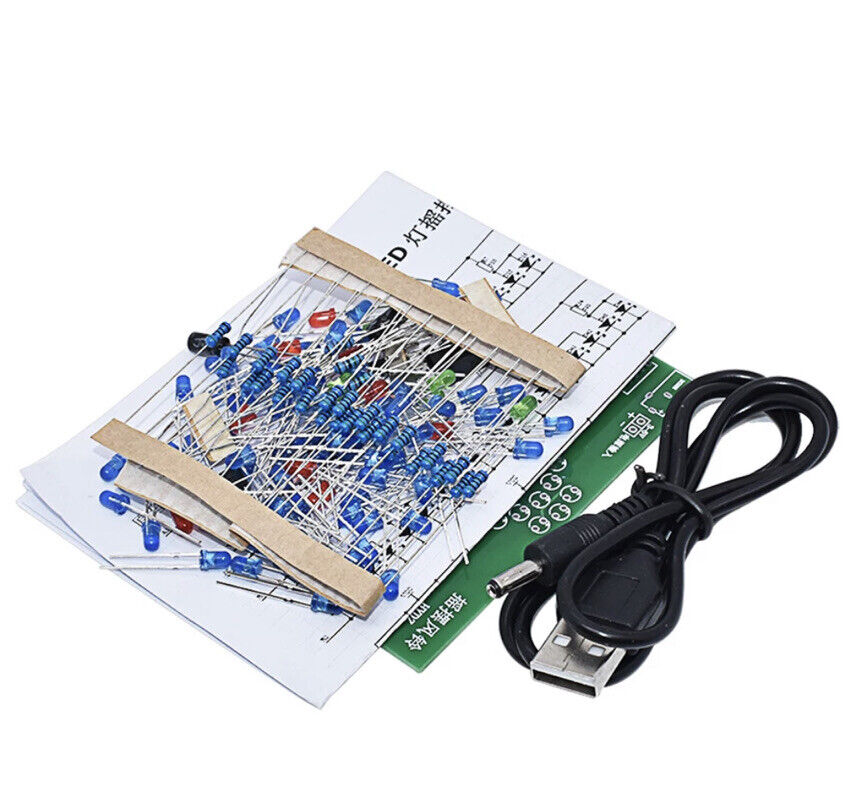

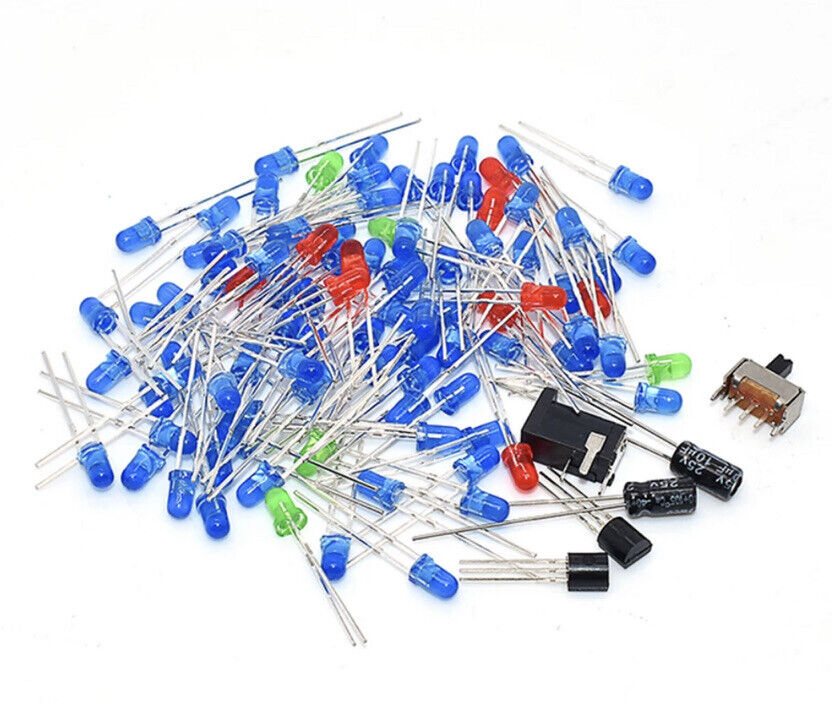

Package included:

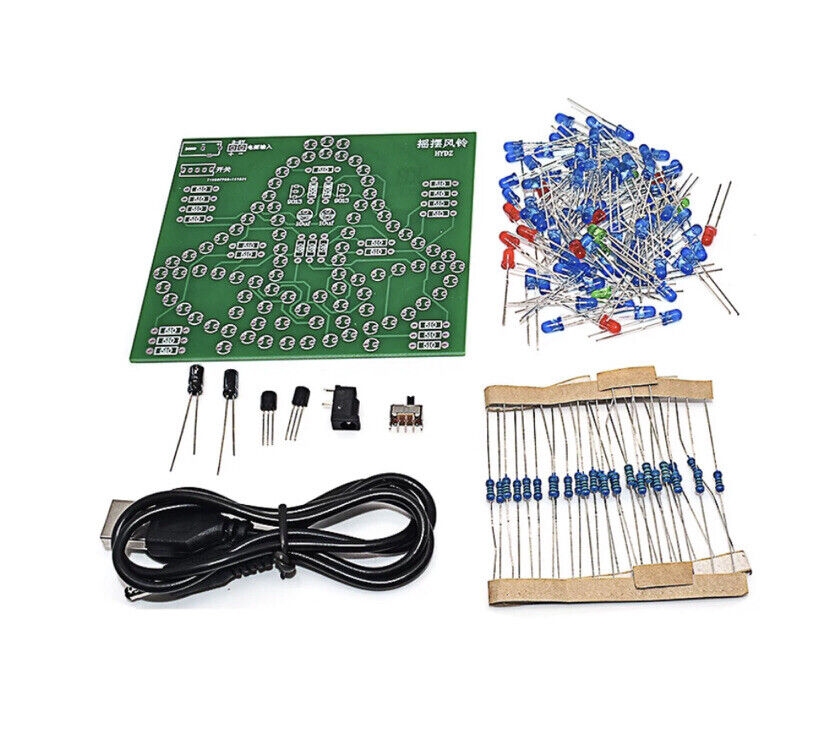

2 x Shaking Bells kits

2 x Clear Acrylic Cases
