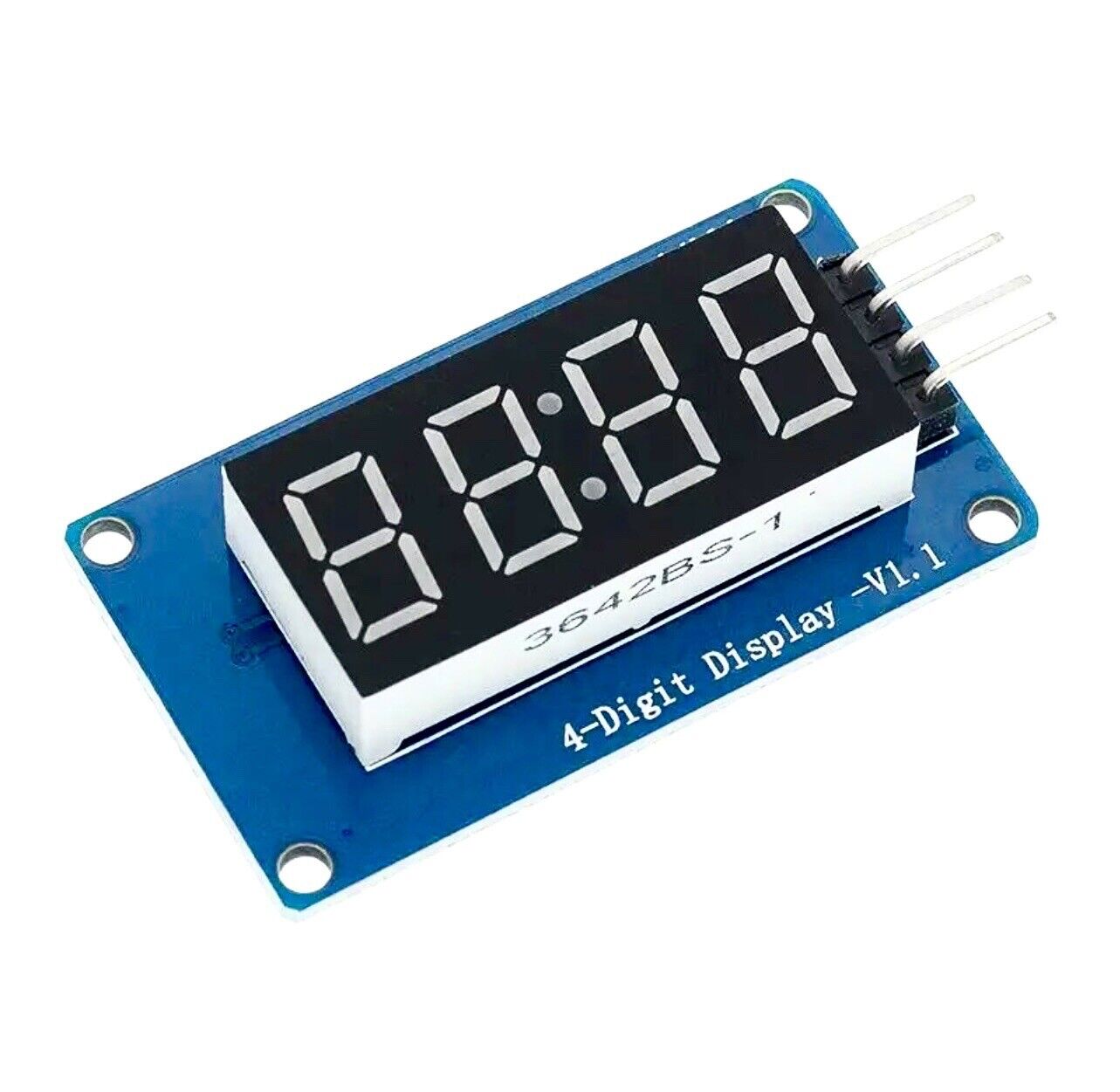

2 X TM1637 4 Bit Digital Tube LED Display Module Clock Display for Arduino CA

Brand: Unbranded

Mounting Style: Stand Alone

Configuration: Quadruple

Display Size: 9.14mm (0.36”)

Lens Shape: Flat

Packaging: Tube

Number of Pins: 4

LED Colour: Red

Number of LEDs: 4

Unit Quantity: 2 Pieces

Country/Region of Manufacture: China

2 X TM1637 4 Bit Digital Tube LED Display Module Clock Display for Arduino CA. Sent with Australia Post Regular Letter NO tracking number included.

Item description

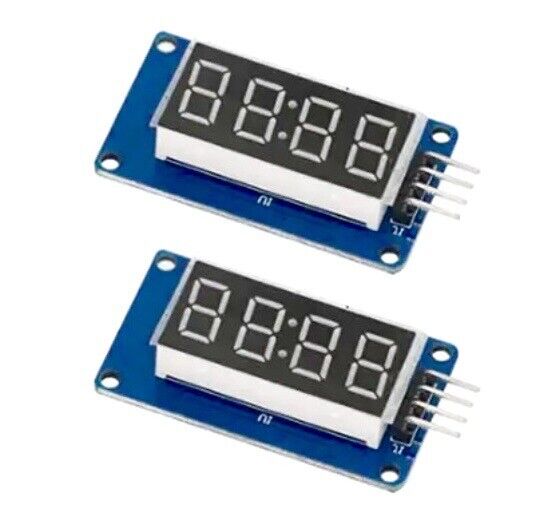

2 X TM1637 LED Display Module For Arduino 7 Segment

4 Bits 0.36Inch Clock RED Anode Digital Tube Four Serial

Driver Board

Overview:

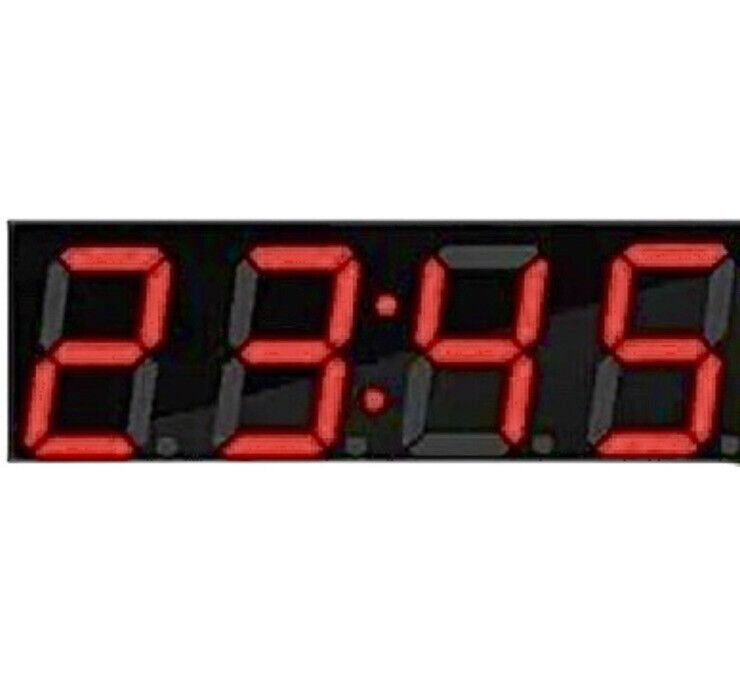

1. Clock display: Use timer 1 of the MCU on the motherboard to time and display it on a 4-bit display.

2. Digital flow: 0-9, 16 characters such as A, b, C, d, E, F flow from right to left.

3. Stop watch: Use the timer 1 of the MCU on the motherboard to time and use the button to implement the stop watch function.

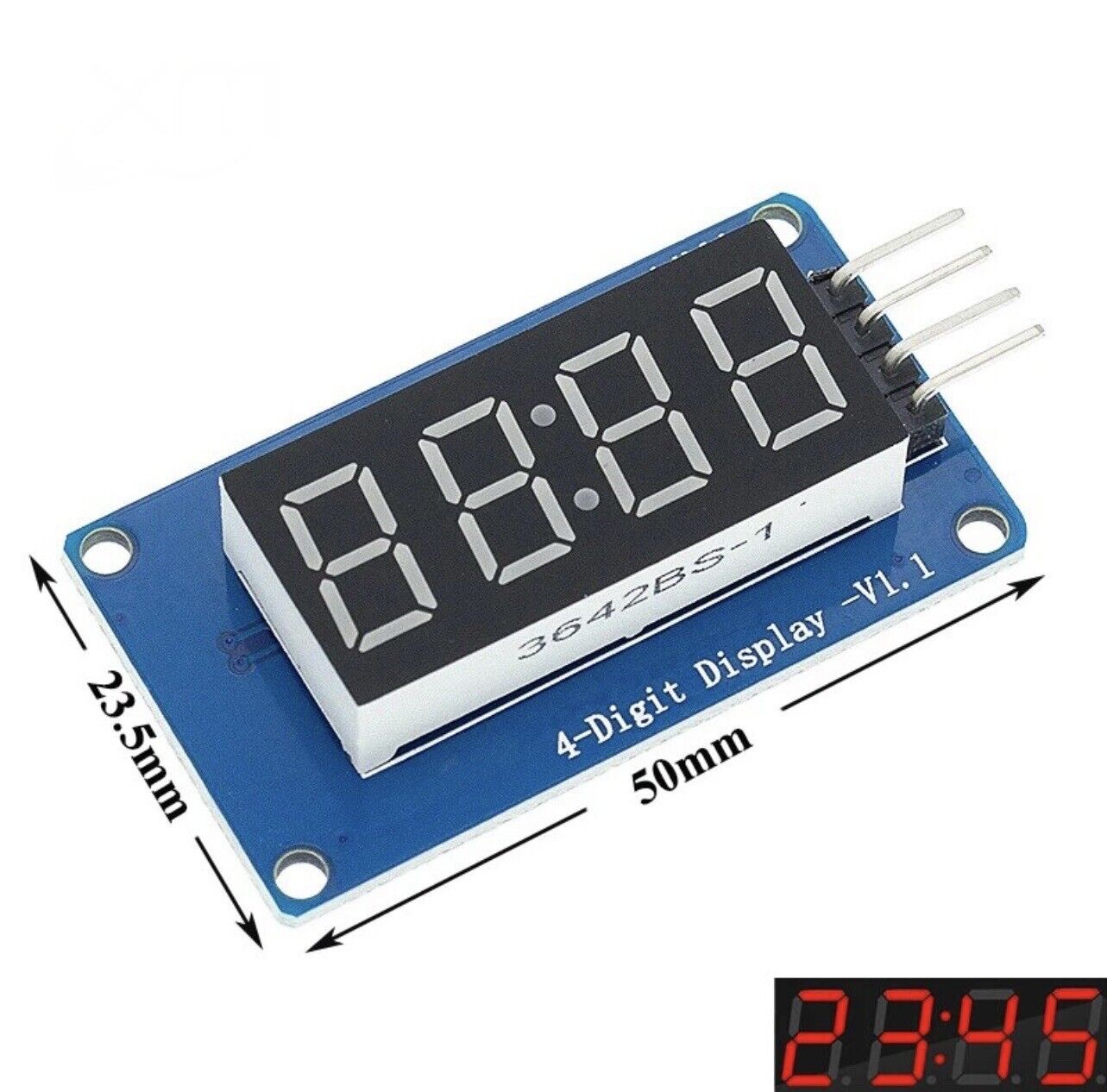

4 M2 screw positioning holes for easy installation

(1) The control interface level can be 5V or 3.3V

(2) Nixie tube 8-level grayscale adjustable

(3) The display device is 4-digit positive red Nixie tube

The Module Functions Are As Follows:

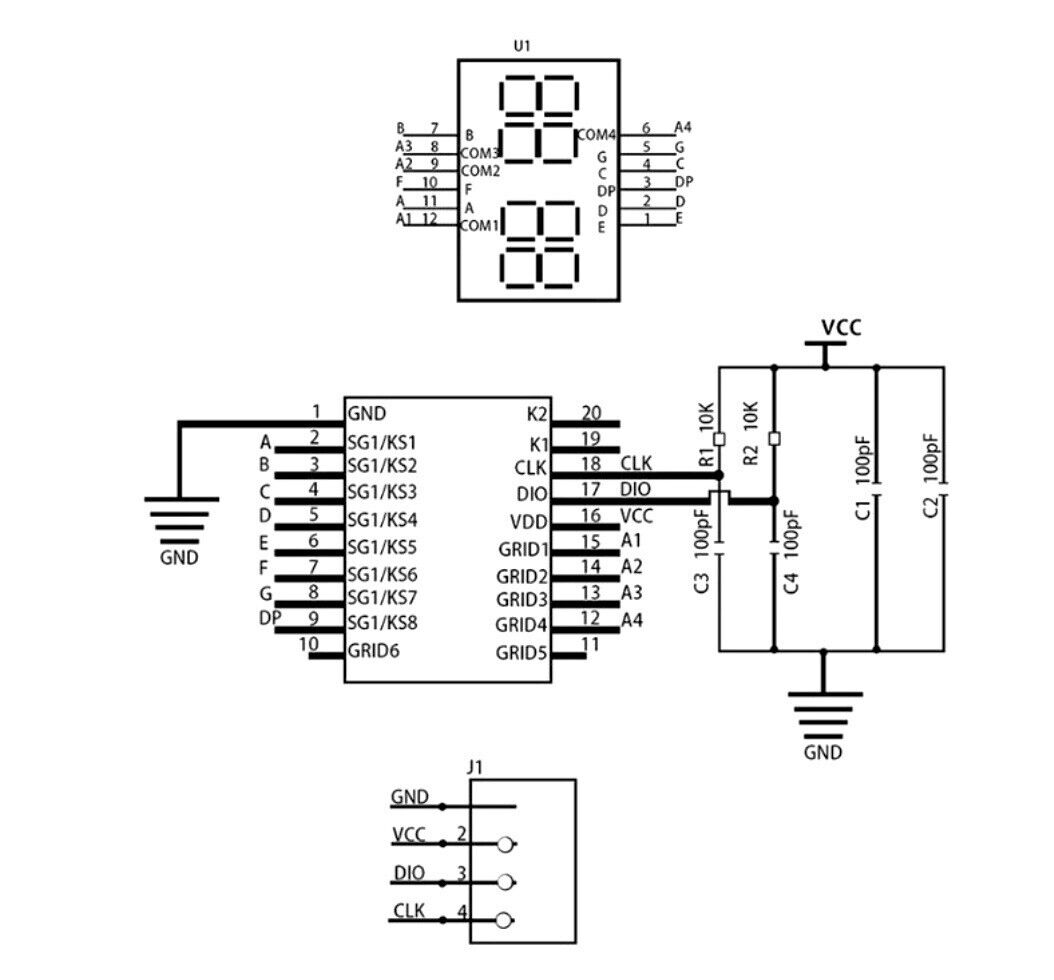

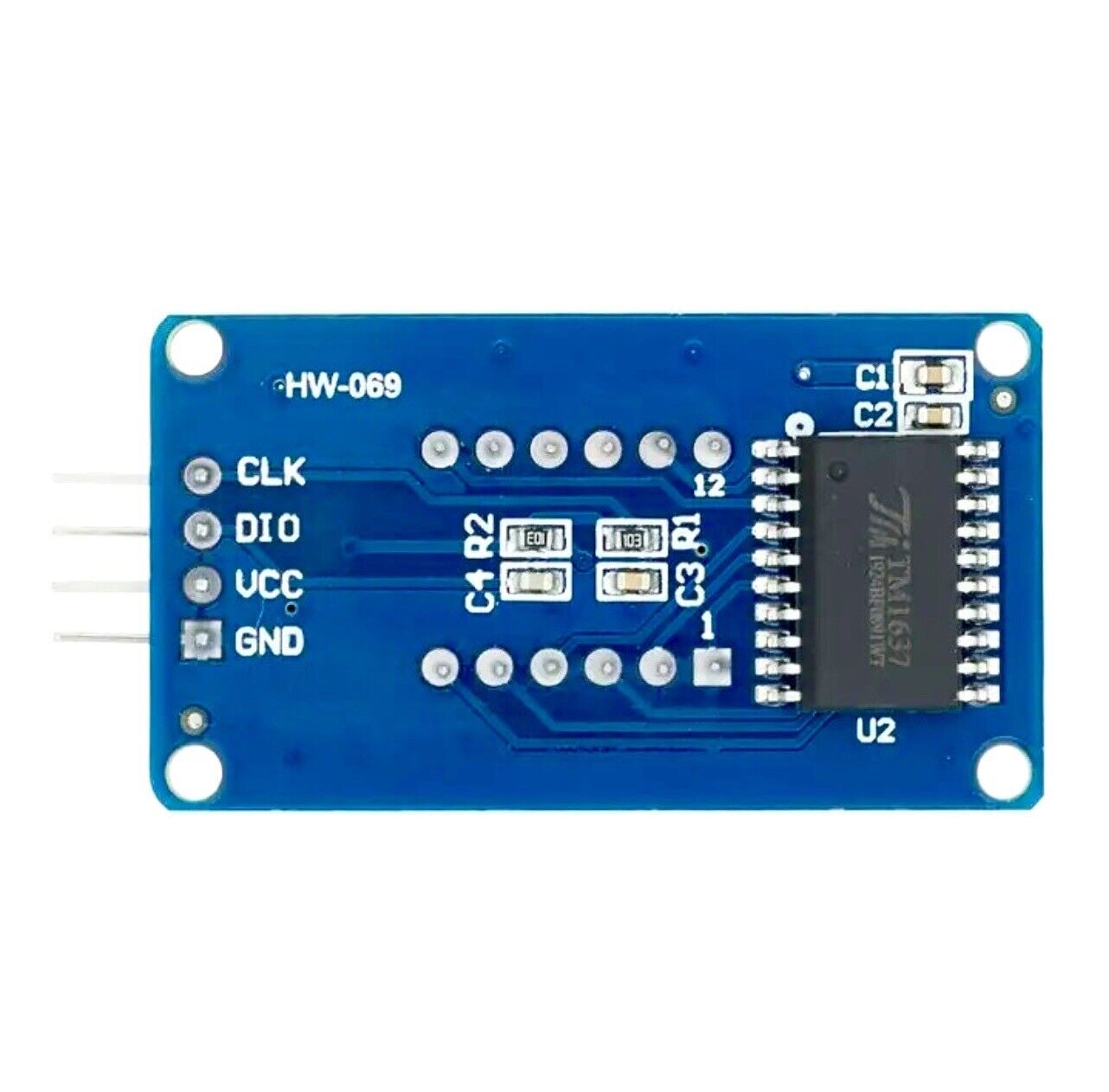

This Module is a 12 pin display module with a 4-point universal digital tube (0.36 inches) with a clock. The driver chip is TM1637. It only requires 2 signal lines to enable the MCU to control 4-bit 8-segment digital tubes.
