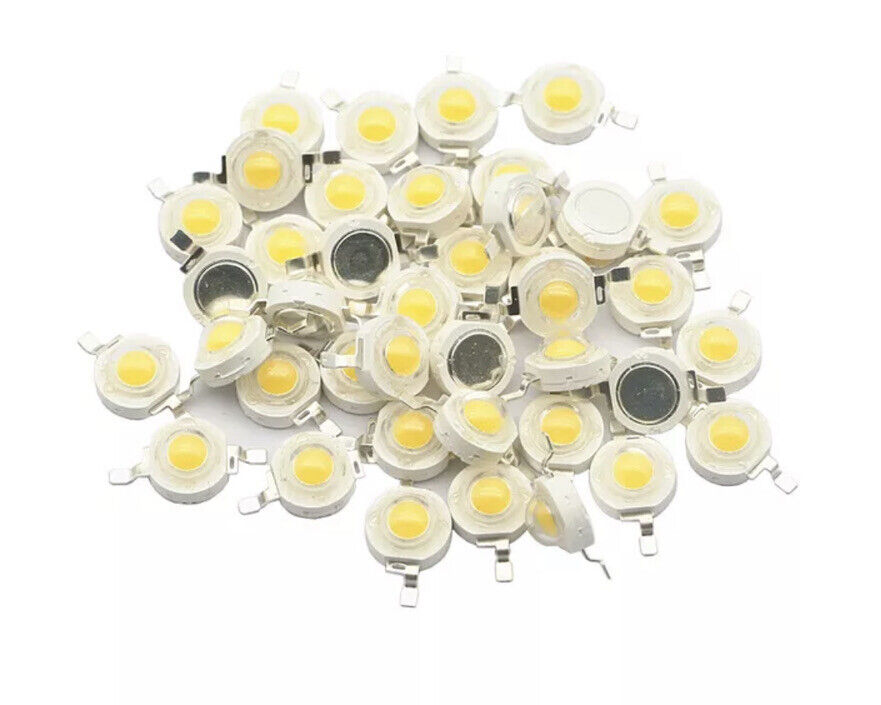

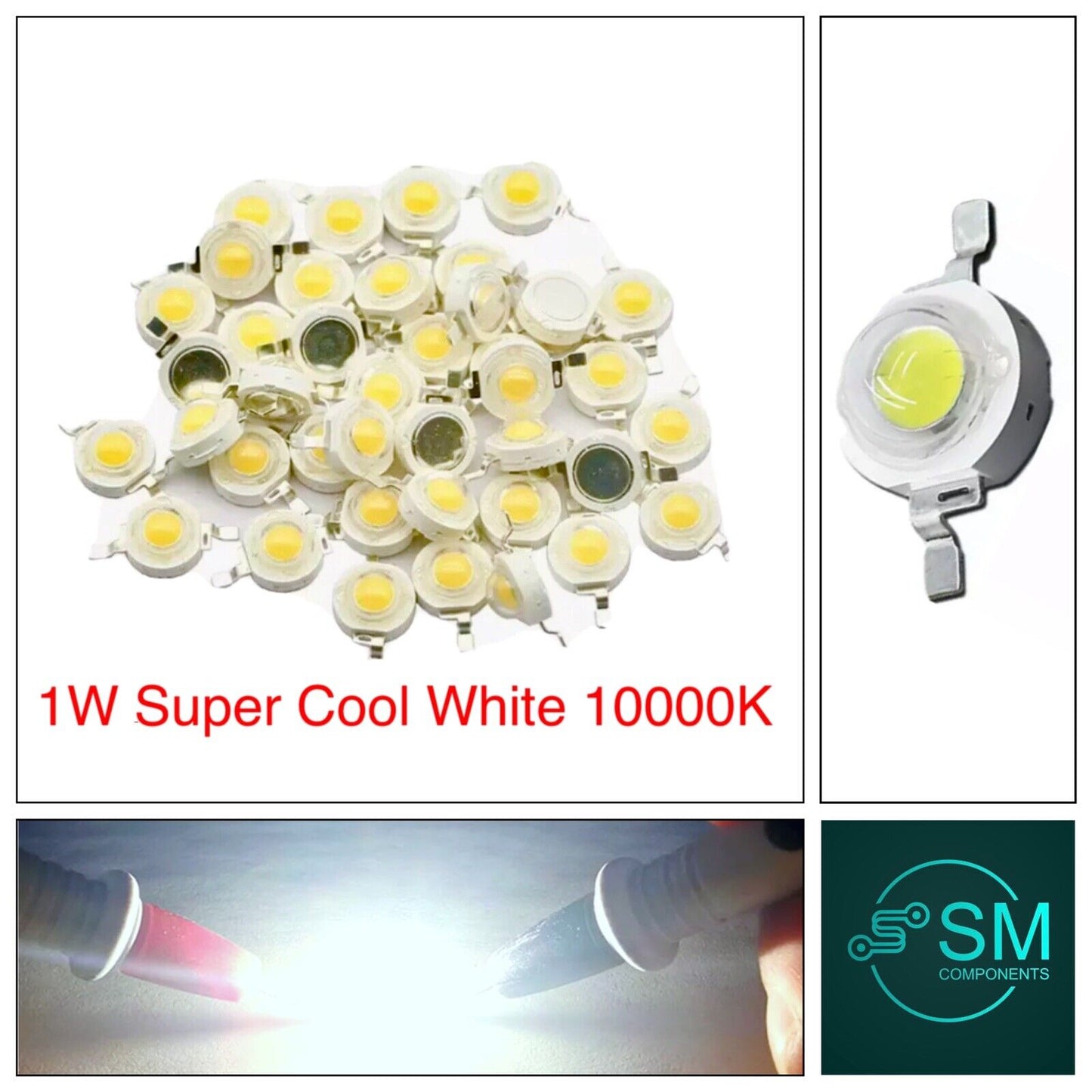

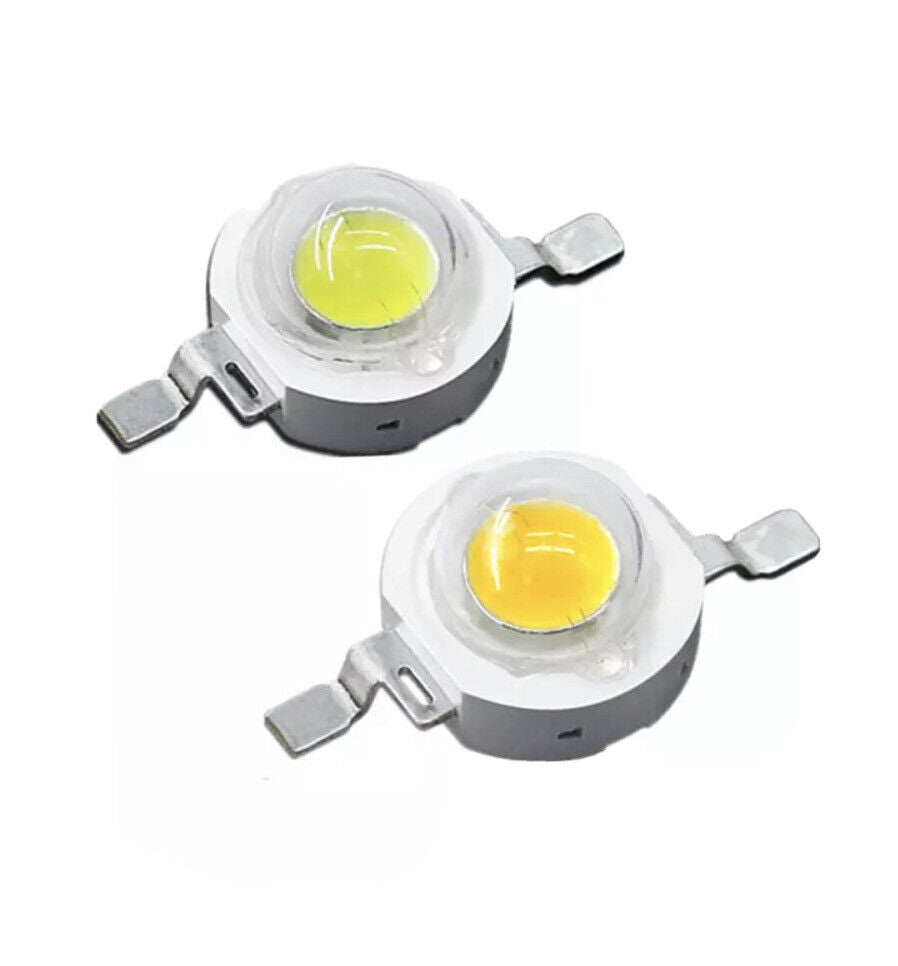

20 Pieces 1W LED High Power SMD LED 28mil Light Bead SUPER COOL WHITE LED Diodes

Mounting Style: Surface Mount

Configuration: Single

Viewing Angle: 20°

Lens Shape: Dome

Lens Surface: Clear

Nominal Voltage: 3 V

Package/Case: SMD

MPN: Does Not Apply

LED Size: 1W Led Bead

Wavelength: 10000K

Brand: Unbranded

Type: Individual Item

Model: 1W SMD BEAD

Number of Pins: 2

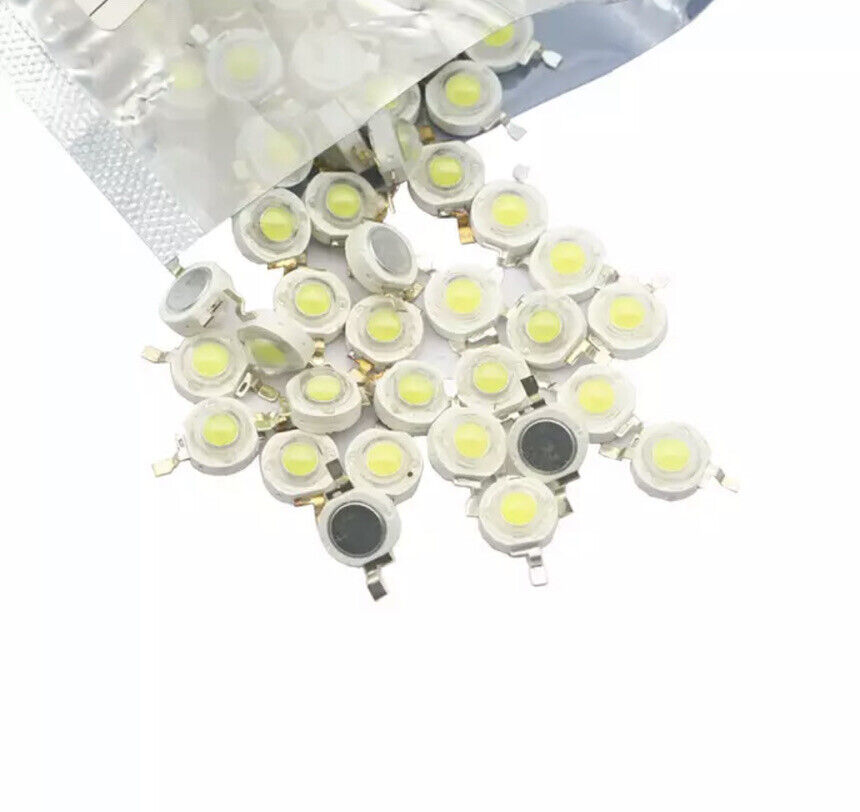

Packaging: Anti Static Bag

LED Colour: Super Cool White

Number of LEDs: 20

20 Pieces 1W High Power SMD LED COB Chip Lights Beads Cool White LED Diode. Condition is Brand New.

Ideal for any projects that need a powerful LED.

We also stock this package in 2 and 3 Watt.

Description

Product Name: High Power Multicolor LED Chip, LED Beads, LED Bulb, LED Matrix.

Rated Power: 1W 2W 3W

Chip Brand:Epistar/Epileds

Chip Size:28mil/33mil/45mil

Beam Angle: 120 degree

Sealing Material: 2*99%Golden Wires, Copper bracket,Dow corning Glue.

Certification: CE/RoHS/FCC

Working life: 50000hrs

Operating temperature: -30 to +85 degree centigrade

Welding temperature: 120°Centigrade in 5 second

Working temperature: less than 60 degress (the led needs to use with heatsink)

10,000K (Super Cold White)

1. Power: 1 W High Power Lamp Beads ( Taiwan Imported Chip)

2. Material: Copper Stent and Four Golden thread

3. Emitting color:White, Warm White, Blue, Red, Green

4. Life Span : 50,000 Hours

5. With RoHS & CE Approved

6. Beam angle : 180 degrees

7. Luminous Flux: 100-110LM

8. Size:28*28 mil

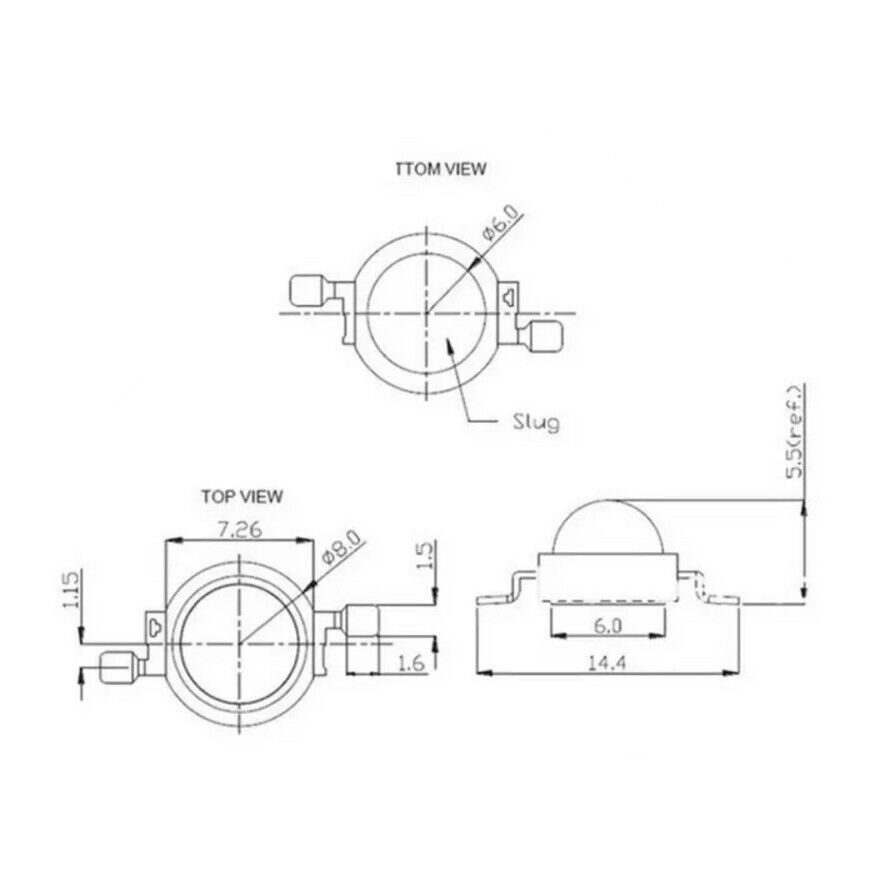

9. Dimensions: Diameter 8mm Round

10. Output voltage: 3.2-3.4V

11. Welding process: the heating platform, hand soldering, times within three seconds

14.Applications : Bulb, Ceiling, Lighting, and other Lighting Products
