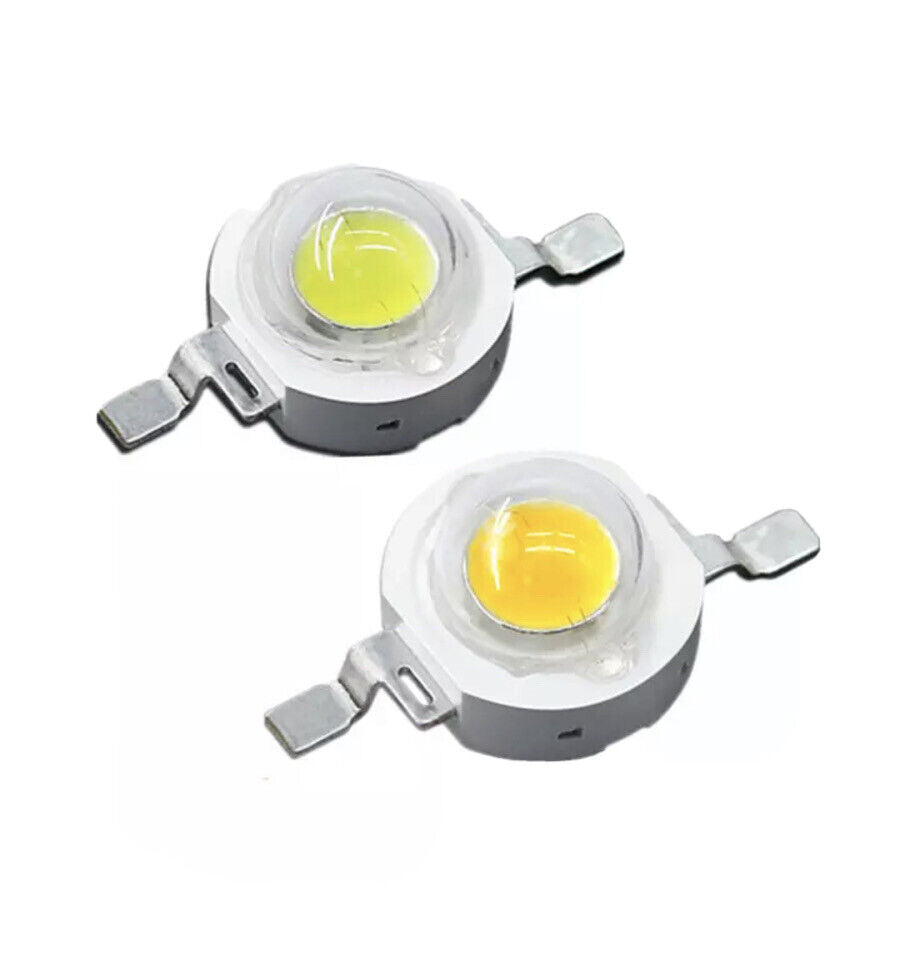

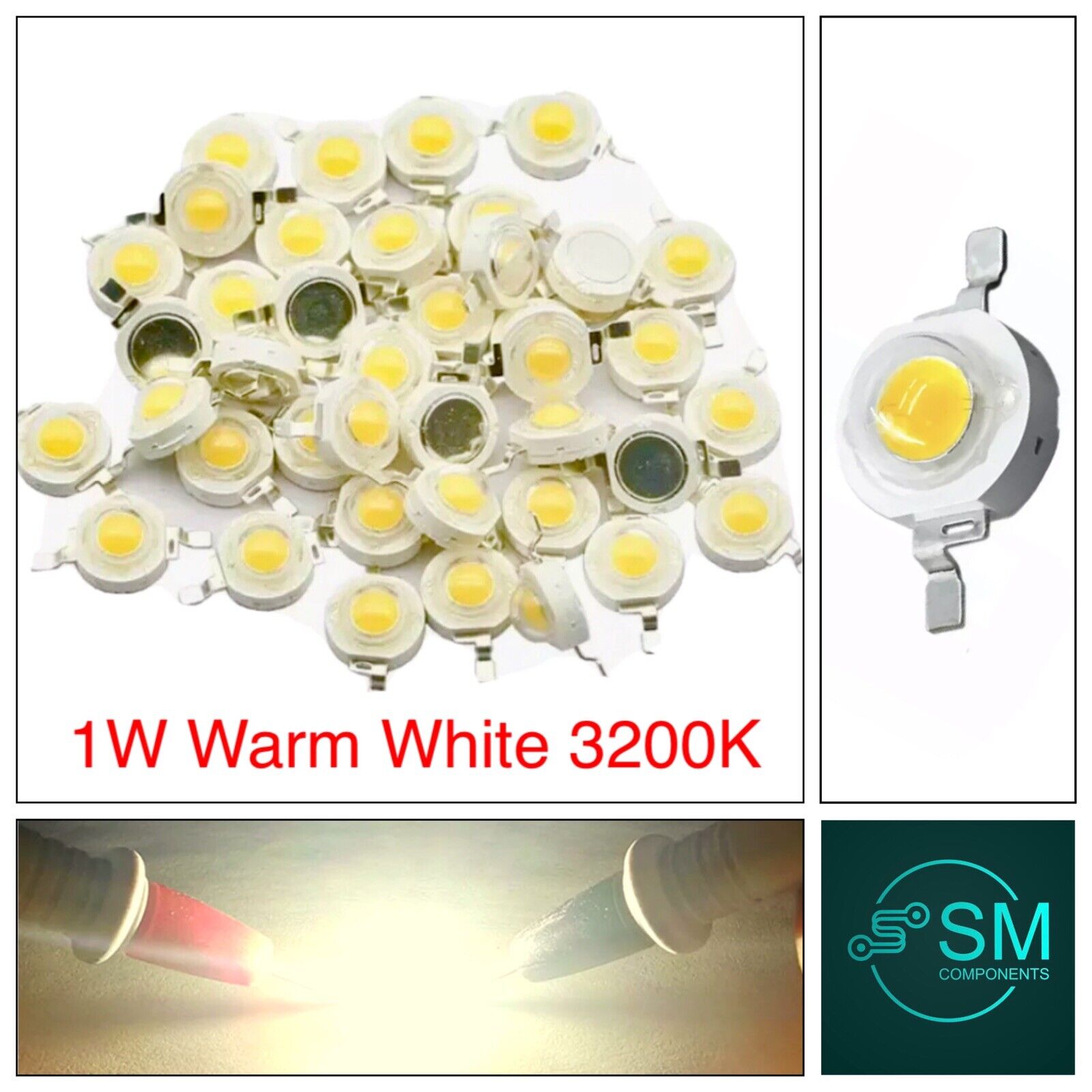

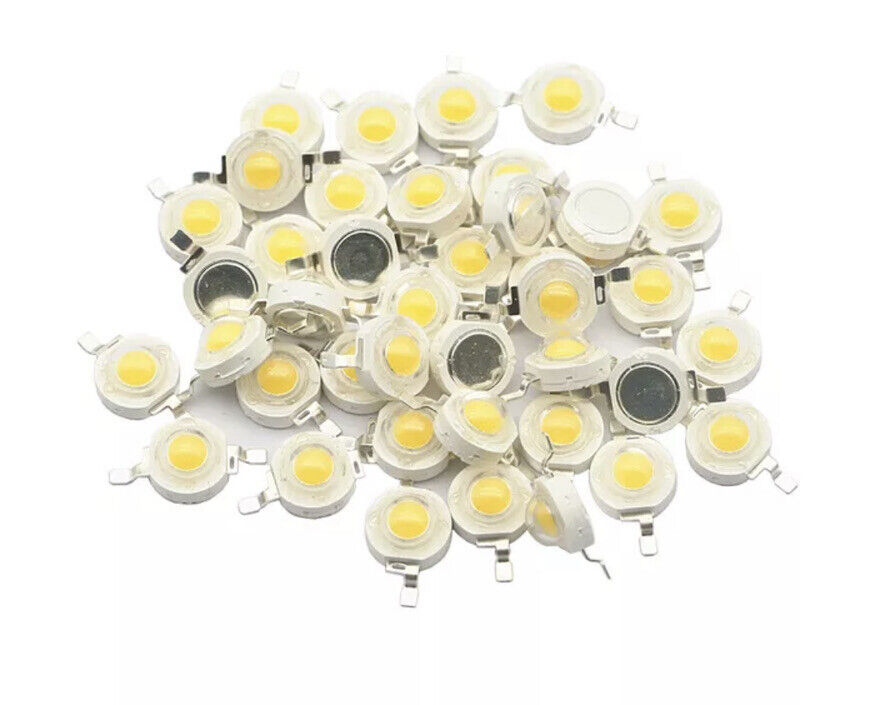

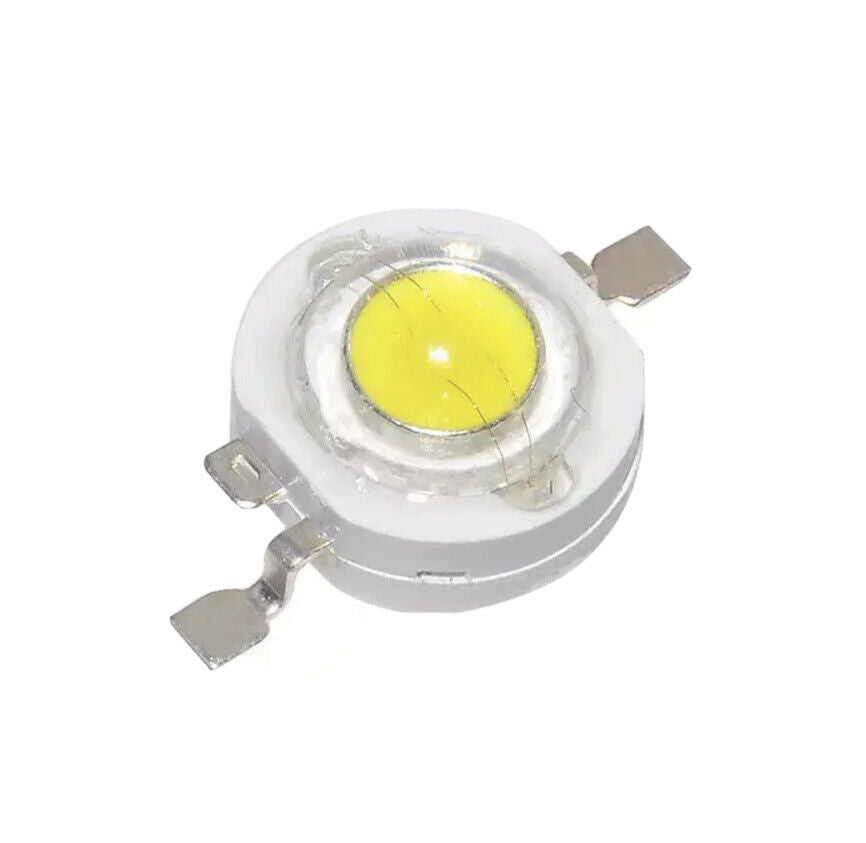

20 Pieces 1W LED High Power SMD LED 28mil Lights Beads Warm White LED Diode

20 Pieces 1W LED High Power SMD LED 28mil Lights Beads Warm White LED Diode

Regular price $8.20 AUD
Regular price Sale price $8.20 AUD
Sale Sold out
Shipping calculated at checkout.

Mounting Style: PCB Mount

Nominal Current Rating: 350 mA

Configuration: Single

Viewing Angle: 20°

Lens Shape: Dome

Lens Surface: Clear

Nominal Voltage: 3.2 V

Package/Case: SMD

MPN: Does Not Apply

LED Size: 1W Led Bead

Wavelength: 3000-3200K

Brand: Unbranded

Type: Individual Item

Model: 1W SMD BEAD

Number of Pins: 2

LED Colour: Warm White

Number of LEDs: 20

Country/Region of Manufacture: China

Luminous Flux: 100-110Lm

20 Pieces 1W High Power SMD LED COB Chip Lights Beads Warm White LED Diode. Condition is Brand New. Sent with Australia Post regular Letter no tracking number included.


Ideal for any projects that need a powerful LED.

We also stock this package in 2 and 3 Watt.


Description

Product Name: High Power Multicolor LED Chip, LED Beads, LED Bulb, LED Matrix.

Rated Power: 1W 2W 3W

Chip Brand:Epistar/Epileds

Chip Size:28mil/33mil/45mil

Beam Angle: 120 degree

Sealing Material: 2*99%Golden Wires, Copper bracket,Dow corning Glue.

Certification: CE/RoHS/FCC

Working life: 50000hrs

Operating temperature: -30 to +85 degree centigrade

Welding temperature: 120°Centigrade in 5 second

Working temperature: less than 60 degress (the led need to use with heatsink)


1. Power: 1W High Power Lamp Beads ( Taiwan Imported Chip)

2. Material: Copper Stent and Four Golden thread

3. Emitting color: Warm White, White, Blue, Red, Green

4. Life Span : 50,000 Hours

5. With RoHS & CE Approved

6. Beam angle : 180 degrees

7. Luminous Flux: 100-110 LM

8. Size: 28*28 mil (1 W)

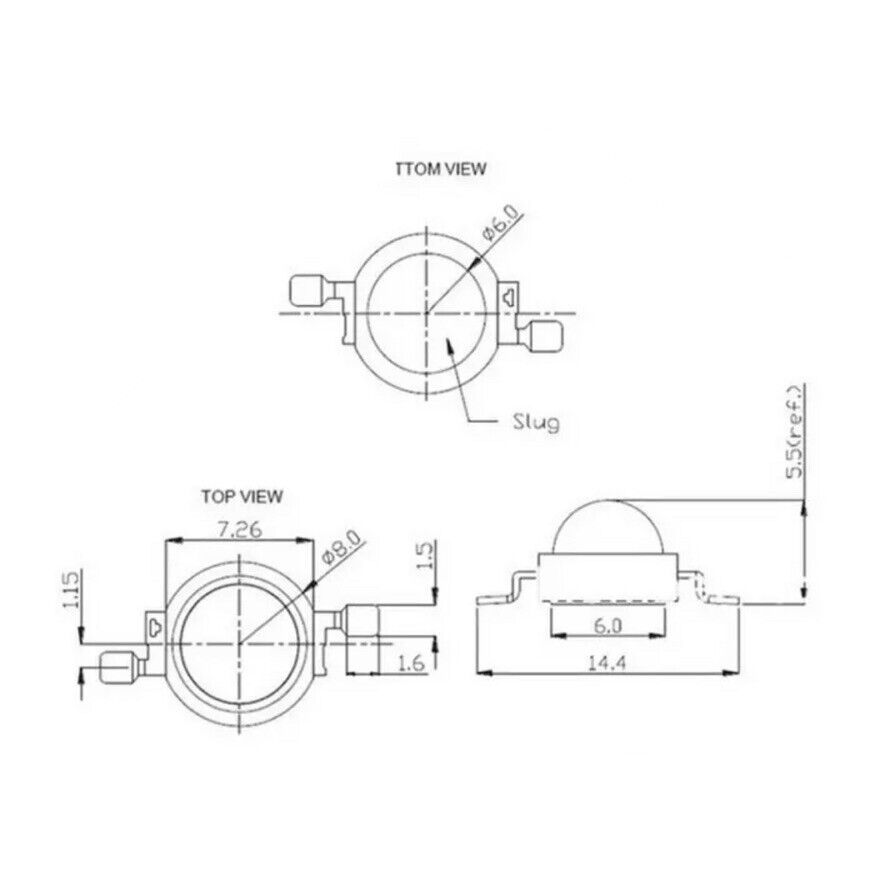

9. Dimensions: Diameter 8mm Round

10. Output voltage: 3.2-3.4V

11. Welding process: the heating platform, hand soldering, times within three seconds

12. Applications : Bulb, Ceiling, Lighting, and other Lighting Products
