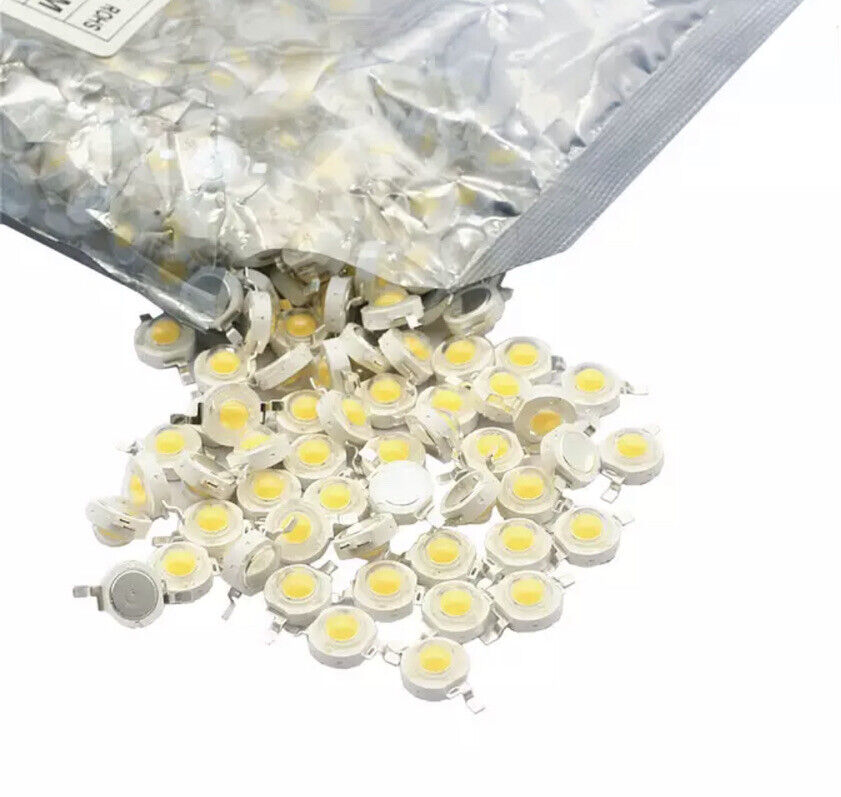

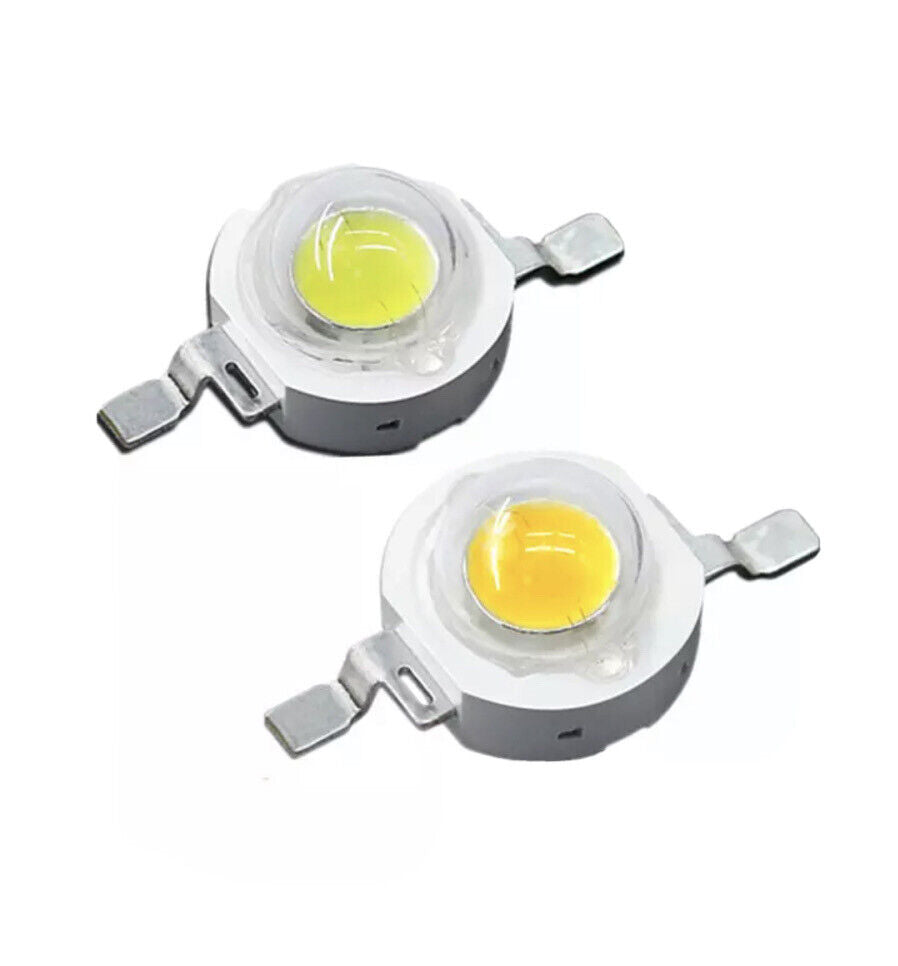

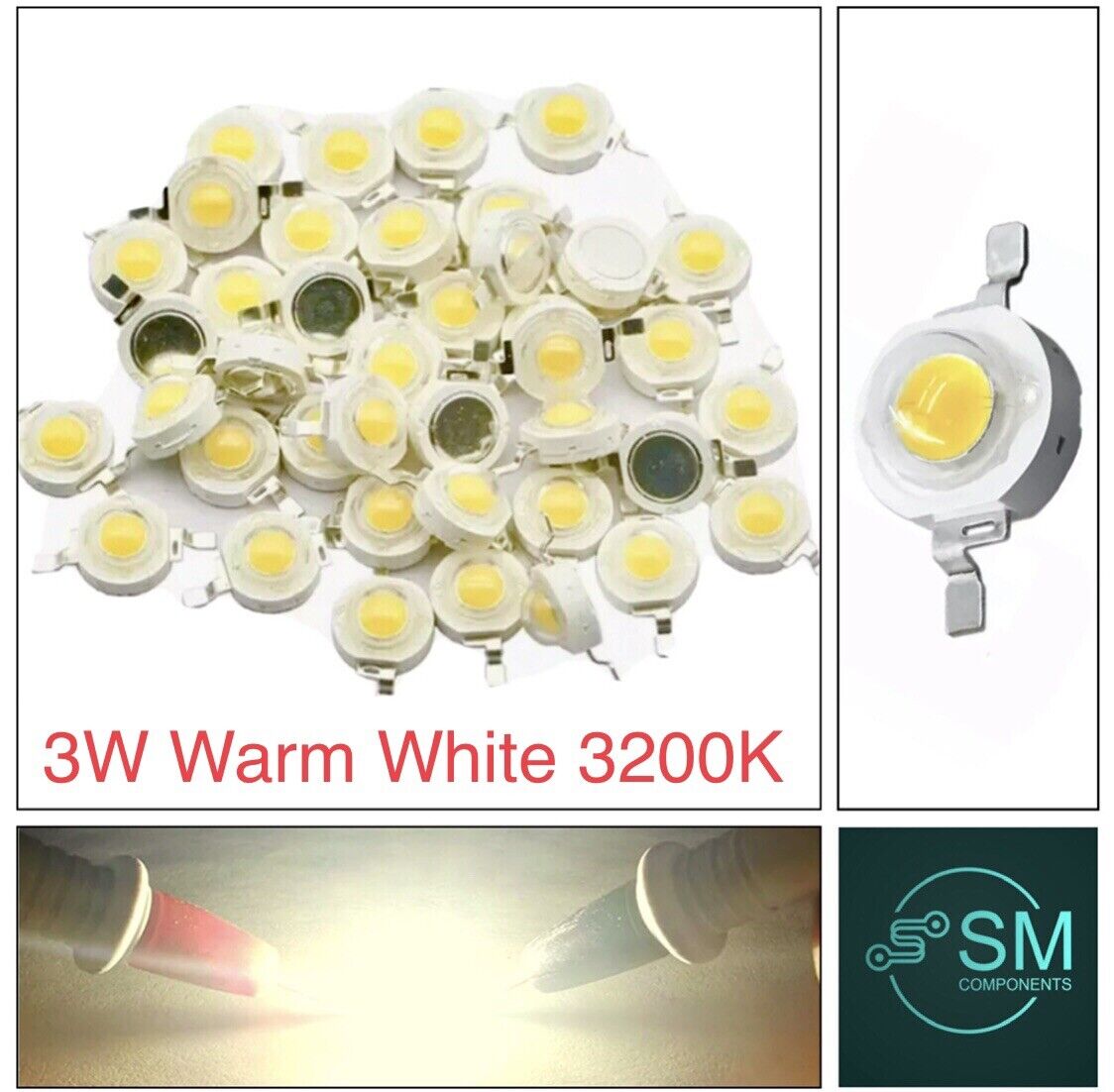

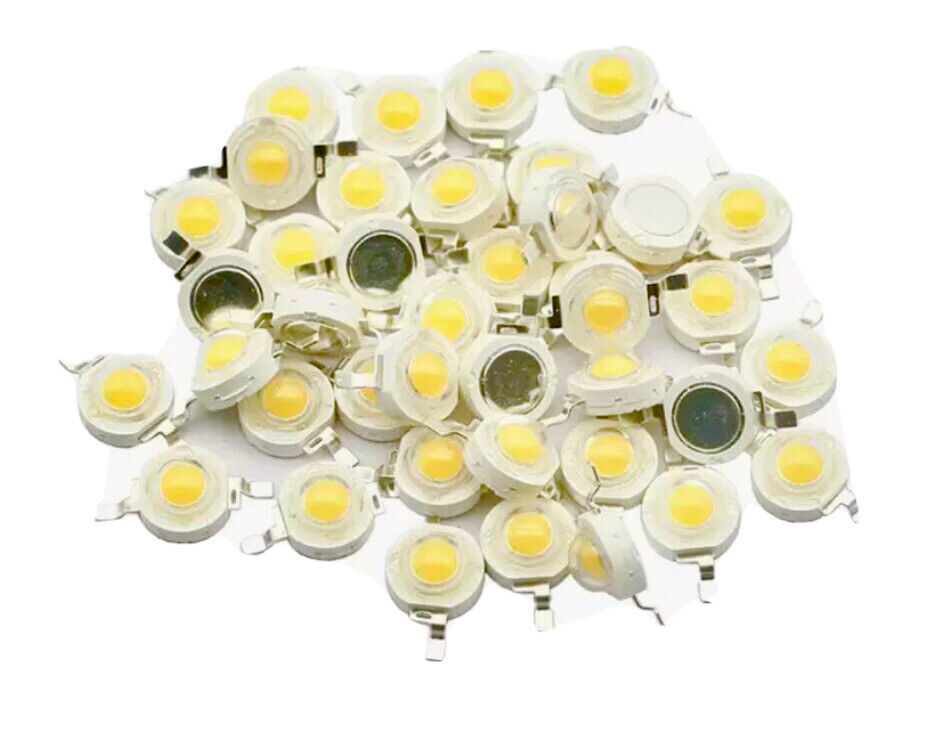

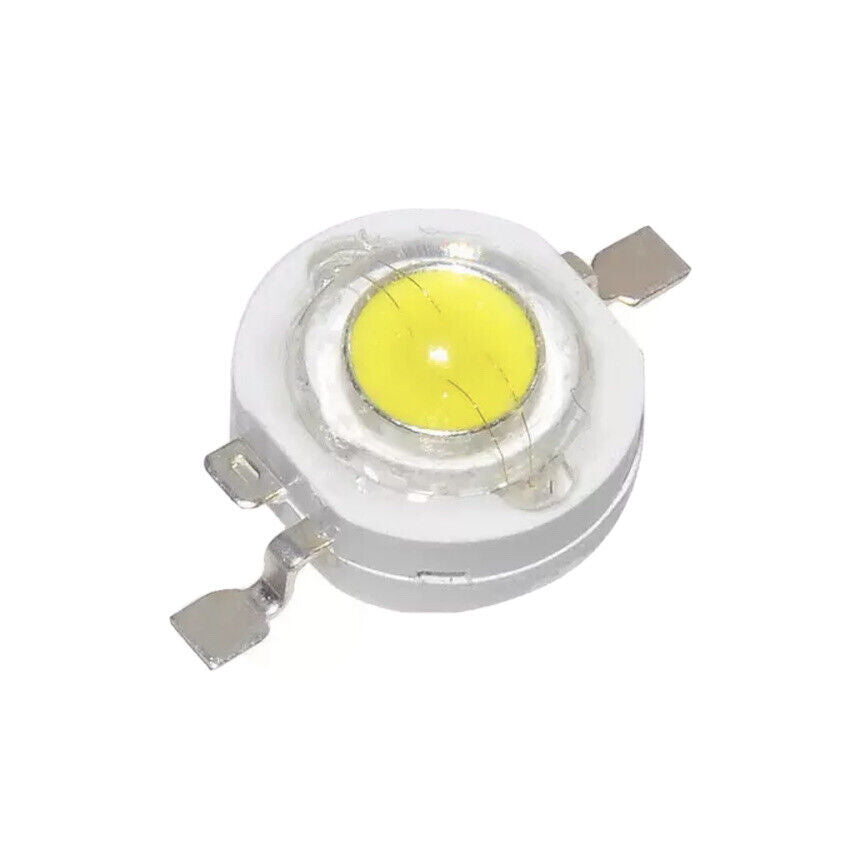

20 Pieces 3W LED High Power SMD LED 45mil Lights Beads Warm White 3200K Diodes

Mounting Style: Surface Mount

Nominal Current Rating: 700 mA Max

Configuration: Single

Viewing Angle: 20°

Lens Shape: Dome

Lens Surface: Clear

Nominal Voltage: 3.4 V

Package/Case: SMD

MPN: Does Not Apply

LED Size: 3W Bead

Wavelength: 3200K

Brand: Unbranded

Type: Individual Item

Model: 3W SMD

Number of Pins: 2

Packaging: Bag

LED Colour: Warm White

Number of LEDs: 20

20 Pieces 3W High Power SMD LED COB Chip Lights Beads Warm White LED Diode. Condition is Brand New.

Ideal for any projects that need a powerful LED.

We also stock this package in 1 and 2 Watt.

Description

Product Name: High Power Multicolor LED Chip, LED Beads, LED Bulb, LED Matrix.

Rated Power: 1W 2W 3W

Chip Brand: Epistar/Epileds

Chip Size: 28mil/33mil/45mil

Beam Angle: 120 degree

Sealing Material: 2*99% Golden Wires, Copper bracket, Dow corning Glue.

Certification: CE/RoHS/FCC

Working life: 50000hrs

Operating temperature: -30 to +85 degree centigrade

Welding temperature: 120°Centigrade in 5 second

Working temperature: less than 60 degress (the led need to use with heatsink)

(Warm White)

1. Power: 3W High Power Lamp Beads ( Taiwan Chip, EPISTAR)

2. Material: Copper Stent and Four Golden thread

3. Emitting colour: Warm White.

Other colours: Blue, Red, Green, Cool White

4. Life Span : 100,000 Hours

5. With RoHS & CE Approved

6. Beam angle : 180 degrees

7. Luminous Flux: 220-240LM

8. Size:45*45mil

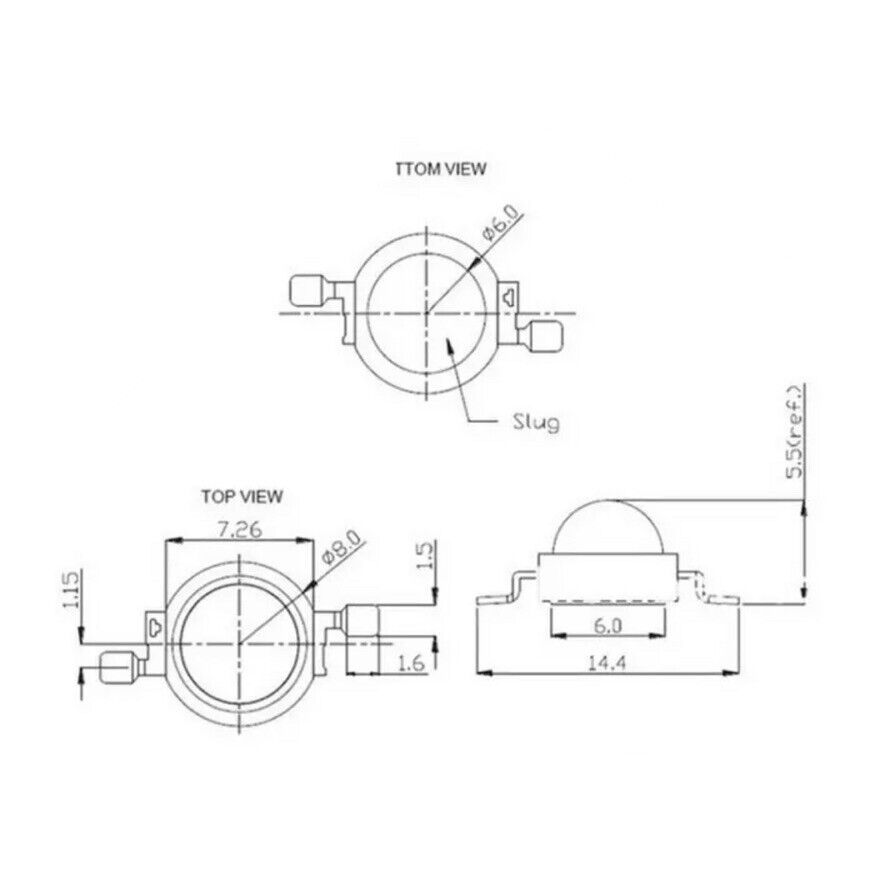

9. Dimensions: Diameter 8mm Round

10. Output voltage: 3.4-3.6V 300-700mA

11.. Welding process: the heating platform, hand soldering, times within three seconds

12. .Applications : Bulb, Ceiling, Lighting, and other Lighting products.
