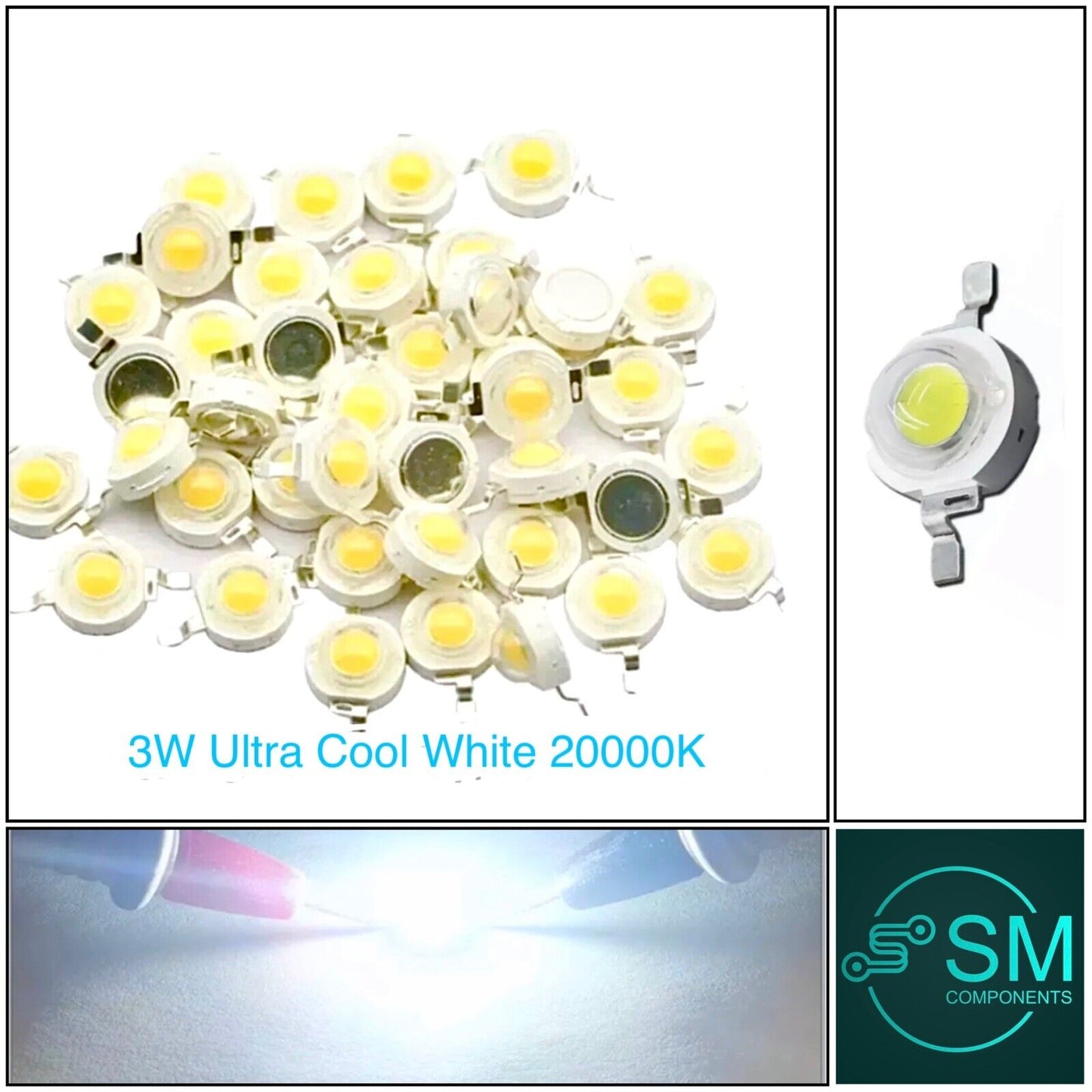

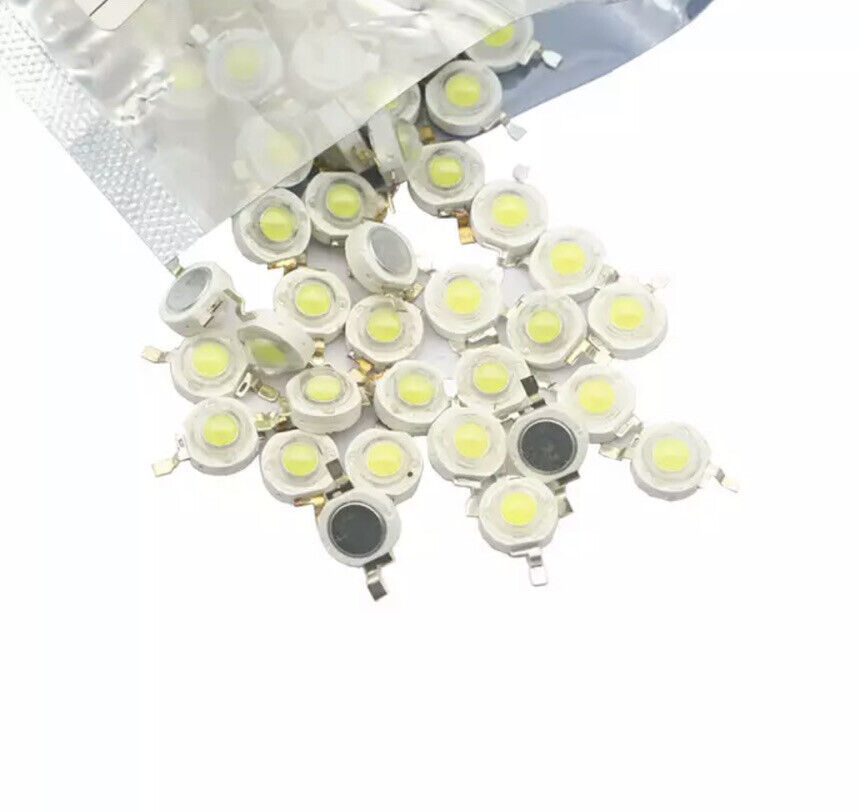

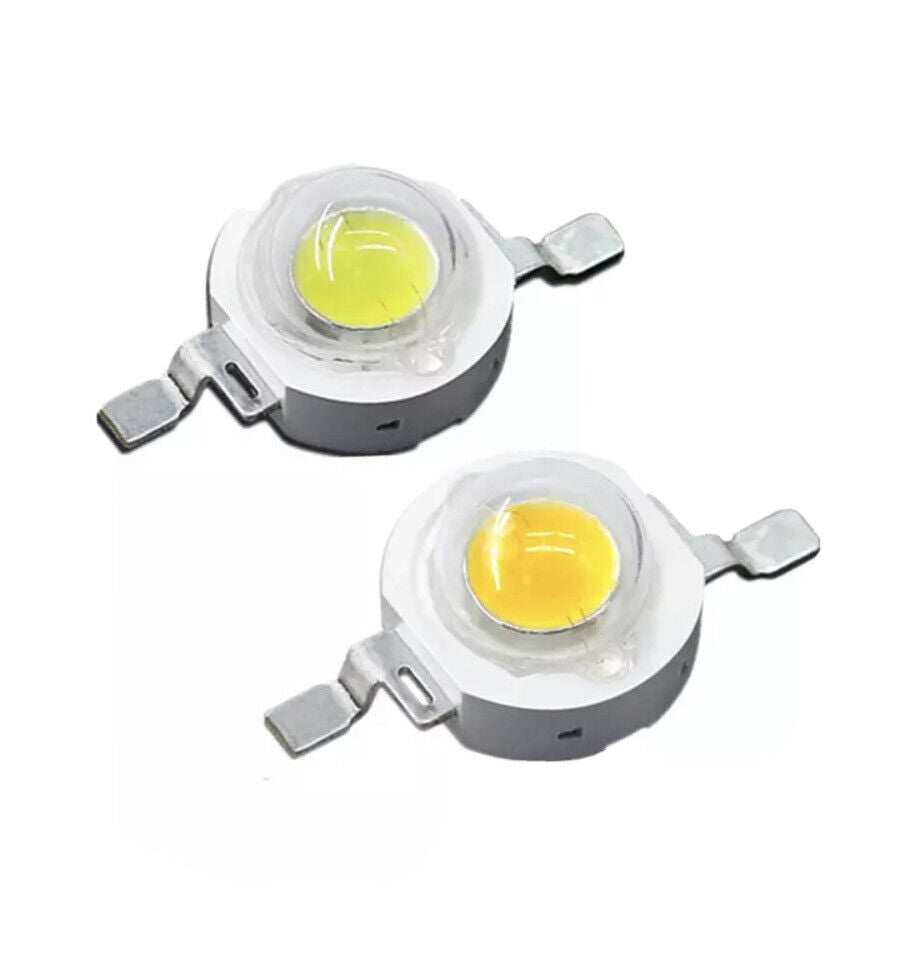

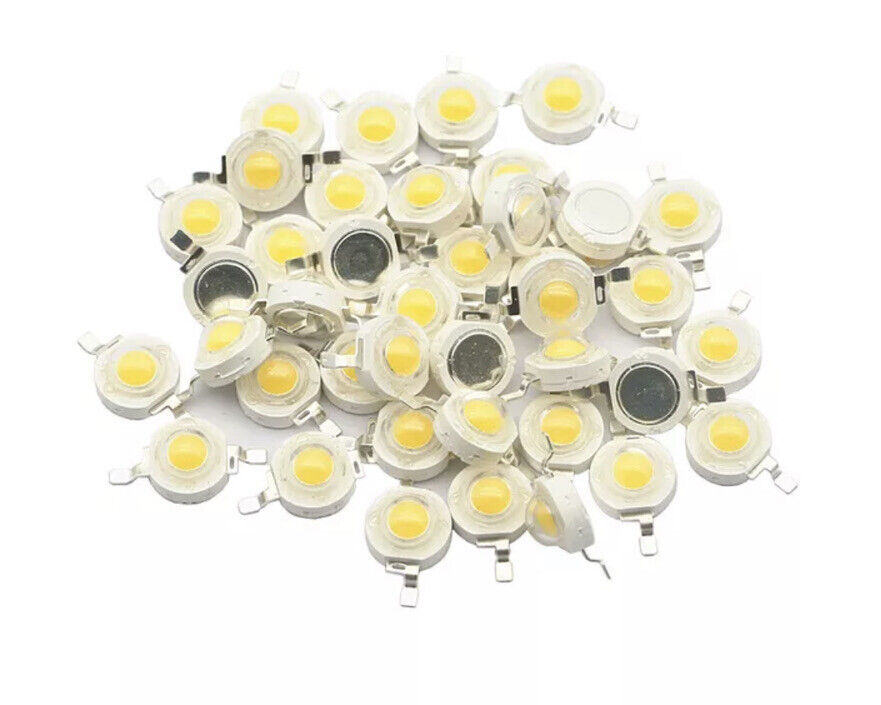

20 Pieces 3W ULTRA COLD WHITE LED 20000K Beads SMD LED Light Emitting Diodes

Mounting Style: Surface Mount

Nominal Current Rating: 750mA

Configuration: Single

Viewing Angle: 100°

Lens Surface: Clear

Lens Shape: Round

Nominal Voltage: 3 V

Package/Case: SMD

MPN: Does Not Apply

LED Size: 3W Bead

Wavelength: 20,000K

Brand: GOODLAY

Power Dissipation: 3 Watts

Type: Individual Item

Model: 3W SMD

Number of Pins: 2

Packaging: Bag

LED Colour: Ultra Cool White 20000K

Country/Region of Manufacture: China

Number of LEDs: 20

UPC: Does not apply

20 Pieces 3W High Power SMD LED COB Chip Lights Beads ULTRA COLD WHITE LED Diode. Condition is Brand New.

This colour is Definitely in to the blue end of cold white, showing a strong band into the blue spectrum.

Ideal for any projects that need a powerful LED.

We also stock this package in 1 and 2 Watt.

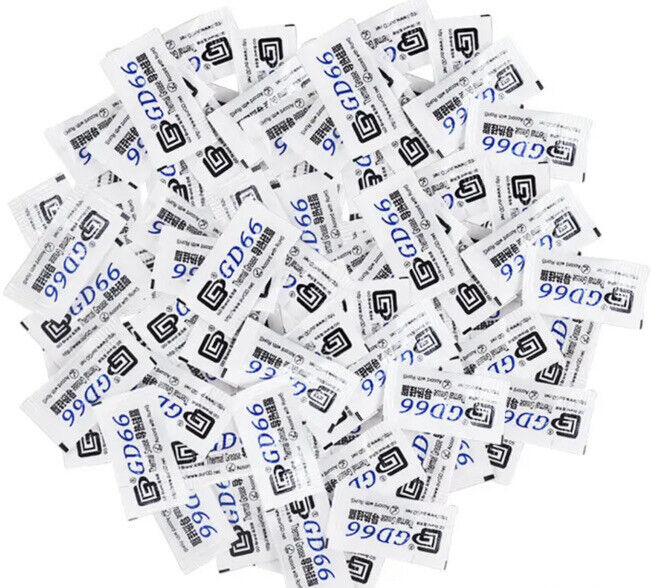

We also supply a satchel of quality thermal paste to ensure longevity of your leds.

Description

Product Name: High Power LED Chip, LED Beads, LED Bulb, LED Matrix.

Rated Power: 3W

Chip Brand:Epistar/Epileds

Chip Size: 45mil

Beam Angle: 120 degree

Sealing Material: 2*99%Golden Wires, Copper bracket,Dow corning Glue.

Certification: CE/RoHS/FCC

Working life: 50000hrs

Operating temperature: -30 to +85 degree centigrade

Welding temperature: 120°Centigrade in 5 second

Working temperature: less than 60 degress (the led must be used with a heatsink)

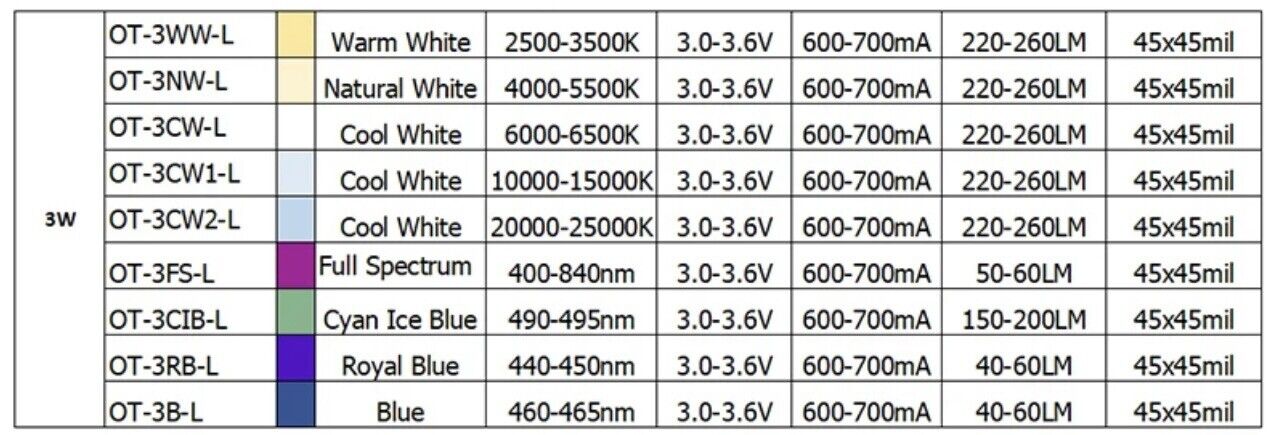

We are professional LED Chip supplier,we have all colors of this.

(White Series)

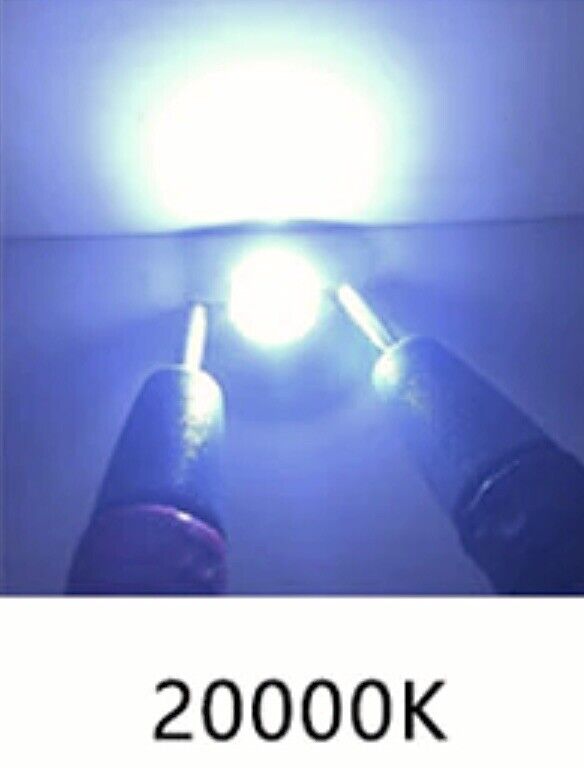

20,000K ( Super Cold White)

1. Power: 3W High Power Lamp Beads ( Taiwanese Imported Chip)

2. Material: Copper Stent and Four Golden thread

3. Emitting colour: Ultra Cold White

4. Life Span : 100,000 Hours

5. With RoHS & CE Approved

6. Beam angle : 180 degrees

7. Luminous Flux: 220-240LM

8. Size:45*45mil

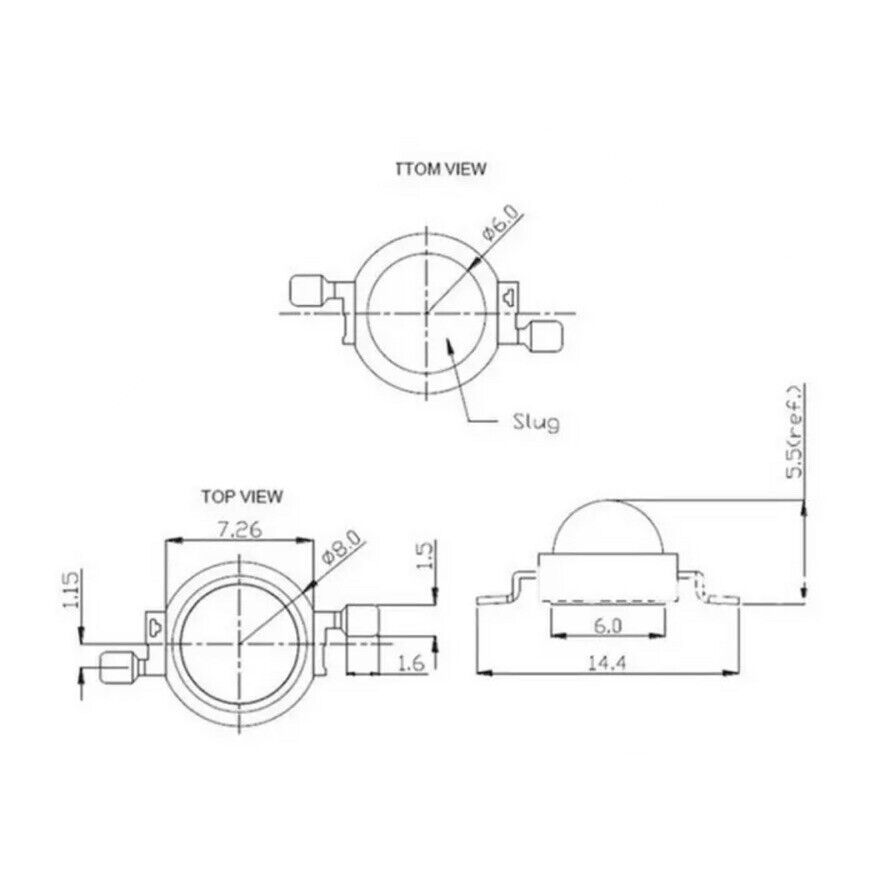

9. Dimensions: Diameter 8mm Round

10. Output voltage: 3.4-3.6V 300-700mA

11. Welding process: the heating platform, hand soldering, times within three seconds

12. Applications : Bulb, Ceiling, Lighting, and other Lighting products.
