20PCS 1N4007 DO-41 1000 Volts 1 Amp Diodes Fast Recovery Rectifier Diodes

Brand: Unbranded

Type: Rectifier Diode

Model: DIP

MPN: Does Not Apply

Unit Quantity: 20

20PCS 1N4007 Diodes Fast Recovery Rectifier Diode 1000 Volts 1 Amps 1N4007. Condition is Brand New. Postage with Australia Post Regular Letter NO TRACKING NUMBER

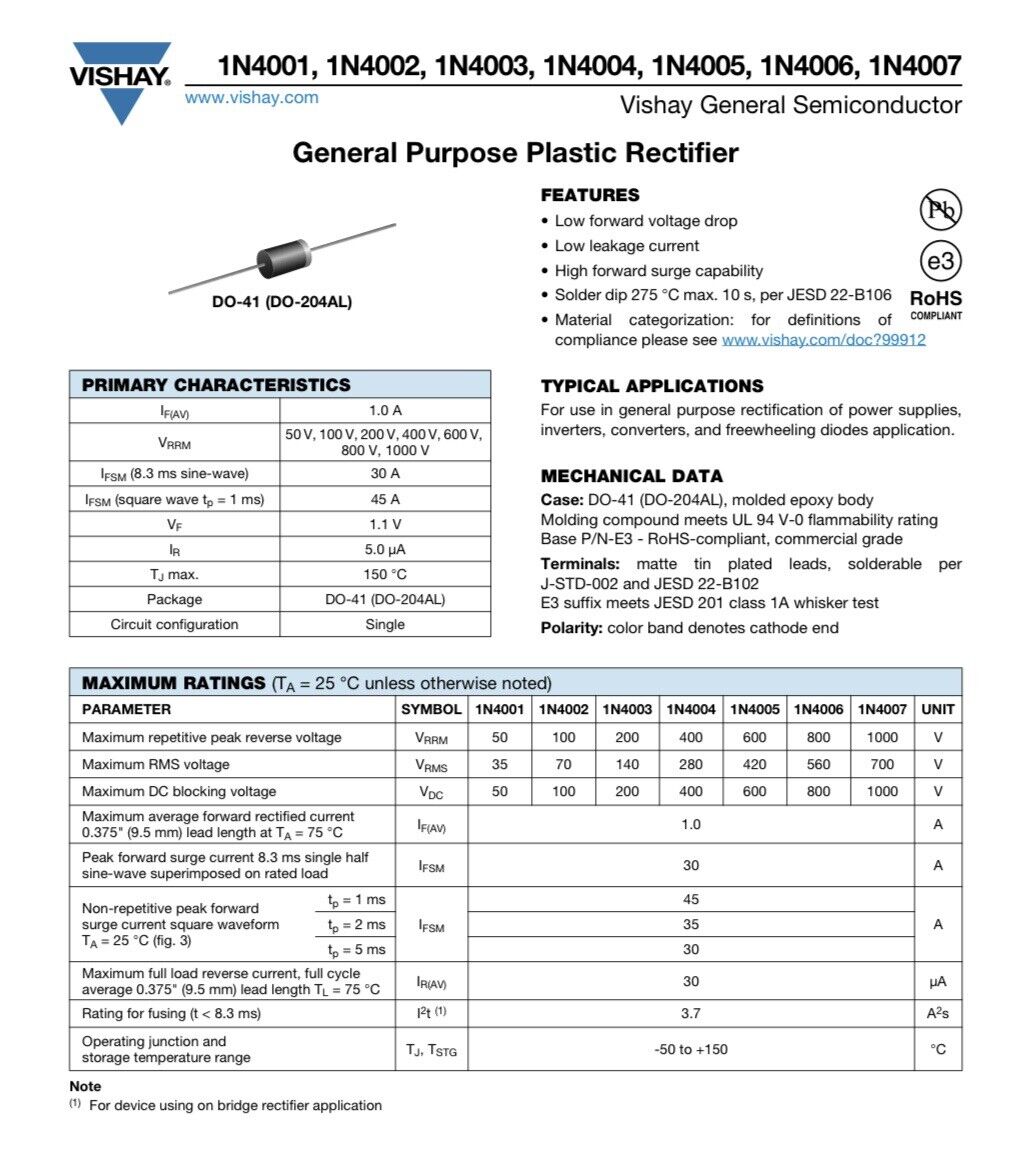

Characteristics of the 1N4007 diode.

• Maximum Recurrent Peak Reverse Voltage - 1000 V
• Maximum Average Forward Output Current - 1A
• Maximum Forward Voltage Drop per element at 1.0A DC - 1.3 V
• Maximum reverse recovery time - 500 ns
• Typical Junction Capacitance 40 pF
• Package - DO-41
• Weight 0.38 grams
• Operating and Storage Temperature Range -65...+150 °C

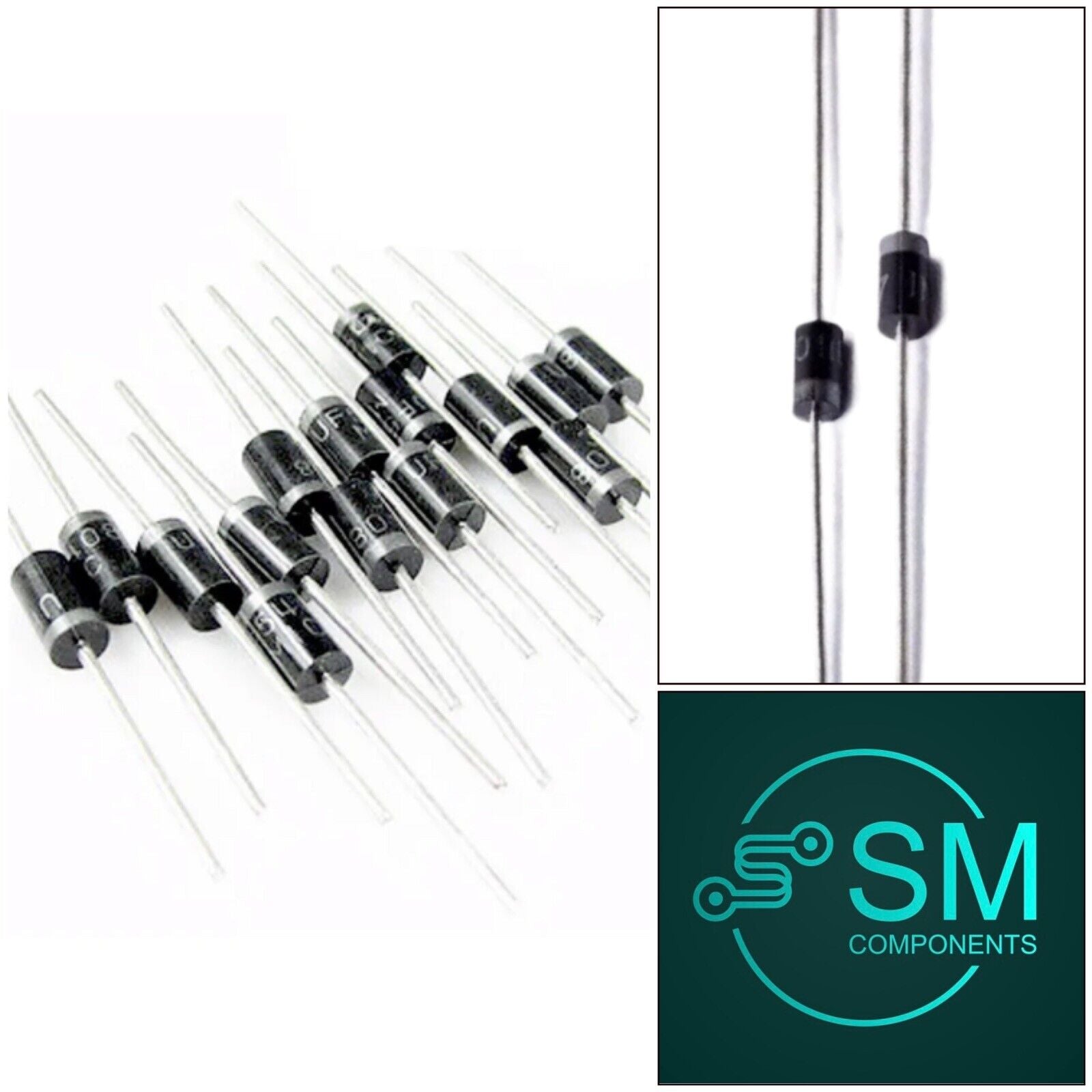

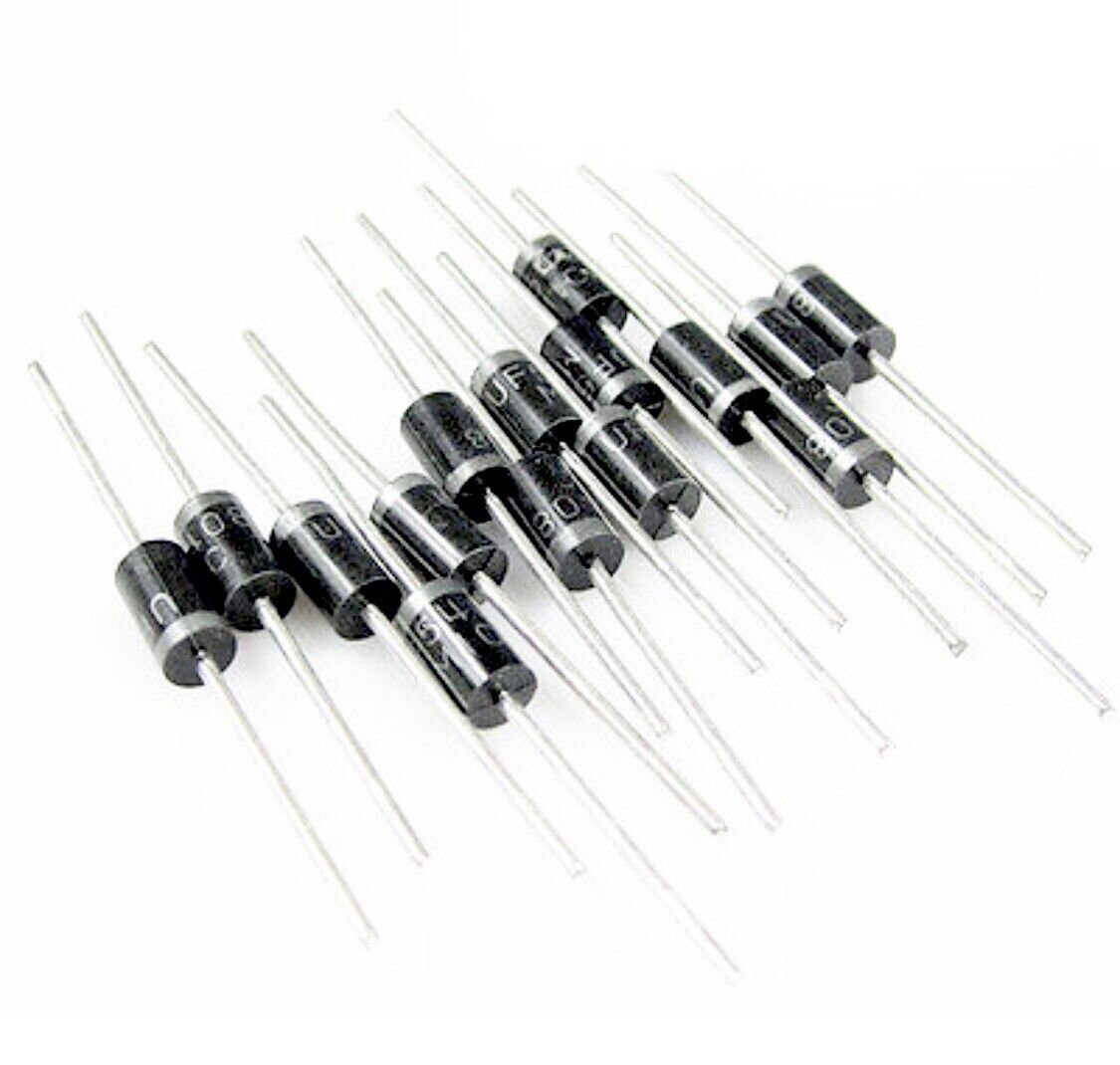

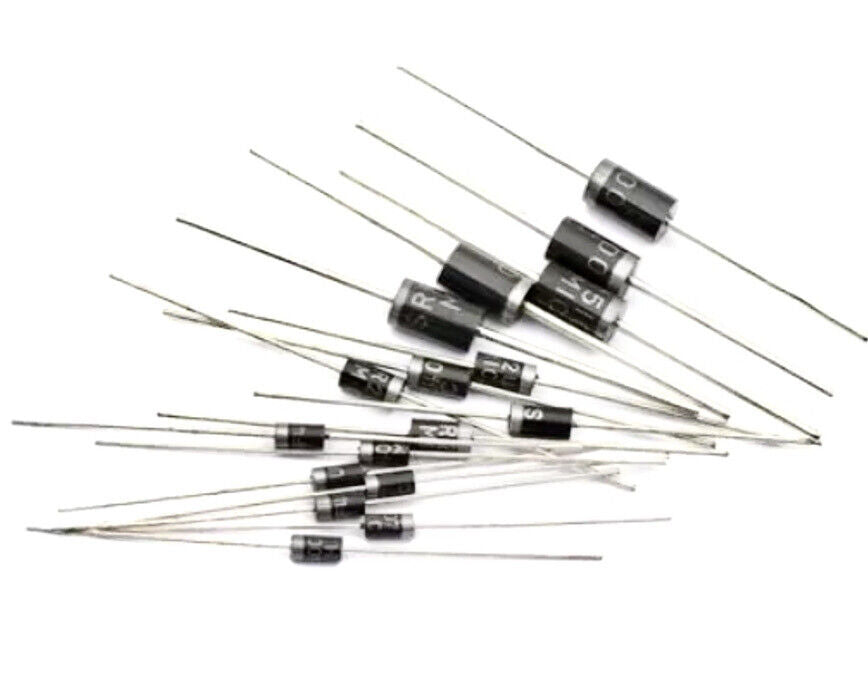

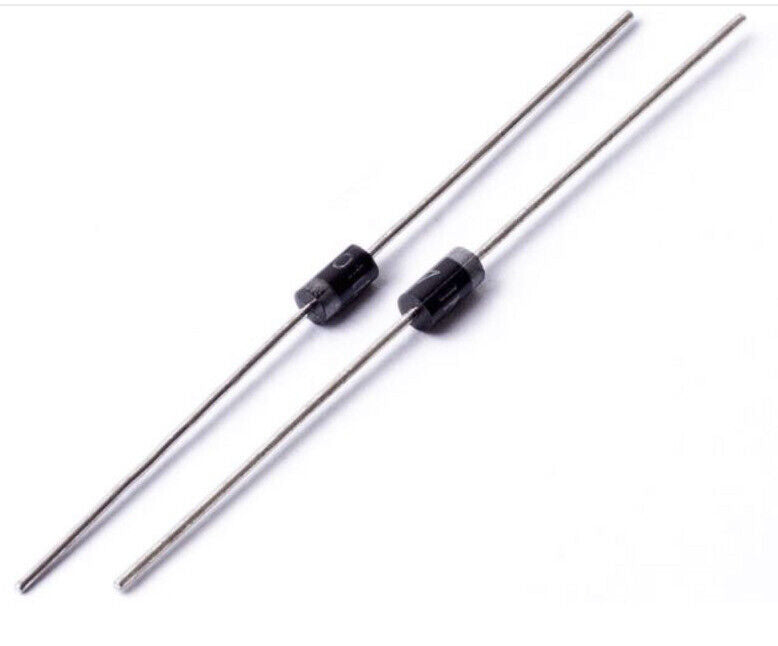

GENERIC DIODE PHOTO USED ON MAIN PAGE
