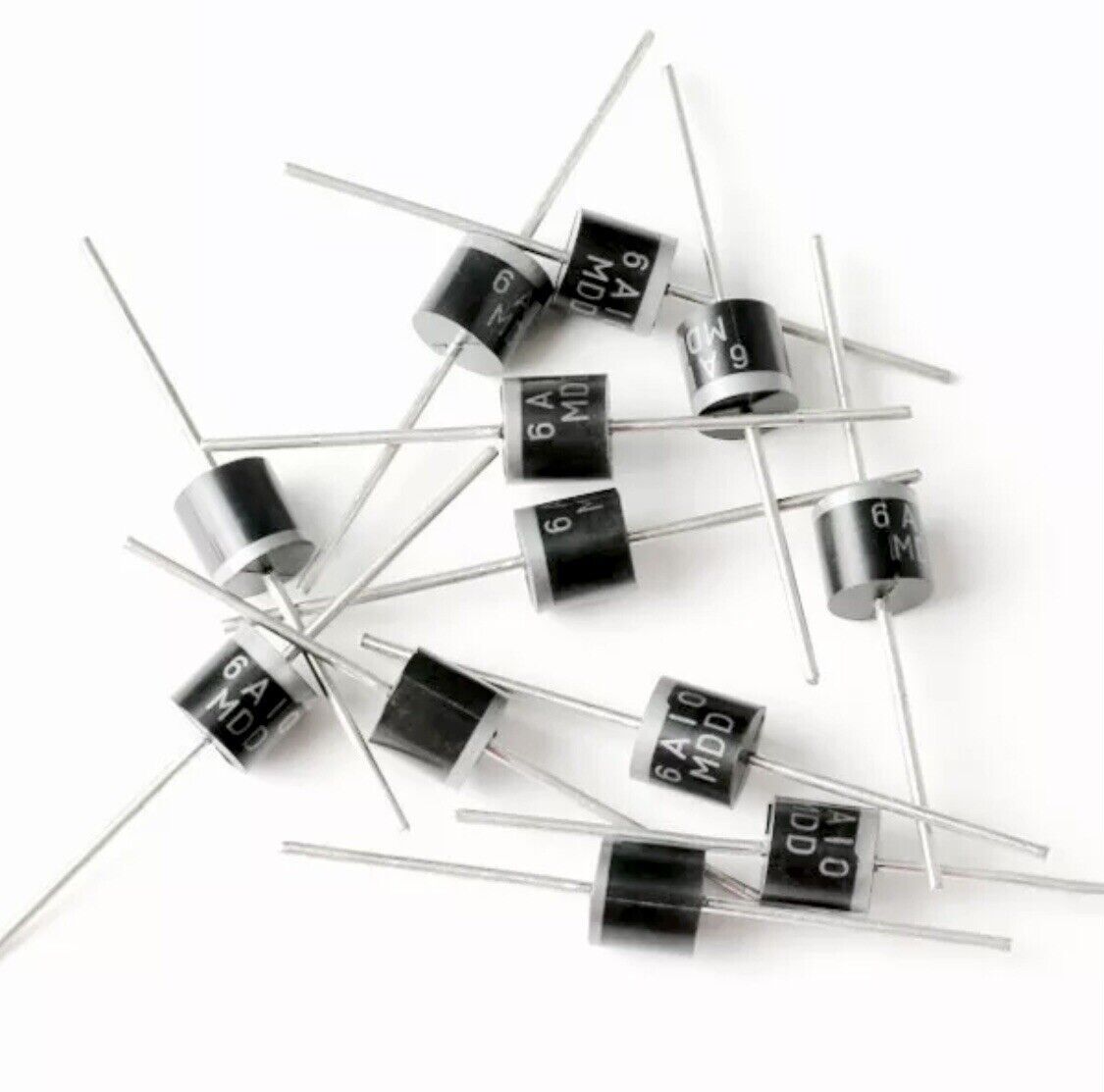

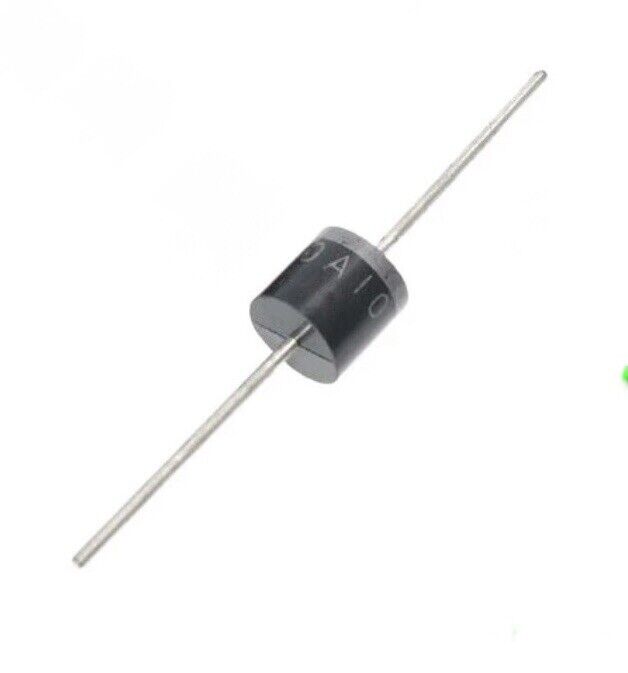

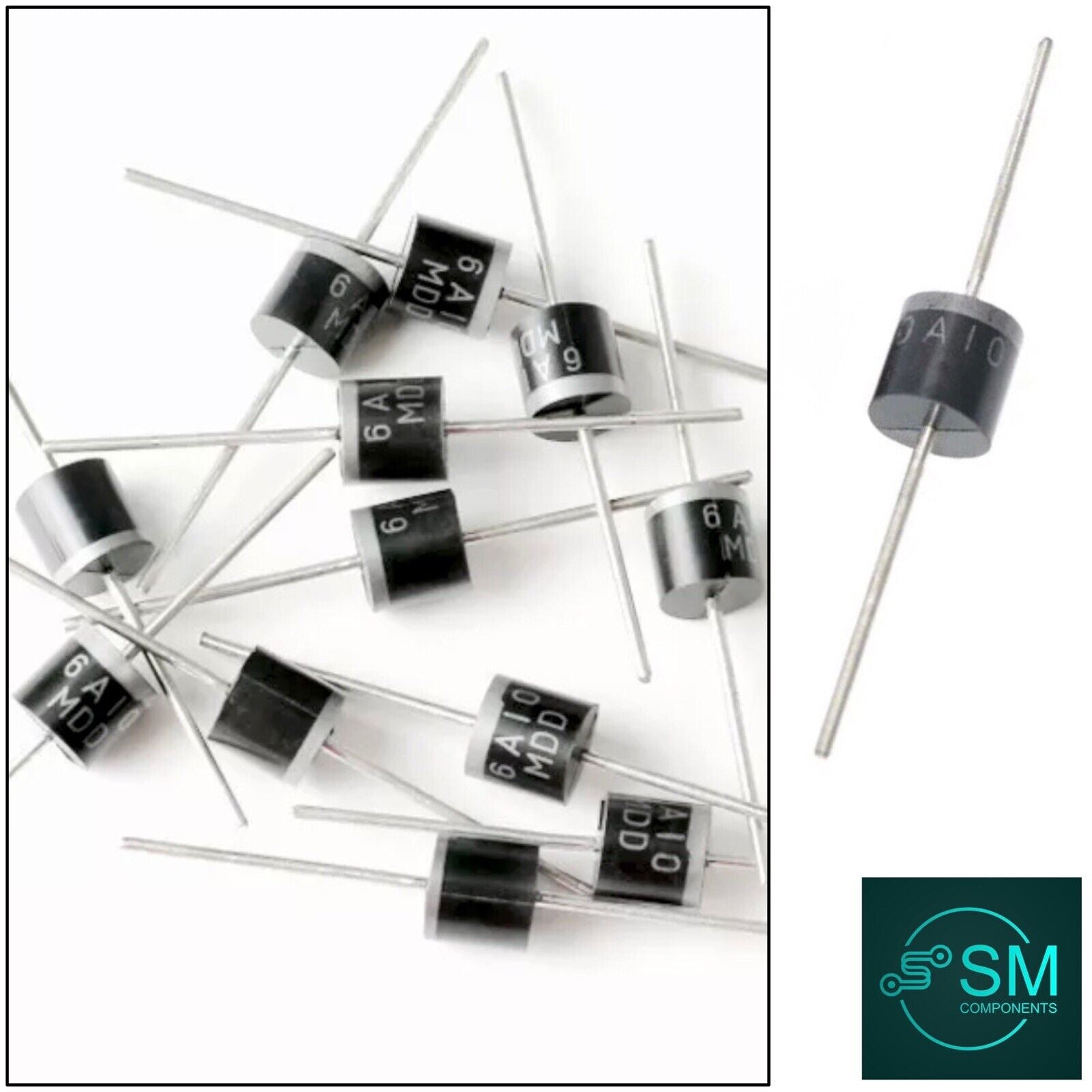

20pcs 6A10 R-6 DIP 6A 1000V electrical Axial Rectifier Diode DIY Electronics

Mounting Style: Through-Hole

Package/Case: R 6

Peak Forward Voltage: 1000 V

MPN: Does Not Apply

Peak Reverse Repetitive Voltage: 1000 V

Package Included: 20 pcs Rectifier Diode

Peak Surge Current: 400A

Minimum Operating Temperature: -65°C

Brand: Unbranded

Type: Rectifier Diode

Maximum Gate Trigger Voltage: 10 V

Diode Configuration: Single

Number of Pins: 2

Packaging: Antistatic Bag

Style: 6A10

Maximum Continuous Current: 6A

Reverse Current: 10 uA

Maximum Operating Temperature: 175 °C

Country/Region of Manufacture: China

20pcs 6A10 R-6 DIP 6A 1000V electrical Axial Rectifier Diode. Item is Brand New shipping with Australia Post regular Letter no tracking number included.

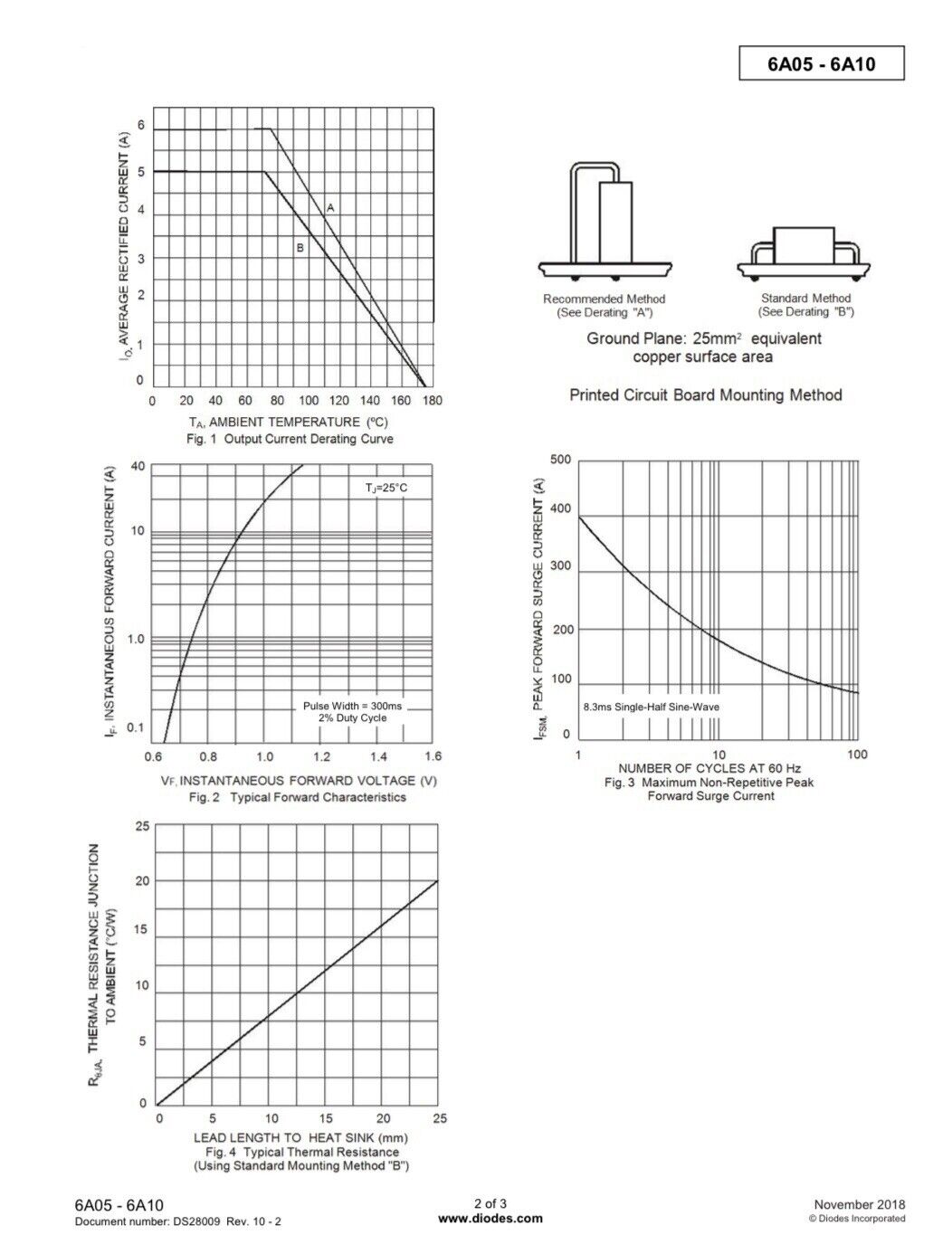

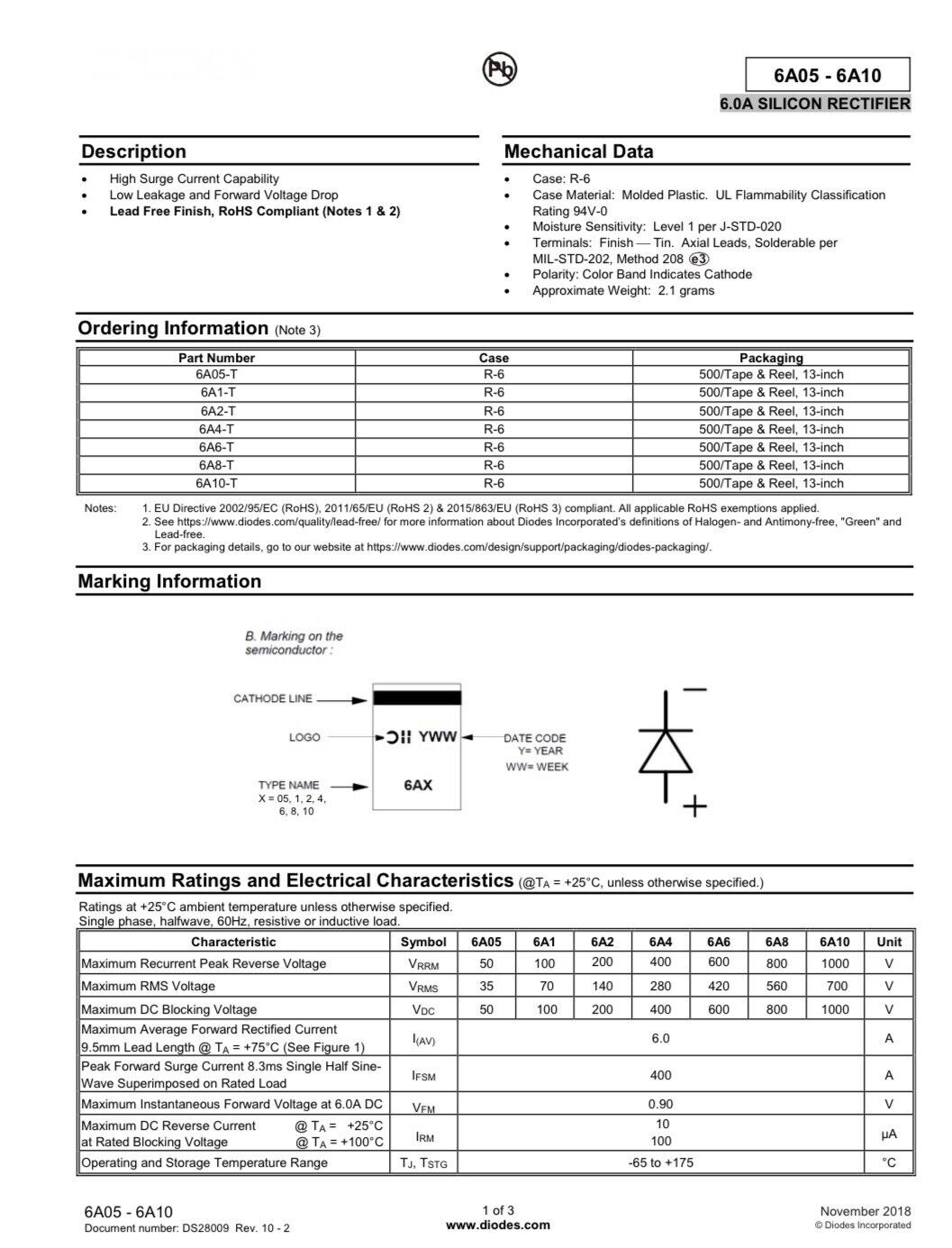

Specifications

Diode Type - Standard Rectifier

Voltage - DC Reverse (Vr) (Max) 1000V (1kV)

Current - Average Rectified (Io) 6A

Voltage - Forward (Vf) (Max) @ If 900mV @ 6A

Reverse Recovery Time (trr) -

Current Reverse Leakage @ Vr 10µA @ 1000V

Speed Standard Recovery >500ns,>200mA (Io)

Mounting Type Through Hole

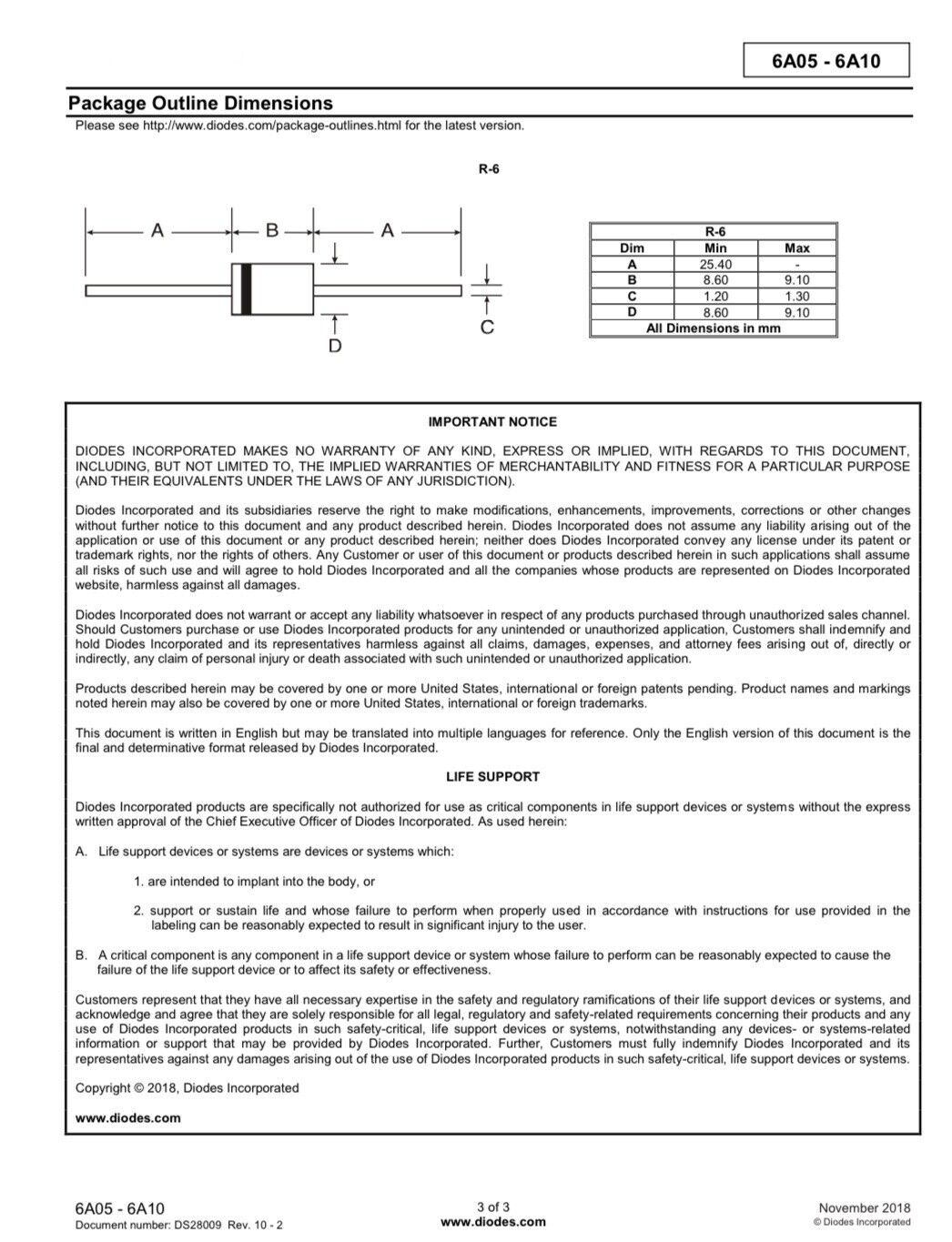

Package / Case R6, Axial

Packaging Tape & Reel (TR)

Capacitance @ Vr, F -

Lead Free Status Lead Free Compliant

RoHS Status RoHS Compliant
