20PCS FR157 DO-15 Diodes Fast Recovery 1000 Volts 1.5 Amps FR157

Brand: Unbranded

Model: DIP

MPN: Does Not Apply

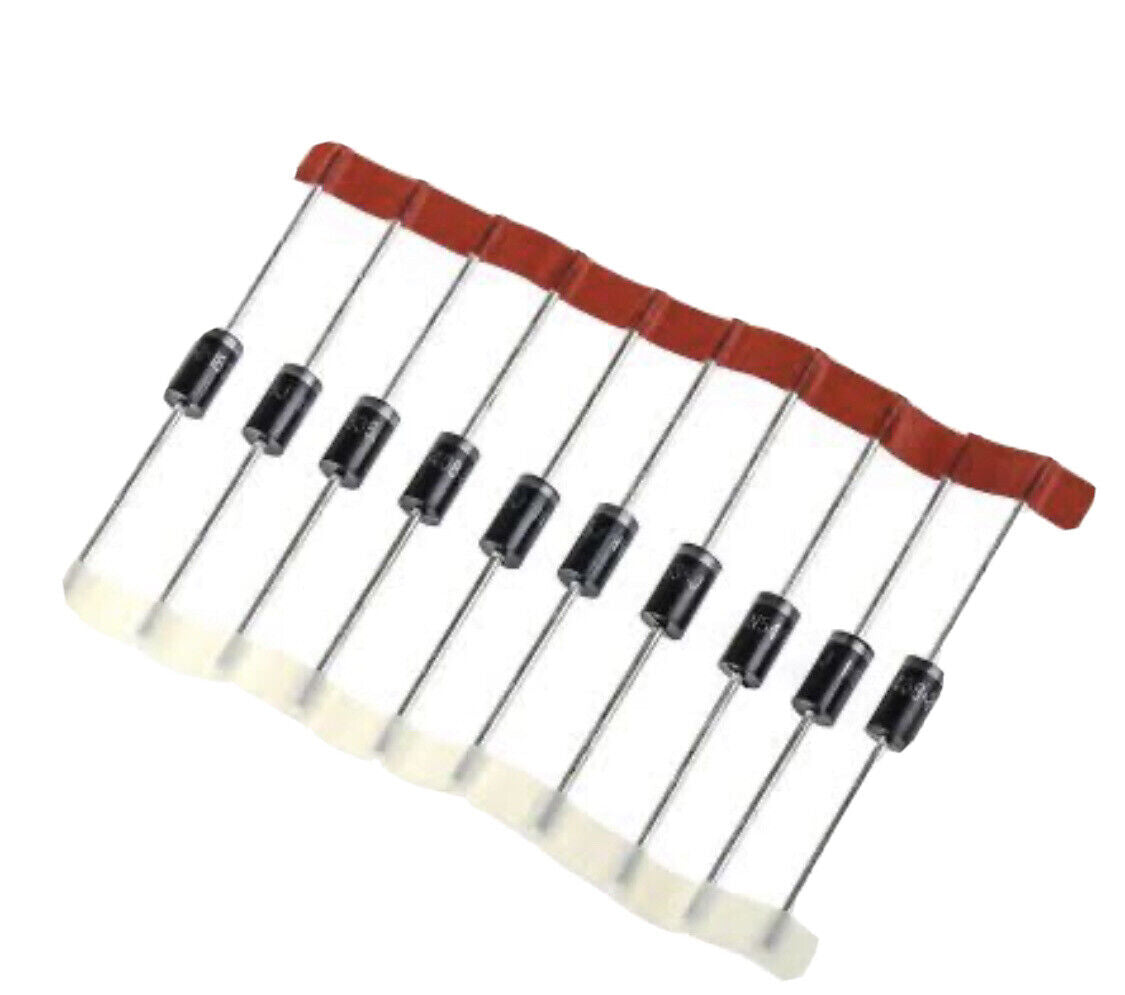

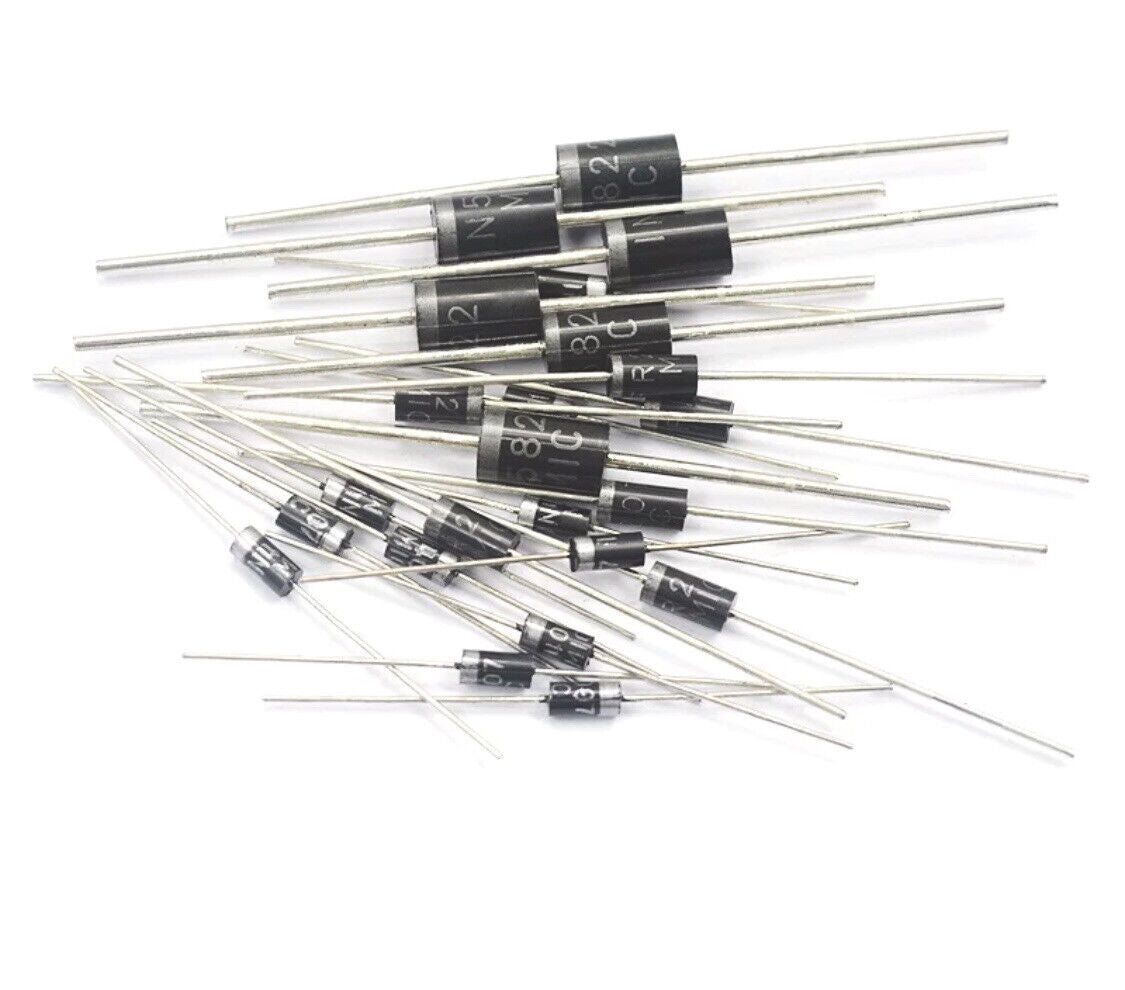

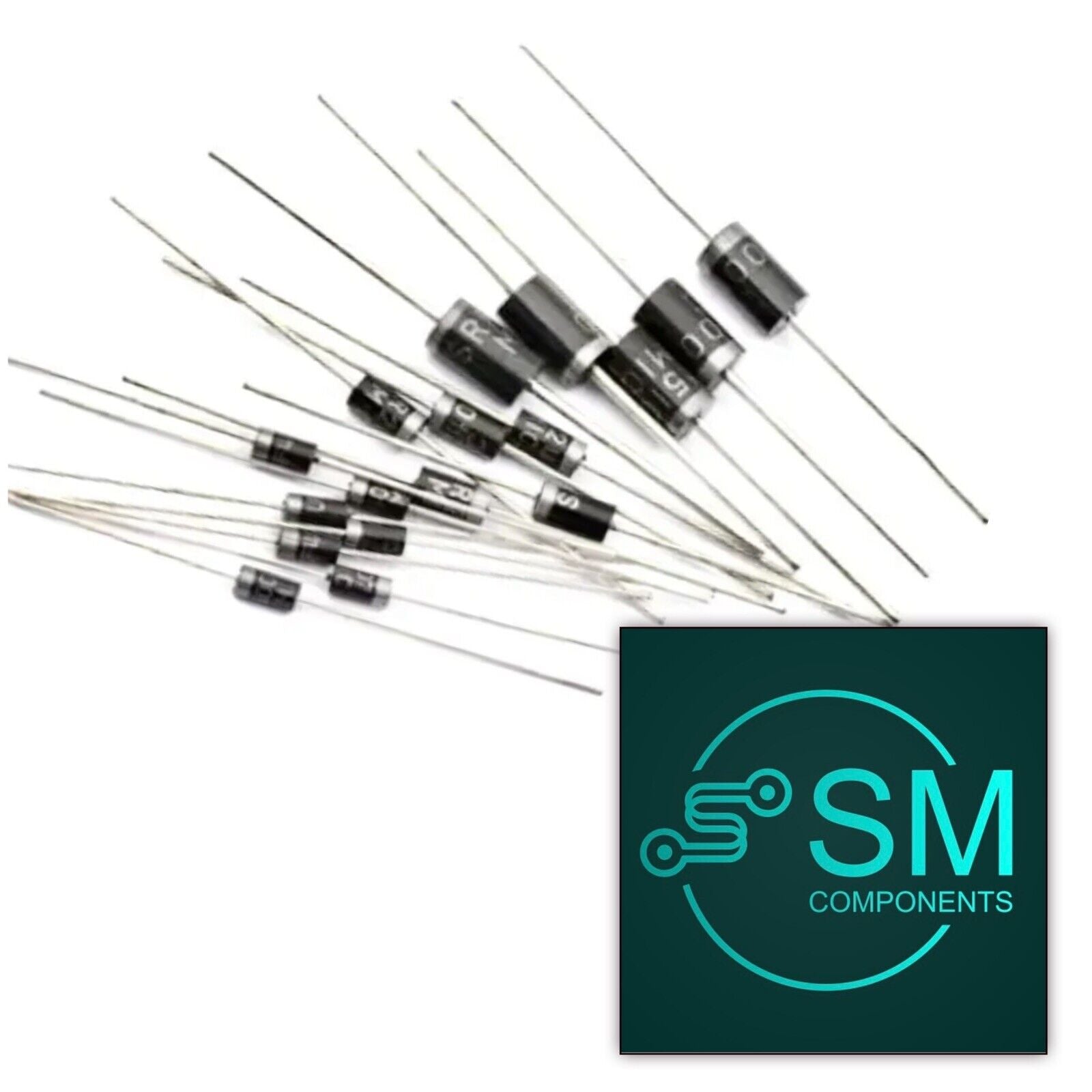

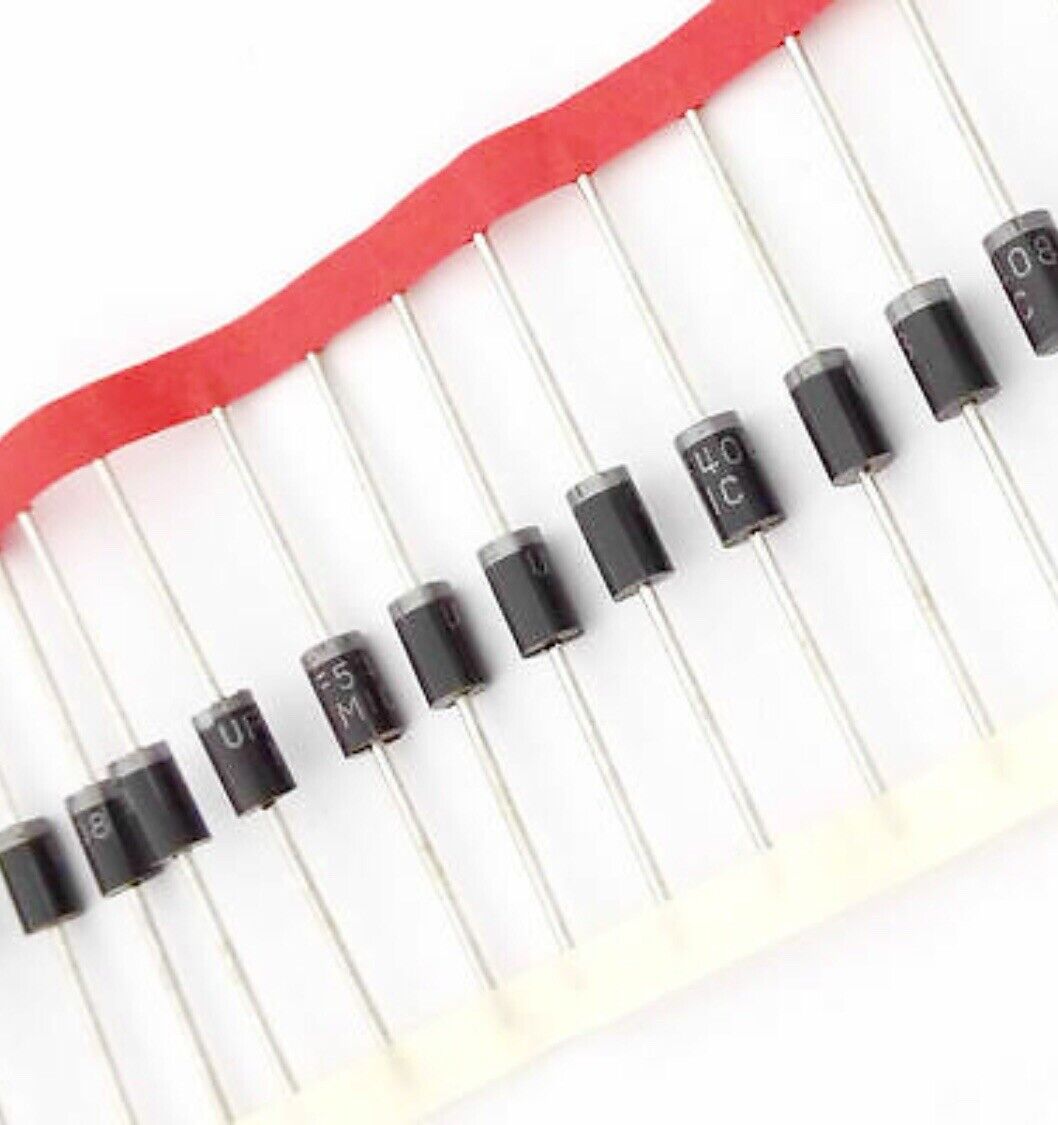

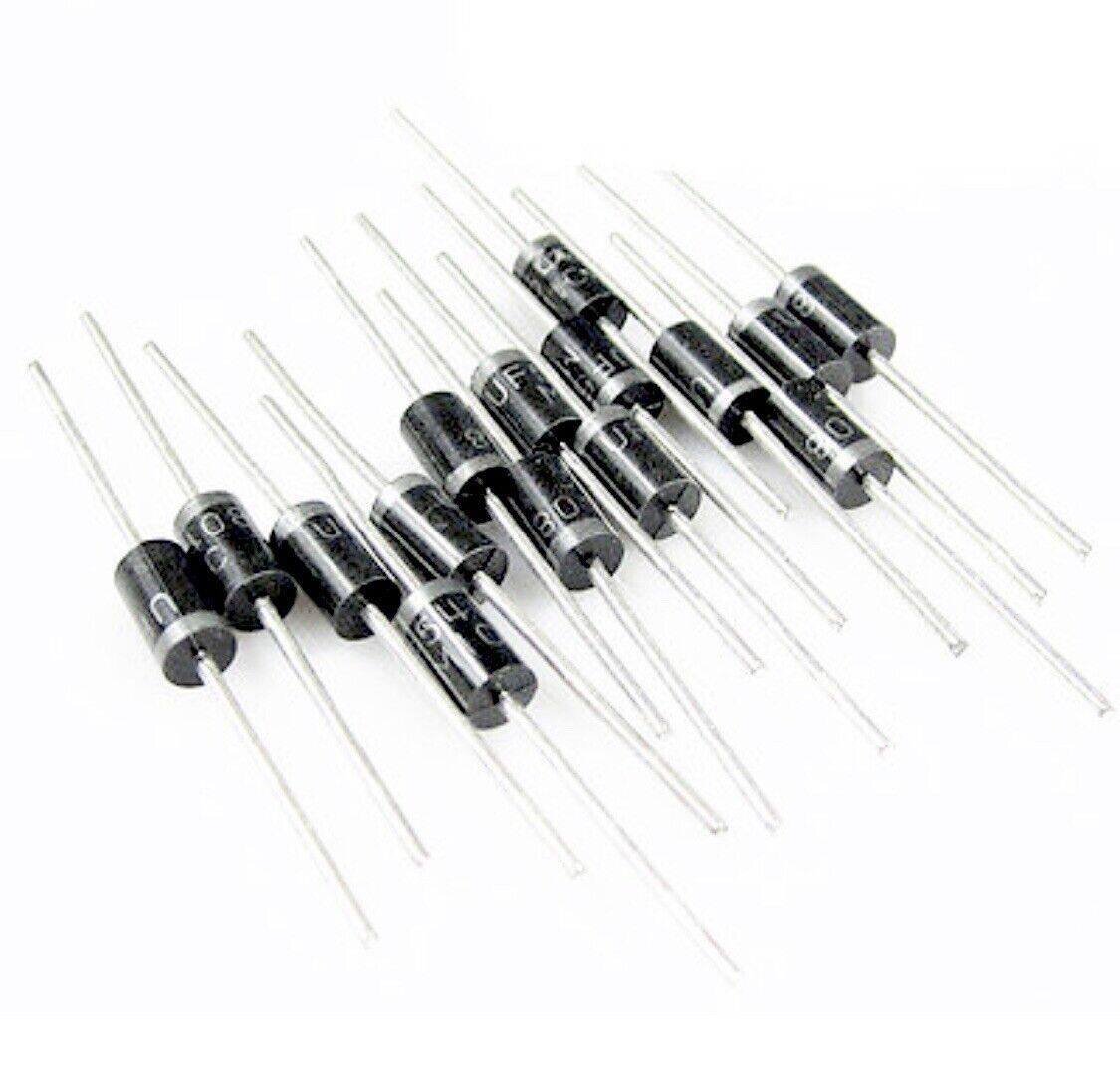

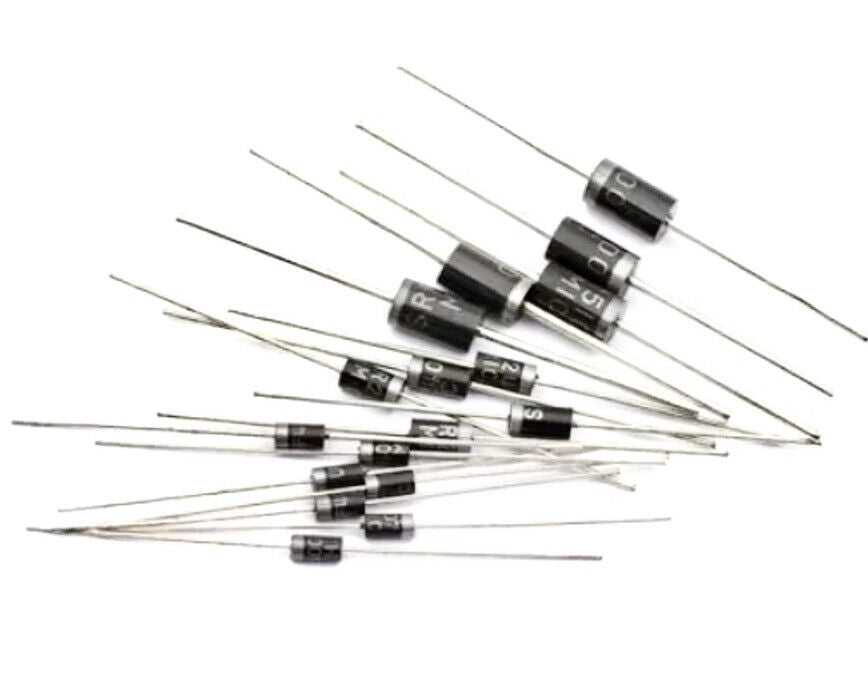

20PCS FR157 Diodes Fast Recovery Rectifier Diode 1000 Volts 1.5 Amps FR104. Condition is Brand New. Postage with Australia Post.

Charactiristics FR157 diode

Maximum Recurrent Peak Reverse Voltage - 1000 V

Maximum Average Forward Output Current - 1.5 A

Maximum Forward Voltage Drop per element at 1.0A DC - 1.3 V

Maximum reverse recovery time - 500 ns

Typical Junction Capacitance 40 pF

Package - DO-15

Weight 0.38 grams

Operating and Storage Temperature Range -65...+150 °C
