20PCS Kit NE555 NE555P Timing IC TI 8-DIP High Precision Timer 10X IC 10X Socket

Brand: Texas Instruments

Type: Timing IC

Model: NE555P

MPN: NE555P

Unit Quantity: 10

UPC: Does not apply

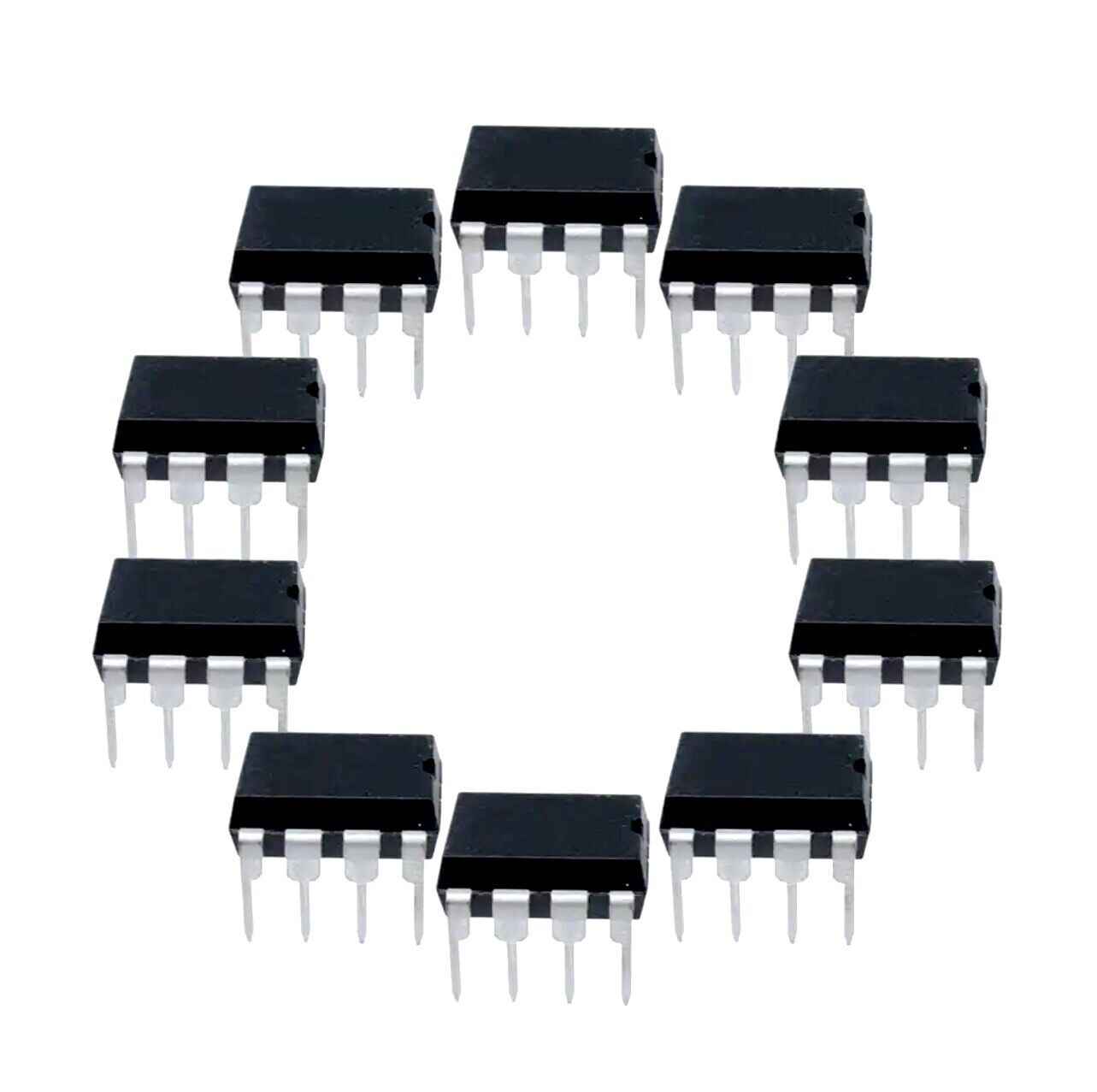

20PC Kit 10 x NE555 NE555P Timer IC Texas Instruments 8-DIP precision timing IC

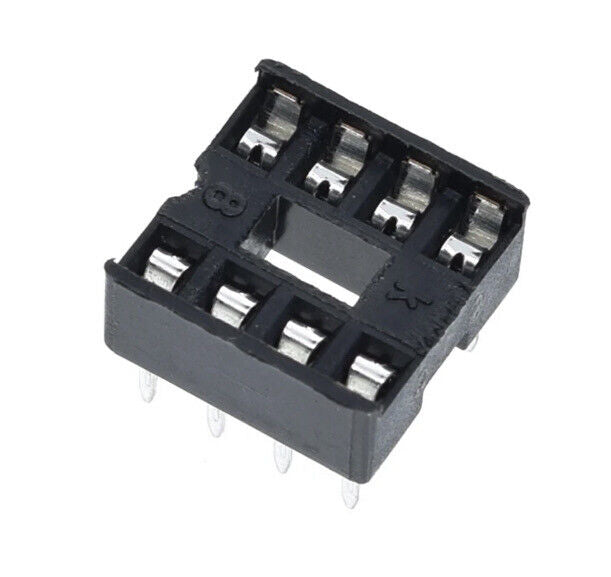

10 x IC Sockets

Sent with Australia Post regular Letter no tracking number included.

NE555 devices are precision timing circuits capable of producing accurate time delays or oscillation. In the time-delay or mono-stable mode of operation, the timed interval is controlled by a single external resistor and capacitor network. In the a-stable mode of operation, the frequency and duty cycle can be controlled independently with two external resistors and a single external capacitor.

The threshold and trigger levels normally are two- thirds and one-third, respectively, of VCC. These levels can be altered by use of the control-voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set, and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip- flop is reset and the output is low. The reset (RESET) input can override all other inputs and can be used to initiate a new timing cycle. When RESET goes low, the flip-flop is reset, and the output goes low. When the output is low, a low-impedance path is provided between discharge (DISCH) and ground.

The output circuit is capable of sinking or sourcing current up to 200 mA. Operation is specified for supplies of 5 V to 15 V. With a 5-V supply, output levels are compatible with TTL inputs.
