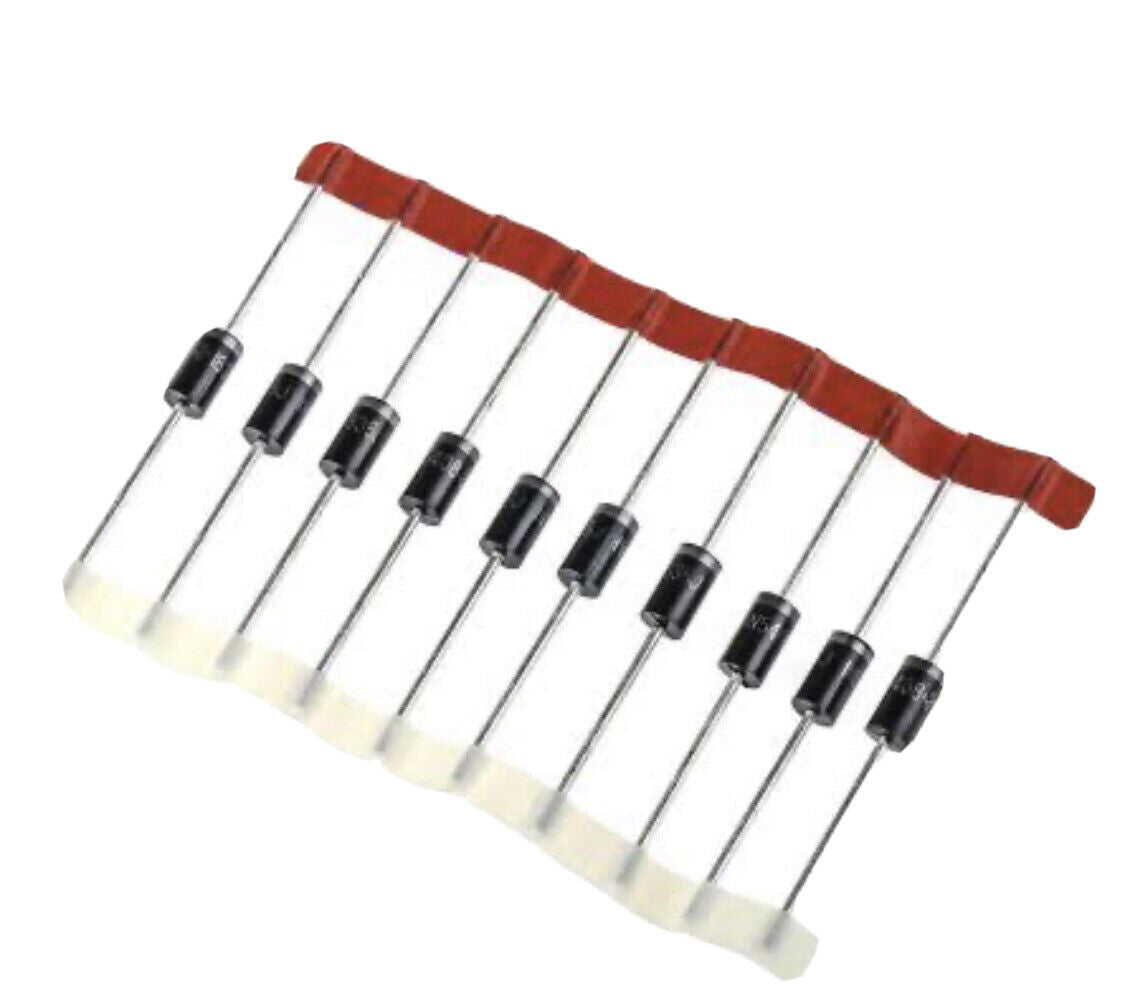

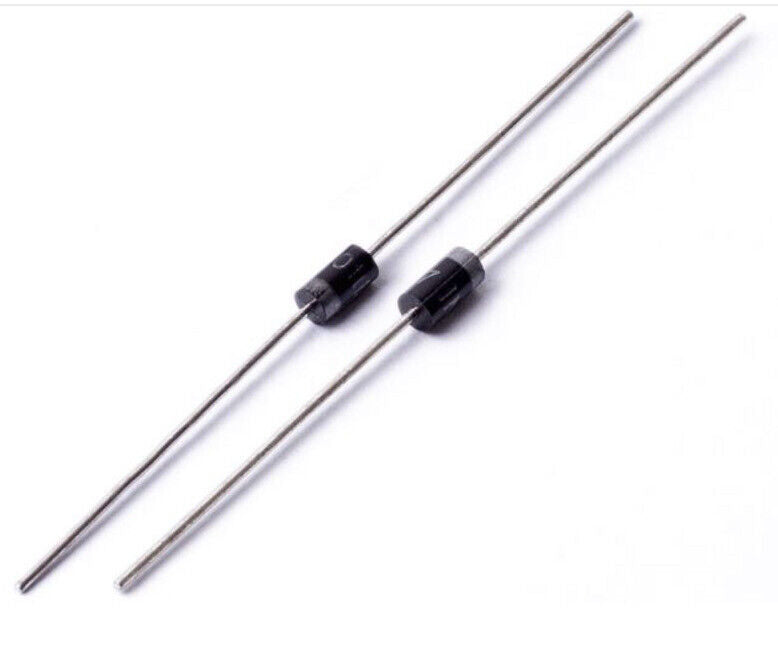

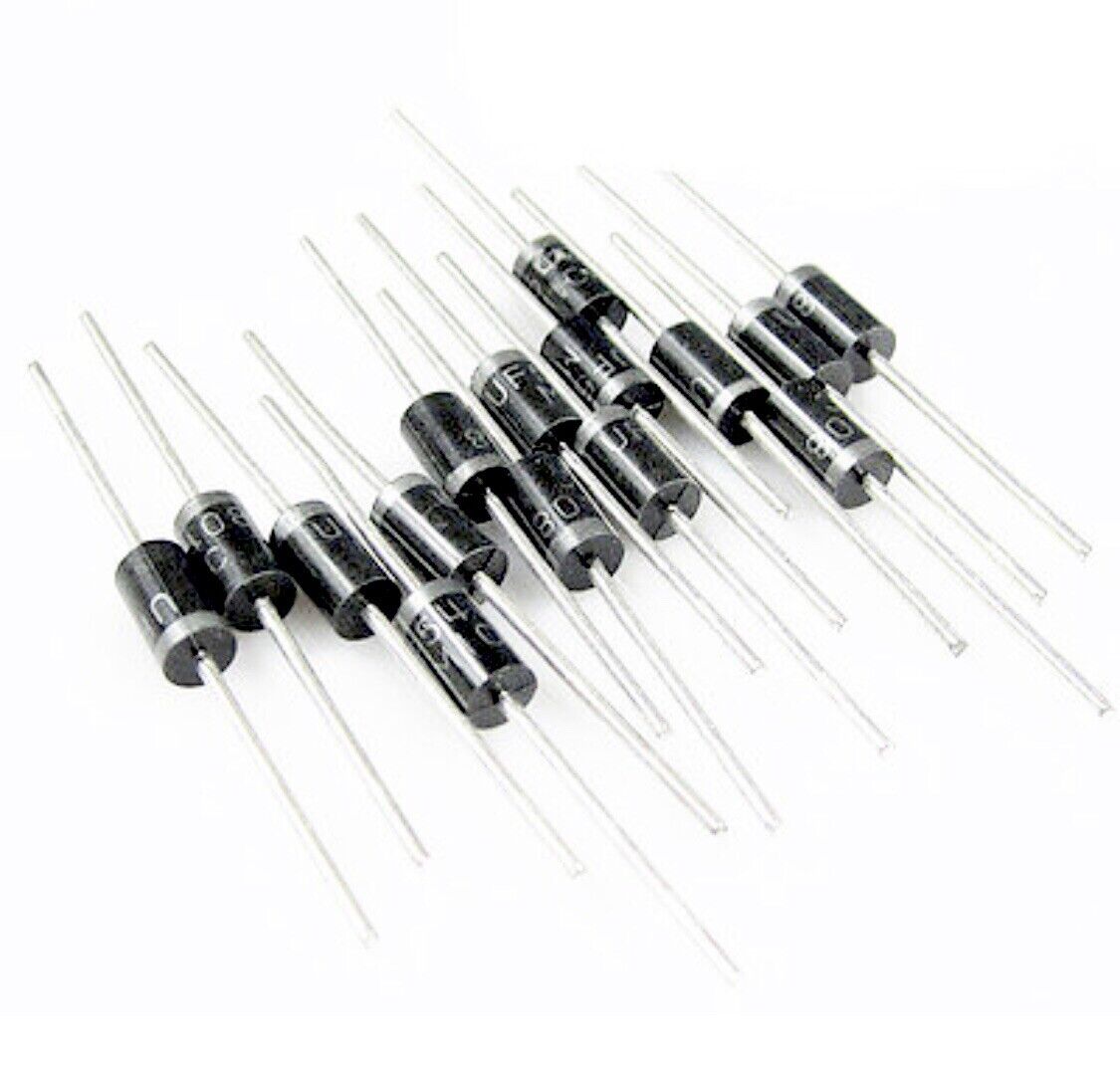

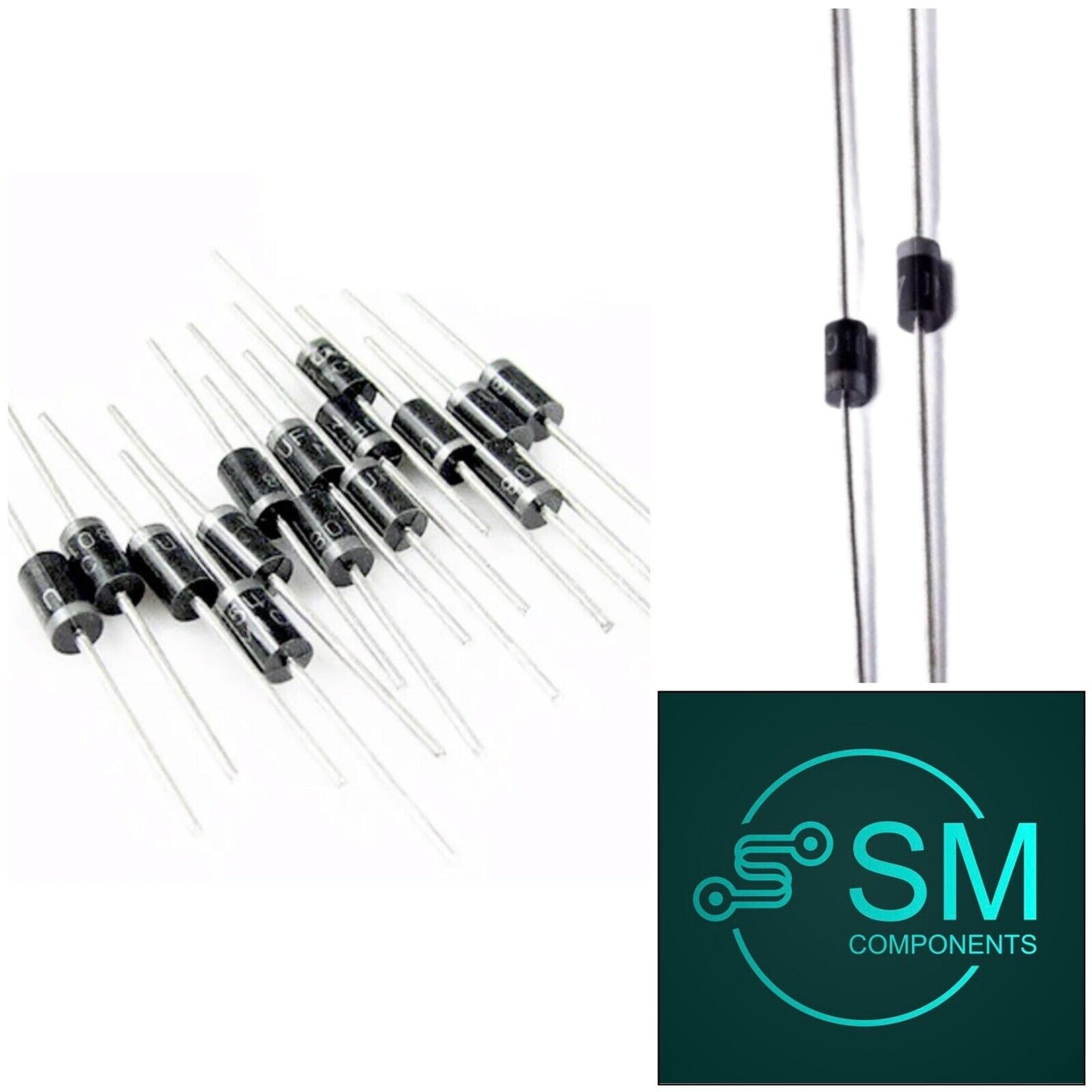

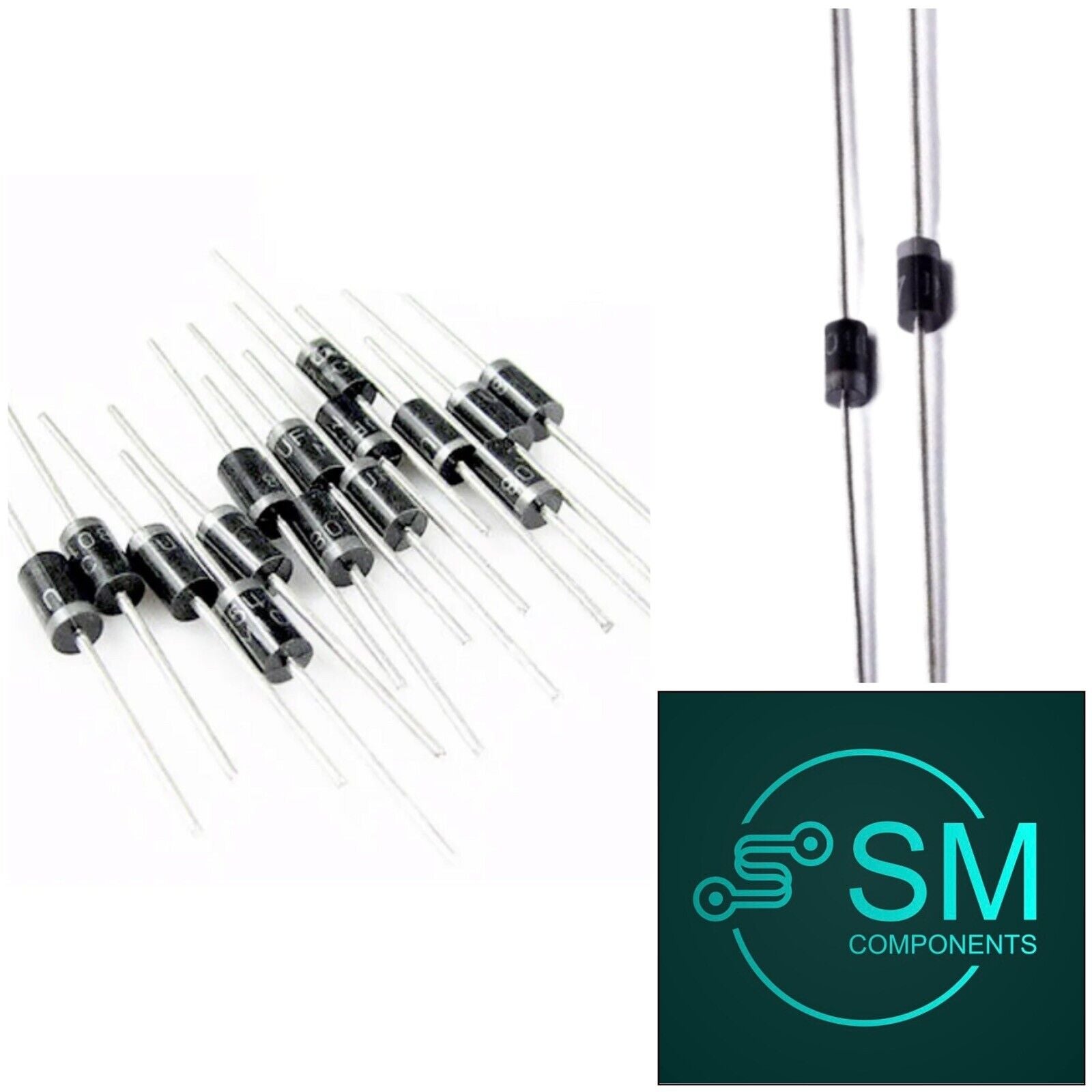

20PCS RL257 DO-15 1000 Volts 2.5 Amps Diodes Fast Recovery Rectifier Diodes

Brand: Unbranded

Type: Rectifier Diode

Model: DIP

MPN: Does Not Apply

Unit Quantity: 20

20PCS RL257 Diodes Fast Recovery Rectifier Diode 1000 Volts 2.5 Amps RL257. Condition is Brand New. Postage with Australia Post Regular Letter NO TRACKING NUMBER

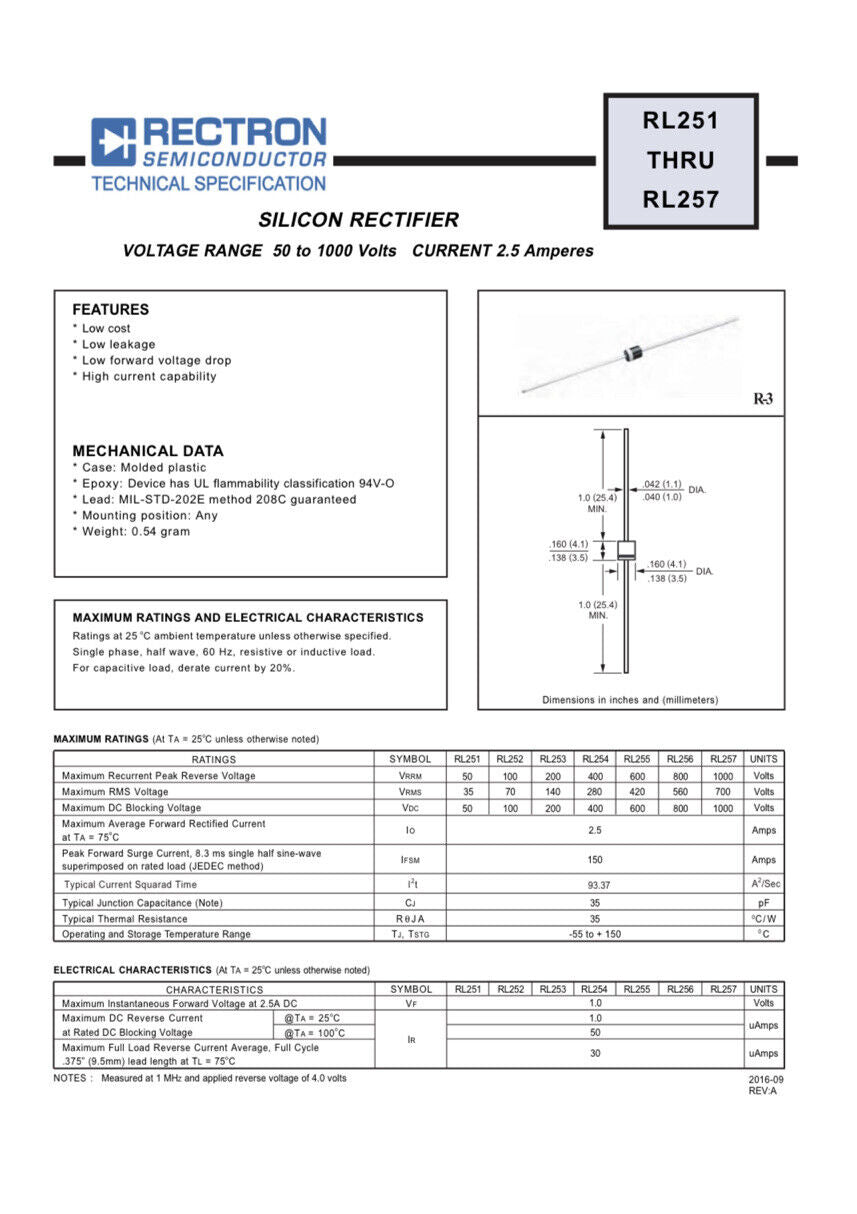

Charactiristics RL257 diode.

• Maximum Recurrent Peak Reverse Voltage - 1000 V
• Maximum Average Forward Output Current - 2.5A
• Maximum Forward Voltage Drop per element at 1.0A DC - 1.3 V
• Maximum reverse recovery time - 500 ns
• Typical Junction Capacitance 40 pF
• Package - DO-15
• Weight 0.38 grams
• Operating and Storage Temperature Range -65...+150 °C
