2PCS S09 DC-DC Automatic Buck Boost Converter 3V-15V To 1V-15V Adjustable 700mA

Nominal Voltage Rating (DC): 1V - 15V

Mounting Style: Stand Alone

Nominal Current Rating: 700 mA (0.7A)

Current Conversion: DC to DC

Nominal Power Rating: 5 W

Minimum Operating Temperature: -50 °C

Colour: Green

Brand: Unbranded

Output Voltage Rating (AC): 15 V

Type: Buck-Boost Regulator Board

Output Voltage Rating (DC): 1V-15V

Maximum Operating Temperature: 125°

Country/Region of Manufacture: China

DC-DC Automatic Buck Boost Converter board-3V-15V To 1V-15V Fixed Output Power

DC-DC buck-boost Converter module 3V~15V to 1V~15V 5V 6V 9V 12V 700ma/5W Step Down/UP Adjustable Power Voltage Regulator Board.

Sent with Australia Post regular Letter no tracking number included.

• Parameter:

1: DC-DC automatic buck-boost regulator board

2: Wide input voltage: DC3V-15V

3: Output voltage: DC 1V to 15V adjustable

4: Output: current 700ma (Max) or power 5W (Max), the limit is when one of the current and power reaches the maximum; the higher the input voltage, the stronger the load capacity.

5: Quiescent current: The typical value is about 1mA. The higher the output voltage, the greater the quiescent current.

6: Efficiency: up to 85%

7: EN enable control terminal, which needs to be connected to IN+ module to have output.

8: Weight: 3g

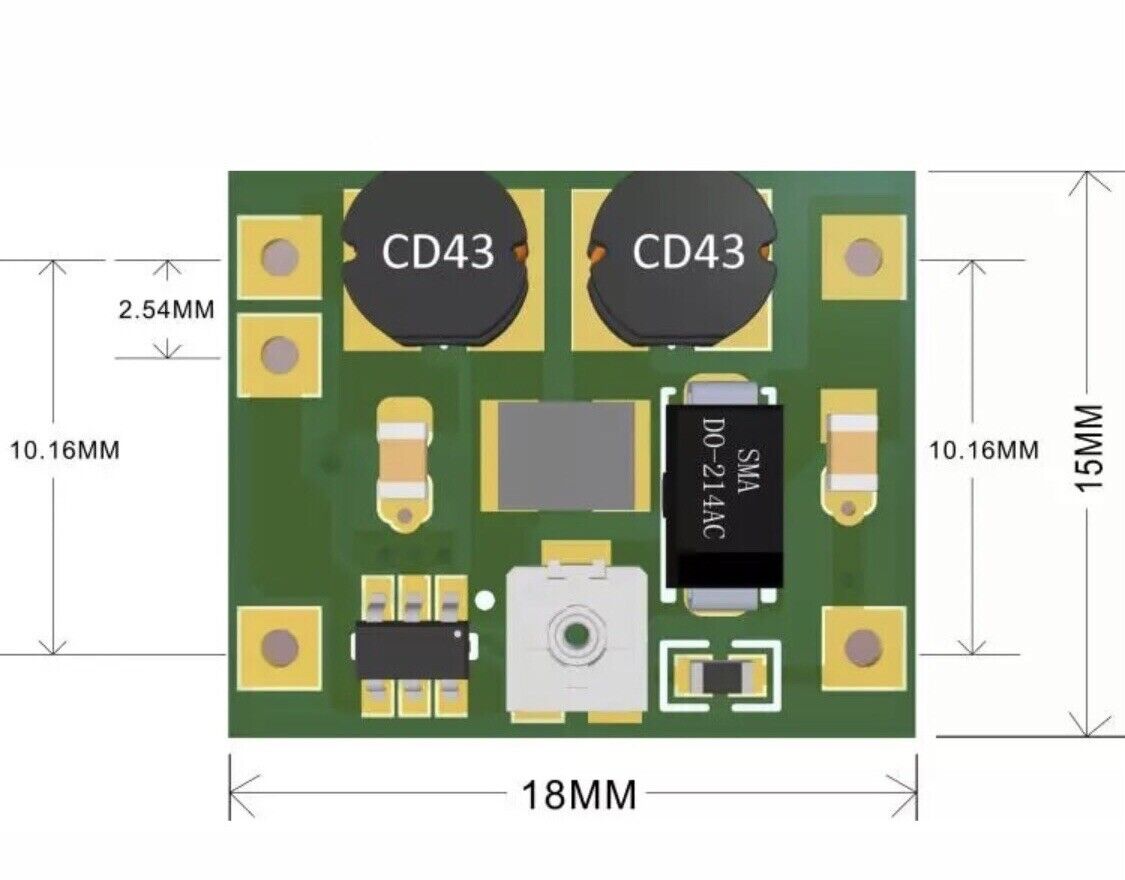

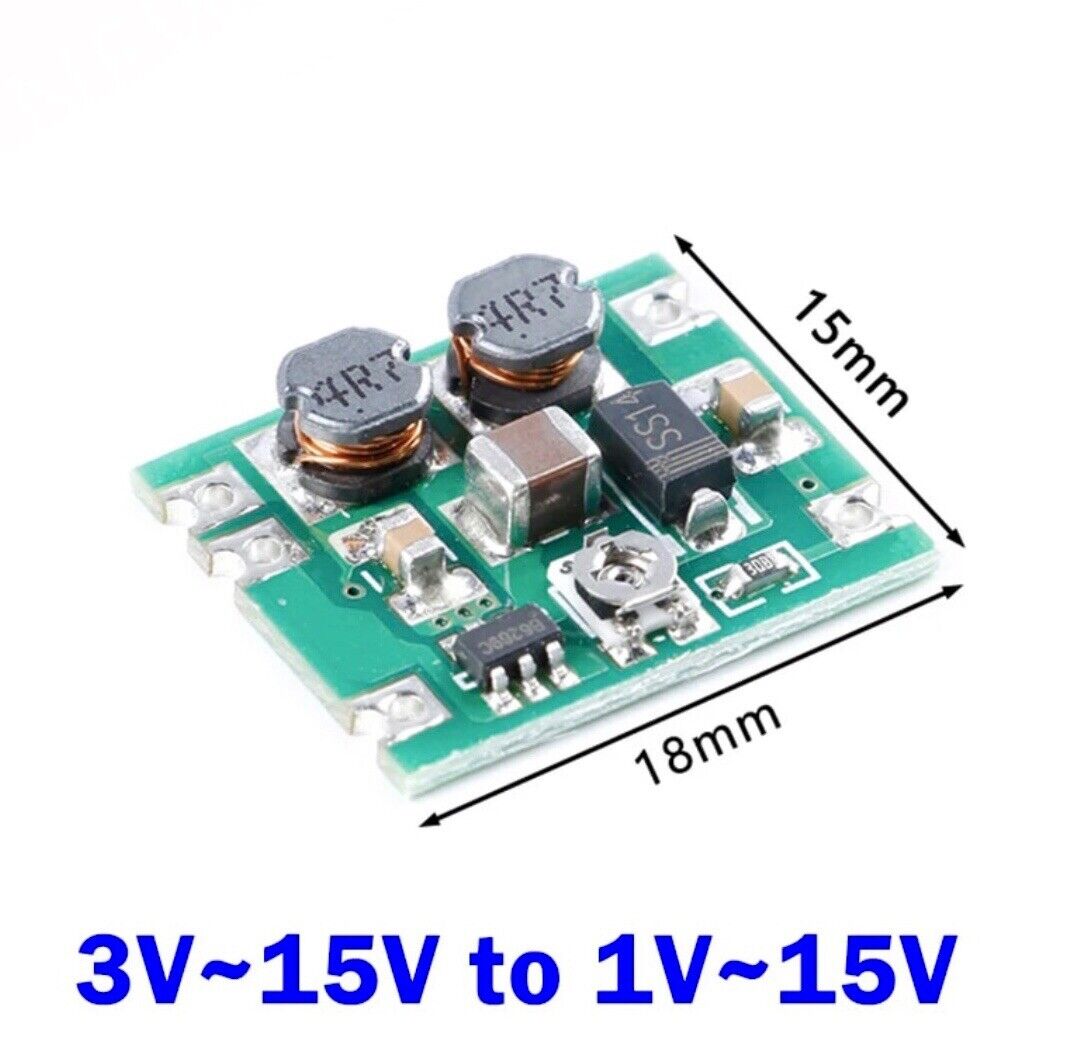

9: Size: 18*15*4mm

• Package Included:

2 xS09 Buck Boost Modules

Features:

The S09 a wide voltage and low power scheme. The DC-DC power module is automatically raised and lowered to support the shutdown function. The maximum input voltage is 15VDC, the quiescent current is less than 200uA, the fixed output is 3.3V and the maximum output current is 600mA. Design work frequency of up to 1.2MHZ, high stability, cost-effective, all industrial-grade components, long working voltage drift-free, suitable for demanding applications, mass production.

Application:

Widely used in communications equipment, digital radio, industrial motherboards, toys, model aircraft, microcontroller motherboards, household electrical appliances, automotive power supply, security monitoring, field collection, street lamps.

chip:original

input voltage:3v-15v

output voltage: 5v

output current:0.6A

conversion efficiency:75%

output ripple:<50mV

output accuracy:+-0.1V

working temperature:-20 - +85 celsius

relative humidity:20-90%

size:19*14*4mm

pcb thickness:1.2mm

pcb layers:2 layers

current control:with cut off

cooling method:cooling nature

installation method:SMD or 2.54mm pin

production process:reflow

isolated:no

design aging standards:720 hours without trouble

production factory aging standards:48 hours

service life:35000 hours without trouble

factory inspection standards 3 times:all(factory/aging/out of library test)

fixed switching frequency:1200khz

Max 1,5 Watts 0,17 A

To switch on need to connect EN to VCin+
