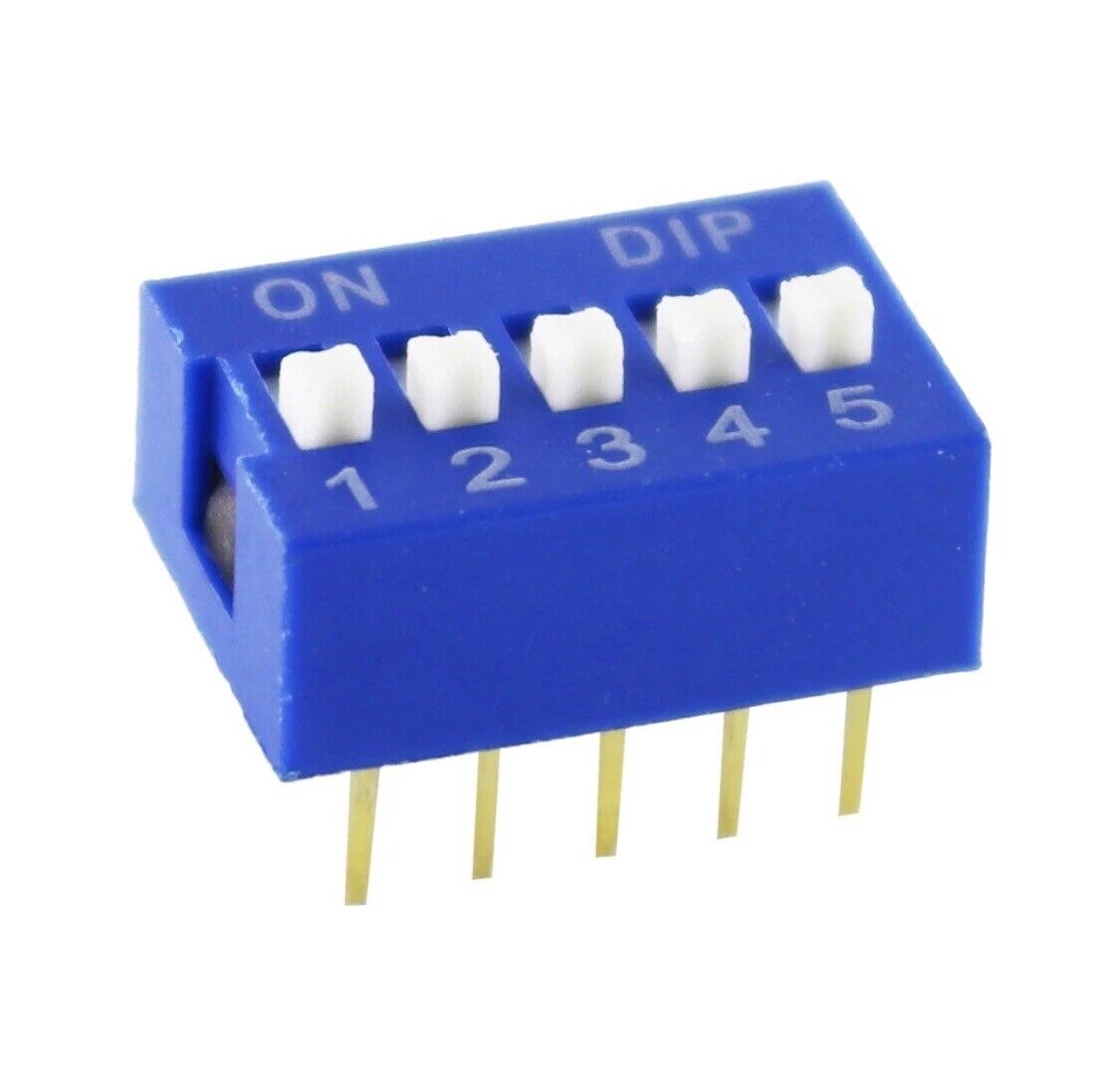

35PCS DIP Switch Kit 1 2 3 4 5 6 8 Channel Toggle Switch BLUE Snap Switches DIY

Mounting Style: Through-Hole

IC Socket Type: DIP

Termination Style: Solder

UPC: Does not apply

MPN: Non applicabile

Minimum Operating Temperature: -55 °C

Brand: Unbranded

Type: In-line

EAN: Does not apply

Body Material: Nylon

Number of Ports: 1-8 Channel

Number of Pins: 2-16

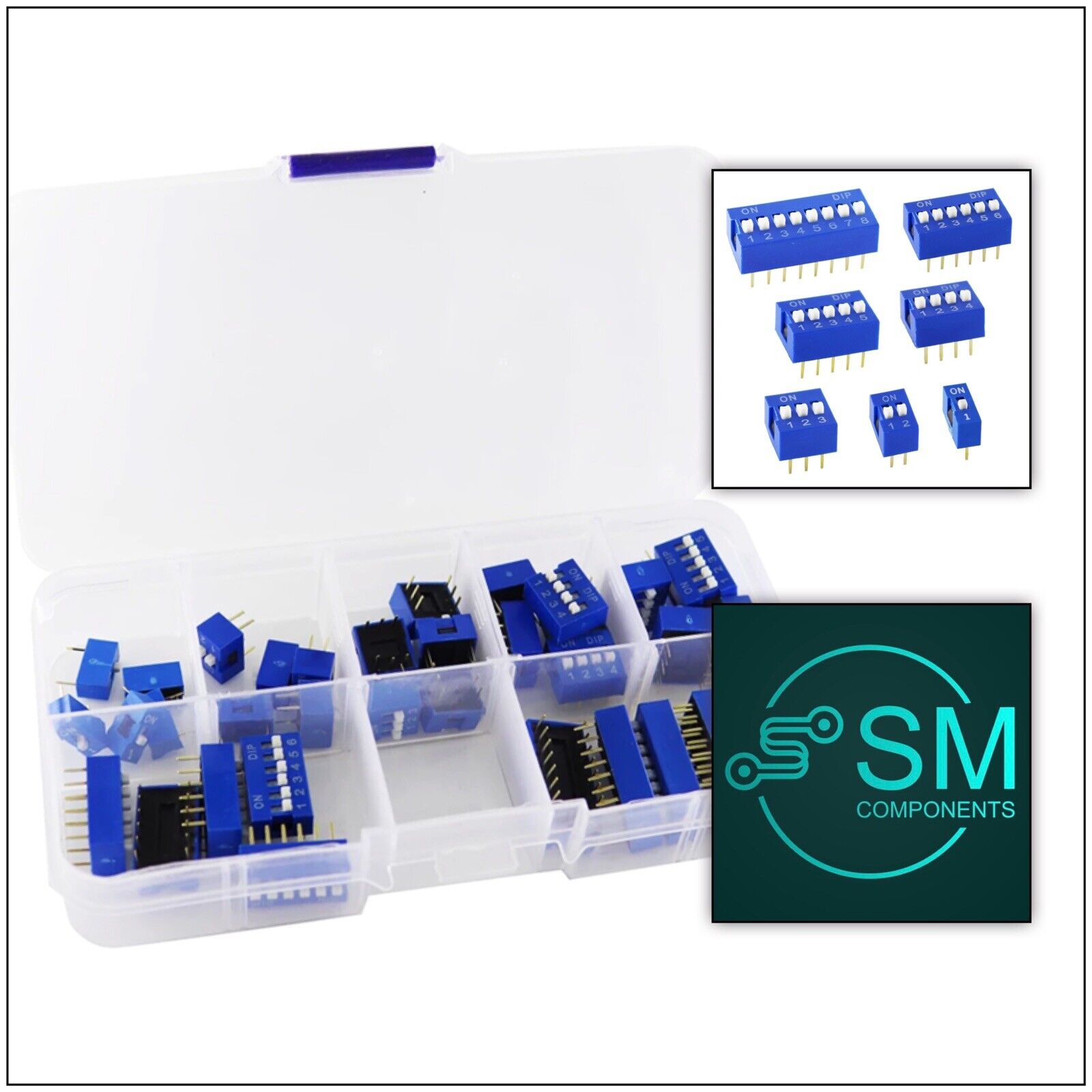

Packaging: Plastic Case

Contact Material: Brass

Nominal Pitch Spacing: 2.54mm (1/10”)

Maximum Operating Temperature: 125 °C

Country/Region of Manufacture: China

Descriptions: Features: DIP Type, 2.54mm Pitch, 2 Position, 1-8 Row, 2-16 Pin, DIP Switch. Sent with Australia Post Parcel Post tracking number included.

Used on a printed circuit board along with other electronic components and is commonly used to customize the behavior of an electronic device for specific situations.

Widely used in data processing, communication, remote control and anti-theft alarm system need to manually automatic programming products.

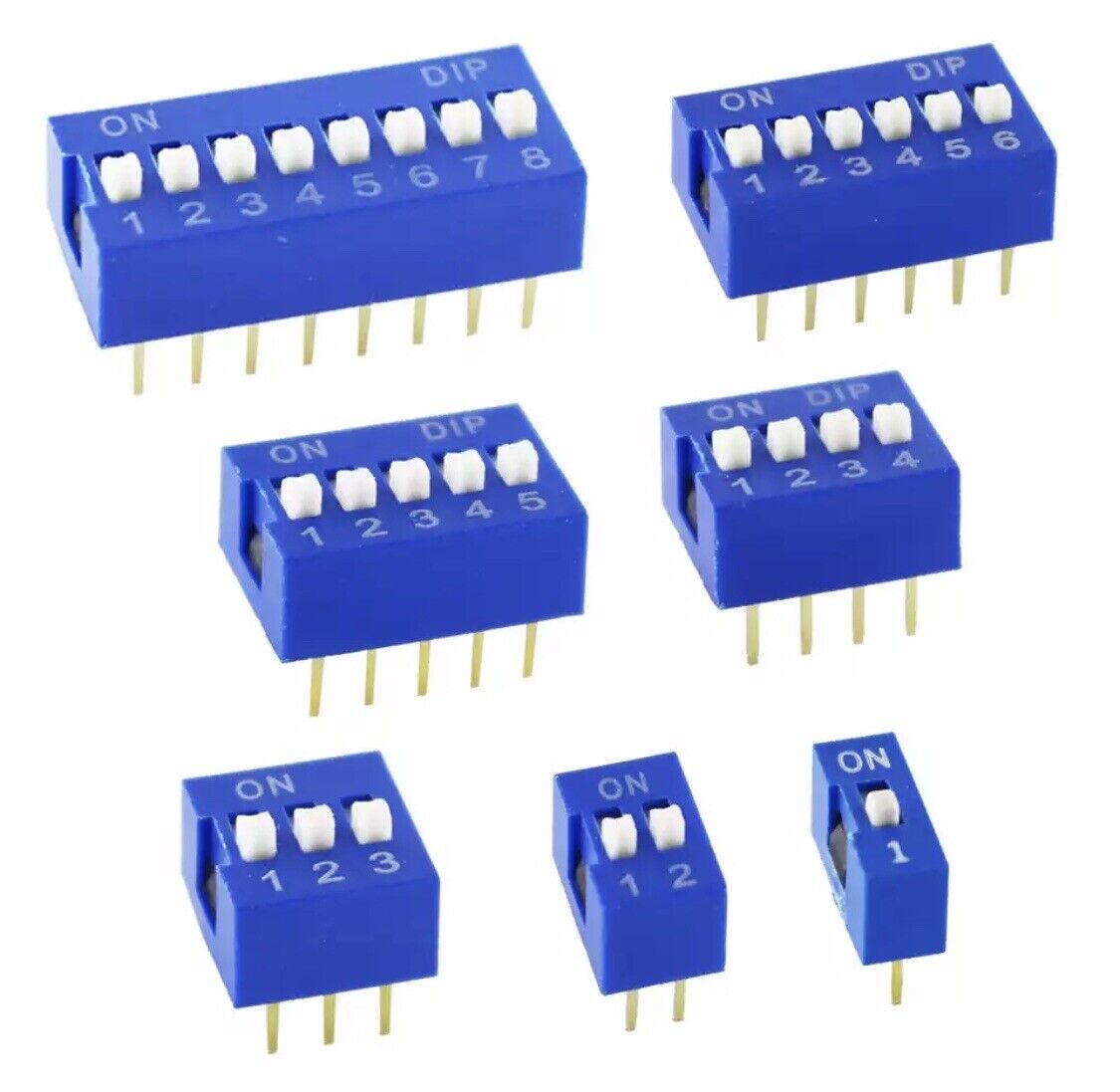

5 X 1 Row 2 Pin

5 X 2 Row 4 Pin

5 X 3 Row 6 Pin

5 X 4 Row 8 Pin

5 X 5 Row 10 Pin

5 X 6 Row 12 Pin

5 X 8 Row 16 Pin

2.54mm Pitch DIP Switch BLUE Product Name : DIP Switch;Type : DIP;

Features : Pitch : 2.54mm/0.1'';

Non-Switching Rating : 100mA DC 50V;

Switching Rating : 25mA DC 24V

Contact resistance : 50mi 24VDC/100mA (at initial);100mi typical, 24VDC/100mA (after life test) : 100mi typical, 24VDC/100mA (after life test);

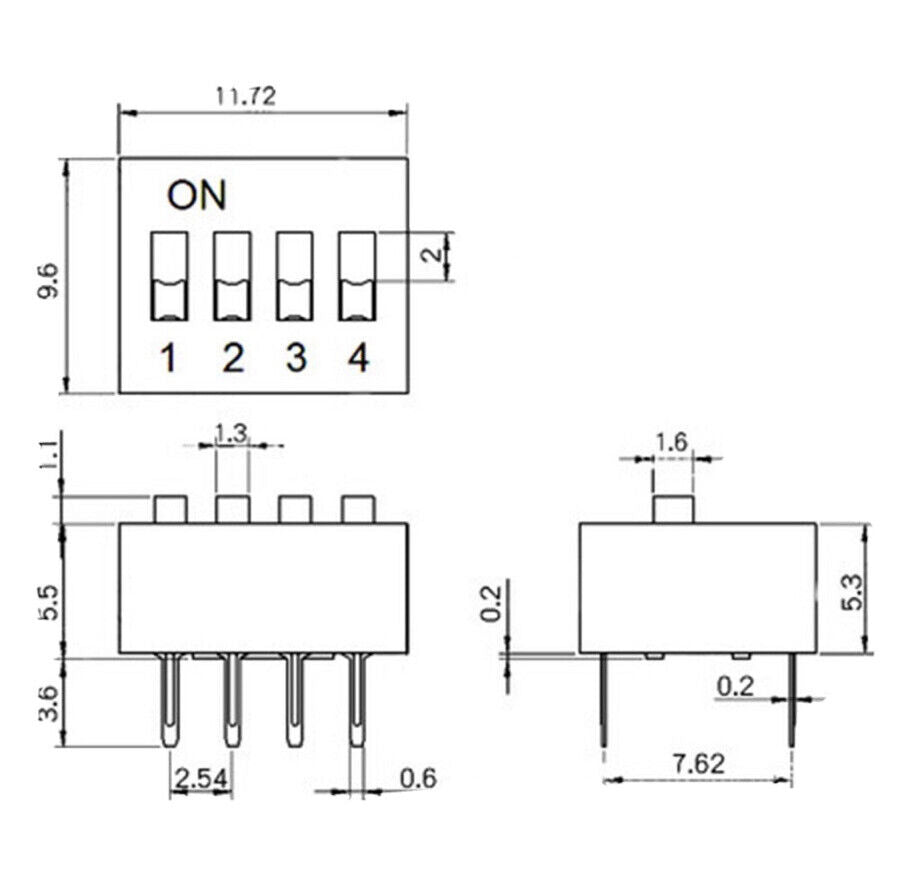

Total Size : 1.1 x 1 x 1.1cm / 0.4" x 0.4" x 0.4"(L * W * H)

Material : Plastic, Electric Parts;

Colour : RedGold Tone Net Weight : 9g;Package

Content : 35 x DIP Switch Product Name : DIP Switch;Type : DIP

Pitch : 2.54mm/0.1'';

Non-Switching Rating : 100mA DC 50V;

Switching Rating : 25mA DC 24V

Contact resistance : 50mi 24VDC/100mA (at initial);100mi typical, 24VDC/100mA (after life test) : 100mi typical, 24VDC/100mA (after life test);

Total Size : 1.1 x 1 x 1.1cm / 0.4" x 0.4" x 0.4"(L * W * H)

Material : Plastic, Electric Parts;Color : Blue, Tone Net Weight : 9g;Package

Content : 35 Pieces, 1-8 channel
