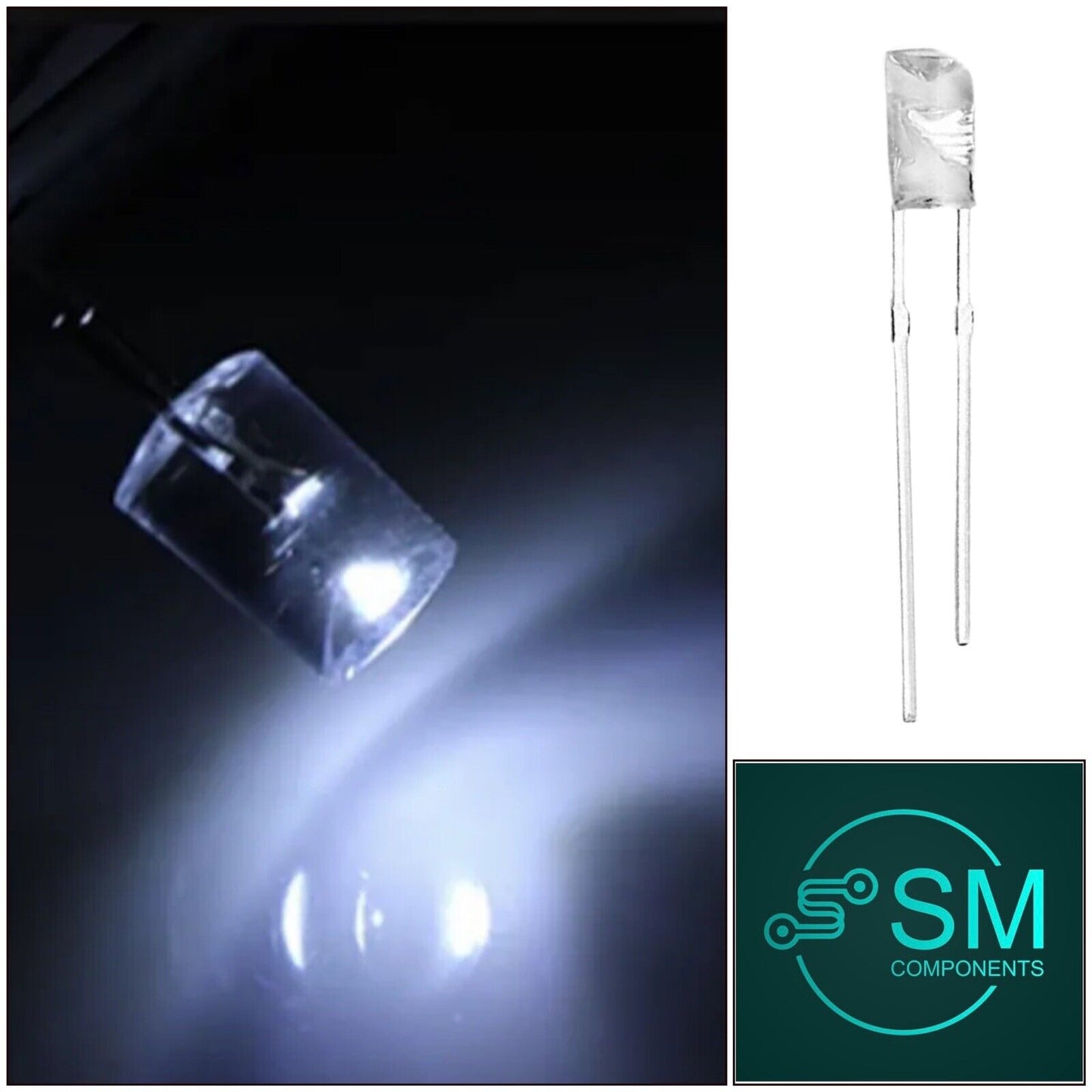

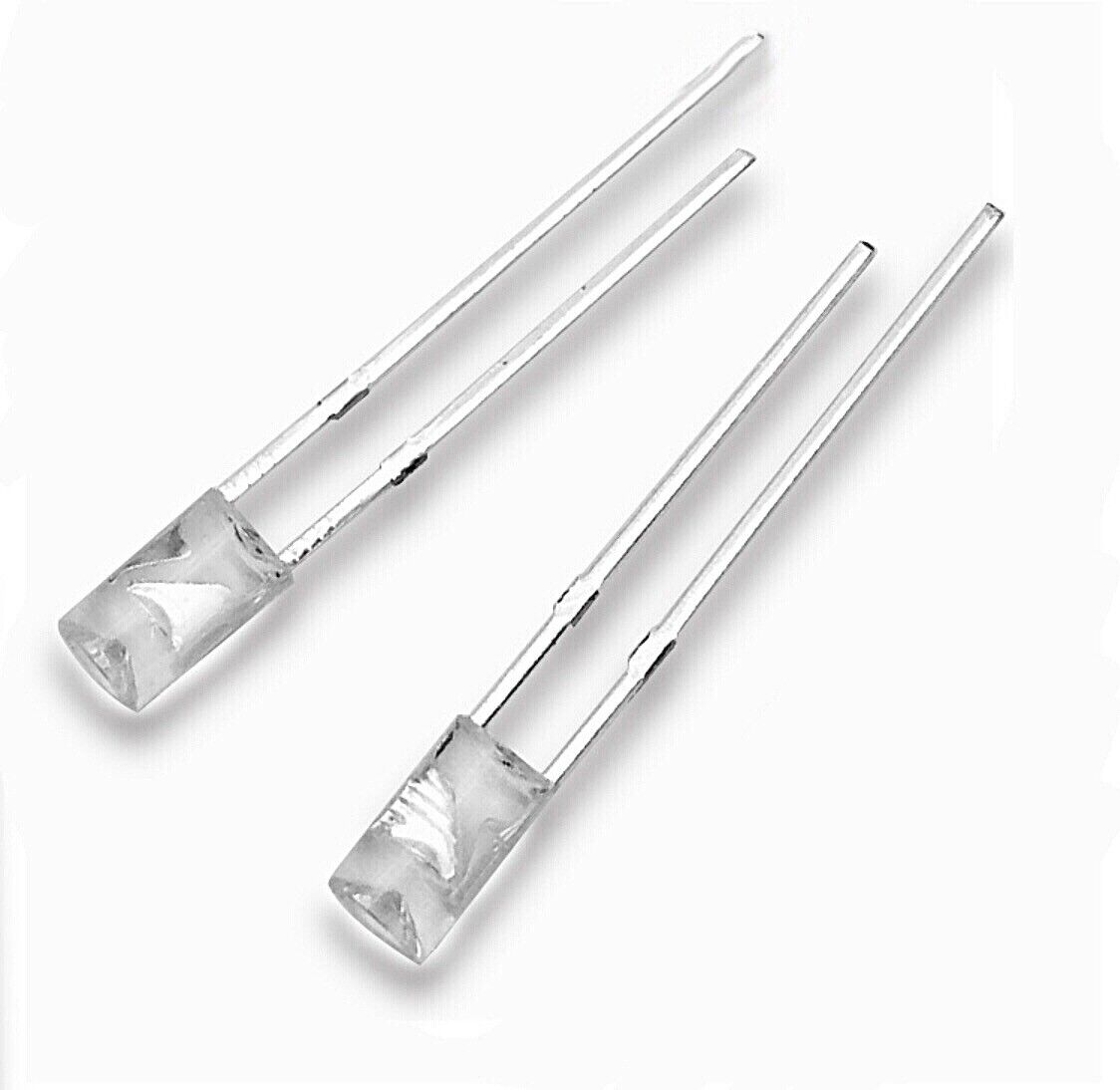

3mm Concave COOL WHITE Led Light Emitting Diode 100pcs Clear Top Concave 6500K

Mounting Style: Through-Hole

Nominal Current Rating: 20 mA

Configuration: Single

Viewing Angle: 180°

Lens Shape: Flat Concave

Item Diameter: 3 mm

Custom Bundle: No

Lens Surface: Clear

Nominal Voltage: 3 V

MPN: Does Not Apply

Standard: RoHS Compliant

LED Size: 3 mm

Modified Item: No

Wavelength: 6500K

Brand: GoodLay

Type: Flat Top Concave

Unit Type: Unit

Number of Pins: 2

Packaging: Bag

LED Colour: Cool White

Number of LEDs: 100

Country/Region of Manufacture: China

Unit Quantity: 100

Forward Voltage: 3 V

100pcs 3mm COOL WHITE Concave Led Diodes. VF. 3.0-3.1 volts. Condition is Brand New. Sent with Australia Post Domestic Regular Letter. Colour is approximately 6500K

The Colour is Generated from a Phosphorus Compound.

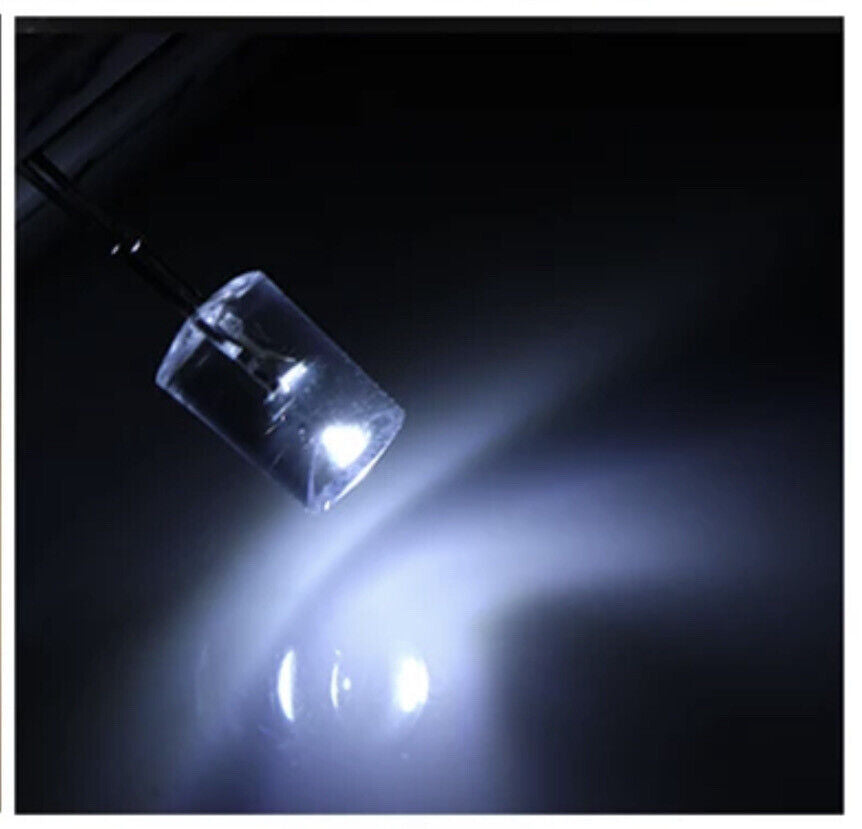

The concave style of LED in generally used it string Christmas lights but can be used in any led projects. The concave top gives it a pretty good 180 degrees viewing angle, where the round top is very much a directional LED.

*Low light failure-Decay rate<2% used 3000h

*Low heat and high bright

*Quick light up less than 100Ns

*Best static Protection Prevent disconnection

*Long life-Used Under normal circumstances

the life time meet 50000h

Material:AlGaInP

Absolute Maximum Rating at Ta =25°C

Power Dissipation: 100 mW

Peak Forward Current:100mA

(1/10 Duty.Cycle.0.1ms Pulse width)

Continuous Forward Current:35mA

Derating Linear From 50°C :0.4mA/°C

Reverse Voltage:5V

Operating Temperature Range:-40°C to +80°C

Storage Temperature Range :-40°C to +80°C

Lead Soldering Temperature:260°C for 5 Seconds

Current voltage: 1.9-3.8V

Current electricity: 20mA

Angles: 25-120degrees

If you are unsure on powering or driving any LEDS, please message me and I can help you with voltages, resistors or any other need.
