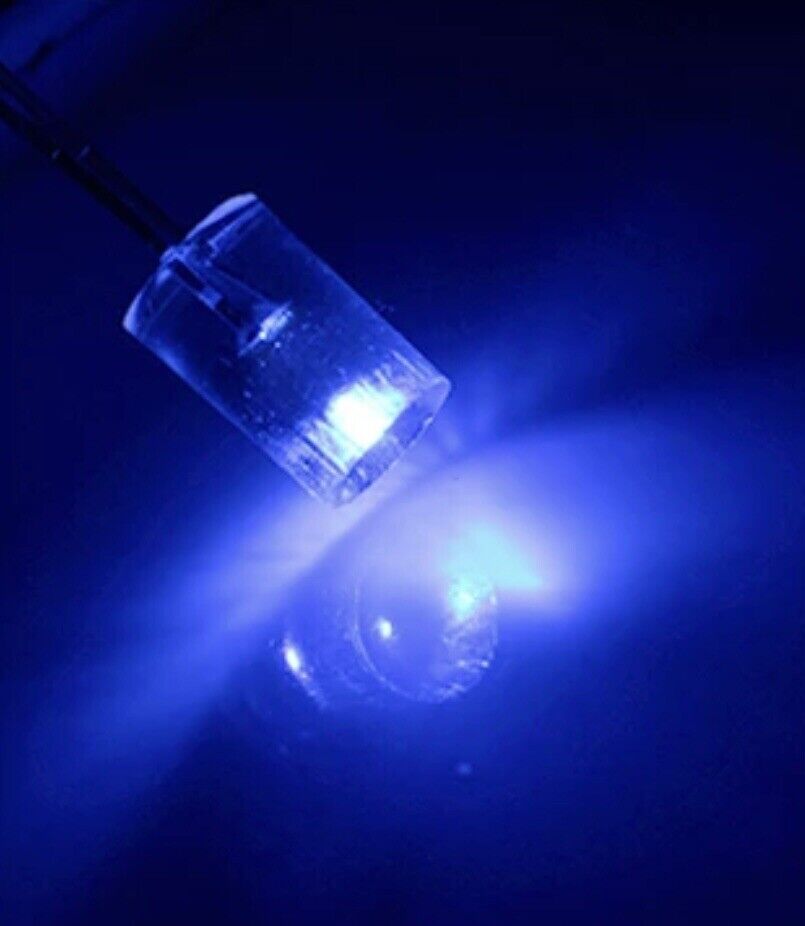

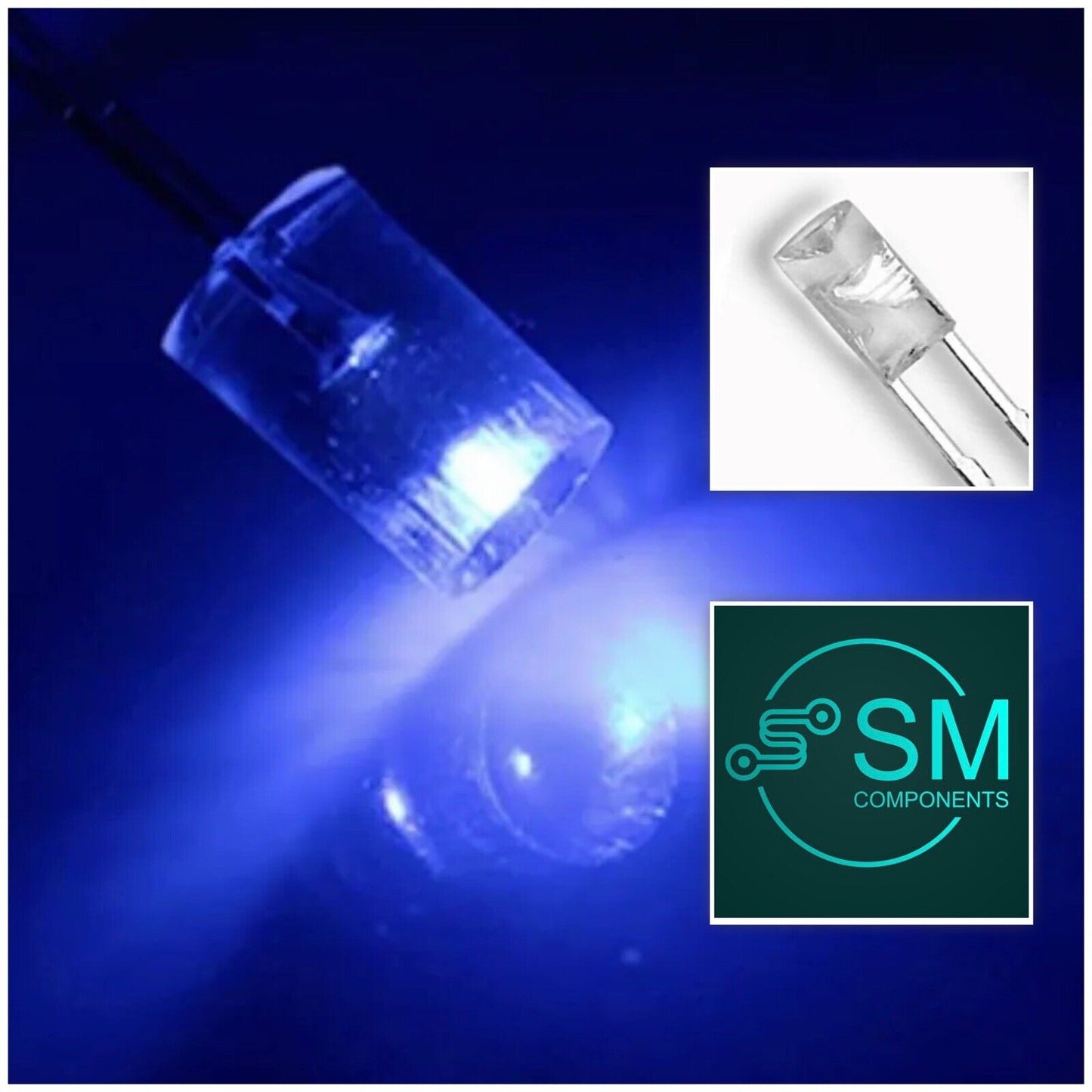

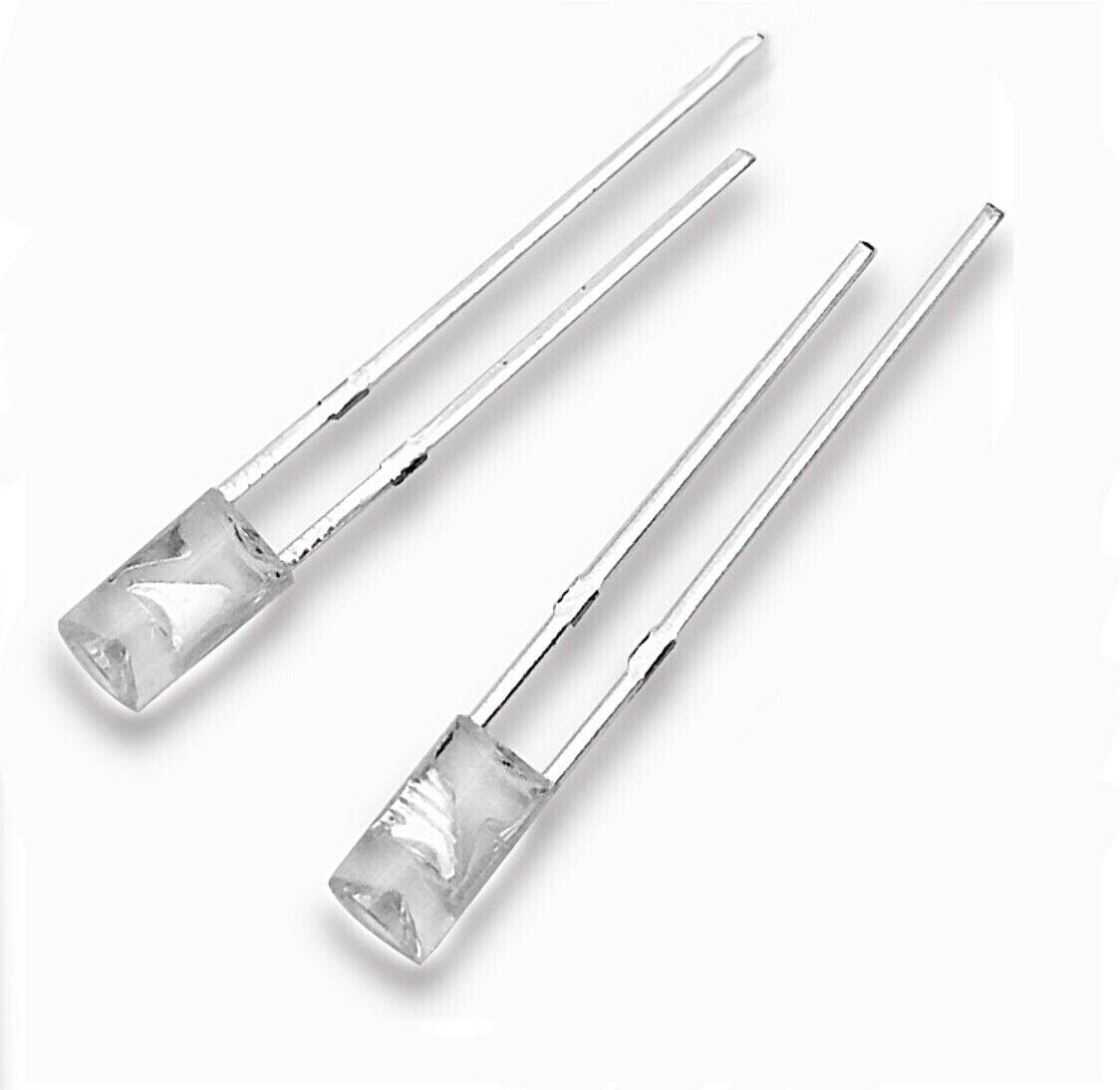

3mm LED Concave BLUE Light Emitting Diode 100pcs Clear Flat Top Concave 460nm

Configuration: Single

Viewing Angle: 180°

Custom Bundle: No

MPN: Does Not Apply

Standard: RoHS Compliant

Unit Type: Unit

Number of Pins: 2

Number of LEDs: 100

Unit Quantity: 100

Mounting Style: Through-Hole

Nominal Current Rating: 20 mA

Lens Shape: Flat Concave

Item Diameter: 3 mm

Lens Surface: Clear

Nominal Voltage: 3 V

Forward Current: 20 mA

LED Size: 3 mm

Modified Item: No

Wavelength: 460nm

Brand: GoodLay

Type: Flat Top Concave

Packaging: Bag

LED Colour: Blue

Country/Region of Manufacture: China

Forward Voltage: 3 V

100pcs 3mm BLUE Concave Led Diodes. VF. 2.9-3.0 volts. Condition is Brand New. Sent with Australia Post Domestic Regular Letter. Colour is approximately 460nm

The concave style of LED in generally used it string Christmas lights but can be used in any led projects. The concave top gives it a pretty good 180 degrees viewing angle, where the round top is very much a directional LED.

*Low light failure-Decay rate<2% used 3000h

*Low heat and high bright

*Quick light up less than 100Ns

*Best static Protection Prevent disconnection

*Long life-Used Under normal circumstances

the life time meet 50000h

Material:AlGaInP

Absolute Maximum Rating at Ta =25°C

Power Dissipation: 100 mW

Peak Forward Current:100mA

(1/10 Duty.Cycle.0.1ms Pulse width)

Continuous Forward Current:35mA

Derating Linear From 50°C :0.4mA/°C

Reverse Voltage:5V

Operating Temperature Range:-40°C to +80°C

Storage Temperature Range :-40°C to +80°C

Lead Soldering Temperature:260°C for 5 Seconds

Current voltage: 1.9-3.8V

Current electricity: 20mA

Angles: 25-120degrees

If you are unsure on powering or driving any LEDS, please message us and we can help you with voltages, resistors or any other need.
