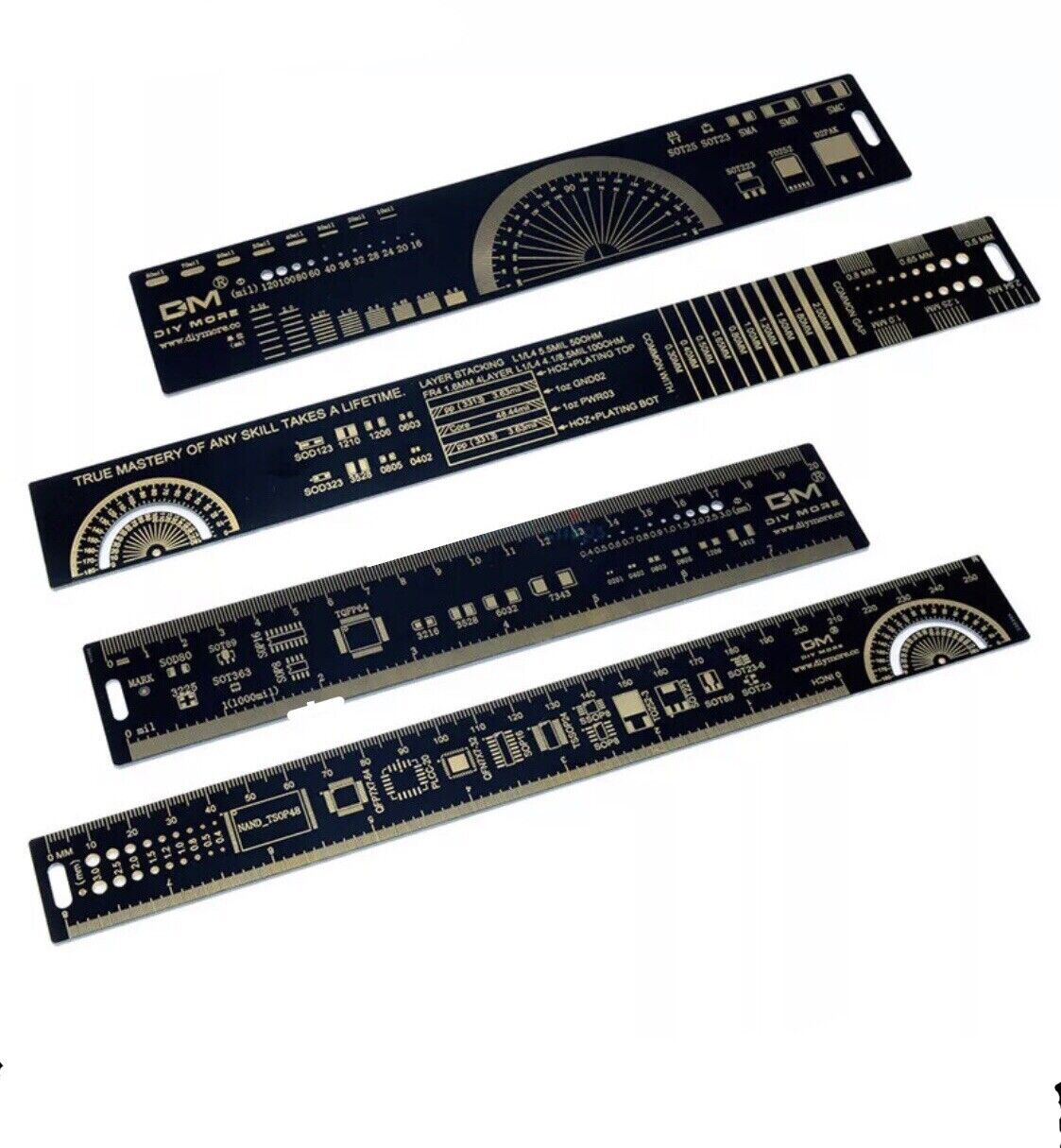

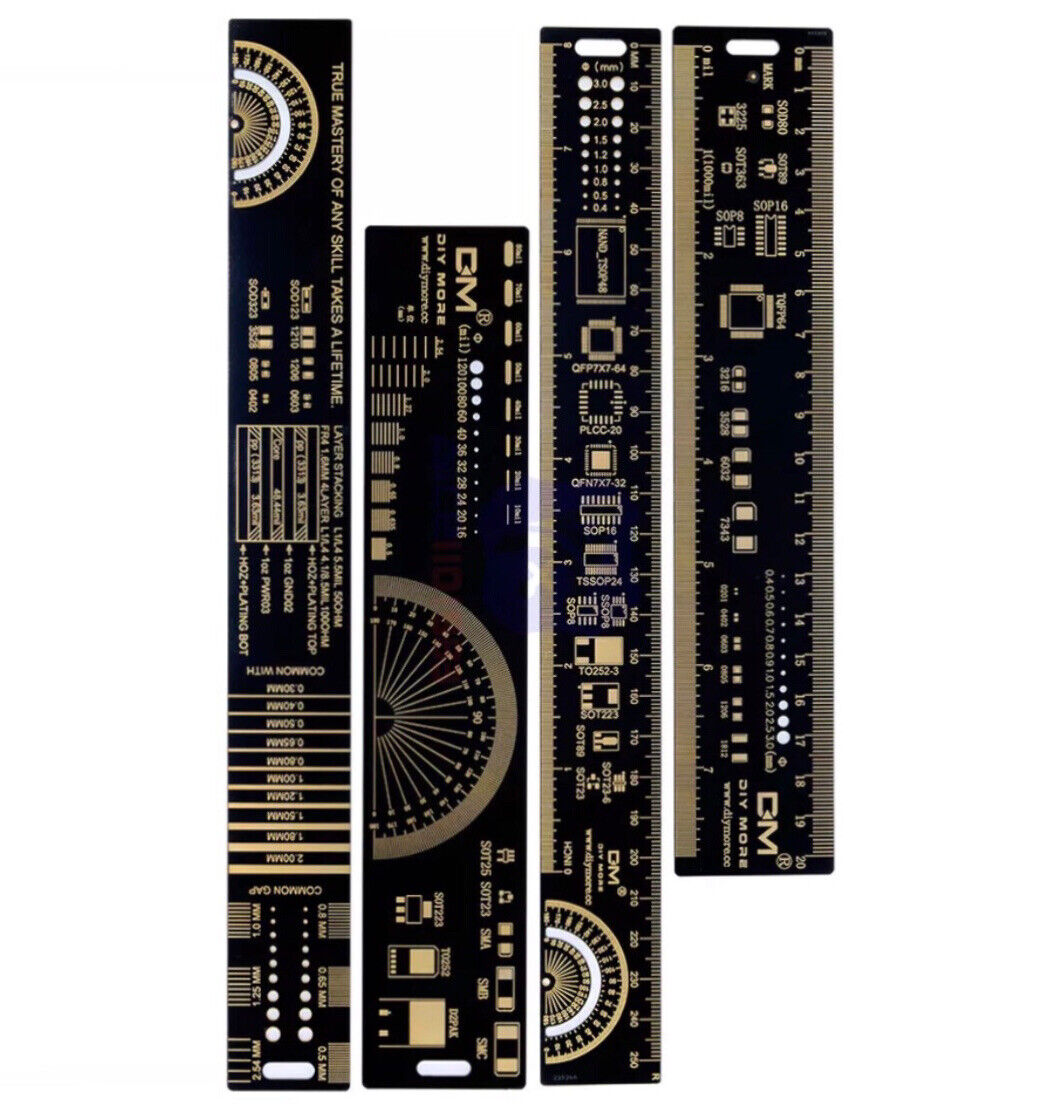

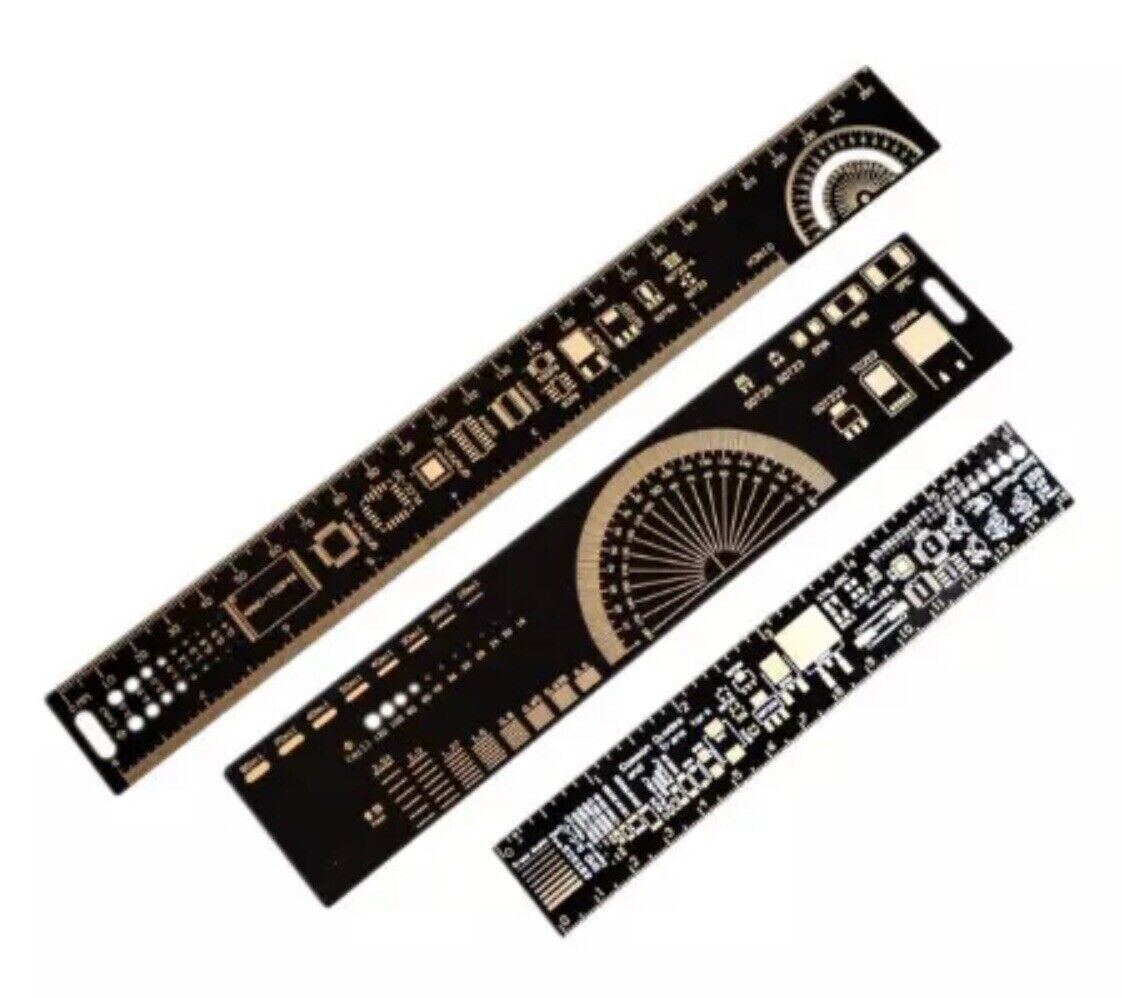

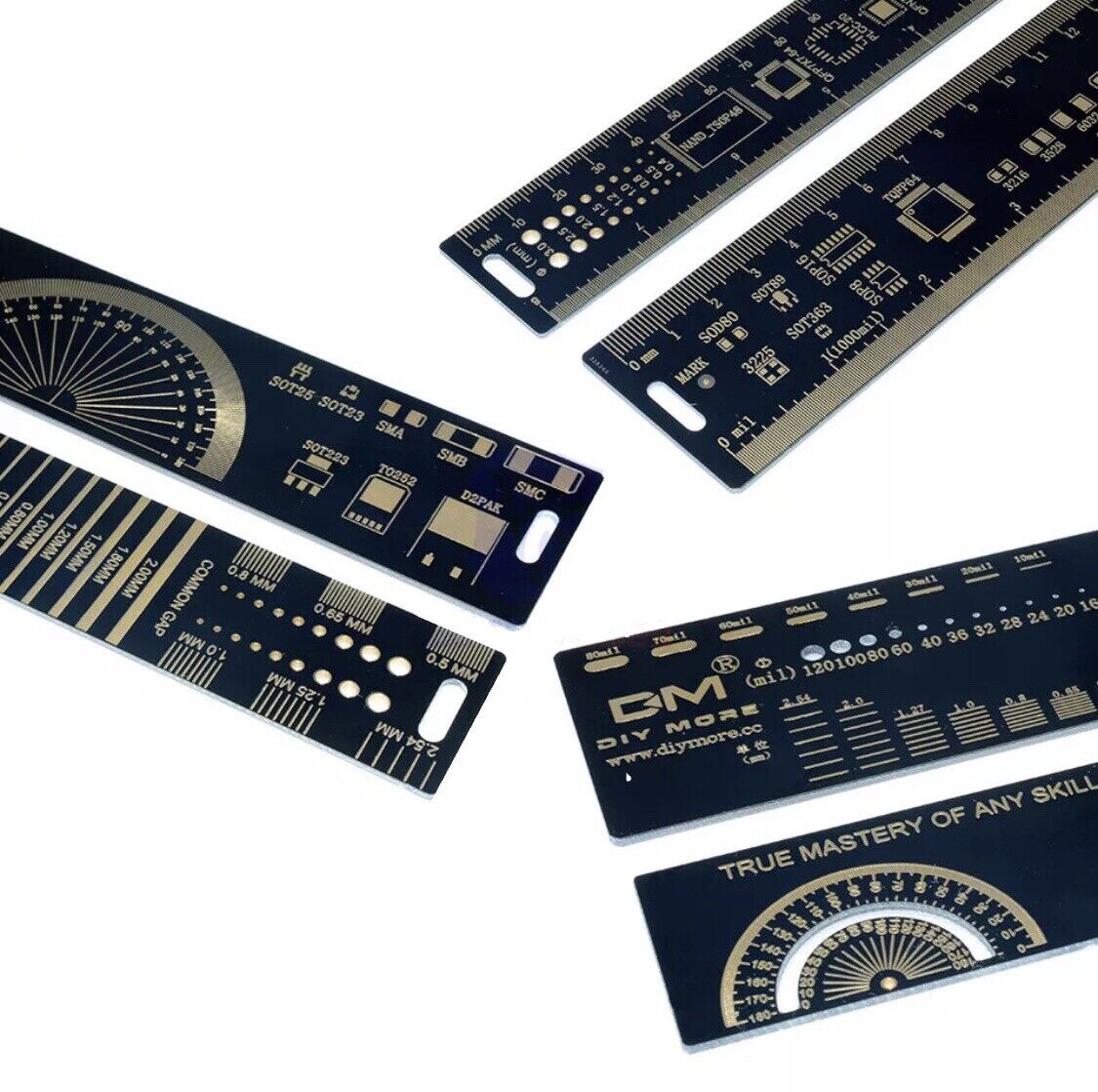

3pcs 15-20-25CM PCB Ruler For Electronics Engineers DIY Measuring Tool PCB Ruler

3pcs 15-20-25CM PCB Ruler For Electronics Engineers DIY Measuring Tool PCB Ruler

Regular price $19.70 AUD
Regular price Sale price $19.70 AUD
Sale Sold out
Shipping calculated at checkout.

Brand: DIYMORE

Type: PCB Rulers

Bundle Description: 3 Pc PCB Rulers

Custom Bundle: Yes

Model: 15,20,25 CM

MPN: Does Not Apply

3pcs 15-20-25CM PCB Ruler For Electronics Engineers DIY Measuring Tool PCB Ruler.

Material: FR4

PCB thickness: 1.6mm

15CM PCB Ruler

Features:

Material: PCB

Font size guide, trace-width diagram, and a set of AWG-sized drills

Centimeter side: 0.1cm marks

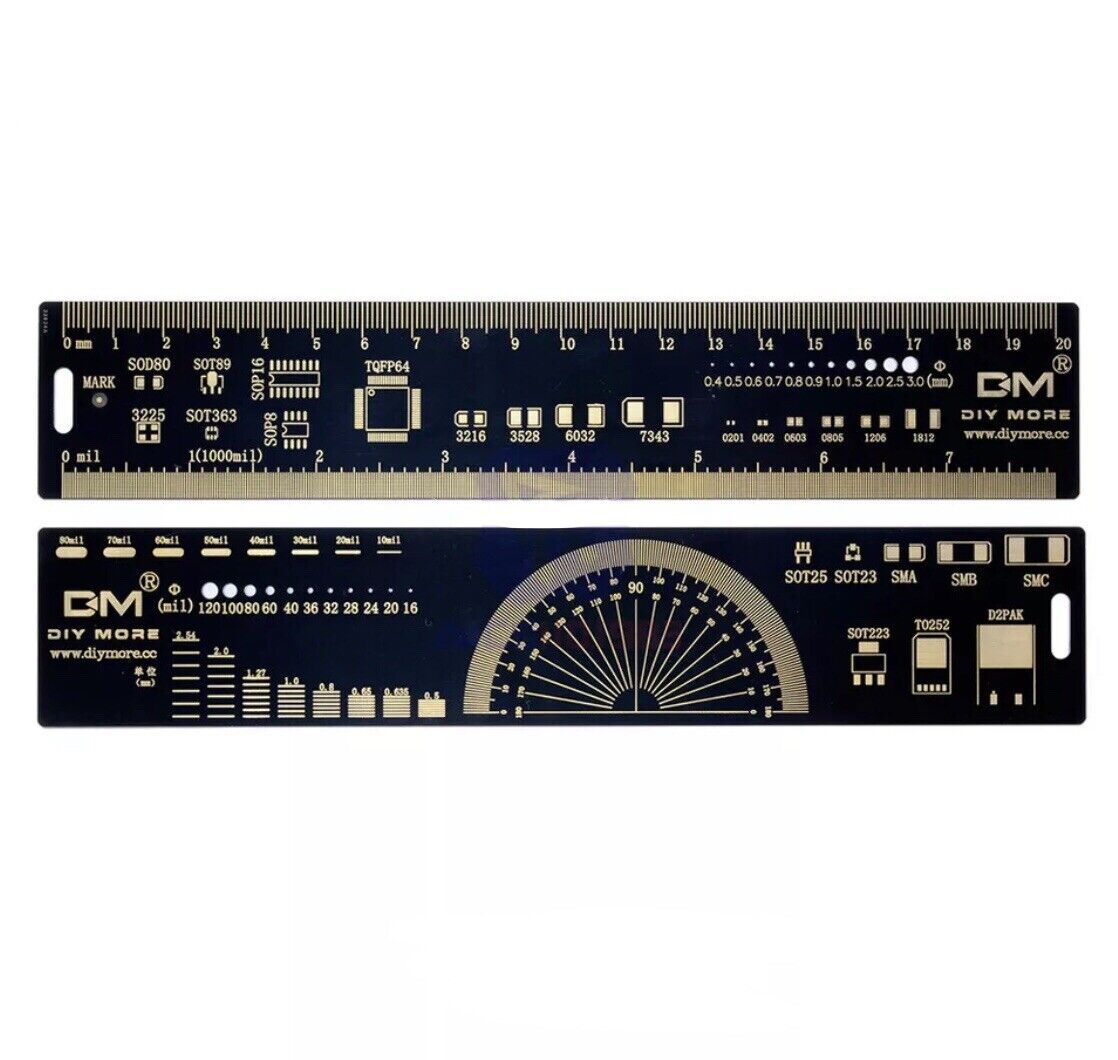

20CM PCB RULER

Product Description:

This versatile PCB ruler,

It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

In addition to measuring the basic functions of millimeter and inch sizes,

It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables,

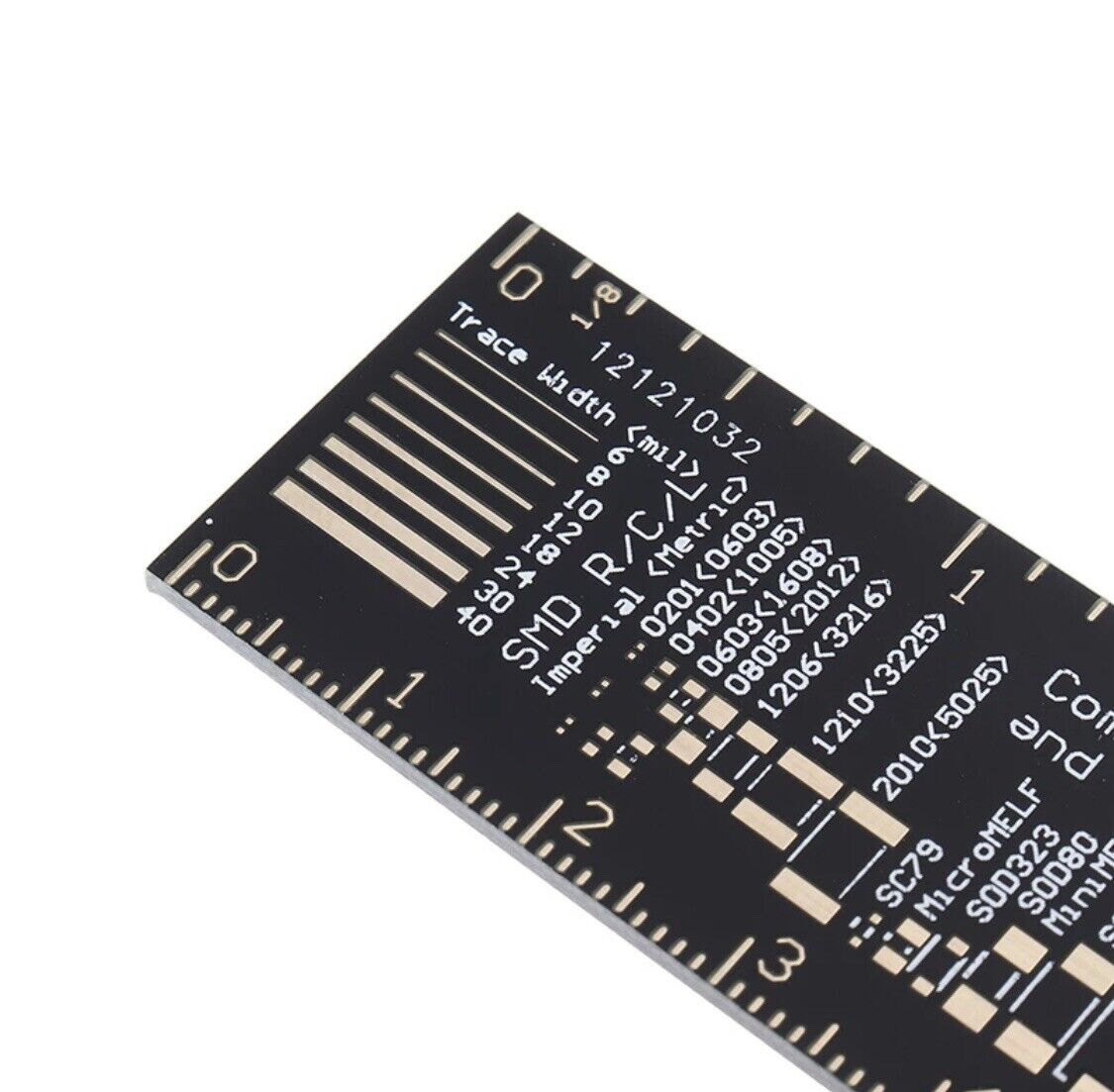

Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference

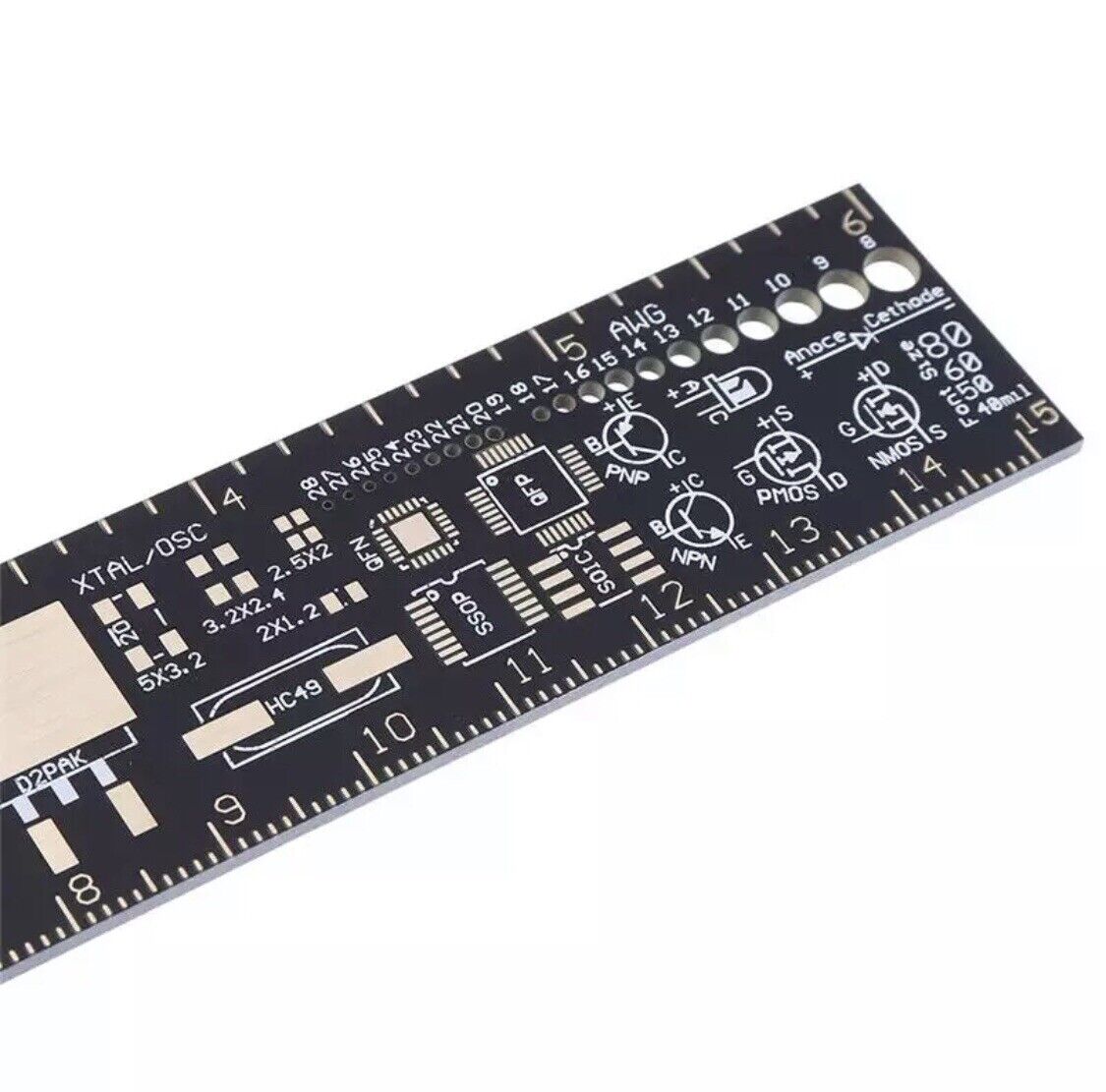

We printed this information on FR-4 gold-plated PCBs.

R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

The measurement length: 20 cm

Measuring length : 7.8 inches

Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.

Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.

Common bore diameter reference dimensions (unit: mm)

Slot for hanging straightedge

Back Specifications:

Commonly used line width reference (unit: mil)

Angle measurement: 180 degrees

Device, IC pin spacing table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm;

Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC.

25CM PCB RULER

Description:

This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.

Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.

In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference

We printed this information on FR-4 gold-plated PCBs.

R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance

Positive Specifications:

The measurement length: 25cm

Measuring length: 10 inches

Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8

Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92

Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4

Slot for hanging straightedge

Back Specifications:

Commonly used line width reference (unit: mm)

Angle measurement: 180 degrees

Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;

Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4

Package Included:

1 x /15CM PCB RULER / 20 CM PCB RULER / 25 CM PCB RULER
