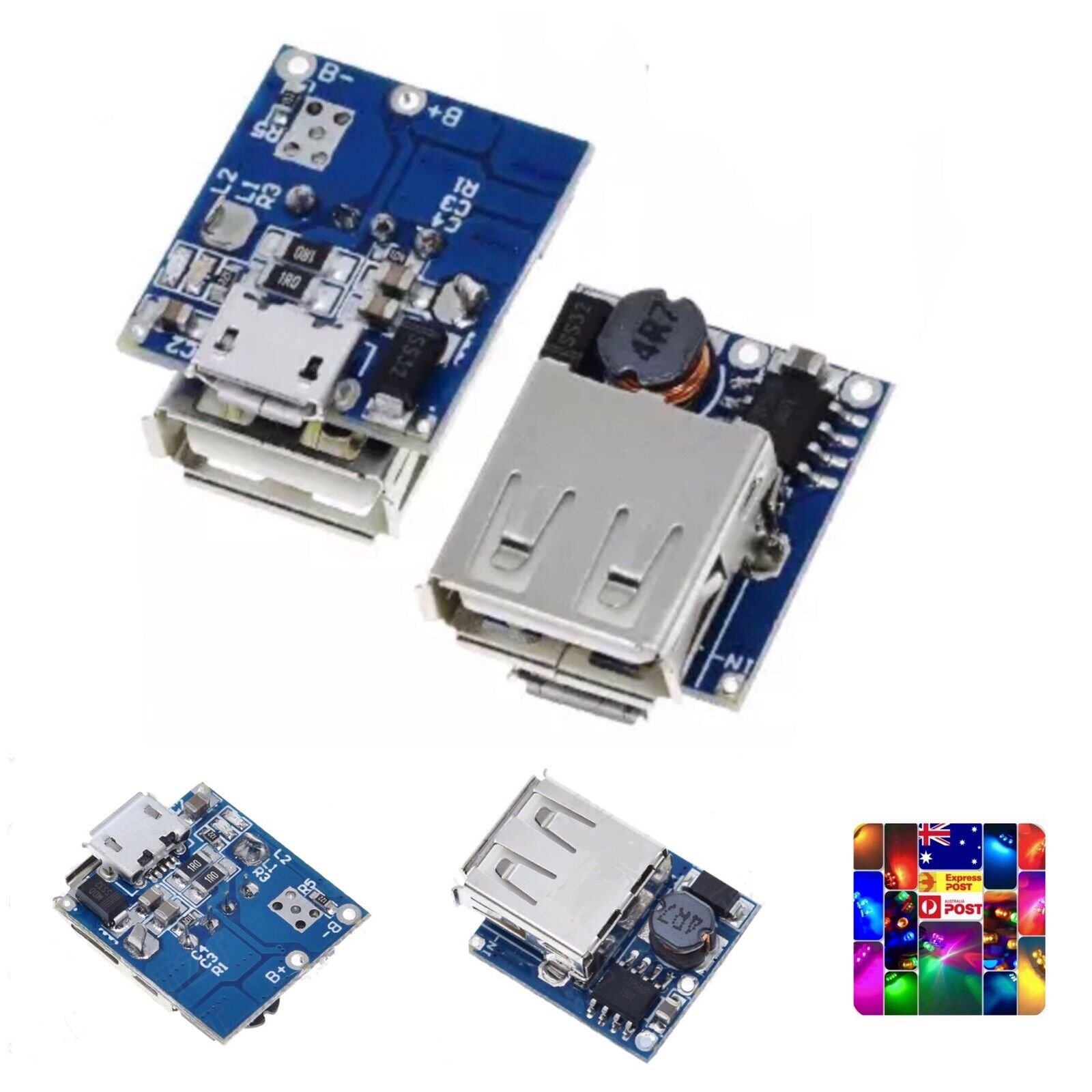

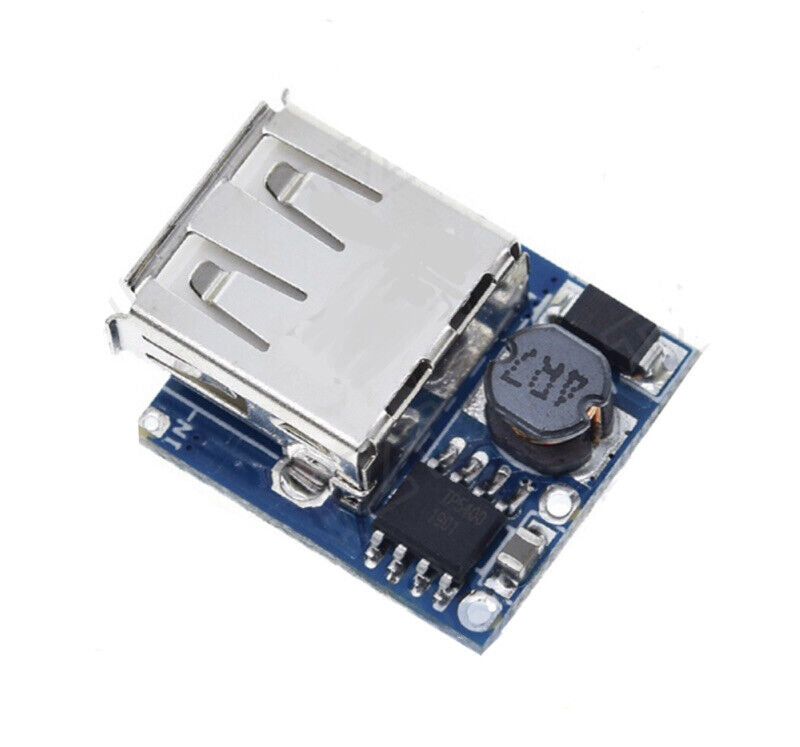

3PCS Micro USB 5V 1.2A Boost Converter Step-Up Lithium Battery Charging Module

Inrush Current Rating: 1.2 A

Mounting Style: Stand Alone

Nominal Voltage Rating (DC): 2 V

Brand: Unbranded

Output Voltage Rating (AC): 5 V

Type: DC Boost Battery Protection

Nominal Current Rating: 1.2 A

Plug Type: Micro USB

Output Voltage Rating (DC): 5 V

MPN: Does Not Apply

Country/Region of Manufacture: China

Protection Properties: Low Voltage Protection,Overload Protection

Colour: Black

3PCS Micro USB 5V 1.2A Boost Converter Step-Up Lithium Battery Charging Module.

Listing shipped with Australia Post Regular Letter no tracking number included.

3 Pieces 5V 1.2A Micro USB Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board LED Display USB DIY Charger

Specification:

Input voltage range: 5 ~ 5.5V

Charging cut-off voltage: (4.2v/4.35v) ± 0.5%

Charging current: 2.4a ± 5%

Boost output voltage: 5V ~ 5.15v (line loss compensation)

Boost output voltage ripple: 100mV

Boost output current: 1.2A

Boost conversion efficiency: 92.5% (3.6V input, 5v1.2a output)

Static current at battery end: < 30uA

Function introduction

When the load current is less than 50mA continuously, the output will be turned off.

It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.

When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.

When the battery voltage drops below 4.1V, the charging cycle starts again.

When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

The usb-a base welding position is provided on the back of the product, which can be installed manually.

It supports discharging while charging

5V 1.2A Micro USB Boost Converter Step-Up Power Module with Battery Protection.
