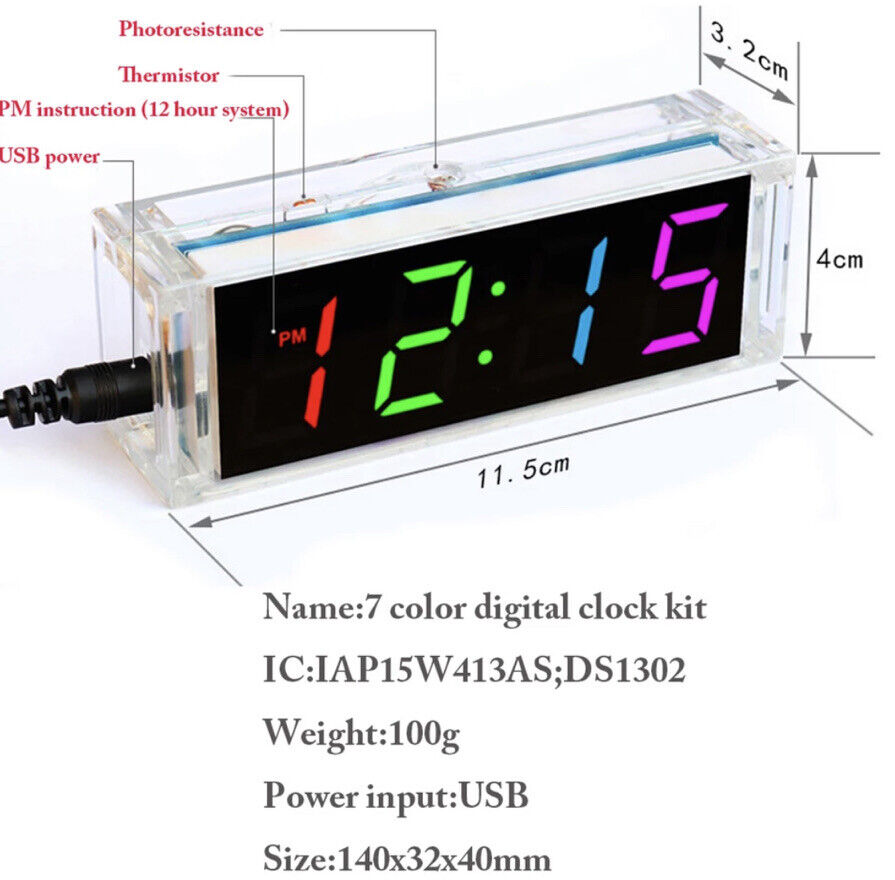

4-digit DIY Electronic Digital LED Clock Kit Alarm RGB Auto Display Time Temp

Shape: Rectangular

Power Source: Electrical

Year Manufactured: 2022

Material: Plastic

MPN: Does Not Apply

Installation Difficulty: Medium Knowledge Required

Power Supply: 5V 5.5x2.1mm Jack

Colour: Multicoloured

Brand: Unbranded

Type: DIY 4 Digit Digital Clock

Display Type: Digital

Frame Material: Acrylic

Features: Alarm,Day/Date Display,LED Display,Temperature Display

PCB Size: 95mm X 35mm

Package Weight: 115gms

Display: 4-digit LED

Package Size: 115 X 40 X 32

1 PC 4-digit DIY Electronic Multicoloured Digital LED Clock Kit Alarm Auto Display Time Temperature. Condition is "Brand New". Sent with Standard Parcel Delivery includes tracking number.

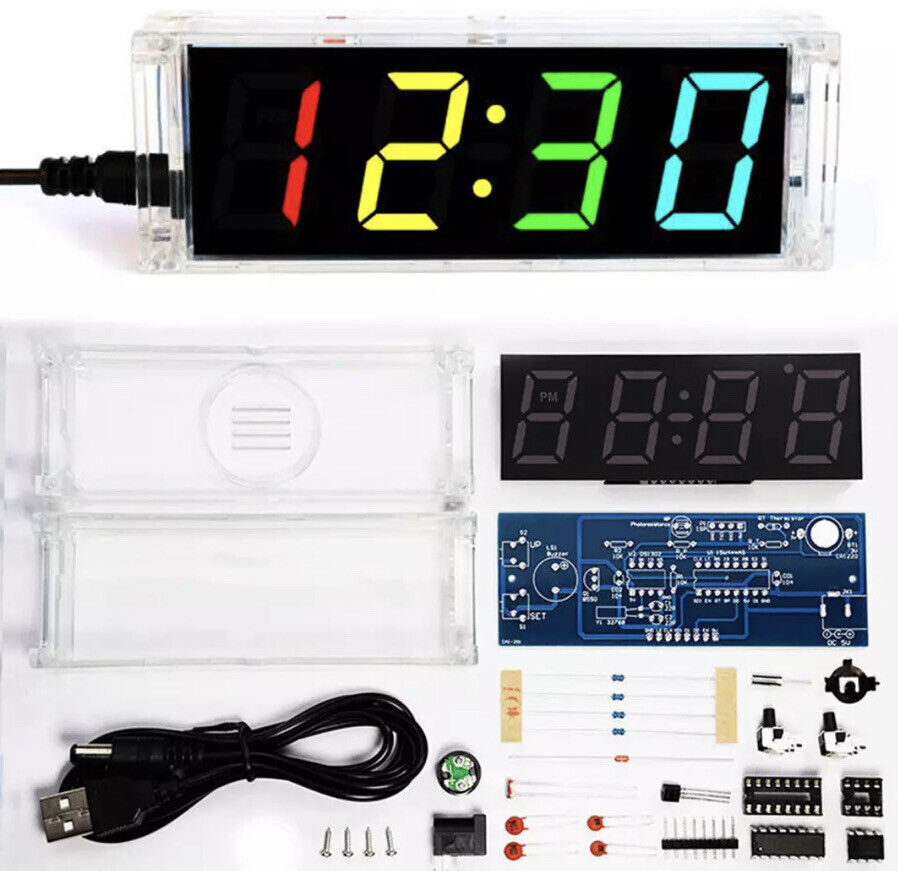

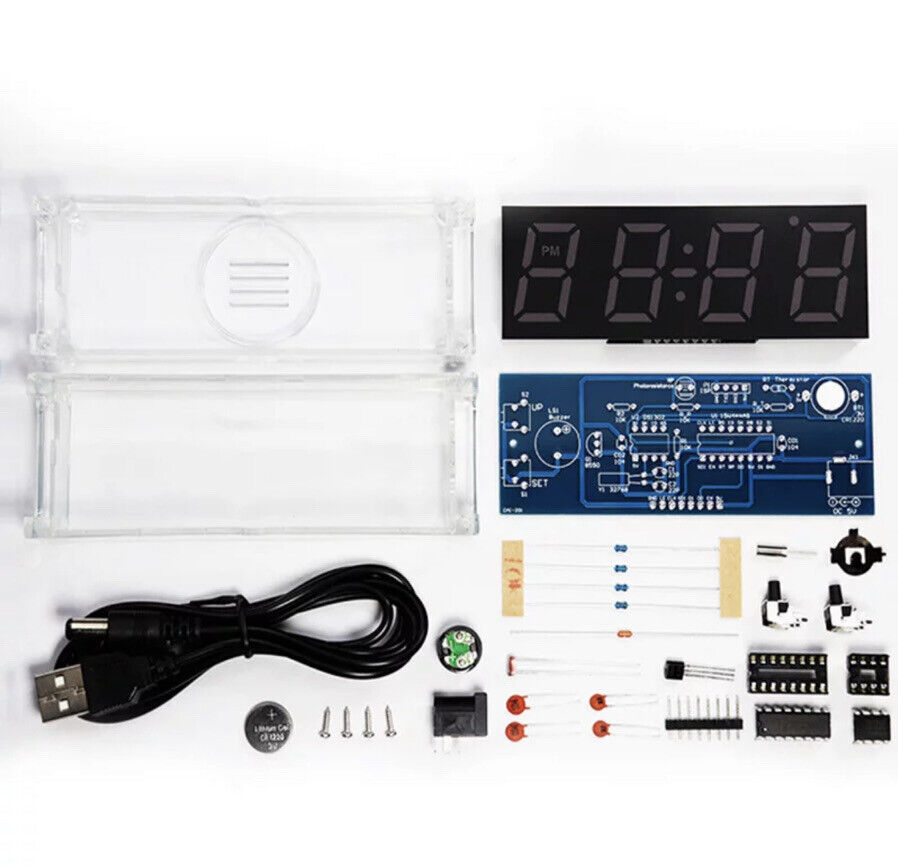

With this digital clock DIY kit, you can make a nice clock by yourself. With transparent case, components can be well protected and the clock looks stylish.

Features:

Ideal digital clock DIY kit for electronics enthusiasts, easy to install.

Compact for installation, easier for welding and DIY by users.

With transparent case, components can be well protected and the clock looks stylish.

Automatically display time, temperature, date and day.

Features（battery not include）

Default sent multicolor , if you need other colors, you can note in the order page (Monochrome: green, red, blue, white)

1. 7 colors can be set for one clock, and time, temperature, date, day of the week and cycle display can be set respectively

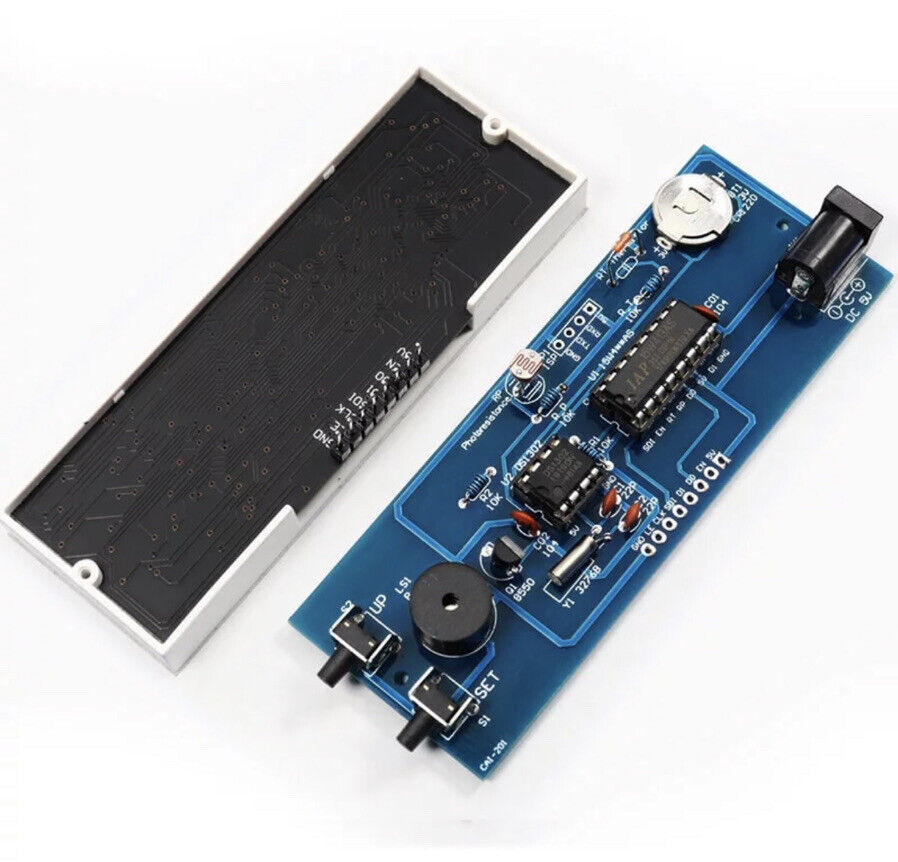

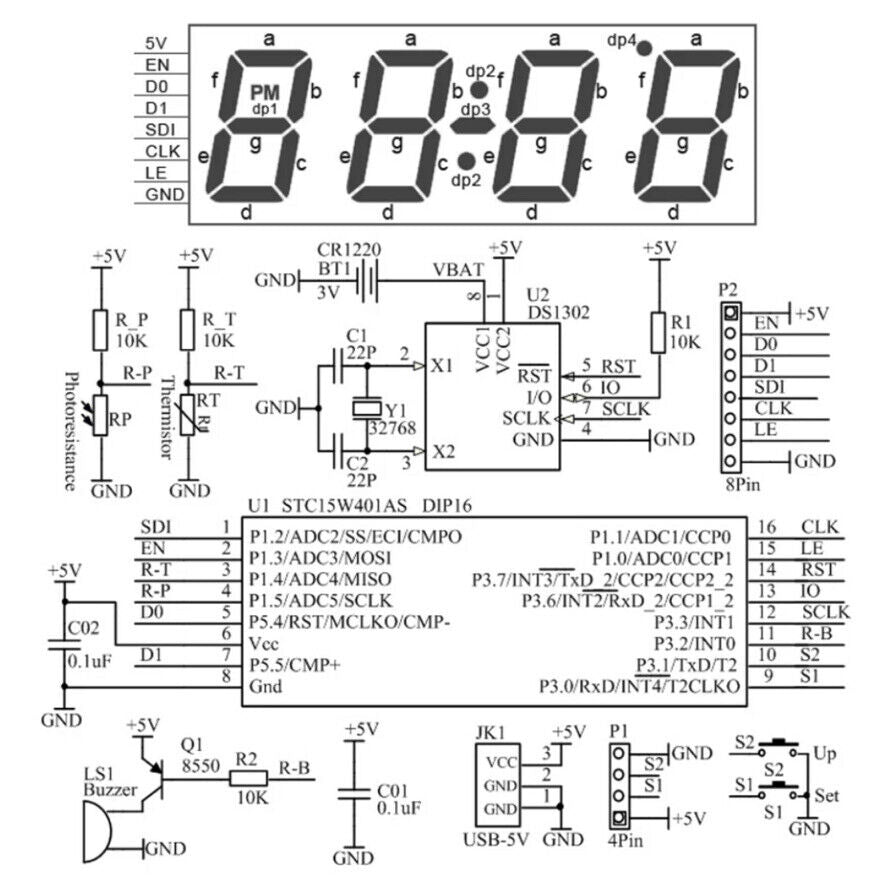

Single chip microcomputer:IAP15W413AS,Clock IC:DS1302.5ppm high-precision crystal oscillator, plus time error correction function, constitute a high-precision clock.

2. Time: 24-hour system (automatic), 12-hour system. Hourly reminder: You can set the hourly reminder and turn off the hourly reminder at night. (Default 7 o'clock to 21 o'clock) 3-way alarm clock: Alarm 1 is set from 7:00 and is turned on by default. Alarm 2 is set from 7:00 and is off by default. Alarm 3 is set from 7:00 and is off by default.

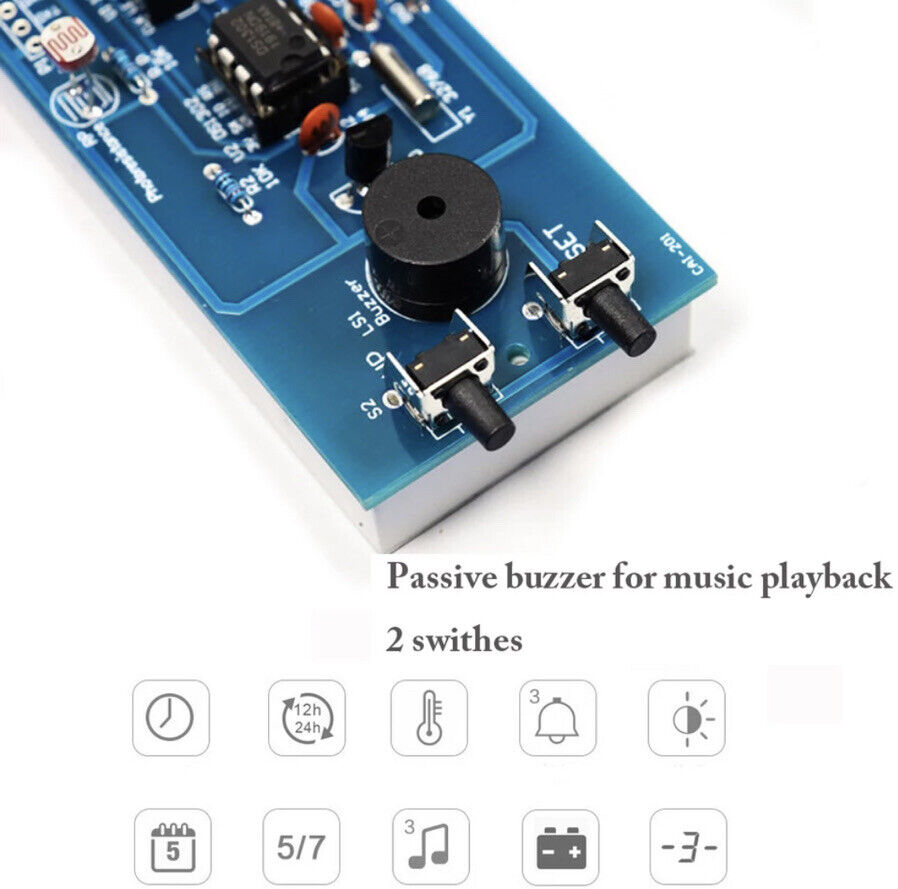

3.Alarm clock control: Monday to Sunday alarm work (default); Monday to Friday alarm work. Control brightness: Auto brightness (default); Fixed high brightness; Fixed medium brightness; Fixed low brightness. temperature display: Celsius (default); Fahrenheit. 3 kinds of music: To Alice (default); Ode to joy; Spanish bullfighter.

4.Color display: 4 nixie tube color optional; Each nixie tube color is optional; 4 nixie tube color cycle change (default); 4 nixie tube colors change randomly; The color of a single nixie tube changes randomly;

5. Time correction: correct time error. Display mode: Show time only (default); Time-temperature cycle display; Time-date-week cycle display; Time-date-day-date cycle display.

Settings

Function setting: long press set to enter the setting mode, press the UP key to change the parameters

Time setting: After reset, it is 7:59:59 on January 01, 2019 (seconds are not displayed, the week is automatic)

Time: 24-hour system (automatic), 12-hour system.

Hourly reminder: You can set the hourly reminder and turn off the

hourly reminder at night. (Default 7 o'clock to 21 o'clock)

3-way alarm clock:

Alarm 1 is set from 7:00 and is turned on by default.

Alarm 2 is set from 7:00 and is off by default.

Alarm 3 is set from 7:00 and is off by default.

Alarm clock control:

Monday to Sunday alarm work (default)

Monday to Friday alarm work

Control brightness:

Auto brightness (default)

Fixed high brightness

Fixed medium brightness

Fixed low brightness

temperature display:

Celsius (default)

Fahrenheit

3 kinds of music:

To Alice (default)

Ode to joy

Spanish bullfighter

Color display:

4 nixie tube color optional

Each nixie tube color is optional

4 nixie tube color cycle change (default)

4 nixie tube colors change randomly

The color of a single nixie tube changes randomly

Time correction: correct time error

Display mode:

Show time only (default)

Time-temperature cycle display

Time-date-week cycle display

Time-date-day-date cycle display
