50PCS 10mm LED Light Emitting Diode RGB 7 Colour SLOW flash Round DIFFUSED Top

LED Material: ABS Plastic,Plastic

Configuration: Red Green Blue

Viewing Angle: 100°

MPN: Does Not Apply

Colour: Red Green Blue

Number of Pins: 2

Number of LEDs: 50

Item Width: 10 mm

Mounting Style: Through-Hole

Nominal Current Rating: 30 mA

Lens Shape: Round

Lens Surface: Diffuse

Item Diameter: 10mm

Nominal Voltage: 3V

Forward Current: 30 mA

LED Size: 10mm

Wavelength: Varies

Modified Item: No

Brand: GoodLay

Type: Diffused Round Top

Model: 10mm Diffused Round Top

Packaging: Bag

LED Colour: RGB

Country/Region of Manufacture: China

Forward Voltage: 3-3.5V

50 Pieces 10mm LED Light Emitting Diode RGB SLOW flashing 7 colour Round 100pcs F10 DIFFUSED Round Top. Condition is Brand New. Shipped with Australia Post regular Letter no tracking number included.

Product Description

product model : 10MM RGB

Absolute Maximum Rating at Ta =25°C

Power Dissipation: 100 mW

Peak Forward Current: 100mA

(1/10 Duty.Cycle.0.1ms Pulse width)

Continuous Forward Current: 35mA

Derating Linear From 50°C :0.4mA/°C

Reverse Voltage:5V

Operating Temperature Range:-40°C to +80°C

Storage Temperature Range : -40°C to +80°C

Lead Soldering Temperature: 260°C for 5 Seconds

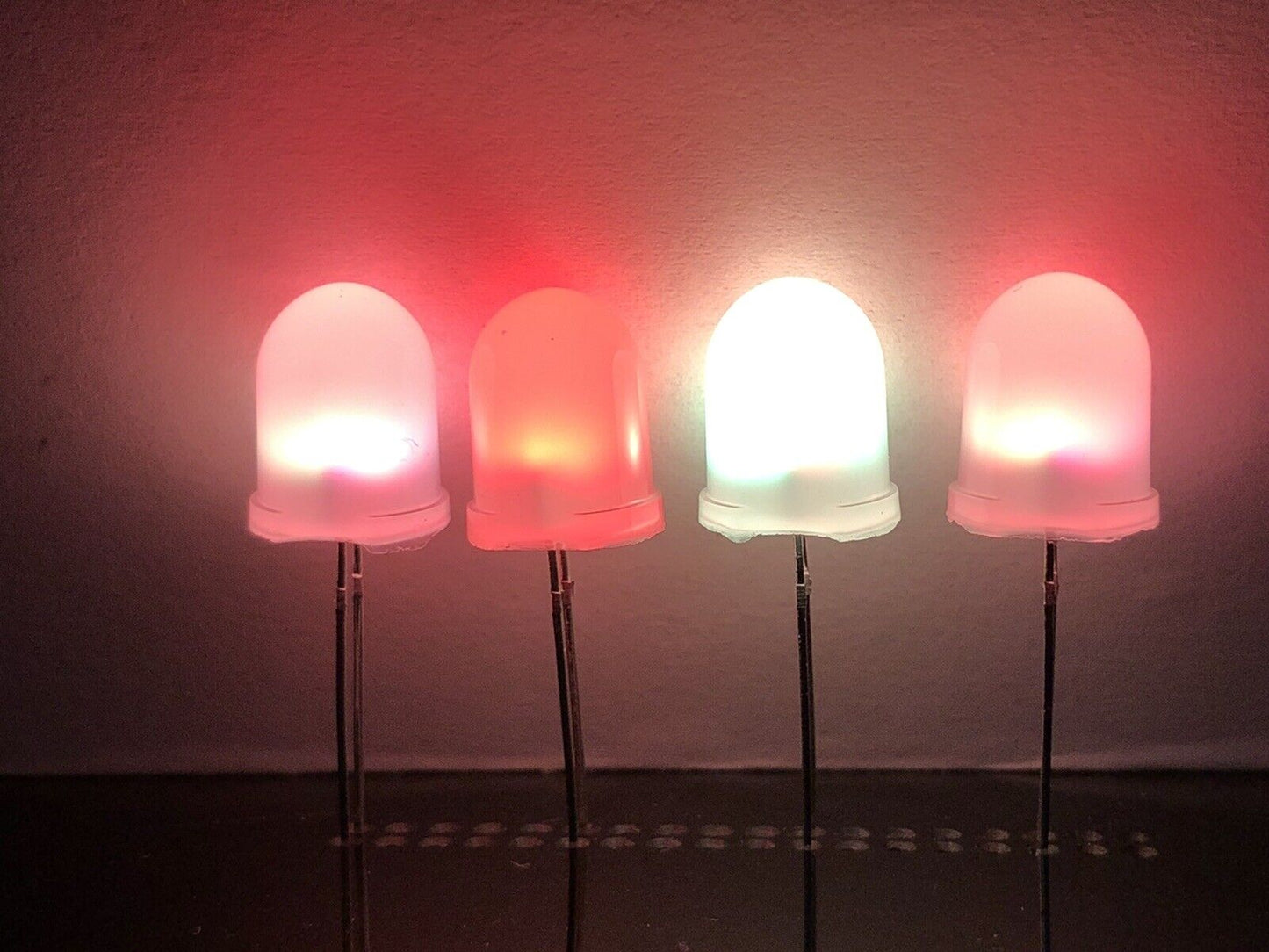

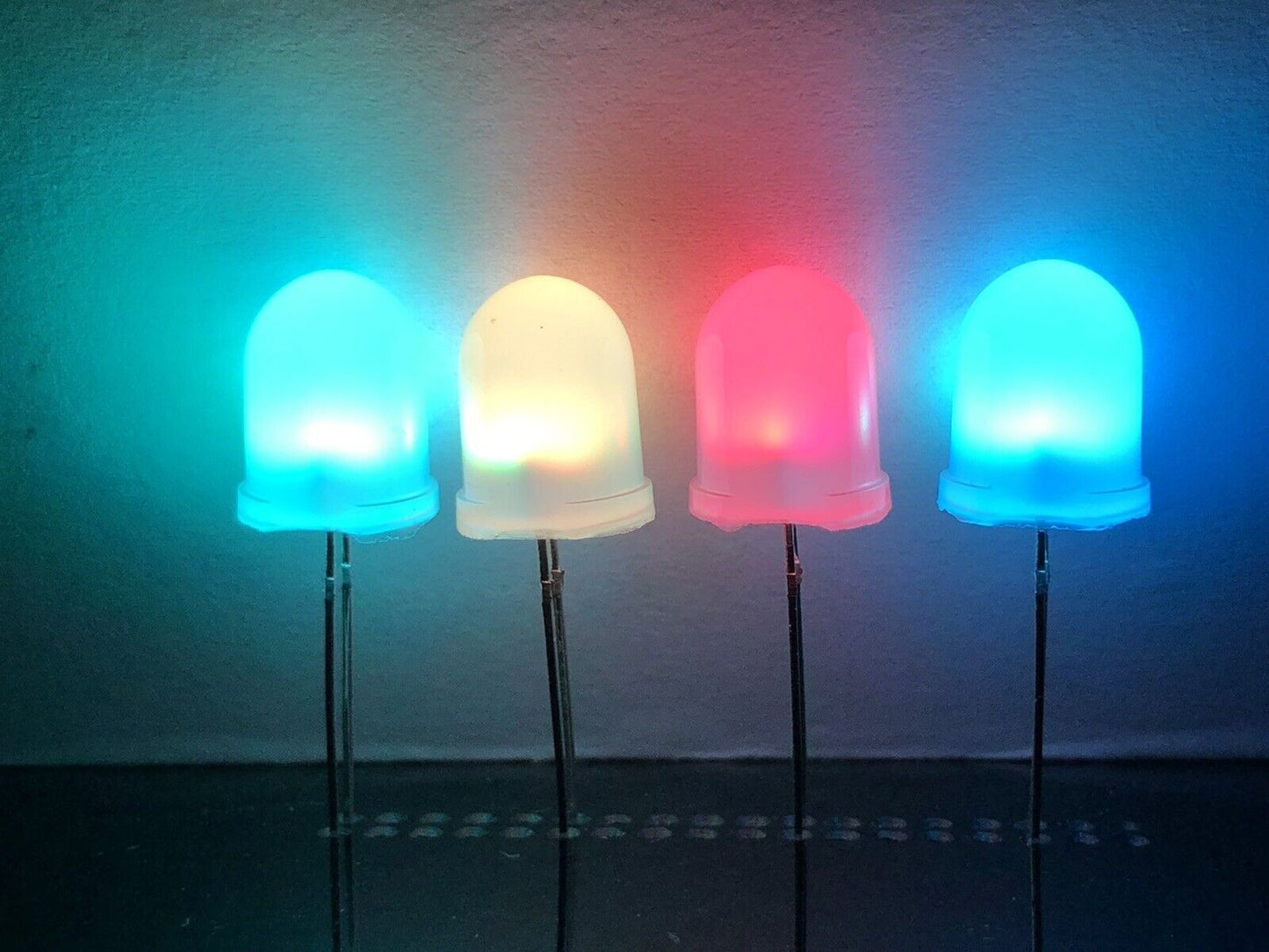

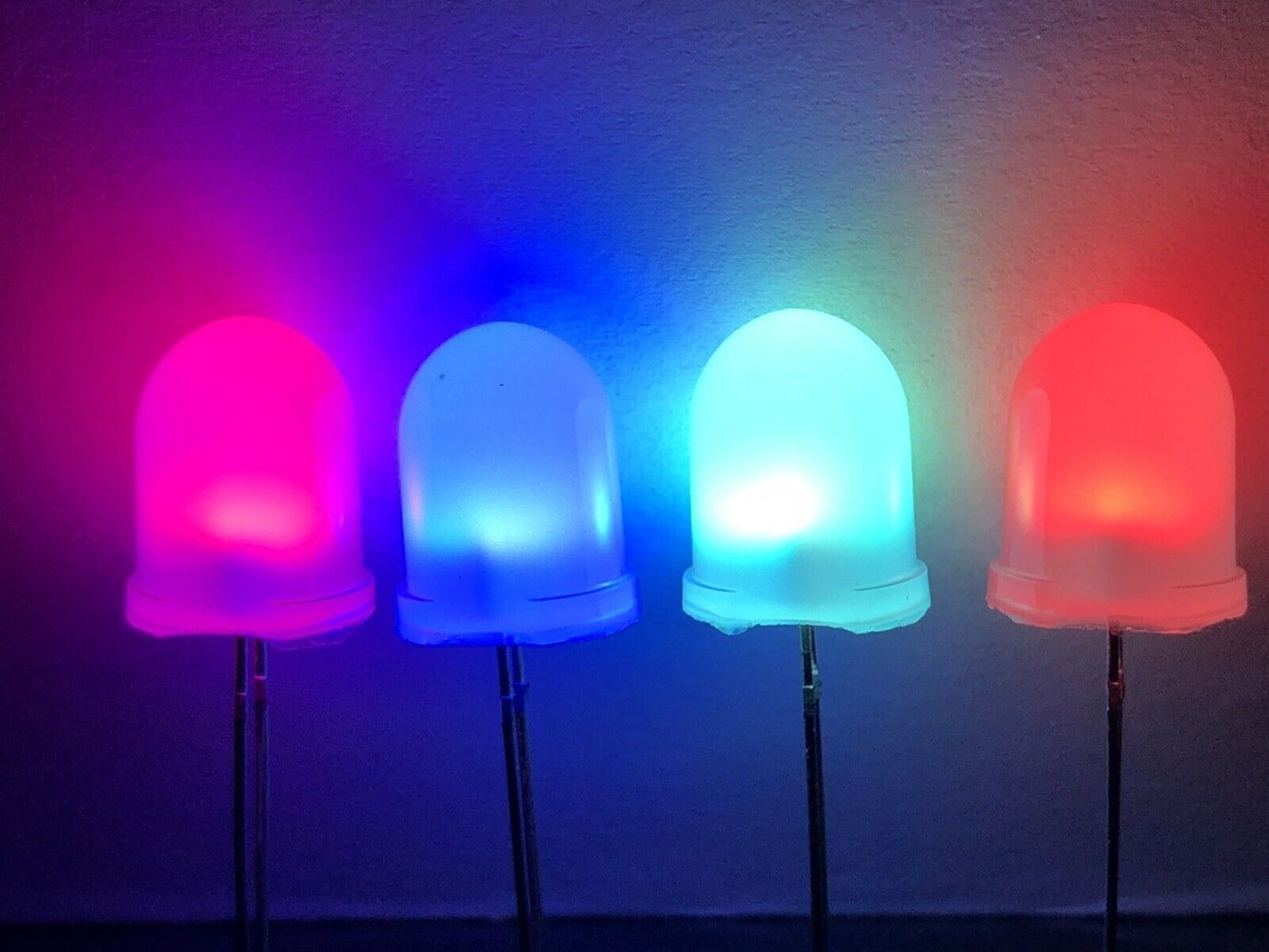

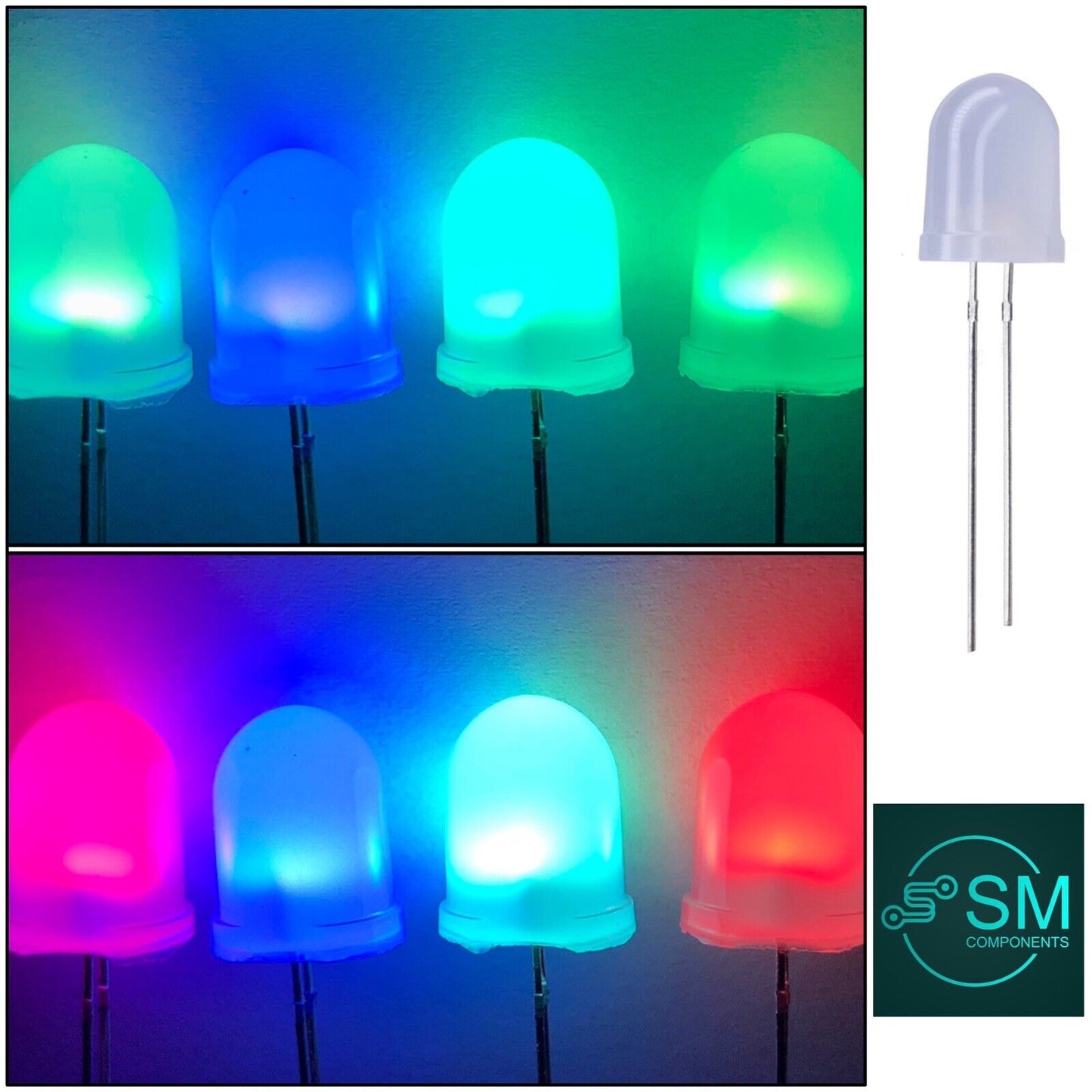

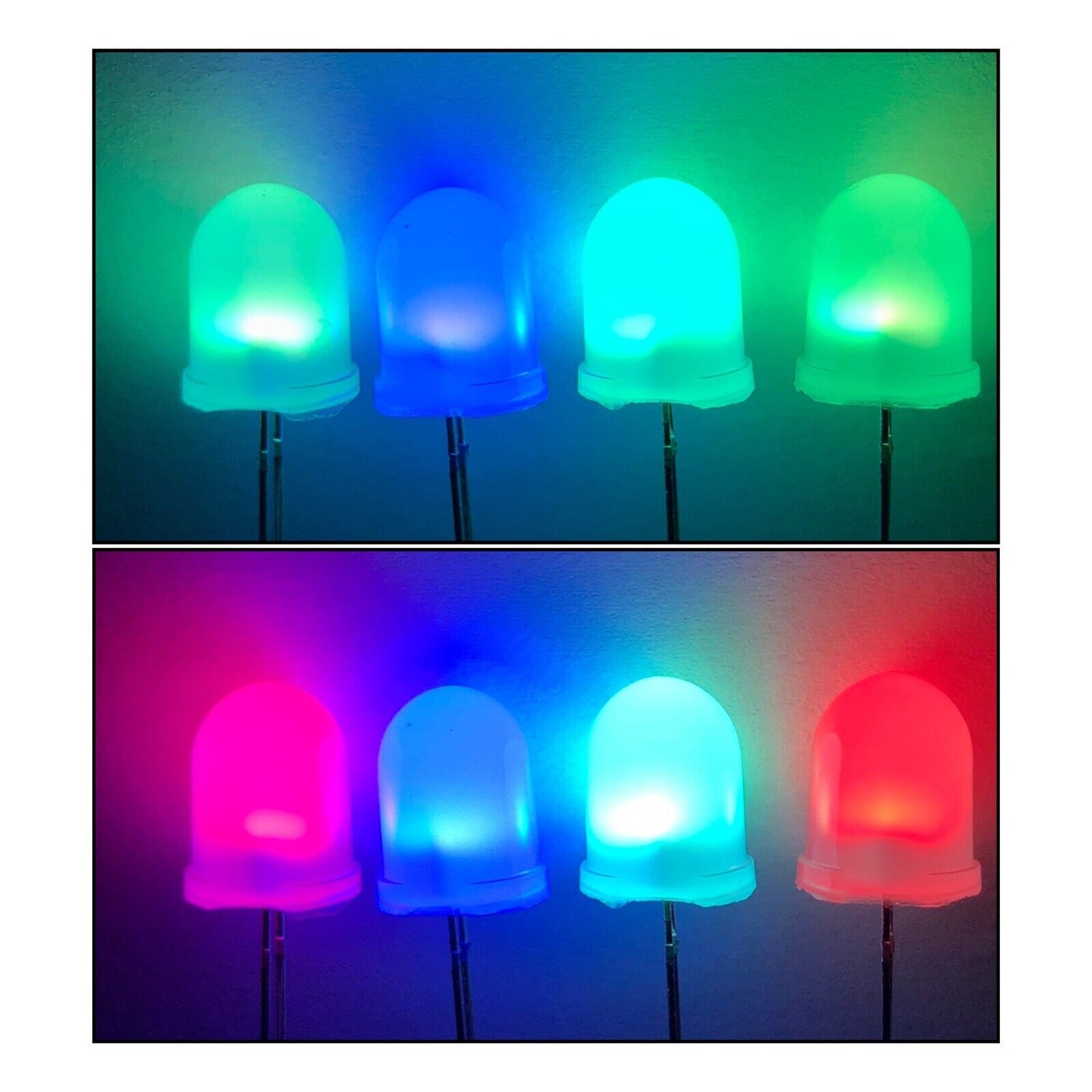

Standard type RGB 2 pin LED. Diode has onboard microcontroller that allows it to cycle through red green and blue in a slow overlapping effect. These types of LEDs can be used on any diy project that you would normally have an led in circuit.

If you need advice an resistor selection or powering any LEDS, please don’t hesitate to give me a message, I will be more than happy to help.
