5PCS 10X10mm Indicator LED Block Diodes RED 625nm Light Emitting Diodes Projects

Mounting Style: Through-Hole

Configuration: Quadruple

Viewing Angle: 60°

Lens Shape: Square

Lens Surface: Diffused Red

Nominal Voltage: 2.0 V

Package/Case: 10 X 10 Resin Block

Forward Current: 25-140mA

MPN: Does Not Apply

LED Size: 10mm X 10mm Square

Wavelength: 625nm

Brand: Unbranded

Type: DIP

Number of Pins: 2

LED Colour: Red

Number of LEDs: 5

Country/Region of Manufacture: China

Item Width: 10 mm

Forward Voltage: 2 V

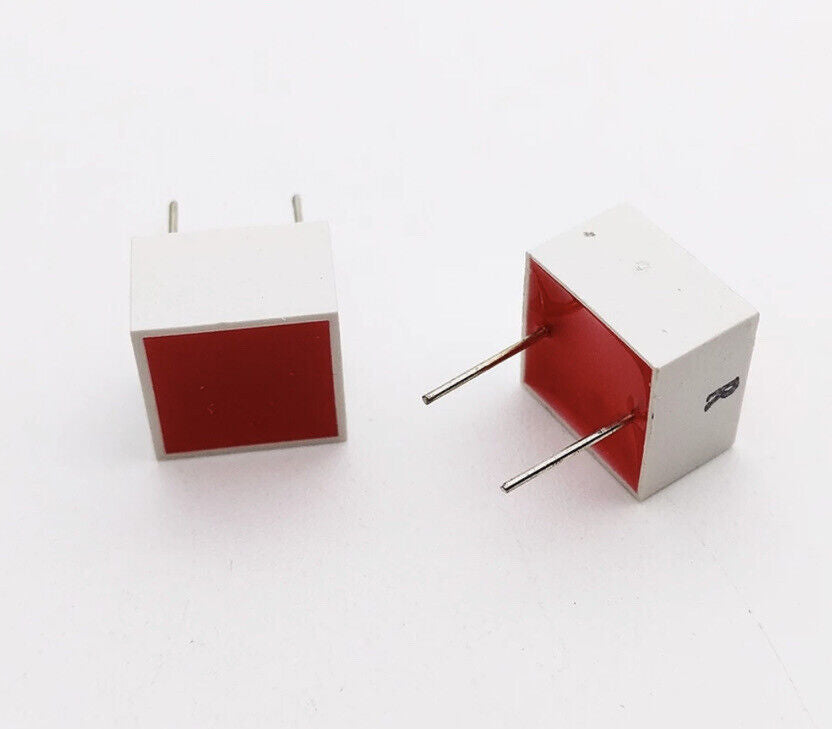

5 Pieces 10 x 10mm RED block indicator Diode

Posted in an anti static bag, in a padded bag by Australia Post Regular Letter no tracking.

PRODUCT DETAILS

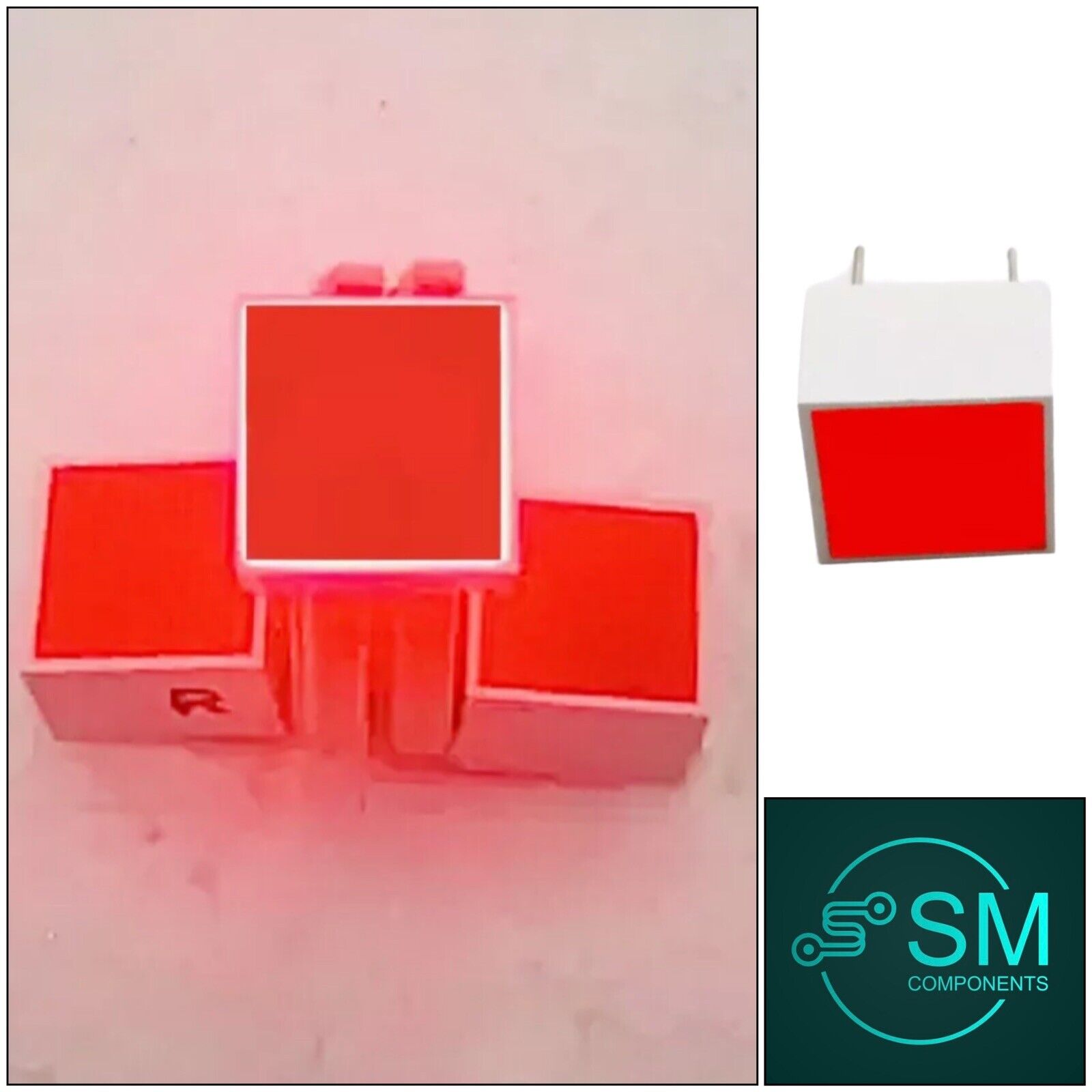

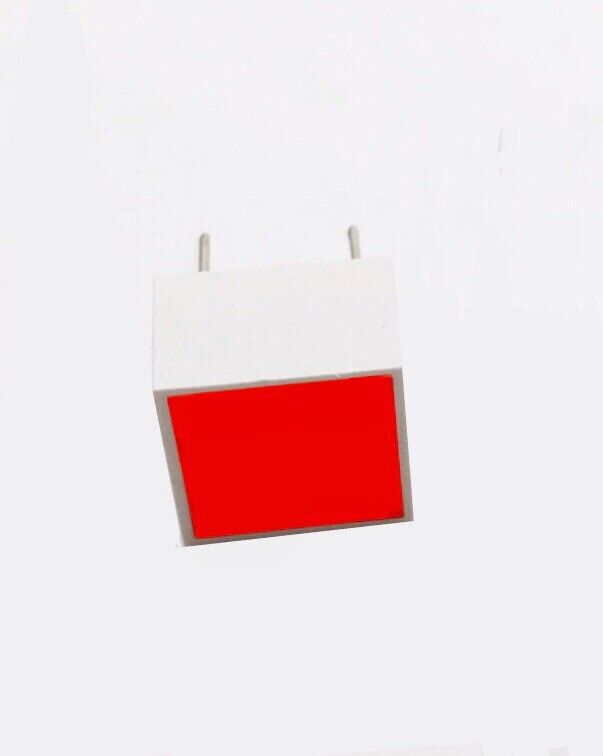

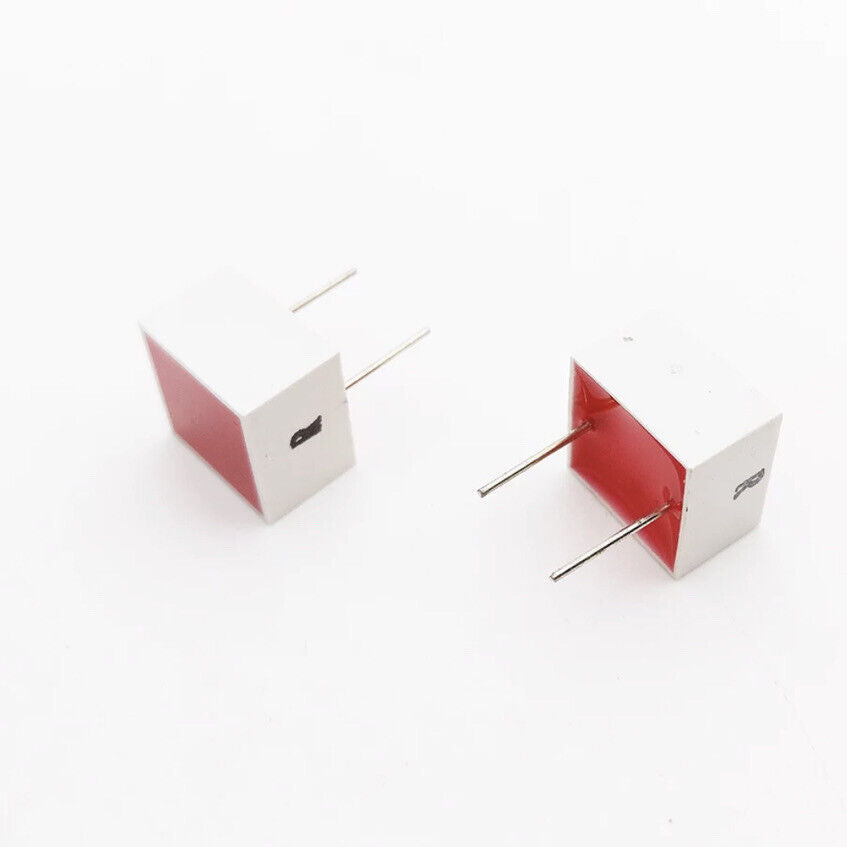

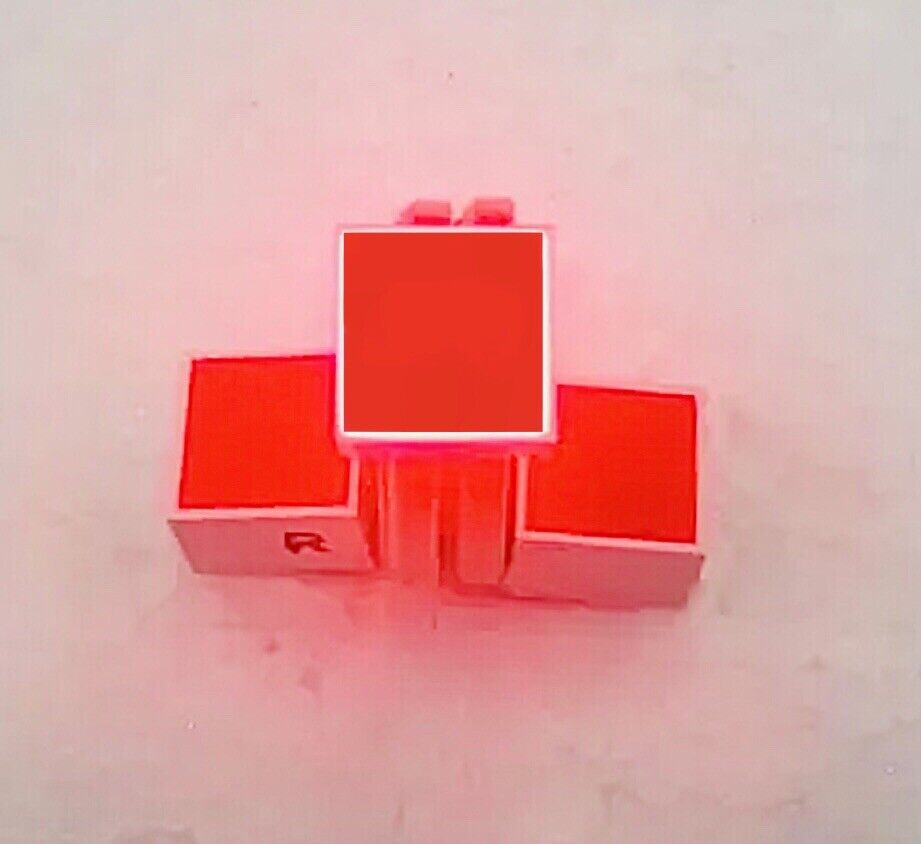

Square 10 x 10mm LED, the color is red.

It's compatible with breadboard, and you can easy to make your protype with the square led.

Feature Uniform light emitting area.

Easily mounted on P.C. boards or industry standard sockets.

Flush mountable.

Excellent on/off contrast.

Can be used with panels and legend mounts.

Specification

Power dissipation: 62.5mW

DC Forward Current: 25mA

Peak Forward Current: 140mA

Reverse Voltage: 5V

Operating / Storage Temperature: -40°C To +85°C

Lead Solder Temperature: 260°C For 3-5 Seconds

For any technical support or suggestion, please kindly go to our forum.

Technical details

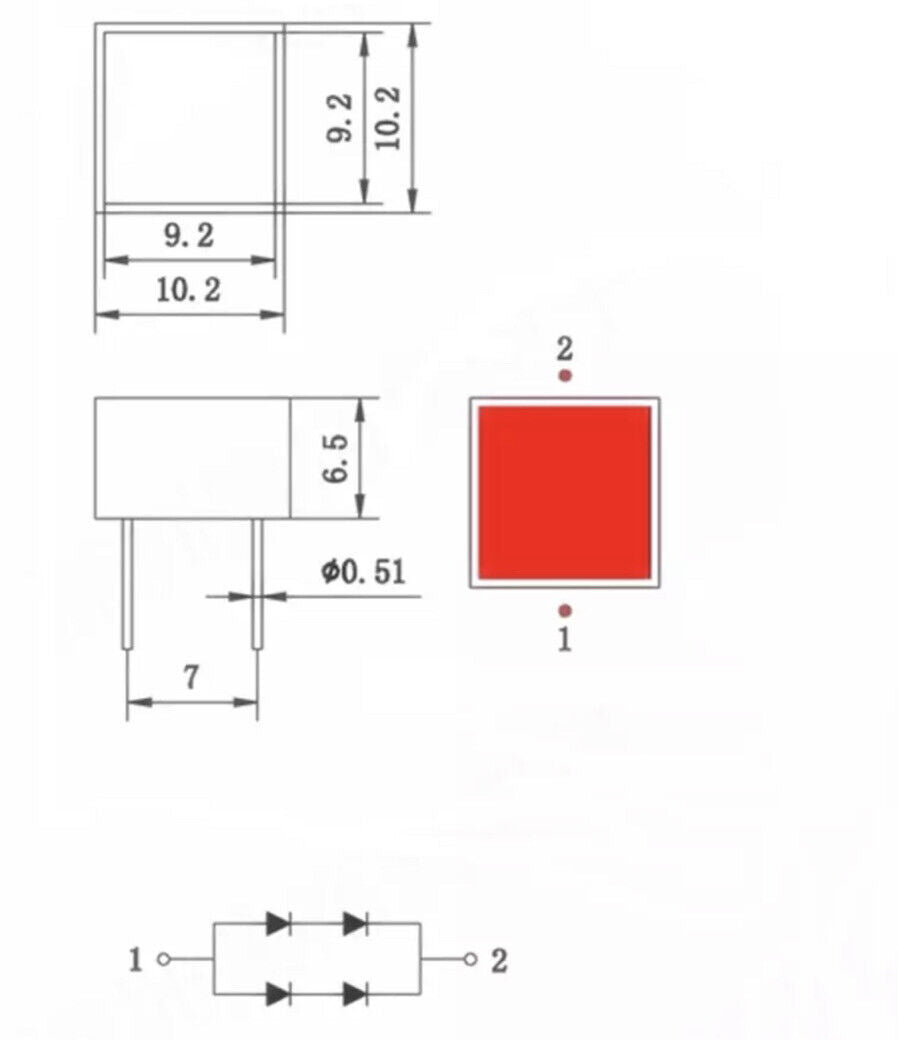

Dimensions 12mm x15.5mm x15.5mm

Weight G.W 3.5g
