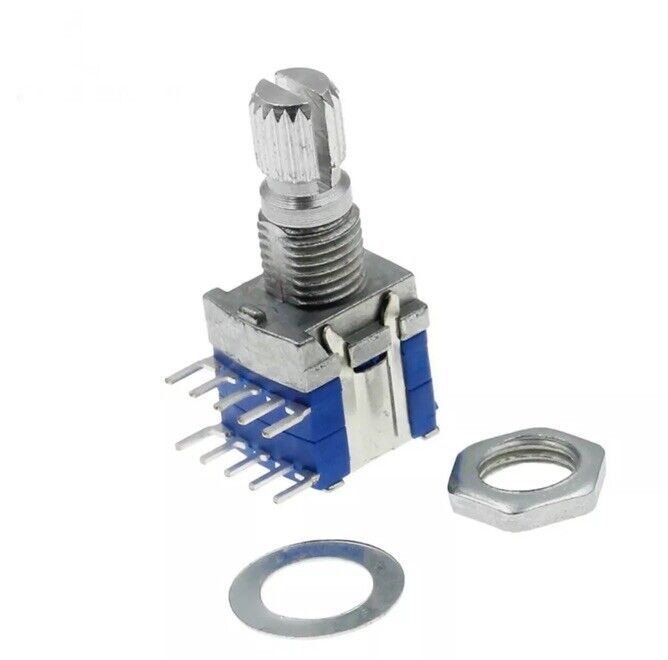

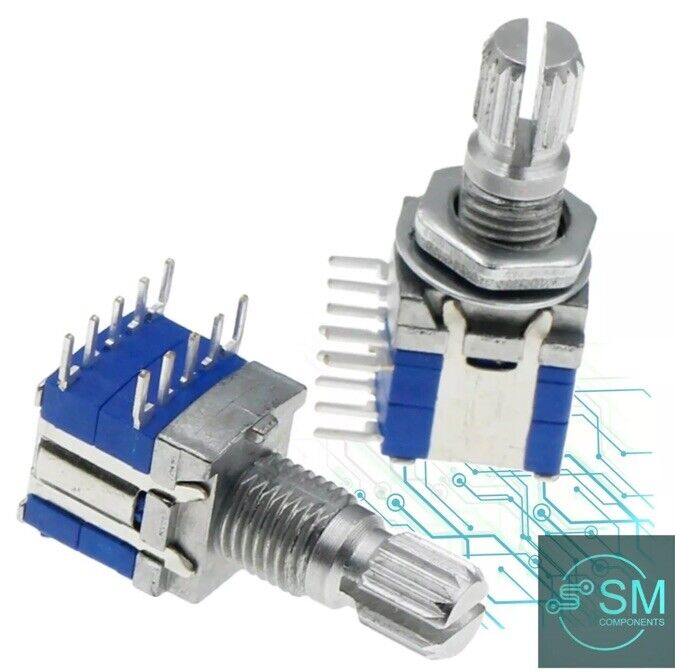

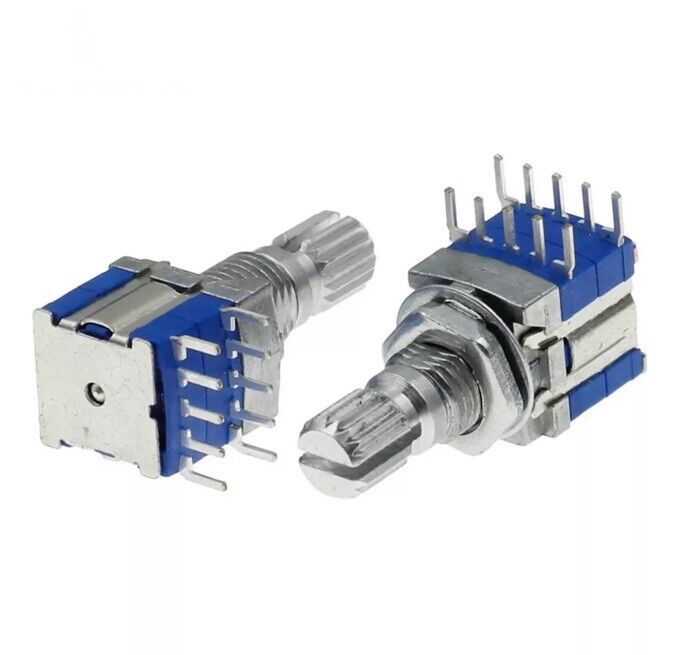

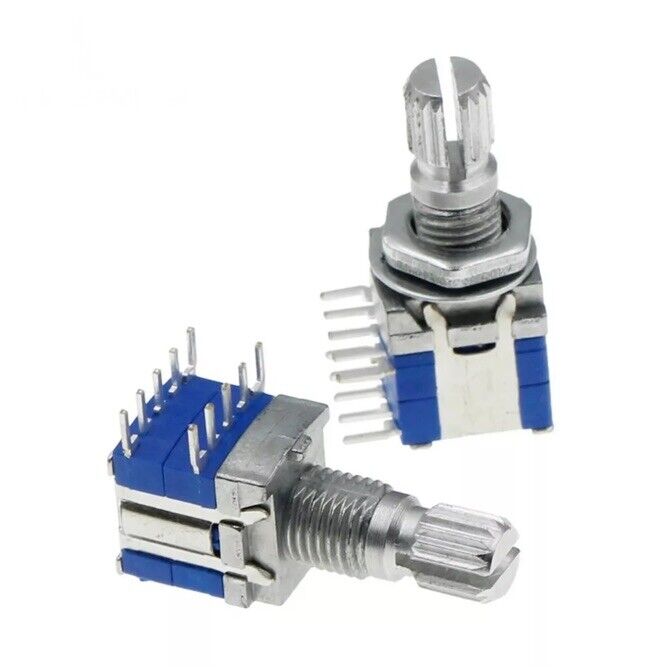

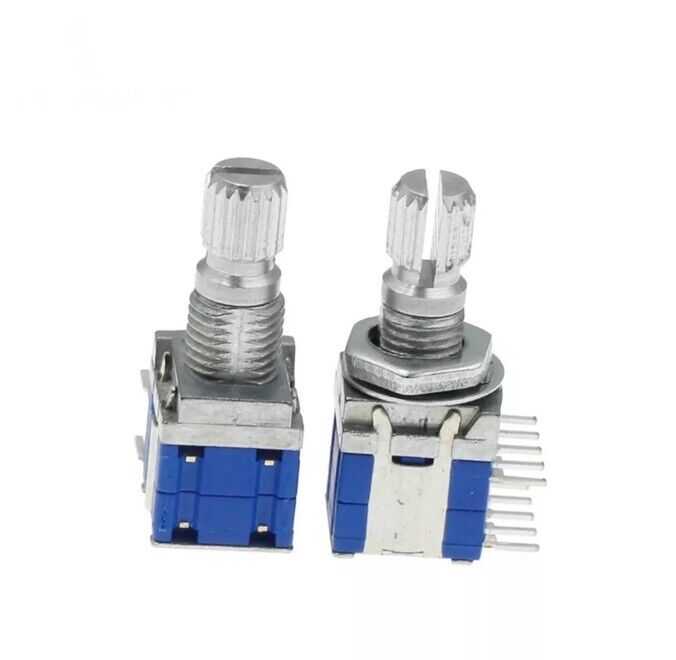

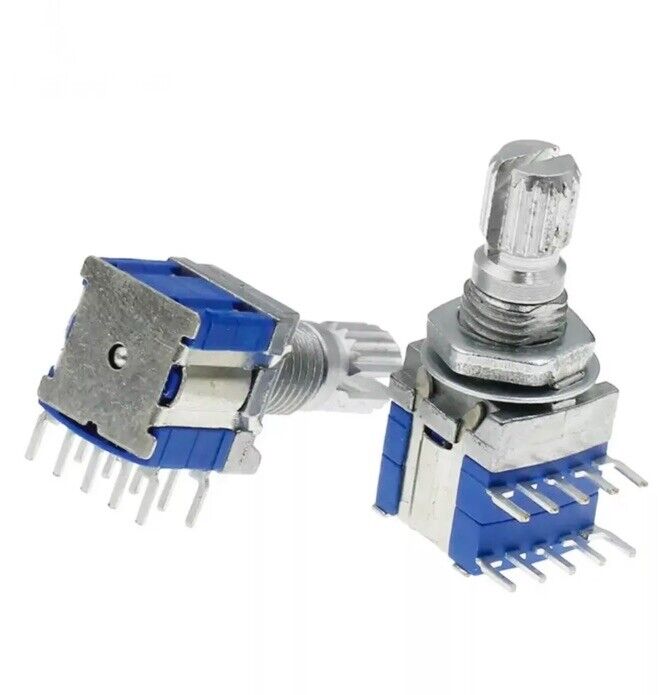

5PCS RS1010 Band Switch Rotary Switch Gear Change 2 Pole 2 Position Selector

MPN: RS1010

Switch Style: Rotary

Smart Home Compatibility: NA

Suitable For: NA

Colour: Blue - Silver

Current Type: AC/DC

Termination Type: Screw

Number in Pack: 5 Pieces

Features: NA

Compatible Wire Gauge (AWG): 20-30AWG

Finish: NA

Mounting Style: Bulkhead, Fascia And PCB Mount

Operating Temperature: 105 °C

Maximum Amperage: NA

Number of Positions: 2

Current Rating: 100mA @ 16V

Material: Metal

Orientation: Horizontal/Vertical

Brand: Unbranded

Operation Method: On/Off

Type: PCB Rotary Switch

Contact Configuration: Double Row

Model: RS1010

Coil Voltage: NA

Country/Region of Manufacture: China

Application: Electronics

Smart Home Protocol: NA

UPC: NA

Name: RS1010 Rotary switch

Colour: Silver and Blue

Material: Aluminium alloy, Copper

Number of poles: 2 Pole

Position number: 2 Position

Packaging quantity: 5 Pieces

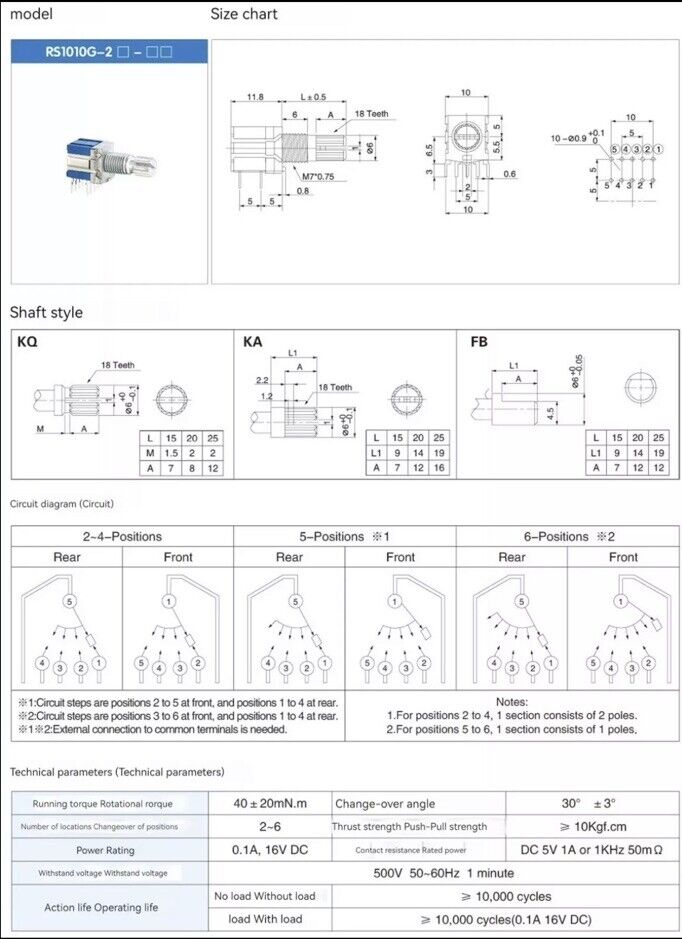

Rotating torque: 40 ± 20mN. m

Switching angle: 30 ° ± 3 °

Axis compression strength: ≥ 10Kgf.cm

Power: 0.1A, 16V DC

Contact resistance: DC 5V 1A or 1KHz 50m Ohm

Voltage withstand: 500V 50-6OHz for 1 minute

Working life:

No load: ≥ 100000 cycles

Load: ≥ 10000 cycles (0.1A 16V DC)

Usage: professional audio, mixing console, sports equipment, headphone equipment, general electrical equipment.

You will receive 5 Rotary Switches of your chosen selection.
