Assembled Finished RGB Electronic Rotating 16 RGB SMD LED Disc Kit POV Unit
Assembled Finished RGB Electronic Rotating 16 RGB SMD LED Disc Kit POV Unit
Pickup available at 21 Mussau Street
Usually ready in 24 hours
Brand: Generic
Features: LED

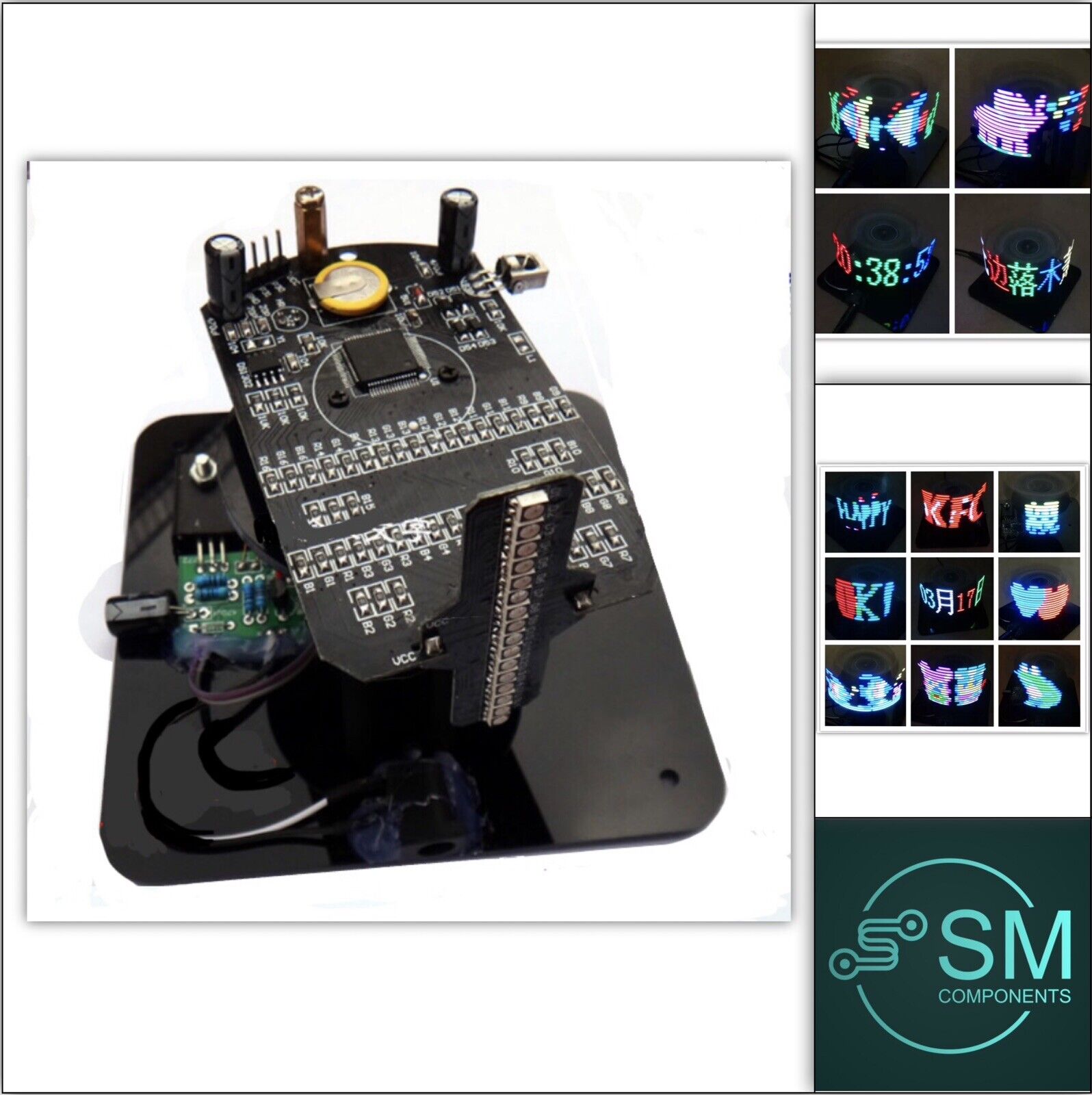

Assembled Finished RGB Electronic Rotating 16 RGB SMD LED Kit POV. Condition is Brand New.
This unit is NOT a kit, it is assembled, Finished
NEW FINISHED 7 Color Electronic Clock ,16 Color Lamp Rotating LED POV.
finished productAll welding, power on (USB power line into the computer USB port or received their mobile phone charger), you can display the default text. No housing, motor speed is faster, please be careful to avoid children encounter.
USB to TTL serial DownloaderMatching purchase or own, through the shop to provide the host computer software, modify the text display content (computer operation), and then use USB to TTL serial downloader to download content.
16 lights, seven color rotating LED, the use of IAP15W4K61S4 LQFP64 chip microcontroller control, the display part of the use of bright 3528 color LED! PC software can store 800 characters in Chinese and english! 7 color text display! 50 sheets can be storedHigh 16 pixels* length (10-200 pixels color image). High performance motor 370, high enough to make the display stable. The wireless power supply is used to supply power to the rotating part. The rotation is quiet and the service life is long! Gift giving or advertising! Supporting detailed production instructions and instructions for your production escort!
Powered by 5V1A, supporting USB power line can be connected to the computer USB port, mobile phone charger, charging treasure and so on 5V, it can be transformed into DIY battery powered by 4 1.5V batteries or two series power supply using 3.7V series power lithium battery can be!Use our host computer software, change the display content, solve the program do not understand the worries. Need to use TTL serial Downloader, send changes to the microcontroller, this baby is not worth sending
Hardware parameters (manual measurement, error 2MM):

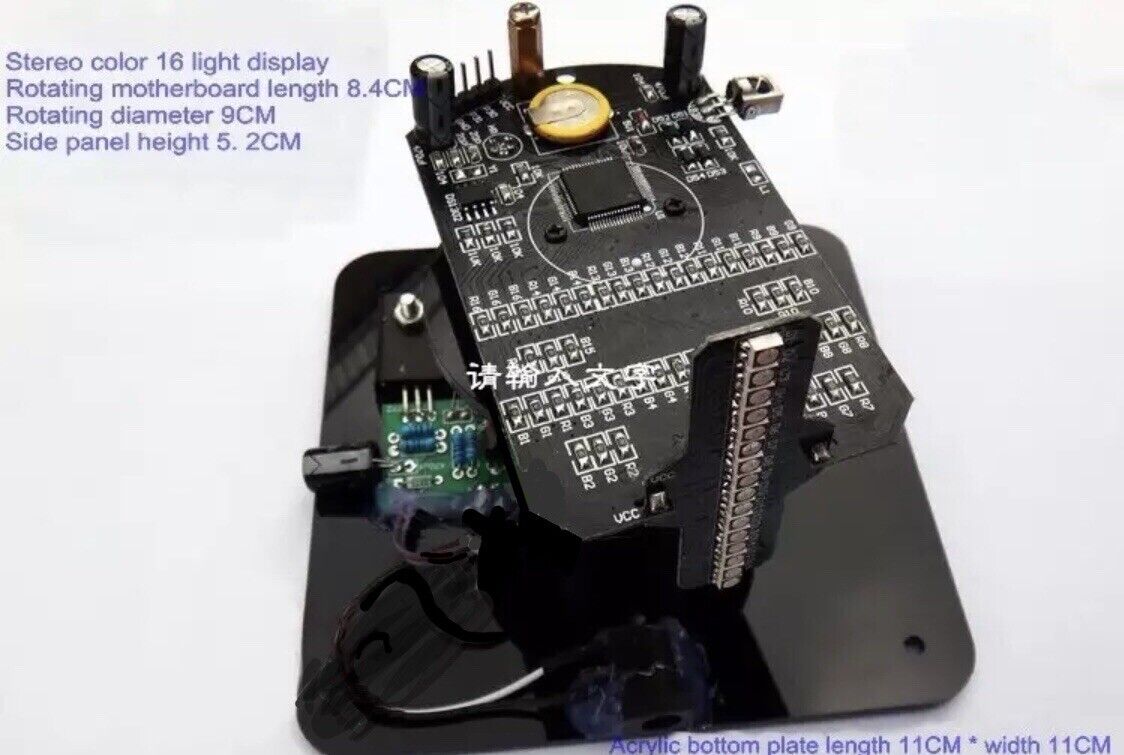

Rotating main board is 8.4CM long, rotation diameter is 9CM, and side panel is 5.2CM high
Stereoscopic color 16 lamp display
Acrylic bottom box length 11CM*, width 11CM, high 4.5CM (excluding motor shaft and coil part)
Function introduction:
1, seven color text scrolling display cycle: (text color can not be changed, fixed seven color display) by remote control stop rolling, text only support 7 color display (red, green, blue, yellow, purple, green and white), each word only supports 1 colors.
2, the clock and date display: with the backup battery, power down is still maintained after walking, (the clock display color can be changed) can also change the word through the software calibration time by remote control to set the time, time is very convenient!
3, pictures show: can scroll display pictures, can also display static picture alone! Select mode via remote control.The picture must be 16 pixels high10-200 pixels long! The picture only supports 7 color display (red, green, blue, yellow, purple, green, white).
4, memory mode, what mode is before the power cut, the next power up is still that model (Note: can only be one of the above 3 modes)
This kit comes with data: schematic (PDF format), Component list (PDF format), chip data (PDF format), PC software, HEX download files. Note: the HEX file and the host computer software have been encrypted and can only be used in conjunction with the SCM purchased at the time.Only the first successfully sent data can be used, please keep it yourself, without reissue.If the data is lost or damaged, the object can only be sent back, re decoded and encrypted.
This baby does not provide source code though,But in order to ensure the open source suite of this store for loversProvides a separate function of the program, as well as the integrated effect of procedures, are through the MCU source to modify the content of the display!The key areas of the program are annotated and have the ability to understand and change the word! The store does not provide guidance and interpretation of procedures and principles of service!
PLEASE USE THE INTERNET FOR INSTRUCTIONS. THERE ARE THOUSANDS OF TUTORIALS ON THESE KITS.
I AM MORE THAN HAPPY TO HELP YOU THROUGH THE ENTIRE BUILD.
IF YOU WOULD LIKE IT MADE FOR YOU, PLEASE MESSAGE ME!
IF YOU HAVE A PROBLEM, MESSAGE ME!!!
I HAVE MADE 100’s OF THESE KITS AND THEY ARE ALL STILL WORKING.
Once you master these kits, your world of electronics will open up.
