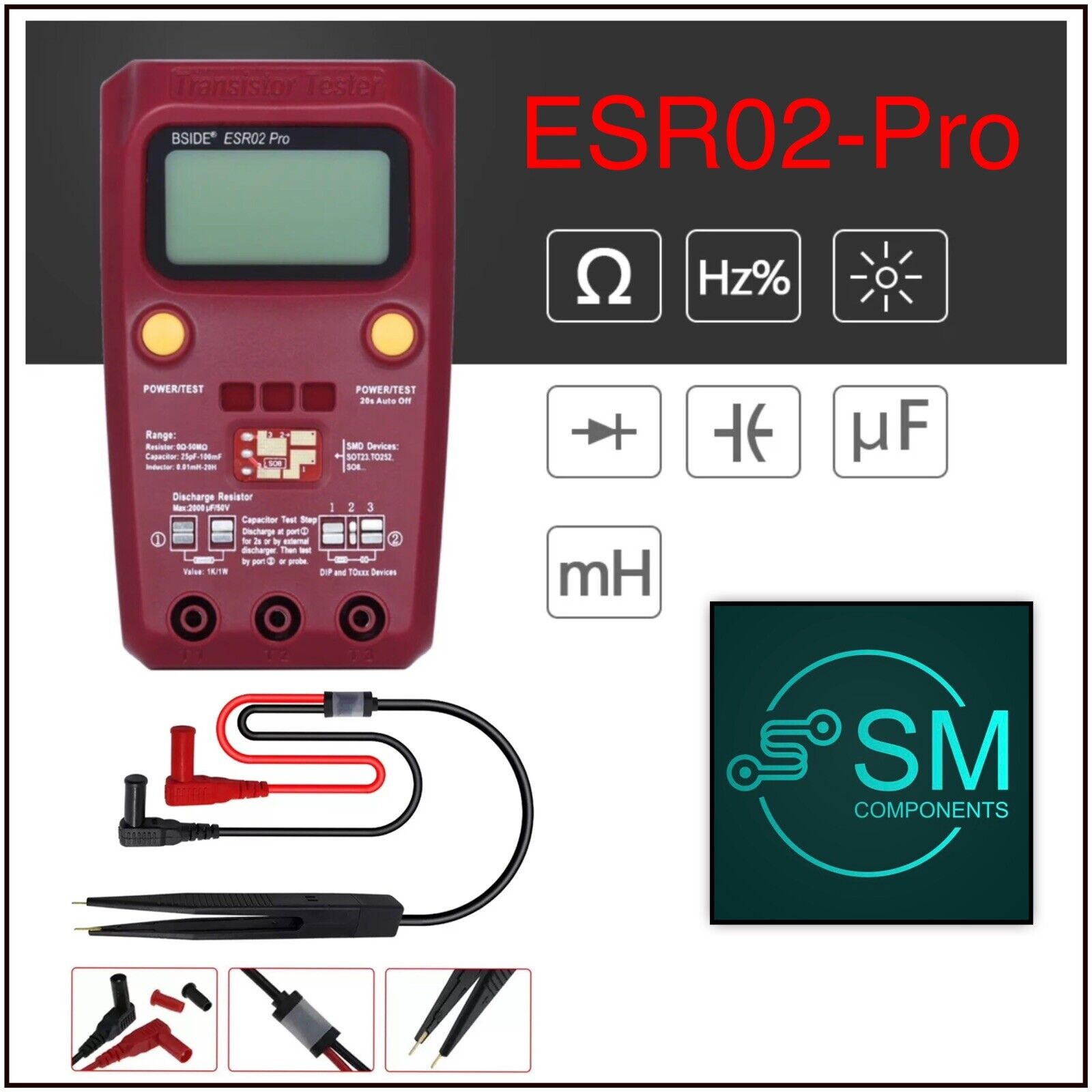

BSIDE ESR02 Pro Transistor Component Tester Multifunctional Digital Tester Diode

BSIDE ESR02 Pro Transistor Component Tester Multifunctional Digital Tester Diode

Regular price $49.50 AUD
Regular price Sale price $49.50 AUD
Sale Sold out
Shipping calculated at checkout.

Capacitance Resolution: 1pF

Capacitance ESR Range: 2μF~50mF

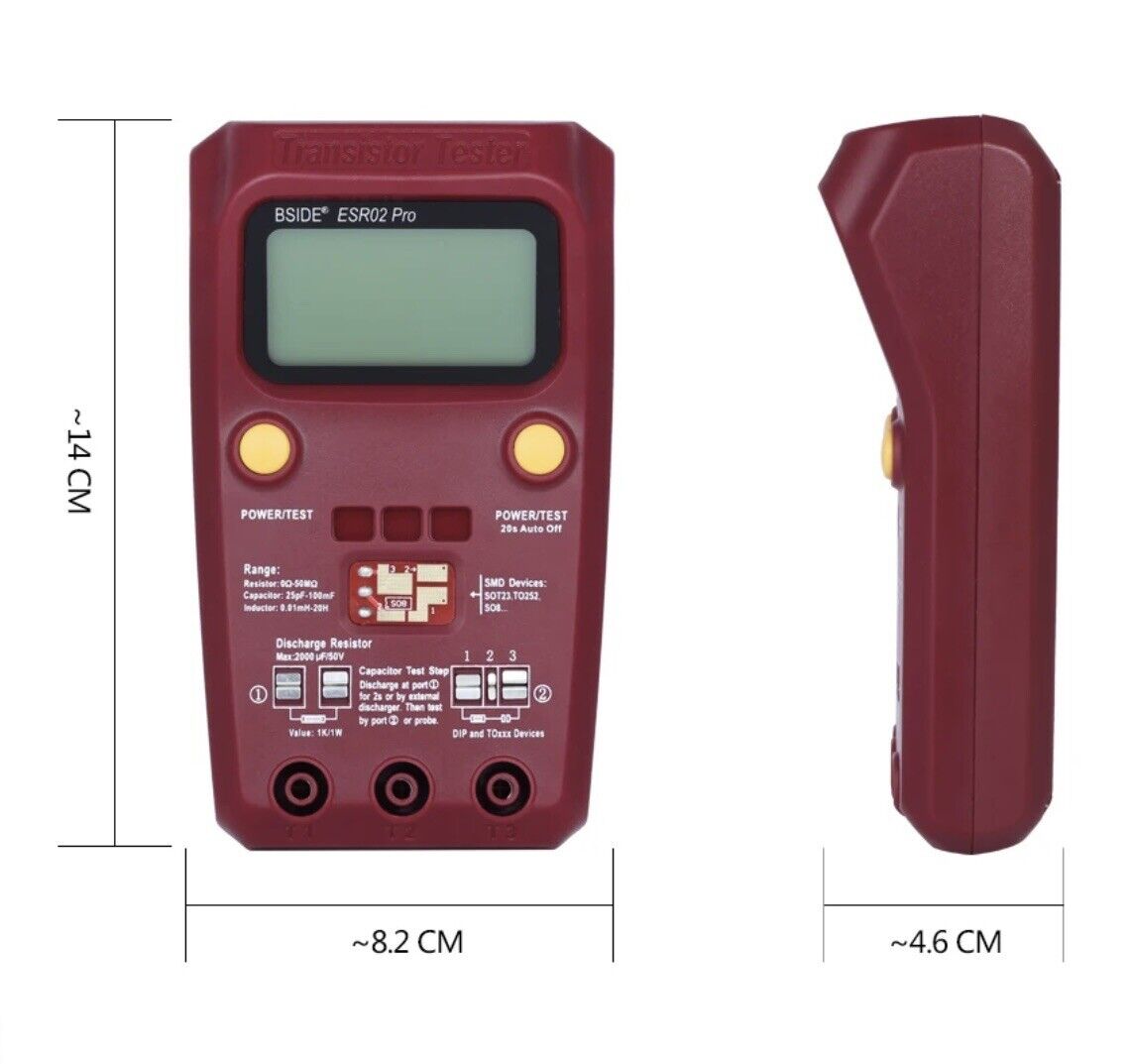

Item Size: 140 * 82 * 46mm / 5.51 * 3.23 * 1.81in

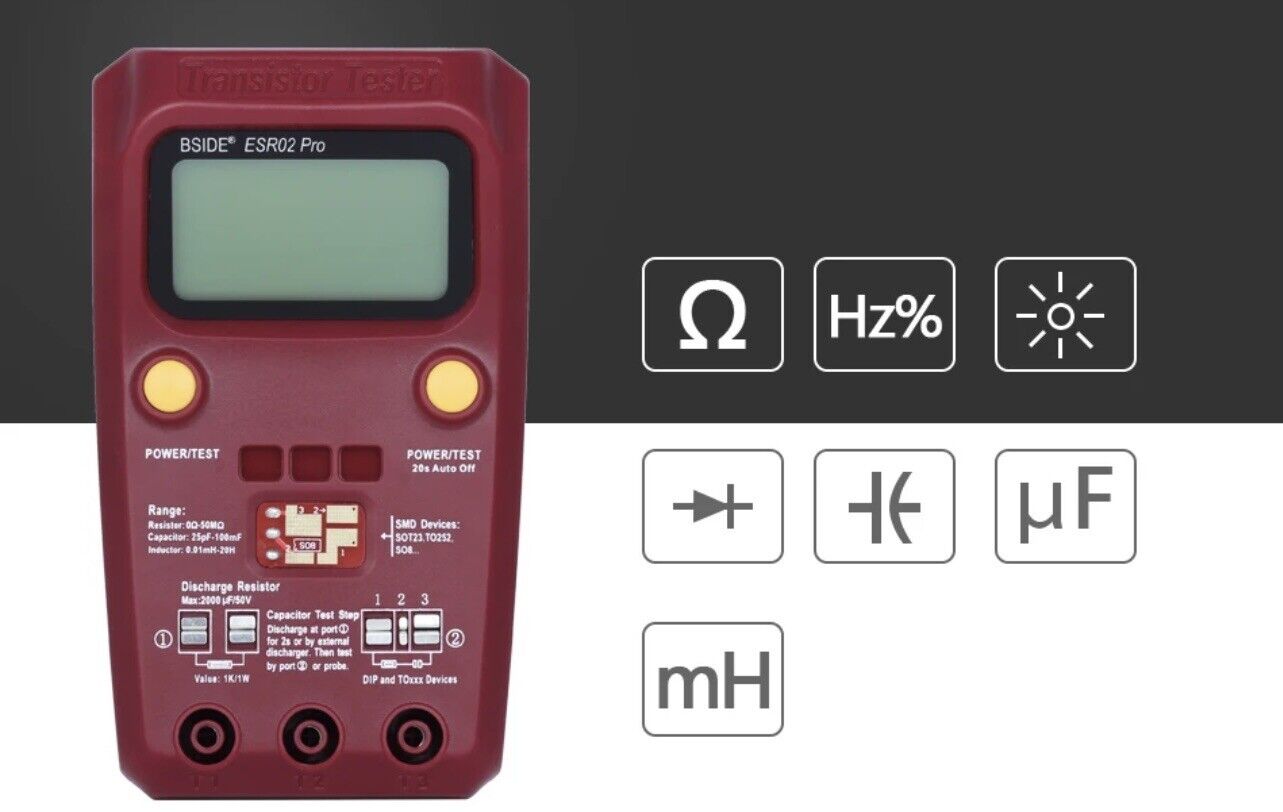

Measurement Functions: L,R,C

Resistance Resolution: 0.01Ω

Product: LCR/ESR Meter

MPN: Does not Apply

Material: ABS

Power Supply: 1 X 9V Battery (not included) DC Jack 9-12V (Not Included)

Brand: Unbranded/Generic

Inductance Resolution: 0.01mH

Form Factor: Handheld-Benchtop

Capacitance Range: 25pF~100mF

Capacitance ESR Resolution: 0.01Ω

Model: ESR02-Pro

Inductance Range: 0.01mH~20H

Package Weight: 270g

Resistance Range: 0Ω~50MΩ

Package Size: 175mm x 100mm x 62mm

UPC: Does not Apply

BSIDE ESR02 Pro Transistor Tester Multifunctional Digital Tester Diode. Sent with Australia Post Parcel Post tracking number included.


Item Description


Description:

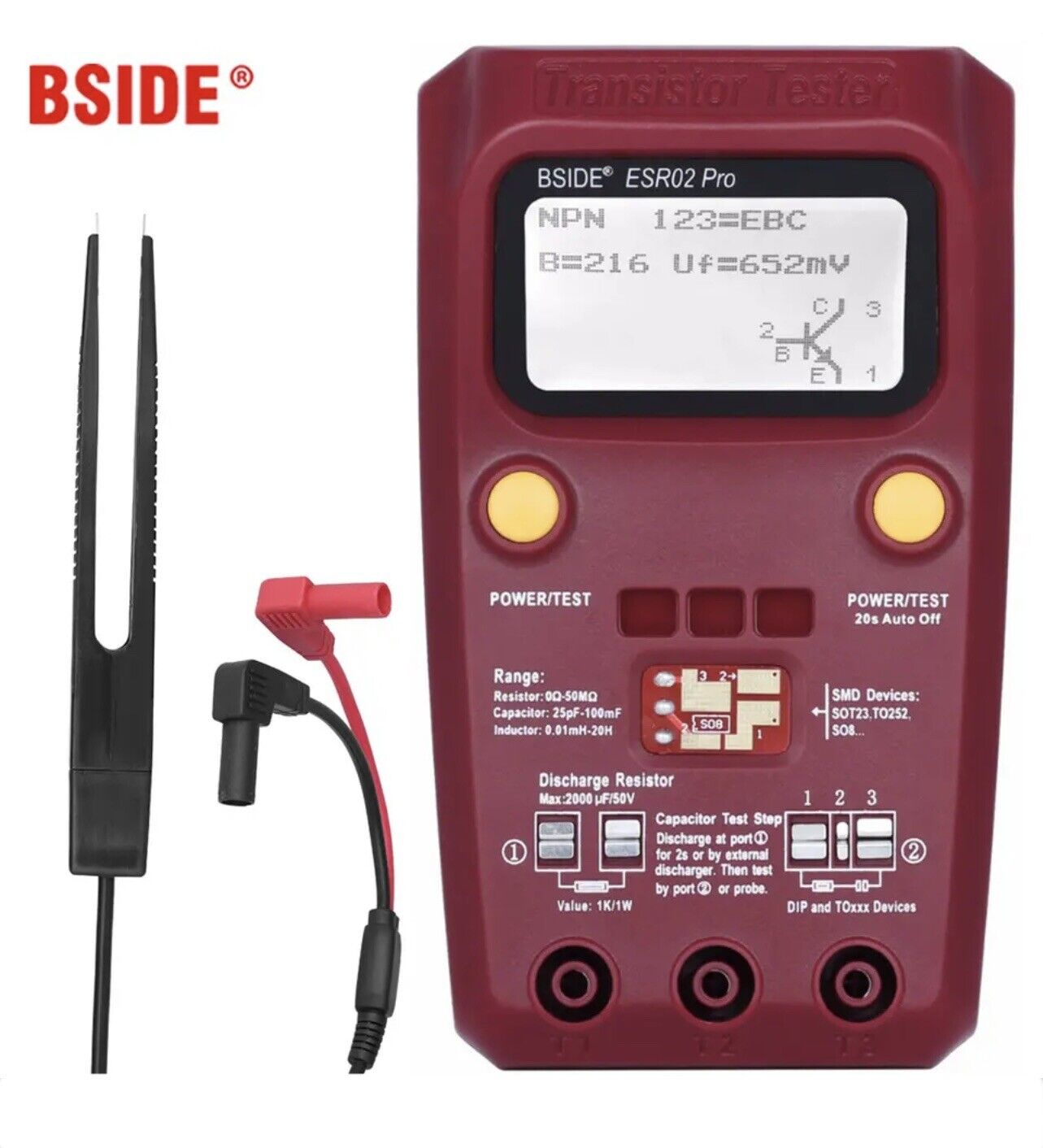

This meter is a small tool for the engineer, electronic maintenance and factory. It is very easy to test plug-in and SMD devices, also can test different kinds of diodes, triodes, thyristors, MOSFET, enable to analysis the device type, the polarity of the pin, the output HFE, the valve voltage, the junction capacitance of the FET.


Note:

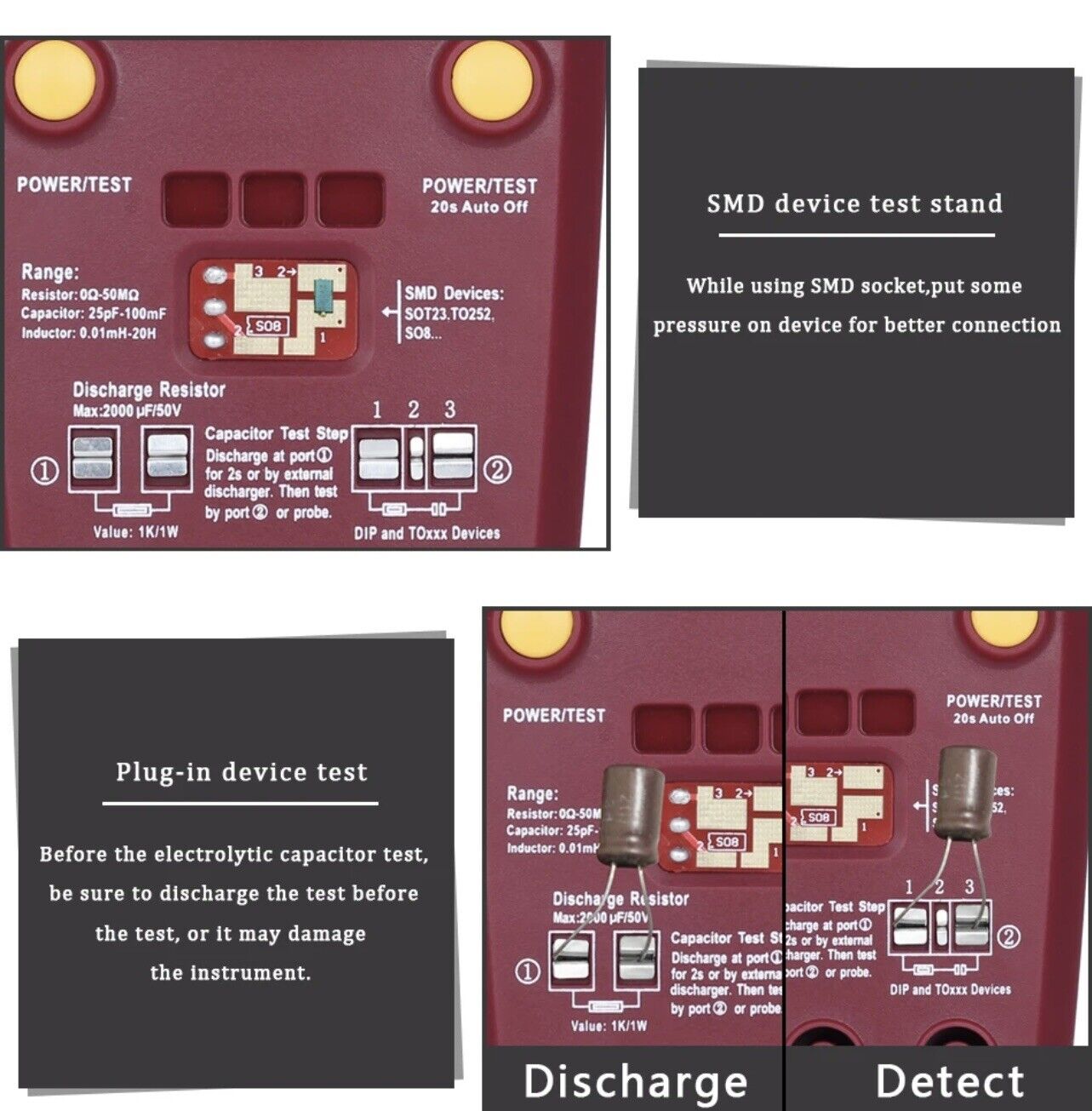

Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit

If using DC supply, please choose DC 9V - 12V adapter (including 9V and 12V)

Can be powered by a 9V 6LR61 battery (not included), when the battery power is under 6V, please replace a new one


Parameters

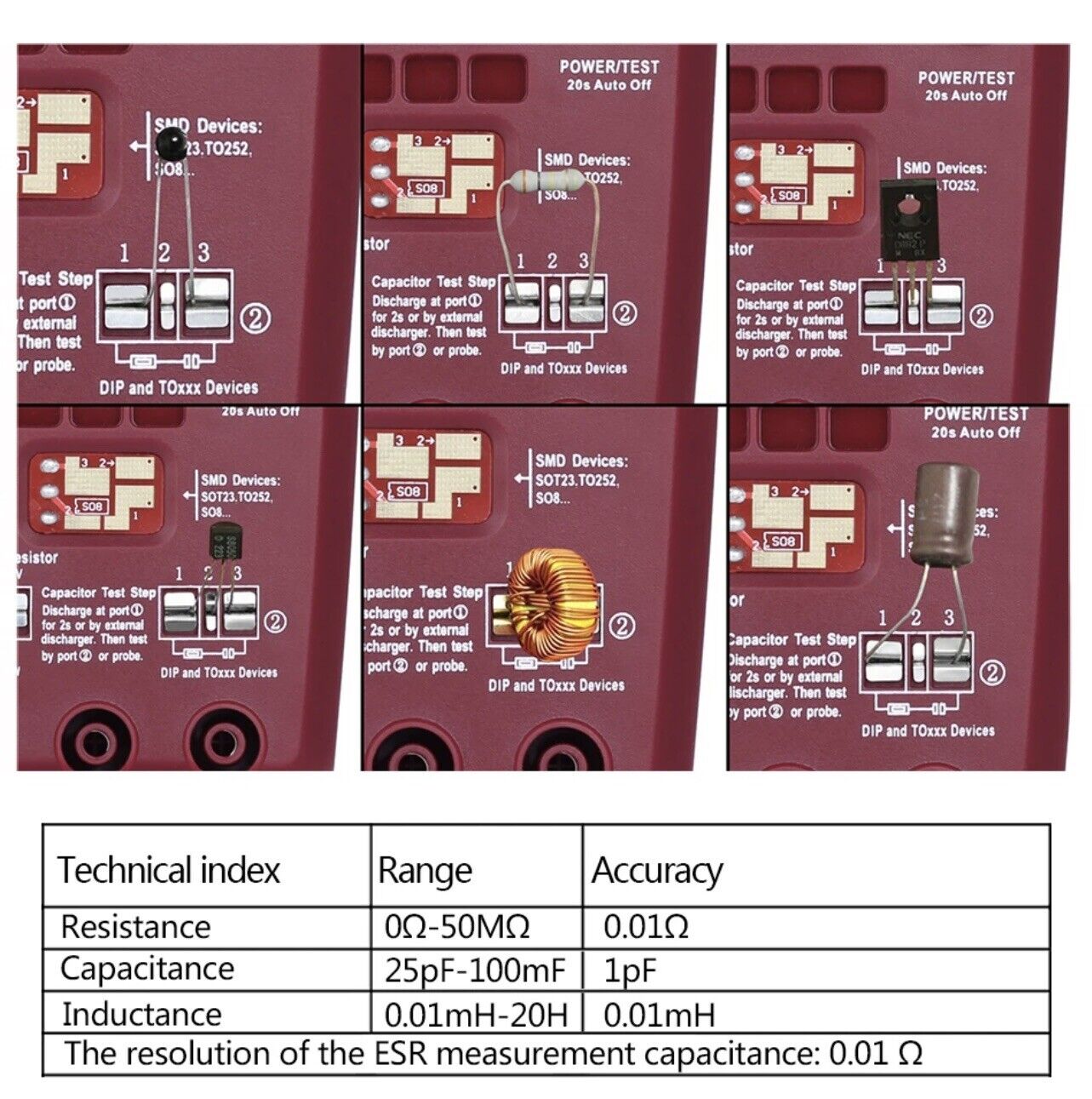

Resistor: 0 - 50 ohm resolution: 0.01 ohm

Capacity: 25pF - 100mF resolution: 1pF

Inductor: ESR measuring resolution: 0.01 ohm


Using Instruction

Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement

Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected

There is a table "typical ESR value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature


Calibration

Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish

Package weight: 0.254 kg

Package Size(L x W x H): 17.50 x 10.00 x 6.00 cm / 6.89 x 3.94 x 2.36 inches

Package Contents: 1 x Digital Transistor Tester, 1 x User Manual in English and Chinese
