Component Tester Kit LCR ESR Transistor PWM Signal Generator DIY Multifunction

Brand: Unbranded

Type: Lcr Meter

Bundle Description: Diy Kit Including Shell

Custom Bundle: Yes

Model: Diy LCR ESR

MPN: Does Not Apply

DIY Multifunction Transistor Tester Kit LCR ESR Transistor PWM Signal Generator. Condition is Brand New.

This is a DIY kit, you need to solder it together. Of you need a ready to go unit, message us please.

Happy to combine post with all our listings.

NOT SUPPLIED WITH A 9 VOLT BATTERY

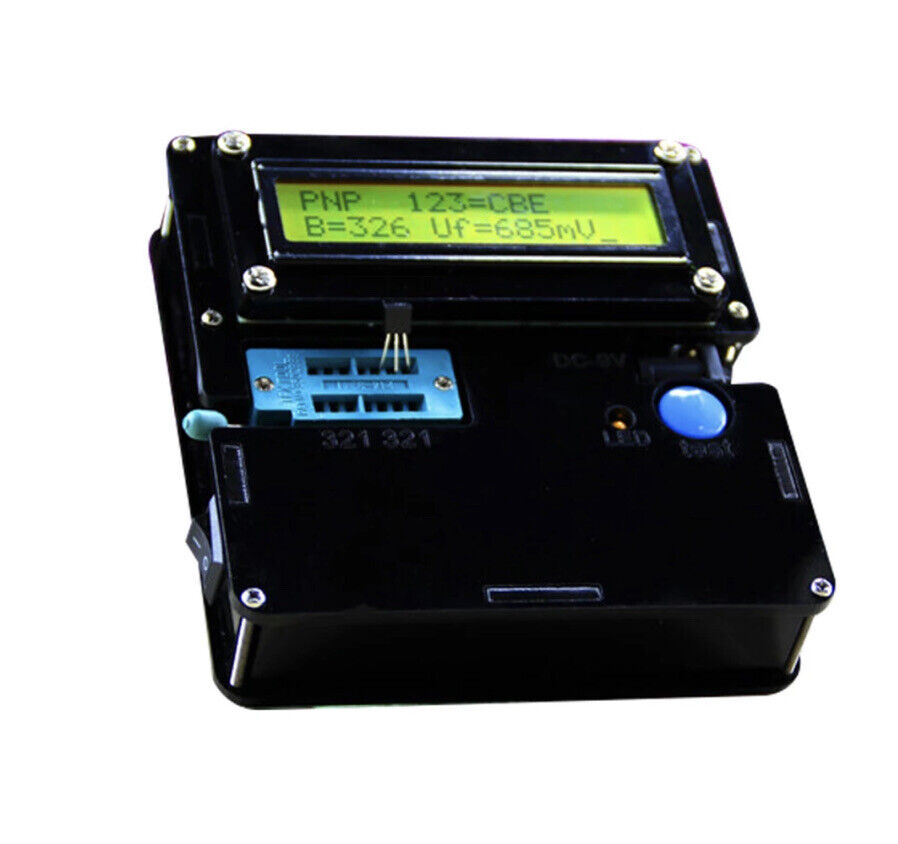

This is a smarter meter kit than the multimeter. It is a good helper for electronic enthusiasts. It has powerful measurement functions, automatically discriminating the types, parameters and pin definitions of various components, and can automatically measure with one button.

Features:

A key measurement operation, automatic power off delay. Turn off current is only 20nA to support battery operation.

Automatic detection of PNP and NPN bipolar transistors, N, P channel MOSFET, JFET FET, diode, dual diode, SCR, resistor, capacitor, inductor. Automatic detection pin definition.

Measuring the current amplification factor (B) and the turn-on voltage (Uf) of the emitter. Darlington transistor can be identified by high threshold voltage and high current amplification factor.

Bipolar transistors and MOSFET can be detected inside the protective diode and displayed on the screen.

Measure the threshold voltage and gate capacitance of MOSFET.

Supports two resistance measurements, potentiometers can also be measured. If the potentiometer is adjusted to one end of the tester, the tester cannot distinguish between the middle and the two pins.

The resolution of the resistance measurement is 0.1 ohms and the highest measured value is 50M ohms.

Capacitance measurements range from 25pF to 100mF (100 thousand UF). Resolution up to 1 pF, inductance measurement range of 0.01MH-20H, less than 0.01MH will be displayed as a resistor.

The equivalent series resistance (ESR) of the capacitor above 2UF can be measured with a resolution of 0.01 ohms. This feature is very important for the detection of capacitive performance.

Two diodes can be displayed in the correct direction of the symbol, while showing the forward voltage drop.

LED is detected as a diode, the forward voltage drop is higher than the normal value. Dual LED detection for dual diode. Detection of light emitting diode will shine.

Specifications:

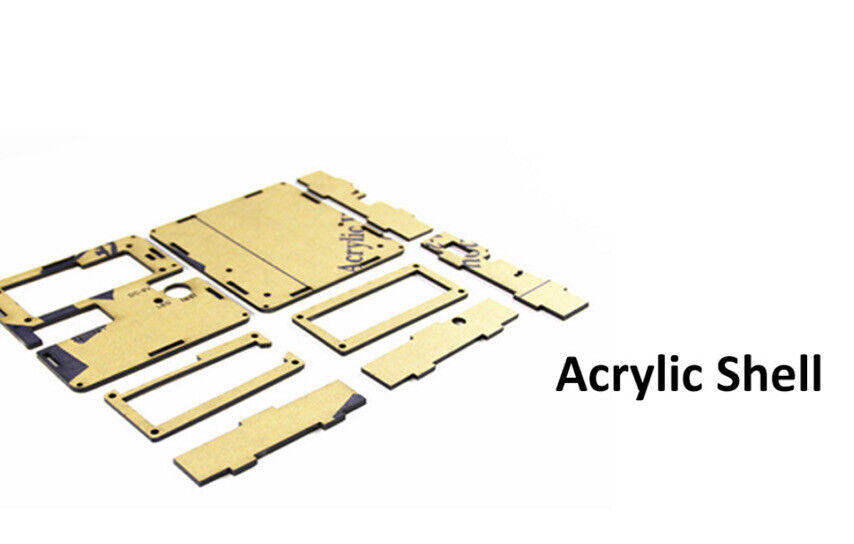

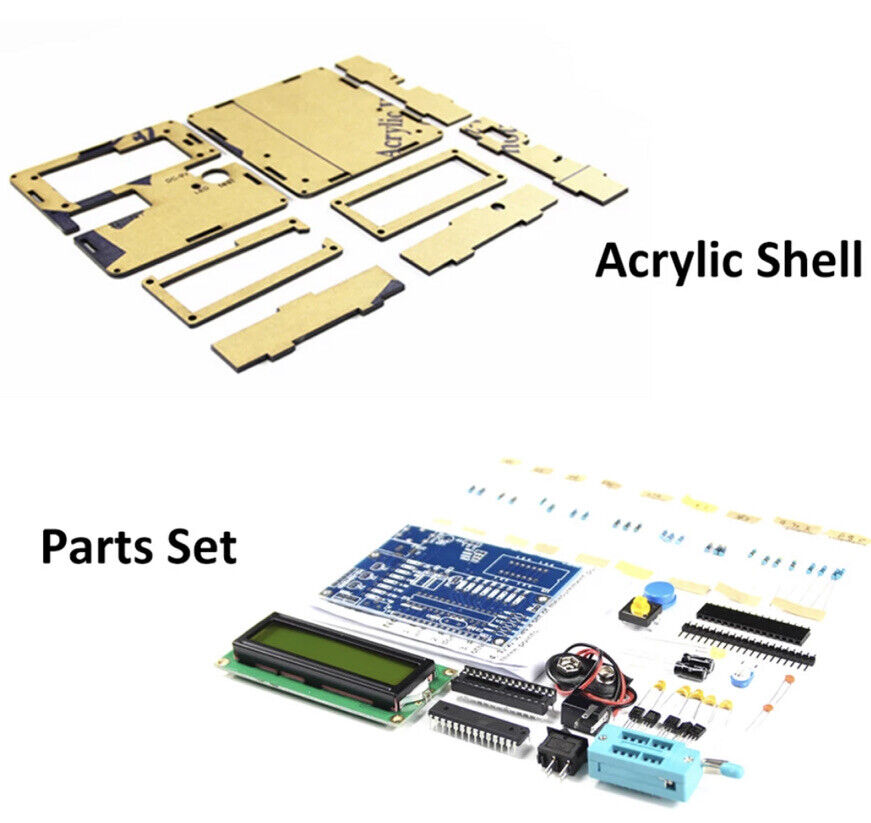

Shell material: acrylic

Shell color: black, white, transparent (optional)

Power supply: 1 * 9V battery (not included) or DC 9V

Resistance measurement: Max. 50MΩ

Resistance resolution: 0.1Ω

Capacitance measurement: 25pF-100mF

Capacitance resolution: 1pF

Inductance measurement: 0.01MH-20H

Black shell weight: 86g / 3.0oz

White shell weight: 86g / 3.0oz

Transparent shell weight: 80g / 2.8oz

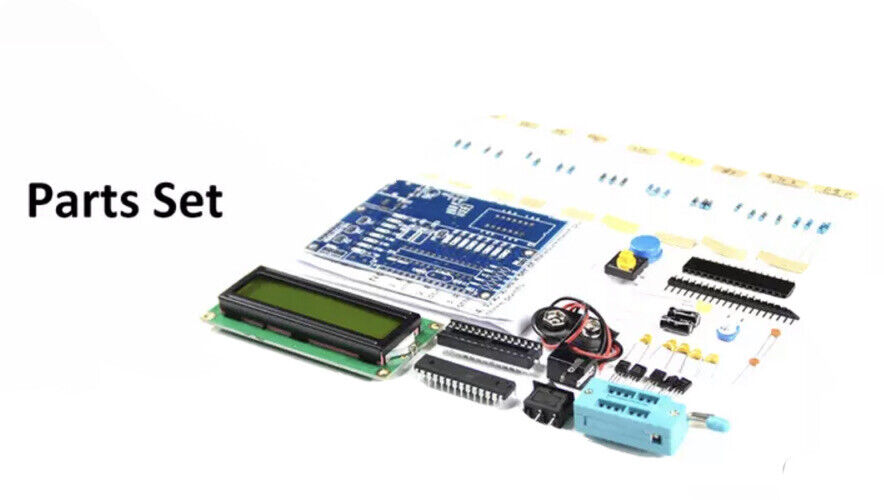

Parts weight: 79g / 2.8oz

Package size: 102.6 * 95.2 * 33.7mm / 4.0 * 3.7 * 1.3in

Package weight: 166g / 5.9oz, 160g / 5.6oz (optional)

Package list:

1 * DIY Transistor Tester

1 * DIY Acrylic Shell (BLACK)
