FNIRSI

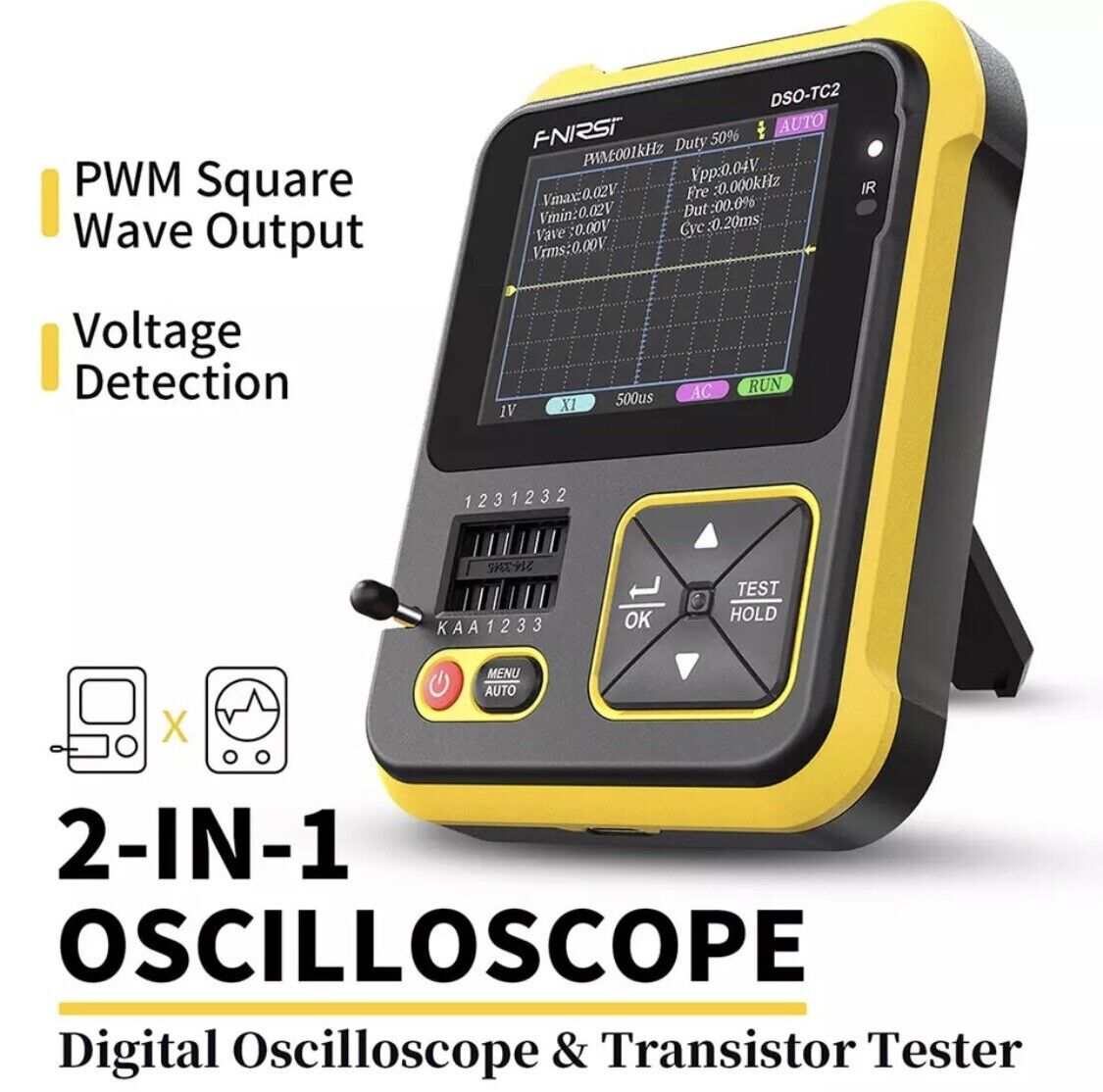

Digital Oscilloscope LCR 2in1 DSO-TC2 Electronic DIY PWM Generator Inc Probes

Digital Oscilloscope LCR 2in1 DSO-TC2 Electronic DIY PWM Generator Inc Probes

Regular price $89.00 AUD
Regular price Sale price $89.00 AUD
Sale Sold out
Shipping calculated at checkout.

Brand: FNIRSI

Oscilloscope Type: Digital Oscilloscope

Modification Description: /

Type: Digital Oscilloscope, LCR, PWM Generator

Number of Channels: 1

Bundle Description: /

Custom Bundle: No

Model: DSO-TC2

MPN: Does Not Apply

Maximum Real-Time Sampling Rate: 2.5MS/s

Maximum Bandwidth: 200 KHz

Modified Item: No

Digital Oscilloscope LCR 2in1 DSO-TC2 Electronic DIY Detection Teaching Tool.

Sent with Australia Post Parcel Post tracking number included.

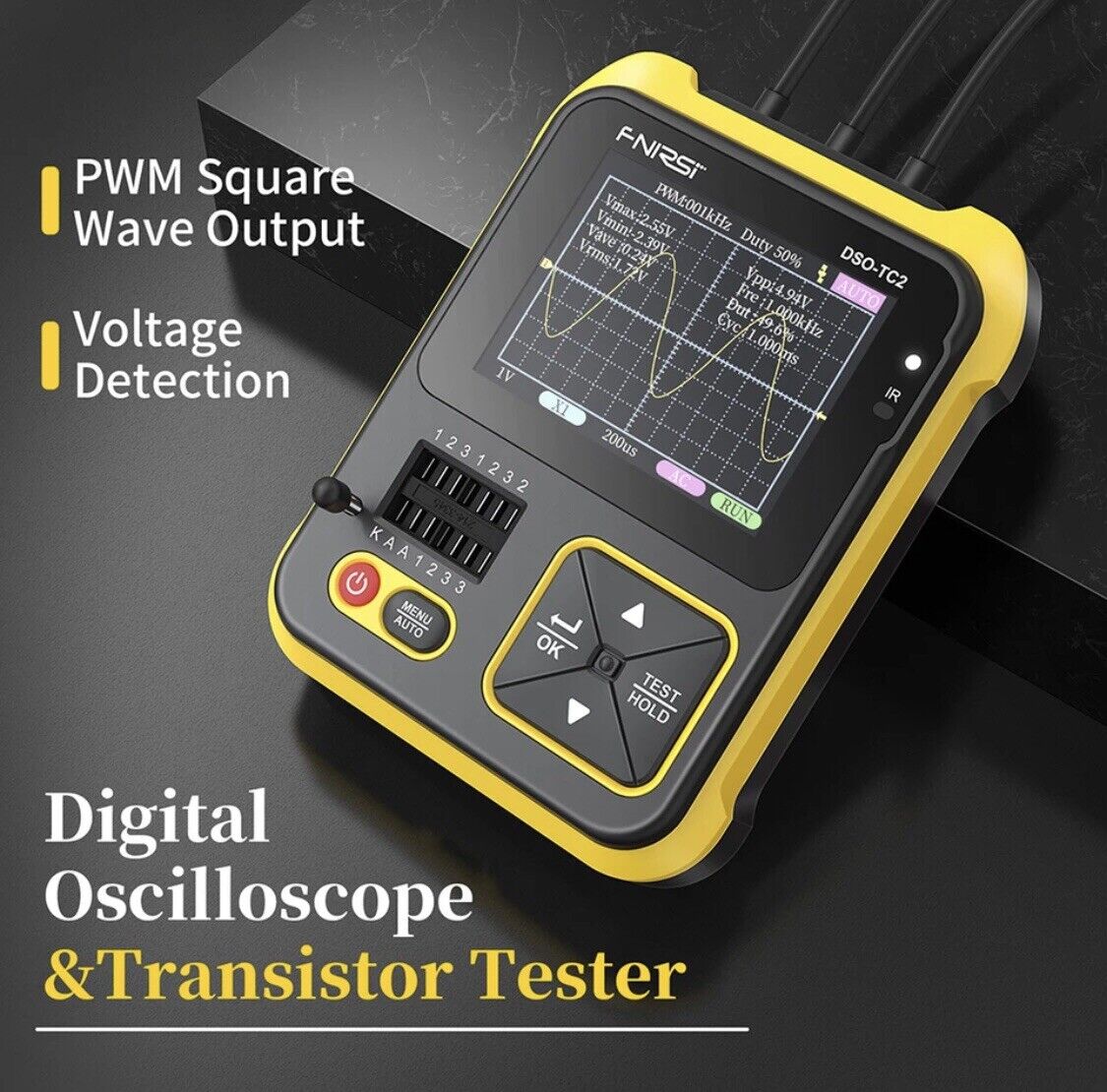

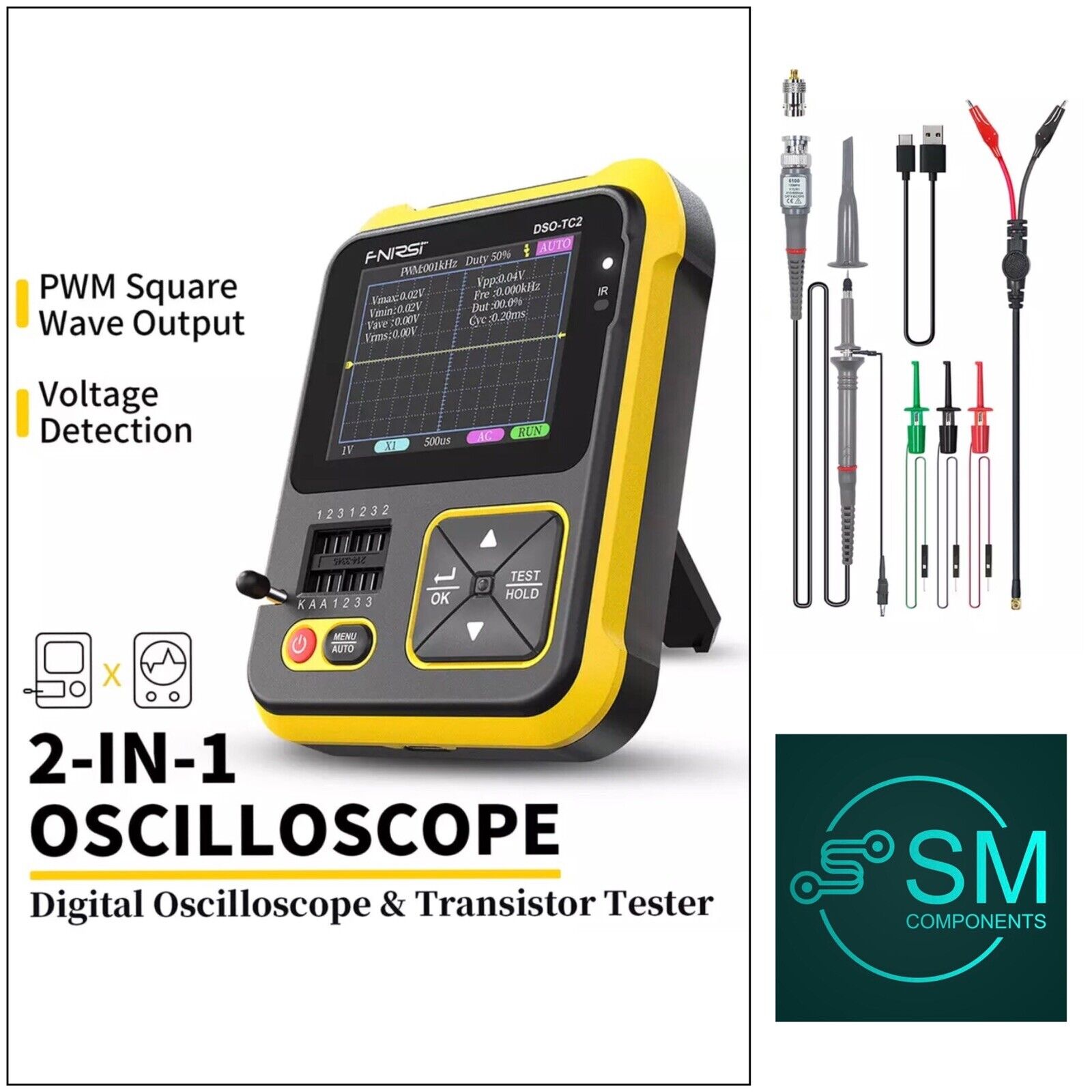

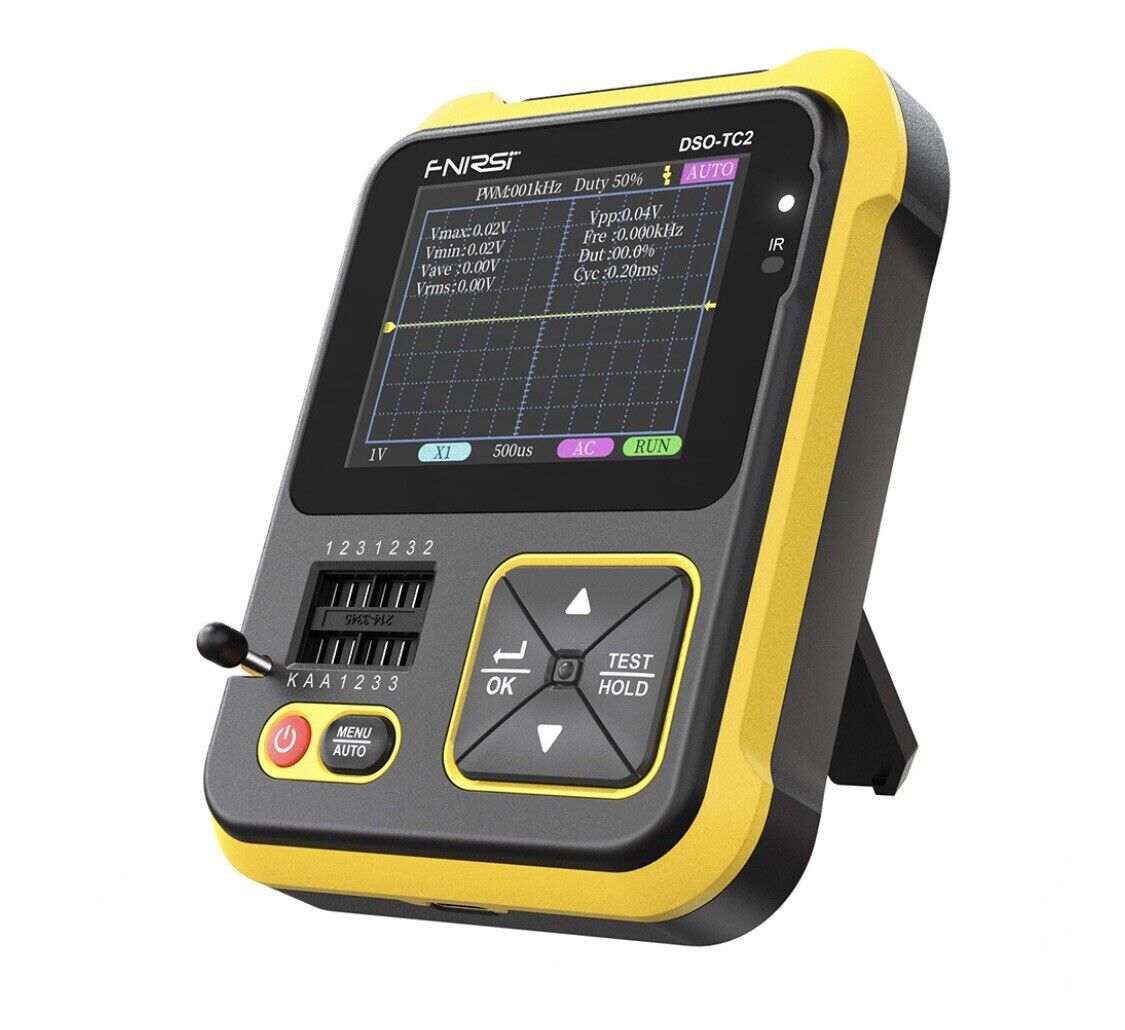

TC2 2.4 inch TFT Color Screen Digital Oscilloscope LCR Meter 2 in 1 Handheld PWM Signal Generator Oscilloscope with LED Backlight

Feature:

1. -TC2 cleverly integrates digital oscilloscope, electronic component tester, PWM signal generator and other functions into one. Equipped with a large-size color dot-matrix TFT display screen and built-in rechargeable lithium battery, it brings users more and stronger practical functions with a small size, and at the same time has good portability.

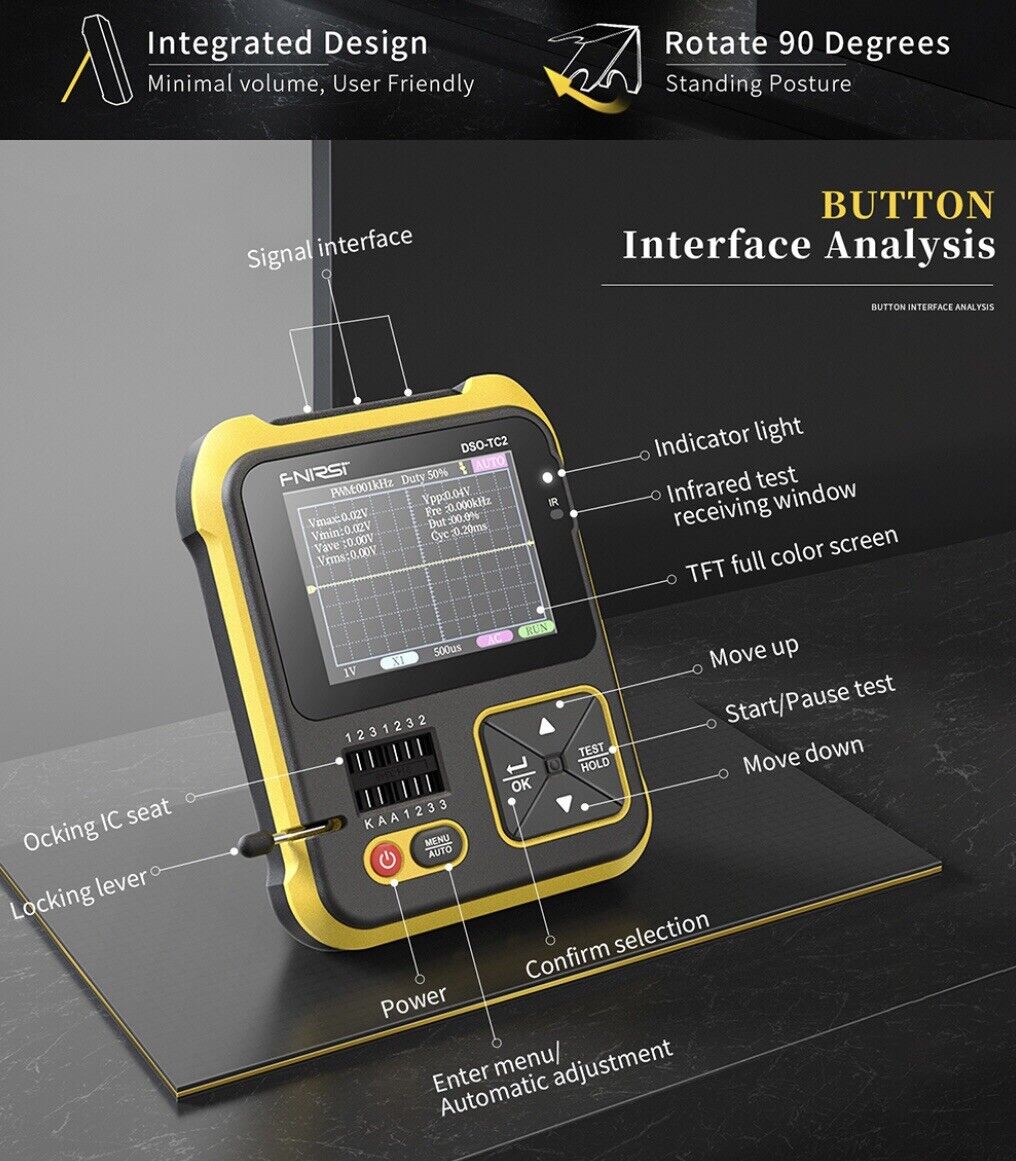

2. has a variety of working modes such as oscilloscope and component tester. Each time you click the power button, it will enter the mode selection interface. Press the up and down keys of the direction keys to select: select the "Mos Test" item and press "OK" key to enter the component tester mode; select the "Oscilloscope" item and press the "OK" key to enter the oscilloscope mode.

3. The "Mos Test" mode can test various types of transistors, and can determine the device type, pin polarity, hFE, turn-on voltage; it can test capacitors, resistors, inductance components, etc.

4.TC2 is especially suitable for fast pairing of transistors, identification of miscellaneous surface mount components and non-character components, and preliminary screening of small batch components; the "Oscilloscope" mode can test the signal waveform of the circuit, and supports connection with a computer , you can refresh the official firmware by yourself to complete the upgrade.


Specification:

Material: ABS

Machine size: 103x79x31mm/4.06x3.11x1.22in

Charging type: USB Type-C / 5V

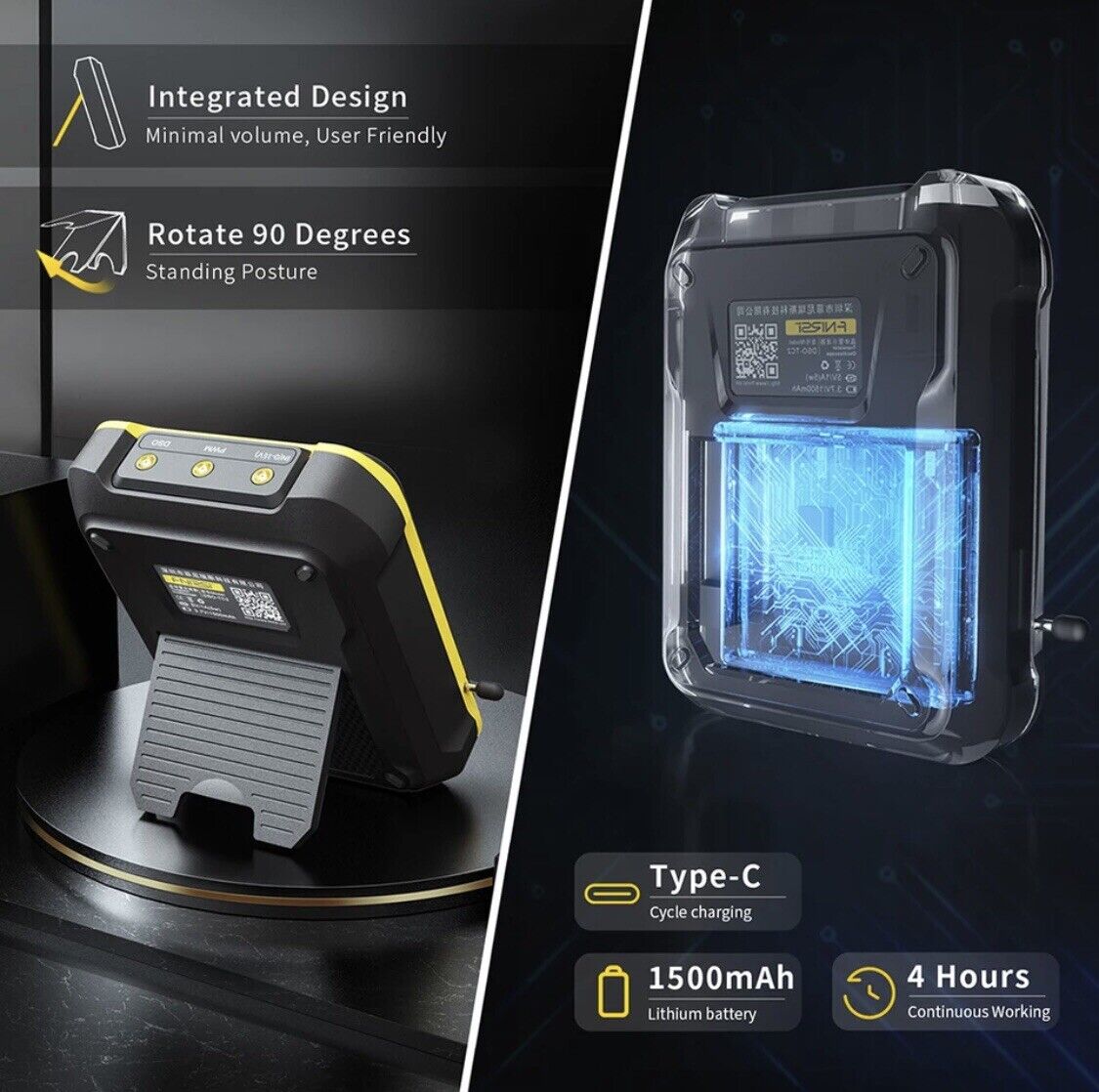

Power supply: built-in 1500mAh rechargeable lithium battery

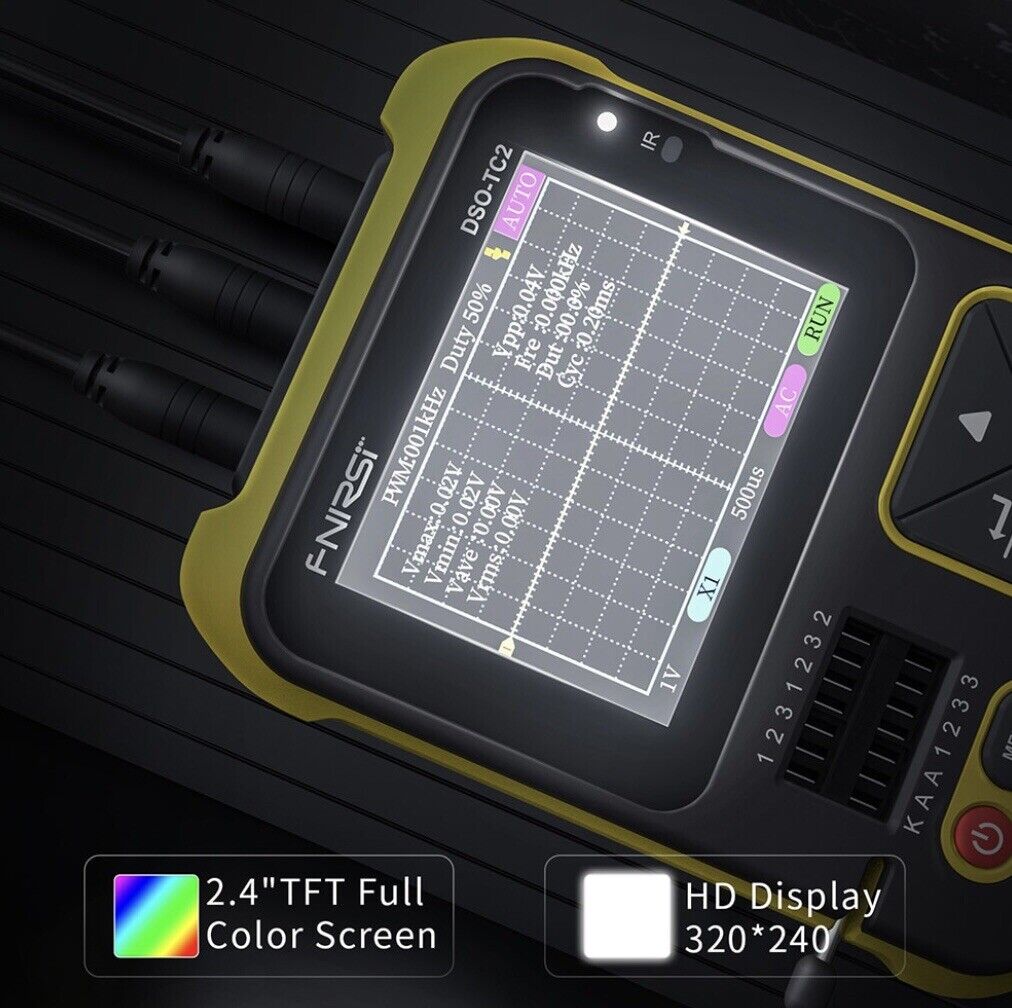

Display: 2.4-inch TFT color screen, LED backlight


Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

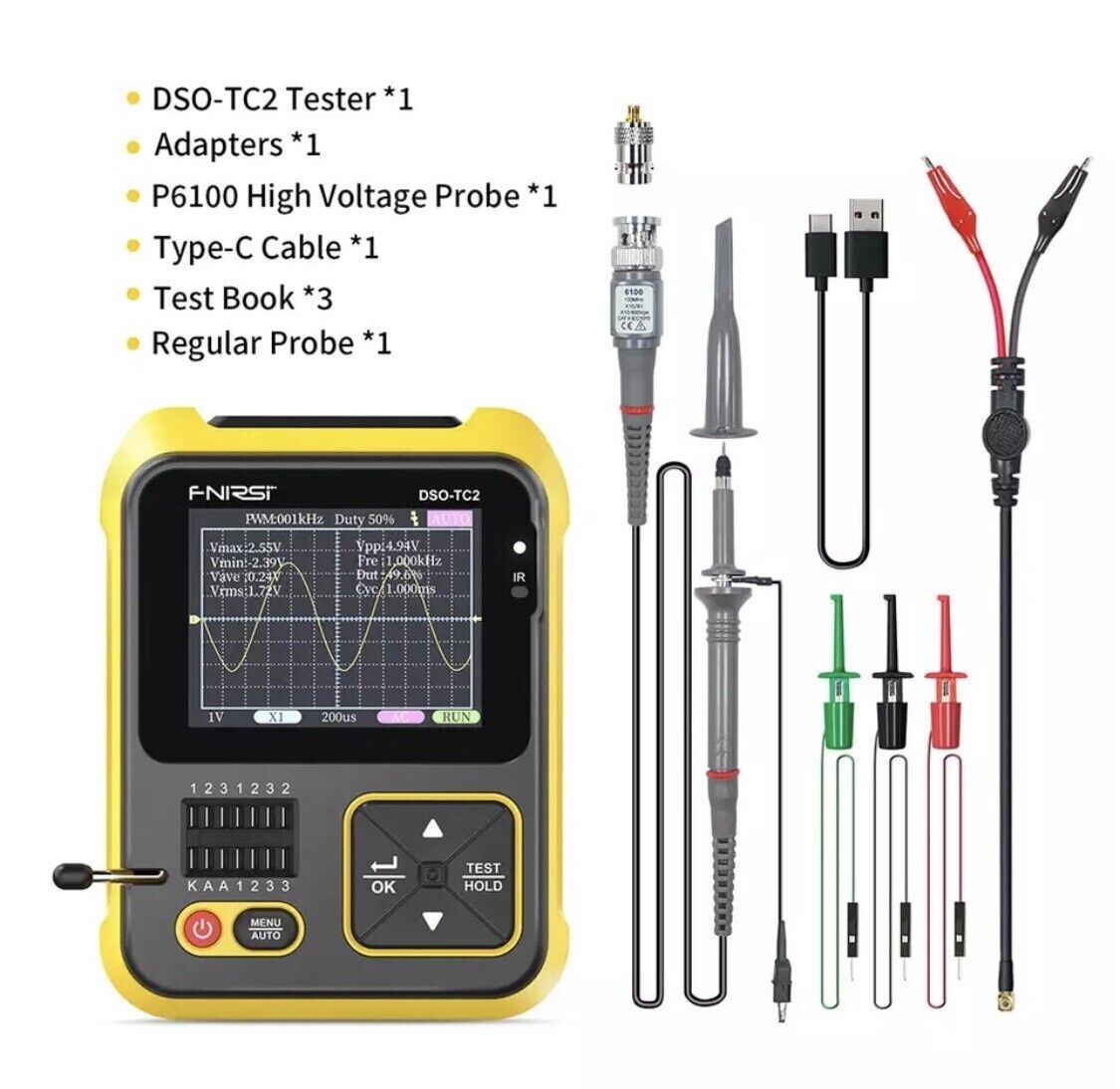

Packages:

8pcs:

1*DSO-T2 Tester

1*Type-C charging cable

3*Test slot

1*Ordinary probe

1*10X probe

2*Probe adapter
