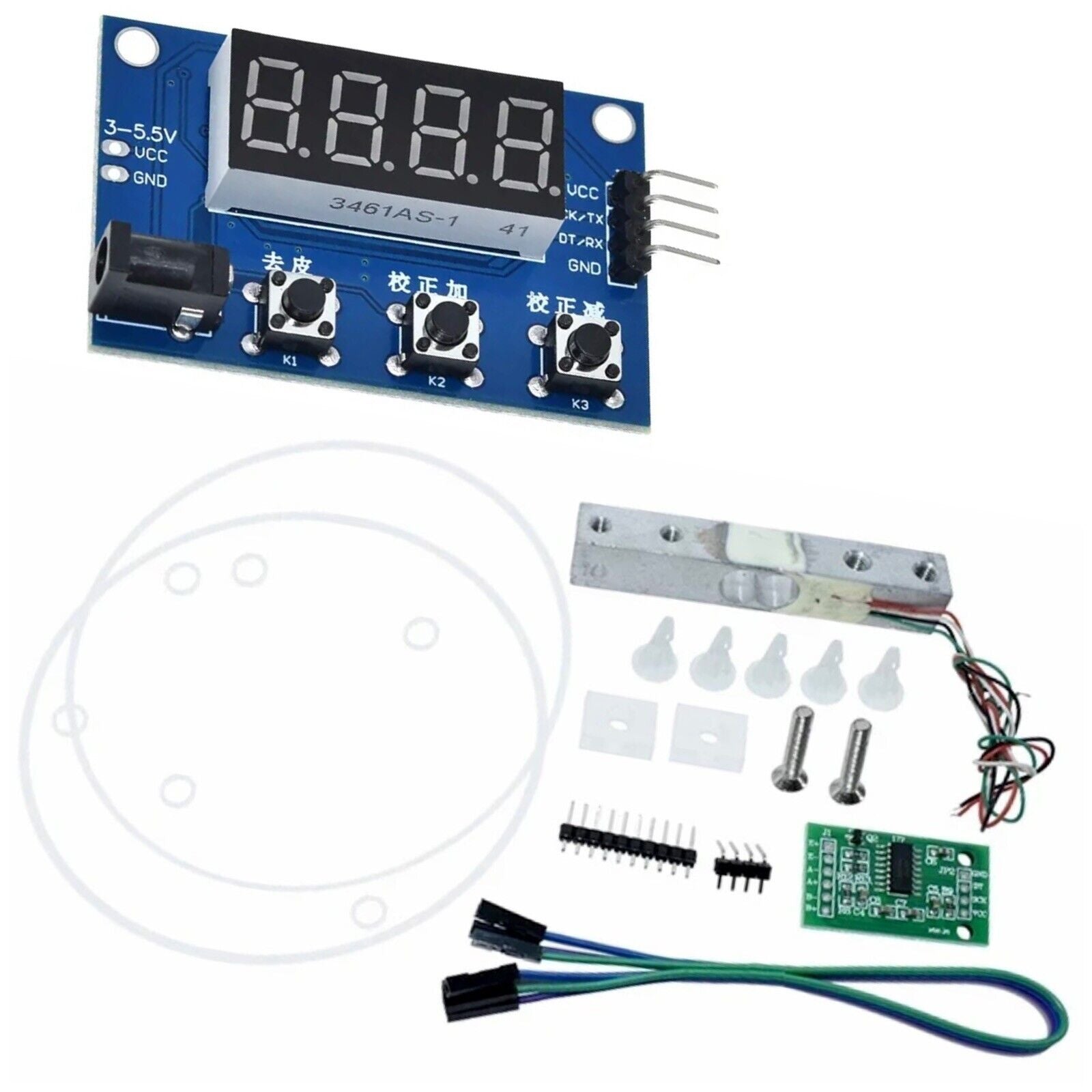

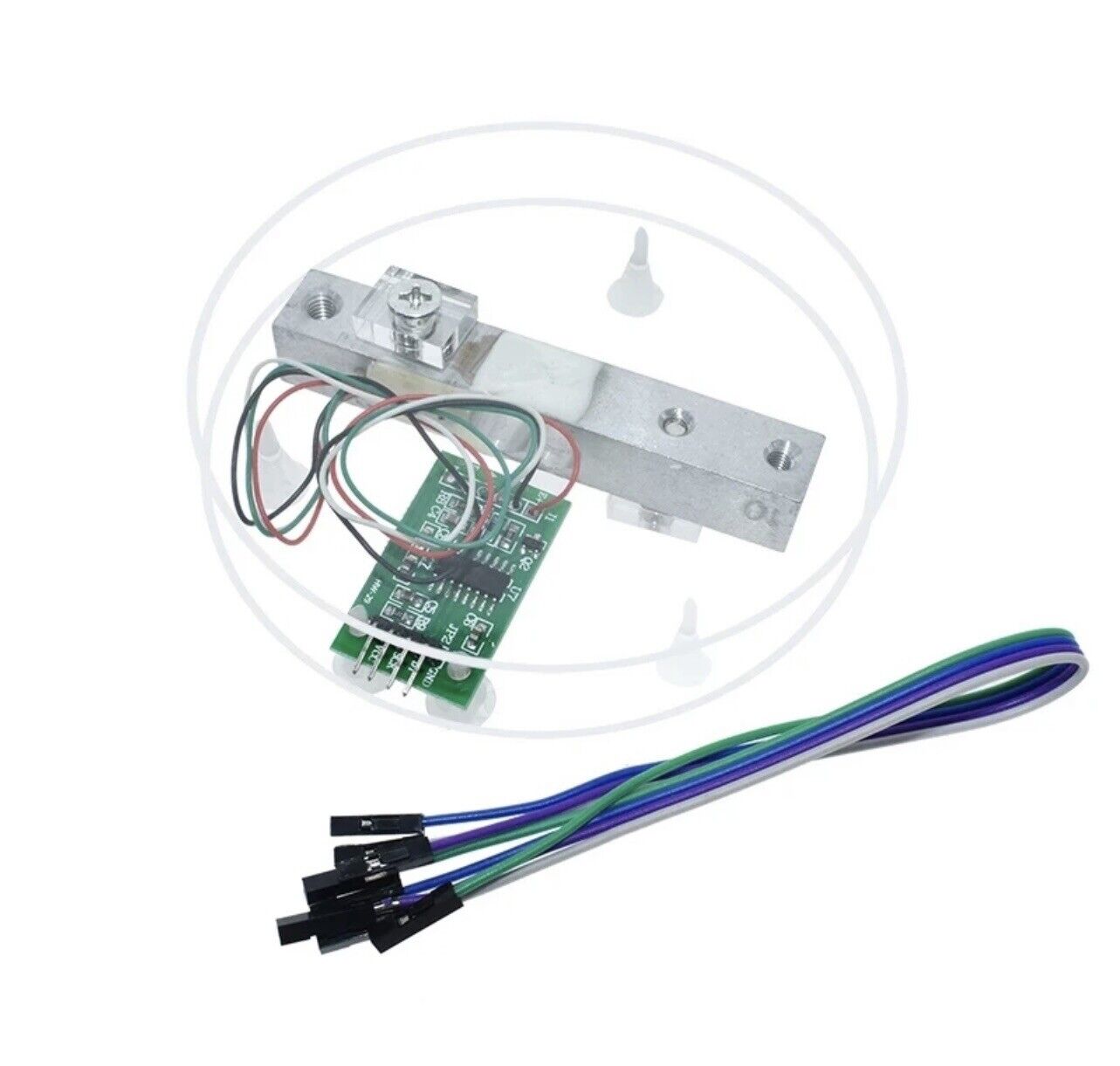

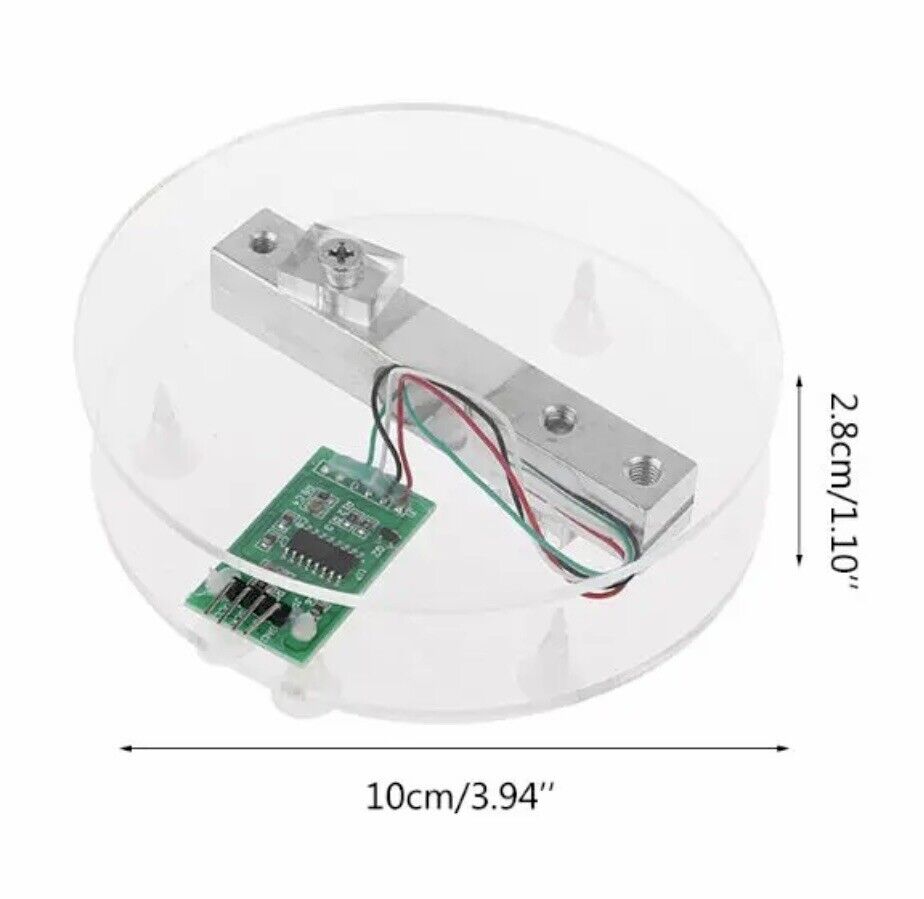

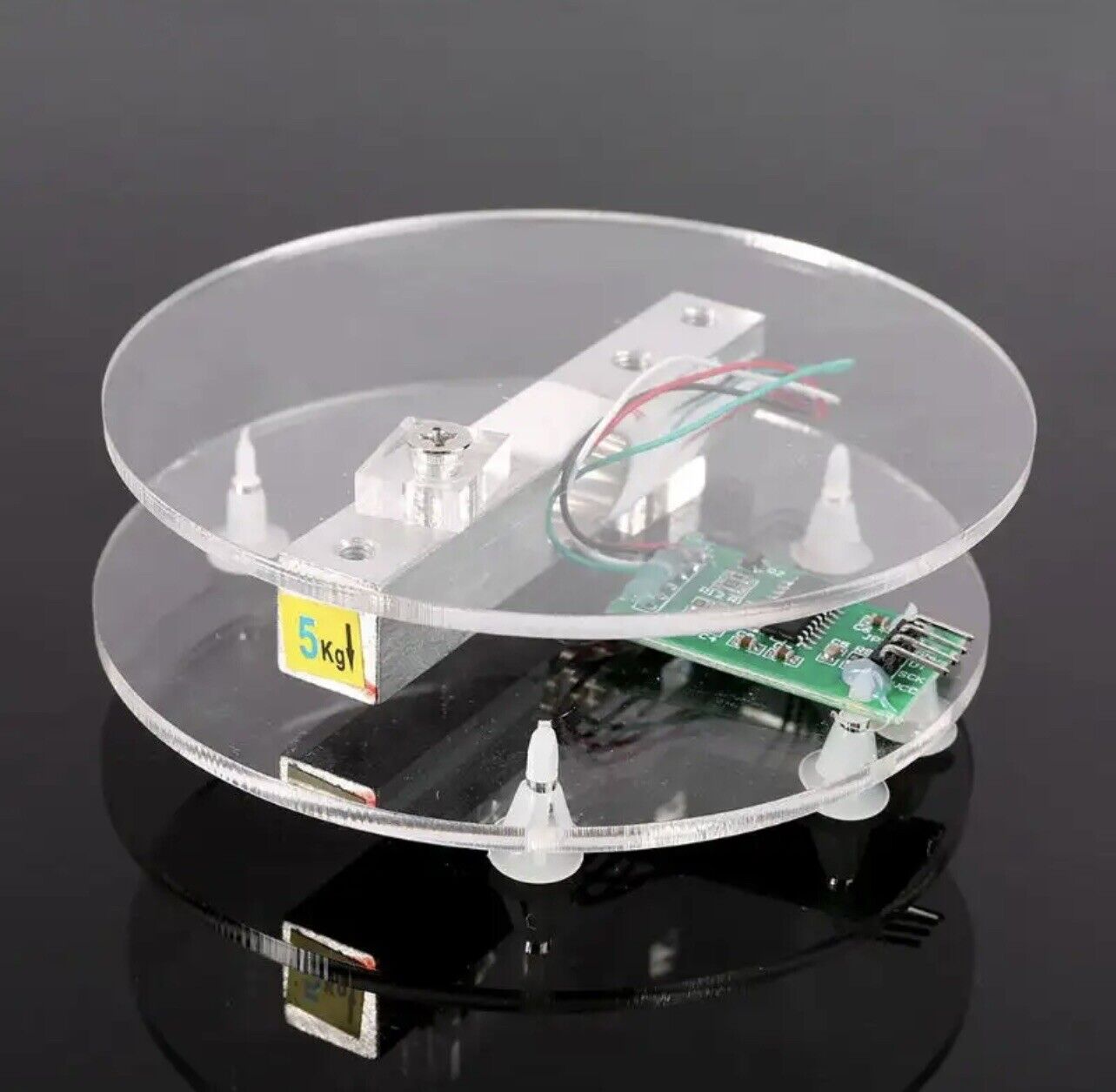

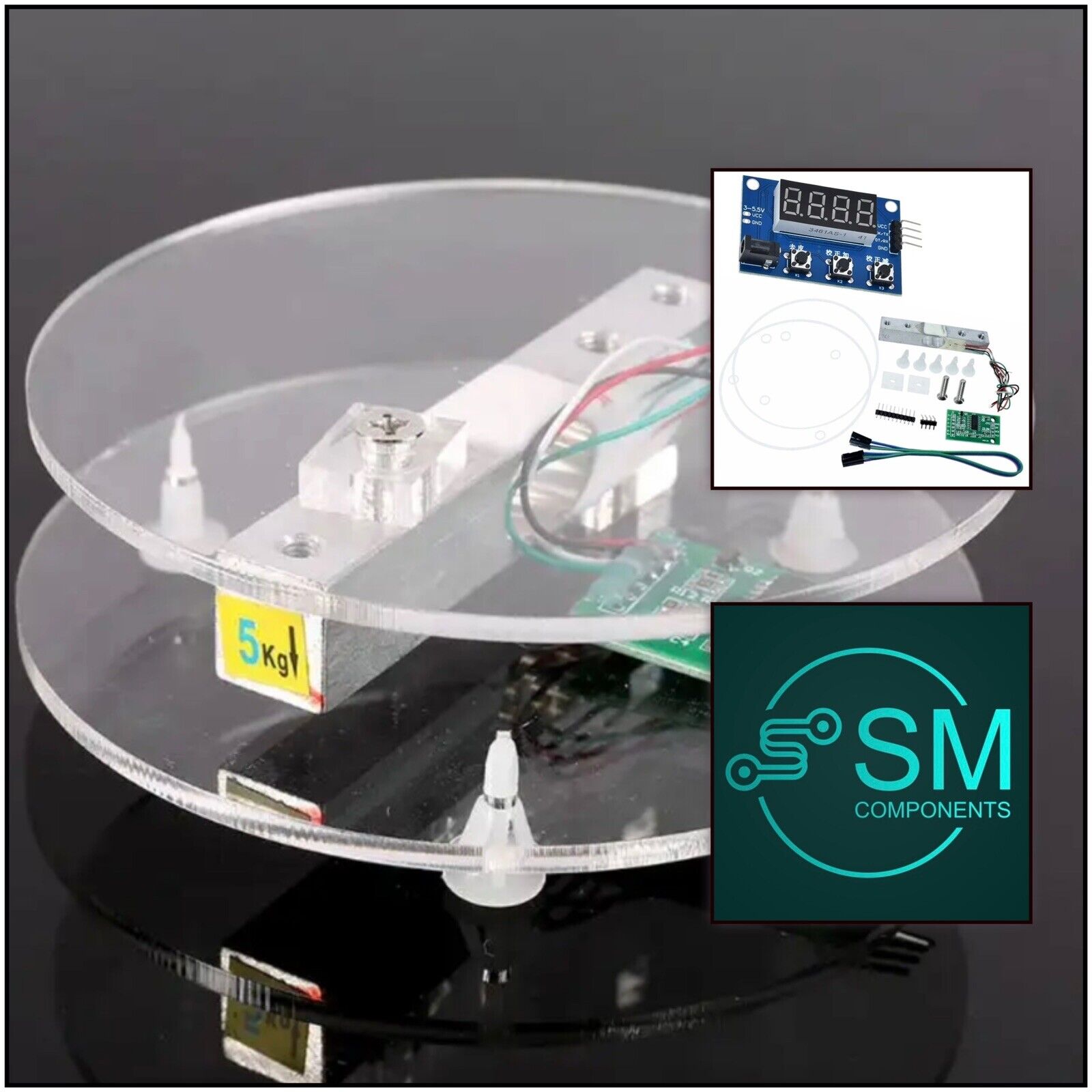

DIY 5KG Load Cell Weight Scales HX711 Converter Breakout Module Inc LED Display

Brand: EQV Modules

Current Type: DC

EAN: Does not apply

Termination Type: DC Connector

Output Type: Digital

Model: 5kg Load Cell + HX711 + 4 Digit Display

UPC: Does not apply

MPN: Does not apply

Compatible Mounting Type: Stand Alone

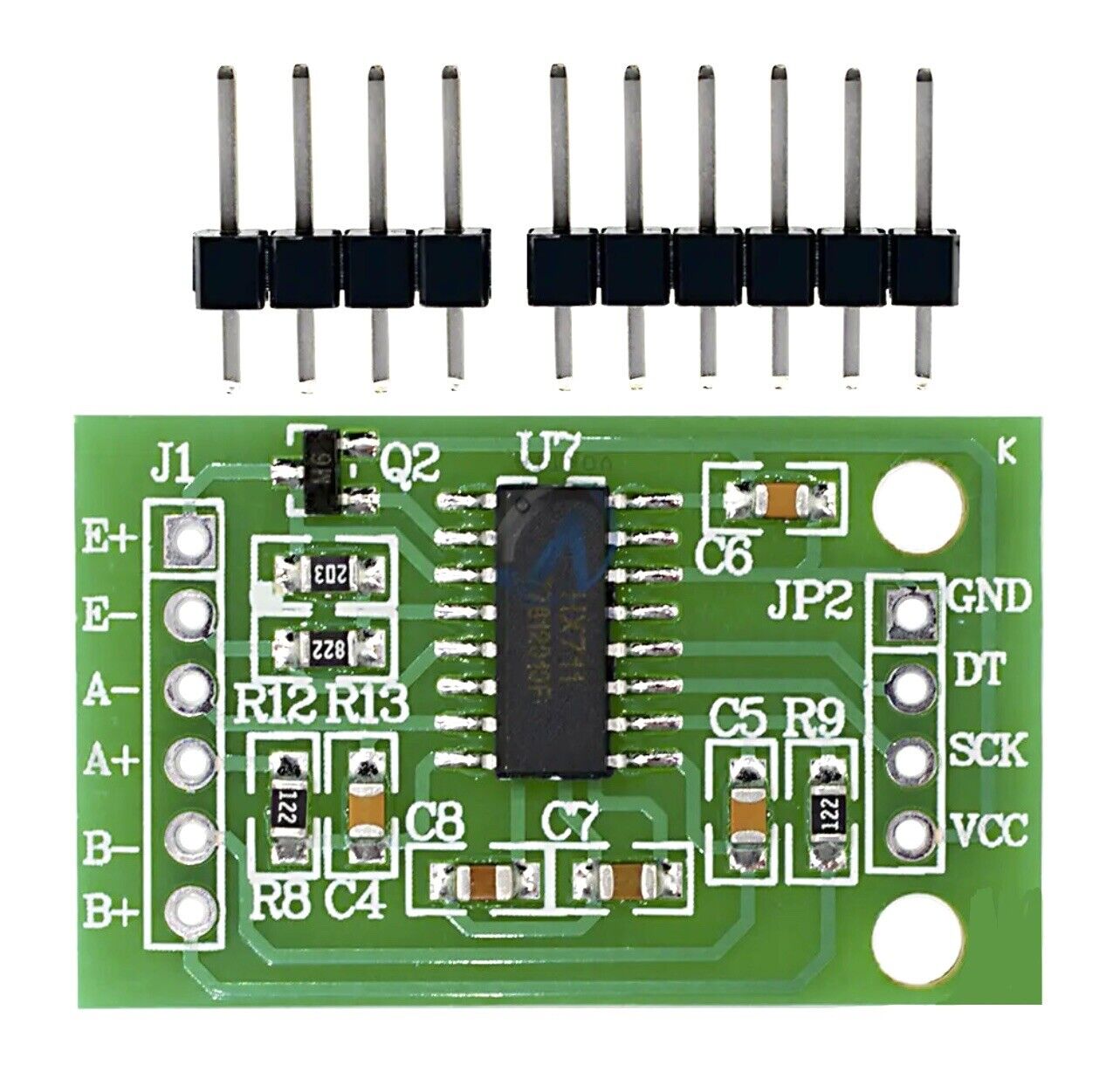

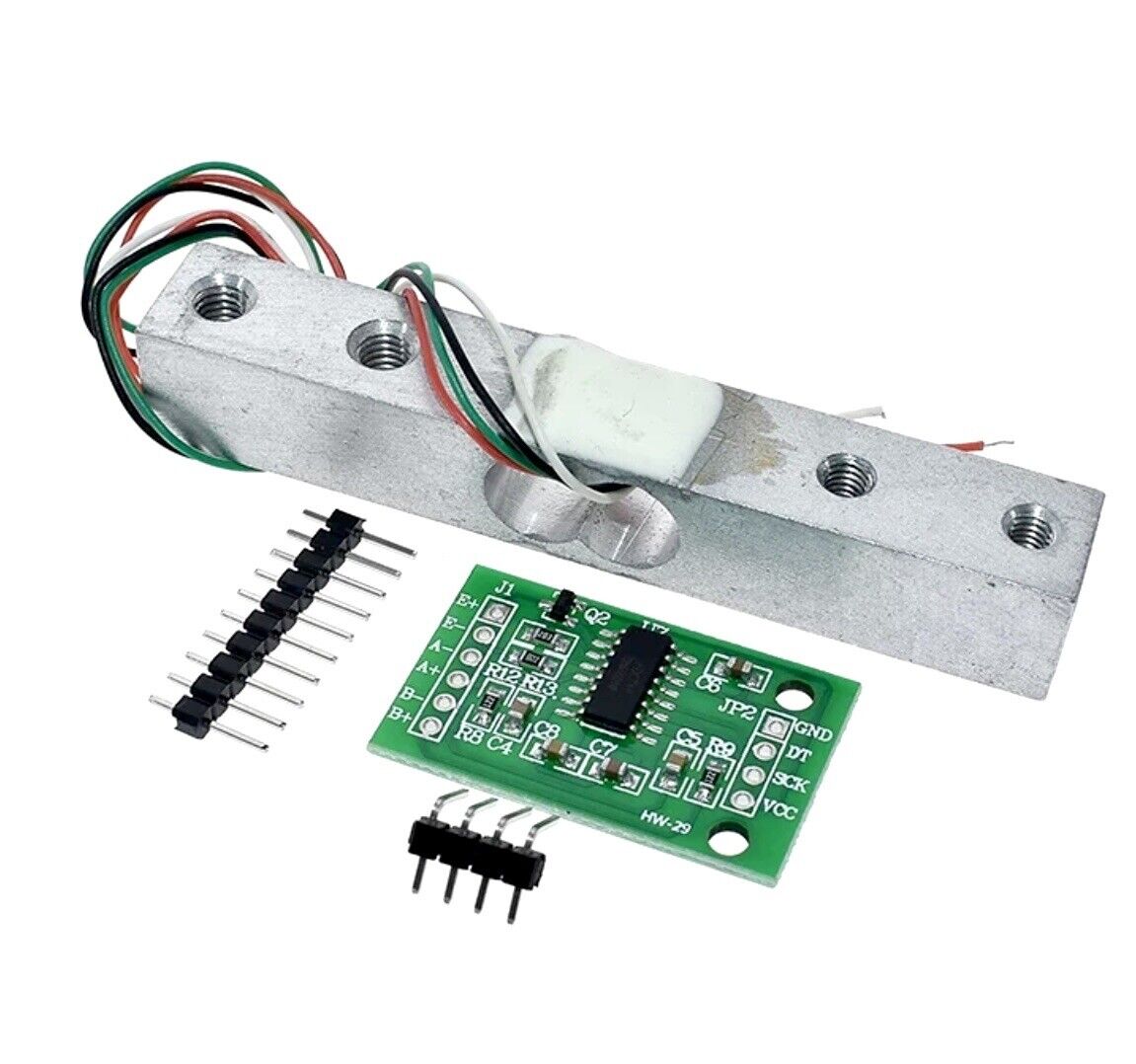

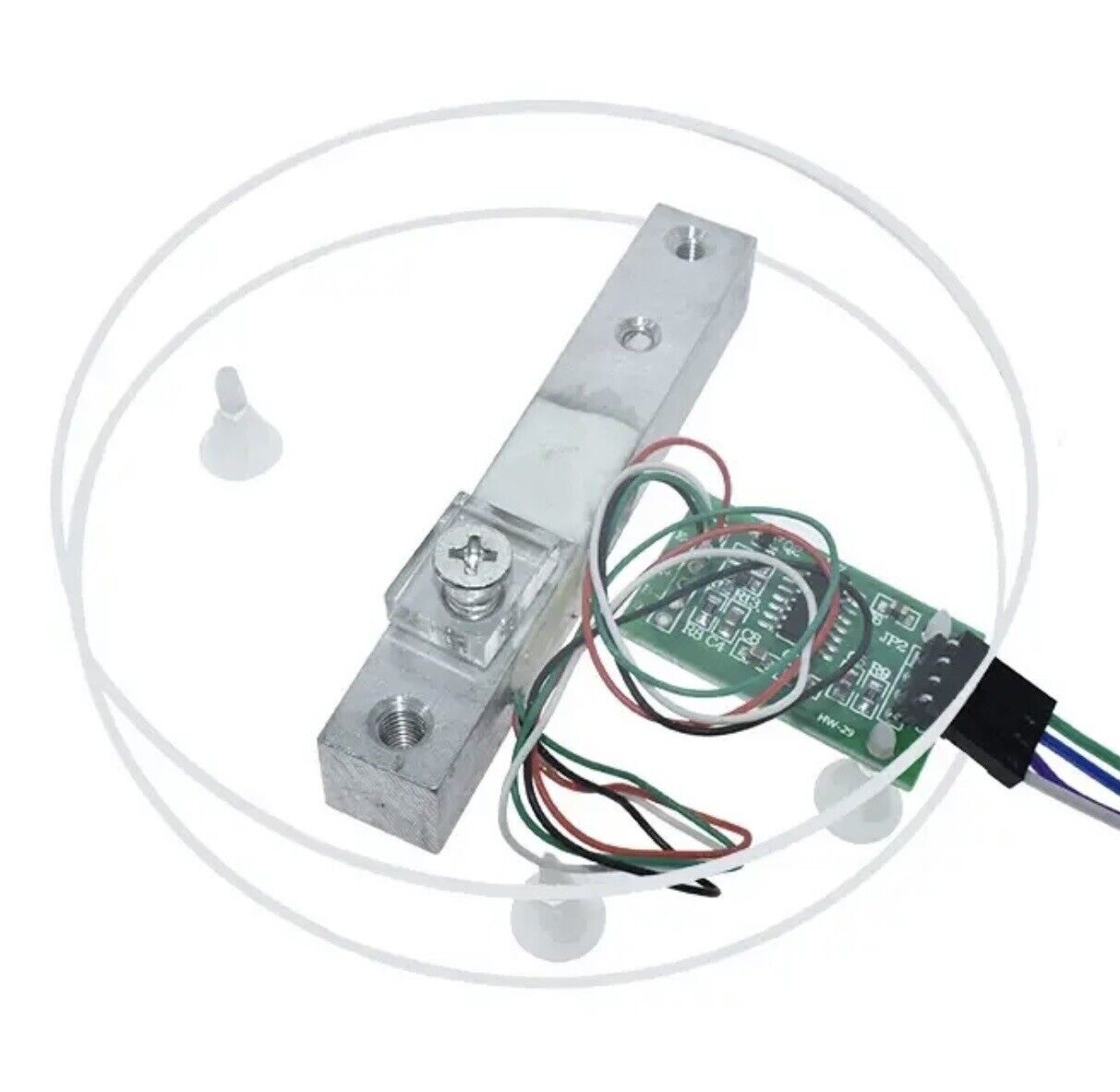

DIY 5kg Digital Load Cell Weight Sensor HX711 AD Converter Breakout Includes 4 Digit Led Display.

Sent with Australia Post Parcel Post tracking number included.

Specification:

The module is designed for wide voltage, and the power supply range is DC 3~5.5V.

5000 grams @ 1.0 gram resolution.

There are 2 power supply methods. USB cable for power supply or wire it yourself (leave the interface).

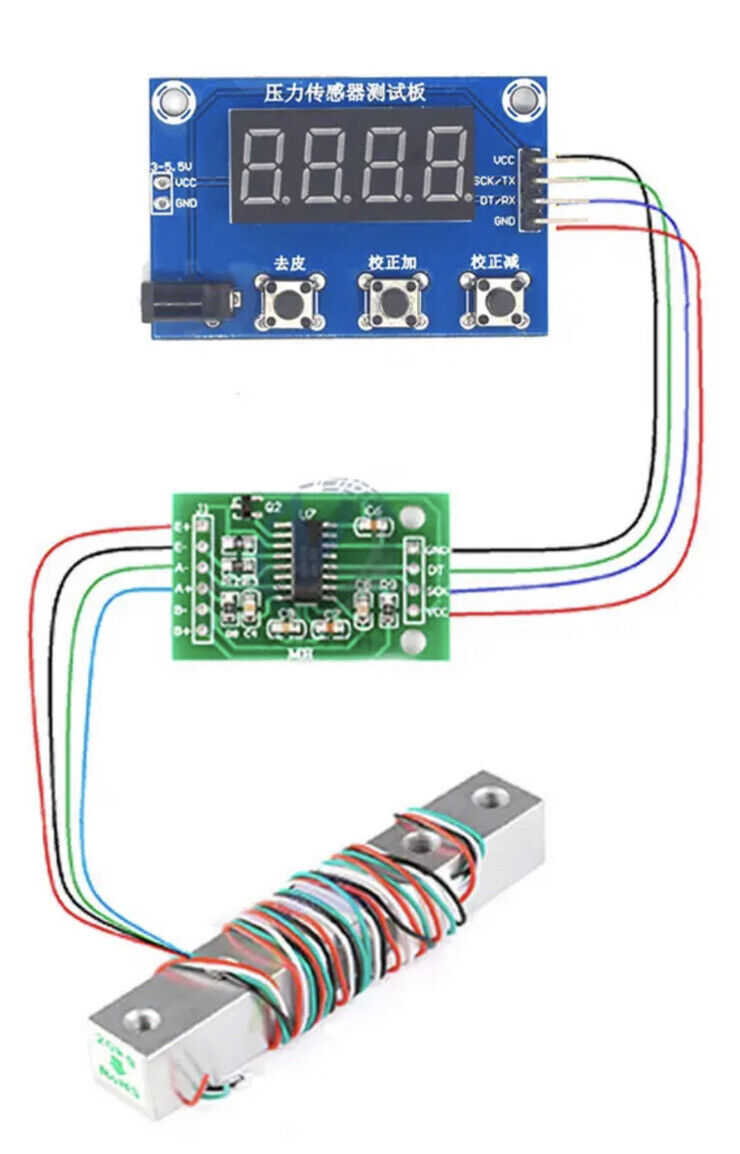

The module is connected to the pressure sensor first, and then powered on for use. After connecting to the pressure sensor for the first time, a calibration calibration is required. The board has functions such as peeling, calibration, etc. The parameters are saved after power off, and there is no need to calibrate again for future use.

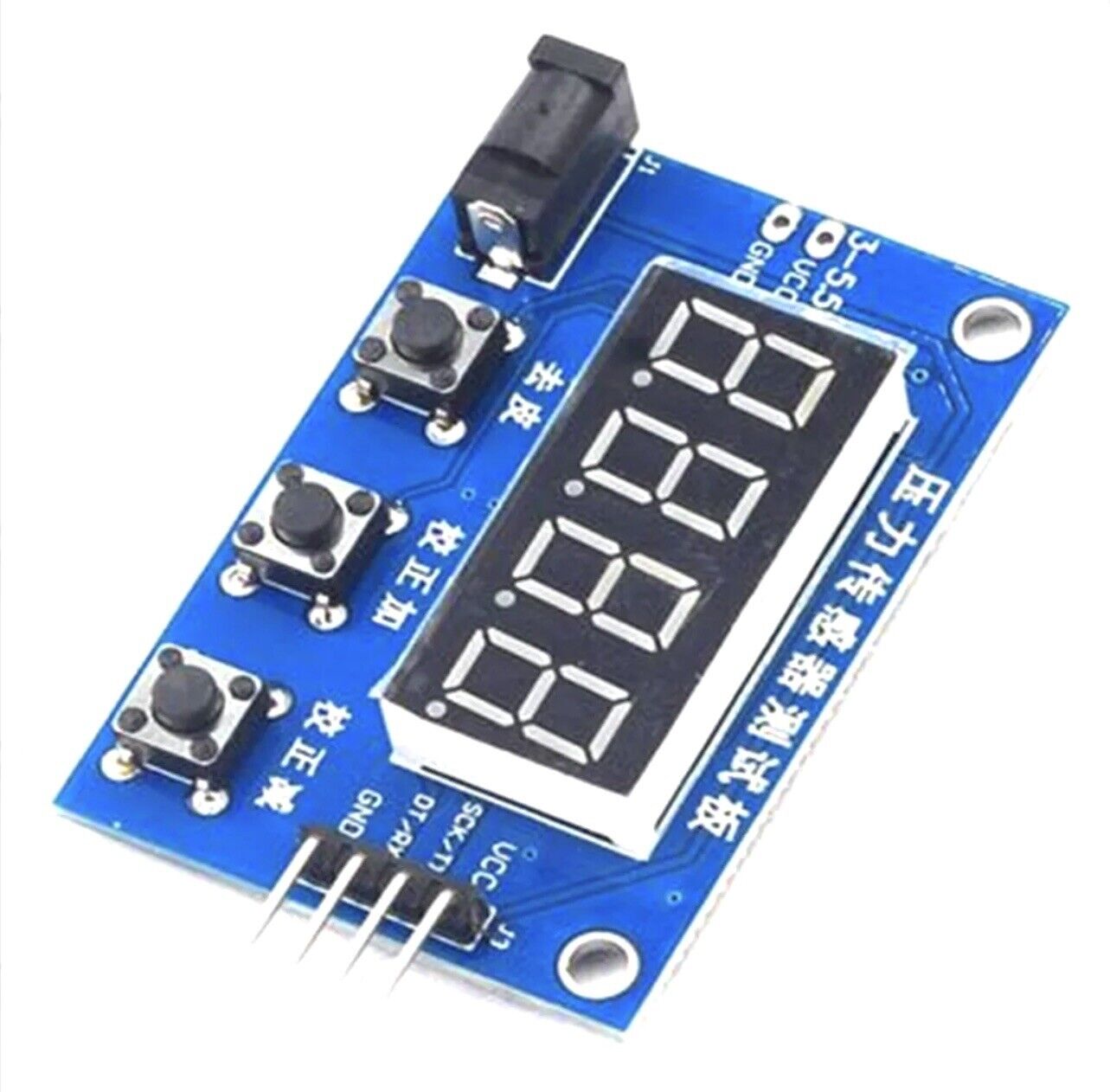

Module size: 50*33*10mm, displayed by 4-digit digital tube. The maximum can display 9999g. It can be connected to a common 5KG or 10KG pressure sensor. Generally, the accuracy of the sensor with a 5Kg range fluctuates around 1g. If the fluctuation is large, it may be caused by the unstable power supply. Please try changing the power supply. (Calibration is required after the first connection)
