DIY 7 Decade Resistor Board OΩ-9999999Ω 1 Ω Resolution Programmable Resistance

Power Rating: 500 mW

Resistance Tolerance: 0.5-1%+-

MPN: Does Not Apply

Programmable Resistance: 0 Ω - 9,999,999 Ω - 1 Ω Graduations

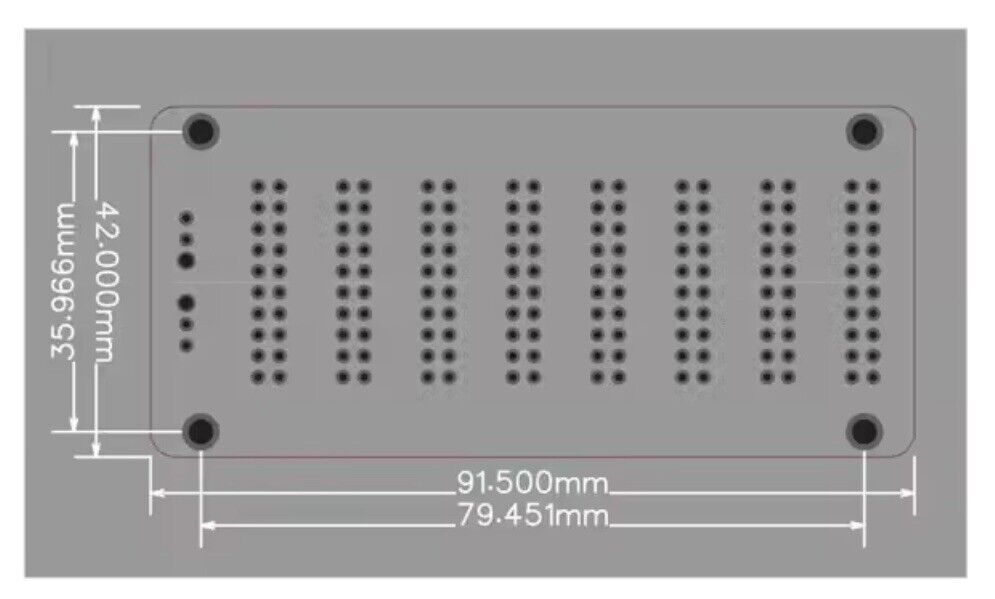

Product Size: 90mm X 35mm

Brand: Unbranded

Type: Other

Tolerance Rating: ±1 %

Maximum Working Voltage: 50 Volts

Packaging: Antistatic Bag

Rated Power: 100mA Per Resistor (1/2W)

Resistance Rating: 0-999999 Ω

Country/Region of Manufacture: China

UPC: Does Not Apply

DIY 7 Decade Resistor Board 1R-9999999R/1R Programmable Resistance SMD Module

Shipped with Australia Post regular Letter no tracking number included.

Tracked options available

Item Description

Description:

Product parameter

Programmable resistor, voltage step through jumper cap, and then get accurate resistance value.

Single resistance power: 0.1W

Single resistance accuracy: 1% (some parts are 0.5%)

Single resistance temperature coefficient: 400ppm/C (most accuracy is 200ppm/C or more)

Output range: 0.1R-9999999.9R

Scope of application

Replace low-power sliding rheostat;

Switching power supply demo board, feedback resistance debugging; Op amp debugging, matching the required resistance;

Precautions

1. The board has all SMD Resistors soldered with pin headers to be soldered by yourself Includes the board, pin headers, and jumper caps

2. To use this module, please use it with a multimeter, and y~r the expected resistance by short-circuiting the jumper cap (due to the error of the resistance.

By placing the shorting caps to the desired resistance, confirm with multimeter, add in series or parallel to your project.
