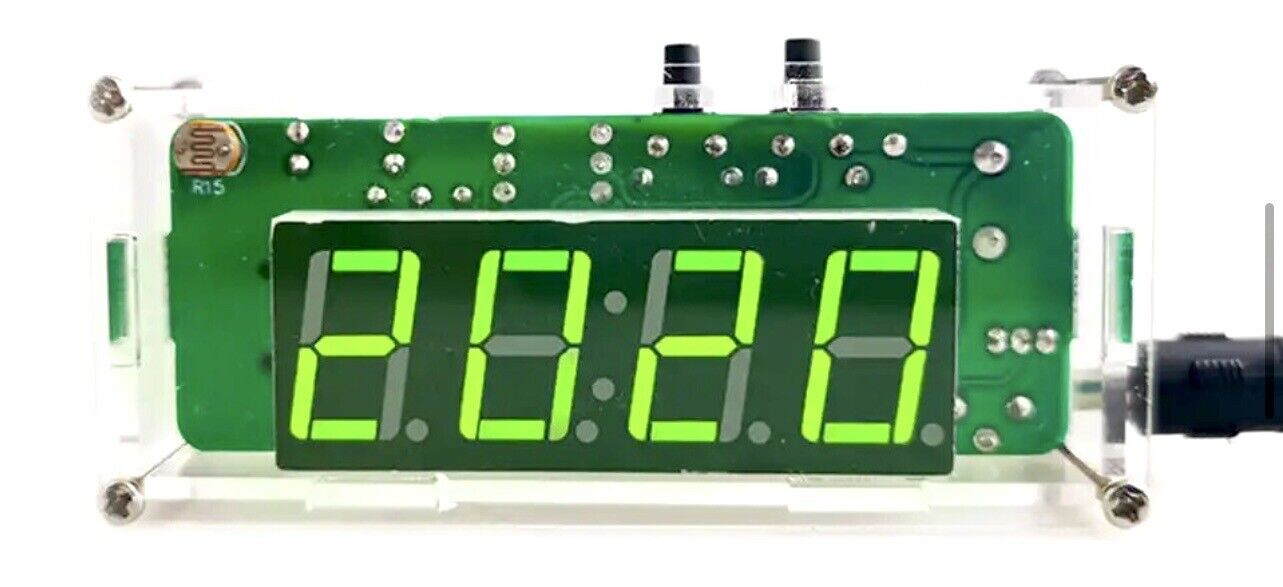

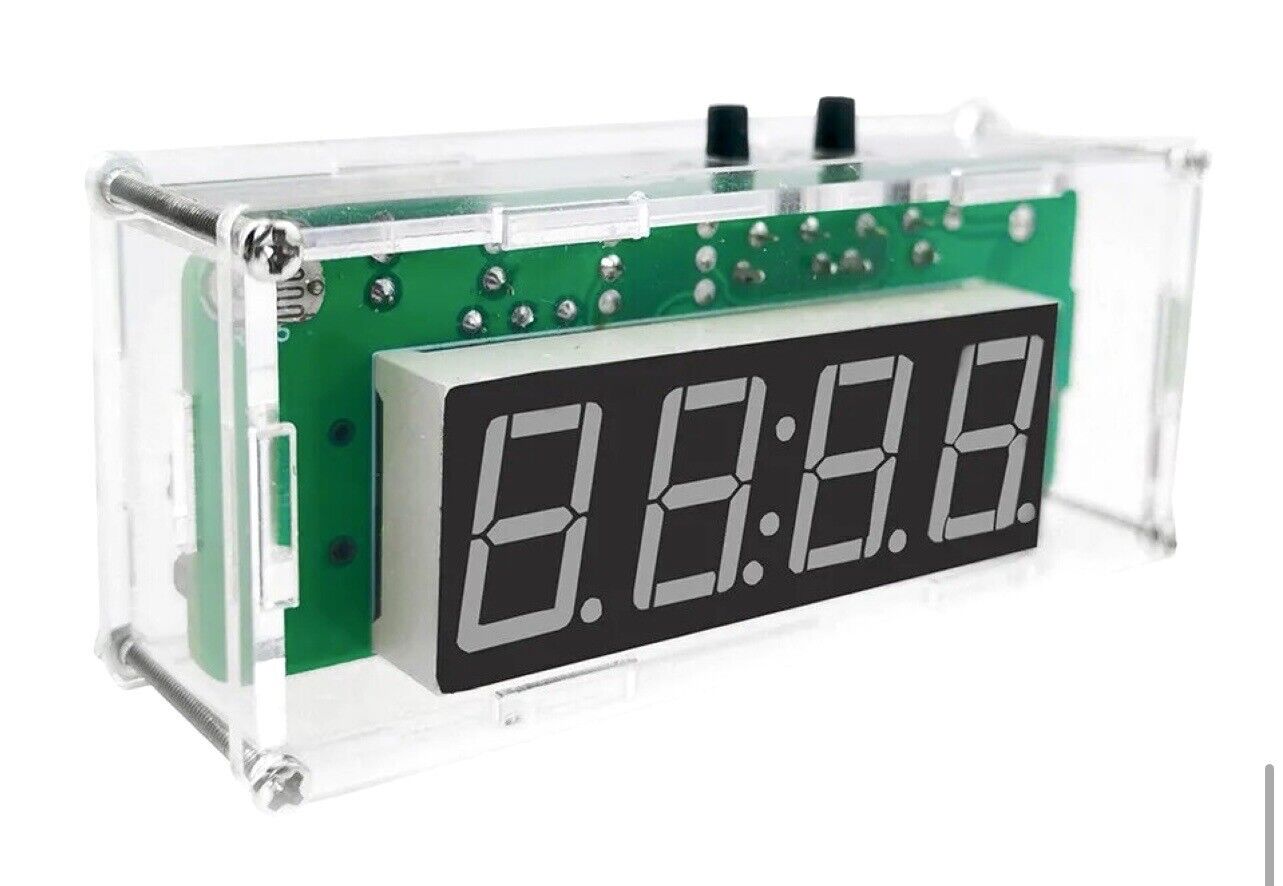

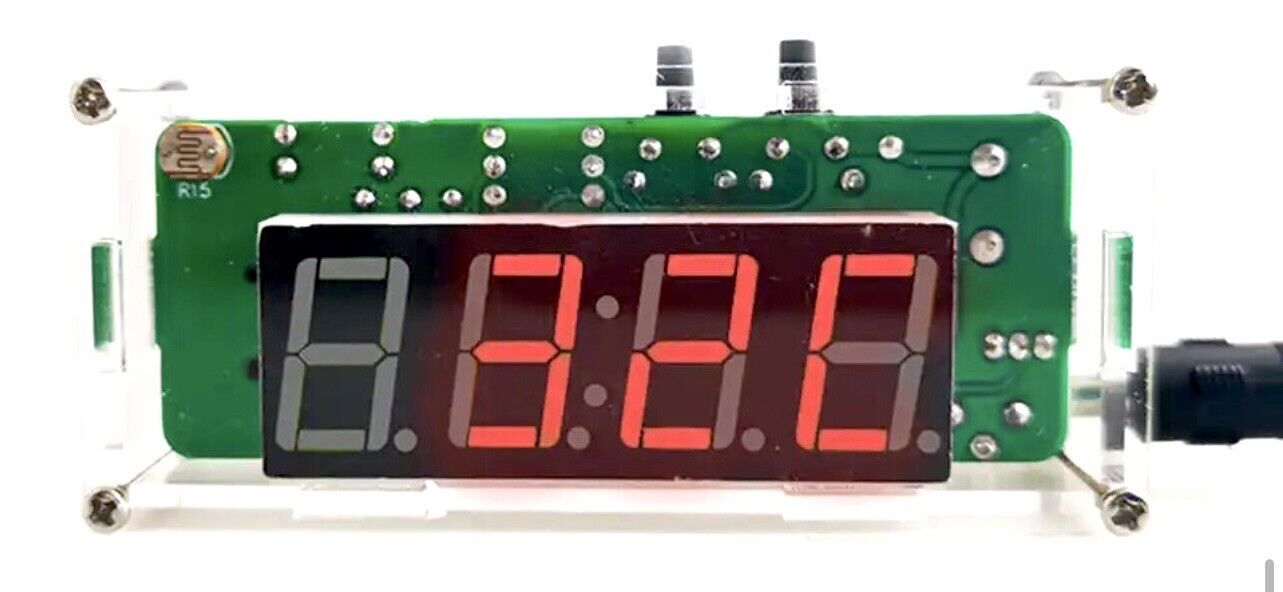

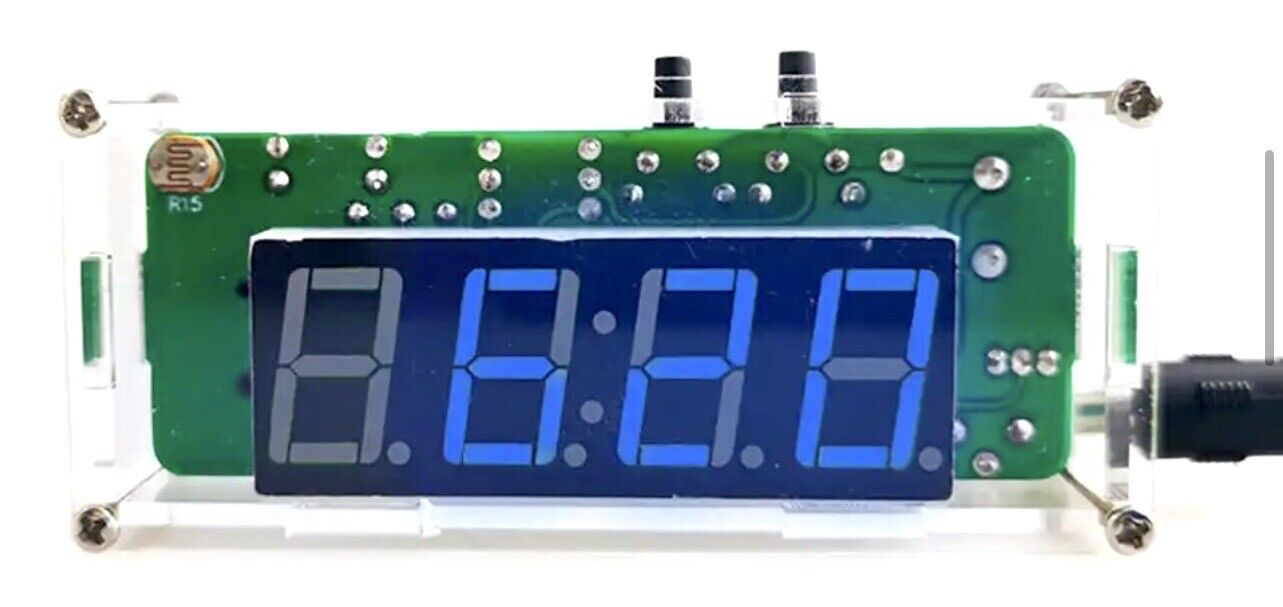

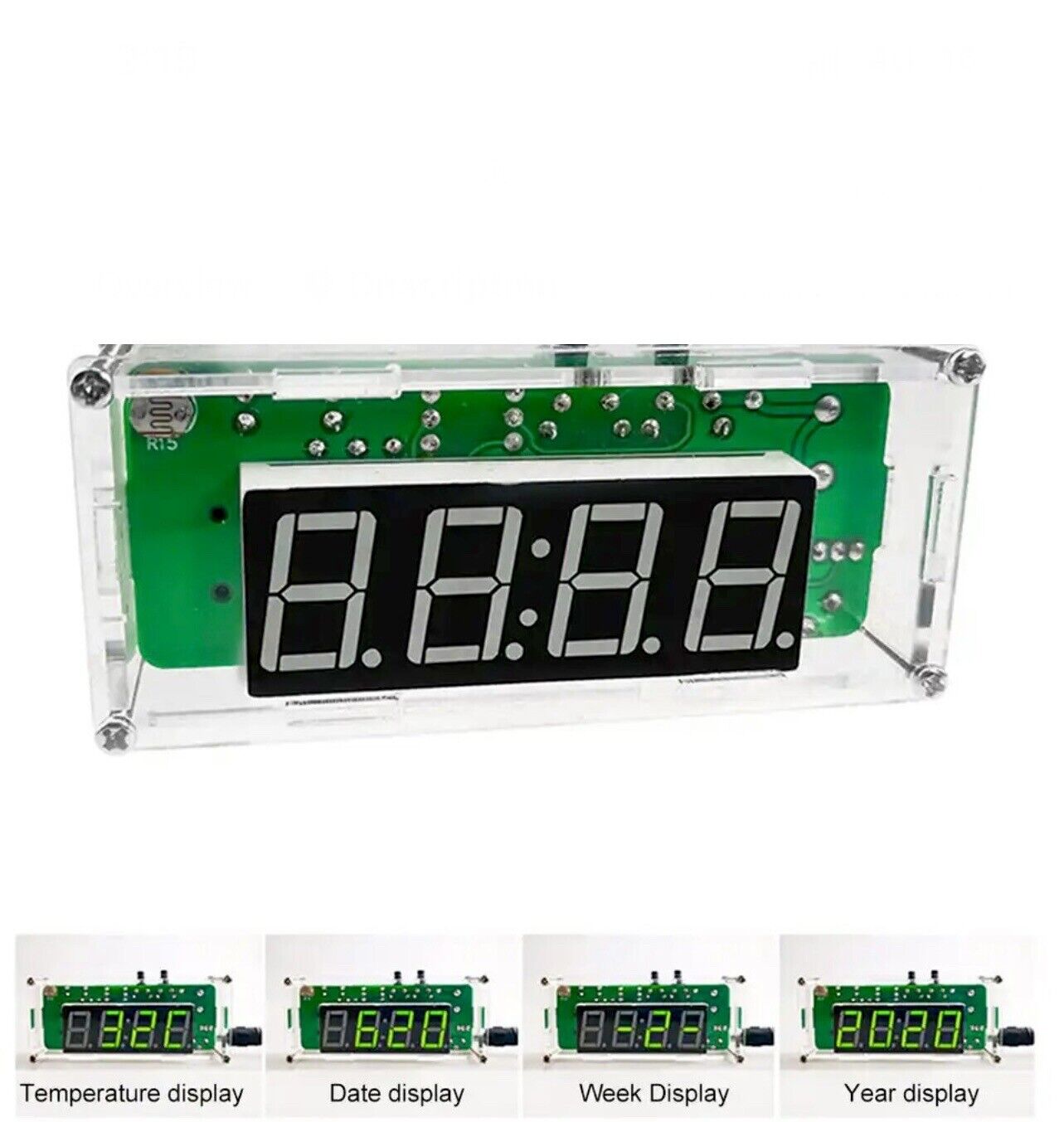

DIY Kit Starter Electronic Digital Clock Date Temp 4 Digit LED Display With Case

Brand: DIY

Type: DIY 4 Digit Clock Kit

Connectivity: 5V USB Cable (Included)

Features: Time Date Alarm Auto Brighting

Country/Region of Manufacture: China

DIY Kit Beginners Electronic Digital Clock Date Temp 4 Digit LED Display

Sent with Australia Post regular Letter no tracking number included.

Tracked options available.

Description

Features:

1. Multi functional Electric clock, which can set date/week/ time/alarm clock/temperature;

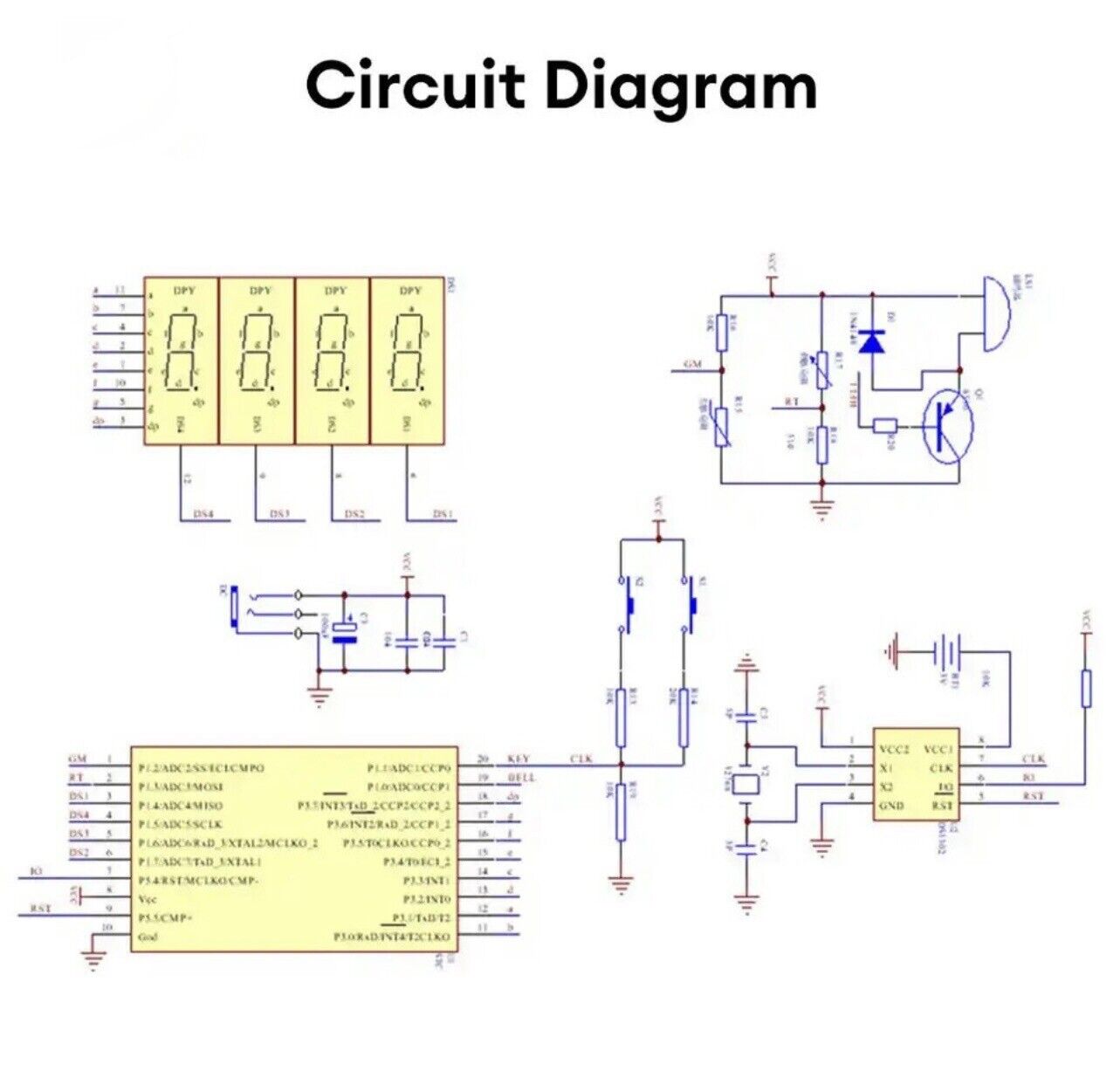

2. A digital clock controlled by a microcontroller with a supply voltage of 5V DC;

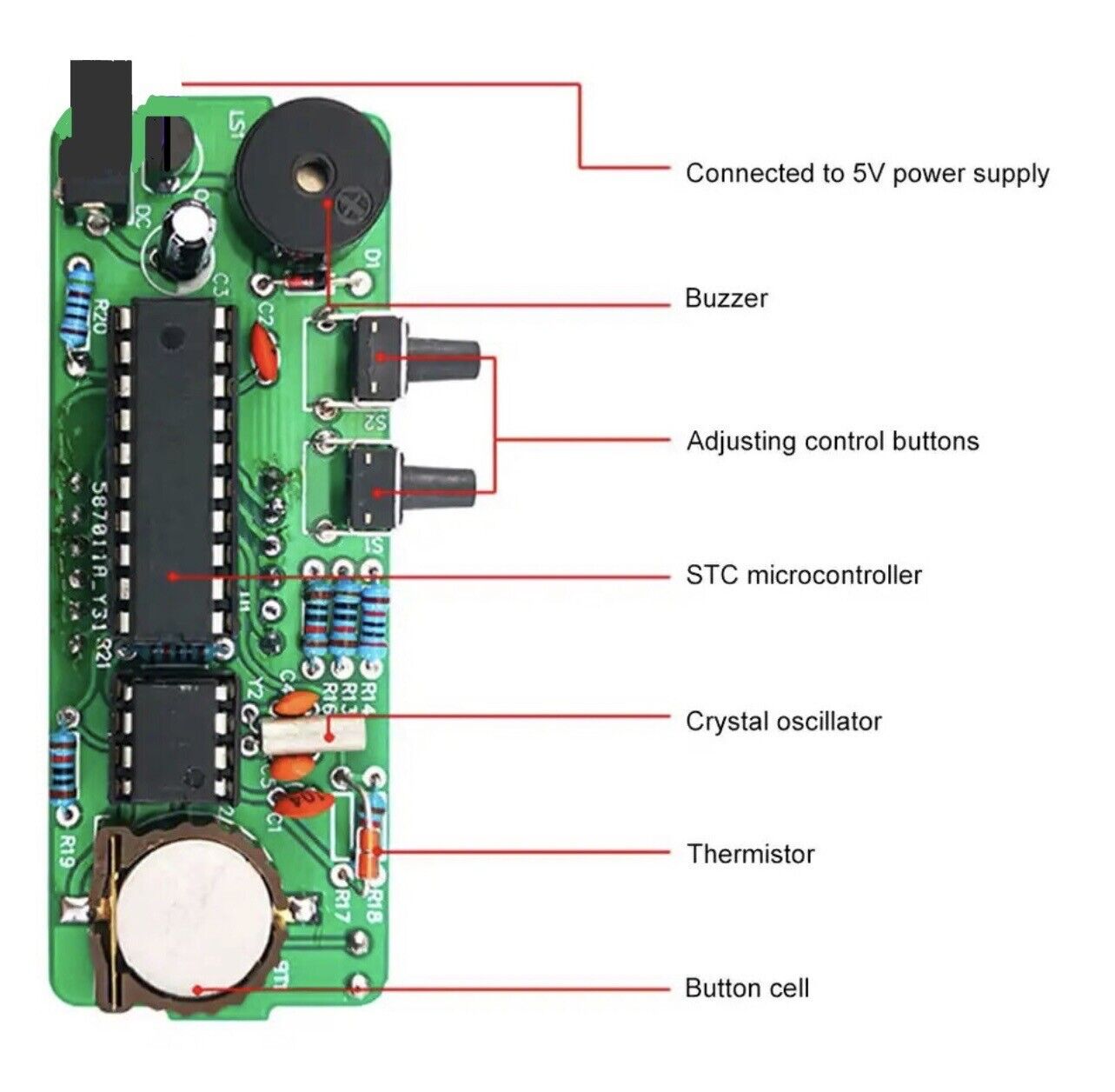

3. Using a dedicated timing chip DS1302, it can display hours, minutes, seconds, months, days, and weeks. With temperature measurement, music alarm clock, hour reminder, and brightness control;

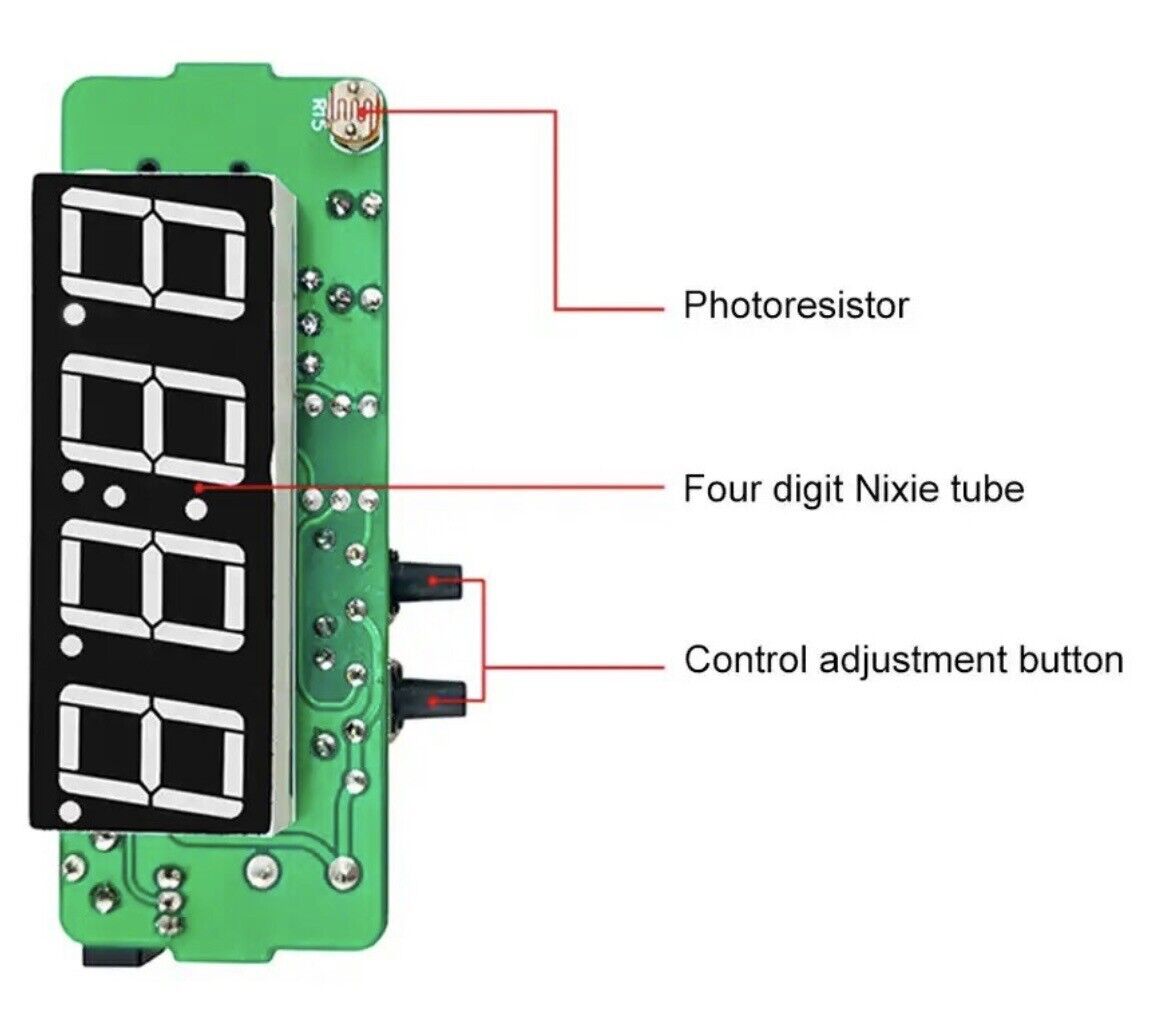

4. Four digit Nixie tube, control adjustment button, memory battery, all functions are realized by two user keys;

5. Paired with a USB to DC power cord, it is easy to use and installation instructions. There are four melodies to choose from for alarm music.

Parameters:

Name: Multifunctional Digital Clock

Circuit board size 73 * 26mm

Power supply voltage: DC 5V

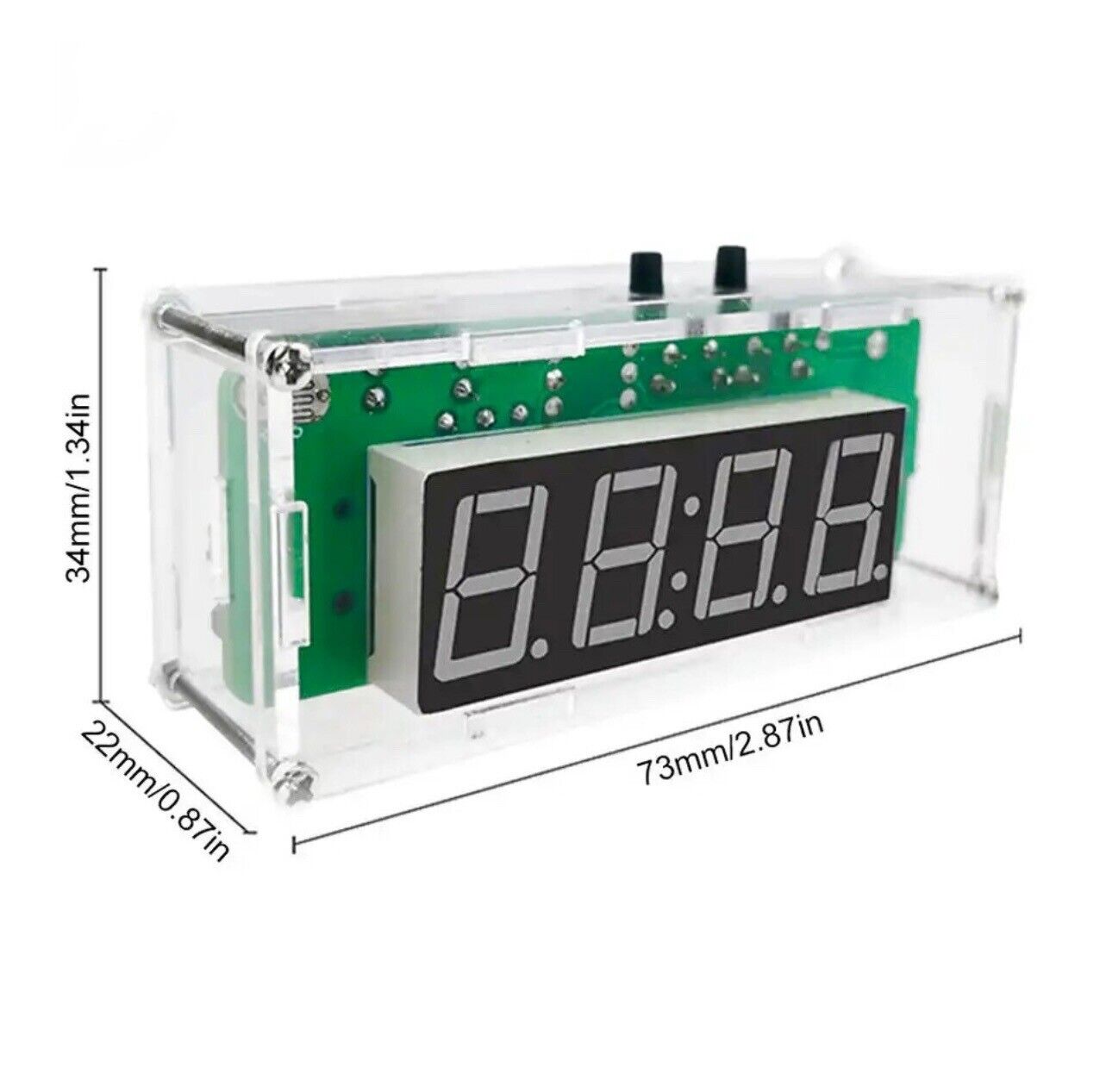

Shell size: 73 * 34 * 22mm

MCU program: The program has been burned into the microcontroller

Function: Display of time on month, day, and week, alarm function, temperature measurement, hour reminder, brightness control, power outage memory

Usage: Desktop art accessories for home, school, and company use. Loose parts are used for electronic enthusiasts and practical training kits in universities and colleges.

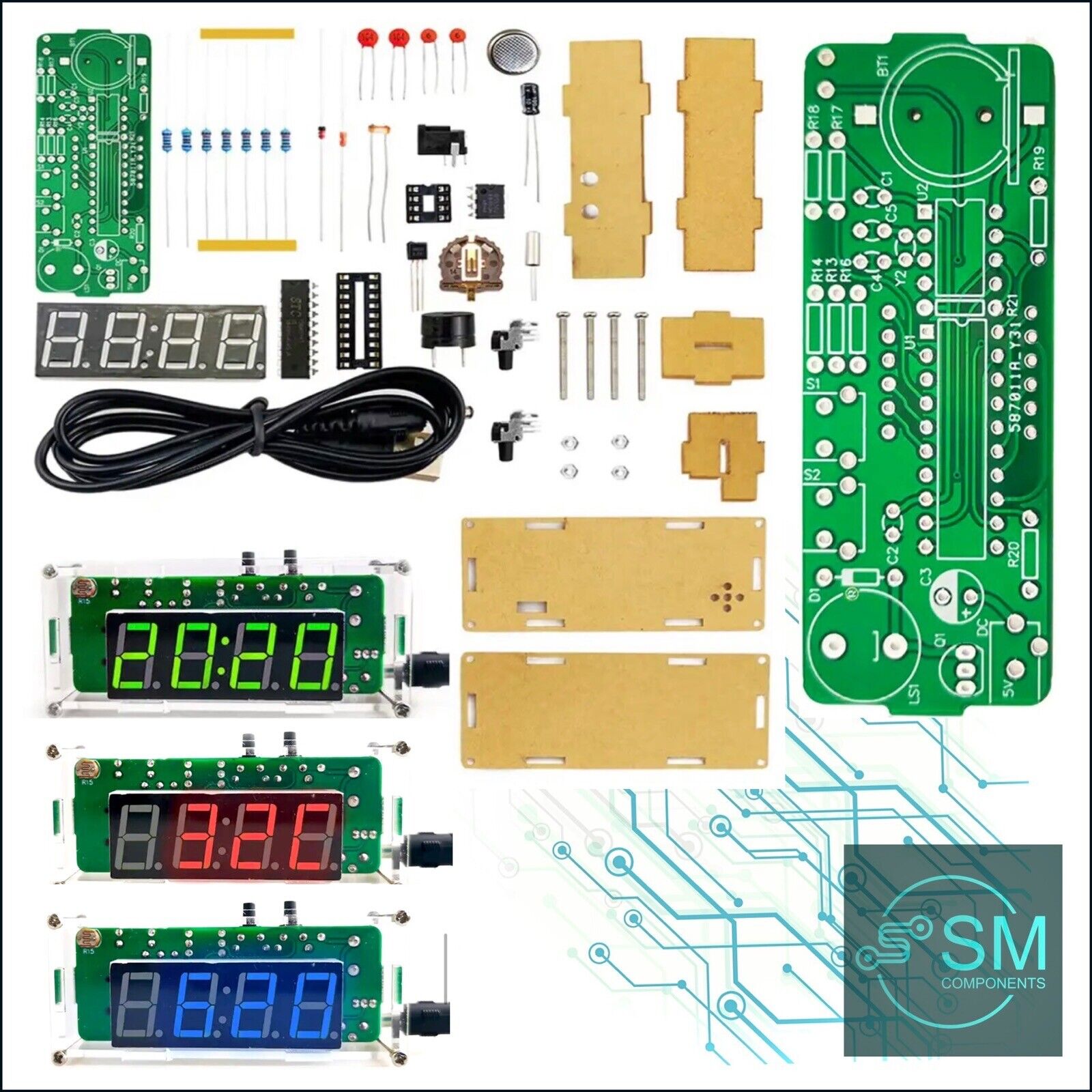

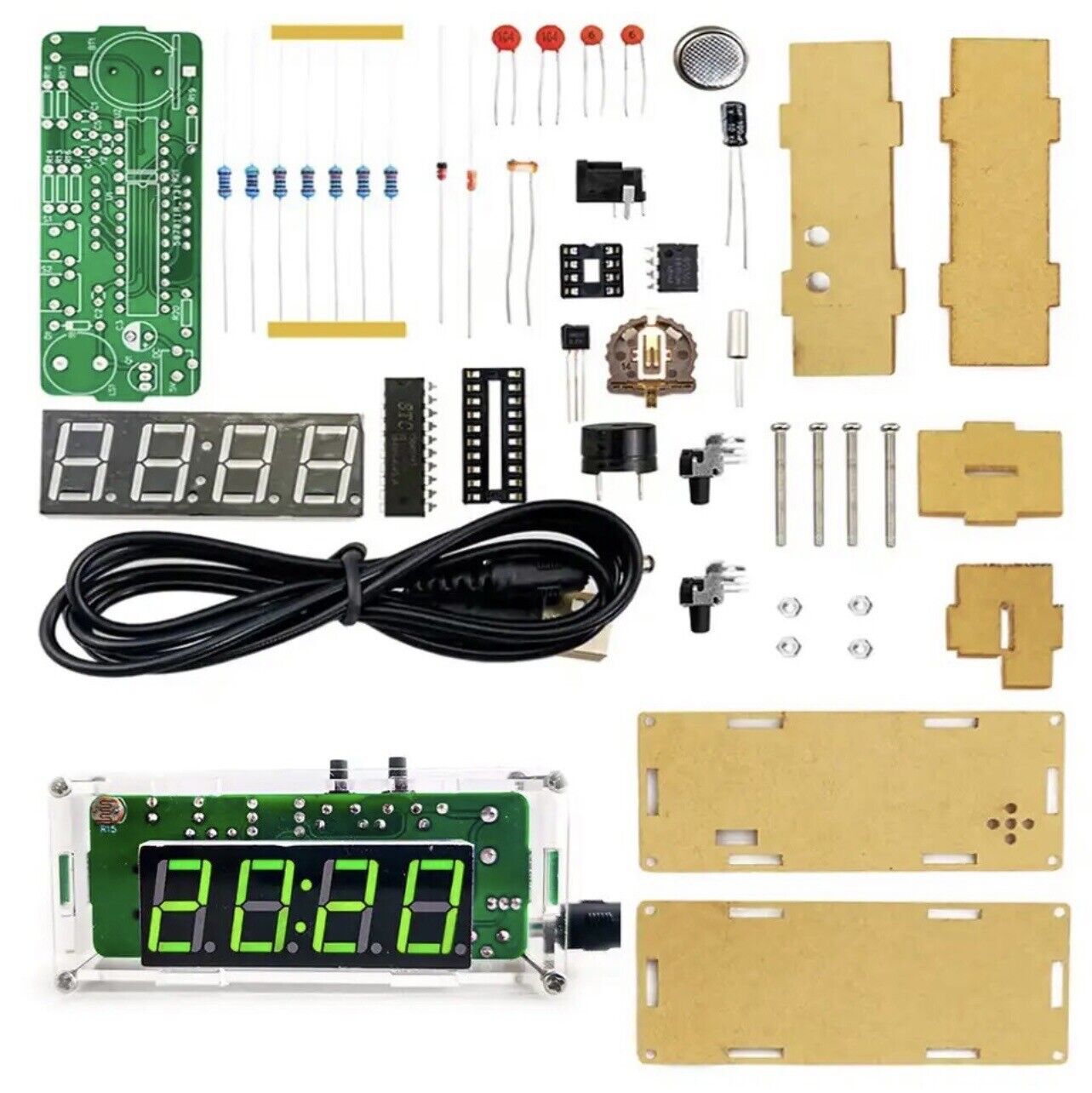

Package include:

Color ring resistance 10K * 5

Color ring resistance 20K * 1

Color ring resistor 510 * 1

Ceramic capacitor 104 * 2

Ceramic capacitor 5P * 2

In line Electrolytic capacitor 100uF * 1

Photoresistor 5516 * 1

Thermistor 10K NTC glass seal * 1

Inline transistor 8550 * 1

Buzzer passive * 1

Four digit Nixie tube with second point 0.56 inch * 1

Inline diode 1N4148 * 1

DC power socket 3.5 * 1.2 * 1

Button battery holder CR1220 * 1

Button battery: CR1220 * 1

Tap the button side press 6×6×5 * 2

Integrated circuit: STC15W404AS DIP20 * 1

Integrated circuit: DS1302 DIP8 * 1

IC seat 20P * 1

IC holder 8P * 1

Cvlindrical crvstal oscillator 32768 * 1

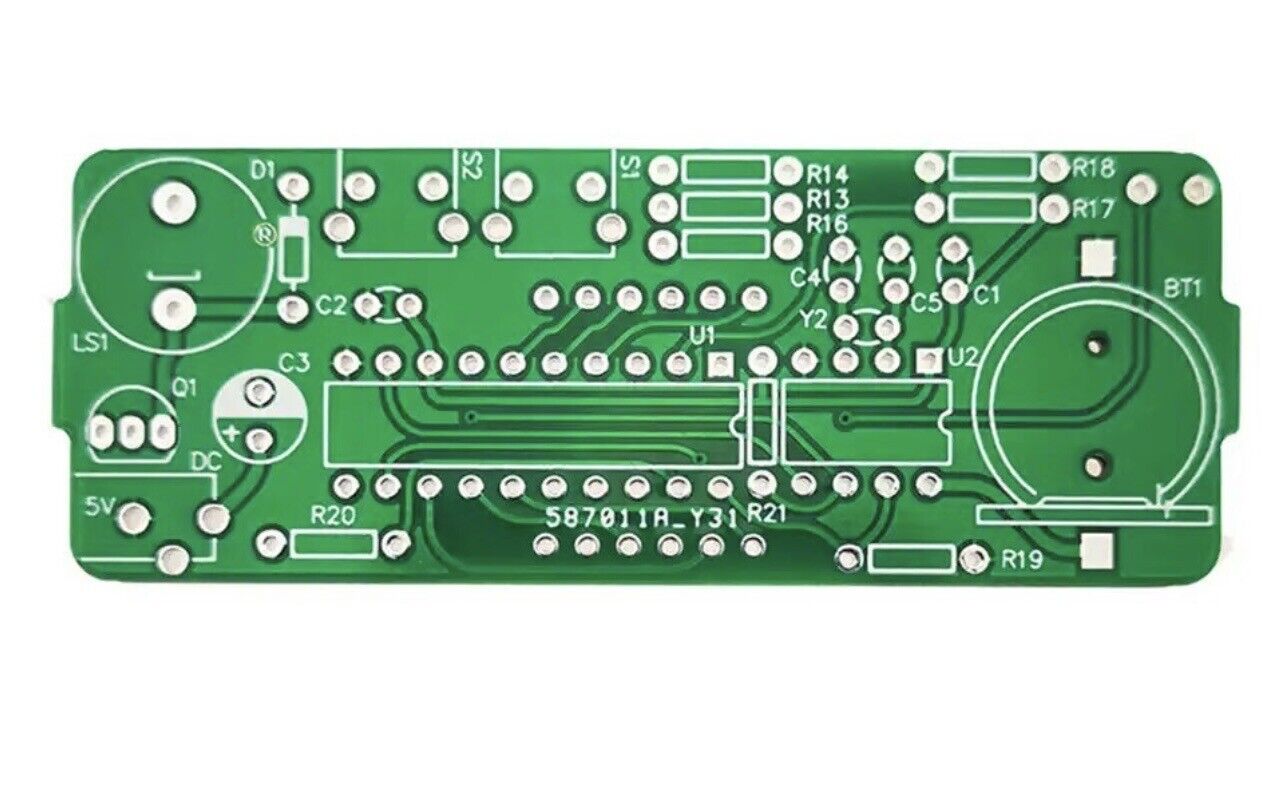

PCB PF-TJ-56-428 * 1

Attention:

Due to the variety of component styles and batch issues, the colour of the components may not be the same, which does not affect their use.
