DIY NE555 PWM LED Desk Lamp Electronic Kit USB CAI-221 Soldering Learning Kit

Brand: EQKIT

Type: DIY Practice Training Soldering Kit

MPN: Does Not Apply

DIY Kit NE555 LED Dimming Table Lamp, USB Powered LED Table Lamp, Electronic Soldering Practice Kits for School Home Education. Sent with Australia Post Parcel Post tracking number included.

Fantastic electronic kit to get started with, and a very useful desk lamp as the end product.

Product Details

1.Introduction:

CAI-221 is a LED Dimming Table Lamp DIY Kit.

Its design inspiration comes from the desk lamp commonly used in home/office.

It uses 24 pure white LED and adjusts the brightness of the lamp through a potentiometer.

It is ideal for personal desktop lighting.

It’s a DIY kit which comes with various components. User need to install each component by hand. It not only can exercise and improve soldering skills, but also increase the interest in electronic technology. Great for electronics hobbyists, beginners, school and home education.

2.Feature:

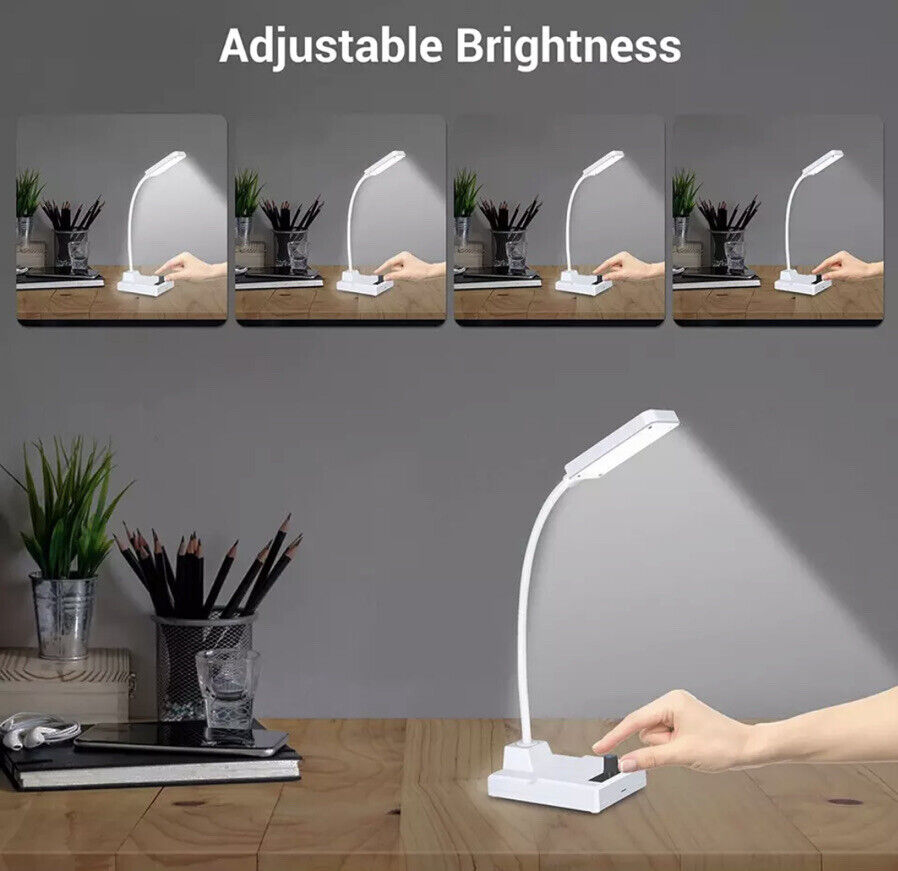

1>.PWM Adjustable Brightness.

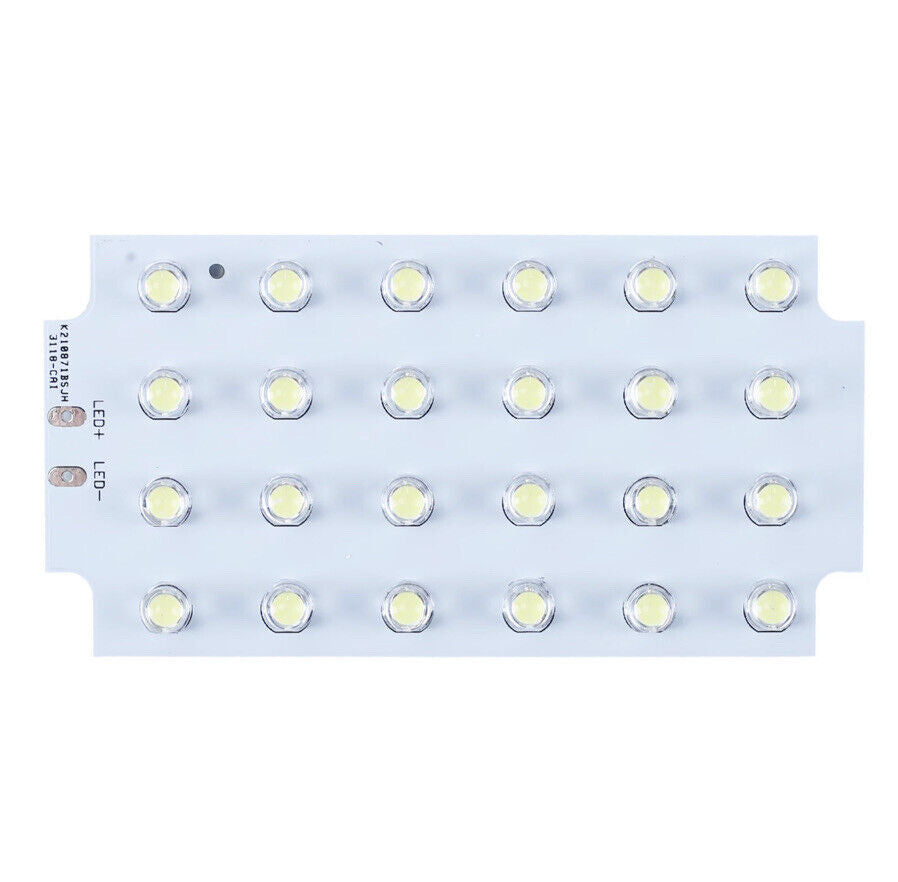

2>.Pure White LED.

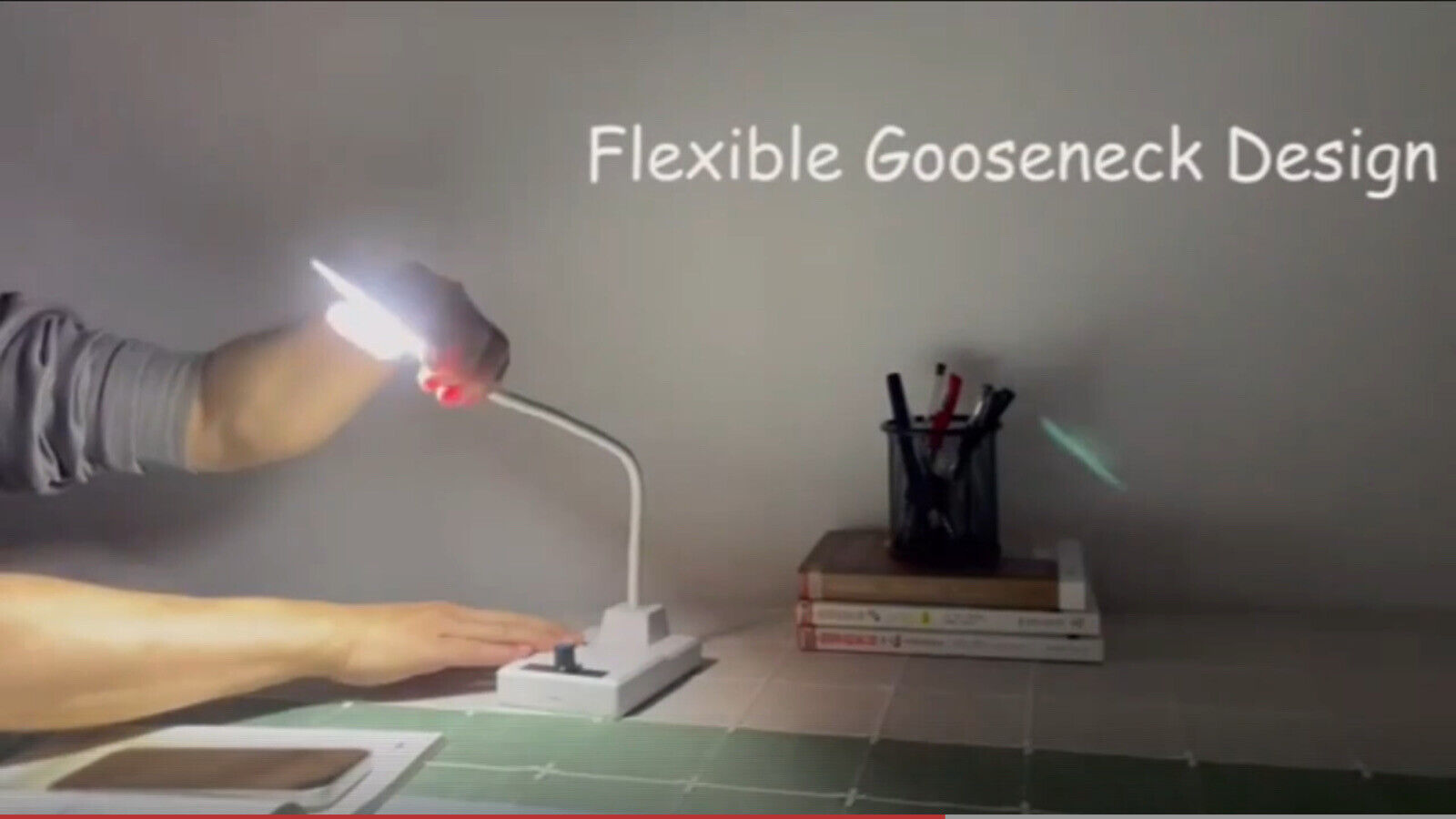

3>.Flexible Lamppost.

4>.USB 5V work circuit.

1>.Item name: CAI-221 LED Dimming Table Lamp DIY Kit

2>.Model:CAI-221

3>.Work voltage:DC 3.7V-5V

4>.Work current:1.7A

5>.Work power:8.5W

6>.LED color temperature:6000-8000K

7>.Luminance:20-1000LUX

8>.Brightness Adjustable: 0%-100% PWM

9>.Turn ON/OFF Lamp: Yes

10>.Housing material:Metal+ABS

11>.Work Temperature:-20℃~85℃

12>.Work Humidity:5%~95%RH

13>.Size(Installed):120 x 90 x 350mm

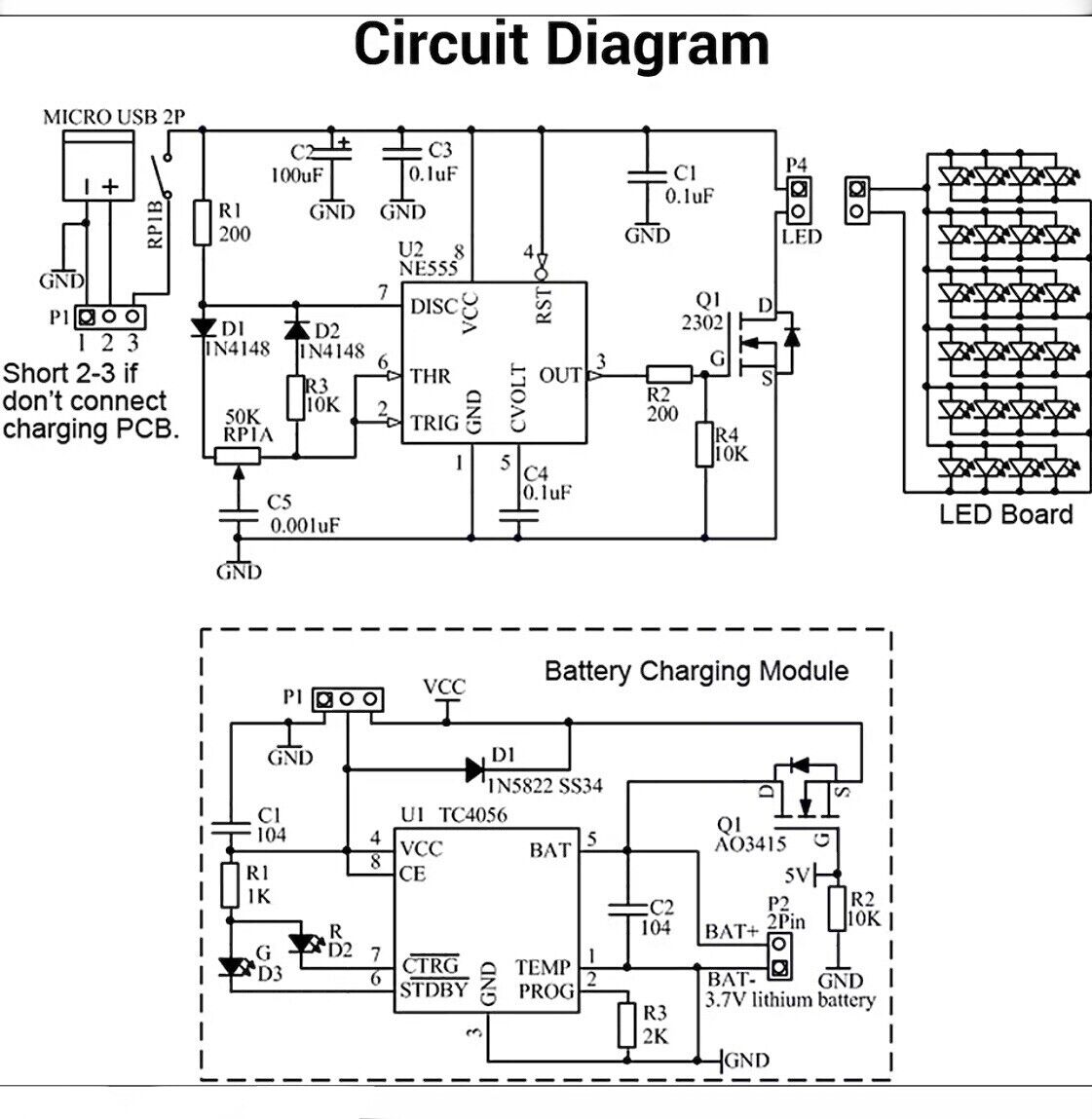

4.Schematic Diagram:

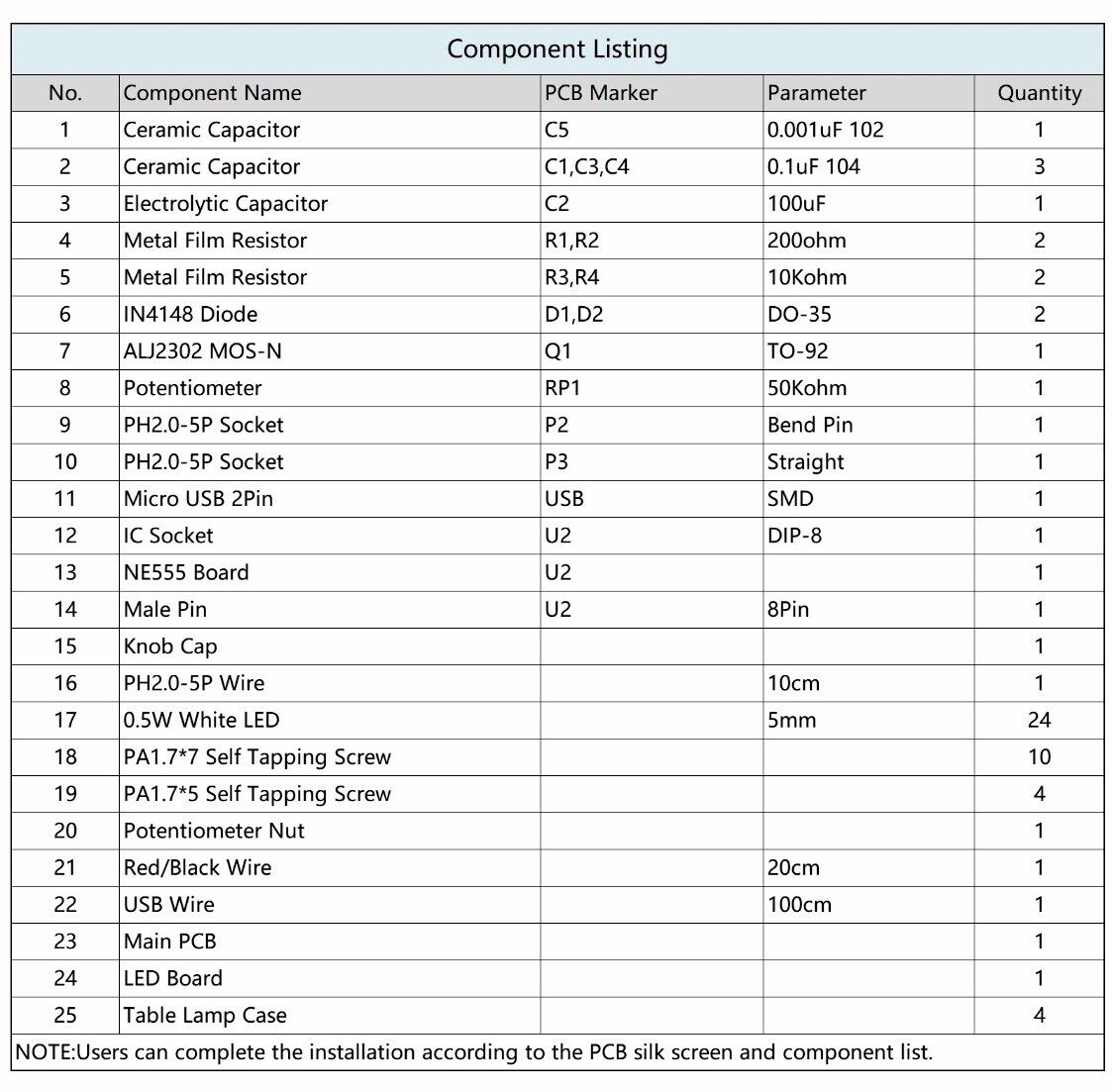

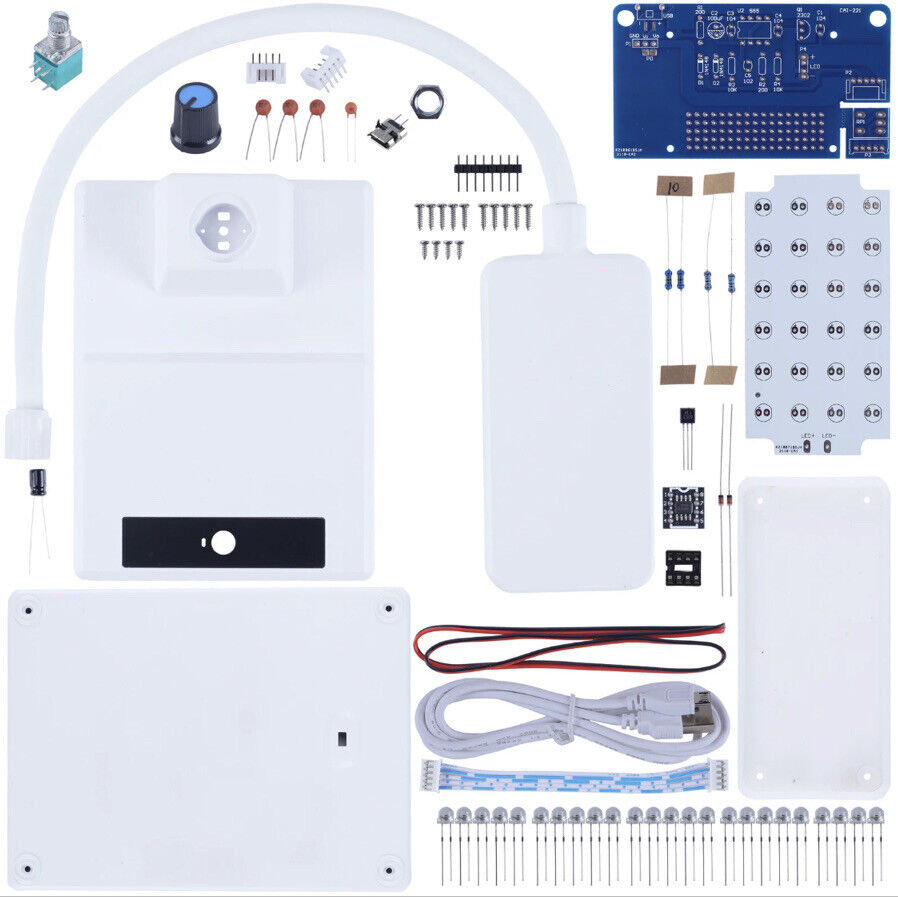

5. Components List: included in photos

6. Installation Manual (Please scan the QR code supplied in kit

note: Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you order.

Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
