DIY Radio Kit 76MHz-108MHz Wireless Stereo FM Audio Receiver DIP+SMD Inc Battery

DIY Radio Kit 76MHz-108MHz Wireless Stereo FM Audio Receiver DIP+SMD Inc Battery

Regular price $18.20 AUD
Regular price Sale price $18.20 AUD
Sale Sold out
Shipping calculated at checkout.

Number of Pieces: 1

Output Type: DC

Product: DIY SMD & Through Hole Production

MPN: Does Not Apply

Modified Item: No

Brand: Abra

Current Type: DC

Type: DIY Headphone Radio

Product Type: Circuit Board Accessories

Assembly Required: Yes

Voltage: 1.8-3.6V

Model: GS1299

Unit Quantity: 1

DIY Radio Kit 76MHz-108MHz Wireless Stereo FM Audio Receiver 1.8-3.6v DC. Item is Brand New, shipped with Australia Post parcel post tracking number included.



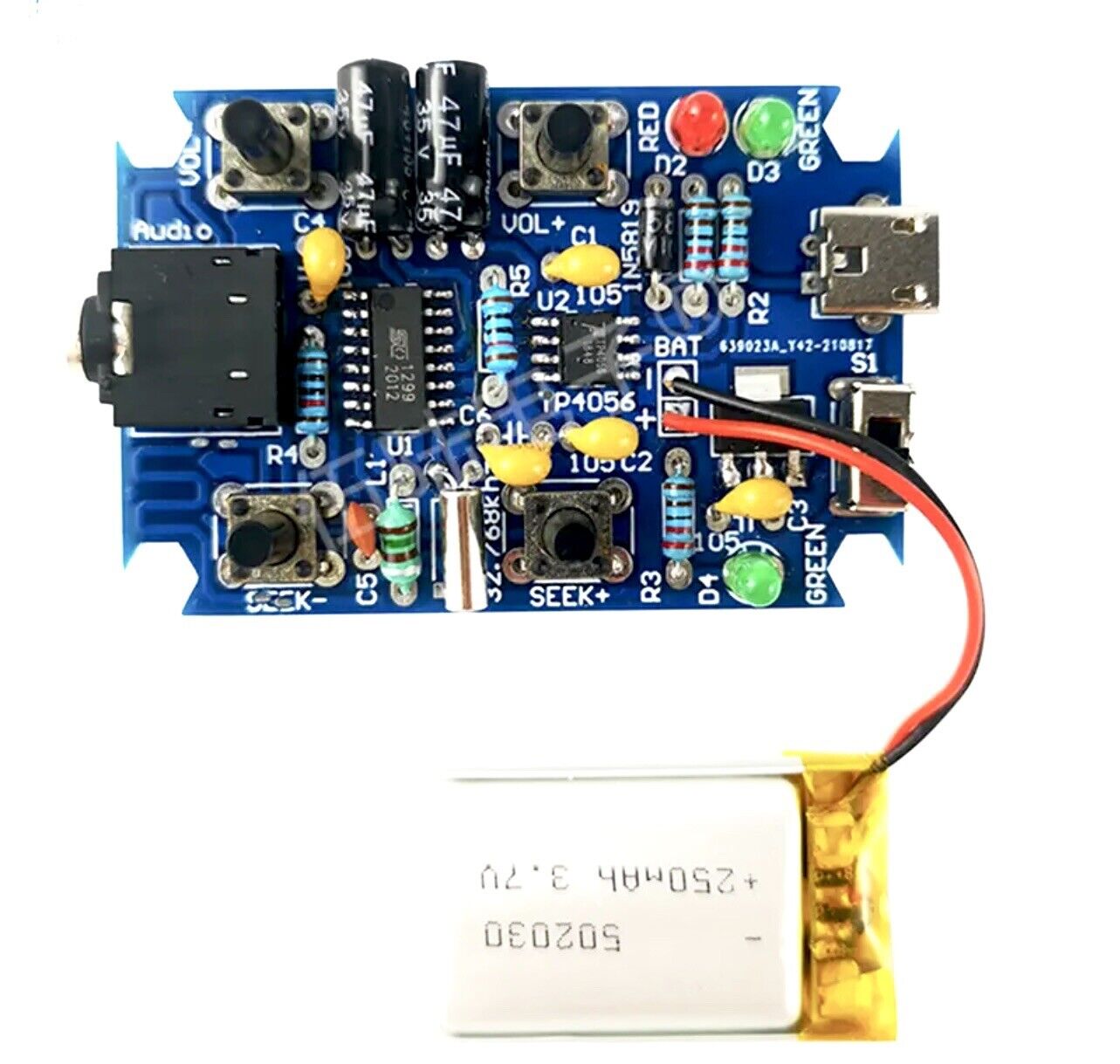

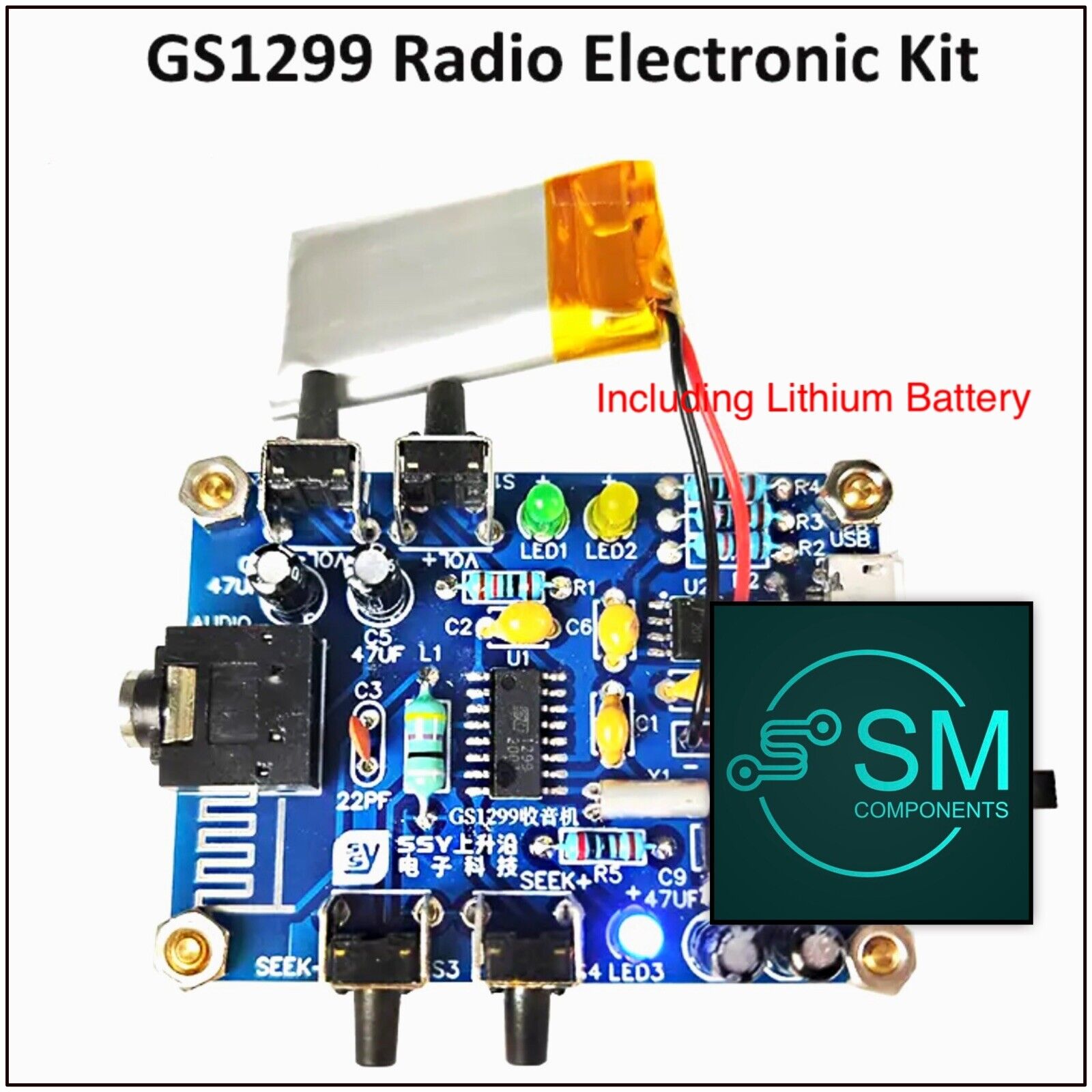

Wireless Stereo FM Radio Receiver Module PCB FM DIY Electronic Kits 76MHz-108MHz DC 1.8V-3.6V Includes 250mAh Lithium Battery


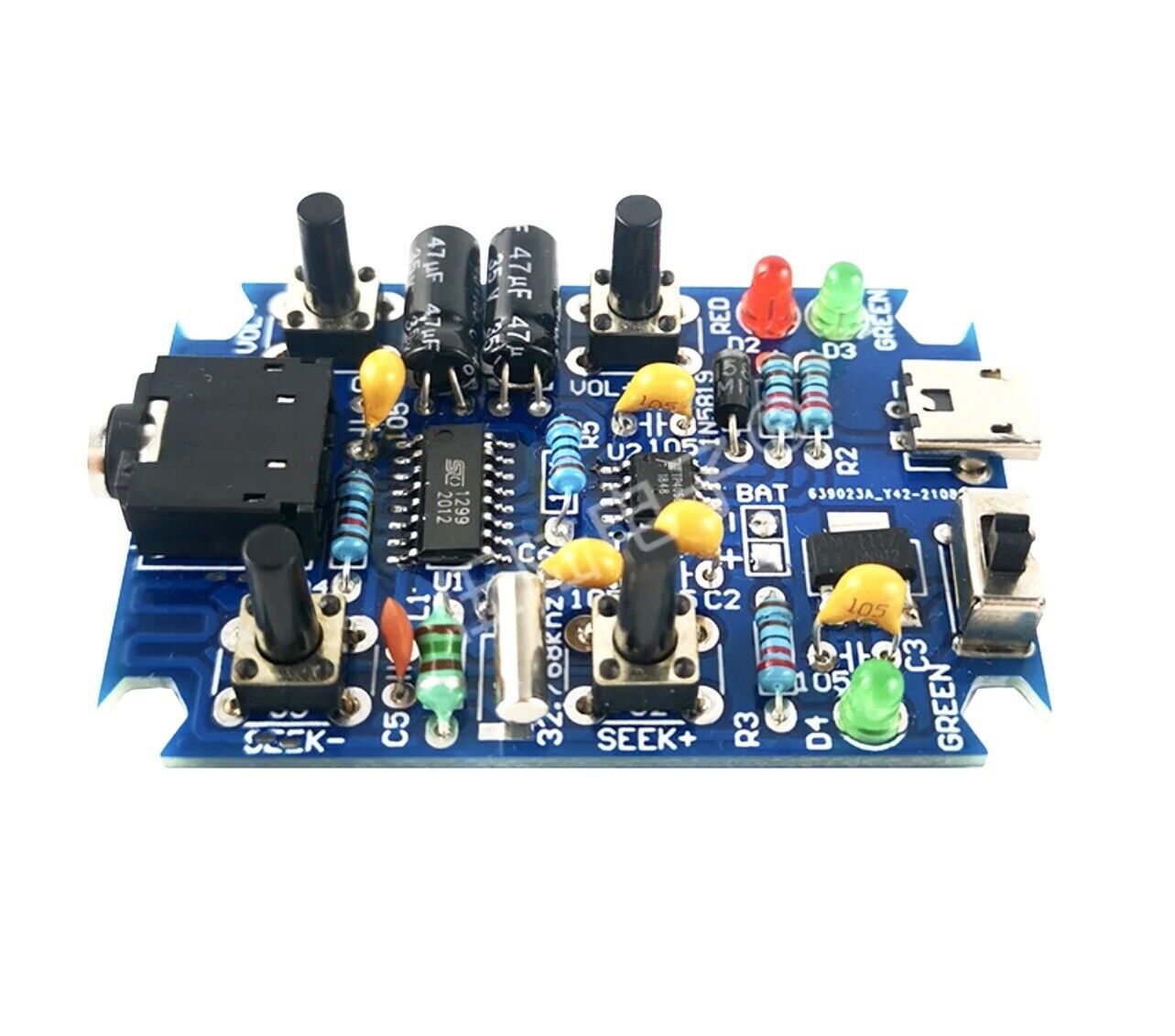

GS1299 DIY KIT

PCB board size: 5.5CM*3.7CM

Shell size: 6.7CM*5.1CM*1.9CM

Working voltage: 3.7V-4.2V

Battery capacity: 250mah

Support Headphones: In-ear Headphones

To make this kit, you may need the following tools:

Soldering iron Multimeter Solder wire Diagonal pliers Screwdriver Tweezers

A good stereo radio kit! The Stereo Radio Kit has the following features:

1. Small in appearance and novel in shape;

2. High sensitivity, low noise and strong anti-interference ability;

3. Support global frequency band (76-108MHZ);

4. Built-in rechargeable lithium battery and charging circuit, which can be charged with a mobile phone charger;

5. With working indicator (blue), charging indicator (red) and full indicator (blue);

DIY parts delivery list:

Component name Quantity

PCB board 1

MICRO Block 2

3.5 Audio Stand 1

6*6*12 buttons 5

12D07 Side dial switch 1

3MM LED red glow red 1

3MM LED White Hair Blue 2

25V 47UF electrolytic capacitor 2

GS1299 chip 1

TP4056 chip 1

1117-3.3V chip 1

22P Ceramic Capacitor 1

105 Monolithic Capacitor 6

32.768KHZ crystal oscillator 1

47UH Color Ring Inductor 1

1N5819 Diode 1

10K Resistor 2

2.2K Resistor 3

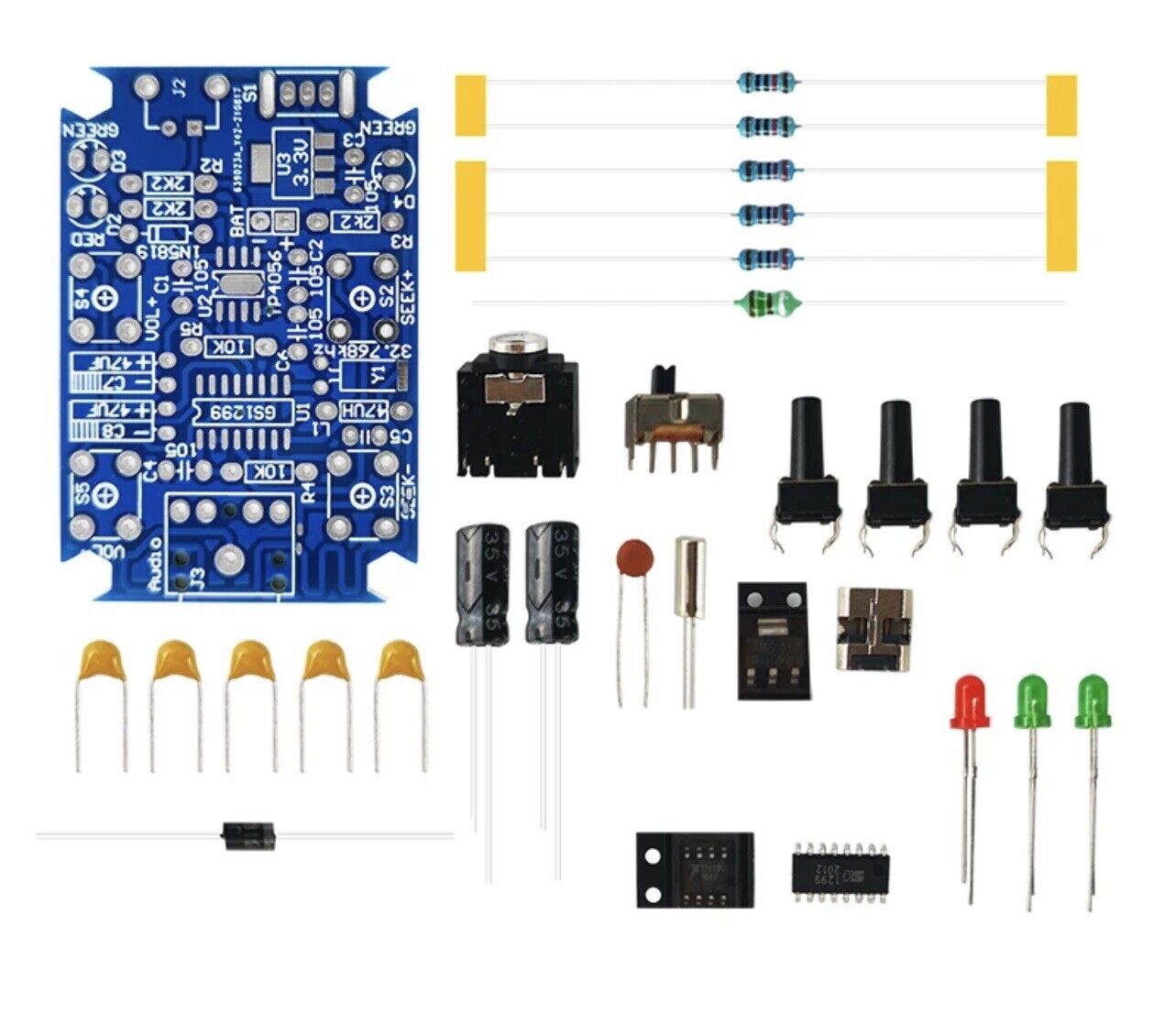

DIY parts delivery physical pictures:


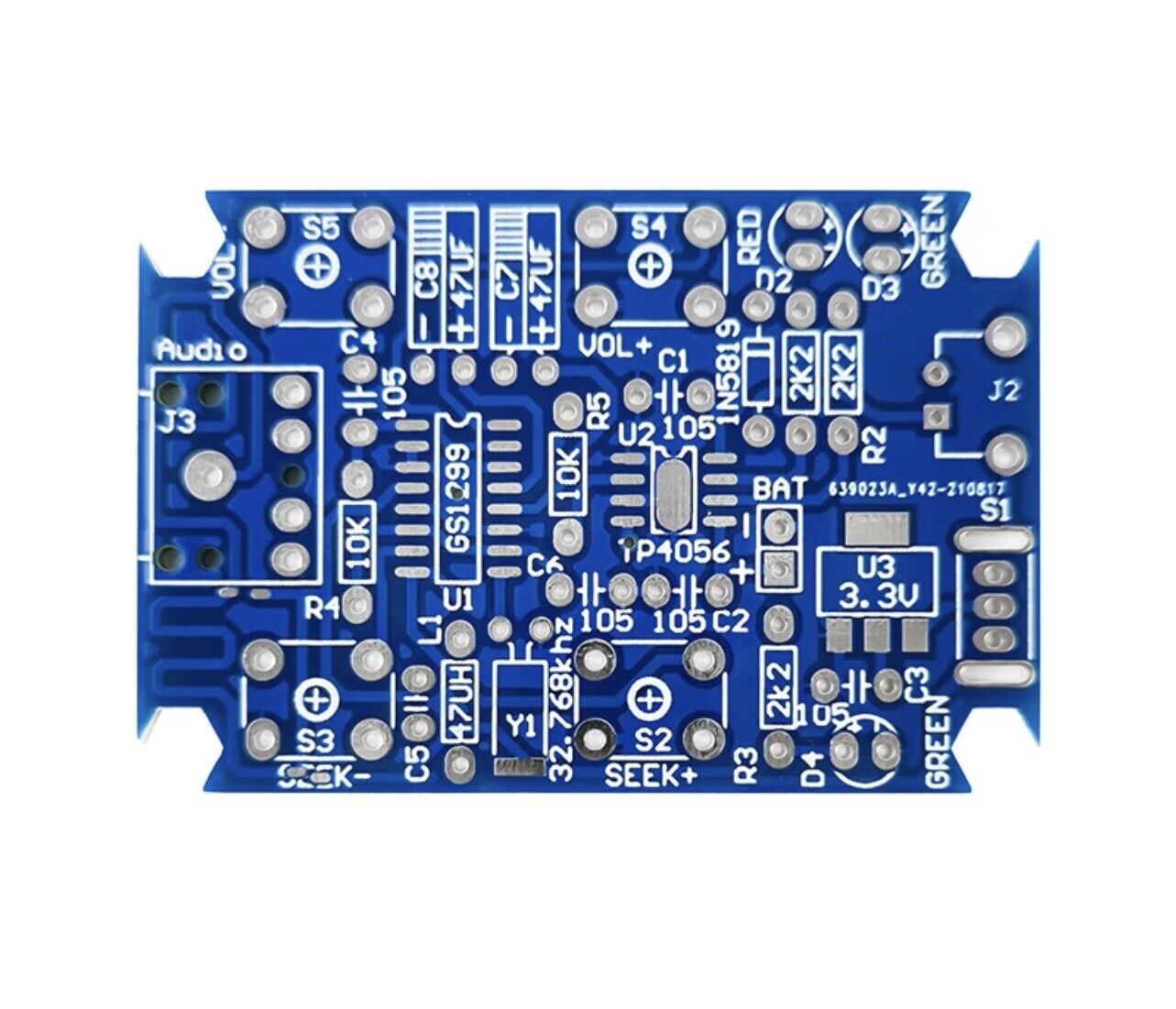

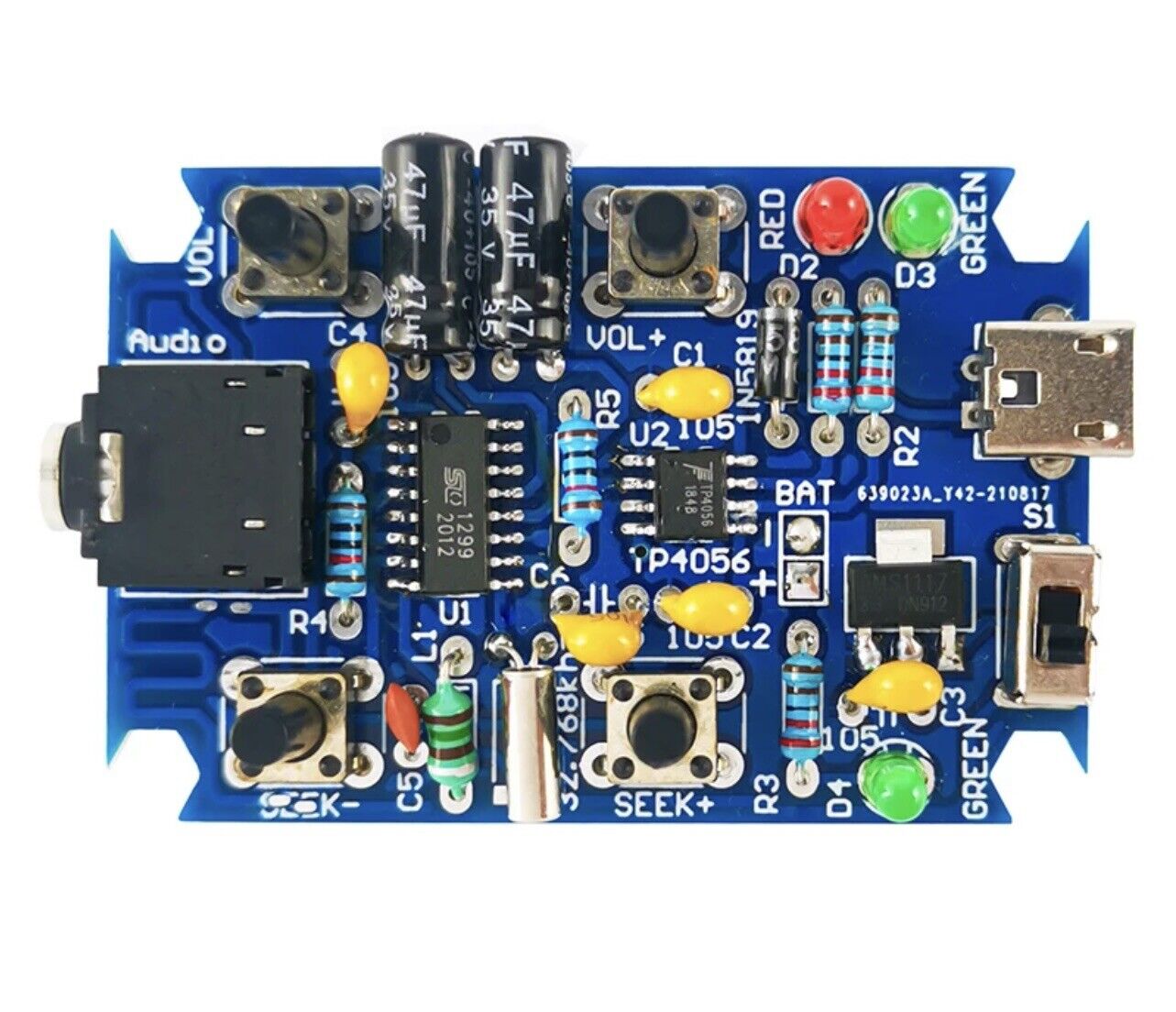

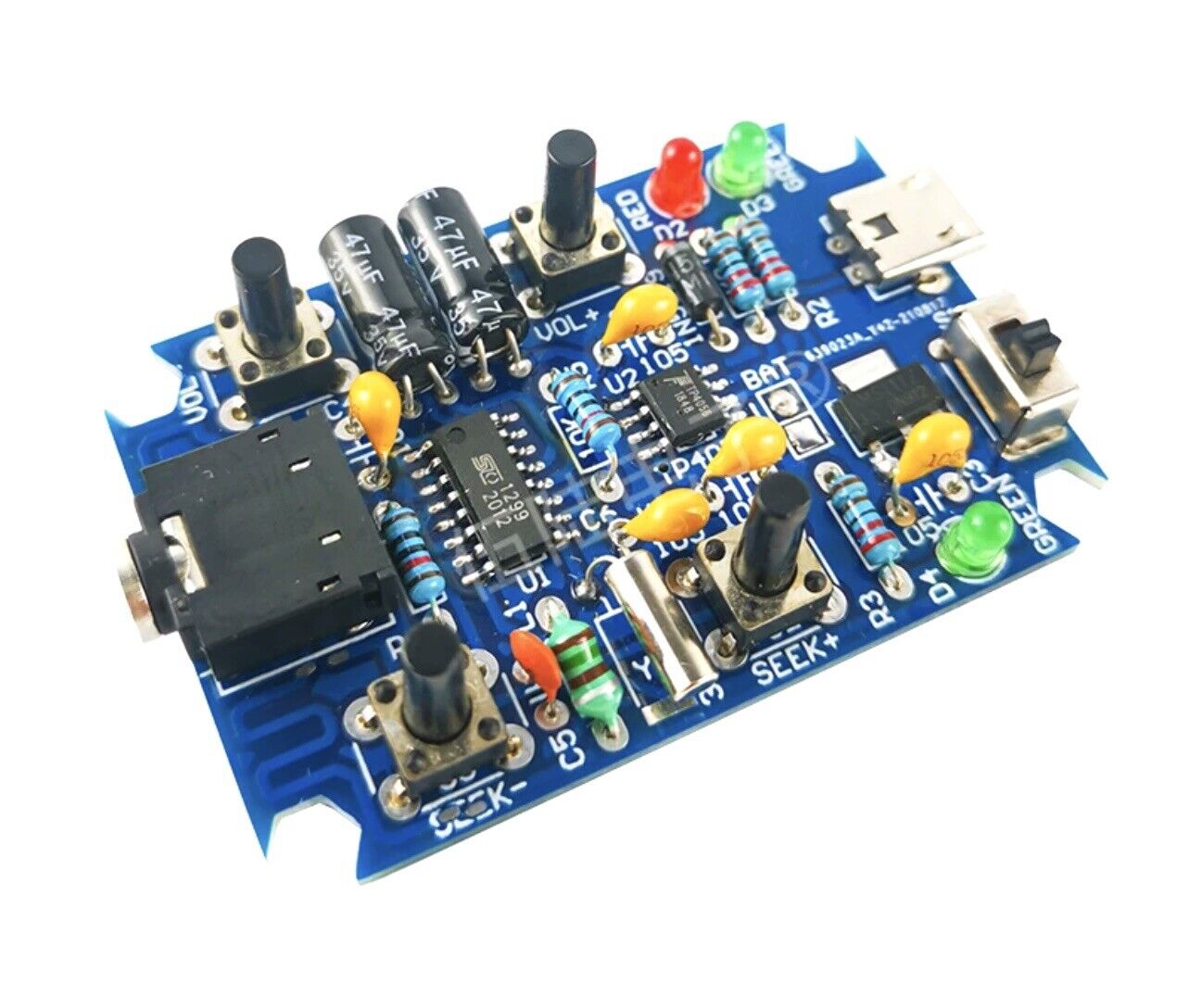

Advantages:

Electronic enthusiasts or electronic production of electronic student classes, in particular to optimize the arrangement of the elements according to the beginner, this package easy to manufacture and install a high success rate! As it has been used in many schools, so we know its performance. This kit is not just welding assembly, as well as adjust their own hands and the coiled coil, more fun, this is better than the other simply assembly kit. The main advantage of using the headset also takes into account the student's classroom noise!


Features and use:

FM radio program has a rich, good sound quality, etc.All over launch its own FM radio station. The kit FM scan radio pocket computers using special blocks, 16-pin dual flat package, the working voltage of 1.8-3.6V, the circuit includes a FM radio receiver from antenna to the frequency discriminator output audio signals of all the features, it also has search tuning circuit, the signal detection circuit, a mute circuit and compression frequency offset of the frequency-locked loop FLL circuit. IF frequency of the circuit is designed to 70KHZ, peripheral circuits without intermediate frequency transformer, wherein the frequency is selected by an internal RC circuit IF filter to complete. Aircraft such as digital radio tuner that uses electrical tuning buttons (SEEK +, SEEK-), in addition to the volume control buttons (VOL +, VOL-) and the power button (PW). After the circuit is powered on, press the power button, the circuit starts to work, press SEEK + to search for high-frequency or low-end press SEEK- radio frequency search, automatic search for radio signals, tuning automatically stops, then click on the Search button if The circuit continues to search for radio stations. Frequency range is 76-108MHZ. Both receive Universal FM FM station can be received school campus radio station.
