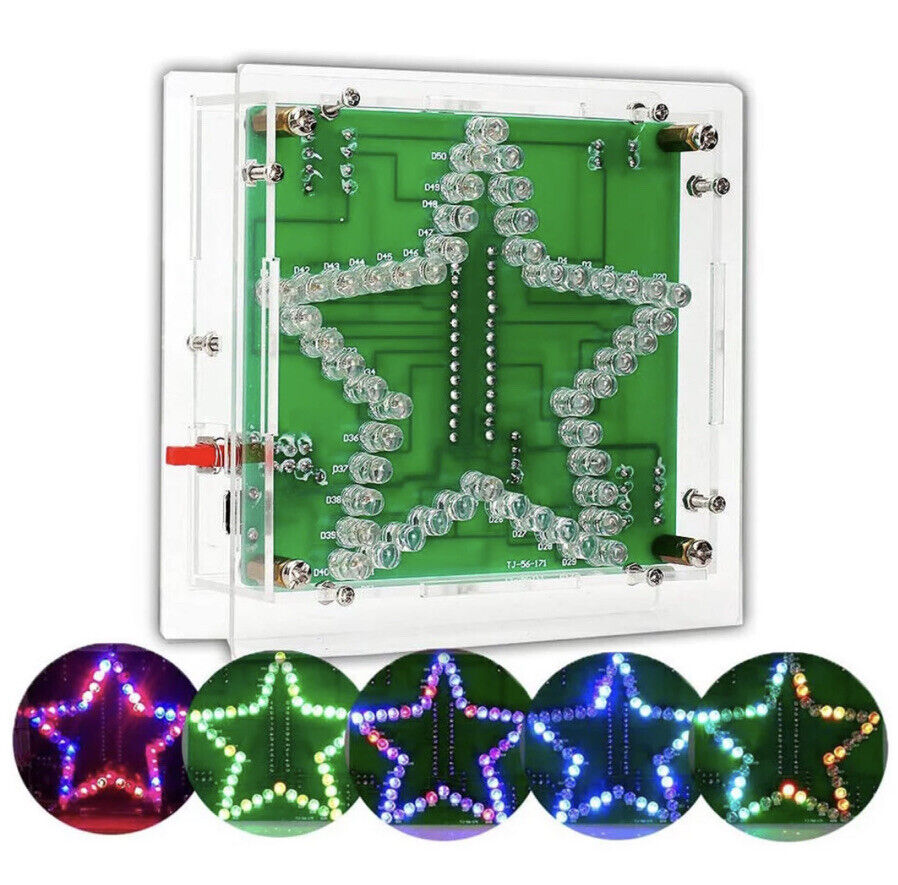

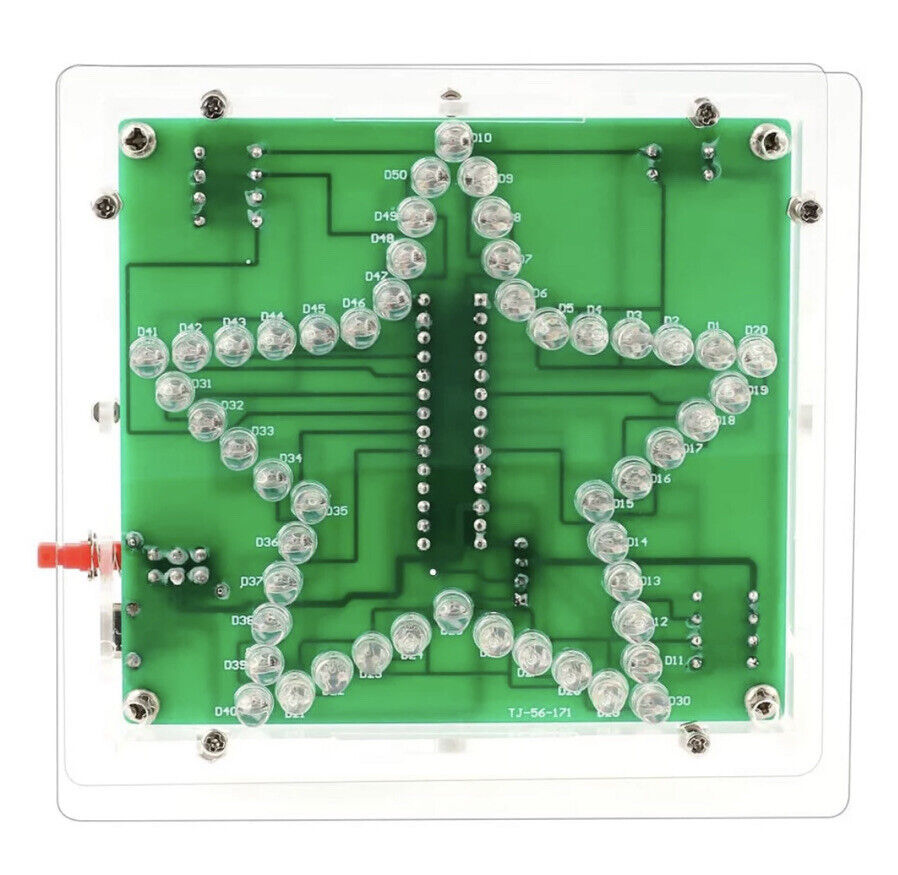

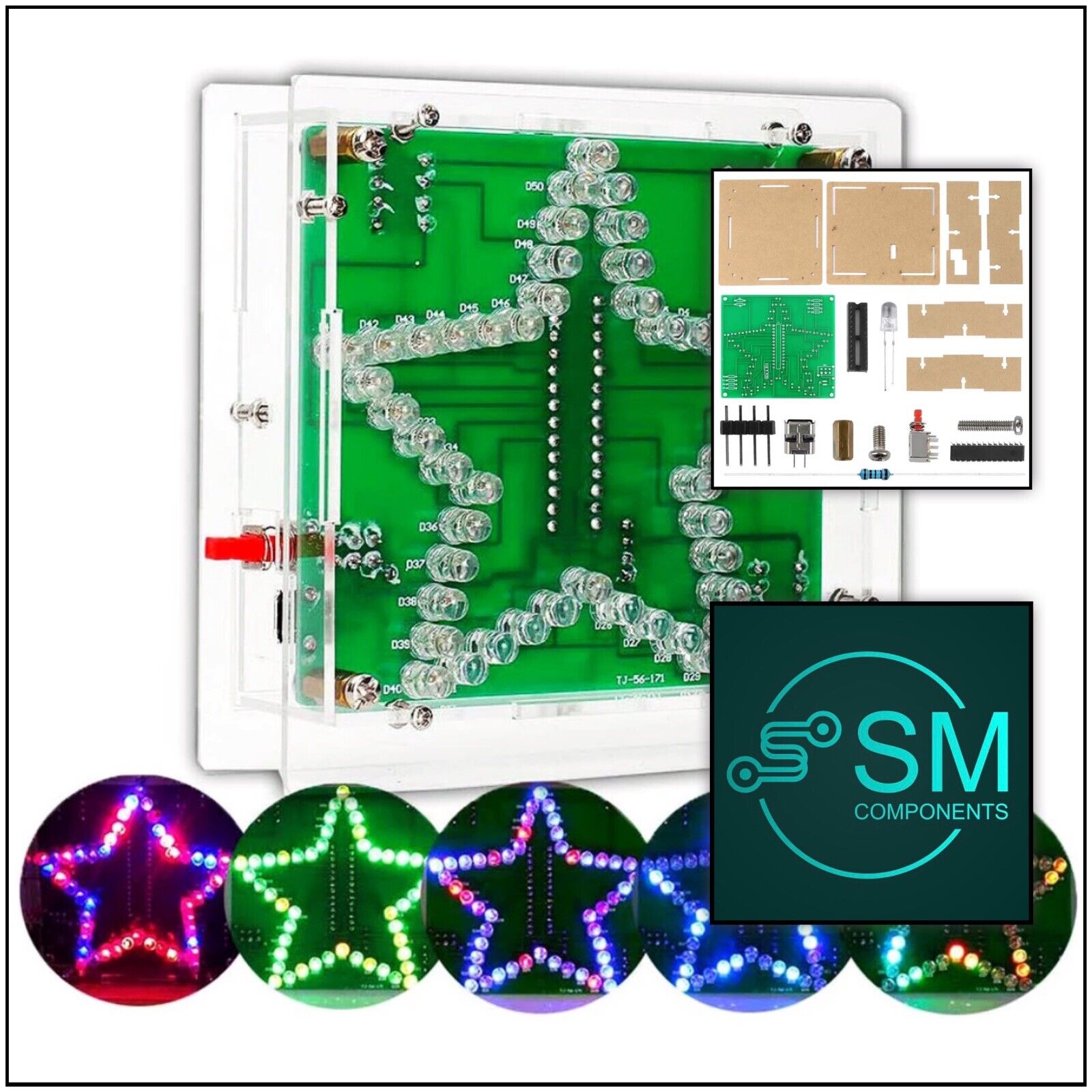

DIY RGB LED 5 Point Star Project Electronic Education Circuit Kit Green PCB Case

Number of Items in Set: 1

Unit of Sale: 1

Mounting Style: Through Hole

PCB Type: Double-Sided PCB

Warranty: 30 Days

Number of Pieces: 1

Compatible Product: Electronics Education

Mounting Type: Through Hole

Modified Item: No

Suitable For: Electronic Learning

Brand: Wavgat

Compatible Mounting Style: Through Hole

Assembly Required: Yes

Operating Voltage: 5vdc

Theme: Christmas

Compatible Mounting Type: Through Hole

Application: Electronics Education Soldering

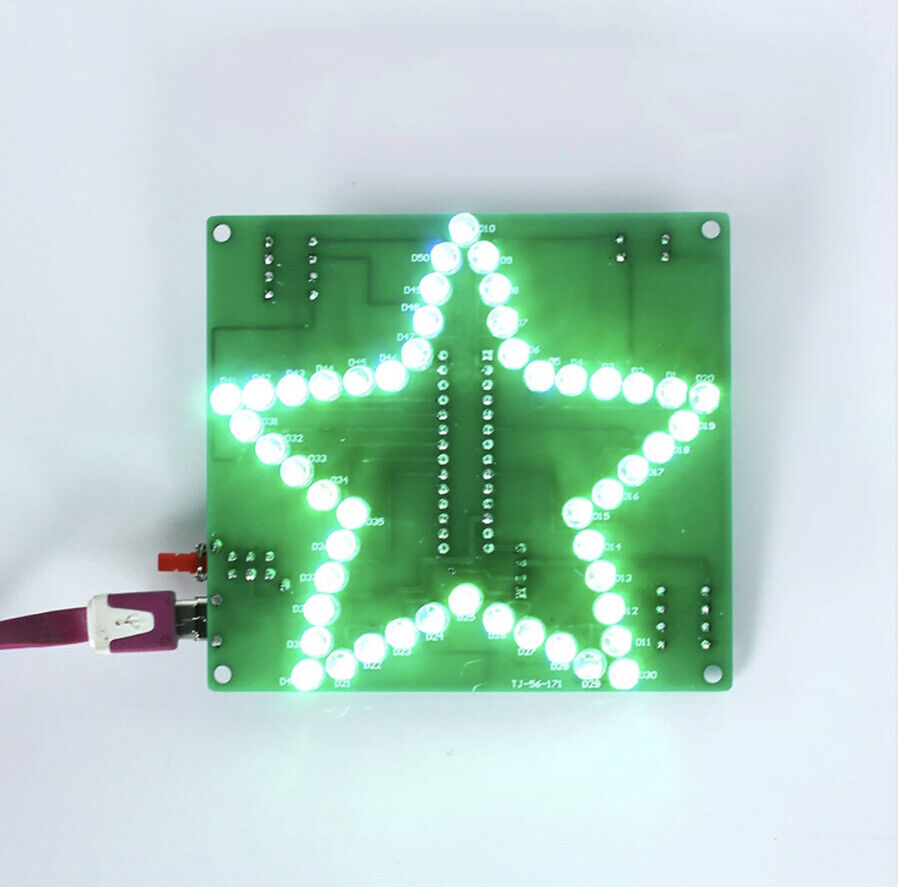

DIY LED 5 point star Project Electronic Learning Circuit Kit Flashing LEDs. Condition is "Brand New” shipping with Australia Post Regular Letter.

This is a great novice kit to get started in assembling electronic kits. It will run from a standard micro USB cable (not included) with a 5volt supply.

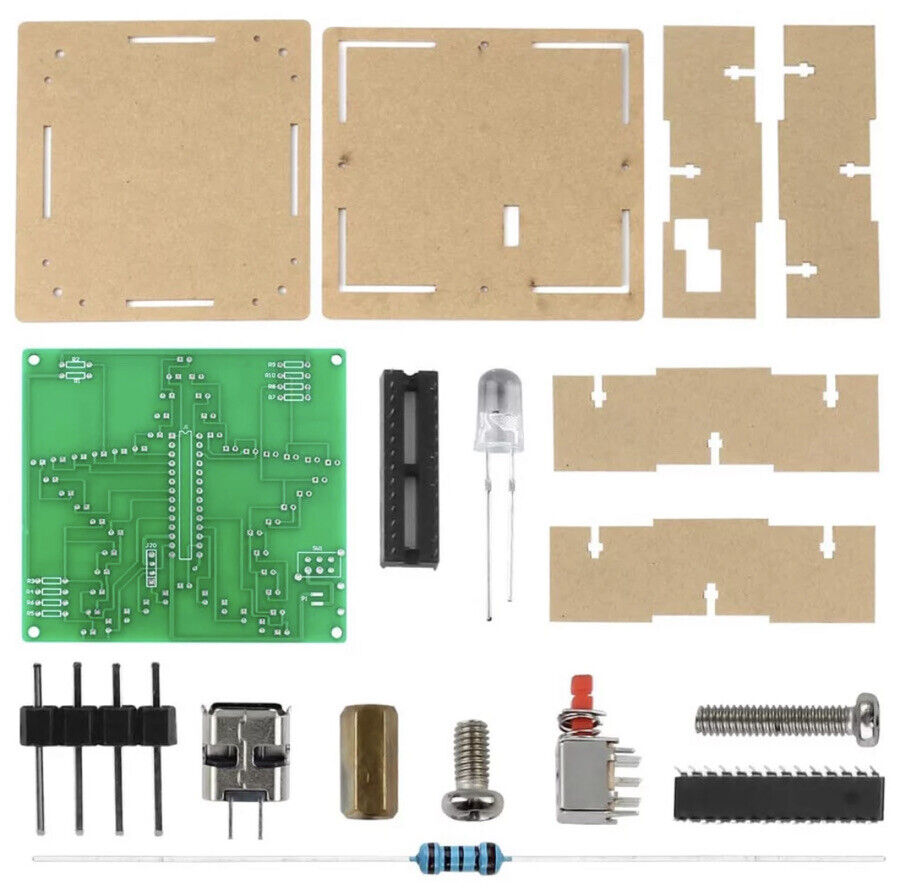

The kit consists of:

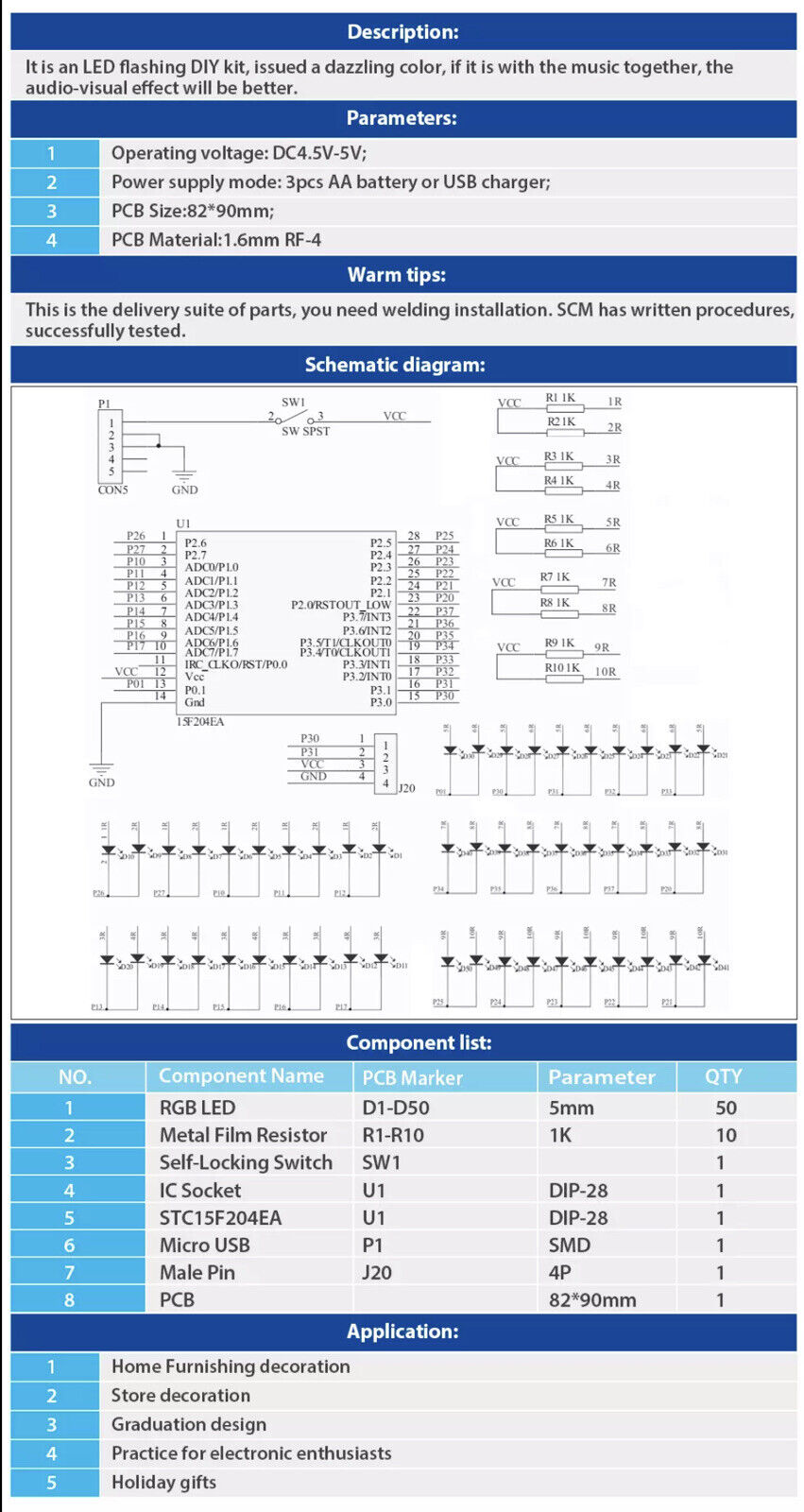

Description:

It is an LED flashing DIY kit, issued a dazzling color, if it's together with the music, the audio-visual effect will be better.

Parameters:

1>. Operating voltage: DC4.5V-5V;

2>. Power supply mode: 3pcs AA battery or USB charger;

3>. PCB Size:82*90mm;

4>. PCB Material:1.6mm RF-4

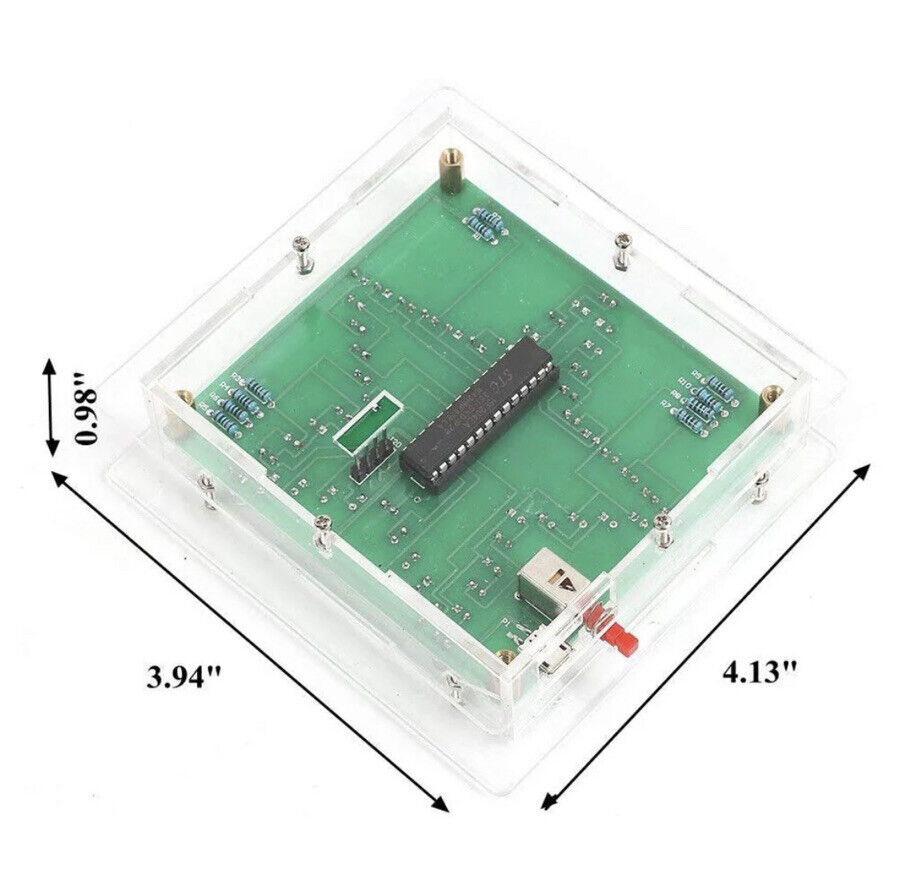

5>. Acrylic Shell Size:30*100*105mm

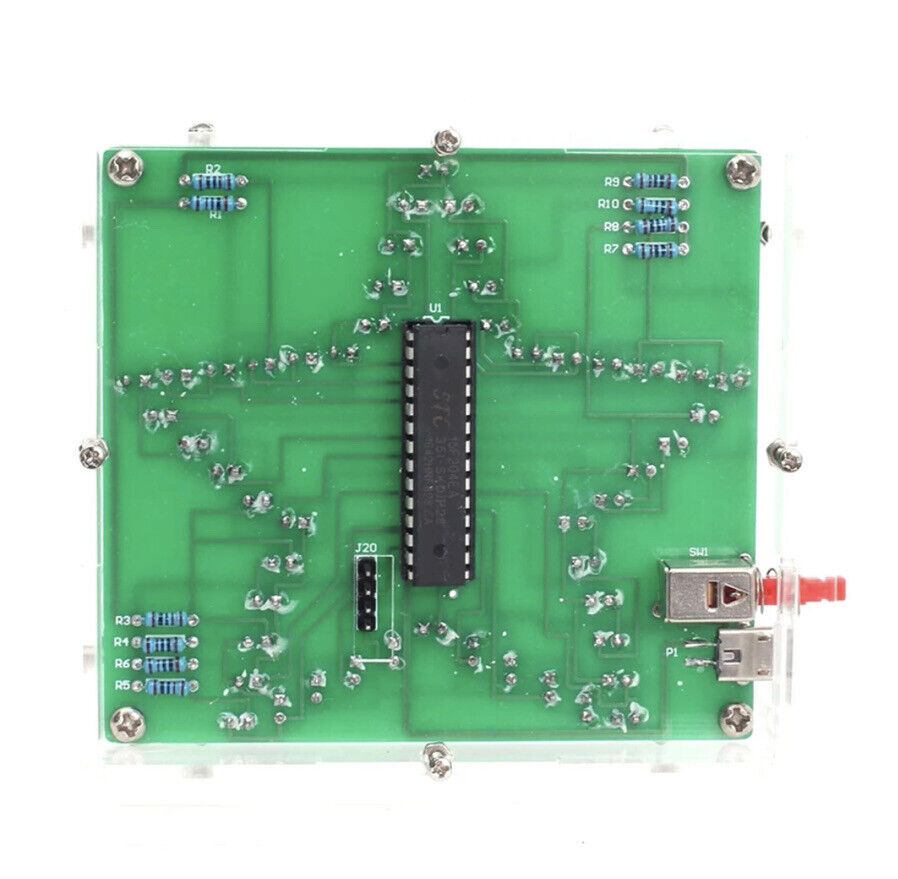

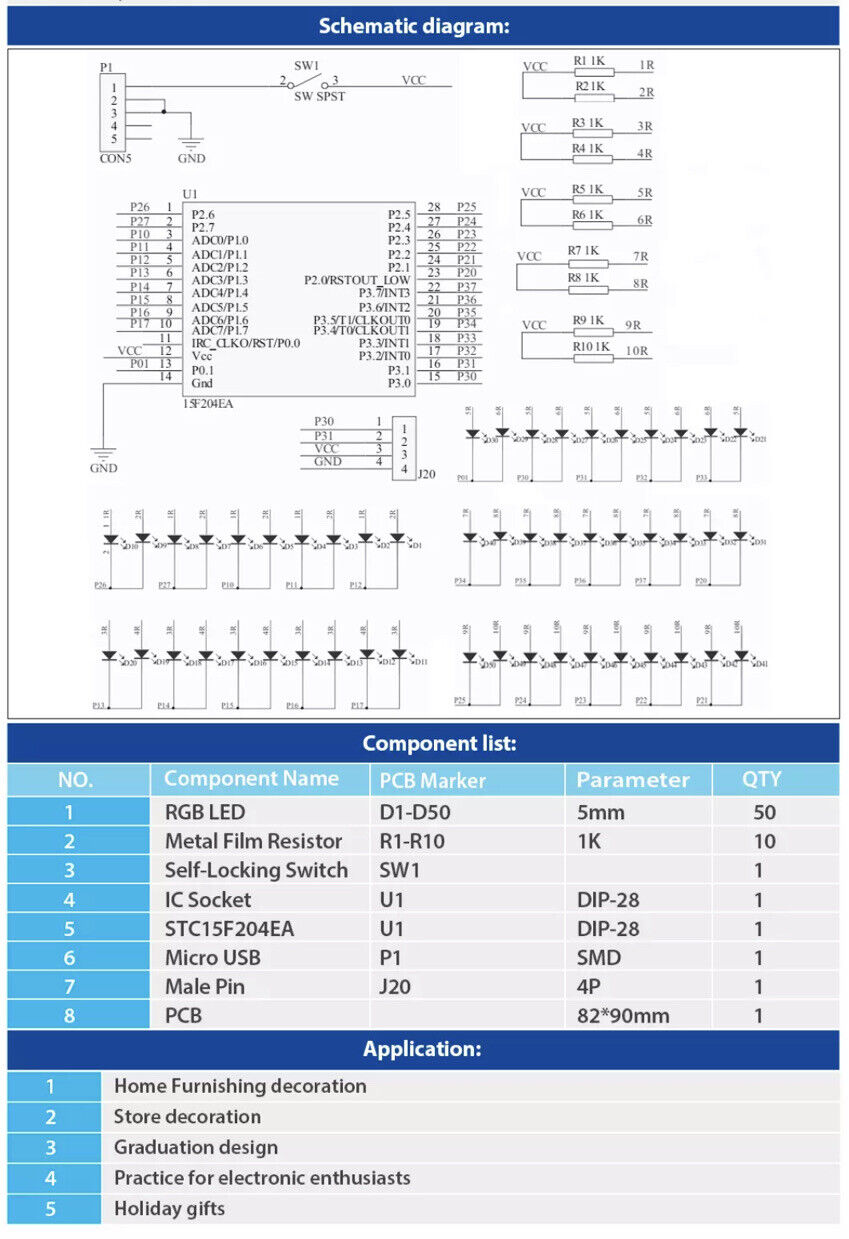

Component List:

NO. Component Name PCB Marker Parameter QTY

1 RGB LED D1-D50 5mm 50

2 Metal Film Resistor R1-R10 1K 10

3 Self-Locking Switch SW1 1

4 IC Socket U1 DIP-28 1

5 STC15F204EA U1 DIP-28 1

6 Micro USB P1 SMD 1

7 Male Pin J20 4P 1

8 PCB 82*90mm 1

9 Acrylic Shell 6

10 Copper Pillar M3*10 4

11 M3*6 Screw 3mm 8

12 M2*10 Screw 2mm 11

13 M2 Nut 2mm 11
