DIY Rotating LED DS1302 Electronic Digital Clock + Case Temperature Display KIT

Brand: Unbranded

Type: Diy Electronic Led Clock

Model: DS1302

MPN: Does Not Apply

Country/Region of Manufacture: China

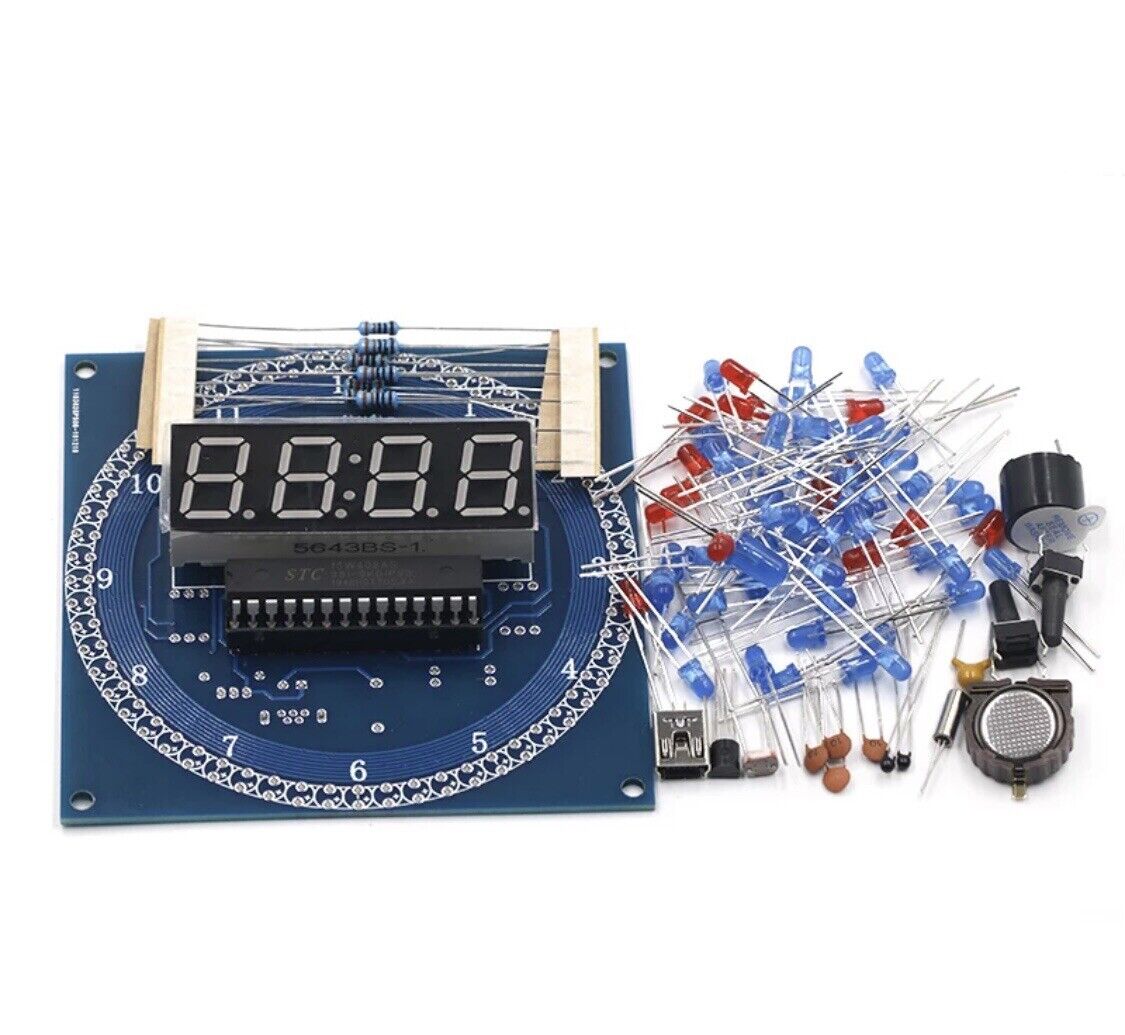

DIY DS1302 Rotating LED Electronic Digital Clock Temperature Display KIT + Case. Condition is "Brand New". Sent with Australia Post includes tracking number.

THE KIT DOES HAVE INSTRUCTIONS.

The clock kit has automatic adjustment of brightness, alternating display of time and temperature, with alarm clock and power-off memory function. The kit indicates that the parts are welded by themselves, and the finished product is welded and tested well. The shell has a layer of paper. It is transparent when it is torn off. You need to assemble the shell yourself.

Name: Light-controlled temperature clock

Gift: source program, schematic diagram (pdf format), production tutorial (the information is an electronic version, contact customer service to download the link)

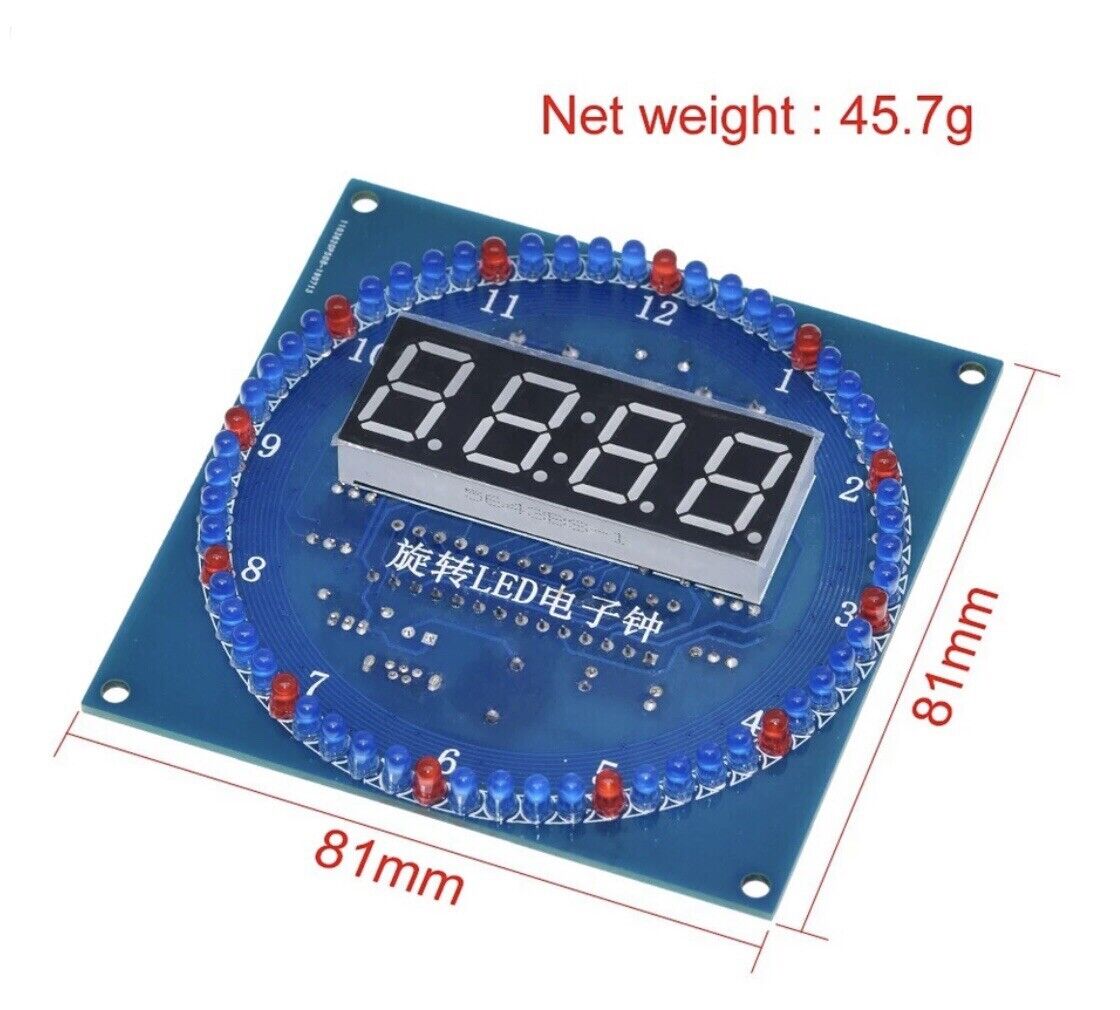

PCB board size: length: 81mm width: 81mm

Working voltage: 5V (available with mobile phone charger and USB port)

SCM program: the program has been burned, installed and used directly

Functions: precise temperature measurement, precise travel time, power-off memory, alarm clock setting (can be turned on and off), physical light control (can be turned on and off).

Features:

1. Designed with digital tube display principle;

2. Adopt full plug-in component design, the production success rate is as high as 99.9%;

3. Designed with digital tube display principle;

4. Six kinds of time animations make you never get bored;

5. Seven kinds of offline animations, it is also good to give away;

6. Time and temperature are displayed alternately, so you don't have to always look at your phone anymore when you look at temperature and time!

7. Bring an alarm clock all the way to remind you that you can no longer get up;

8. With light control function, it can automatically adjust the brightness according to the environment (it can also be used as a night light);

Key function description:

Only 2 buttons are needed to realize all the above functions! ! One mode key (S1) and one addition key (S2).

1. Addition key: corresponding to the S1 key on the board, you can add time, alarm, light control, and rotation modes. Press once to add 1 to the value.

2. Mode key: corresponding to the S2 key on the board, you can switch to the setting state when the clock is displayed

Uses: The finished clock can be used as desktop art ornaments in homes, schools and companies. Clock parts are suitable for electronic enthusiasts and practical training kits for colleges and universities.

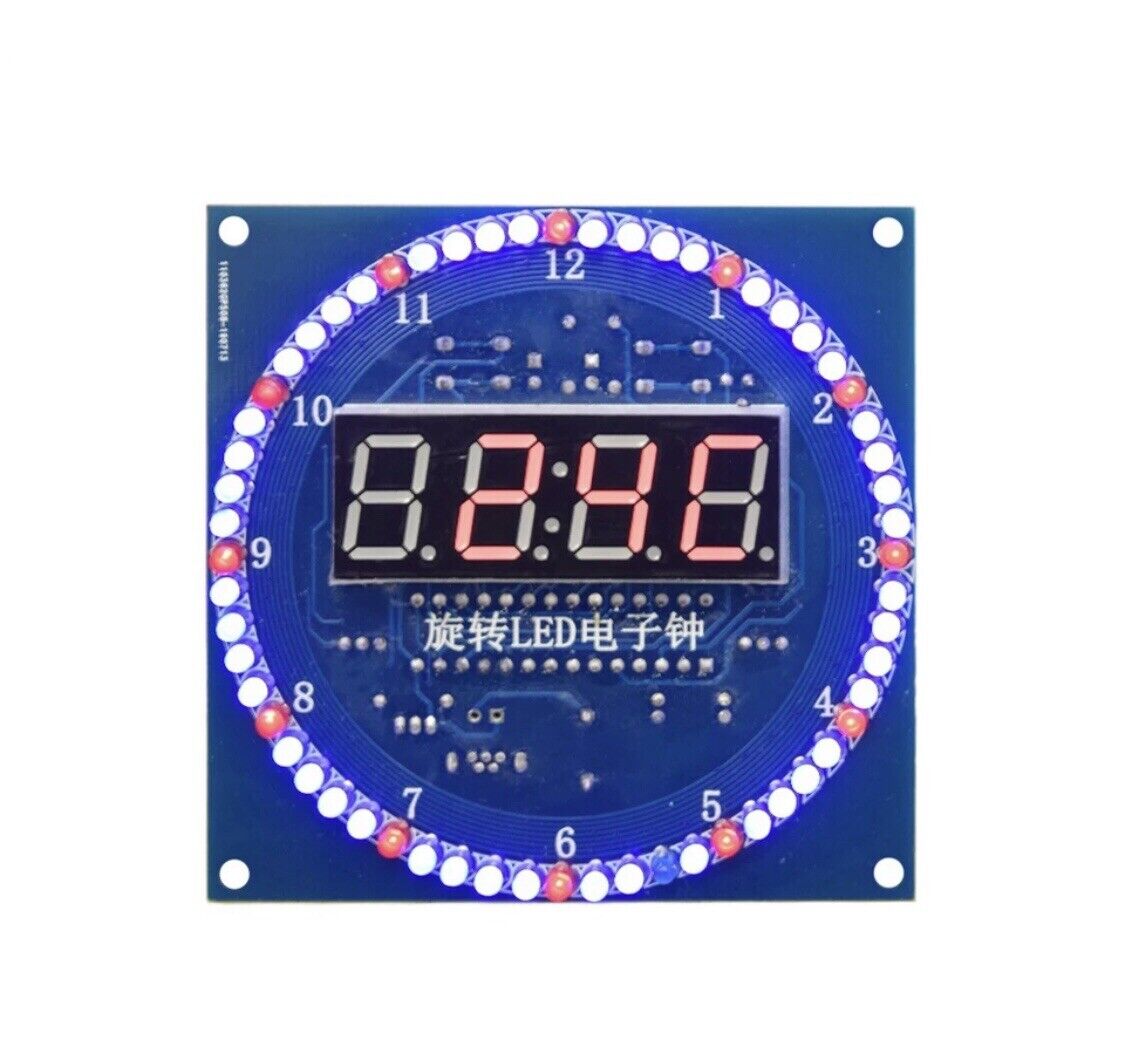

Finished board display

Installation Notes:

Step 1: The circuit board is fastened with four screws on the top and bottom of the copper screw, and then tightened with 4 screws on the front.

Step 2: Enclose the 4 side panels and cover the screws on the back.

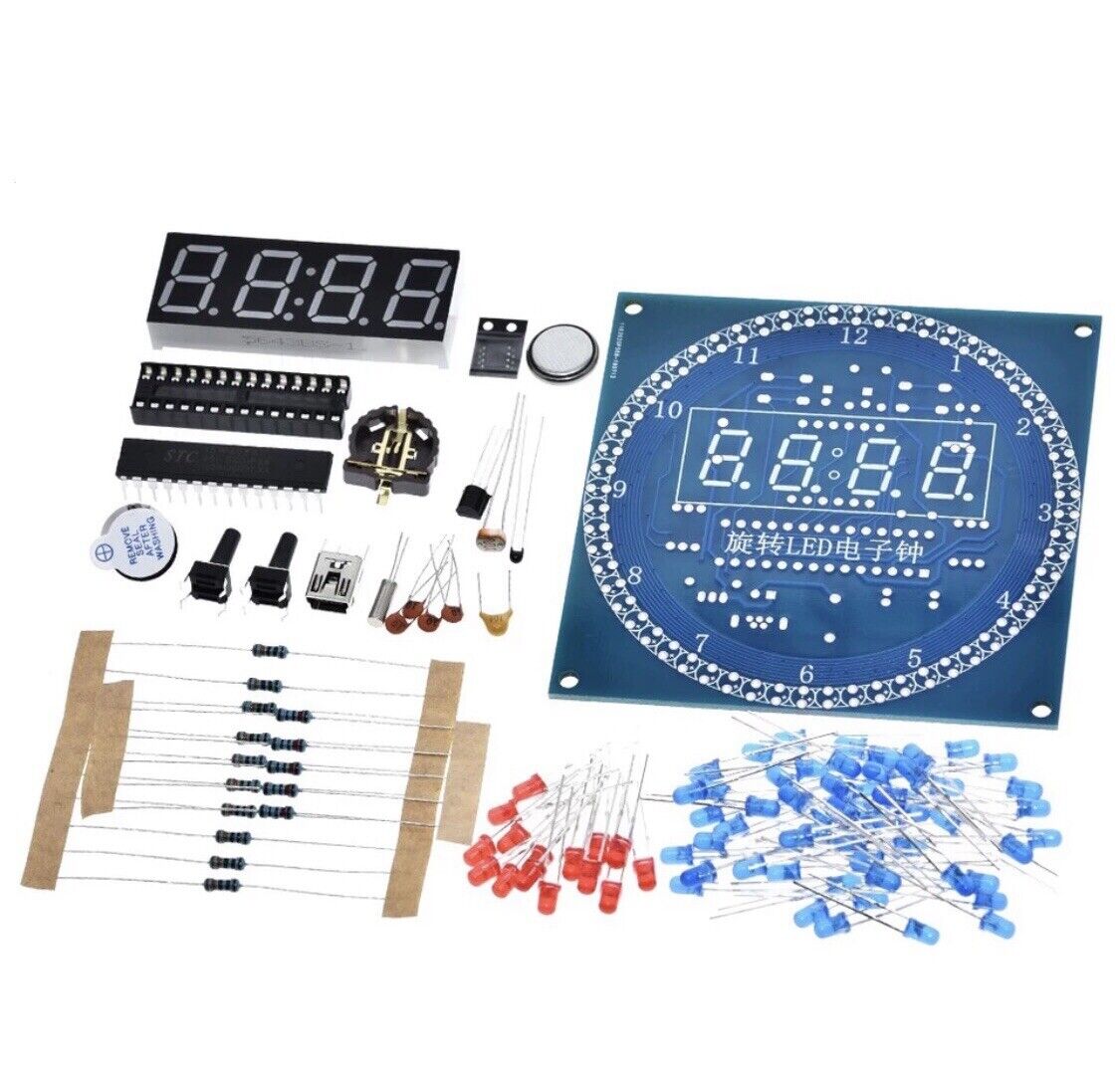

Parts List: included in kit

Does NOT include USB cable

New multi-mode rotating LED electronic clock diy kit. It is designed by STC's latest single-chip microcomputer and clock chip DS1302 and 60 3mm round LED light-emitting diodes. USB 5V power supply mode, the maximum current of the whole machine is 35MA, and the colors are slightly different. The power consumption is about 3 degrees a year.

(This kit does not provide the source program, the program has been downloaded to the microcontroller, the welding can be debugged and it can run normally)

Package Description: The parts need to be soldered by the buyer. The buyer is required to have certain electronic component knowledge and welding skills. If you don't understand the cautious shot (you can take the finished product), otherwise the welding will not be successful, the seller will not bear any expenses! The finished product is the seller has been welded and debugged, and can be used directly after purchase. Convenient for friends who don't understand electronic knowledge.

The store has 100 USB to DC5.5*2.1mm DC5.5 power cords, all packages are delivered, first-come first-served, while supplies last.

Function description: 1. Time display function.

2. The peripheral LED has 11 display modes, which can be adjusted by pressing the button.

3. All the way alarm clock function.

4. The two lights above the ear can set the time to light it, which is equivalent to a night light.

Buyers notice: board size, 90*88mm. Some of the boards are patch components, requiring buyers not only to have soldering skills, but also to solder patch components. After receiving the goods, all the electronic components must be placed in the container, do not spread on the desktop, so it is easy to lose small patch components!
