DIY Ultrasonic Suspension Acoustic Suspension Kit Levitation Learning Set DC12V

Brand: Unbranded

Type: Ultrasonic Suspension

EAN: Does not apply

UPC: Does not apply

MPN: Does Not Apply

Ultrasonic Suspension Acoustic Suspension Kit Levitation DIY Learning Set DC12V. Sent with Australia Post regular Letter no tracking number included.

DIY Ultrasonic Suspension Acoustic Suspension Kit For DIY Learning Levitator DIY Kit

Features

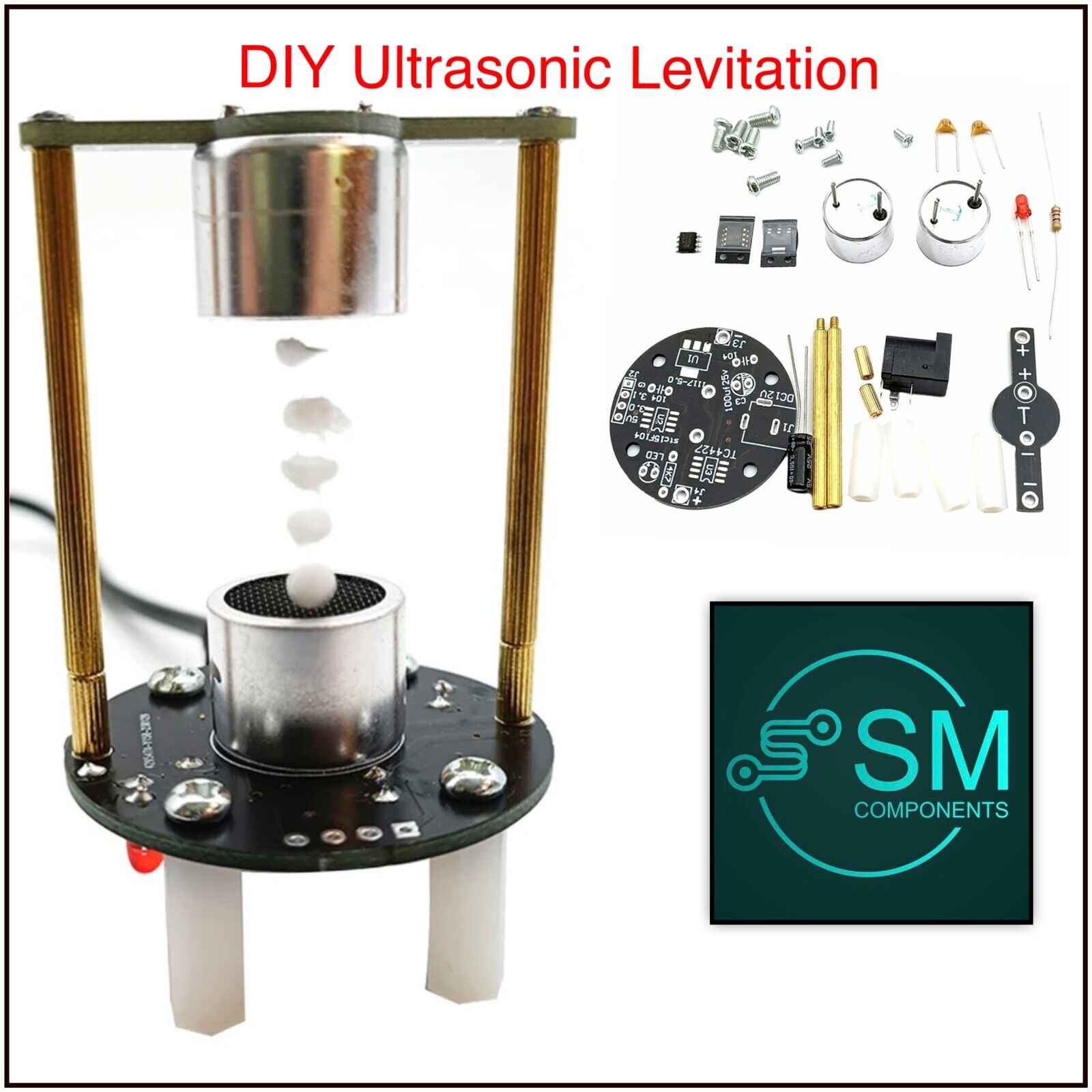

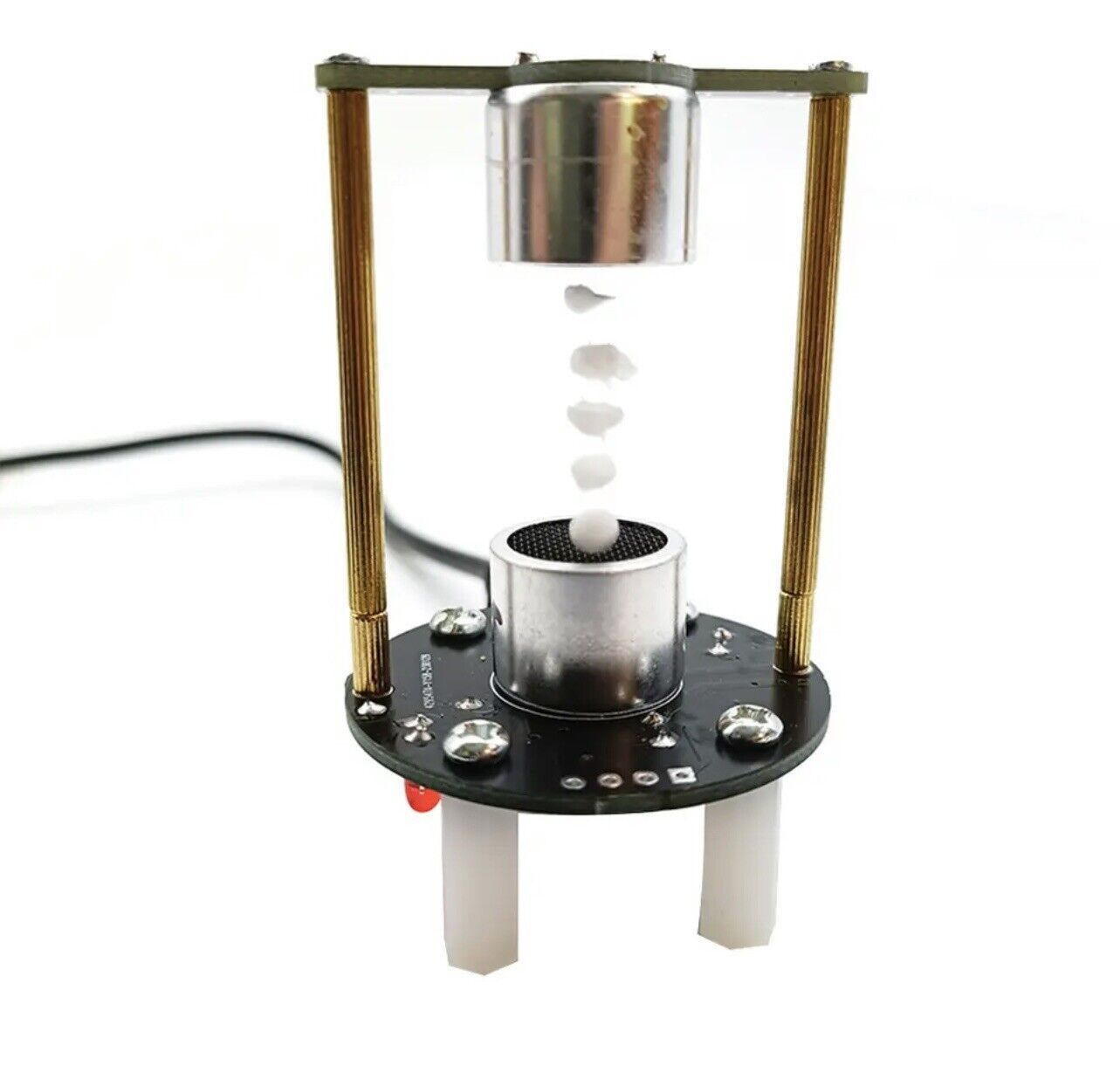

This is a small ultrasonic levitation device which can levitate foam balls.

This levitator operates at 40KHZ in the air and can capture light mass objects with a density of 2-3MM in diameter, such as foam balls, ants and other tiny objects suspended stably in the air for a long time, with a slight heating of the main board.

circuit mainly consists of 1 microcontroller, 1 driver chip and 2 ultrasonic transmitter head.

Mainly used for learning to understand ultrasonic standing wave levitation.

Suitable for students or DIY electronics enthusiasts to learn ultrasonic levitation standing wave.

Specification

Power input: DC 12V (0.5-1A)

Frequency: 40KHZ

Operating temperature: -25℃～85℃

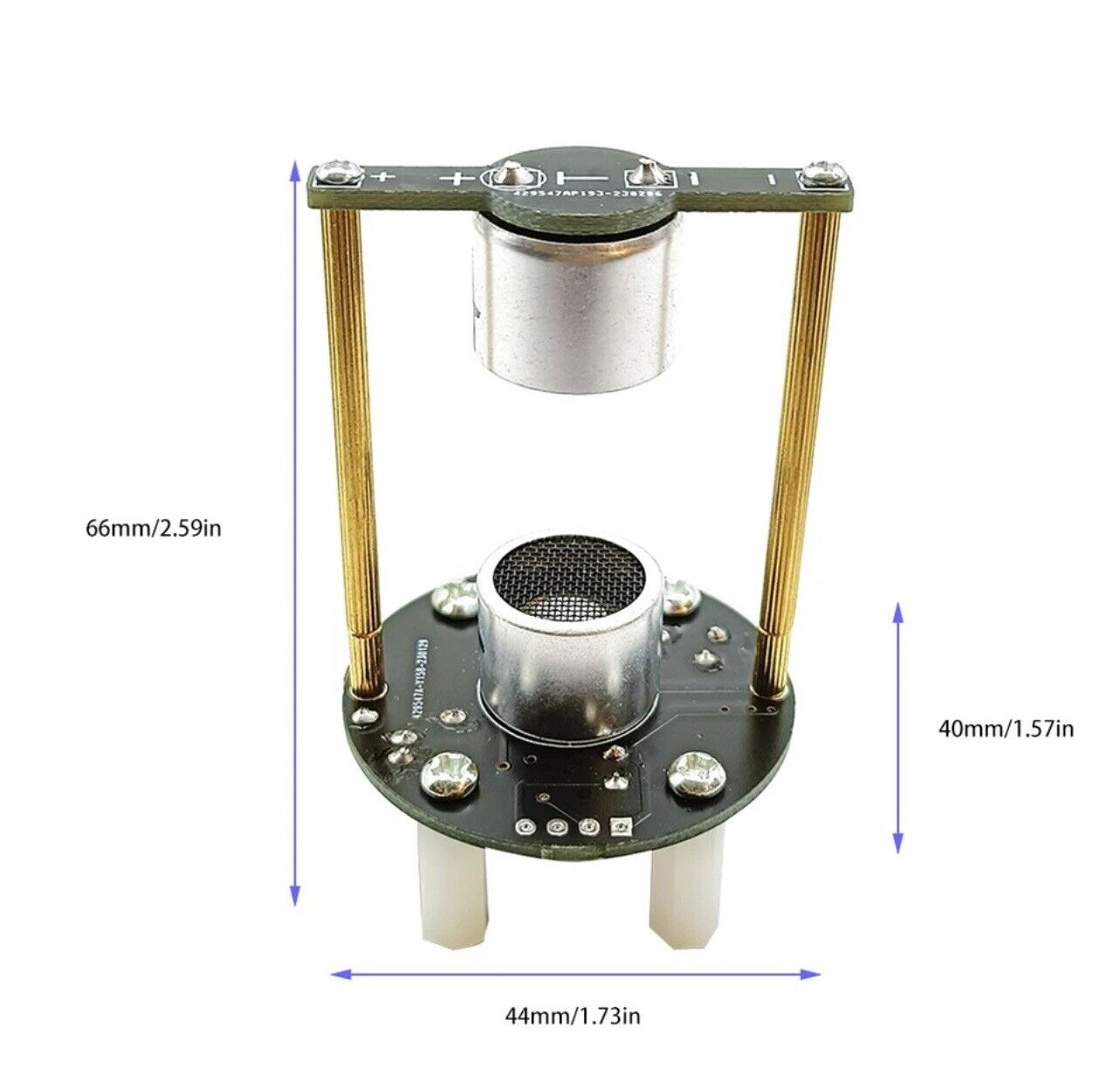

Appearance size (finished product): length 44mm * width 40mm * height 66mm

How It All Works

Ultrasonic standing wave levitation is through the ultrasonic transmitter and transmitter (or another transmitter) there is a certain distance (called the resonant cavity distance), the transmitter wave and the reflected wave (or another sound wave) constantly superimposed, and finally formed a standing wave, the object at the standing wave node by the sound wave force to overcome the effect of gravity, and finally achieve the effect of levitation.

PLEASE BE AWARE THAT THIS KIT CONTAINS

2 x 8 PIN & 1 x 3 PIN SMD COMPONENTS.

IF YOU NEED HELP PLEASE MESSAGE.

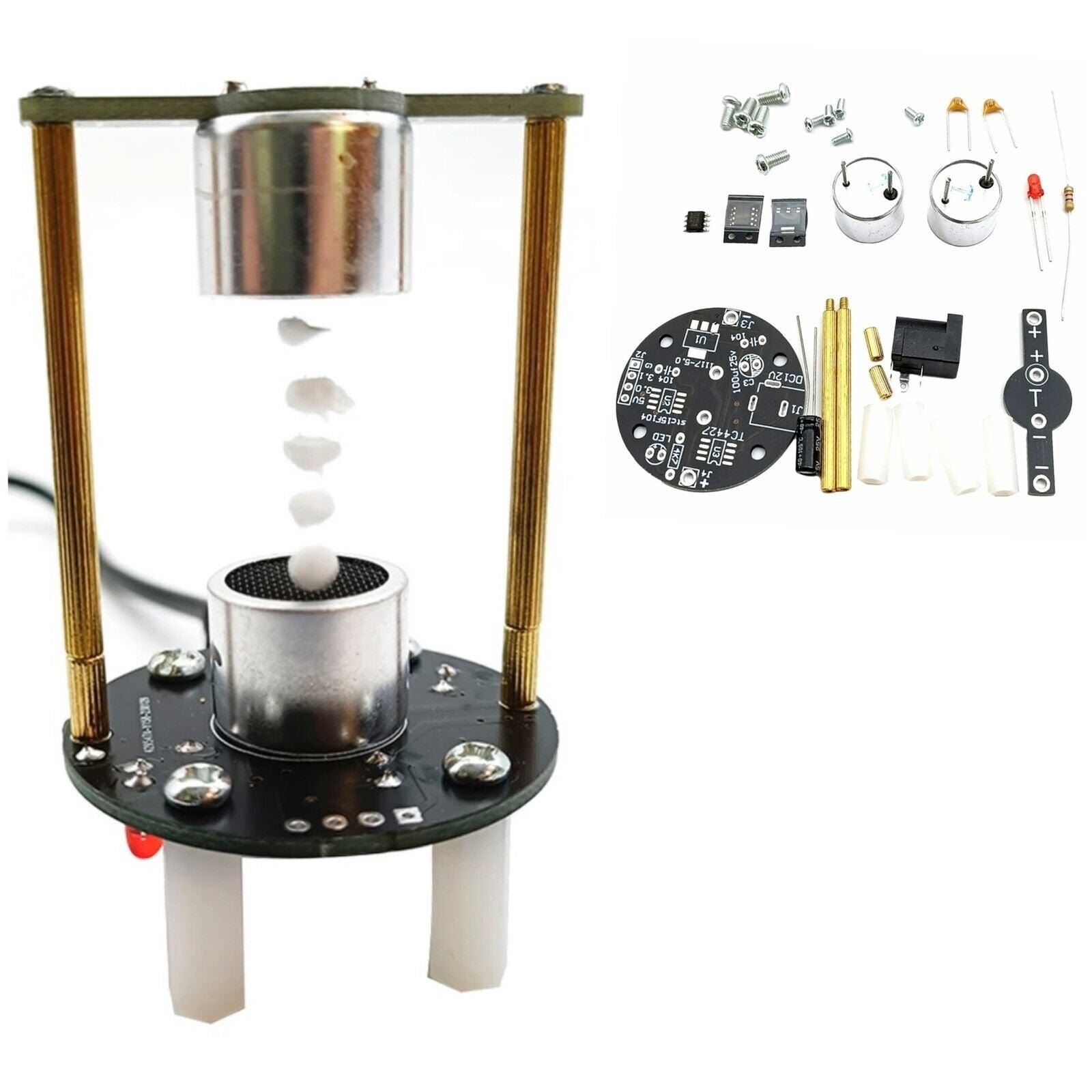

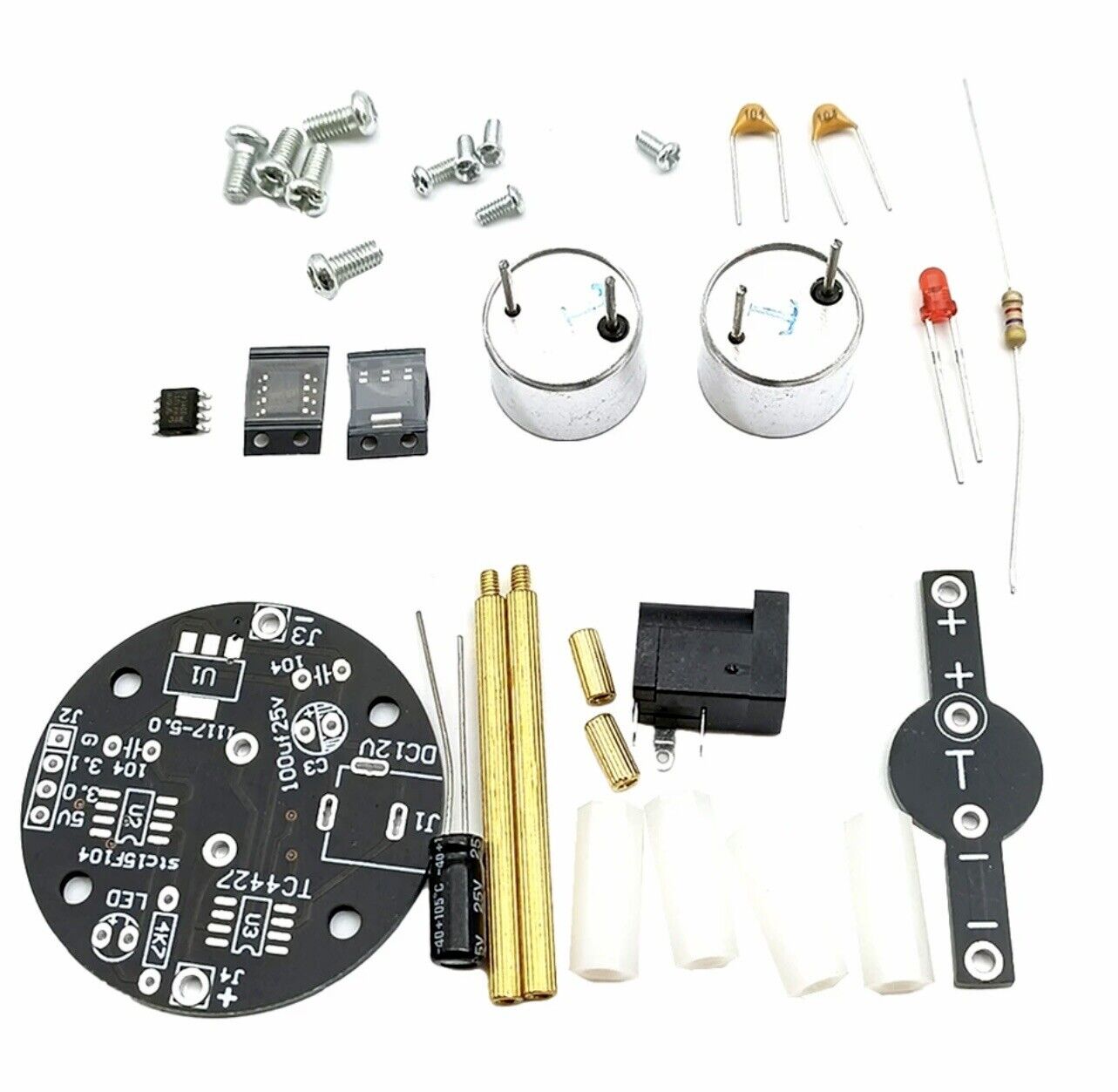

Kit list

1 x DIY loose parts

The kit requires a 12V 500mA-1A Power Supply
