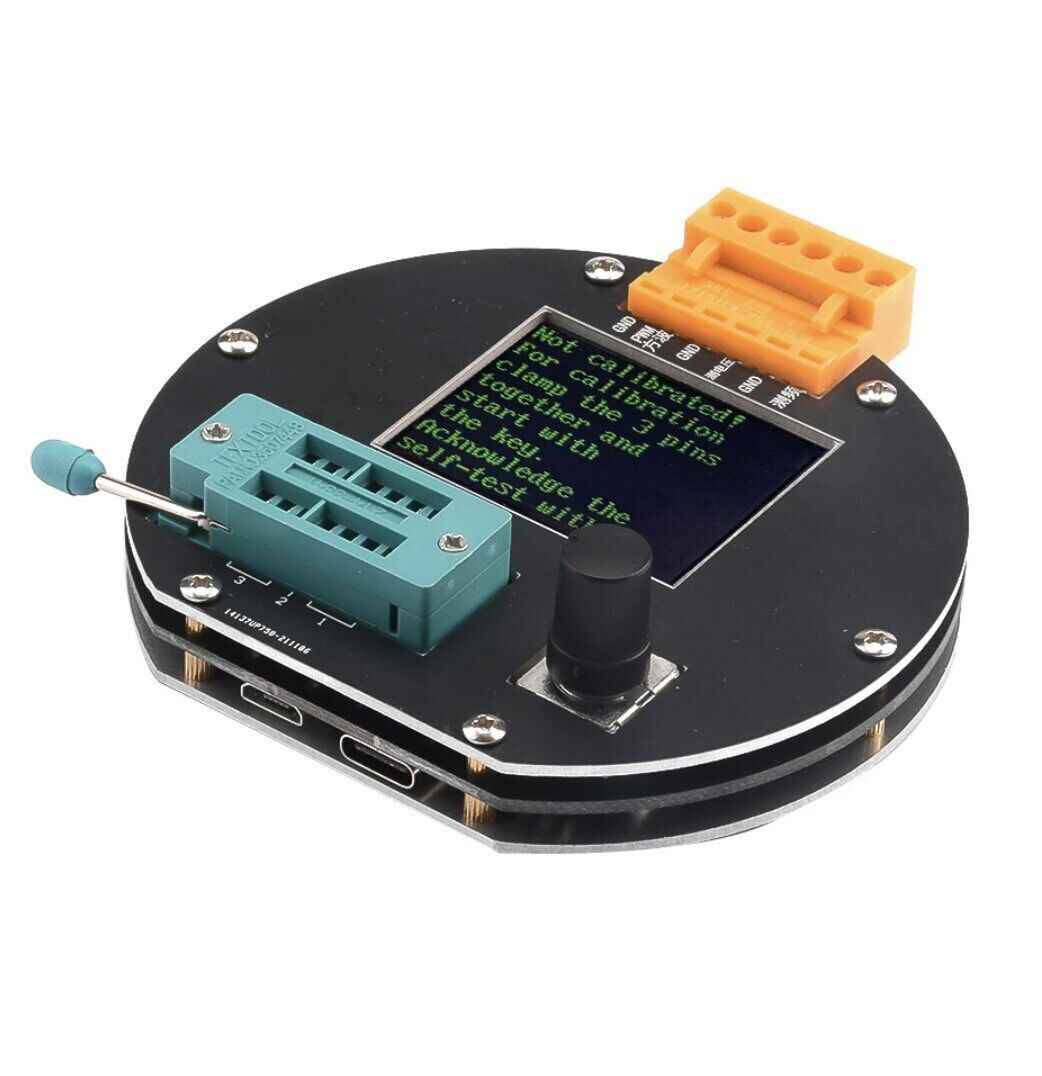

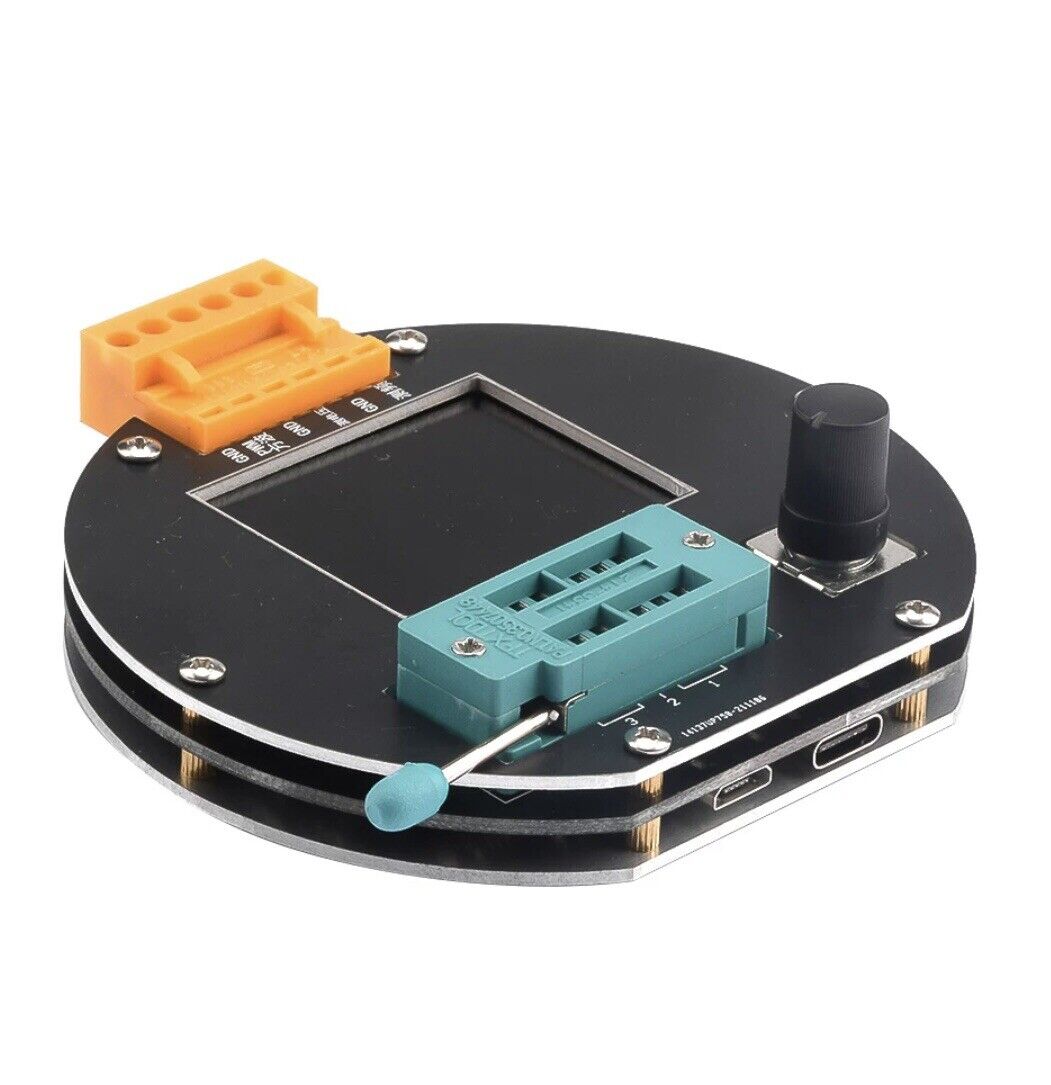

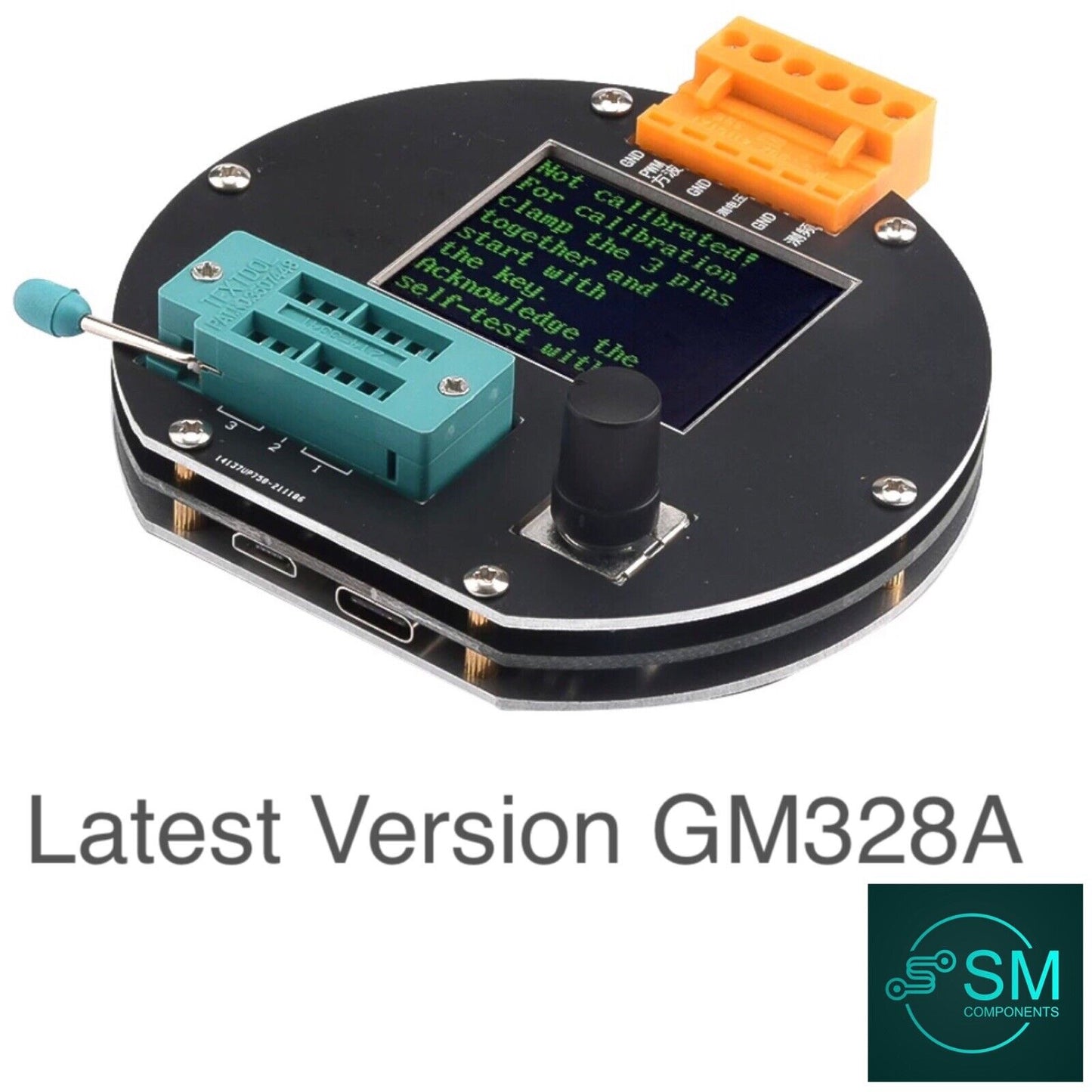

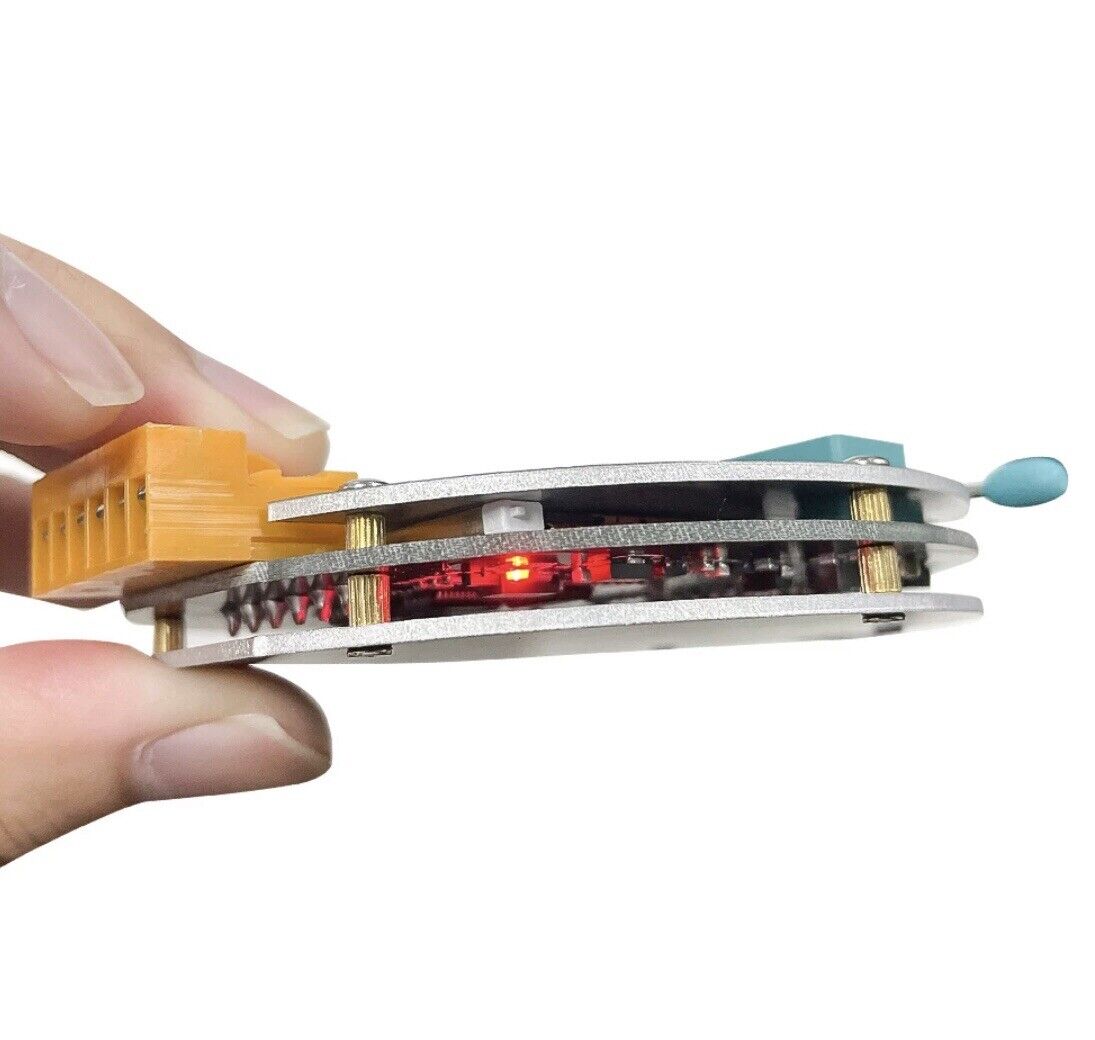

GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter Generator
GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Meter Generator
Couldn't load pickup availability
Brand: Unbranded
Package Contents: Transistor Tester
Measurement Functions: ESR, Capacitance, Transistors, Diodes,Signal Generator
Model: GM328A
Product: Transistor Tester
MPN: Does Not Apply
Power: 9V PP3 Battery- 9-12V Micro Usb
Display: 160*128 LCD
GM328A Transistor Tester Diode Capacitance ESR Voltage Frequency Mete Generator. Item is “brand new” shipped with Australia Post parcel post tracking number included.
Features:
1: Wide variety of components
2: Simple and convenient operation
3: Beautiful appearance
4: Two power supply ports, Micro USB Type-c, power supply is easier to obtain
5: PP box packaging and transportation are safe and easy English version
Input voltage: 6.8-12VDC
Working voltage: about 30mA,

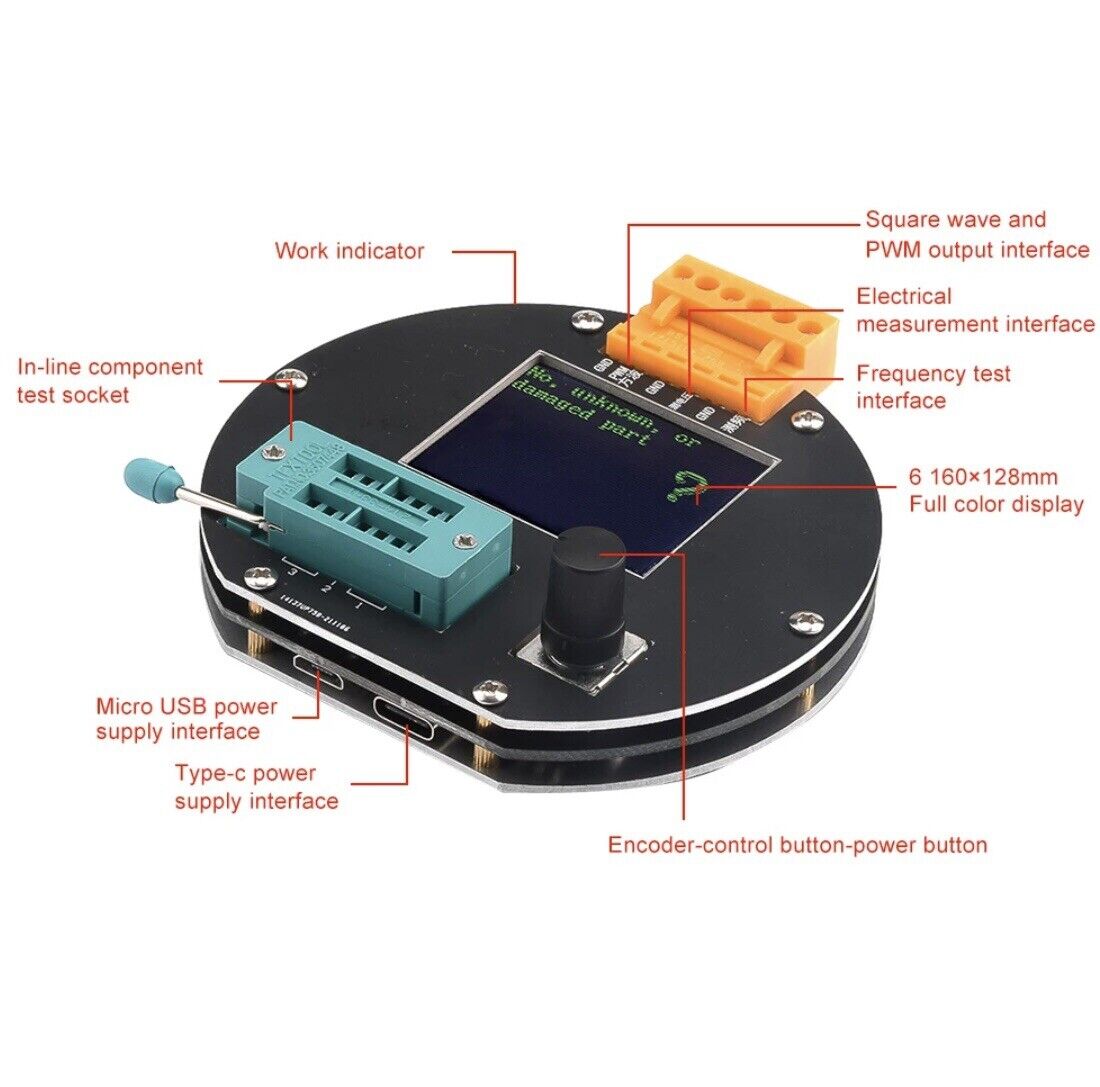

Transistor tester control
The tester is controlled by a rotary encoder switch,
The rotary encoder switch can have 6 kinds of operations in total, short press, long press, left rotation, right rotation, hold left rotation, hold right rotation.
In the shutdown state, short press once to turn on the power and start the test.

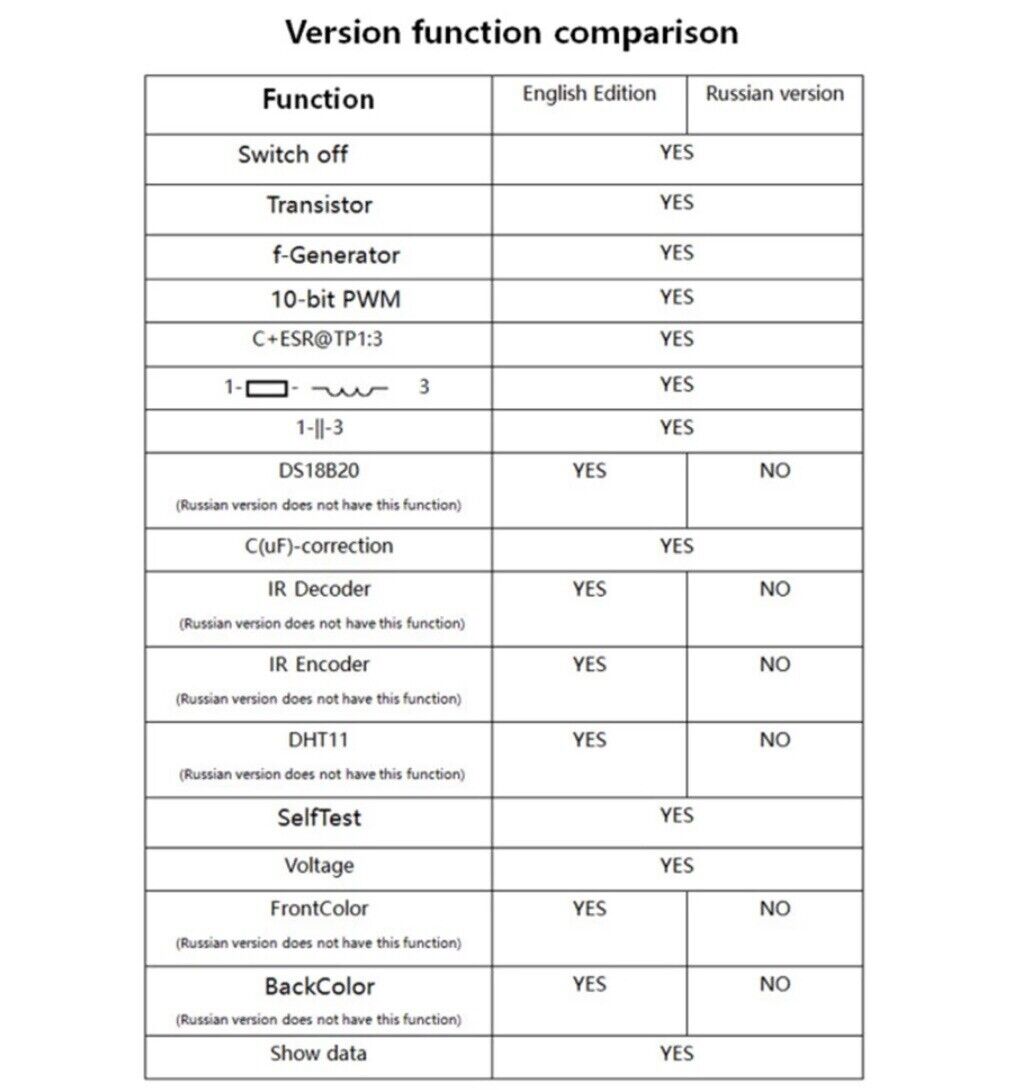

After a test is completed, if the device is not detected. Long press the switch or the left and right rotation switch to enter the function menu. After entering the function menu, the left or right rotation switch can be selected up and down in the menu item. To enter a certain function item, short press the switch once. When you need to exit from a function, press and hold the switch.
1. Calibration:
The tester calibration is used to eliminate the errors of its own components and make the final test results more accurate. Calibration is divided into quick calibration and full-function calibration.
The operation method of quick calibration: short-circuit the three test points TP1, TP2, and TP3 with a wire, then press the test button while paying attention to the screen. The color of the screen will change to black and white. After the prompt message "Selftest mode..?" appears, press the test button to enter the quick calibration process; if the prompt message "Selftest mode..?" appears, 2 seconds If there is no button in the clock, perform a normal test process, and finally display the resistance value of the three test points shorted TP1, TP2, and TP3. After entering the quick calibration process, some data will appear on the screen, just ignore it. Wait until a flashing string appears on the screen
After "isolate Probes!", remove the wires that short-circuit TP1, TP2, and TP3. After the character string "Test End" appears on the screen, the quick calibration is completed. When calibrating for the first time, use the full-function calibration method.
Full-function calibration needs to be entered from the function menu, and a 220nf capacitor is also required. Full-featured calibration performs a more comprehensive calibration process and will take longer. After entering the function menu, rotate the test button to the menu item "Selftest", and then press the test button to enter the full-function calibration process. The flashing character string "short Probes!" appears on the screen, which is the same as the quick calibration. Use wires to short-circuit the three test points and wait for the calibration process to proceed. When the flashing string "isolate Probes!" appears on the screen, remove the wires that short-circuit the three test points and continue to wait for the calibration process to proceed. When the character string "1-||-3> 100nf" is output, install the prepared 220nf capacitors on the test points TP1 and TP3. Wait until the screen prompts "Test End", and the full-function calibration process is complete.
Package Included:
1 x Transistor Tester English Version

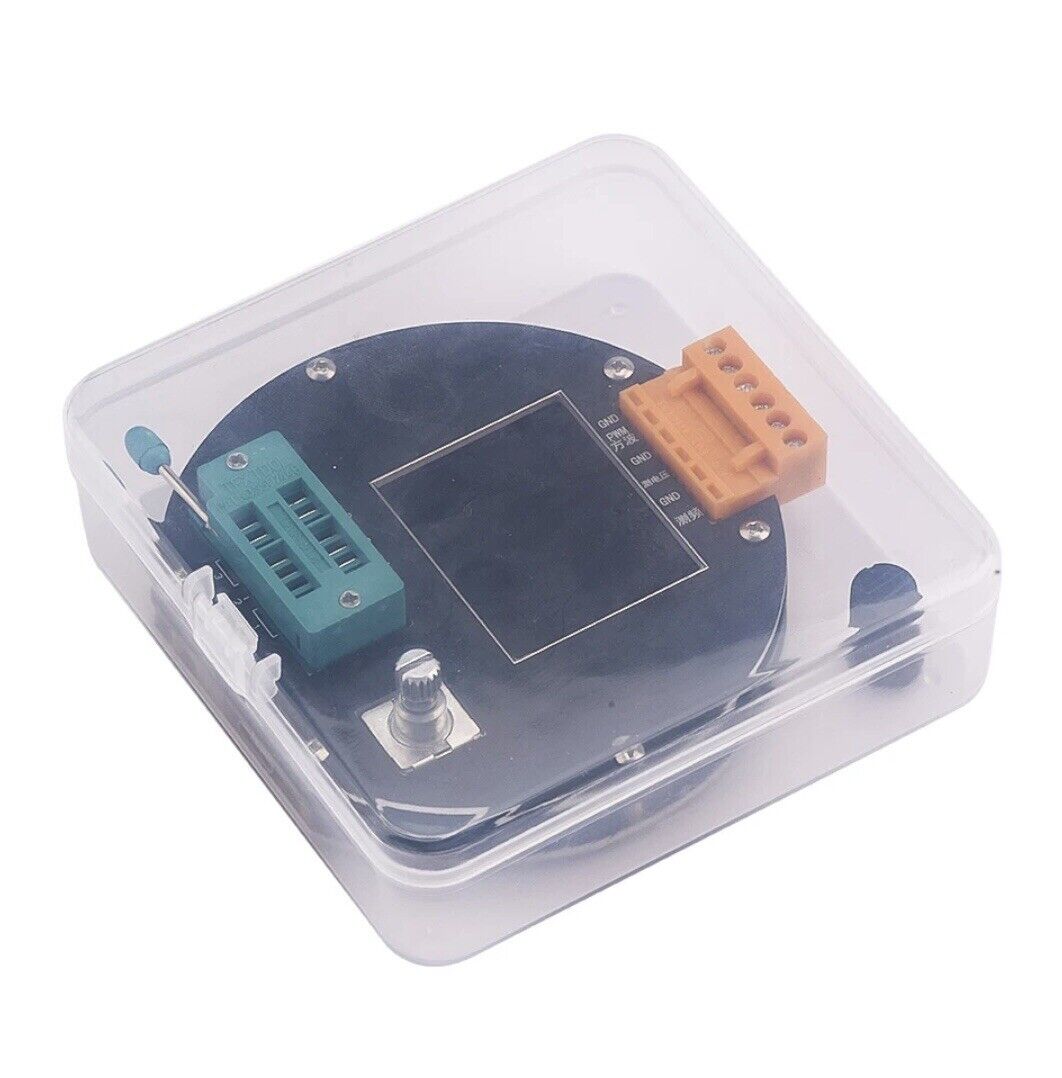

1 x plastic protection box
