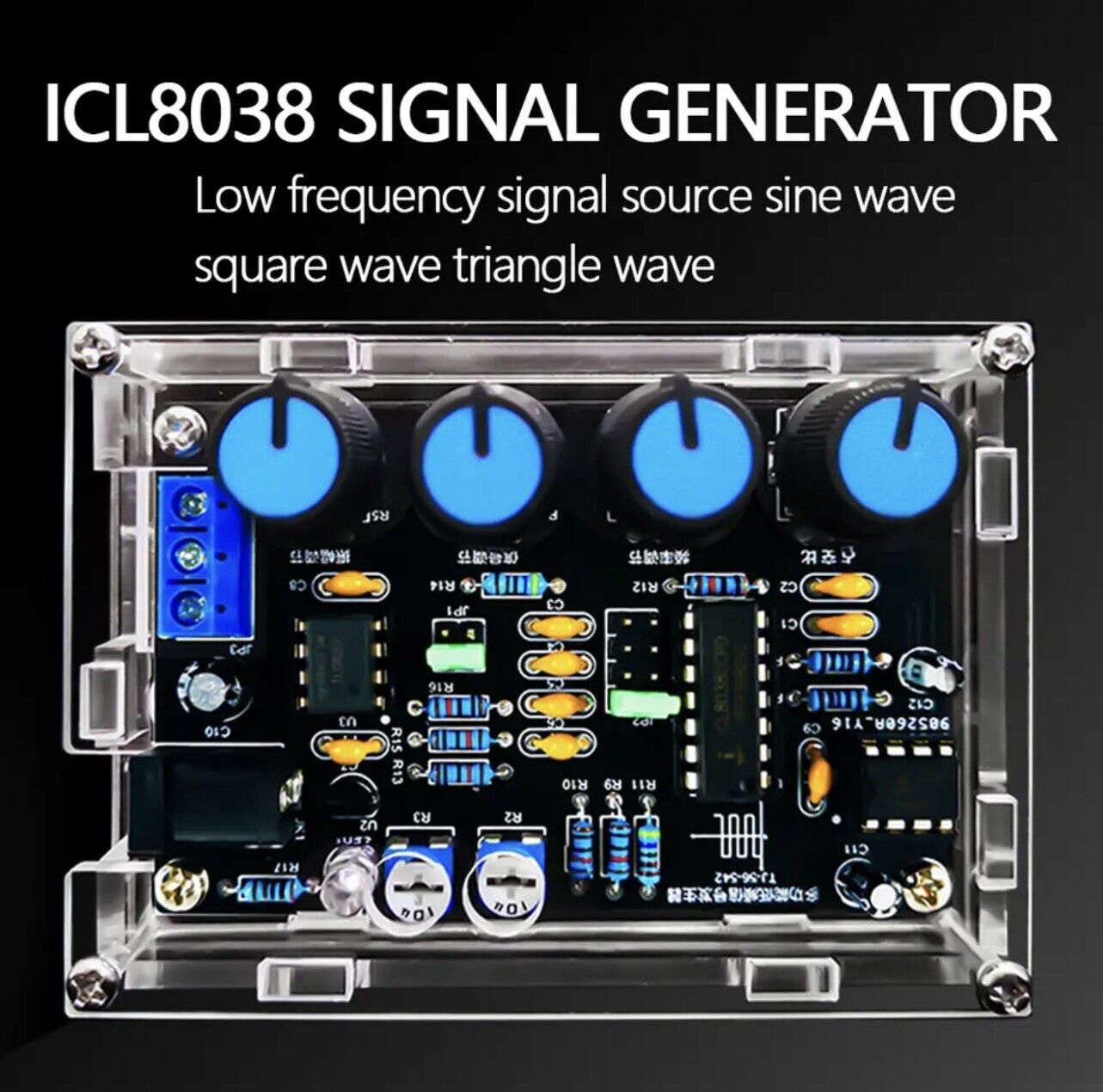

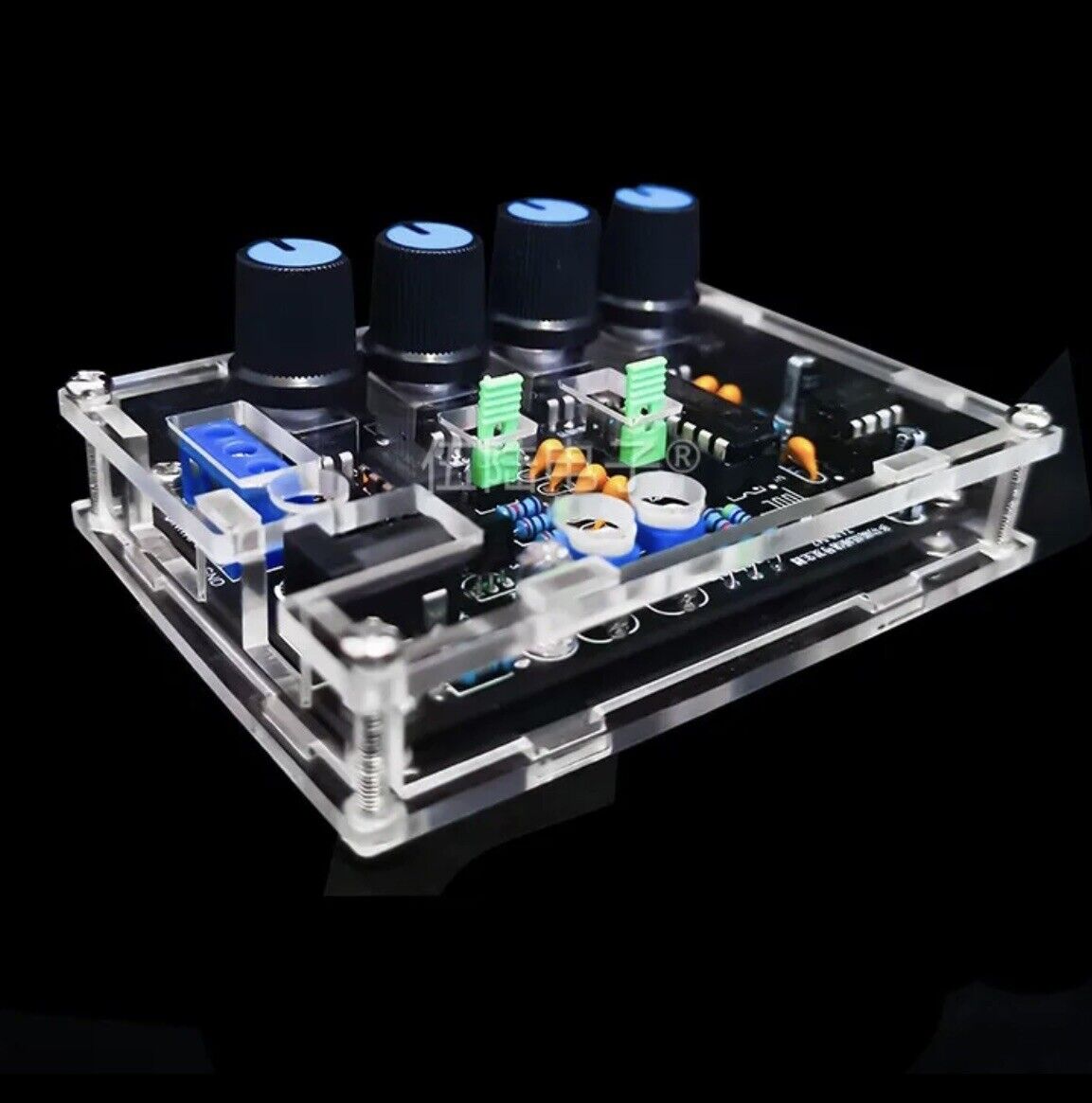

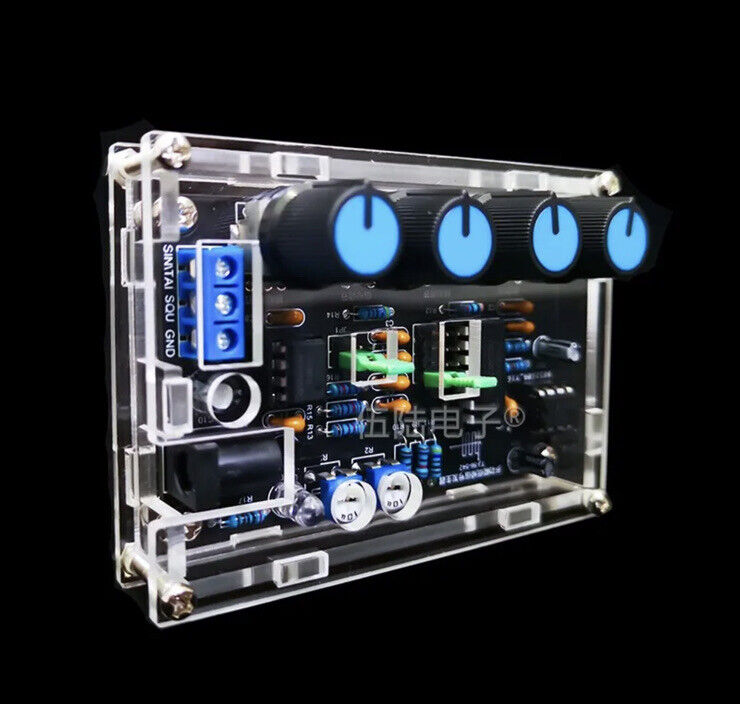

ICL8038 Signal Generator Square Wave Multi-Function 5~400kHz Adjustable DIY Kit

Origin: China

Frequency range: 5Hz~400KHz (adjustable)

Product weight: 82 Grams

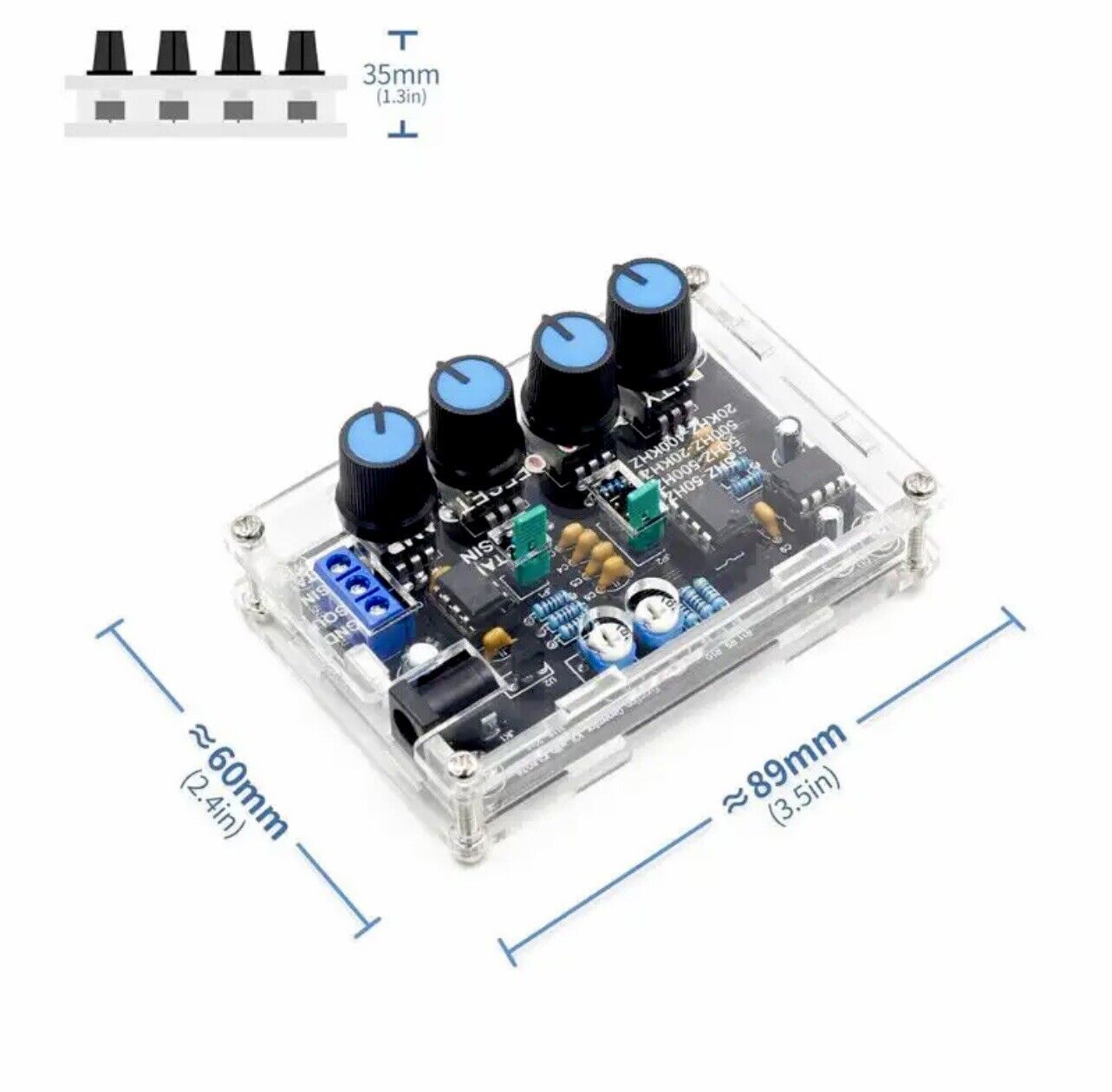

Finished product size: 90mm x 65mm x 18mm

DC bias range: -7.5V~7.5V

MPN: Does Not Apply

Board size: 80mm x 50mm

Material: FR4+acrylic

Brand: Unbranded

Duty cycle range: 2~95% (adjustable)

Low distortion sine wave: 1%

Power supply voltage: 12V~15V

Output amplitude range: 0.1V~11VPP (working voltage 12V)

Model: ICL8083

Output triangular wave linearity: 0.1%

Low temperature drift: 50ppm/° C

UPC: Does Not Apply

ICL8038 Signal Generator Square Wave Multi-Function 5~400kHz Adjustable DIY Kit.Sent with Australia Post Regular Letter NO tracking included.

Output 5Hz~400kHz ICL8038 Signal Generator DIY Electronic Kits Multi-function Low-frequency Self Assembly Component Parts

Specification:

Item name: ICL8038 Signal Generator DIY Electronic Kits

Supply Voltage: 12V~15V

Frequency Range: 5Hz~400KHz(Adjustable)

Duty Cycle Range: 2~95%(Adjustable)

Low Distortion Sine Wave: 1%

Low Temperature Drift: 50ppm / °C

Output Triangular Wave Linearity: 0.1%

DC Bias Range: -7.5V~7.5V

Output Amplitude Range: 0.1V~11VPP(operating voltage 12V)

Board Size: Approx. 7.8 * 5cm / 3.07 * 1.97in

Product description:

Uses ICL8038 and high-speed op amp, higher accuracy.

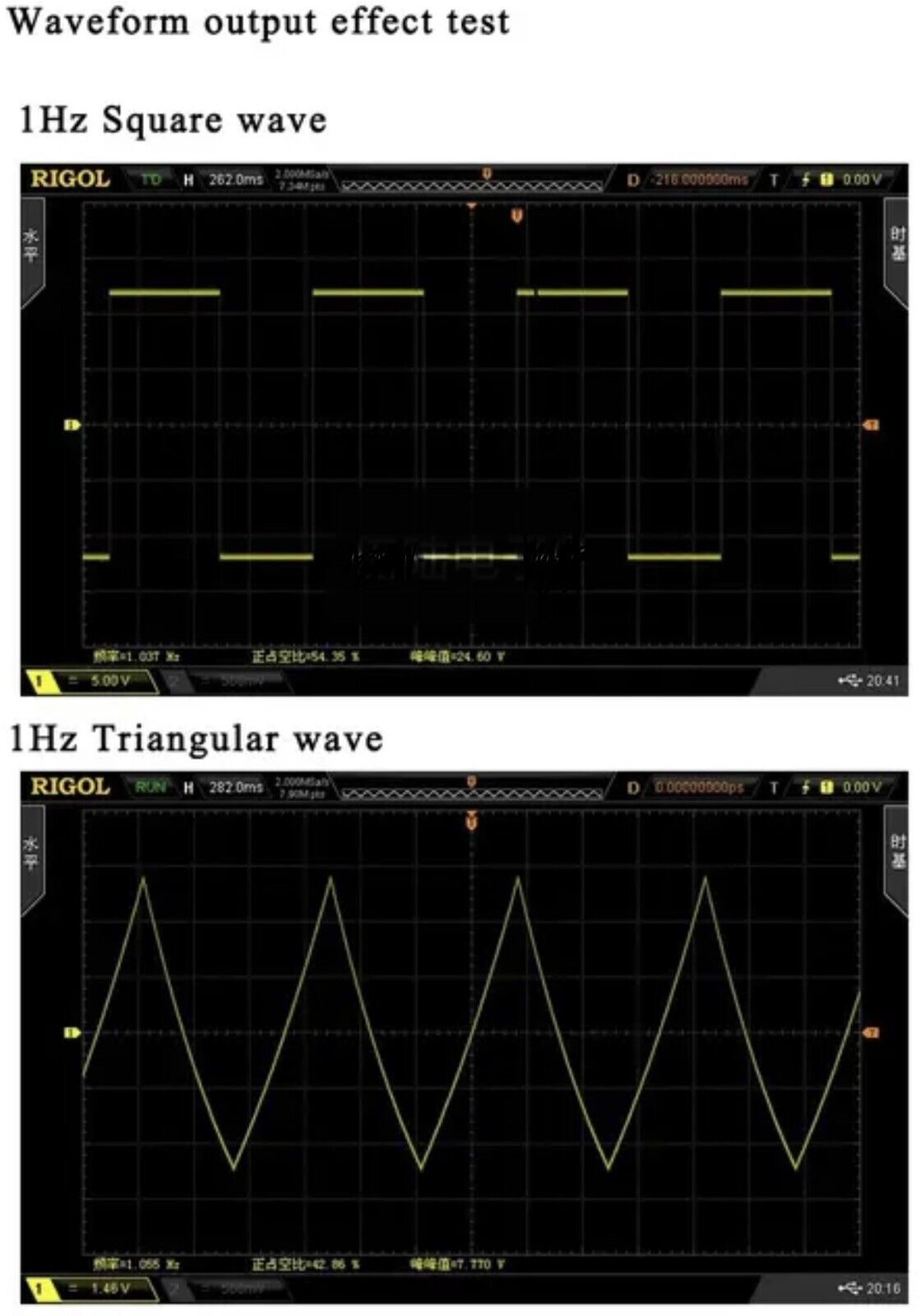

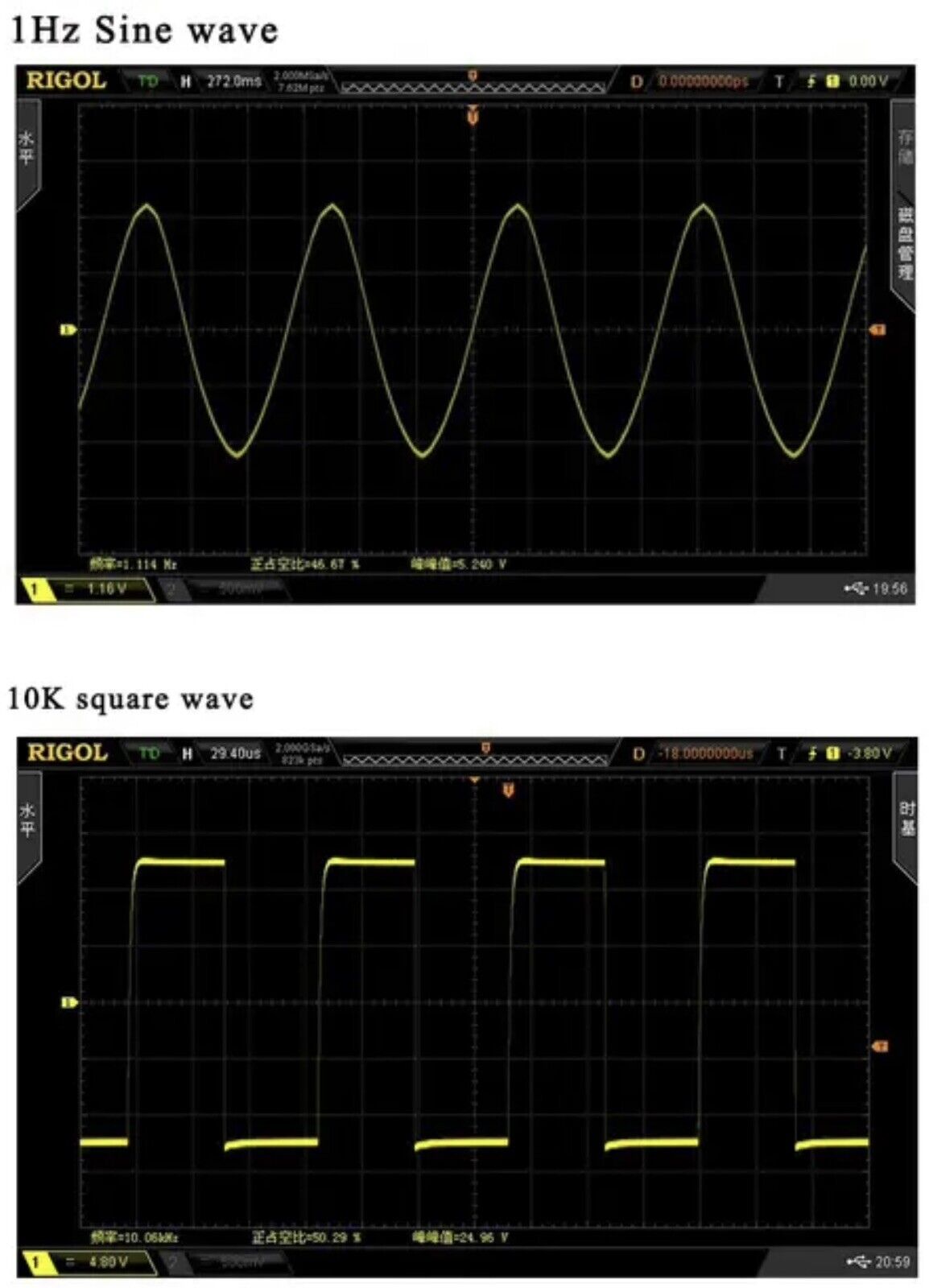

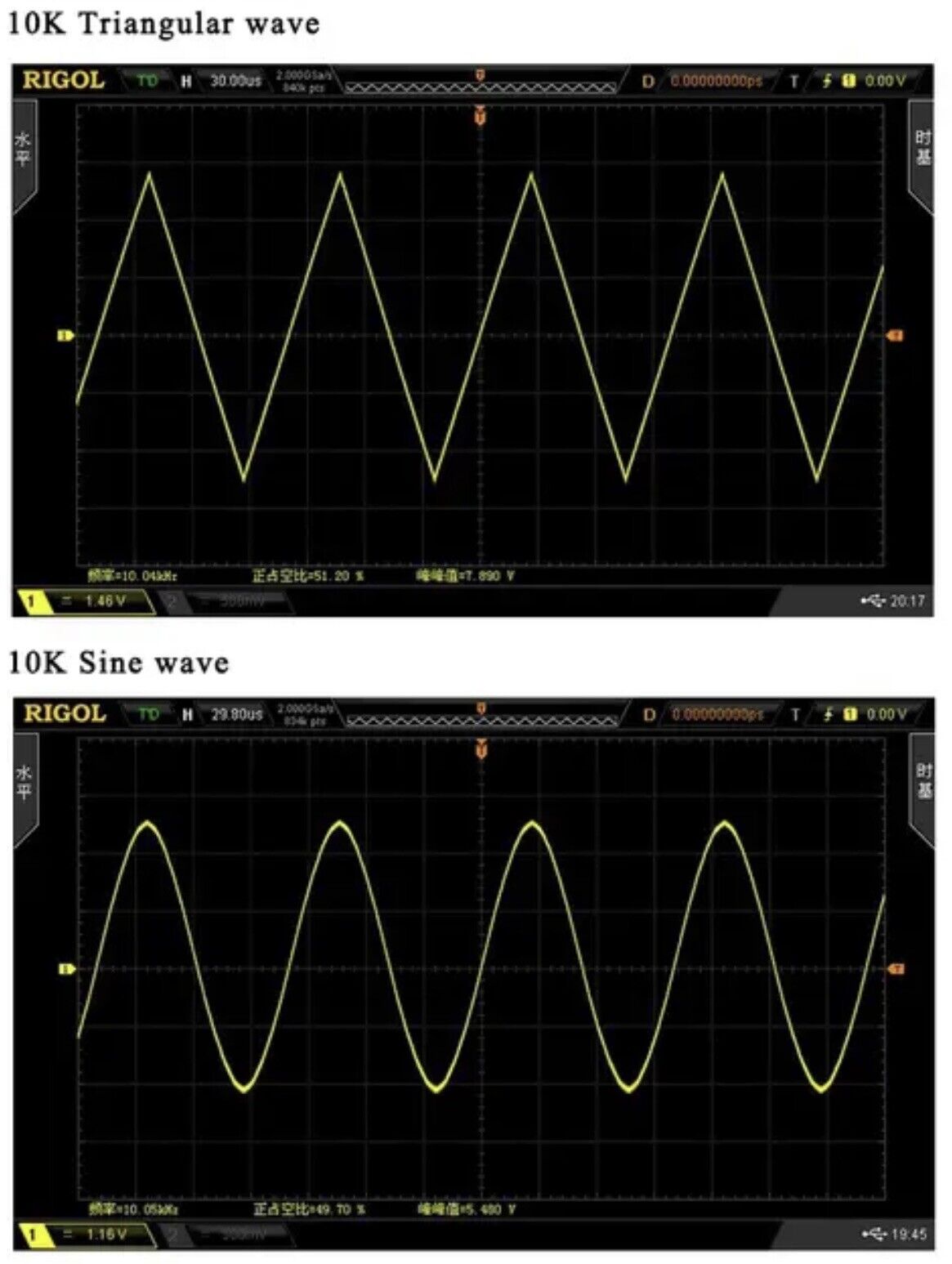

Can output sine/triangle/square/forward and reverse sawtooth waveforms.

Frequency Range: 5Hz~400kHz; Duty Cycle Range: 2~95%(Adjustable)

Supports dual power amplifier without blocking the capacitor to ensure high and low frequency signal distortion.

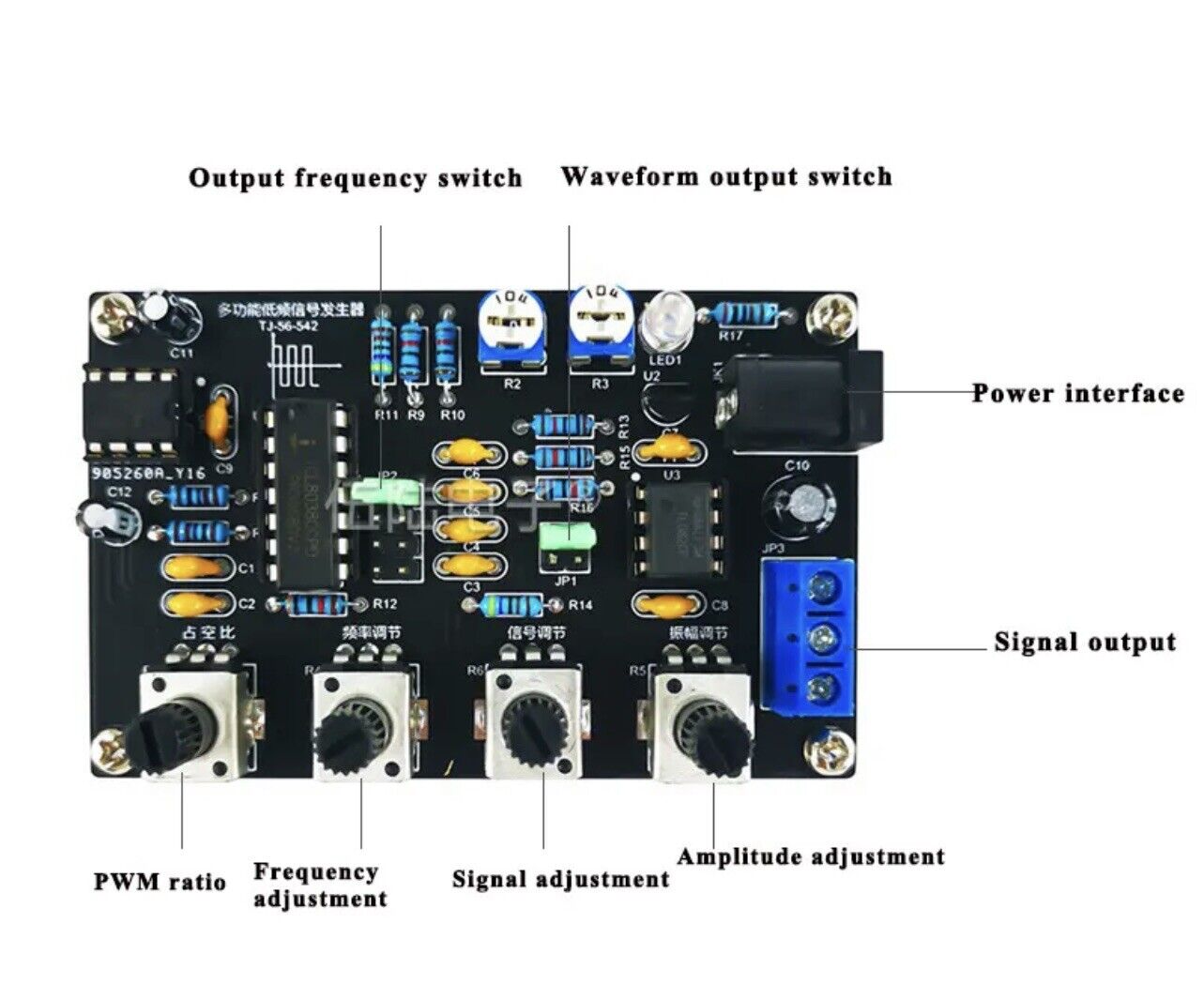

Adjustable frequency and amplitude.

Frequency adjustment features coarse tuning and fine tuning.

All are through hole components, easy to install.

Assembly steps:

User needs to prepare the welding tool at first.

Please be patient until the installation is complete.

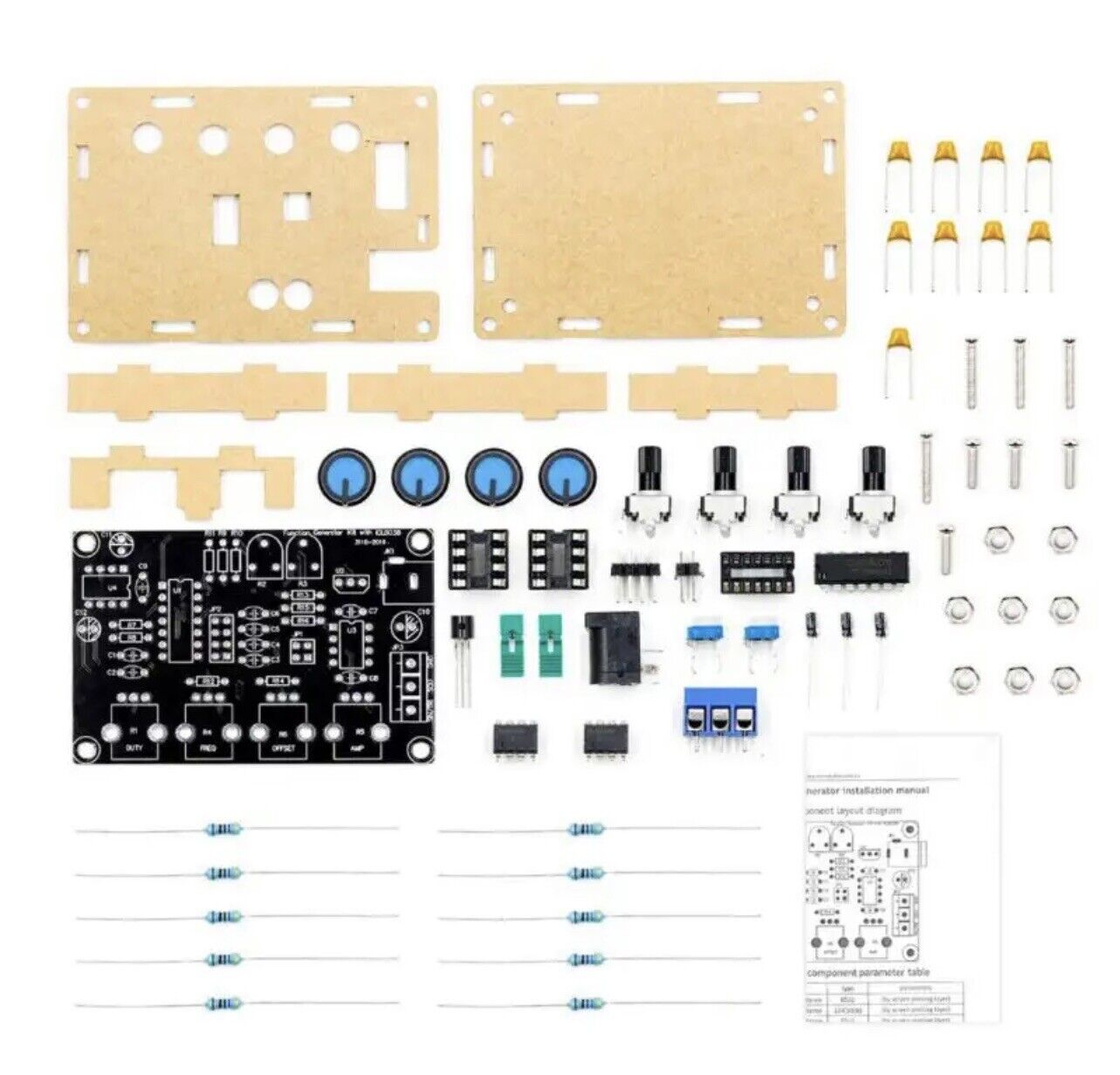

The package is DIY kit.It need finish install by user.

The soldering iron can't touch the components for a long time(1.0 second), otherwise it will damage the components.

Pay attention to the positive and negative of the components. 6>.Strictly prohibit short circuit.

User must install the LED according to the specified rules.Otherwise some LED will not light.

.Install complex components preferentially.

Make sure all components are in right direction and right place.

It is strongly recommended to read the installation manual before starting installation.

Please wear anti-static gloves or anti-static wristbands when installing electronic components.

Note: It's diy kits. Need to solder by yourself.

The package does not include battery.
Due to the light and screen setting difference, the item's color may be slightly different from the pictures.
Please allow slight dimension difference due to different manual measurement.
