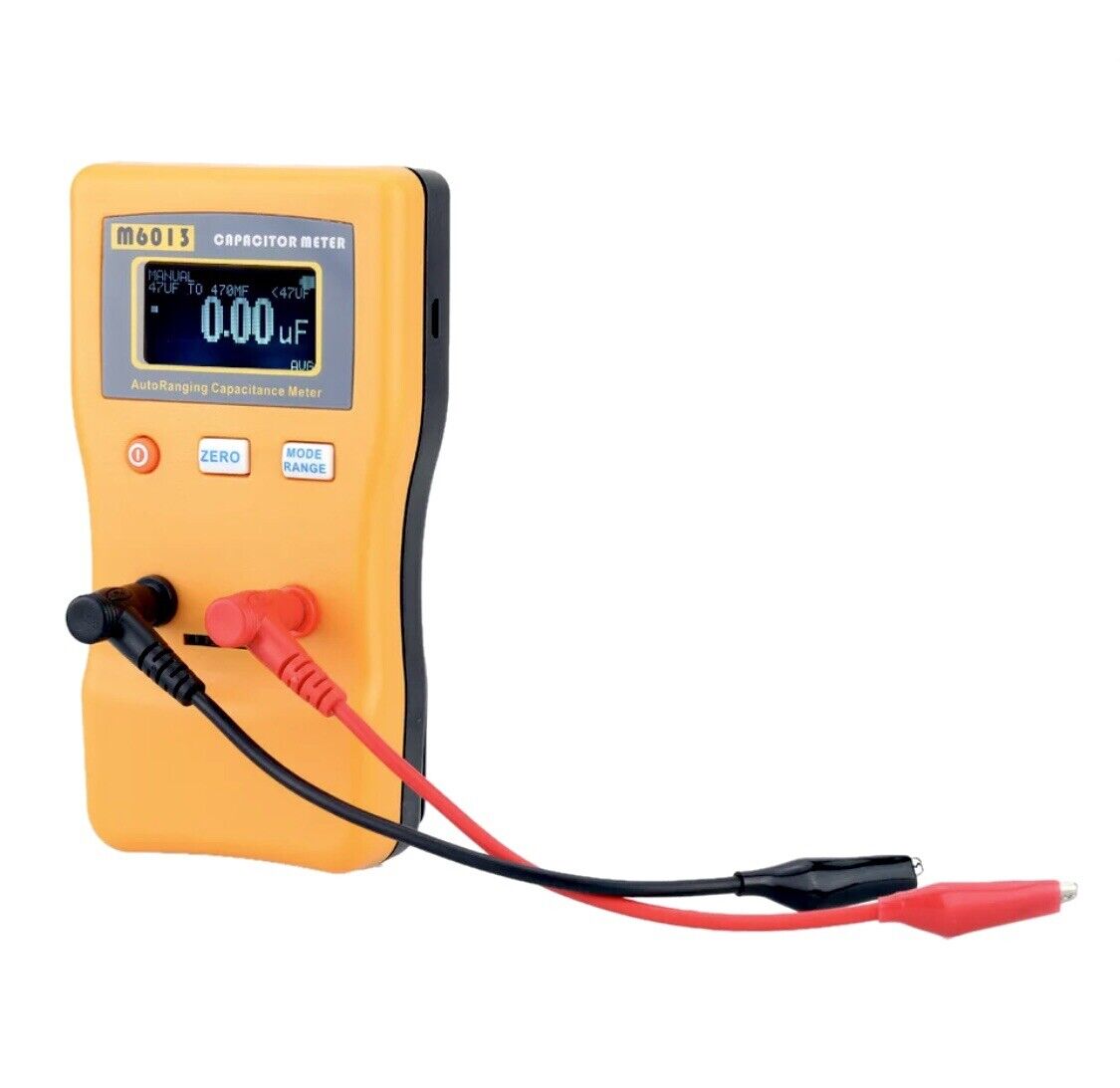

M6013 V2 LCR Inductor & Capacitor Meter Automatic Ranging LC Meter 0.01pF-470mF

Brand: LC Meters

Capacitance Range: 0.01pF-470mF

Model: M6013

Product: Capacitor Meter

MPN: Does Not Apply

Country/Region of Manufacture: China

M6013 LCR Inductor & Capacitor Meter Automatic Ranging LC Meter.

Sent with Australia Post Parcel Post tracking number included.

Description: M6013-V2

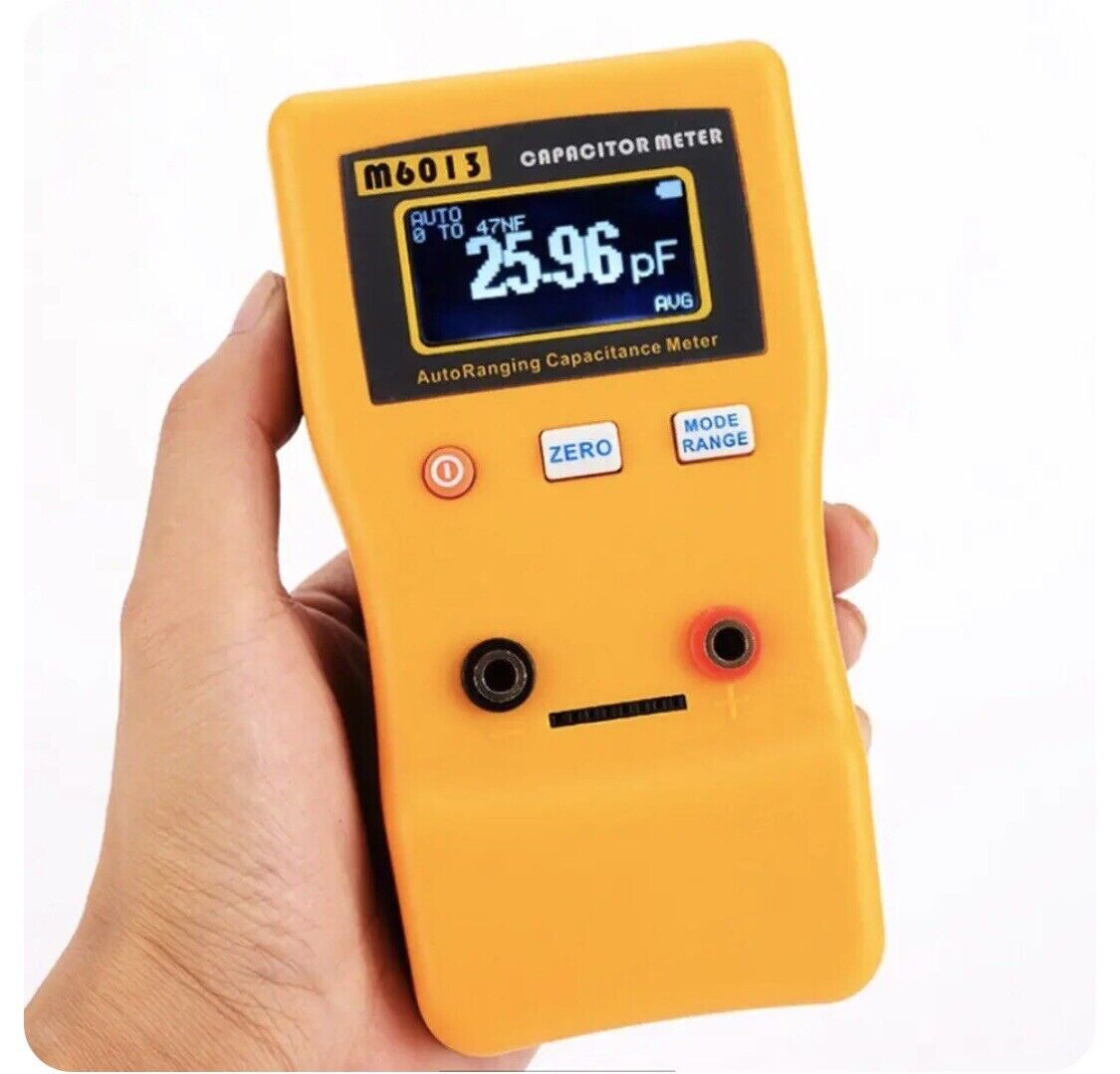

This M6013 V2 is auto-ranging capacitor capacitance meter. Using 128*64 dot matrix LCD, can display 5 digit reading. Large range of measuring 0.01pF to 470mF(470000uF) capacitance, which enough for DIY user and professional engineer usage.

Features:

New large dot matrix LCD, can display 5 digit reading.

Larger measuring range, V2 can read up to 470mF.

More stable on reading, (with auto running averaging function, can read pF more stable and accuracy).

Reading a 2200uF capacitance only takes ~0.2s.

Suitable for DIY user and professional engineer usage.

Can use mirco usb as external power.

Specifications:

Color: Orange

Range Accuracy(After zero, Refresh Time(Manual Mode)

tested with 1,10,100R Auto mode take 0 to 2s, more time

resistor) depends on capacitance value.

0.01pF to 47.000nF 1%+2Digit ~0.2s to 1s

47.00nF to 47.000uF 1%+1Digit ~0.2s to 2s

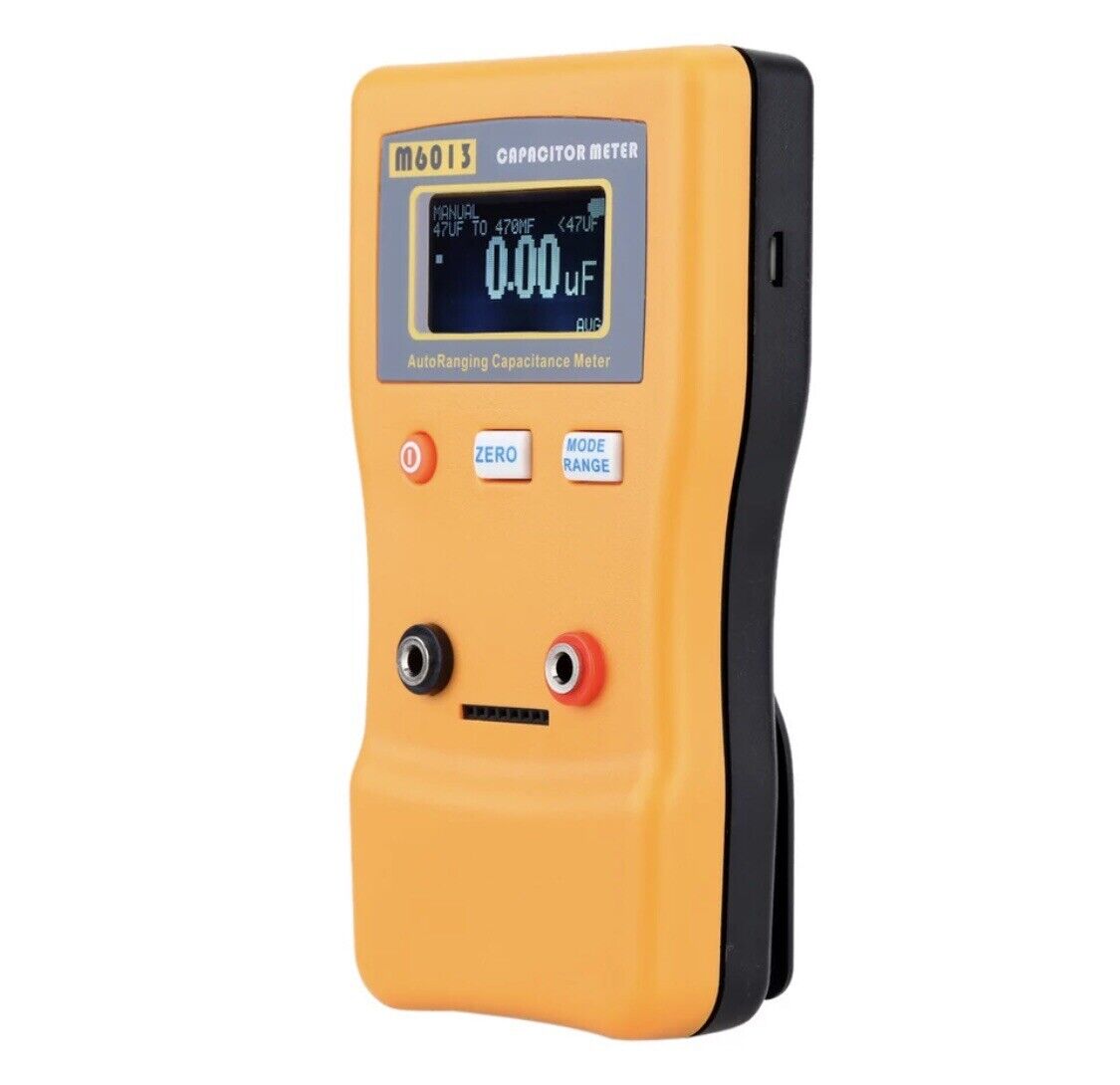

47.00uF to 470.00mF 1 to 3%+1Digit ~0.2s to 30s

Accuracy: Up to 1% (detail on above table)

High Resolution: 5 digit

Measuring Voltage: <0.8V

Clamping Voltage: ~1.25V (open voltage)

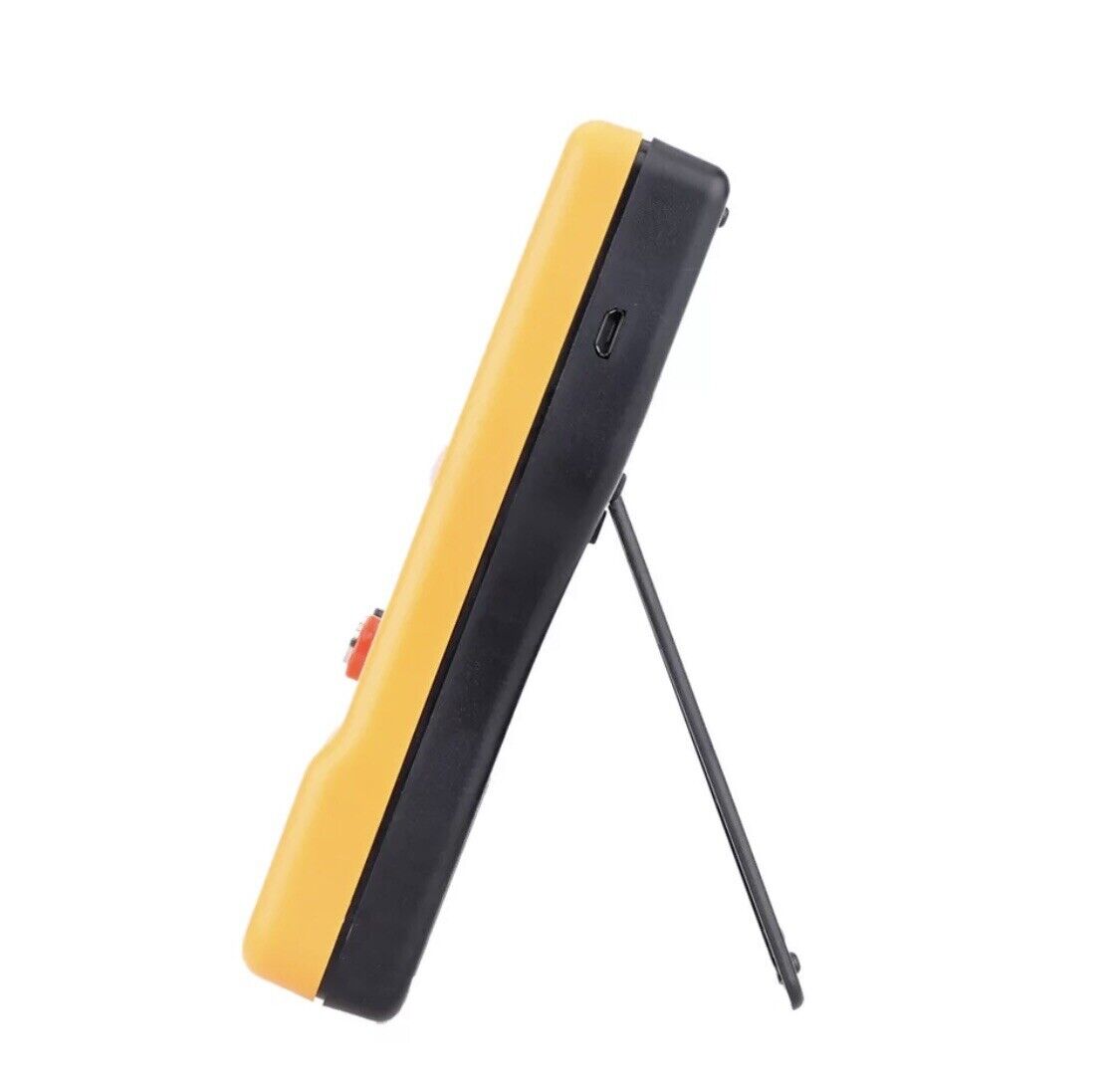

External Power: 5V micro USB

Operating Current: 0.02A

Battery: 2 * AA 1.5V Battery (not included)

Battery Life time: >80 Hours

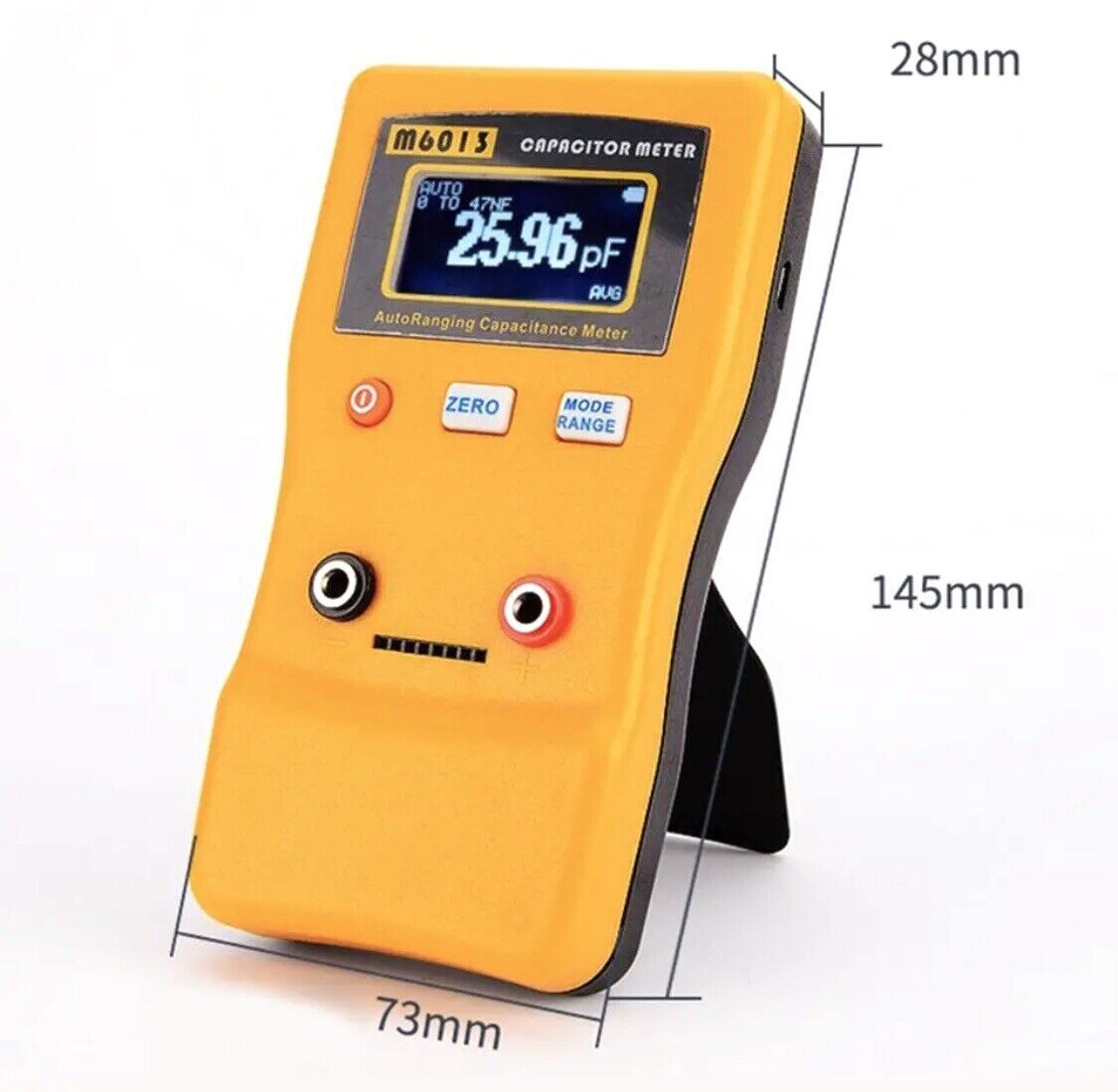

Item Size: Approx 14.5 * 8 * 3cm / 5.7 * 3.1 * 1.2in

Item Weight:Approx138.3g / 4.9oz

Package Size:Approx17 * 9 * 5cm / 6.7 * 3.5 * 2.0in

Package Weight:Approx216g / 7.6oz

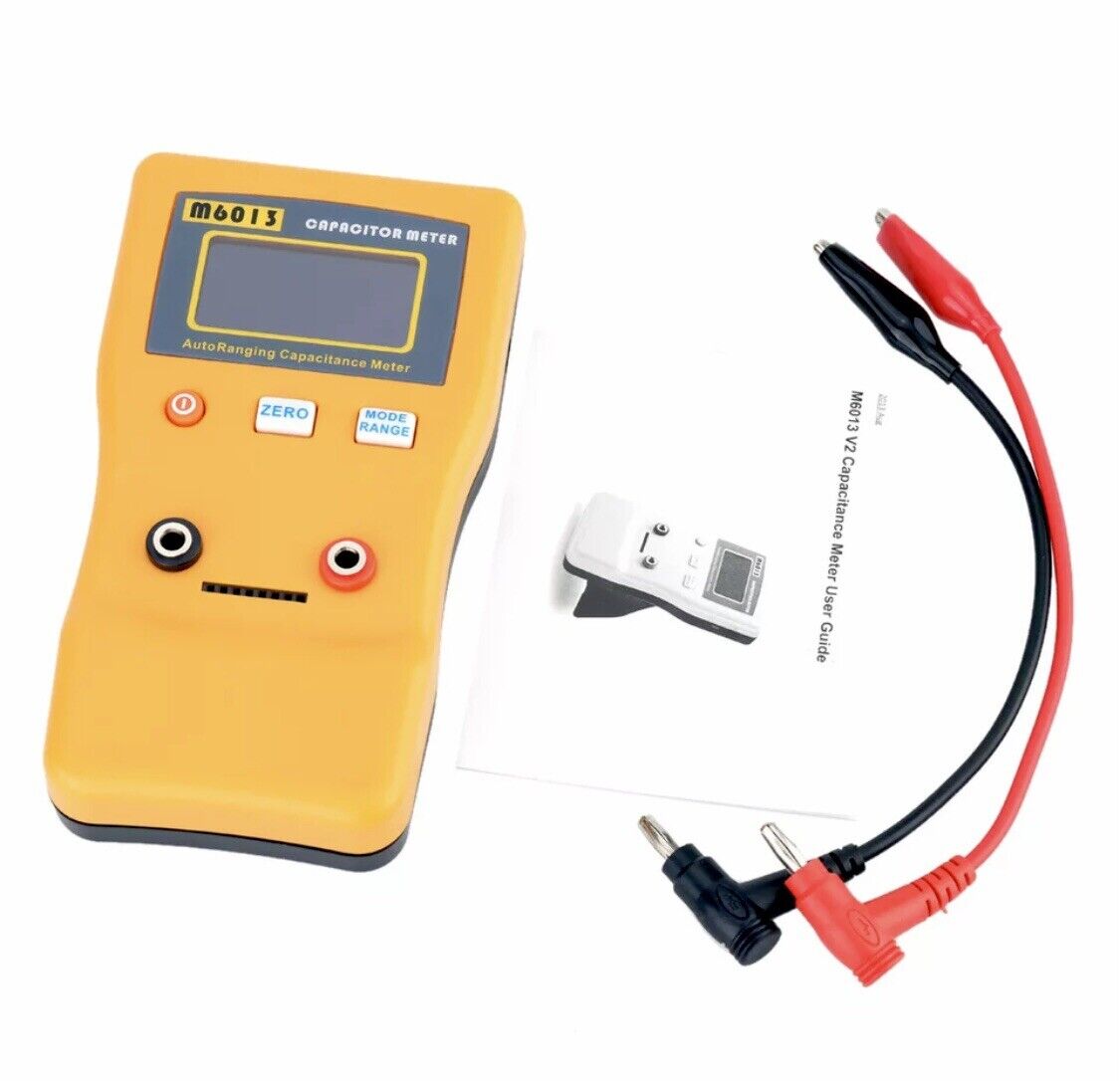

Package List:

1 * Capacitance Meter

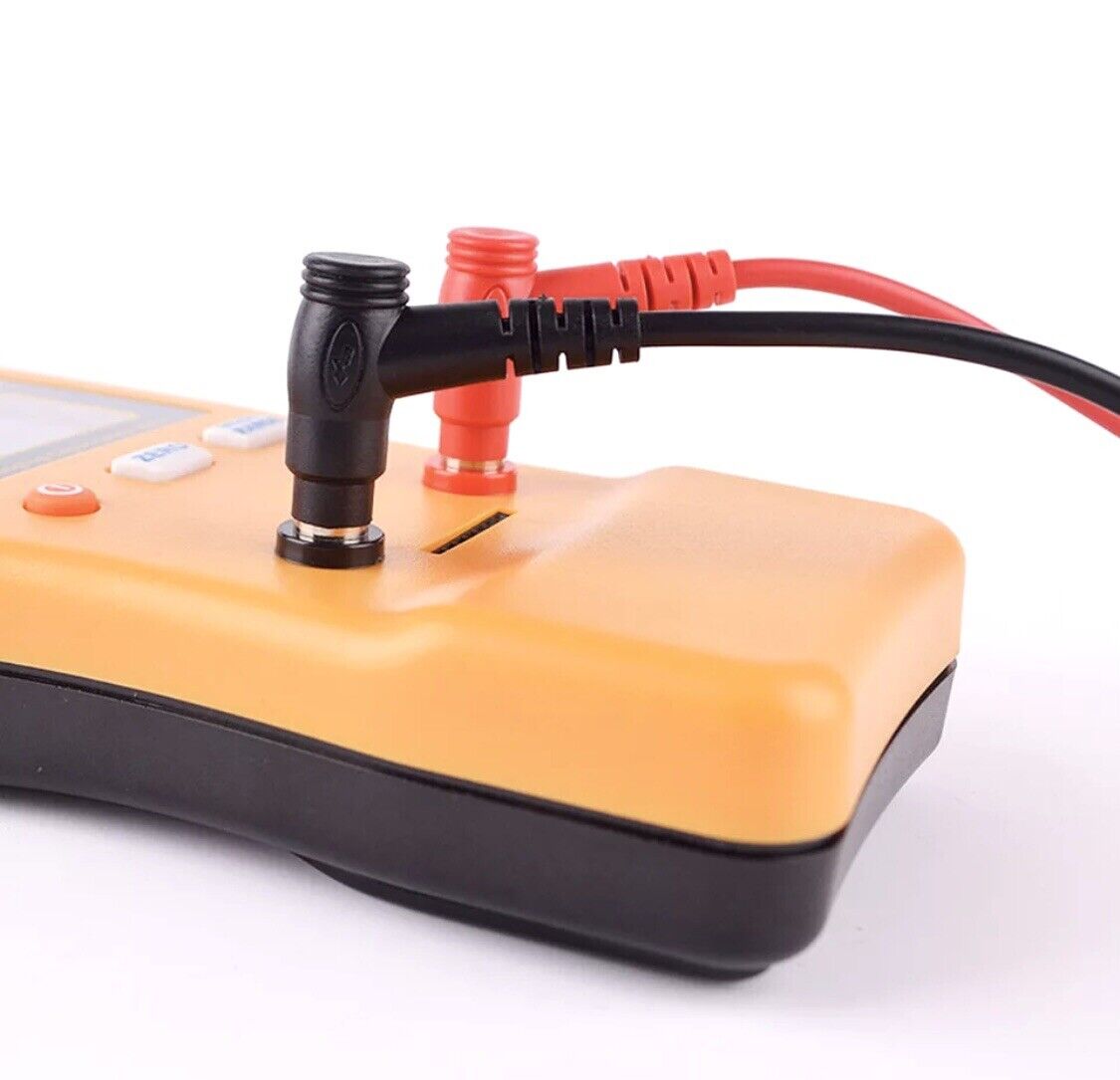

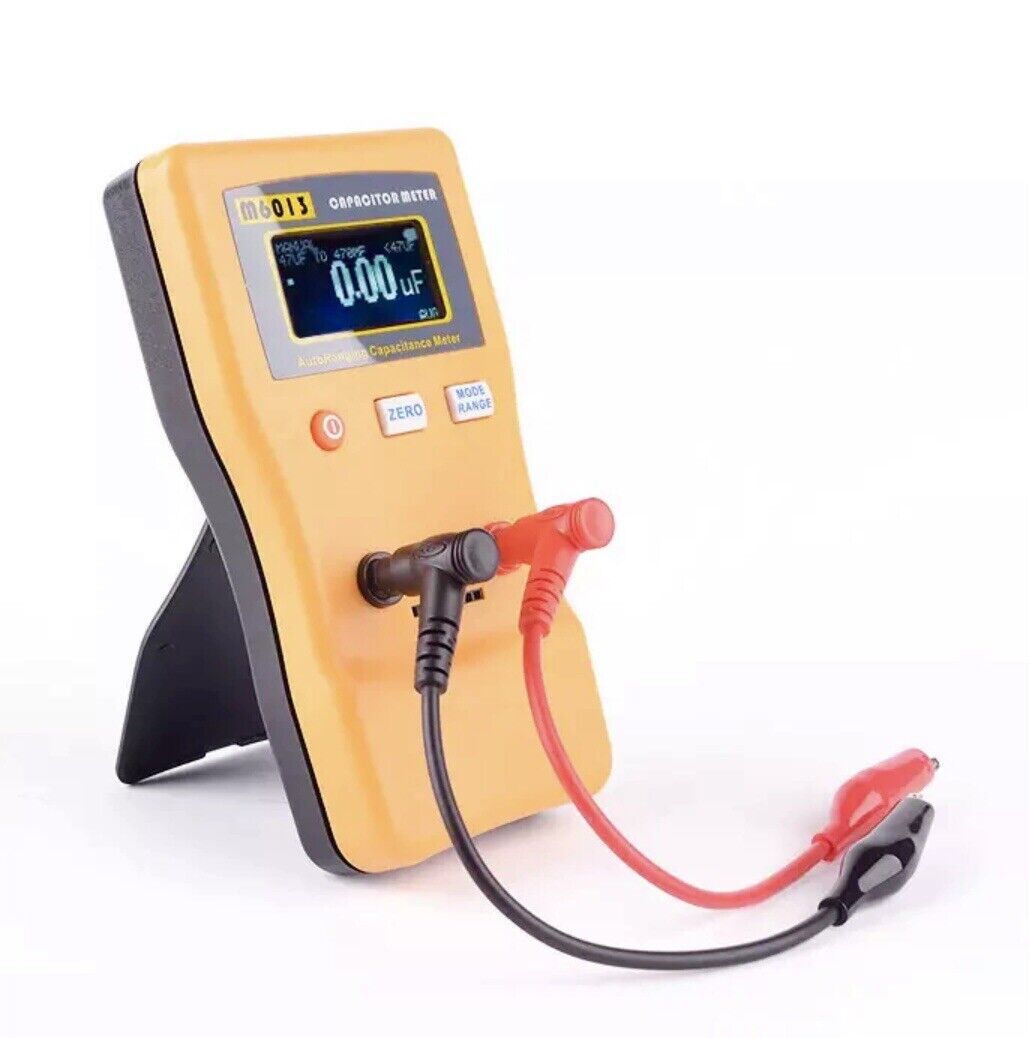

2 * Test Clips

1 * User Manual
